How to fix an iPhone 4 home button
During troubleshooting of the home button, related issues were also discovered.Avoid actions that could compromise the integrity of the device or cause personal injury.Applying WD40 or white spirit directly to the button's exterior is ineffective because the internal button construction prevents these liquids from contacting the electrical contacts.
Due to wear, the iPhone home button can experience functionality issues. The following images illustrate common causes and a straightforward repair method, documented during the servicing of a personal device; this procedure may also be applicable to other iPhone models.
Step 1 | Home Button

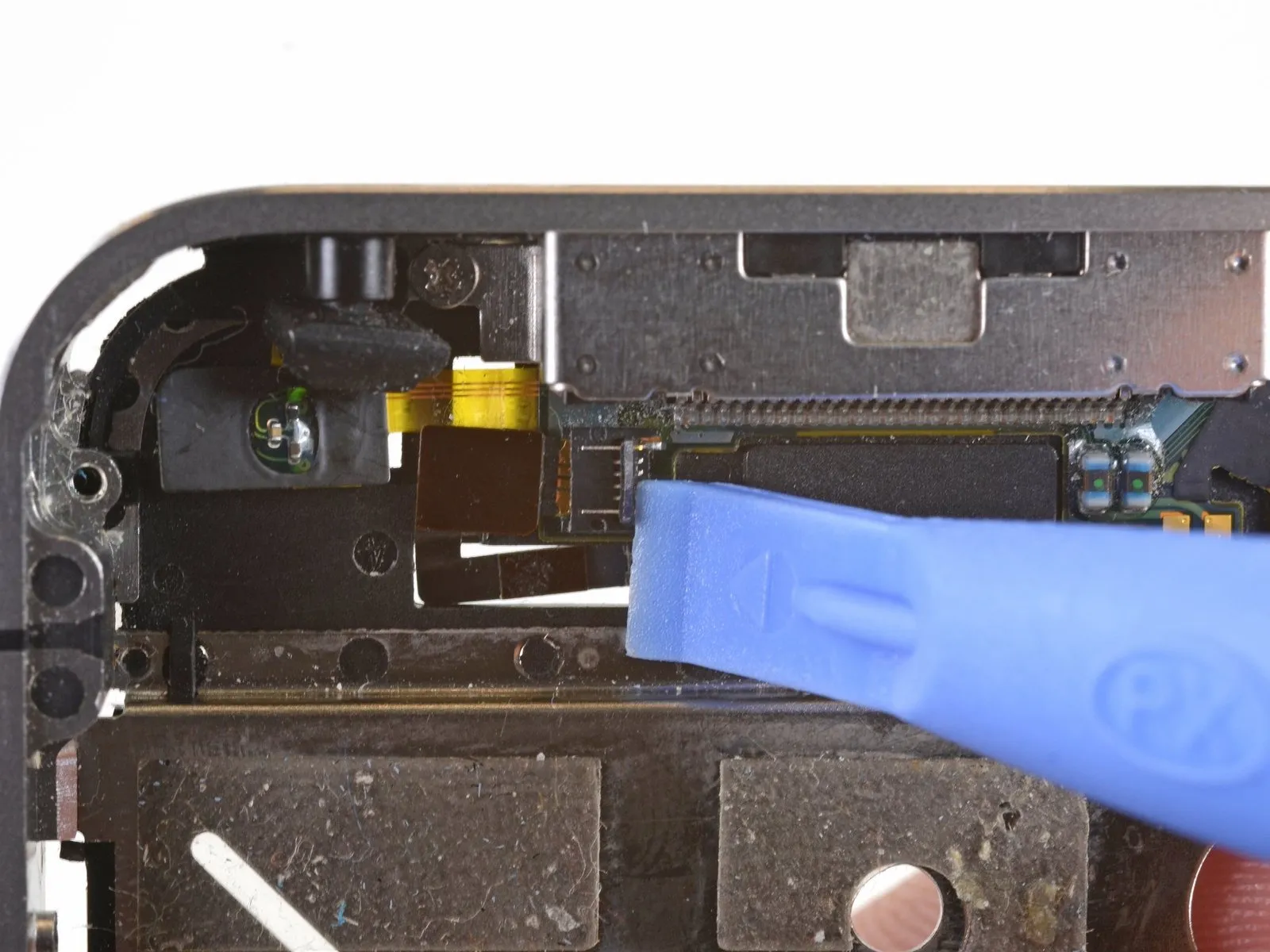

Begin the process by ensuring the 1/4-inch hex key is used to loosen the four retaining screws securing the fan assembly, then carefully detach the fan, noting the presence of the temperature sensor wire and disconnecting it if necessary, remembering to avoid exceeding the 5 lb pull force to prevent damage.Carefully pry up the home button ribbon cable's retaining clip using the edge of an iPod opening tool or your fingernail.
Apply upward force specifically to the cable retainer to release it, avoiding any pressure on the socket.
Apply upward force specifically to the cable retainer to release it, avoiding any pressure on the socket.
Step 2
Using a 5/32-inch hex key, carefully loosen the four retaining screws securing the fan assembly to the motor housing; observe that each screw measures 1/4 inch in length and is made of stainless steel, and be aware that overtightening can strip the threads.Carefully extract the home button ribbon cable from its connector using tweezers.
Exercise caution to avoid stressing the thin and fragile home button ribbon cable; the two small electronic components attached to it are also susceptible to damage from tools like tweezers.
Exercise caution to avoid stressing the thin and fragile home button ribbon cable; the two small electronic components attached to it are also susceptible to damage from tools like tweezers.
Step 3
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring the motor shaft remains aligned and avoiding damage to the threads; observe caution to prevent over-tightening.Carefully guide the ribbon cable connected to the home button through the interior of the device's case, then detach the home button assembly from the iPhone.
A plastic covering sometimes safeguards the home button during installation; use a spudger or fingernail to carefully peel it away.
A plastic covering sometimes safeguards the home button during installation; use a spudger or fingernail to carefully peel it away.
Step 4 | How to fix an iPhone 4 home button
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not overtightened to avoid damaging the plastic; a torque of 6 in-lbs is recommended.Employing a narrow, flexible blade, gently separate the plastic film from the button's rear surface, exercising caution to avoid damage.
Avoid direct contact between your finger and the adhesive material.
Avoid direct contact between your finger and the adhesive material.
Step 5
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring the motor shaft remains aligned and observing the warning against over-tightening that could damage the threads.Use white spirit and cotton swabs to remove the greenish oxide buildup from the button back contacts and the interior surface of the steel cap following disassembly.
Refer to the final image for a close-up view of the cleaned components.
Refer to the final image for a close-up view of the cleaned components.
Step 6
- Ensure the steel cap is centered on the copper contact ring during reassembly. Affix the plastic sticker to the designated recess on the button's rear side.
Ensure the adhesive sticker is securely applied, recognizing that complete adherence to the surface isn't essential, as the glass overlay maintains its alignment.
To prevent adhesive residue on your hands or tools, refrain from direct contact with the glue during disassembly. - Your device is now ready for reassembly; proceed with caution and test the restored home button functionality upon completion.
