iPhone 3G Volume Button Replacement
This guide details the procedure for substituting the plastic volume button cover; it does not address repair or replacement of the underlying electronic volume switches.
Step 1 | Broken Glass
To mitigate the risk of additional shattering and potential injury while performing the repair, secure any cracked display glass with tape.
Completely cover the iPhone's screen with overlapping strips of clear packing tape to protect the display.
To prevent glass fragments from scattering and maintain stability during the display separation process, this technique is essential.
To safeguard your eyes from potential glass fragments that may detach during the repair process, always use safety glasses.
Completely cover the iPhone's screen with overlapping strips of clear packing tape to protect the display.
To prevent glass fragments from scattering and maintain stability during the display separation process, this technique is essential.
To safeguard your eyes from potential glass fragments that may detach during the repair process, always use safety glasses.
Step 2 | Remove the bottom screws
Using a Phillips #00 screwdriver, detach the two screws, each measuring 3.7mm, located at the dock connector interface.
Step 3 | Loosen the display
For improved handling and safety, detach the metal handle from the suction cup; gripping the base of the suction cup directly is recommended.
Exercise extreme caution during iPhone disassembly to prevent damage to the delicate display cables.
A rubber gasket is situated where the silver front bezel meets the black display assembly; separation of the iPhone’s display assembly necessitates applying moderate force, and rocking a suction cup in a back-and-forth motion can facilitate this process.
Carefully lift the lower edge of the iPhone’s display assembly by applying gentle upward force with a suction cup positioned close to the Home button.
When the display assembly's surface prevents proper suction cup attachment due to damage, secure it with a robust adhesive tape, like duct tape or packing tape, to ensure a firm hold.
Exercise extreme caution during iPhone disassembly to prevent damage to the delicate display cables.
A rubber gasket is situated where the silver front bezel meets the black display assembly; separation of the iPhone’s display assembly necessitates applying moderate force, and rocking a suction cup in a back-and-forth motion can facilitate this process.
Carefully lift the lower edge of the iPhone’s display assembly by applying gentle upward force with a suction cup positioned close to the Home button.
When the display assembly's surface prevents proper suction cup attachment due to damage, secure it with a robust adhesive tape, like duct tape or packing tape, to ensure a firm hold.
Step 4 | Pull up the display
Because multiple cables secure the display assembly to the iPhone's internal components, avoid complete separation at this stage.
Tilt the display assembly upwards, achieving roughly a 45-degree angle.
Tilt the display assembly upwards, achieving roughly a 45-degree angle.
Step 5 | Disconnect cable 1
Before fully separating the display assembly from the iPhone, be aware that multiple cables continue to secure the connection and premature removal could cause damage.
Using one hand to secure the display assembly, carefully detach the ribbon cable identified as "1"—specifically the display cable—with a spudger held in your other hand.
To prevent damage requiring display replacement, carefully guide the spudger beneath the ribbon cable, accessing it from the left side, referencing the provided image for proper positioning. Attempting to lift the ribbon from the right risks damaging the ribbon connector.
Release all connectors, with the exception of connector "3" referenced in step 7, by lifting them vertically.
Using one hand to secure the display assembly, carefully detach the ribbon cable identified as "1"—specifically the display cable—with a spudger held in your other hand.
To prevent damage requiring display replacement, carefully guide the spudger beneath the ribbon cable, accessing it from the left side, referencing the provided image for proper positioning. Attempting to lift the ribbon from the right risks damaging the ribbon connector.
Release all connectors, with the exception of connector "3" referenced in step 7, by lifting them vertically.
Step 6 | Disconnect cable 2
Position the display assembly so it stands nearly upright, facilitating access for disconnecting the remaining cables.
Carefully detach the ribbon cable identified as "2"—this cable connects to the capacitive touch panel—using a spudger.
Carefully detach the ribbon cable identified as "2"—this cable connects to the capacitive touch panel—using a spudger.
Step 7 | Disconnect cable 3
Certain international (Chinese, European) 3G models lack the plastic tab used to release the ribbon cable; instead, manually slide the cable toward the display to detach it. During reassembly, ensure the ribbon cable is firmly pressed into its connector.
Connector "3" on certain iPhone models exhibits an inverted color scheme, featuring a black plastic tab and a white connector; ensure correct tab manipulation to prevent connector damage.
Employ a spudger to lift the white plastic tab, which secures ribbon cable "3" by rotating it upward 90 degrees, thereby disengaging the cable.
Carefully disconnect the black ribbon cable by sliding it from its connector, then detach the display assembly from the iPhone.
Connector "3" on certain iPhone models exhibits an inverted color scheme, featuring a black plastic tab and a white connector; ensure correct tab manipulation to prevent connector damage.
Employ a spudger to lift the white plastic tab, which secures ribbon cable "3" by rotating it upward 90 degrees, thereby disengaging the cable.
Carefully disconnect the black ribbon cable by sliding it from its connector, then detach the display assembly from the iPhone.
Step 8 | Remove the SIM card tray
Using a SIM eject tool or a straightened paper clip, gently push into the small aperture located adjacent to the headphone jack.
Apply pressure to the ejection tool until the SIM card tray disengages.
Using your fingers, carefully extract the SIM card tray from the iPhone by sliding it outward.
Apply pressure to the ejection tool until the SIM card tray disengages.
Using your fingers, carefully extract the SIM card tray from the iPhone by sliding it outward.
Step 9 | Disconnect cable 4
Carefully detach the ribbon cable identified with the "4" label using a spudger.
Step 10 | Disconnect cable 5
Carefully detach the ribbon cable identified as "5" using a spudger.
Step 11 | Disconnect cables 6 and 7
- Carefully detach the ribbon cable identified with the number "6" using a spudger.
For iPhone 3GS models, consult the visual guide provided in the second image and employ a spudger to carefully detach the ribbon cable identified as "7."
Before pressing the ribbon cables into place, carefully verify that their contacts match the corresponding sockets on the motherboard; use a magnifying glass or jeweler's loupe if necessary to ensure precise alignment.
Step 12 | Remove the logic board screws
- Using the appropriate screwdriver, detach the eight screws.
The logic board is affixed to the rear case using five screws; these are 2.3 mm in length, feature partial threads, and require a Phillips #00 screwdriver for removal.
Use two Phillips #00 screwdrivers to fasten the logic board and camera, employing 2.3 mm screws that have full threads.
Beneath the "Do not remove" sticker, you'll find a 2.9 mm Phillips #00 screw.
When putting everything back together, ensure the 1/4-20 x 1-1/4-inch bolts are tightened to 8 Nm using a torque wrench, and that the retaining clip is properly seated in the groove to prevent dislodgement.
The camera is secured by a metal strip affixed with the orange-highlighted screw located on the bottom right side.
Before securing the camera with the full-thread Phillips #00 screw, measuring 2.3 mm, ensure the strip is correctly positioned.
Step 13 | Loosen the camera
- Carefully leverage the camera module from its rear case housing using a spudger, avoiding any forceful movements.
Due to its connection to the logic board's base, complete camera removal is currently not possible.
Step 14 | Remove the logic board
- Carefully lift the logic board's edge, near the dock connector, using a spudger to avoid damage.
Near the 'do not remove' label on the logic board, a fragile, small gold grounding tab is located; exercise extreme caution to prevent it from catching on the case's edge during logic board removal, as it is prone to breakage. Should you encounter signal issues following logic board separation, inspect this ground tab.
Verify that each of the screws holding the logic board in place has been completely unscrewed if you encounter difficulty separating it from the device.
Step 15
Carefully advance the logic board in the direction of the dock connector to disengage it from the iPhone's internal housing.
Before securing the logic board within the device enclosure following battery installation, attach the camera connector to the logic board. Ensure proper alignment of the logic board’s upper portion, specifically the area housing the SIM tray, before fully seating the entire board. Failure to do so may result in SIM card slot misalignment; after the upper section is correctly positioned, the remaining portion of the board can be carefully adjusted into its final location.
Proper logic board installation is confirmed by observing that the SIM tray lines up with the iPhone case’s designated slot and the camera module fits flush within its housing.
Step 16 | Loosen the battery
Carefully tighten the four M4x12mm screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 Nm is applied with a torque screwdriver.
- Carefully lift the battery from the rear case using a spudger, as it is secured by an adhesive strip that runs along its edges.
- Employing solely the provided plastic pull-tab to detach the battery risks causing damage due to bending; avoid this practice.
- Disconnecting the battery isn't required for GPS antenna replacement; however, it creates additional working room if you also need to disassemble the headphone assembly, a step that isn't essential for the antenna replacement itself.
- The iPhone battery is secured to the rear enclosure using a low-strength adhesive, which typically remains adhered to the battery during removal. If your new battery has pre-applied adhesive, no further action is needed; otherwise, carefully move the adhesive from the original battery to the replacement battery.
- To release a battery that is stuck to the back cover, carefully introduce a small amount of isopropyl alcohol with a concentration exceeding 90% between the battery's edge and the case. Let the alcohol sit for approximately one minute to dissolve the adhesive. Then, use the spudger's flat end to carefully pry up the battery. Ensure the alcohol completely evaporates before proceeding with the new battery installation.
- To avoid damage, do not use excessive force when removing the battery; instead, add additional alcohol droplets to loosen the adhesive if necessary. Ensure the pry tool does not puncture or warp the battery during removal.
- To facilitate battery separation, apply gentle warmth to the case's rear surface using a hair dryer or heat gun, ensuring the setting is at its lowest intensity, which softens the adhesive securing the battery.
- To prevent battery ignition, avoid exposing the iPhone to excessive heat.
Step 17 | Headphone Jack
Carefully align the 4mm diameter dowel pins, ensuring they are fully seated within the corresponding holes on both the upper and lower chassis sections, then secure the assembly with the provided M3 x 6mm screws using a 3mm hex key, observing caution to avoid over-tightening.
- Using a Phillips #00 screwdriver, detach the on/off switch from the front bezel by unscrewing the two screws that hold it in place.
- Verify the switch's extension during replacement; a tiny plastic spacer is affixed inside the button and can detach during cleaning. Absence of this spacer may prevent sufficient button projection for operation. If the spacer is missing, substitute it with a piece of rigid plastic approximately the same thickness, such as material from a shirt box lid.
Step 18
Carefully align the 4mm hex key to the setscrew, then use the hex key to tighten the setscrew until it is snug, ensuring the motor shaft remains securely positioned.
Gently lift the flexible, multi-wire orange cable from the back panel, exercising caution to avoid damage.
Exercise extreme caution when handling the ribbon cable, as it is susceptible to damage.
Gently lift the flexible, multi-wire orange cable from the back panel, exercising caution to avoid damage.
Exercise extreme caution when handling the ribbon cable, as it is susceptible to damage.
Step 19
Carefully tighten the four M4x12mm screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 Nm is applied with a torque screwdriver.
Using the appropriate screwdriver, detach the four screws.
To detach the rear case, remove the three Phillips #00 screws—each measuring 1.8 mm—that fasten the headphone jack and GPS antenna. Be sure to observe the sequence of screw removal, as the screw on the left side features a noticeably larger head.
A plastic loop situated close to the headphone jack secures a 3.8 mm Phillips #00 screw.
Using the appropriate screwdriver, detach the four screws.
To detach the rear case, remove the three Phillips #00 screws—each measuring 1.8 mm—that fasten the headphone jack and GPS antenna. Be sure to observe the sequence of screw removal, as the screw on the left side features a noticeably larger head.
A plastic loop situated close to the headphone jack secures a 3.8 mm Phillips #00 screw.
Step 20
Using a 5/32-inch hex key, carefully tighten the four M4x8 screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
Using a Phillips #00 screwdriver, detach the four screws that hold the volume and mute switch in place.
The mute switch assembly is located directly beneath the volume switch assembly; during disassembly, carefully retain the small, flexible cushioning pad affixed to the mute switch, as its absence will result in a loose fit upon reassembly.
Ensure the mute switch is set to "off" while tightening its screws. Verify the switch's extension when activated; insufficient projection indicates improper assembly alignment. Inspect the white gap between the switch frame and bezel, specifically near the 6 o'clock position, to confirm correct positioning. Note that one screw is longer than the remaining three and account for this during reassembly.
Using a Phillips #00 screwdriver, detach the four screws that hold the volume and mute switch in place.
The mute switch assembly is located directly beneath the volume switch assembly; during disassembly, carefully retain the small, flexible cushioning pad affixed to the mute switch, as its absence will result in a loose fit upon reassembly.
Ensure the mute switch is set to "off" while tightening its screws. Verify the switch's extension when activated; insufficient projection indicates improper assembly alignment. Inspect the white gap between the switch frame and bezel, specifically near the 6 o'clock position, to confirm correct positioning. Note that one screw is longer than the remaining three and account for this during reassembly.
Step 21
Gently separate the volume button assembly from the iPhone's side, then detach the orange ribbon cable from the back cover, exercising caution as it's fragile and prone to damage.
Step 22
Gently raise the headphone jack component from its position within the iPhone.
To facilitate installation of the replacement mute button, slide the green mute switch downward, positioning it towards the rear of the iPhone and engaging the mute function.
To facilitate installation of the replacement mute button, slide the green mute switch downward, positioning it towards the rear of the iPhone and engaging the mute function.
Step 23 | Volume Button

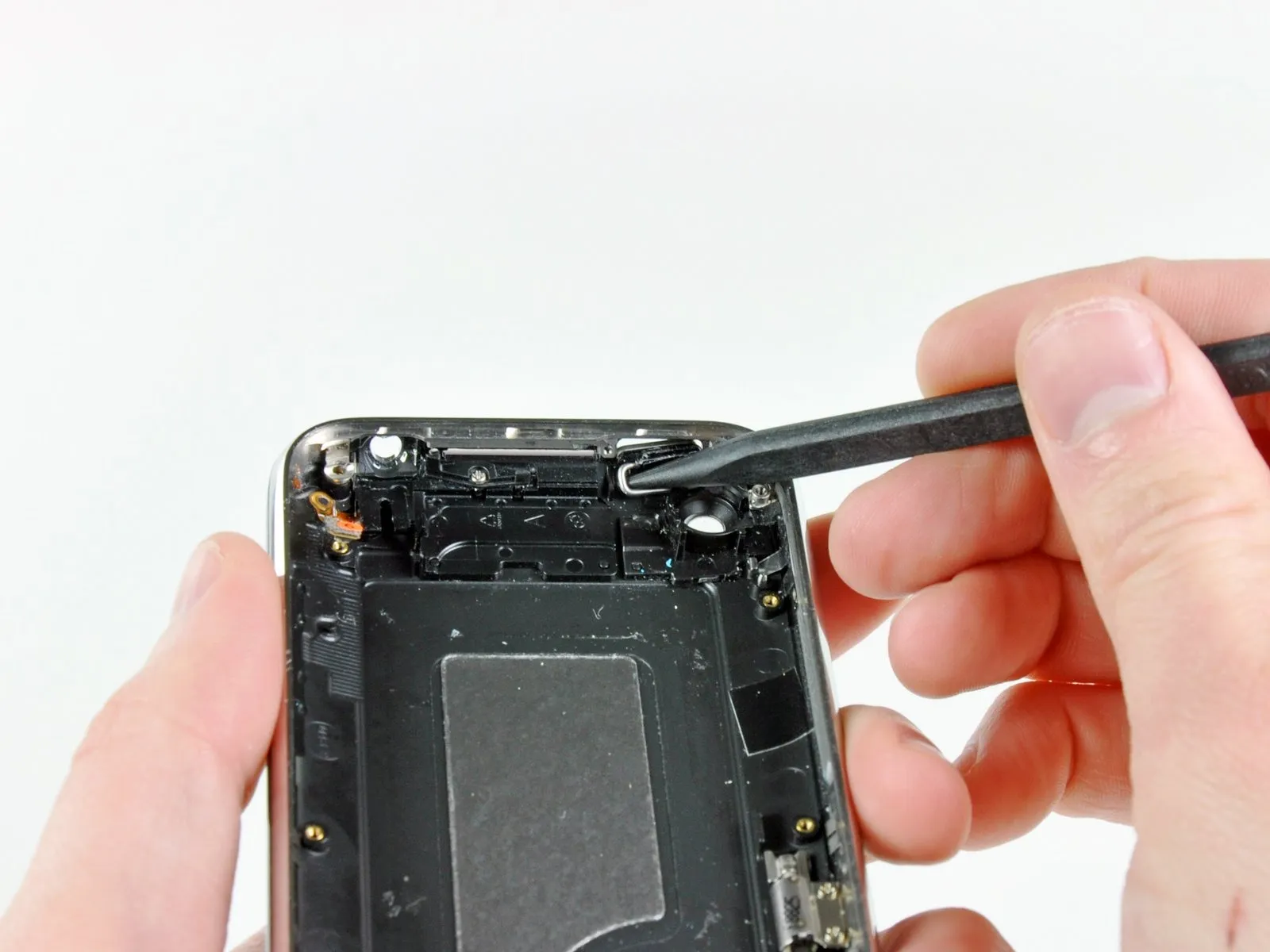

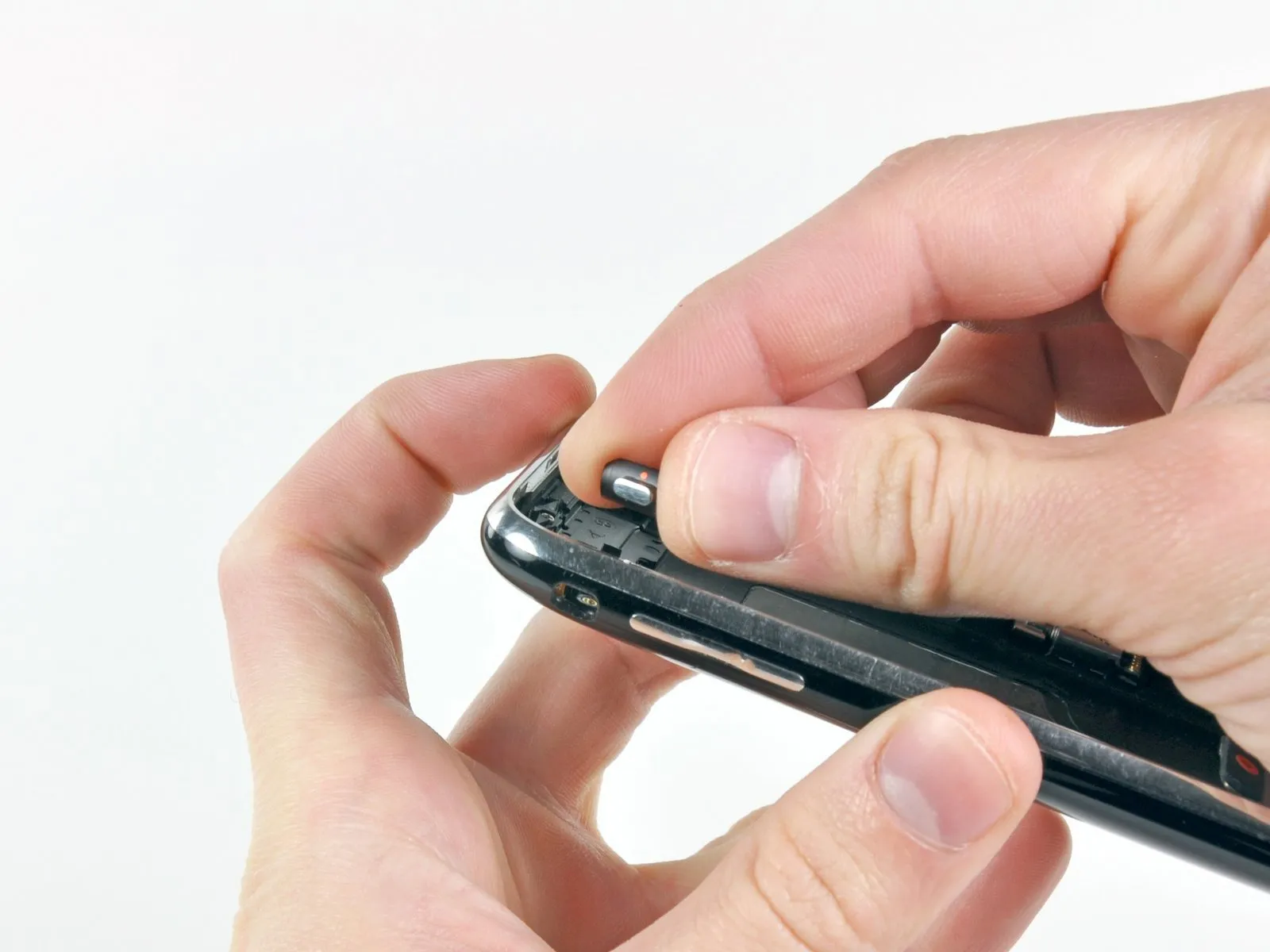

Carefully detach the mute button and power button if they are not already dislodged from the rear case.
Step 24

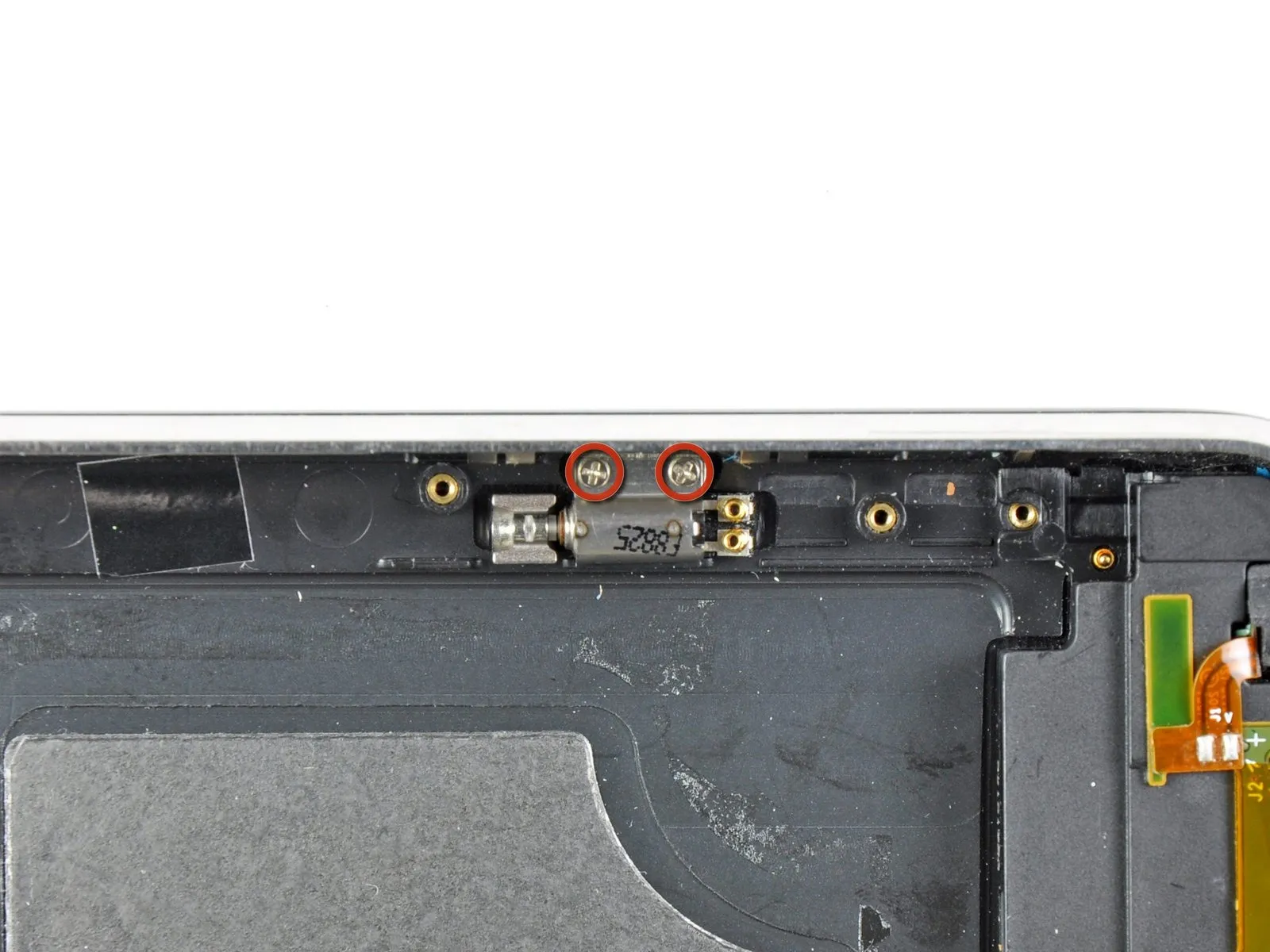

Detach the vibrator from the back panel by unscrewing the two Phillips head fasteners, size #00.

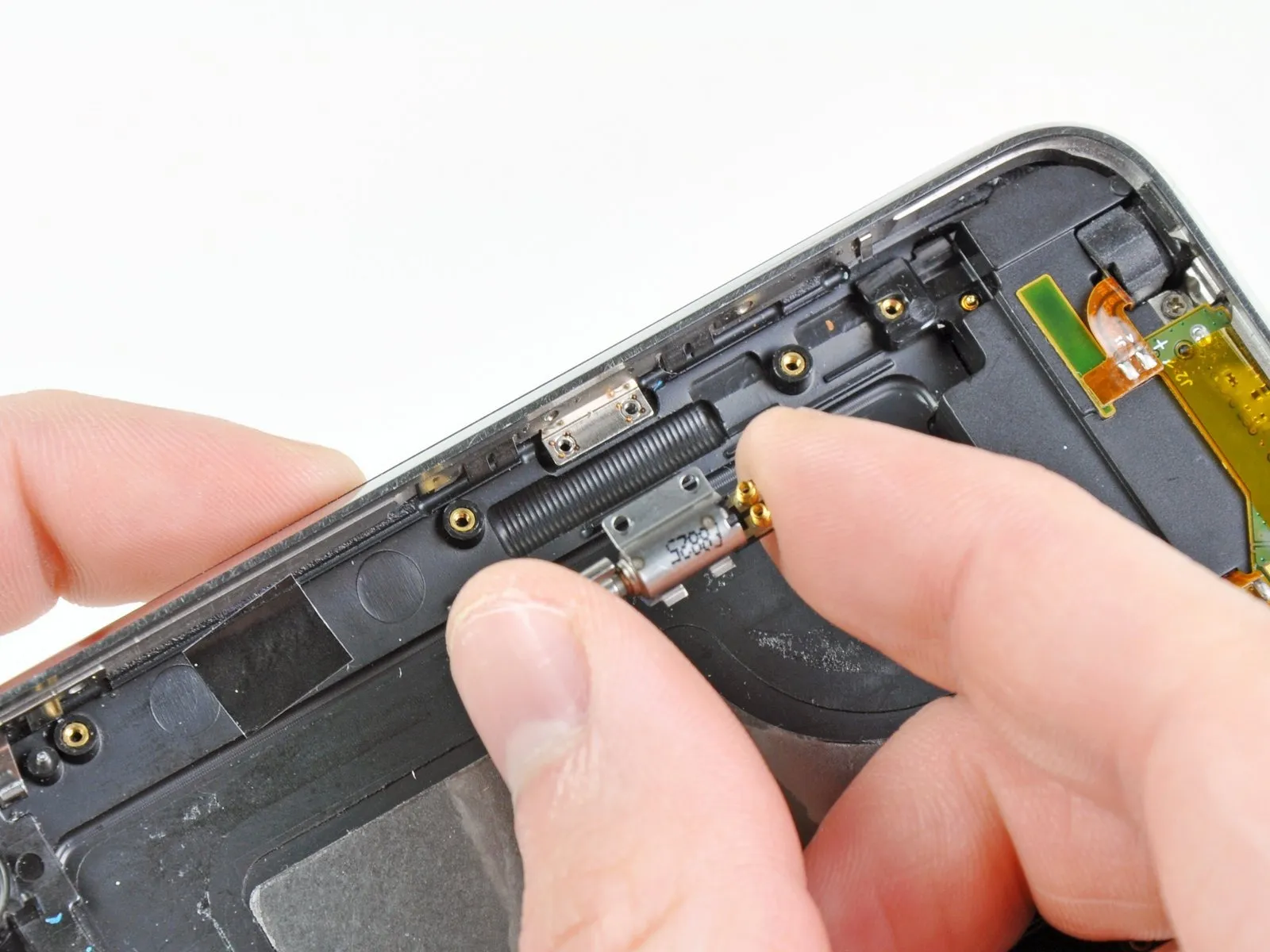

Detach the vibrator assembly from the back panel.
Detach the vibrator assembly from the back panel.
Step 25

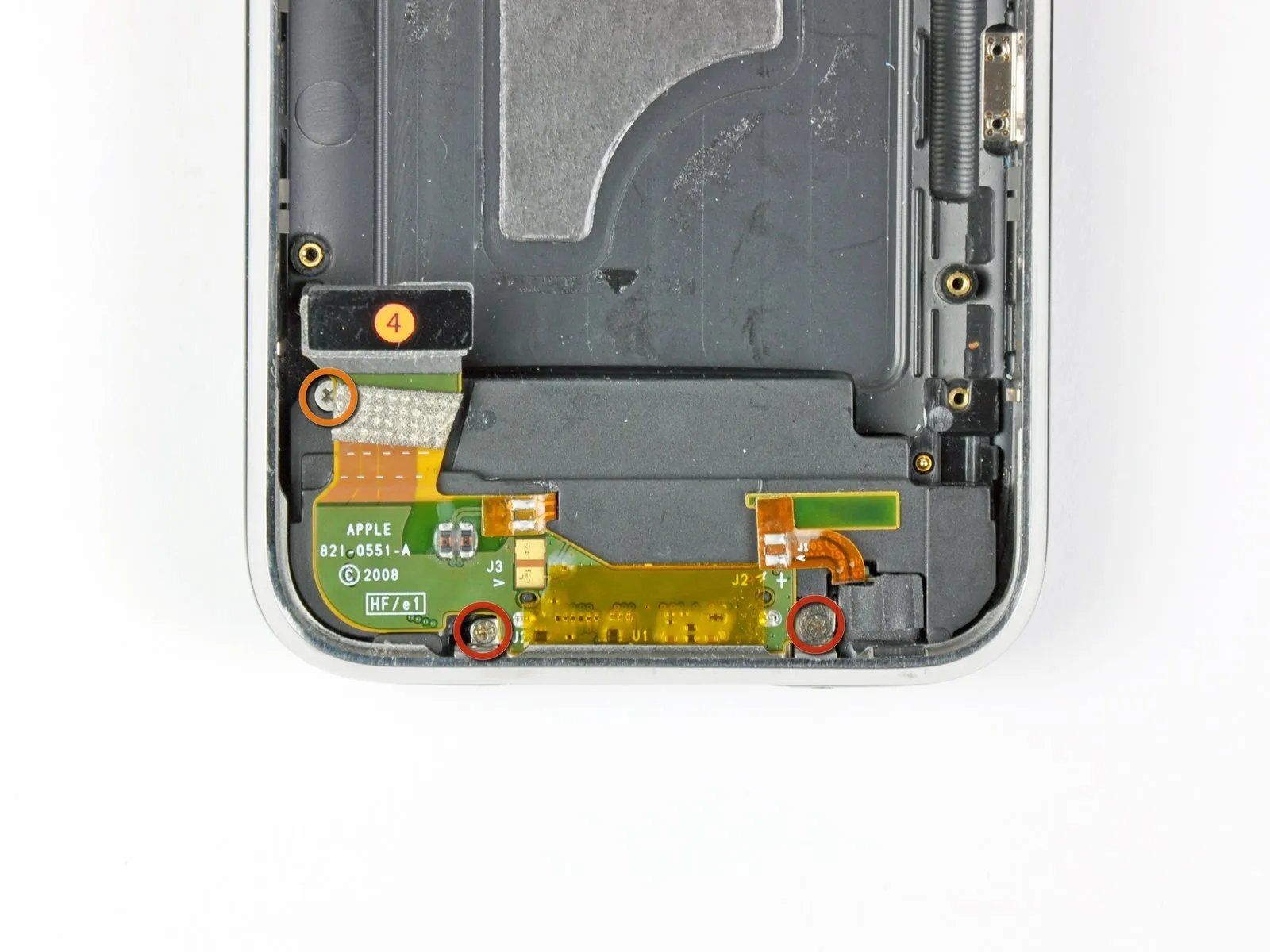

Using the appropriate screwdriver, detach the three screws.
Secure the dock connector with two Phillips #00 screws, each measuring 1.5 mm, positioned one on each side.
Locate the ribbon cable marked with the identifier "4," and secure it with a Phillips #00 screwdriver to release a 2.4 mm screw.

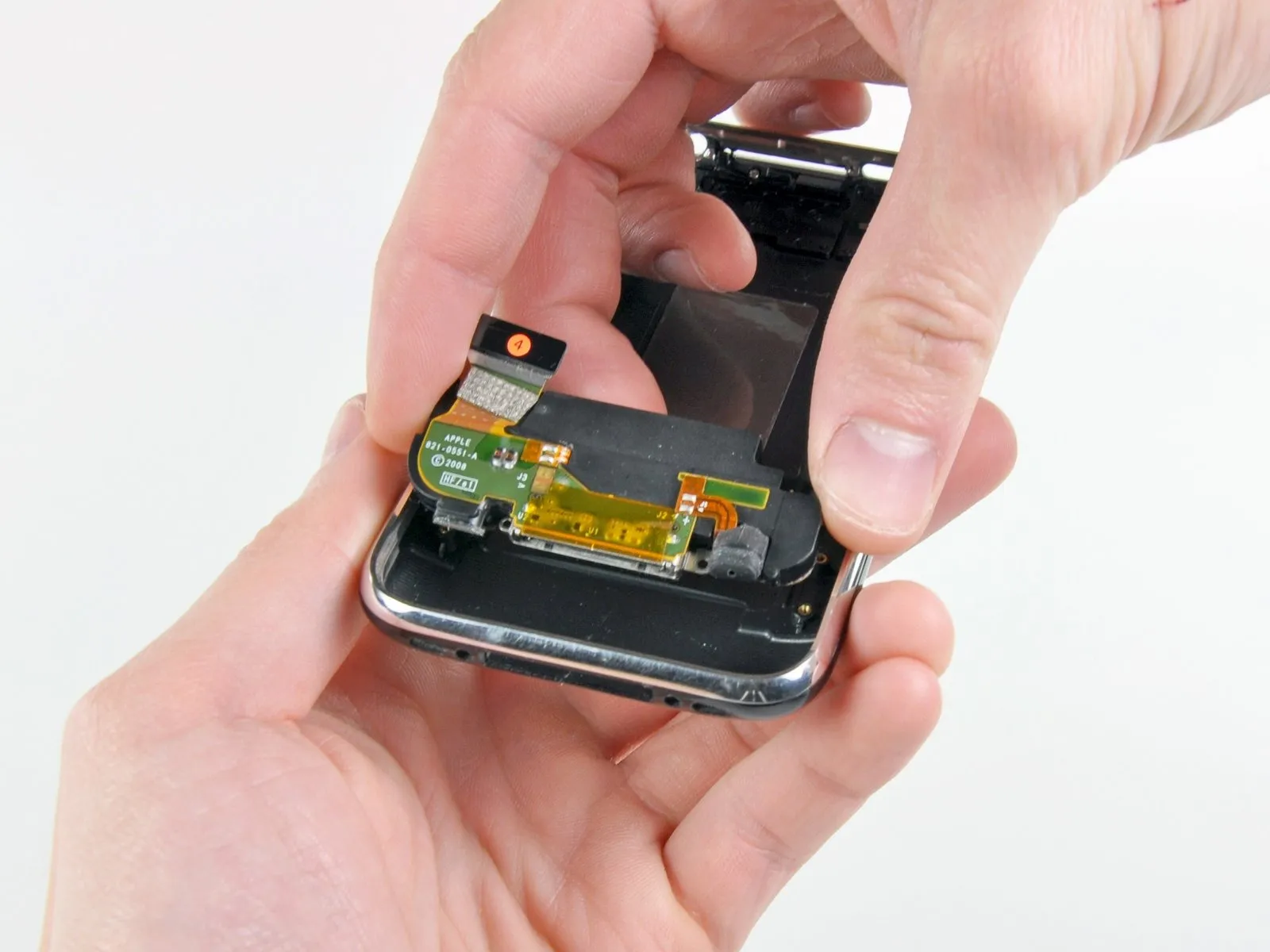

Carefully raise the dock connector assembly, ensuring it disengages completely from the iPhone.
Align the screw holes on the replacement assembly so they are positioned higher than the corresponding holes in the bezel.
Secure the dock connector with two Phillips #00 screws, each measuring 1.5 mm, positioned one on each side.
Locate the ribbon cable marked with the identifier "4," and secure it with a Phillips #00 screwdriver to release a 2.4 mm screw.
Carefully raise the dock connector assembly, ensuring it disengages completely from the iPhone.
Align the screw holes on the replacement assembly so they are positioned higher than the corresponding holes in the bezel.
Step 26

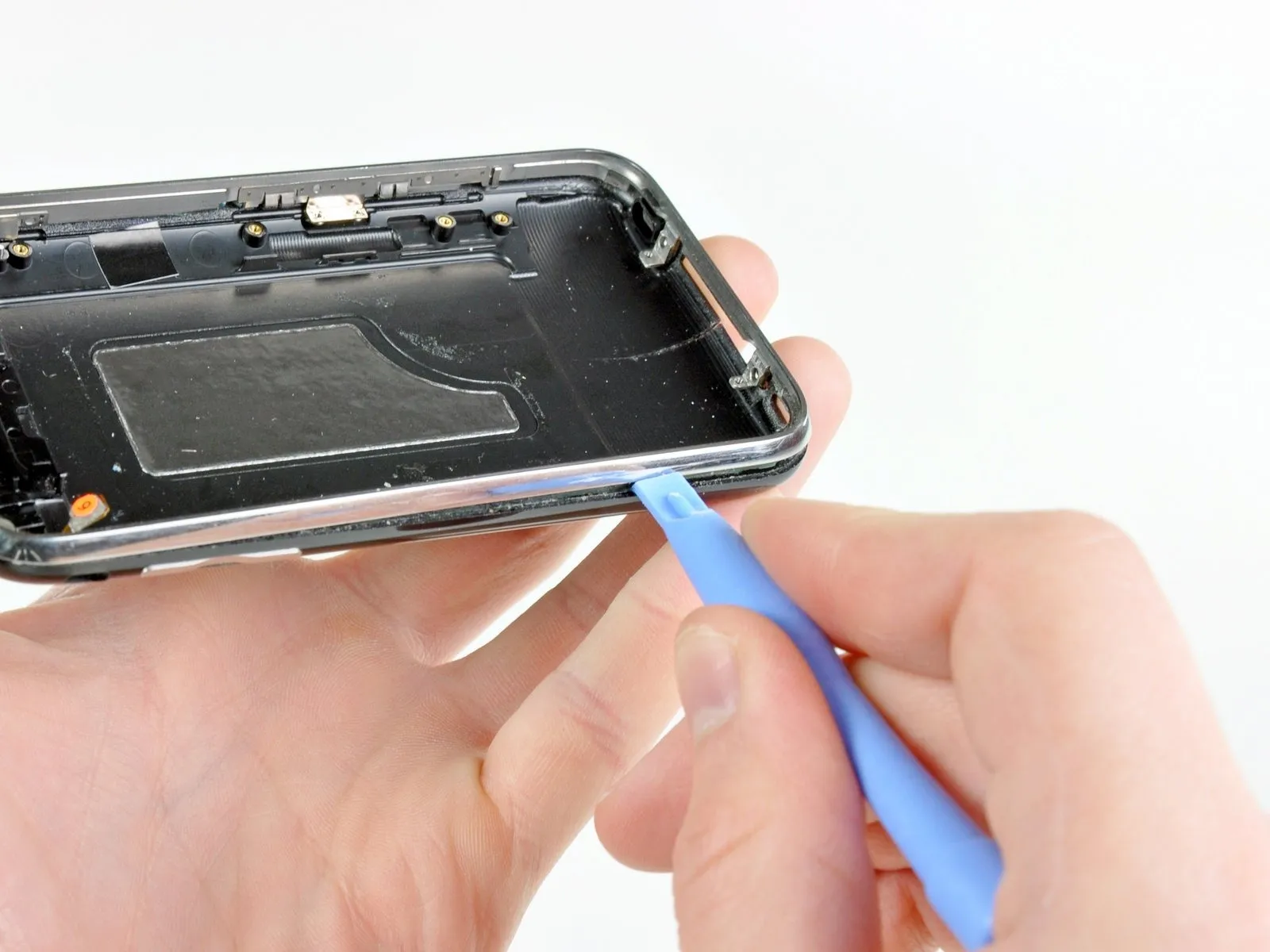

To proceed, detach the silver bezel from the rear panel, but leave a portion of it still connected. During reassembly, if the existing adhesive doesn't provide sufficient holding power, a thin bead of glue should be applied along the bezel's inner perimeter to ensure it remains firmly against the rear panel.

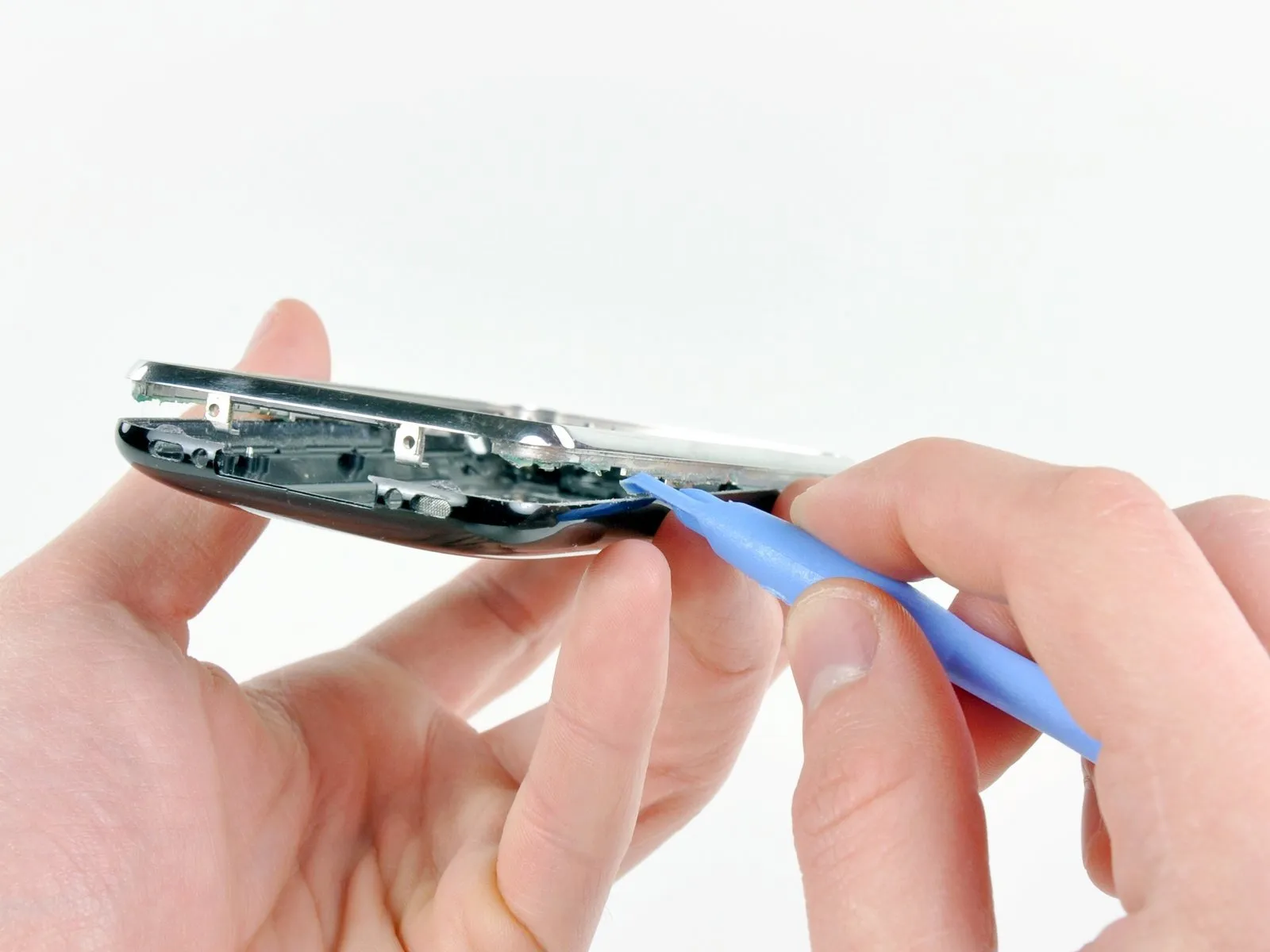

Using an iPod opening tool, carefully wedge the tip into the space separating the silver bezel from the front panel, specifically on the side of the device containing the volume button.

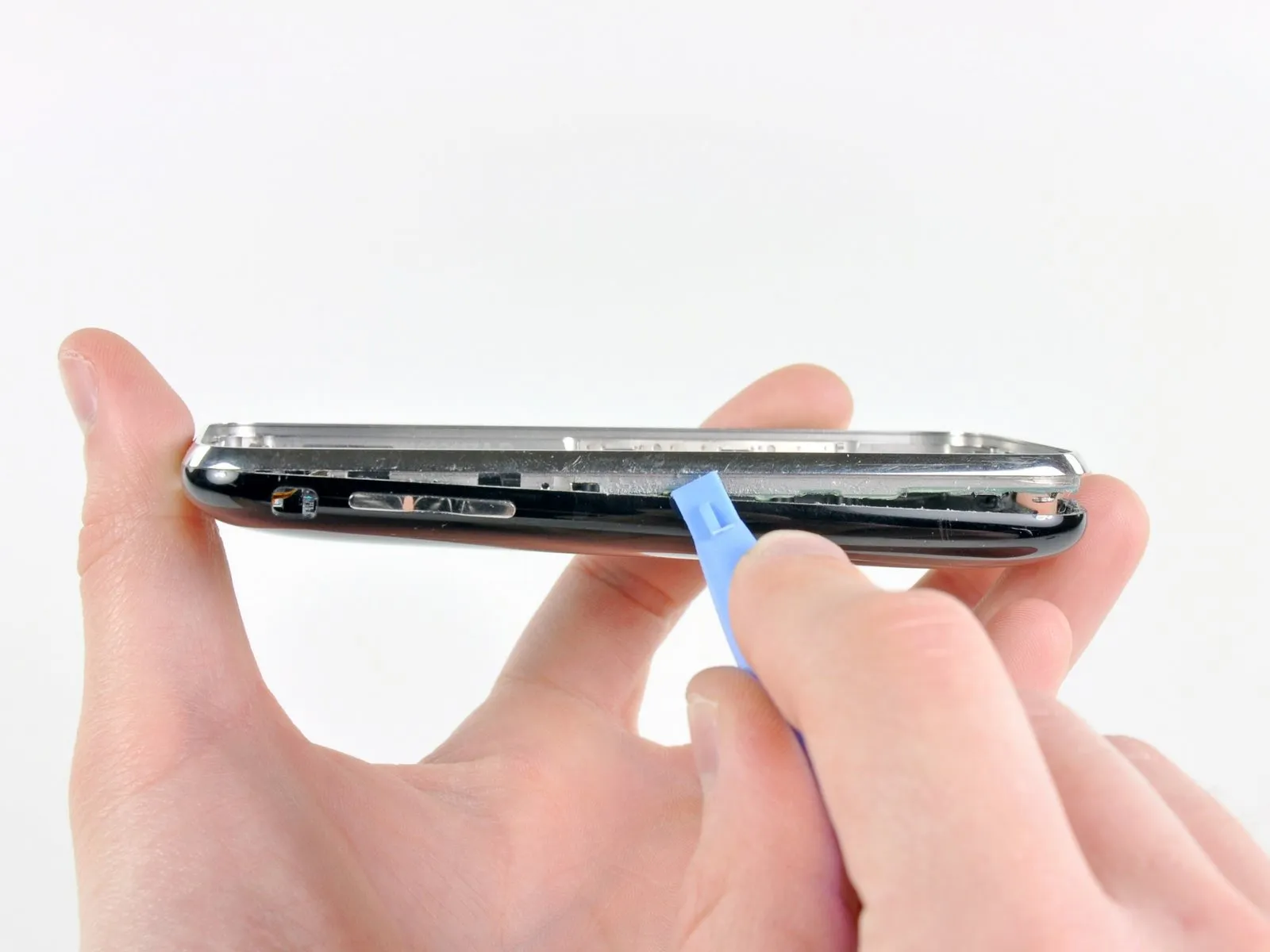

Carefully slide the opening tool's edge between the two parts, following the seam to detach them, ensuring the silver bezel rises sufficiently to allow the volume button to be depressed into the rear case.
Using an iPod opening tool, carefully wedge the tip into the space separating the silver bezel from the front panel, specifically on the side of the device containing the volume button.
Carefully slide the opening tool's edge between the two parts, following the seam to detach them, ensuring the silver bezel rises sufficiently to allow the volume button to be depressed into the rear case.
Step 27

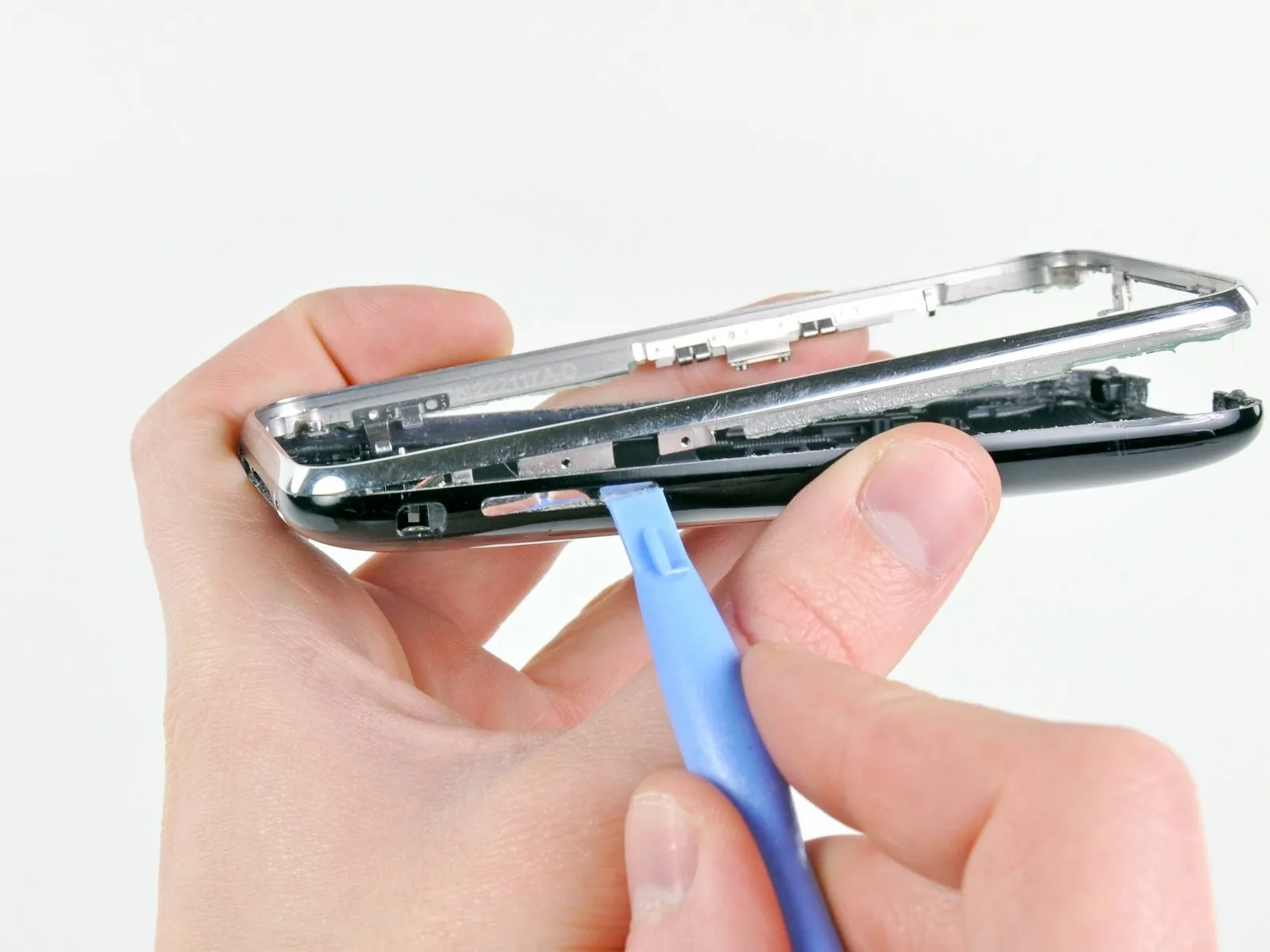

Carefully maneuver the silver bezel upward, ensuring sufficient clearance for the volume button, then utilize the opening tool's edge to depress the volume button inwards, against the rear panel's interior surface.

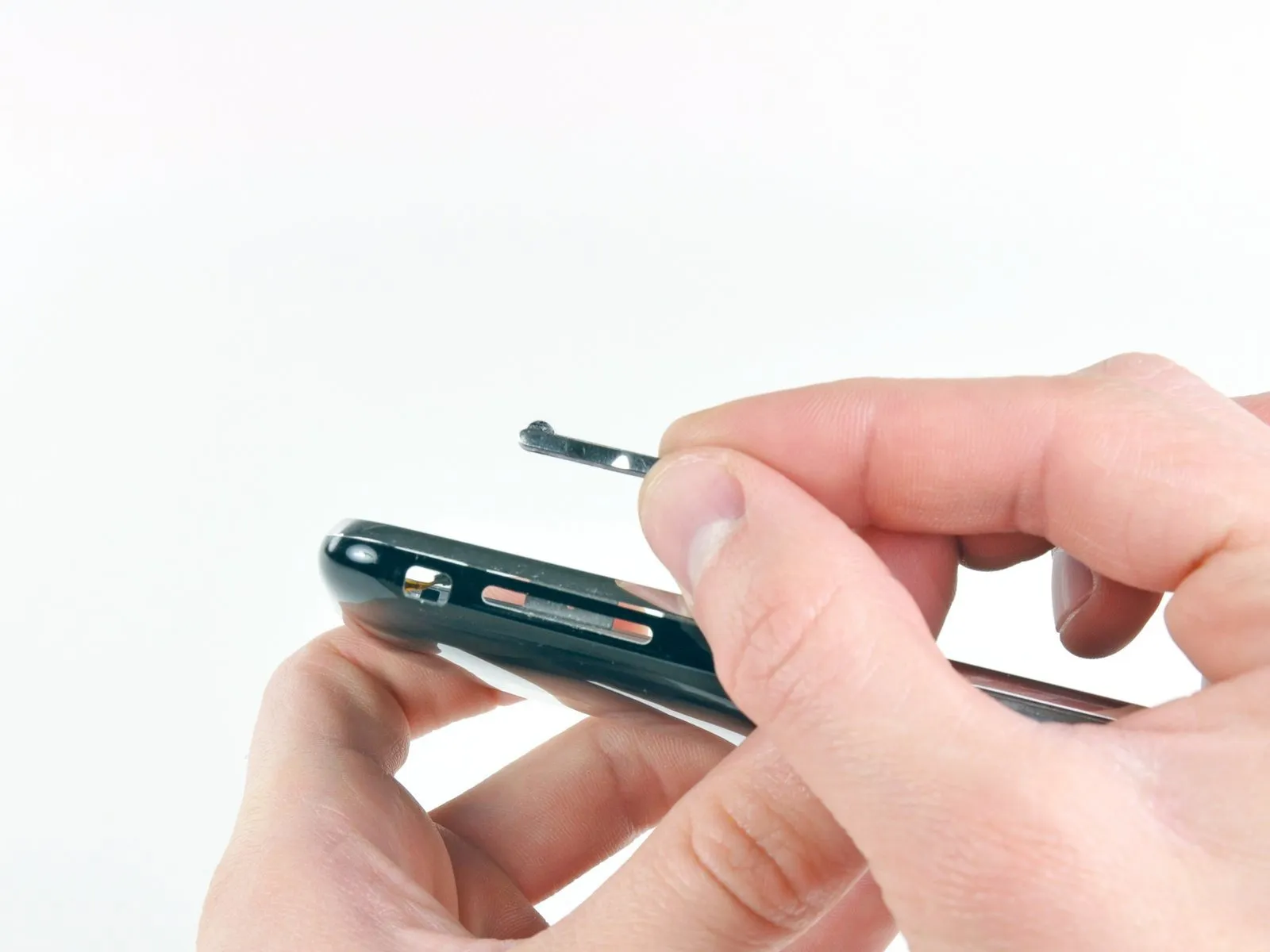

Carefully detach the volume button.
Carefully detach the volume button.
