iPhone 17 Pro Max Taptic Engine Replacement

To mitigate fire hazards associated with compromised lithium-ion cells, ensure your iPhone's battery level drops to under 25% prior to commencing this repair procedure, as a fully charged battery presents a heightened risk of ignition upon damage.

• Disconnect all connecting wires and cords from the device.
• Initiate a power-down sequence by simultaneously pressing the power button and either volume button, subsequently sliding the power control to the off position.

Potential lacerations or difficulties during the repair process may arise from fragmented glass; proceed with caution if screen damage is present.

• To mitigate the risk of glass dispersal and facilitate suction cup adhesion, affix packing tape strips across the entire damaged glass surface.
• Ensure a solitary, non-overlapping strip of tape is positioned along the lower edge, providing sufficient area for suction cup attachment.
• Confine tape application solely to the glass panel, avoiding contact with the surrounding phone frame.

Protect your vision by utilizing safety glasses to guard against any loose glass particles that might become dislodged during the repair.

Employ a P2 pentalobe screwdriver for the task of detaching the screws.The necessary tool for this step is a screwdriver with a P2 pentalobe bit.Two screws, each measuring 7.5 millimeters in length, secure the component.Located on both sides of the charging port are the fasteners requiring removal.Securely hold the device while unscrewing the two fasteners positioned adjacent to the charging port.

Excessive insertion of the opening pick poses a risk of device damage; therefore, it's crucial to implement a marking procedure to avoid this.

• Accurately determine a distance of3 millimetersfrom the pick's leading edge and use a permanent marker to create a visible indicator.
• As an alternative method, affix a coin to the pick, positioning it3 millimetersfrom its tip.

Apply warmth to the screen's lower border utilizing a hair dryer or heat gun.The temperature of the screen's bottom edge should reach a point where it's uncomfortable, but not painful, to briefly touch.Employing a heat gun incorrectly carries a significant risk of damaging the display panel and/or the battery.Adhere strictly to the detailed instructions provided in the linked resource to avoid component failure.A hair dryer or heat gun can be used to gently warm the lower edge of the screen assembly.Ensure the lower edge reaches a temperature that is noticeably warm to the touch, but not dangerously hot.Careless operation of a heat gun may result in irreversible damage to the display and/or battery; consult the linked instructions for safe operation.

To facilitate separation, position a suction handle against the lower screen border, ensuring it's situated as near the edge as feasible.

Ensure the positioning of your prying tool is accurate for the subsequent procedure.

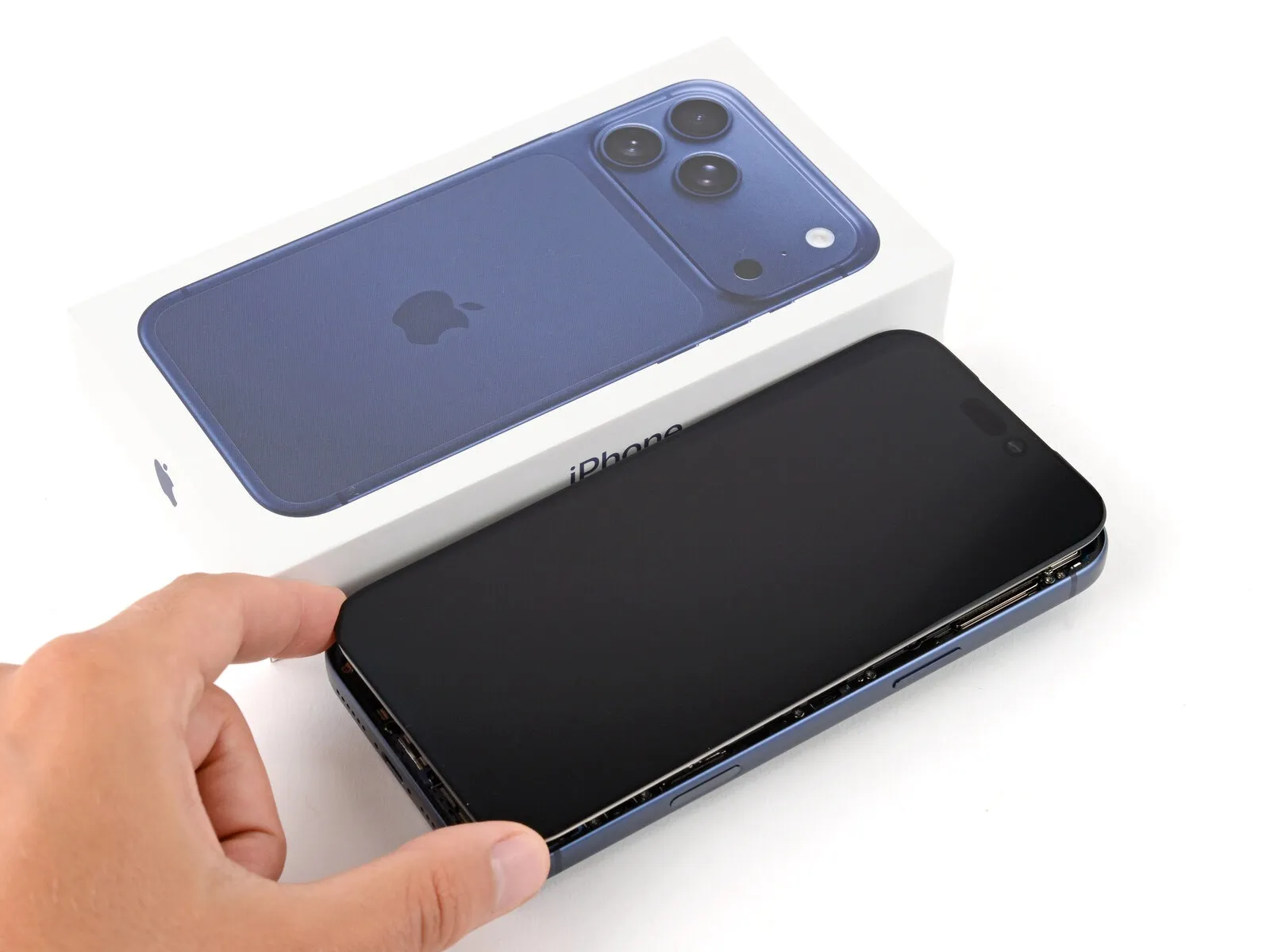

• A plastic component, referred to as a bezel, is situated beneath the screen's surface, resting upon the device's frame.Position your prying tool at this location, verifying its complete insertion beneath the bezel.A distinct separation exists between the plastic bezel and the display panel's surface.Avoid inserting the prying tool into this seam, as doing so will detach the display from the bezel.Separating the display and bezel will introduce unnecessary complexity to the repair process.
• Carefully observe the location of the bezel before proceeding.The bezel's placement is critical for successful separation.Proper tool placement is essential to prevent unintended component disconnections.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display screen from its surrounding frame.
Considerable effort might be necessary for this separation; if initial attempts fail, re-applying heat to the screen can facilitate the process.

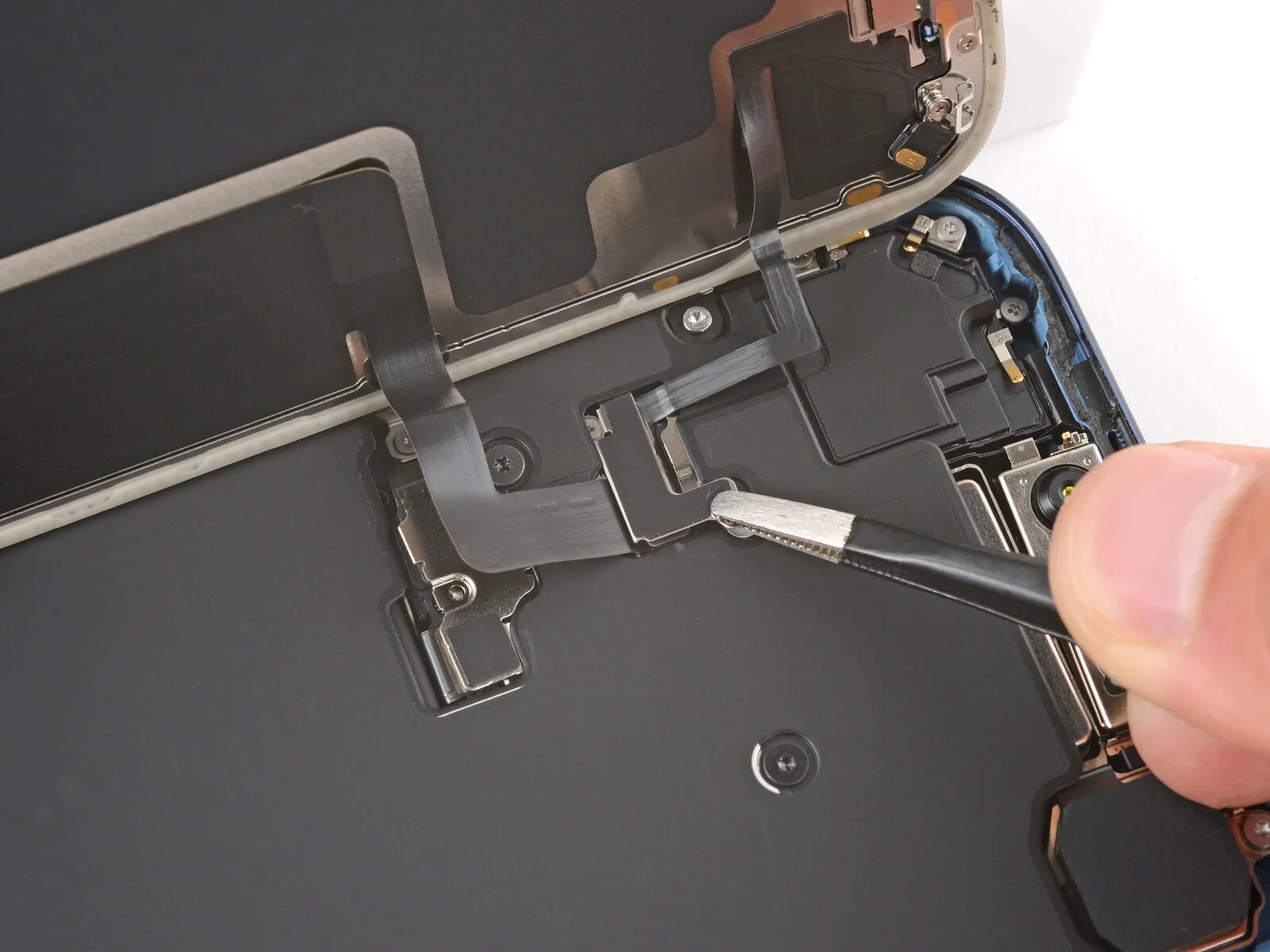

Carefully position the pointed end of a specialized opening pick into the newly formed separation.This specialized tool is designed to prevent damage to surrounding components during the separation process.The opening pick is essential for initiating the screen release and should be handled with precision.

To prevent harm to internal components, ensure the insertion depth of your separation tool remains below a maximum of 3 millimeters.The flexible cables connecting the display and ambient light sensor are situated in close proximity to the volume and Action buttons.Care must be exercised as the phone's edges contain sensitive spring contacts that are easily dislodged.

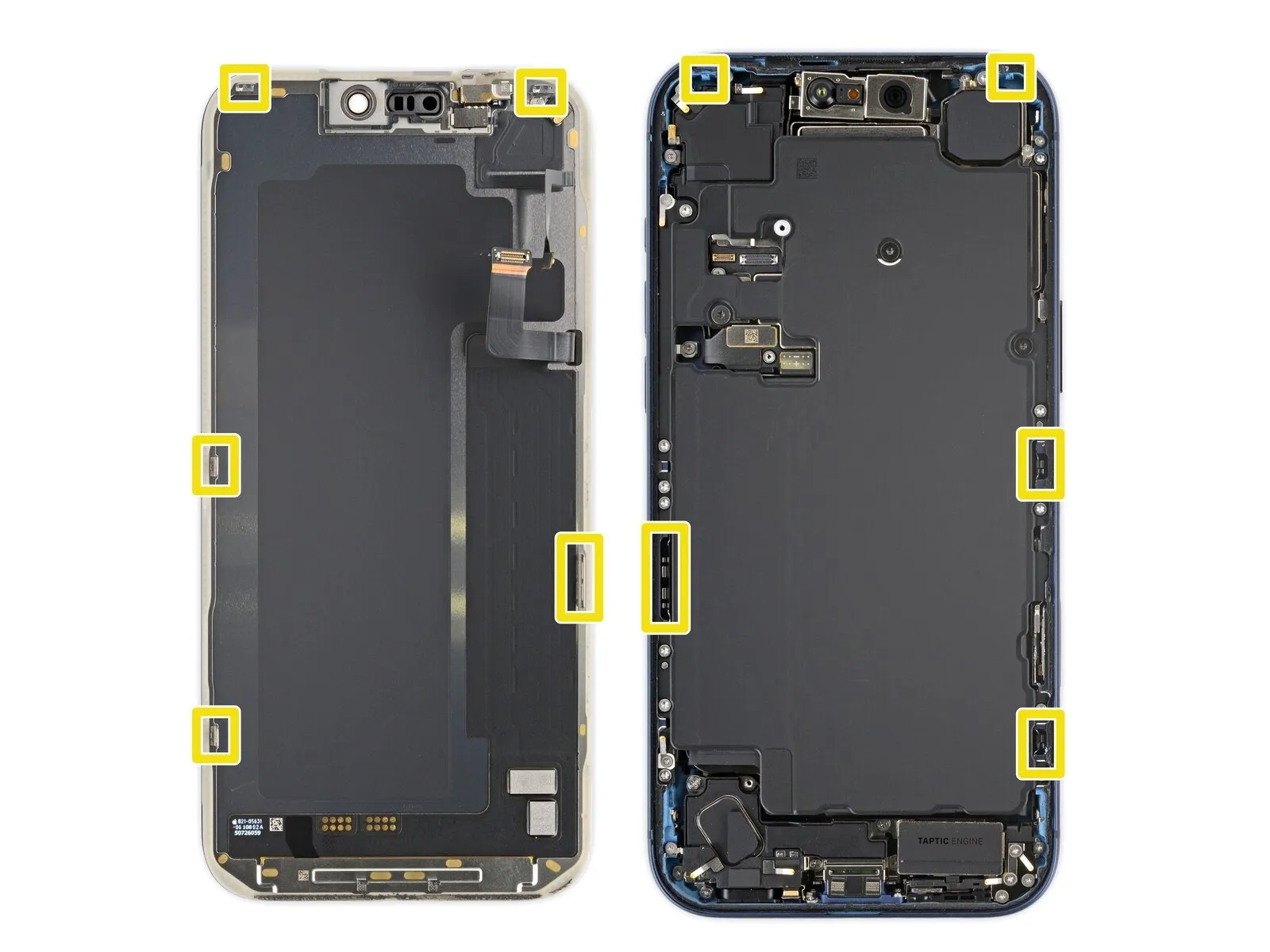

• Thin, metallic retaining clips secure the display assembly to the frame, engaging with matching slots.
• The underside of the screen is held in place by a series of these small metal clips that fit precisely into corresponding slots on the phone's frame.
• Exercise caution to prevent damage to these clips and slots during separation, as they are crucial for proper reassembly.

Utilize a separation tool to disengage the adhesive bond by moving it along the lower perimeter of the device.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from re-attaching.

Detach the suction cup from the display surface by actuating the small protrusion located on its body.

Apply warmth to the right-hand perimeter of the screen assembly using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.The purpose of applying heat is to soften the adhesive securing the screen.Exercise caution to prevent overheating, which could damage the screen or surrounding components.

• Position a second opening pick beneath the lower-right corner of the display assembly.
• Advance the pick along the right side to detach the adhesive bond and disengage the two retaining clips, potentially requiring a slight upward lift of the screen to facilitate clip release.
• Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-adhesion.

To loosen the adhesive securing the display, apply warmth to its upper boundary utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right quadrant.
• Carefully maneuver the pick along the top perimeter, gently easing it past the upper-left corner to detach the adhesive and disengage the two retaining clips; excessive movement risks damage to the ambient light sensor cable.
• Maintain the pick's position beneath the screen's upper-left corner to inhibit adhesive re-adhesion.

Apply warmth to the screen's left border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the left side to sever the adhesive bond and disengage the retaining clip, pausing its movement immediately prior to the volume up control.
• A slight upward lift of the display might be necessary to free the clip; however, avoid further pick advancement to prevent potential damage to the display cable.

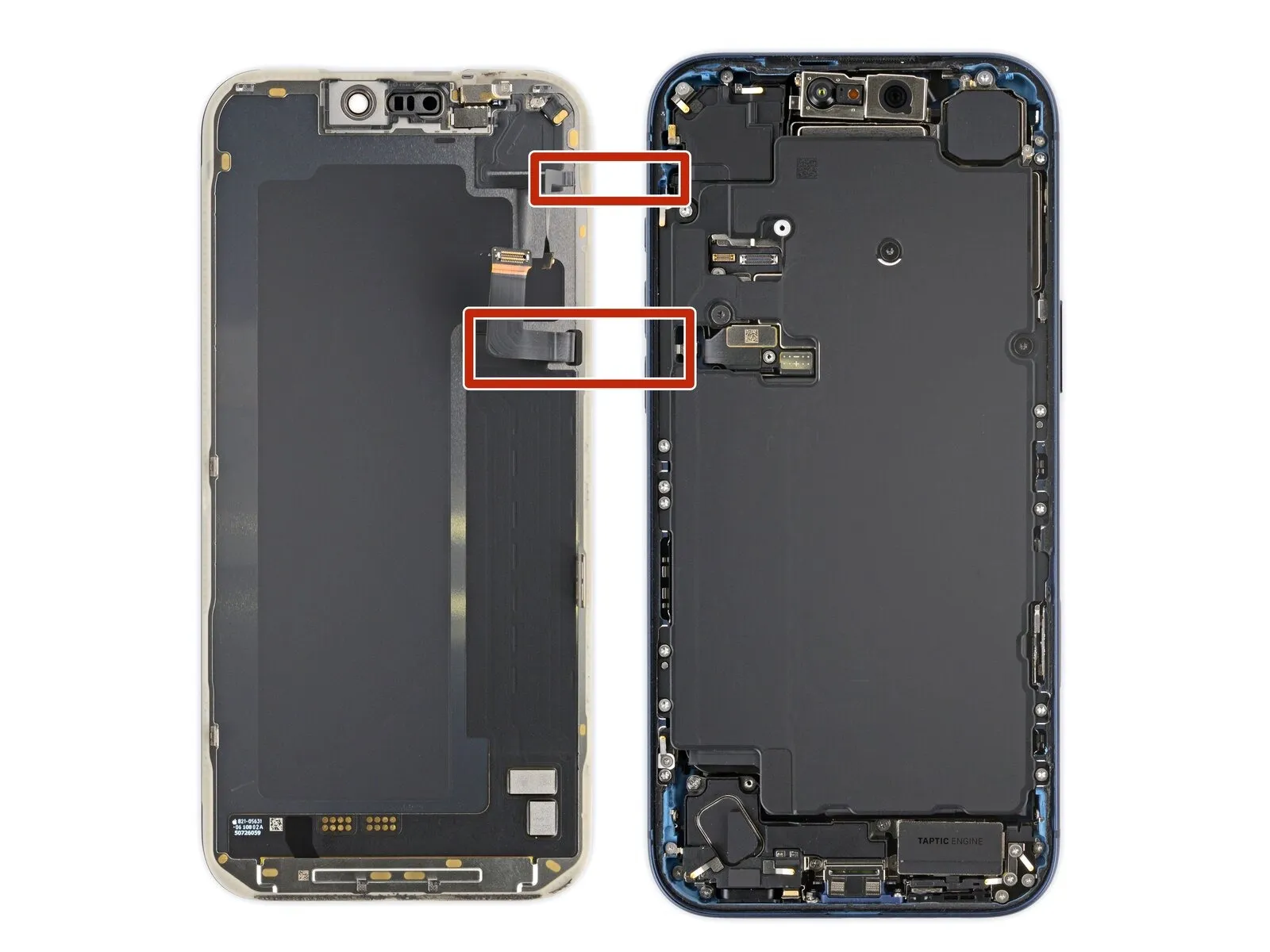

Ensure the display assembly is fully disengaged from its surrounding structure; should resistance be encountered, re-examine the edges to release any lingering adhesive or securing fasteners.

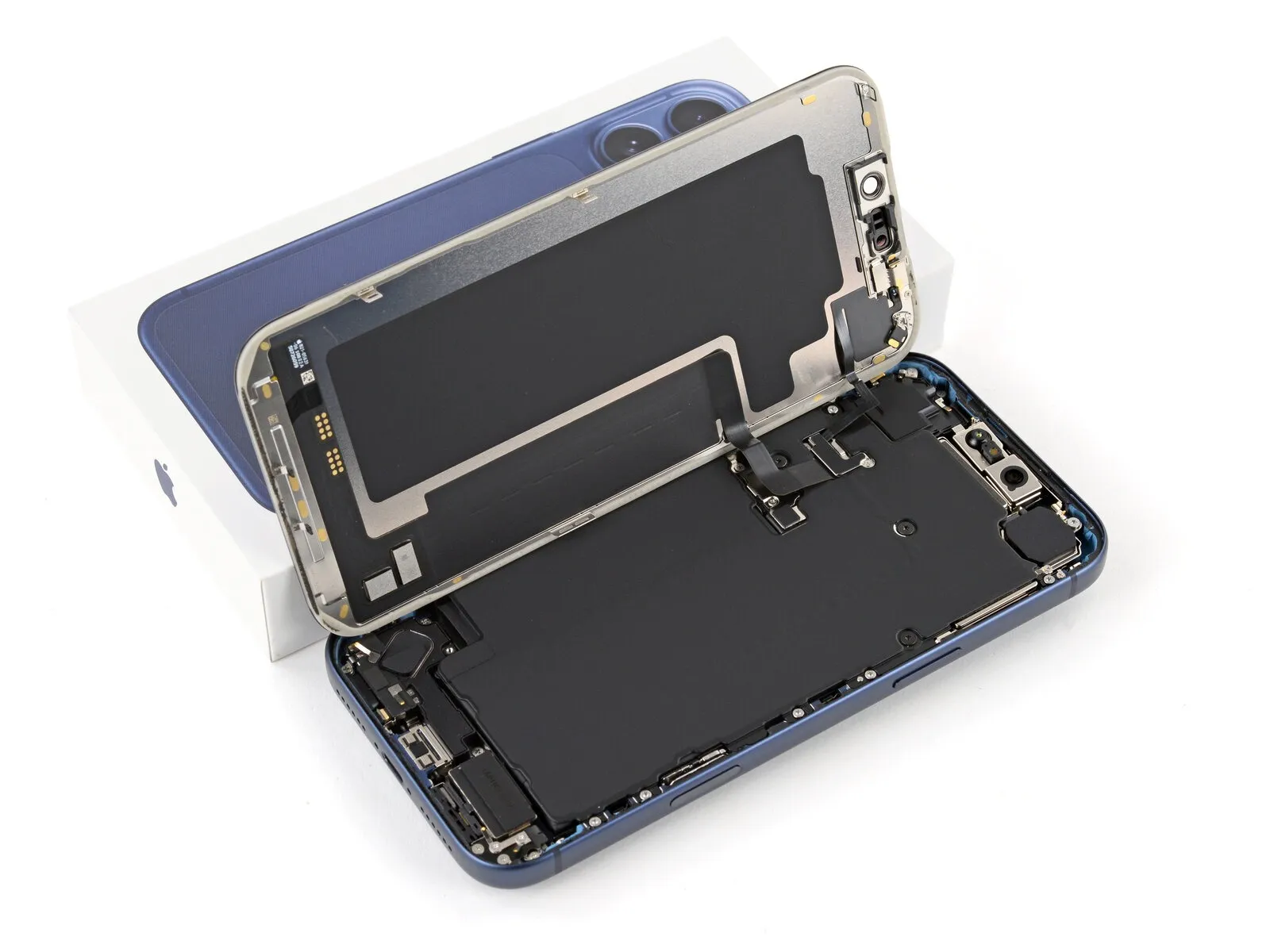

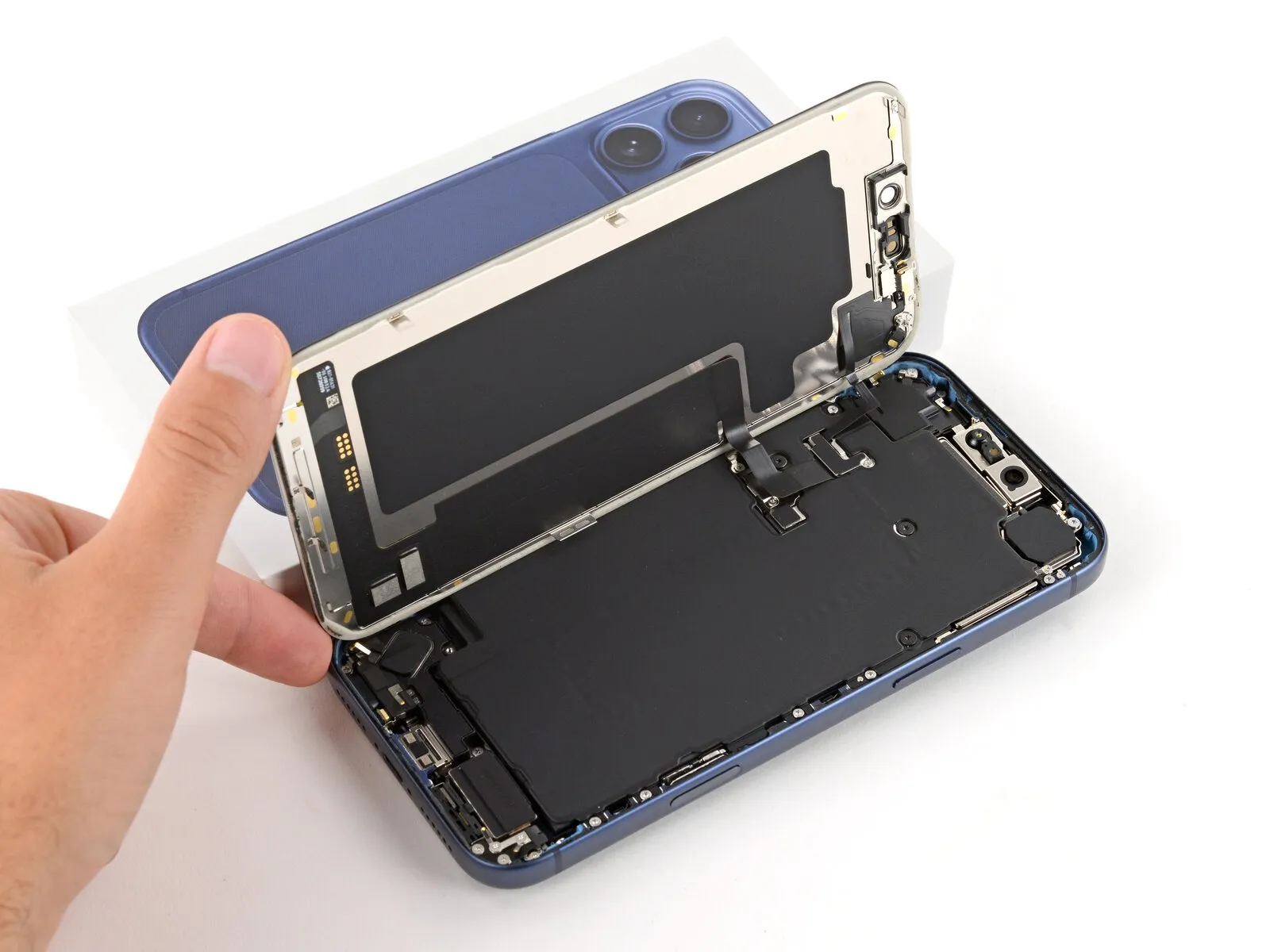

Elevate the display vertically and rotate it towards the left side, supporting it with a stable object like a container or pile of literature to prevent cable tension; as an alternative, the display can be positioned horizontally across the left side.

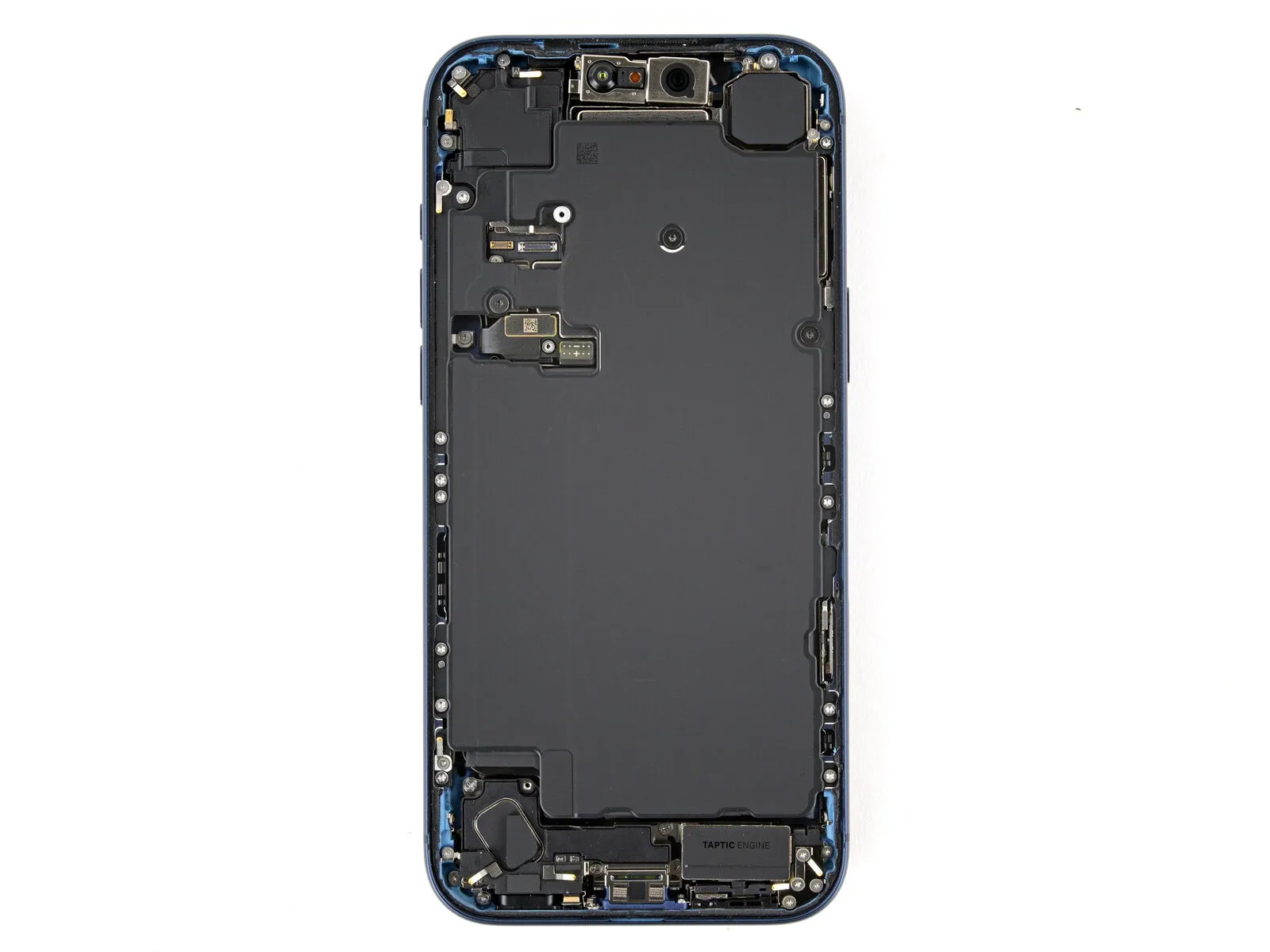

Maintain an organized record of all screws encountered during the repair process, ensuring each is reinstalled in its original location.

Employ a JIS "00" screwdriver for the disassembly procedure.The two covers protecting the battery and screen cable are fastened with screws measuring 1.2 millimeters in length, necessitating their removal using the specified tool.iFixit-manufactured Phillips bits are specifically engineered to interface with JIS screws, offering a safer alternative.While screwdrivers from other brands may function, utilizing them carries the potential risk of damaging the screw heads.Carefully note that the covers are secured by a pair of screws, one for each cover.

Detach the pair of protective housings.

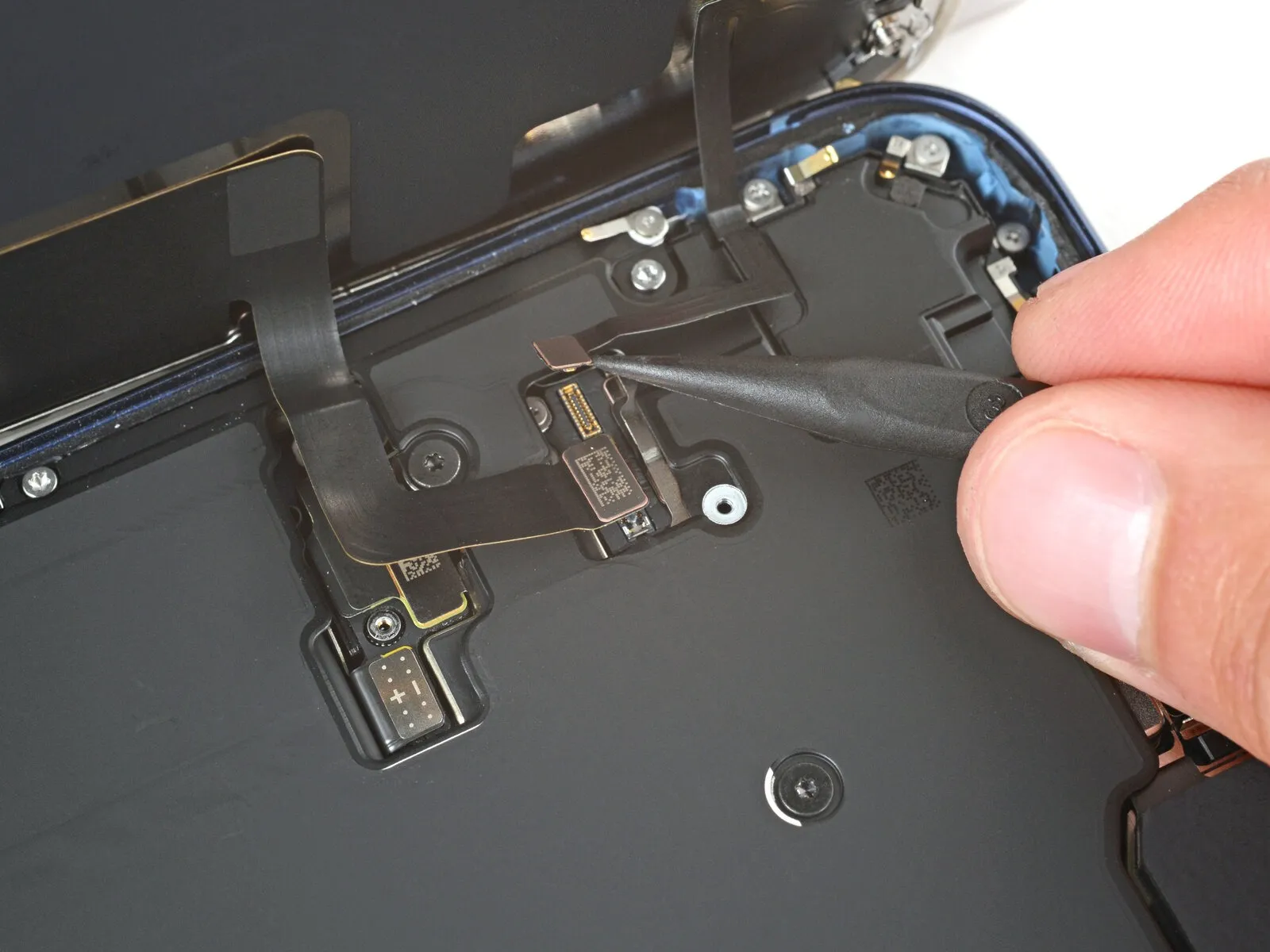

• Employ the tip of a spudger to carefully lift and release the battery press connector's connection.A spudger's pointed end facilitates separation of the battery press connector from its socket.To detach the battery press connector, utilize the pointed end of a spudger for prying and disconnection.

• Employing the pointed end of a prying tool or a spudger, carefully lift and separate the screen assembly and front sensors, ensuring disconnection by releasing their respective connectors.A spudger's tip, or a similar opening tool's point, facilitates the lifting and detachment of the screen and front sensors, requiring connector separation during the process.To release the screen and front sensors, utilize the pointed end of a prying tool or a spudger, and subsequently disconnect the connectors securing them.

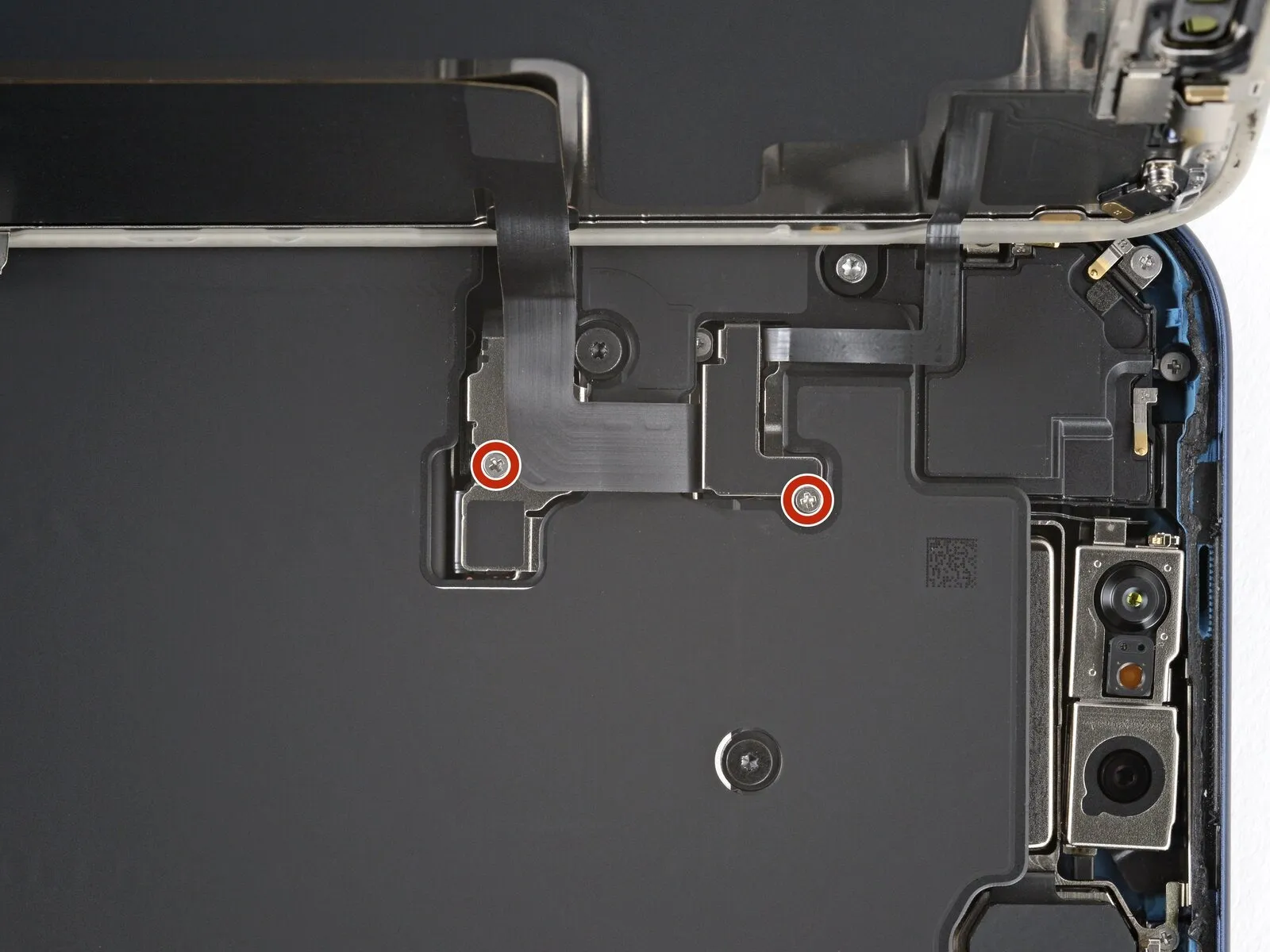

• Detach the display panel.The screen component must be separated.Disassembly of the display is required.

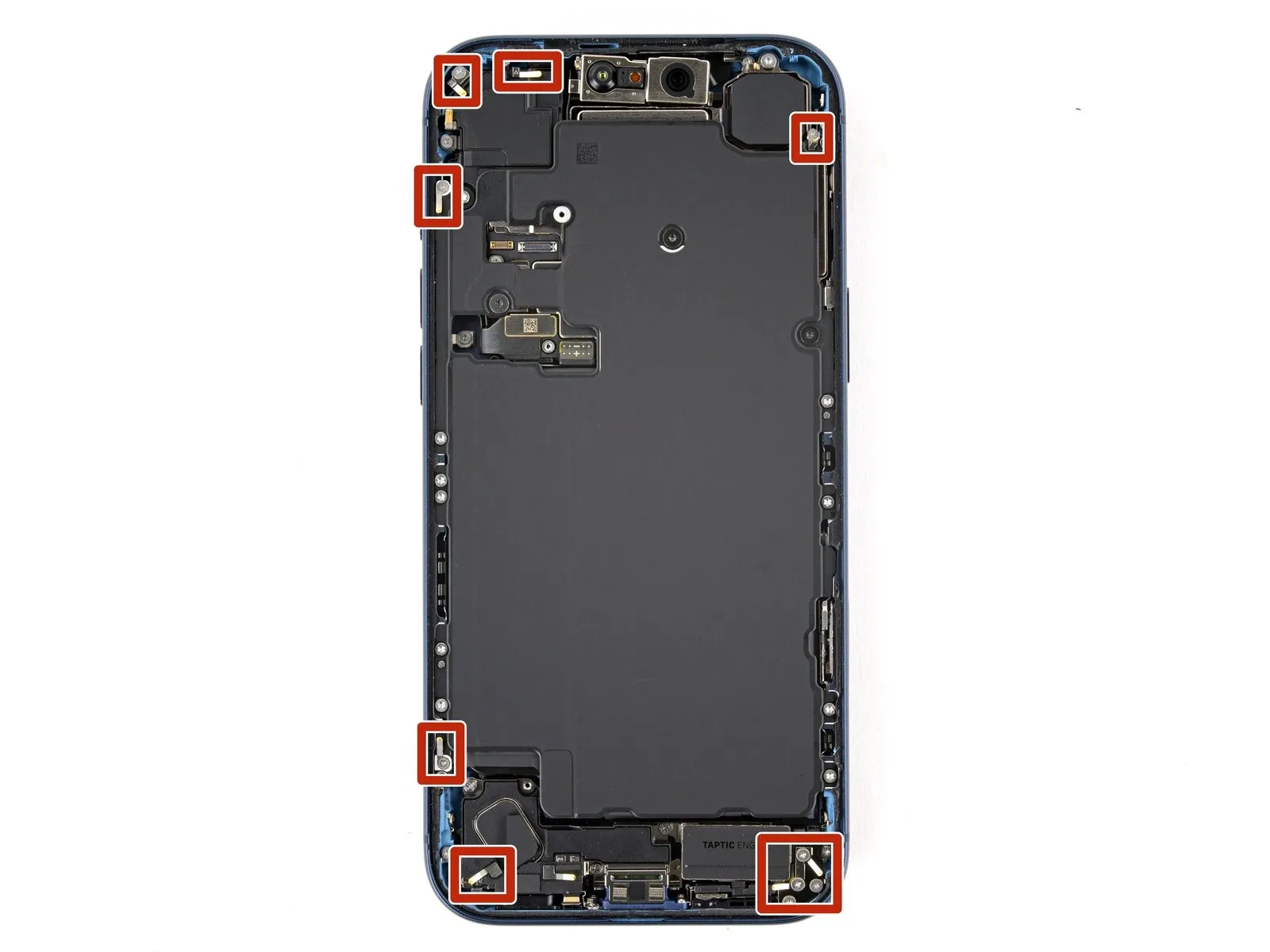

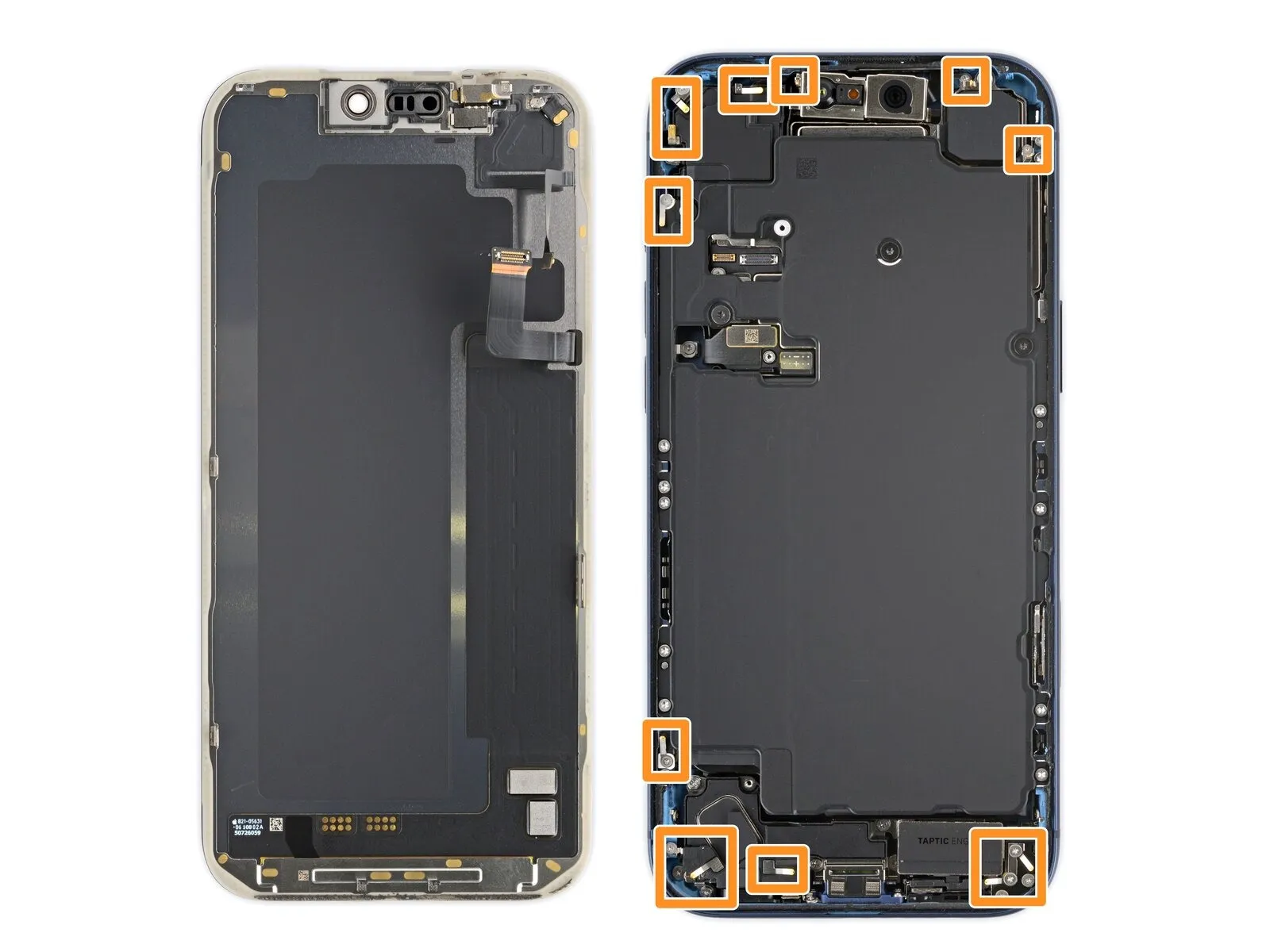

• Employ a Torx Plus 4IP screwdriver for the disassembly of screws that hold the battery tray in place.
  A single fastener, measuring 7.5 millimeters in length, is required.A solitary screw, with a length of 5.9 millimeters, is present.
  A single screw, extending 3.5 millimeters, is also needed.One screw, with a 2.4-millimeter length, must be removed.
  Ten screws, each 3.7 millimeters long, are utilized for retention.A further screw, also measuring 3.7 millimeters in length, is incorporated.
  Certain iPhone versions, those incorporating a physical SIM card, lack this particular screw.The battery tray is fastened using a combination of screw lengths.
  Careful removal of the screws is essential to avoid damage.Ensure the Torx Plus 4IP screwdriver is properly seated before applying torque.
  The screw lengths vary, so accurate identification is important during reassembly.Note the location of each screw type for correct replacement.
  The absence of the screw indicates a SIM card tray configuration.

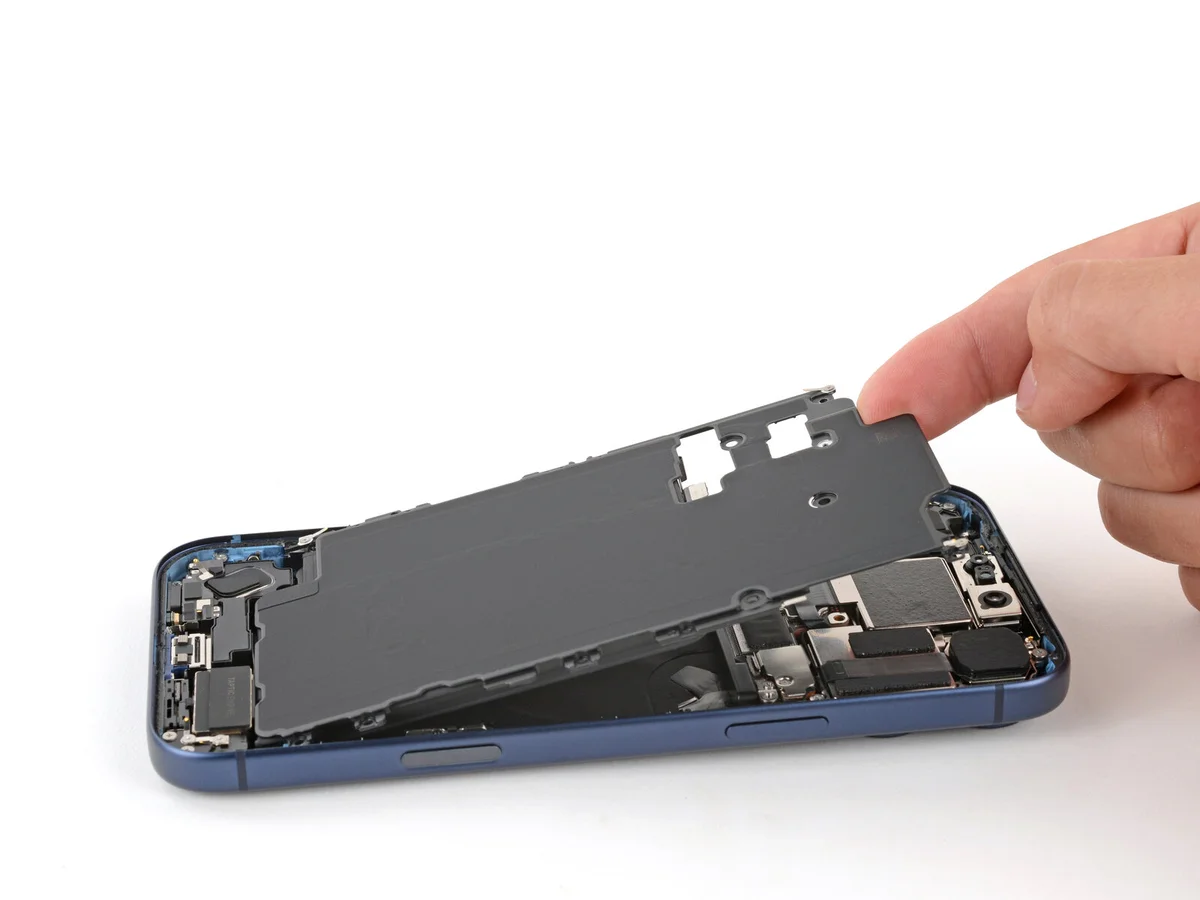

• Employing a fingertip, elevate the battery compartment's upper-left corner to facilitate its removal.
  Exercise caution to prevent any smearing of the front-facing camera lens.

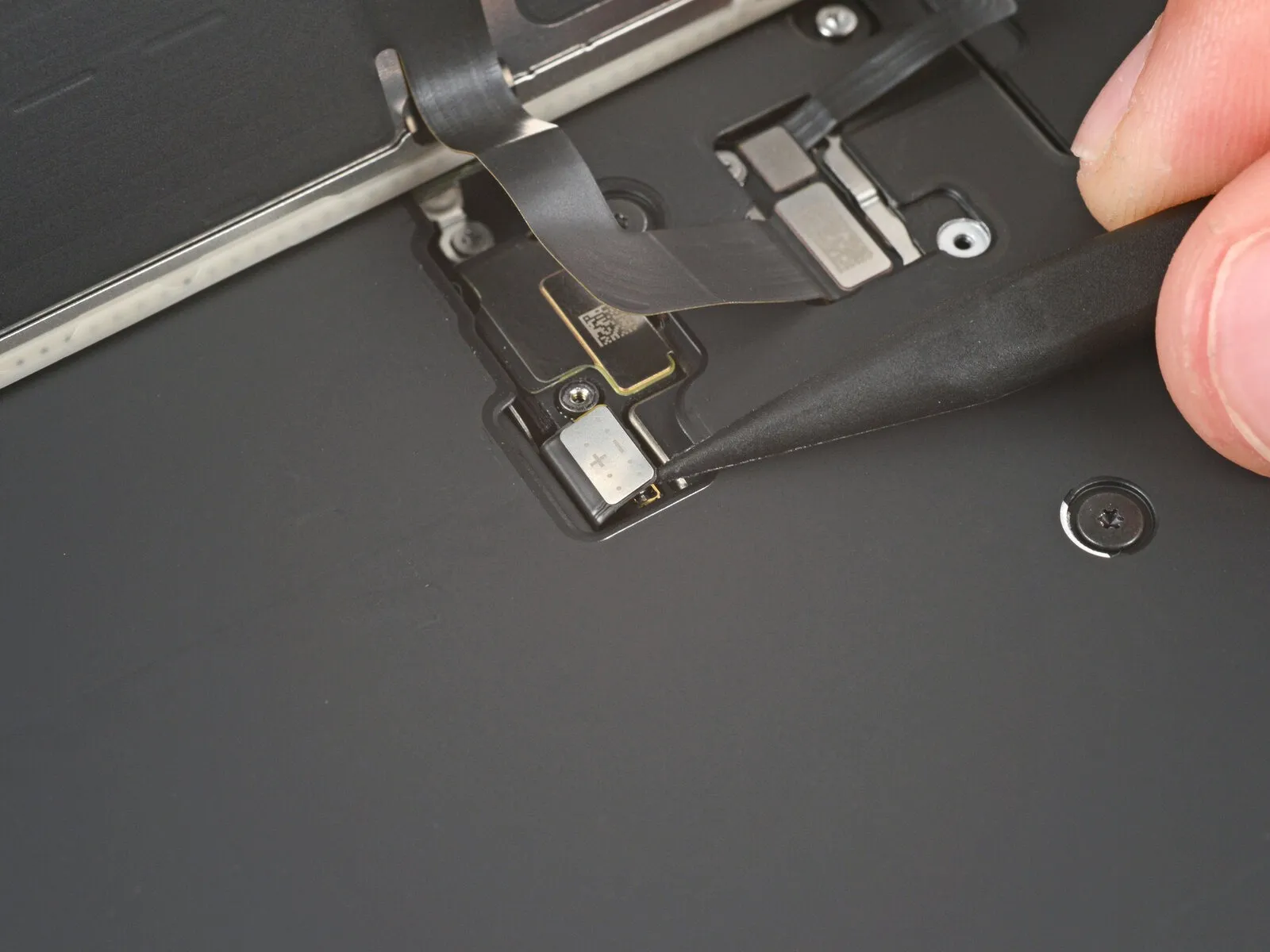

Utilize the pointed end of a prying tool to gently disengage the plastic buffer strip, which is affixed to the Taptic Engine, by working along its upper boundary.

Required implements for this procedure include a JIS 00 screwdriver.The repair necessitates the utilization of two screws, each measuring 2.7 millimeters in length.

• Additionally, two screws with a length of 2.0 millimeters are needed.A single 1.5-millimeter screw is also essential for the repair process.
• Another 1.5-millimeter screw is required, specifically positioned and affixed to the lower border.Ensure the correct screwdriver type (JIS 00) is used to avoid damaging screw heads.
• Accurate screw length is critical; using incorrect sizes can compromise the assembly's integrity.Carefully manage the small screws to prevent loss during the repair.
• The 1.5 mm screws are crucial for securing the bottom edge, so handle with care.Proper alignment of all screws is necessary to maintain the device's structural stability.

Observe that an adhesive gasket secures the loudspeaker assembly to the device's frame.To begin disassembly, angle the upper portion of the loudspeaker outward from its designated cavity.

Carefully separate the loudspeaker from the frame, employing a gentle pulling motion to break the adhesive bond.
The adhesive bond will release as the loudspeaker is gradually drawn away from the frame.
Complete the removal process by extracting the loudspeaker from its position.

Necessary implements for this procedure include a JIS 00 screwdriver.The repair necessitates the use of two screws, each measuring 1.9 millimeters in length.

• These fasteners are specifically responsible for maintaining the ground clip's attachment.Proper selection of the screwdriver is crucial to avoid damaging the screw heads during manipulation.Ensure the screws are adequately secured to prevent potential malfunctions or disconnections.

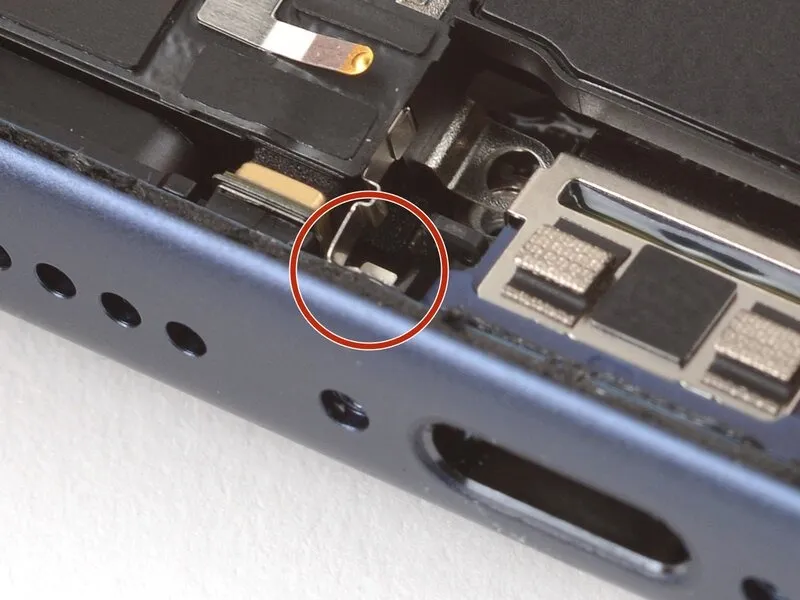

Pay close attention to the following information.Employ tweezers to detach the ground clip, ensuring careful handling.
Because the clip is fragile and susceptible to displacement, safeguard it in a secure location to facilitate later reinstallation.

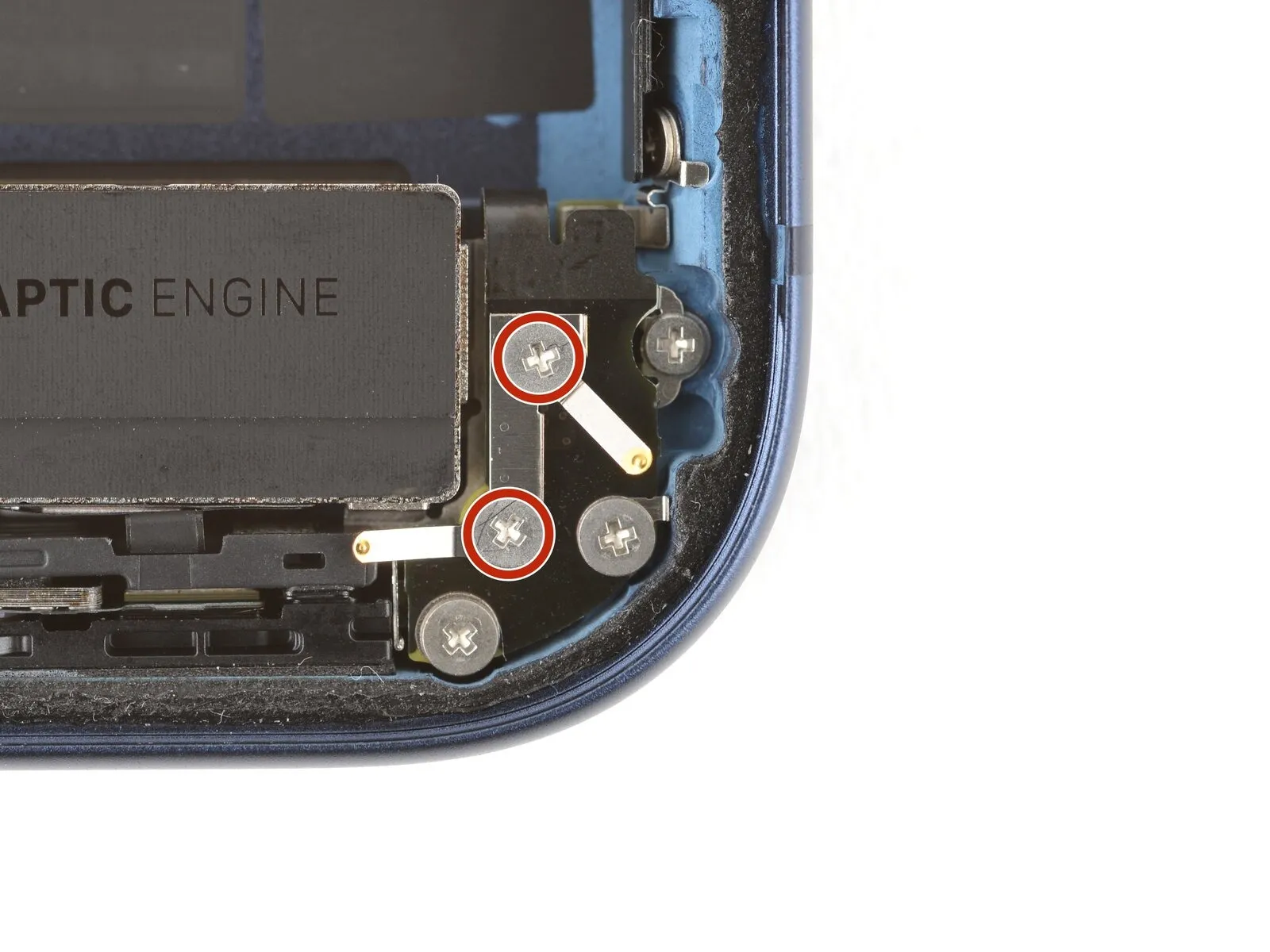

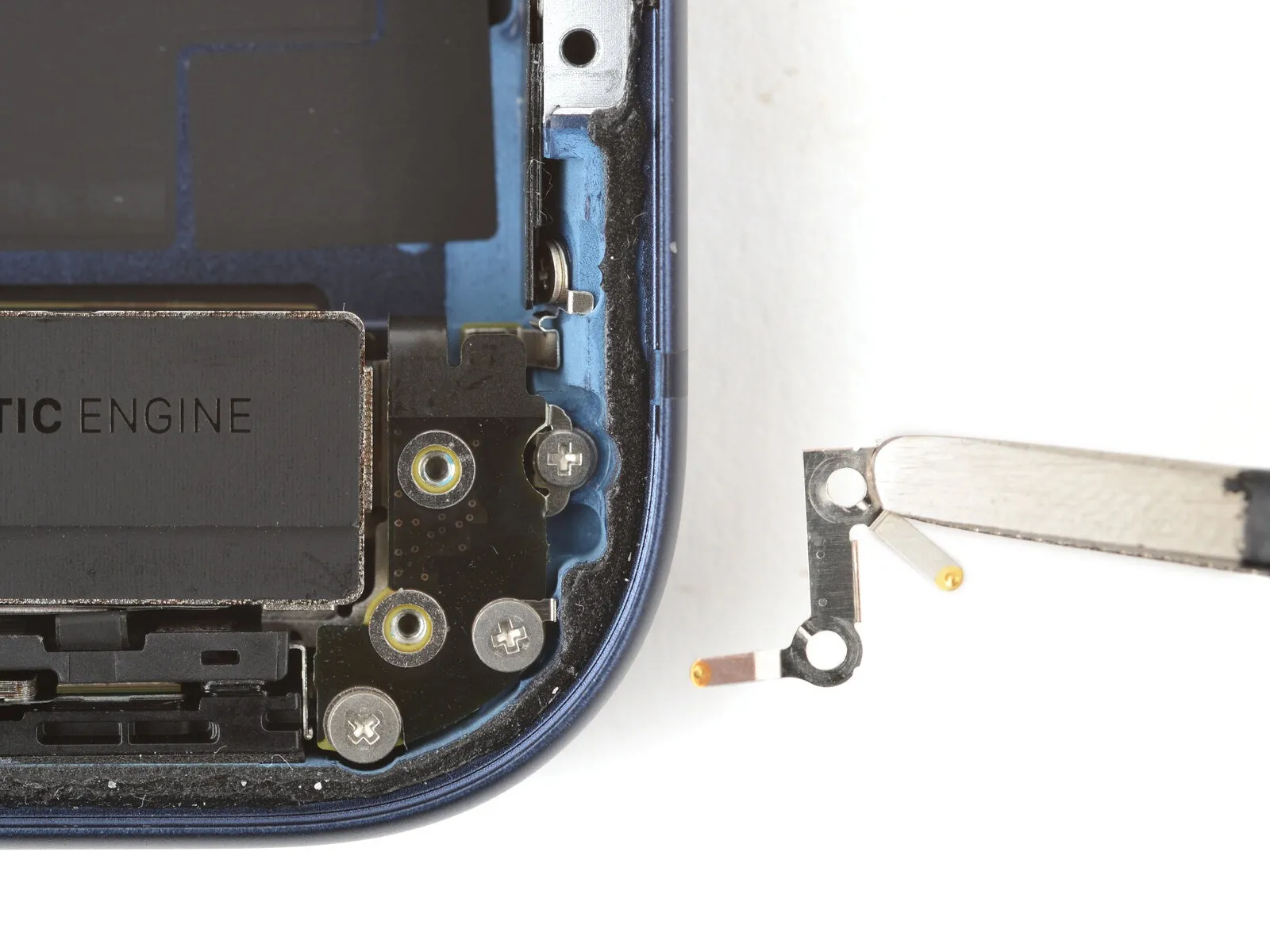

• Employ a JIS 00 screwdriver for the task of detaching the three screws that hold the flex antenna in place.A single screw, measuring 1.7 millimeters in length, is among those securing the antenna.Two screws, each with a length of 1.9 millimeters, also contribute to the antenna's attachment.
  • The flex antenna is fastened by these screws, requiring careful removal with the appropriate tool.
  • Ensure the JIS 00 screwdriver is utilized to avoid damaging the screw heads during the disassembly process.

To gain access to the screws located underneath, carefully maneuver the flex antenna aside, employing either your fingers or a spudger.

• Employ a standoff screwdriver to detach the fasteners.The screws, each measuring 4.0 mm in length, must be removed.These screws provide the securing mechanism for the Taptic Engine.Carefully unscrew the two fasteners using the appropriate tool.The Taptic Engine is held in place by these small screws.A standoff screwdriver is essential for this particular screw type.Ensure the screws are fully removed to free the Taptic Engine.

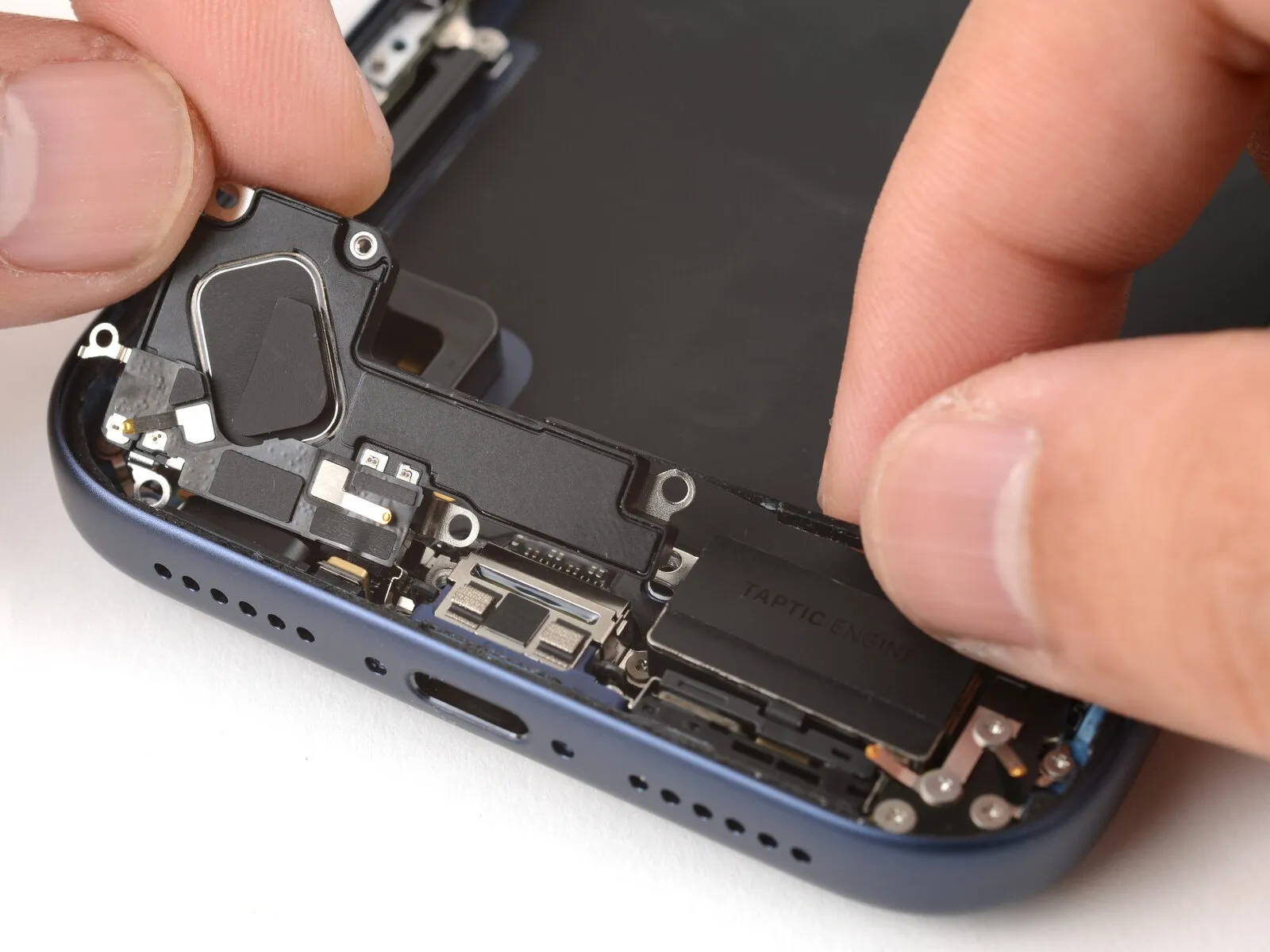

Employ your fingertips to maneuver the Taptic Engine from its housing and toward the iPhone's side edge.The Taptic Engine should be extracted from its designated space, allowing it to rest along the device's perimeter.Maintain a firm grip on the Taptic Engine as you proceed to the subsequent action.
This secure hold is essential to avoid undue stress on the component's delicate cable.Preventing cable strain is achieved by keeping a secure grasp on the Taptic Engine during the following procedure.Carefully disengage the Taptic Engine from its recessed position, bringing it to the iPhone's exterior.

Employ the tip of a spudger to leverage the Taptic Engine press connector upwards.Carefully separate the Taptic Engine press connector from its position using a spudger's pointed end.Disconnect the Taptic Engine press connector by applying upward pressure with a spudger.To release the Taptic Engine press connector, utilize a spudger to apply focused prying force.A spudger's point should be used to lift and detach the Taptic Engine press connector.

Carefully detach the Taptic Engine component.The Taptic Engine must be disconnected for further repair procedures.Complete removal of the Taptic Engine is the next step.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.

• Due to variations across iPhone models, certain reassembly images might exhibit slight visual differences.
• Regardless of your specific iPhone version, the outlined steps accurately reflect the correct reassembly sequence.

Position the Taptic Engine component with its upper surface facing downwards, resting against the perimeter of the iPhone’s chassis.Maintain a firm grip on the Taptic Engine with one hand to stabilize it.Employ a finger to apply pressure and establish a secure electrical connection between the Taptic Engine and its corresponding press connector.

• This action ensures proper functionality of the Taptic Engine after reassembly.

Position the Taptic Engine so that its mounting points correspond with the openings in the device's frame.Secure the Taptic Engine to the frame by engaging the provided screw apertures.Arrange the Taptic Engine flex cable to maintain a smooth, unmarred bend as it passes between the Taptic Engine and the frame.

• Ensure the flex cable's curvature remains consistent and free from stress during installation.

Employ a standoff screwdriver to affix the two screws designated for the Taptic Engine, each measuring 4.0 mm in length.Secure the Taptic Engine with two screws, ensuring the standoff screwdriver is utilized for proper installation, and noting their 4.0 mm length.To attach the Taptic Engine, utilize a standoff screwdriver and fasten it with the two screws, which are precisely 4.0 mm long.

Employing either your fingertips or a specialized plastic pry tool, carefully maneuver the flexible antenna cable into its designated position.

Employ a JIS 00 screwdriver for the antenna screw installation process.The three flex antenna screws require a JIS 00 screwdriver for proper installation.A single screw, measuring 1.7 millimeters in length, is needed for this procedure.

• Two screws, each possessing a length of 1.9 millimeters, are also required.Secure the flex antenna with three screws utilizing a JIS 00 screwdriver.
• For optimal antenna attachment, use a JIS 00 screwdriver to fasten the screws.The installation of the flex antenna necessitates a JIS 00 screwdriver and three screws of specified lengths: one 1.7 mm and two 1.9 mm.

Employ tweezers to precisely position the ground clip within its designated location.

Employ a JIS 00 screwdriver for the installation process.The two ground clip screws require a JIS 00 screwdriver for secure fastening.Secure the ground clips utilizing a JIS 00 screwdriver.A JIS 00 screwdriver is necessary to affix the two ground clip screws.To properly install the ground clip screws, a JIS 00 screwdriver is the required tool; these screws measure 1.9 mm in length.

Position the lower border of the speaker unit flush with the enclosure's perimeter before inserting it into the designated cavity.

• Confirm that the lower-right securing projection engages correctly with the frame; a slight adjustment may be required to ensure proper seating.
• Apply downward pressure on the speaker diaphragm with your fingertip until an audible click indicates secure attachment.

• Employ a JIS 00 screwdriver for the installation of six screws securing the loudspeaker.
  Secure two screws, each measuring 2.7 millimeters in length.
  Utilize two screws with a length of 2.0 millimeters.
  Fasten one screw, with a 1.5-millimeter length, to the frame.
  Additionally, affix one 1.5-millimeter screw to the lower border of the iPhone's frame.

Reattach the buffer strip to the upper edge of the Taptic Engine, employing either your fingertips or a specialized spudger tool for the necessary pressure.

• Position the battery tray correctly within its designated area.
  Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

Employ a Torx Plus 4IP screwdriver for the battery tray screw installation process.A 7.5-millimeter-length screw is required for a specific location.A 5.9-millimeter-length screw is needed for another designated spot.

• A 3.5-millimeter-length screw must be used in a particular area.A 2.4-millimeter-length screw is necessary for a specific attachment point.
• Ten screws, each measuring 3.7 millimeters in length, are also needed.An additional 3.7-millimeter-length screw secures a different component.
• Models of the iPhone that incorporate a physical SIM card will not utilize this particular screw.The Torx Plus 4IP screwdriver is essential for proper screw engagement.
• Ensure the correct screw length is used to prevent damage to the device's components.Proper screw length selection is critical for maintaining structural integrity.
• The battery tray is secured with a combination of screw lengths.Carefully identify the designated location for each screw size.
• The presence or absence of the SIM card screw varies by iPhone model.Refer to the parts list to confirm the exact screw quantities and lengths.

• Exercise caution near the delicate grounding clips while cleaning the frame, as damage can occur; if displacement happens, carefully restore them to their original position using your fingers or tweezers.
• Employ tweezers or your fingertips to detach sizable portions of adhesive from the frame's edges.
• Employ a spudger to eliminate any remaining adhesive residue adhering to the frame's surface.
• Should the adhesive prove difficult to remove, apply warmth with a hair dryer or heat gun, and then attempt removal once more.

To dissolve the remaining adhesive, carefully dispense a small quantity of isopropyl alcohol with a concentration exceeding 90%.
Employing a microfiber cloth or a similar lint-free material, meticulously clean the residue by wiping consistently in a single direction along the frame's edges.
Performing this task deliberately is crucial, as a thoroughly cleaned frame facilitates the uniform application of replacement adhesive, which is essential for a stronger bond.

To facilitate adhesion when reinstalling a display, use a microfiber or lint-free cloth lightly moistened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and clean the display's edges.

Before removing any protective films, position the adhesive layer atop the device frame to establish the correct alignment.Employ existing structural elements, including the camera aperture and indentations on the upper and lower borders, to preview the adhesive's placement within the frame's contours.Confirm the adhesive sheet's intended positioning without disturbing the backing layers.

• Visual assessment of the adhesive's fit within the frame is facilitated by observing the camera opening and the notches located on the superior and inferior edges.

Carefully grasp the corner tab on the adhesive sheet.Remove the protective liner to reveal a portion of the adhesive backing.Exposing approximately one-third of the adhesive surface is sufficient.Exercise caution, as the revealed adhesive possesses a strong bonding capability.Prevent unintended contact with other surfaces until application to the frame is prepared.
Should your adhesive sheet incorporate multiple liners, remove only the uppermost layer to expose the frame-adhering side.The adhesive's inherent tackiness demands careful handling to avoid premature bonding.Ensure the exposed adhesive remains uncontaminated until it is positioned on the frame's surface.
For multi-layered adhesives, focus on removing the liner directly associated with the frame-facing side.

After applying the adhesive, any adjustments are impossible; a complete removal and replacement with fresh adhesive will be necessary.The adhesive's placement is permanent, requiring a fresh application for repositioning.Precisely match the visible perimeter of the adhesive strip to the matching edge found on the iPhone's casing.
Ensure accurate alignment of the adhesive strip's exposed border with the iPhone frame's corresponding edge.Successful alignment allows for a delicate application of the exposed adhesive strip to the frame's surface.A new adhesive application becomes mandatory if repositioning is desired following initial placement.
To achieve proper positioning, the adhesive strip's visible edge must be precisely aligned with the iPhone frame's edge.A gentle downward pressure should then be applied to the exposed adhesive strip, securing it to the frame.Following alignment, a soft, even pressure should be used to adhere the exposed adhesive strip to the iPhone's frame.

Progressively remove the protective backing from the adhesive material while applying gentle pressure to secure it.Proper alignment of the adhesive ensures a seamless fit with the device's frame.Should the adhesive be slightly off-center, carefully reposition the longer sides to match the frame's contours.Creasing or wrinkling of the adhesive indicates improper application; discard the affected material and reapply a new section.In the absence of replacement adhesive strips, the iPhone can be temporarily reassembled and used, although water resistance will be diminished.
The adhesive should be carefully pressed down to ensure proper bonding.Successful alignment results in a flush integration of the adhesive with the device's perimeter.Minor misalignments can be corrected by delicately adjusting the extended portions relative to the frame.

• Any folds or imperfections in the adhesive necessitate removal and replacement to maintain a secure seal.Without spare adhesive strips, the iPhone can function normally after reassembly, but its water resistance will be reduced.Continue the removal of the liner from the adhesive.

• Any creases or wrinkles appearing on the adhesive require removal and a fresh application.If an additional set of adhesive strips is unavailable, the iPhone can be temporarily reassembled for standard use.Be aware that the iPhone's water resistance will be lessened until the adhesive is replaced.Ensure the adhesive is firmly secured by applying even pressure during placement.A properly aligned adhesive strip will conform seamlessly to the frame's shape.Gentle manipulation of the adhesive’s edges allows for corrections to its position.Reapplication of fresh adhesive is essential if creases or wrinkles are present on the existing strip.

• Employ a spudger to apply pressure to the adhesive securing the iPhone's edges.Carefully maneuver around the delicate grounding clips, as displacement can occur.
  Should a grounding clip become dislodged, restore its original position with careful manipulation using your fingers or tweezers.

• Initiate liner removal by grasping the designated pull tab.The pull tab, typically situated within a corner of the liner, facilitates separation from the adhesive backing.
  Remaining liners, which encircle the device's edges, should remain in place to inhibit premature adhesion during reassembly.

Position the iPhone display assembly adjacent to the device's frame, ensuring sufficient cable length to connect to the logic board.Arrange the replacement screen proximate to the frame, allowing for unrestricted access and connection of the internal cable harness to the main circuit board.

• Employ either a fingertip or the broad, planar edge of a spudger tool to establish a secure connection between the two screen connectors and the logic board.Ensure the connectors properly engage with the board; avoid applying excessive force during the connection process.
  Should you encounter resistance while attempting to seat the connector, adjust its position slightly and retry the connection.

• Confirm proper operation by activating the device and observing its expected behavior.
• Deactivate the iPhone and proceed with the remaining reassembly steps.
• Should the iPhone fail to power on, establish a connection to an external power supply and attempt startup once more.

• Carefully slide the left side of the screen connector cover beneath the designated notch.
• Position the cover precisely using the screw aperture as a guide, then set it down onto the device.

To fasten the screen connector cover, employ a JIS 00 screwdriver and a screw measuring 1.2 mm in length.

1. Maintain the display's stability by grasping it securely with one hand.
2. Employing either your fingertips or a spudger, carefully separate the adhesive-securing perimeter liners to reveal the bonding agent.
3. Prevent any contact with the newly exposed adhesive to avoid contamination.
4. Thoroughly inspect the internal components, eliminating any detached liners to guarantee complete adhesive exposure.

• Position the display assembly against the chassis, initiating the alignment from the uppermost boundary.
• Should you encounter opposition during placement, a surrounding retaining clip might be deformed and undergoing compression from the chassis; carefully examine the area of obstruction and delicately restore any bent clips to their original shape.
• Verify that the display's perimeter isn't compressing any flexible circuit cables.
• Apply even pressure across the iPhone's borders to ensure the display sits uniformly against the chassis.

• Apply consistent, substantial pressure encompassing the complete outer edge of the iPhone's housing.

• Apply warmth around the display's edges utilizing a hair dryer, heat gun, or iOpener until the surface reaches a temperature just beyond comfortable touch.
  Introducing heat facilitates adhesive softening, which promotes improved adhesion during reassembly.

Employ a P2 pentalobe screwdriver for the installation of the two screws, each measuring 7.5 mm in length, positioned on both sides of the charging port.The two screws, each with a length of 7.5 mm, must be affixed to either side of the charging port using a P2 pentalobe screwdriver.To secure the screws flanking the charging port, utilize a P2 pentalobe screwdriver, ensuring each screw is 7.5 mm long.
