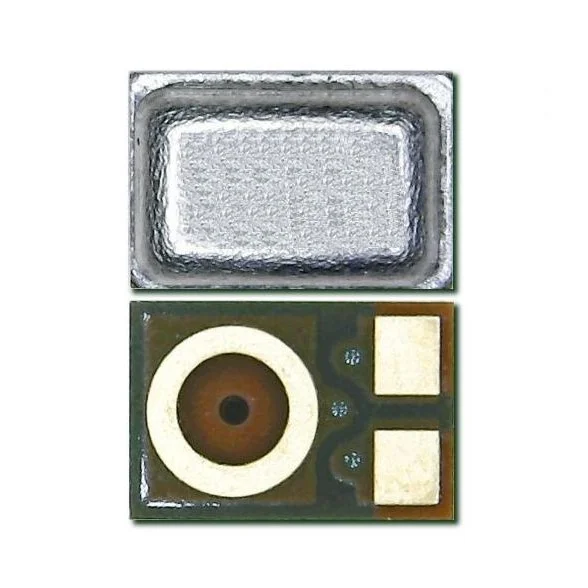

iPhone 17 Pro Max Lower Microphone Replacement

To mitigate fire hazards associated with compromised lithium-ion cells, ensure your iPhone's battery level is depleted to less than 25% prior to commencing this repair procedure, as a fully charged battery presents a heightened risk of ignition upon physical damage.

• Disconnect all connecting wires and cords from the device.
• Initiate a power-down sequence by simultaneously pressing the power button and either volume button, subsequently sliding the power control to the off position.

Potential lacerations or difficulties during the repair process may arise from fragmented glass; therefore, proceed with caution if your device's screen is damaged.

• To mitigate the risk of glass dispersal and facilitate suction cup adhesion, affix packing tape strips across the entire fractured glass surface.
• Ensure a solitary, non-overlapping strip of tape is positioned along the lower edge, providing sufficient area for suction cup attachment.
• Confine the tape application solely to the glass panel, avoiding contact with the surrounding frame to prevent adhesive residue.

Employ a P2 pentalobe screwdriver for the task of detaching the screws.The necessary tool for this step is a P2 pentalobe screwdriver.Two screws, each measuring 7.5 mm in length, secure the charging port.Located on both sides of the charging port are the two fasteners that require removal.To access the charging port, utilize a P2 pentalobe screwdriver and unscrew the two 7.5 mm screws.

Excessive insertion of the opening pick poses a risk of device damage; therefore, marking the pick's insertion depth is crucial for preventing harm.

• Accurately determine a distance of3 millimetersfrom the pick's distal end and apply a permanent marker to create a visible reference point.
• As an alternative method, affix a coin to the pick, positioning it3 millimetersfrom the tip to serve as a depth indicator.

Apply warmth to the screen's lower border utilizing a hair dryer or heat gun.The temperature should reach a point where it's uncomfortable, but not painful, to briefly touch.Incorrect operation of a heat gun poses a significant risk of damaging the display panel and/or battery.Adhere strictly to the detailed instructions provided in the linked resource to prevent such damage.A hair dryer or heat gun can be employed to gently warm the screen's lower edge.Ensure the temperature reaches a level that is noticeably warm to the touch, but not excessively hot.Careless use of a heat gun may result in irreversible harm to the display and/or battery; consult the linked guide for safe operation.

Securely attach a suction handle to the lower screen border, positioning it as near the edge as feasible to facilitate separation.

Ensure the positioning of your prying tool is accurate during the subsequent procedure.

• A molded plastic component, referred to as a bezel, is situated beneath the display's surface, resting upon the device's chassis.Carefully introduce your prying tool at this location, verifying its full insertion beneath the bezel.A distinct separation exists between the plastic bezel and the display panel itself.Avoid inserting the prying tool into this seam, as doing so will detach the display from the bezel.Such a separation will introduce unnecessary complexity to the repair process.
• The bezel is designed to maintain contact with the frame.Complete insertion of the prying tool under the bezel is essential for proper leverage.Precise placement of the prying tool prevents unintended separation of display components.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display screen from its surrounding frame.
Achieving this separation might require considerable effort; should initial attempts prove unsuccessful, reapply heat to the screen's surface and resume the process.
Carefully position the pointed end of a specialized opening pick into the newly formed space.These tools are designed to prevent damage to delicate components during separation.The pick's tip should be inserted into the created gap to facilitate further screen detachment.

To prevent harm to internal parts, ensure the insertion depth of your separation tool remains below a 3-millimeter limit.Proximity to the volume and Action buttons places the screen and ambient light sensor cables at risk of damage.The phone's frame incorporates fragile spring contacts positioned along its edges.

• Thin, metallic clips secure the display assembly to the chassis, engaging with matching receptacles.
• These clips are situated on the underside of the screen.
• Care must be taken to avoid dislodging these clips during separation, as they are precisely fitted within their corresponding slots on the frame.

Utilize a separating tool to gently release the adhesive bond by moving it along the lower perimeter of the device.
Maintain the separating tool's position beneath the lower-right corner to inhibit the adhesive from reforming a seal.

Detach the suction cup from the display by actuating the small protrusion located on its surface.

Apply warmth to the right-hand perimeter of the screen assembly using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.The purpose of this heating process is to soften the adhesive securing the screen.Exercise caution during this step to prevent damage to the display or surrounding components due to excessive heat.

• Position a second opening tool beneath the lower-right corner of the display assembly.

• Move the tool upwards along the right side to detach the adhesive and disengage the two retaining clips.A slight upward lift of the display might be necessary to ensure complete clip release.
• Maintain the tool's position beneath the upper-right corner to inhibit adhesive re-adhesion.

Applying warmth to the screen's upper boundary with a hair dryer or heat gun is necessary, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right quadrant.

• Carefully maneuver the pick along the top perimeter, slightly past the top-left corner, to detach the adhesive and disengage the two securing clips.Exercise caution, as excessive pick movement could potentially harm the ambient light sensor's cable.
• Maintain the pick's placement beneath the top-left corner to inhibit the adhesive from re-bonding.

To loosen the adhesive securing the display, apply warmth to the left screen border using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the left side to sever the adhesive bond and disengage the retaining clip, pausing immediately prior to the volume up control.
• A slight upward lift of the screen may be necessary to free the clip; avoid further pick advancement to prevent potential damage to the display cable.

Ensure the display assembly is fully disengaged from its surrounding structure; should resistance be encountered, re-examine the edges to release any lingering adhesive or securing fasteners.

Elevate the display vertically and rotate it towards the left side, supporting it with a stable object like a container or pile of literature to prevent cable tension; a horizontal placement across the left side is also a viable option.

Carefully monitor the location of each screw during the repair process, ensuring their correct reinstallation.

Employ a JIS "00" screwdriver to detach the battery and screen cable covers.Two screws, each measuring 1.2 mm in length, fasten the covers to the device.iFixit-branded Phillips bits are specifically engineered for compatibility with JIS screws.While alternative Phillips screwdrivers might function, using them carries the potential for screw head damage.To prevent screw stripping, it is recommended to utilize the appropriate JIS screwdriver.

Detach the pair of protective housings.

• Employing the tip of a spudger, carefully lift and separate the battery press connector from its socket.The spudger's pointed end facilitates the detachment of the battery press connector by gently levering it upwards.To release the battery press connector, utilize the pointed end of a spudger and apply force to disengage it.

• Employing the pointed end of a prying tool or a spudger's tip, carefully separate and detach the display assembly and associated front sensors.The disconnection of the connectors linking the screen and front sensors requires a precise, focused application of force.To release the screen and front sensors, utilize the tip of a prying tool or a spudger to gently lift and detach the connected press connectors.

• Detach the display panel.The screen component must be separated.Disassembly of the display is required.

• Employ a Torx Plus 4IP screwdriver for the task of detaching the fasteners that hold the battery compartment in place.A single screw, measuring 7.5 millimeters in length, is utilized in the assembly.Another screw, with a length of 5.9 millimeters, is also present.
  A fastener of 3.5 millimeters in length is incorporated into the design.A screw with a 2.4-millimeter length is another component of the system.
  Ten screws, each measuring 3.7 millimeters in length, are used for securing the tray.An additional screw, also 3.7 millimeters in length, contributes to the overall fastening.
  Certain iPhone versions, those incorporating a physical SIM card, lack this particular screw.The battery tray is affixed using a combination of screw sizes to ensure secure attachment.
  Proper selection of the Torx Plus 4IP screwdriver is essential to avoid damaging the screw heads.Carefully observe the screw lengths to ensure correct placement during reassembly.
  The presence or absence of the 3.7 mm screw depends on the specific iPhone configuration.Refer to the parts list to confirm the exact number and length of each screw required.
  Maintaining the original screw order and placement is crucial for proper functionality.Ensure the battery tray is properly aligned before tightening the screws.
  Damage to the screw heads can occur if the incorrect screwdriver is used.

• Employ a fingertip to elevate the battery compartment's upper-left corner, subsequently detaching the cover.Exercise caution to prevent any transference of residue onto the front-facing camera lens.

Utilize the pointed end of a prying tool to gently disengage the plastic buffer strip, which is affixed to the Taptic Engine's upper surface, by sliding the tool along the edge.

1. Employ a JIS 00 screwdriver for the removal of the six screws that hold the loudspeaker in place.
2. A quantity of two screws, each measuring 2.7 millimeters in length, are present.Two screws, with a length of 2.0 millimeters, are also required.A single screw, extending 1.5 millimeters, is incorporated into the assembly.
3. Another screw, also 1.5 millimeters in length, is affixed to the lower edge.The loudspeaker is fastened with six screws, necessitating a JIS 00 screwdriver for their disassembly.Screws of 2.7 mm length are utilized in the loudspeaker's mounting configuration.
4. Two fasteners, each possessing a 2.0 mm length, contribute to the loudspeaker's securement.A 1.5 mm screw is part of the fastening system for the loudspeaker.One screw, with a 1.5 mm dimension, is specifically attached to the bottom edge of the component.
5. To detach the loudspeaker, a JIS 00 screwdriver is essential for unscrewing the six fasteners.The loudspeaker's attachment involves screws of varying lengths: two at 2.7 mm, two at 2.0 mm, and two at 1.5 mm.A JIS 00 screwdriver is the appropriate tool for removing the six screws that secure the loudspeaker.

A gasket utilizing adhesive material secures the loudspeaker to the device frame.
To disengage the loudspeaker, incline the upper portion outward from its designated cavity.
Gradually separate the loudspeaker from the frame, allowing the adhesive bond to break.
Complete the removal process by detaching the loudspeaker entirely.

Employ a JIS 00 screwdriver for the task of detaching the ground clip.The two screws, each measuring 1.9 mm in length, must be removed using the appropriate tool.Securely hold the component while unscrewing the fasteners.A JIS 00 screwdriver is essential for manipulating the specified screw type.The ground clip is affixed with two screws, each with a 1.9 mm length, necessitating a JIS 00 screwdriver for their removal.

Employ tweezers to detach the ground clip.
Due to its fragile nature and small size, safeguard the clip in a secure location to facilitate future reinstallation.

1. Employ a JIS 00 screwdriver for the disassembly process of the flex antenna's securing hardware.The antenna is affixed with three screws that require removal using the specified screwdriver.A single screw, measuring 1.7 millimeters in length, is part of the antenna's attachment.
   • Two screws, each with a length of 1.9 millimeters, are also used to secure the flex antenna.Carefully unscrew the fasteners to avoid damage to surrounding components.
   • The precise screw lengths are 1.7 mm and 1.9 mm, respectively, for proper reassembly.Ensure the JIS 00 screwdriver is properly seated on the screw heads during removal.

To gain access to the screws located underneath, carefully maneuver the flex antenna aside using your fingers or a spudger.

Employ a standoff screwdriver for the extraction of two screws, each measuring 4.0 mm in length.These screws are responsible for affixing the Taptic Engine.The standoff screwdriver is specifically designed for this task.Carefully unscrew the fasteners to avoid damage.The Taptic Engine will become dislodged once the screws are removed.Ensure the screwdriver engages properly with the screw head to prevent stripping.The screws' length of 4.0 mm is critical for proper reassembly.

• Employ your fingertips to maneuver the Taptic Engine from its housing and towards the iPhone's exterior.The Taptic Engine should be lifted from its recessed position, allowing it to rest along the device's side.Maintain a firm grip on the Taptic Engine as you proceed to the subsequent operation.
  This secure hold is essential to avoid undue stress on the component's delicate cable.Preventing cable strain is achieved by ensuring the Taptic Engine remains stable throughout the process.The cable's integrity is protected by carefully supporting the Taptic Engine during removal and repositioning.

Employ the tip of a spudger to carefully lift the Taptic Engine press connector.Separation of the Taptic Engine press connector is achieved through prying with a spudger's pointed end.To release the connection, utilize the spudger's point for leverage against the Taptic Engine press connector.Disconnecting the Taptic Engine press connector requires applying upward force with a spudger's tip.A spudger should be used to gently disengage the Taptic Engine press connector from its position.

• A single, 3.2-millimeter-length standoff screw is utilized for this process.Additionally, a 3.1-millimeter-length JIS 00 screw is also involved.
• These fasteners are positioned along the lower edge of the iPhone's frame.Careful removal of these screws is essential for successful microphone disassembly.Ensure proper screw identification and storage to prevent reassembly complications.

• Employ the planar aspect of a spudger to gain access to the space separating the lower microphone assembly and the device's structural frame.Apply a gradual rotational force to the spudger to disengage the lower microphone from its mounting.The controlled twisting action facilitates separation of the microphone component.
• Carefully leverage the spudger to detach the microphone, avoiding damage to surrounding parts.Ensure a secure grip on the spudger to prevent slippage during the prying process.The lower microphone is now free from the frame.
• Proceed with the next step once the lower microphone is completely dislodged.

• Employ the tip of a spudger to disengage the retaining bracket securing the lower microphone.The bracket's release allows for its separation from the microphone assembly.Carefully detach the bracket, preserving it for subsequent reinstallation.
• Maintain possession of the bracket to facilitate proper reassembly of the device.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
Because iPhone models vary, slight visual differences might be apparent in the reassembly images; nevertheless, the described steps remain accurate for all supported iPhone versions.

• Position one extremity of the slender microphone bracket against the microphone's base, ensuring a secure connection via the integrated latch.The microphone bracket's design necessitates a precise alignment to guarantee proper functionality.Replicate the previous procedure on the opposing side to affix the bracket firmly to the microphone's structure.
• This two-point attachment method provides stability and prevents unwanted movement of the microphone bracket.

Provided the adhesive gasket maintains its original shape and a replacement gasket wasn't included with the lower microphone assembly, the existing gasket can be retained for subsequent use; however, doing so will compromise the device's water and dust protective capabilities.

• Employing tweezers, carefully detach the microphone's adhesive gasket from the frame.

1. Prior to installation, if the newly supplied lower microphone incorporates a pre-applied adhesive gasket, carefully peel away any protective liners to reveal the adhesive surface.
2. Employing tweezers provides a precise method for positioning the microphone relative to the device's frame.
3. To secure the microphone, insert it into its designated cavity and apply pressure, ensuring a minimal separation between the microphone's exterior and the surrounding frame.

• To soften the adhesive securing the lower microphone assembly, apply warmth using a hair dryer or iOpener until the component reaches a comfortably warm temperature.

1. Secure the two lower microphone components using the provided microphone screws.
2. A standoff screw, measuring 3.2 millimeters in length, is required for this step.The 3.1-millimeter-long JIS 00 screw is already affixed to the iPhone's lower frame.Carefully position the microphone to align with the screw holes.
3. Ensure the standoff screw is properly seated before tightening.Apply even torque to prevent damage to the microphone or frame.The JIS 00 screw's short length necessitates careful handling to avoid stripping the threads.

• Establish a physical connection between the lower microphone press connector and your fingertip by applying pressure.Ensure the lower microphone press connector is securely engaged through manual depression.The lower microphone press connector requires finger pressure to achieve a functional connection.

1. Position the Taptic Engine in an inverted orientation against the iPhone's perimeter.Maintain a secure grip on the Taptic Engine with one hand during the subsequent steps.Apply pressure with a fingertip to establish a connection between the Taptic Engine and its corresponding press connector.
2. The press connector facilitates electrical contact with the Taptic Engine.Ensuring proper alignment is crucial for correct functionality.The Taptic Engine is a delicate component; handle with care to prevent damage.The press connector is a small, easily dislodged part; exercise caution.This process secures the Taptic Engine within the iPhone's assembly.

Position the Taptic Engine, inverting its orientation, atop the device frame, ensuring precise alignment with the pre-existing screw apertures.The Taptic Engine flex cable must be carefully routed, folding smoothly in the space situated between the Taptic Engine component and the frame’s structure.Alignment of the Taptic Engine is achieved by matching its screw holes to corresponding locations on the frame.A clean fold of the Taptic Engine flex cable is essential for proper installation and prevents stress on the connection.The flex cable’s placement should be managed to avoid kinks or sharp bends during the reassembly process.Carefully manage the Taptic Engine flex cable to maintain a neat and organized routing between the engine and the frame.Ensure the Taptic Engine is correctly oriented before proceeding with securing it to the frame using the designated screws.

Employ a standoff screwdriver for the purpose of securing the two Taptic Engine screws.The screws intended for installation measure precisely 4.0 millimeters in length.This process ensures proper engagement and stability of the component.

Employing either your fingertips or a specialized plastic pry tool, carefully bend the flexible antenna cable downwards, ensuring it remains positioned correctly.

• Employ a JIS 00 screwdriver for the installation of the flex antenna screws.Secure the antenna with a single 1.7 mm screw.Utilize two screws, each measuring 1.9 mm in length, for the remaining connections.
• The appropriate tool for this task is a JIS 00 screwdriver, ensuring proper engagement with the screw heads.
• Precise screw lengths are critical: one screw should be 1.7 mm long, while the other two require a length of 1.9 mm.

Employ tweezers to precisely position the ground clip within its designated location.
Confirm proper alignment of the clip, referencing the provided visual documentation to ensure correct orientation.

• Employ a JIS 00 screwdriver for the installation process.The two ground clip screws require a JIS 00 screwdriver for secure fastening.Secure the ground clips using a JIS 00 screwdriver.Ground clip screws, each measuring 1.9 mm in length, are affixed with a JIS 00 screwdriver.A JIS 00 screwdriver is essential for attaching the two ground clip screws, which are 1.9 mm long.

• Position the lower border of the loudspeaker so it is flush with the device's frame, then place it within its designated cavity.
• Verify that the lower-right securing tab makes full contact with the frame; if misaligned, carefully deflect it to achieve proper seating.
• Apply downward pressure on the loudspeaker's surface using your fingertip until you hear a distinct audible click, confirming its secure installation.

• Employ a JIS 00 screwdriver for the installation of the six screws securing the loudspeaker.
• Two screws, each measuring 2.7 millimeters in length, are required.Additionally, two screws with a length of 2.0 millimeters are needed.A single 1.5-millimeter screw is also necessary.
• Another 1.5-millimeter screw is needed for assembly.One 1.5-millimeter screw is affixed to the lower boundary of the iPhone's frame.Secure the loudspeaker with the specified screws using the JIS 00 screwdriver.
• The six loudspeaker screws must be installed with precision.Ensure the correct length screws are used to avoid damage.The 2.7 mm screws are critical for proper loudspeaker attachment.
• The 2.0 mm screws contribute to the structural integrity of the assembly.Carefully position the 1.5 mm screw attached to the iPhone frame's bottom edge.Properly tightening all screws is essential for optimal performance.

• Reattach the buffer strip to the upper edge of the Taptic Engine, utilizing either your fingertips or a spudger for precise repositioning.

1. Position the battery tray correctly within its designated area.
2. Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

• Employ a Torx Plus 4IP screwdriver for the battery tray screw installation process.A single screw, measuring 7.5 millimeters in length, is required.A separate screw, with a length of 5.9 millimeters, is also needed.
• The assembly necessitates a 3.5-millimeter screw as one of its components.
• A 2.4-millimeter screw is incorporated into the required hardware.
• Ten screws, each 3.7 millimeters long, are essential for proper attachment.
• An additional 3.7-millimeter screw contributes to the secure fastening of the tray.
• Models of the iPhone that retain a physical SIM card slot will include this particular screw.
• The specified screwdriver type is crucial for preventing damage to the screw heads during installation.

Accurate screw length is vital for ensuring correct alignment and secure attachment of the battery tray.

1. Exercise caution while cleaning the frame, carefully avoiding damage to the delicate grounding clips; should a clip become displaced, restore its original shape with careful manipulation using your fingers or tweezers.
2. Employ tweezers or your fingertips to detach sizable portions of the adhesive material from the frame's edges.
3. Utilize a spudger tool to eliminate any remaining adhesive residue adhering to the frame's surface.
4. Should the adhesive prove difficult to remove, apply warmth with a hair dryer or heat gun to soften it, then attempt removal once more.

• Introduce a small quantity of isopropyl alcohol possessing a concentration exceeding 90% to the remaining adhesive.Employ a microfiber cloth or a lint-free alternative to meticulously cleanse the adhesive remnants, moving in a single direction along the frame's edges.The cleaning process should be performed deliberately to avoid smearing or spreading the residue.
• A pristine frame surface facilitates the uniform application of replacement adhesive, which is crucial for achieving a robust bond.
• Careful attention to detail during this step will contribute to a more secure and effective adhesive seal.

To facilitate adhesion when reinstalling a display, dispense a small quantity of high-purity isopropyl alcohol, exceeding 90% concentration, onto a cleaning cloth that is free of fibers.Employing a microfiber or lint-free cloth is essential to prevent residue from interfering with the bonding process.Thoroughly clean the display's edge by wiping with the alcohol-moistened cloth, ensuring a pristine surface for the adhesive to properly adhere.

• Prior to removing any protective films, position the adhesive sheet upon the frame's surface to establish the correct alignment.Employ elements like the camera aperture and indentations situated on the upper and lower borders to mentally simulate the adhesive's placement within the frame’s boundaries.Carefully assess the sheet's positioning by referencing the pre-existing frame details to ensure a precise fit.
• The adhesive layer's intended location can be previewed by observing its relationship to the frame's distinctive characteristics.Visual confirmation of the adhesive's placement is achieved by aligning it with the camera opening and edge markings.To guarantee accurate installation, the adhesive sheet should be aligned with the frame's features before any protective layers are removed.

Carefully grasp the corner tab on the adhesive backing.Remove the protective liner from the adhesive sheet.This action will reveal a portion of the adhesive material.A significant amount of tackiness characterizes the exposed adhesive surface.Avoid contact between the adhesive and other surfaces until application.
Premature contact can result in unintended adhesion.Should your adhesive backing incorporate multiple liners, proceed to remove the layer exposing the frame-adhering side.The layer intended for frame contact must be revealed.
This ensures proper adhesion to the frame's surface.Handle the adhesive with caution to prevent unwanted sticking.Maintaining cleanliness prevents contamination and ensures a secure bond.

After applying the adhesive, any adjustments are impossible; a complete removal and reapplication with fresh adhesive will be necessary.The adhesive's placement is permanent once contact is made, requiring a fresh start if misalignment occurs.To ensure proper bonding, meticulously match the visible perimeter of the adhesive strip to the iPhone's frame edge.Precise positioning of the adhesive strip's exposed edge is critical for a secure bond with the iPhone's frame.Correct alignment is achieved when the adhesive strip's edge corresponds exactly with the iPhone frame's edge.
A secure bond is established by applying gentle pressure to the exposed adhesive strip against the iPhone's frame.Ensure the adhesive strip's edge is perfectly aligned with the iPhone frame before applying pressure.Any repositioning attempts after initial contact will compromise the adhesive bond, necessitating replacement.
The adhesive strip's exposed portion must be pressed firmly against the iPhone's frame to create a seal.Misalignment of the adhesive strip will result in a weakened bond, requiring replacement and reapplication.A new adhesive strip is required if repositioning is attempted after the initial placement.

Proceed with removing the protective backing from the adhesive material, applying gentle pressure as you secure it.Ensure the adhesive is properly positioned by observing that the borders seamlessly conform to the device's frame.Should minor positioning errors occur with the adhesive, carefully reposition the longer sides toward the frame's boundaries.In the event of creases or wrinkles forming on the adhesive, discontinue the process and begin anew with a replacement set.If a spare set of adhesive strips is unavailable, the iPhone can be reassembled and used temporarily without the adhesive.
Be aware that the iPhone's ability to resist water damage will be reduced until the adhesive is correctly reapplied.Carefully detach the liner from the adhesive, simultaneously applying pressure to ensure proper bonding.Confirm accurate alignment of the adhesive by verifying that its borders neatly integrate with the surrounding frame.
Should the adhesive require adjustment, gently draw the extended edges toward the frame to correct the placement.If the adhesive develops folds or imperfections, it is recommended to discard it and initiate the process with a fresh strip.In situations where replacement adhesive strips are not immediately accessible, the iPhone can be temporarily reassembled.
Understand that the iPhone's water resistance capabilities will be diminished until the adhesive is properly restored.Continue to remove the liner from the adhesive, applying even pressure for optimal adhesion.Proper alignment is indicated when the adhesive's edges conform precisely to the contours of the frame.To correct minor misalignments, gently reposition the longer edges of the adhesive towards the frame's perimeter.Should the adhesive exhibit signs of creasing or wrinkling, it is advisable to discard it and begin with a new strip.
If a replacement adhesive strip is unavailable, the iPhone can be used temporarily without it.Recognize that the iPhone’s water resistance will be lessened until the adhesive is replaced.As you apply the adhesive, gently press it into place while removing the protective liner.Successful positioning of the adhesive is confirmed by the seamless integration of its edges with the frame.For slight misalignments, gently adjust the longer edges of the adhesive towards the frame’s boundaries.If the adhesive develops creases, remove it and restart the process with a fresh adhesive strip.Temporarily reassembling the iPhone without the adhesive is acceptable if a replacement is unavailable, but water resistance will be affected.

Employ a spudger for applying pressure to the adhesive securing the iPhone's edges.Carefully maneuver around the delicate grounding clips to prevent damage.

• Should a grounding clip become dislodged, restore it to its original position using finger manipulation or tweezers.
• The adhesive surrounding the iPhone's circumference requires uniform pressure application via a spudger.

Initiate liner removal by grasping the designated pull tab.The pull tab, commonly situated within a corner of the liner, facilitates separation from the adhesive backing.

• Remaining liners, which encircle the device's edges, should remain in place to inhibit premature adhesive adhesion during reassembly.

Position the iPhone display adjacent to the frame, ensuring sufficient cable slack to connect to the logic board.

Employing a fingertip or the broad, planar edge of a spudger tool, establish a secure connection between the two screen connectors and the logic board.Ensure proper alignment and engagement of the connectors; avoid applying excessive pressure during the connection process.

• Should difficulties arise during connector installation, carefully realign the connector and attempt the connection once more, rather than applying undue force.

• Confirm proper operation by activating the device and observing expected behavior.
• Deactivate the iPhone and proceed with the remaining assembly steps.
• Should the iPhone fail to energize, establish a connection to a power supply and attempt activation once more.

• To fasten the battery connector cover, employ a JIS 00 screwdriver and a screw measuring 1.2 mm in length.

• Carefully slide the left side of the screen connector cover's edge beneath the designated lip of the cutout.Position the cover precisely, utilizing the screw hole as a reference point for accurate alignment.Ensure the cover is correctly situated by gently placing it onto the intended surface.
  The cover should be seated flush, maintaining proper alignment with the screw hole.

• Employ a JIS 00 screwdriver for the installation process of the screw.The screw's length must be precisely 1.2 millimeters.The screen connector cover is affixed using this screw.Properly secure the screen connector cover with the screw.Ensure the JIS 00 screwdriver is utilized for accurate screw installation.

• Maintain a firm grip on the display assembly with one hand to prevent movement.Carefully detach all perimeter liners using your fingertips or a spudger to reveal the underlying adhesive.Prevent any contact with the newly exposed adhesive to avoid contamination or reduced adhesion.
  Thoroughly inspect the internal components for any detached liner fragments and eliminate them.
  Ensure the complete absence of any remaining liners within the device's interior.
  The device's internal area must be entirely free of liner material after this process.

• Position the display assembly downwards onto the device chassis, initiating the alignment from the uppermost border.Should you encounter opposition during placement, a retaining clip along the boundary might be deformed and compressed by the frame; carefully examine the area of obstruction and delicately restore any bent clips to their original shape.Verify that the display's periphery isn't exerting pressure on any internal wiring harnesses.
  Ensure the display panel is properly seated against the chassis by applying even pressure across all edges.
  The display should be aligned with the frame's top edge as the initial point of contact.A bent perimeter clip can impede the display's proper seating, requiring manual correction.Carefully inspect the area where you feel resistance to identify and rectify any clip deformations.
  Confirm the absence of cable compression by visually inspecting the display's edge area.Apply uniform pressure across the display's perimeter to achieve a completely flat contact with the frame.The display's edge must not exert undue force on any flexible circuit cables within the device.

• Apply consistent, substantial pressure encompassing the complete outer edge of the iPhone's housing.

• Apply warmth around the screen's edges utilizing a hair dryer, heat gun, or iOpener, ensuring the surface reaches a temperature just beyond comfortable touch, as this process loosens the adhesive and facilitates a stronger reattachment.

• Employ a P2 pentalobe screwdriver for the installation of the two screws, each measuring 7.5 mm in length, positioned on both lateral sides of the charging port.
