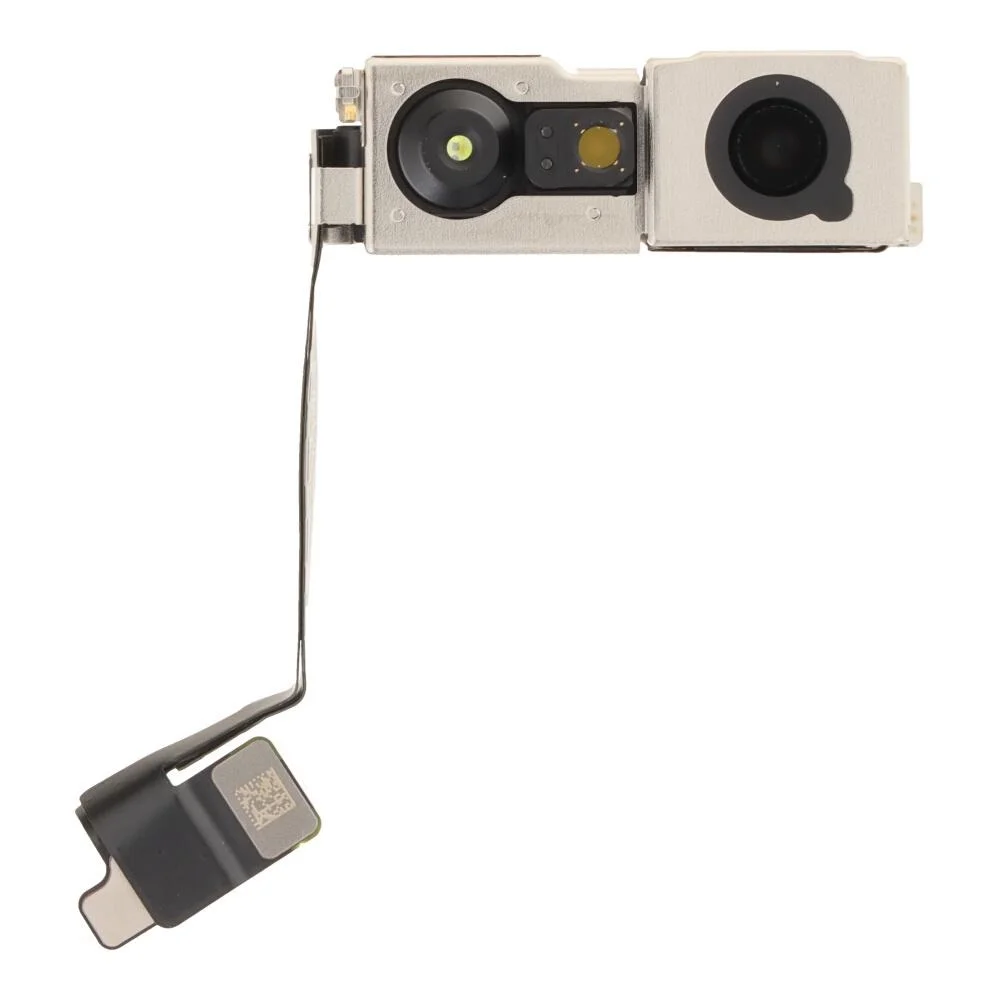

iPhone 17 Pro Max Front Camera Assembly Replacement

To ensure optimal conditions for this repair procedure, allow your iPhone's battery to discharge to a level below 25% prior to commencing work.Because of the potential fire hazard, a lithium-ion battery that retains a charge presents a significant risk if it is compromised during the repair process.

• Disconnect all connecting wires and cords from the device before proceeding with the repair.
• Initiate a power-off sequence by simultaneously pressing the power button and one of the volume buttons, then utilize the on-screen slider to confirm the shutdown.

Important safety note: Fragments of broken glass present a hazard during the repair process and may result in physical harm.Should your device's display exhibit cracks, proceed with the following procedure.

• To prevent glass dispersal and facilitate suction cup adhesion, affix packing tape strips over the damaged glass surface.
• Secure a solitary strip of tape, without overlap, along the lower edge, ensuring sufficient area for suction cup placement.
• Confine the tape application exclusively to the glass portion, avoiding contact with the device's frame.

Employ a P2 pentalobe screwdriver to detach the two screws, each measuring 7.5 millimeters in length, located on both sides of the charging port.The two screws securing the device near the charging port require removal using a specialized P2 pentalobe screwdriver.To access the charging port area, utilize a P2 pentalobe screwdriver and unscrew the pair of fasteners, each with a length of 7.5 mm, situated laterally.

Important safety note: Incorrect insertion depth of the opening pick poses a risk of device damage.To prevent potential harm, precisely determine a 3-millimeter distance from the pick's tip and clearly indicate this point using a permanent marker.

• As an alternative method for ensuring proper depth, securely affix a coin to the opening pick, positioning it 3 millimeters from the tip.
• Care should be taken to avoid over-insertion of the opening pick, which could result in irreparable harm to the device's internal components.

A critical warning: Incorrect application of heat using a heat gun poses a risk of irreparable damage to the display panel and/or battery; adhere meticulously to the detailed instructions provided at the referenced link.To facilitate separation, apply warmth to the lower screen perimeter employing either a hair dryer or a heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Strict adherence to the linked instructions is essential when utilizing a heat gun, as improper handling may result in irreversible harm to the display and/or battery.

Secure a suction handle to the screen's lower border, positioning it as near the perimeter as feasible.

Prior to proceeding, confirm the precise placement for your prying tool.

• A plastic trim piece, situated beneath the screen's surface, rests upon the device's frame; position your tool beneath this trim piece, ensuring full separation.
• A distinct joint exists where the plastic trim meets the display; avoid inserting the tool at this juncture to prevent unintended separation of these components, which would increase repair complexity.

Apply consistent, powerful upward pressure to the suction cup's handle to separate the display panel from its surrounding structure, creating a visible space.
Overcoming this separation might necessitate considerable effort; should difficulties arise, reapplying heat to the display panel and attempting the process anew is recommended.
Carefully position the pointed end of a prying tool into the newly formed separation to facilitate further display detachment.

To prevent component damage, ensure the insertion depth of any prying tool remains limited to a maximum of 3 millimeters.Proximity to the volume and Action buttons places the screen and ambient light sensor cables at risk of injury.The phone's frame incorporates sensitive spring contacts positioned along its edges, demanding careful handling.

• Thin, metallic clips secure the display assembly, engaging with matching slots within the phone's frame.
• Exercise caution to avoid contact with these fragile spring contacts during the separation process.
• The underside of the screen utilizes slender metal clips that are designed to fit precisely into corresponding receptacles on the chassis.

Utilize a separation tool to disengage the adhesive bond by moving it along the lower perimeter.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from reattaching.

1. Detach the suction cup from the display surface by actuating the small protrusion located on its body.

1. Apply warmth to the right-hand perimeter of the screen assembly utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.The purpose of this heating process is to soften the adhesive securing the screen.Exercise caution to avoid excessive heat, which could damage the screen or surrounding components.

• Position a second opening pick beneath the lower-right corner of the display assembly.
  Advance the pick along the right side to sever the adhesive bond and disengage the two retaining clips.Should separation prove difficult, a slight upward lift of the screen may be necessary to free the clips.
  Employ a prying action if required to facilitate clip release.Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-adhesion.The adhesive's integrity is compromised as the pick is moved.
• Separation of the adhesive and clip release occurs through a sliding motion.

• Apply warmth to the screen's upper boundary utilizing a hair dryer or heat gun.The objective is to raise the temperature of the screen's edge to a point where it is uncomfortably warm upon brief contact.Ensure the temperature reaches a level just beyond comfortable touch, but avoid excessive heat which could damage the display.

• Position a third opening pick beneath the upper-right portion of the display assembly.
  Carefully move the pick along the top perimeter, gently curving it near the upper-left corner to break the adhesive bond and disengage the two retaining clips.
  Avoid advancing the pick further into the assembly, as this could potentially harm the ambient light sensor cable.The ambient light sensor cable is a delicate component.Maintain the pick's placement beneath the upper-left corner to inhibit the adhesive from reforming a seal.
  This prevents the adhesive from re-attaching during subsequent steps.

Applying warmth with a hair dryer or heat gun to the screen's left border is necessary.Elevate the temperature of the screen's left edge by using heat, continuing until the surface reaches a point where it's uncomfortable to briefly touch.The target temperature should be just beyond the point of comfortable contact when briefly touched.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the left side to detach the adhesive and disengage the retaining clip, pausing immediately prior to the volume up control.
• A slight upward lift of the screen may be necessary to free the clip; avoid further pick advancement to prevent potential damage to the display cable.

Ensure the display assembly is fully disengaged from its surrounding structure; if resistance is encountered, re-examine the edges for any lingering adhesive or securing fasteners that require further separation.
Elevate the display vertically and rotate it towards the left side, supporting it with a stable object like a container or pile of literature to prevent stress on the connecting wires; as an alternative, the display can be positioned horizontally across the left portion of the device.

Carefully monitor the location of each screw during the repair process, ensuring their correct reinstallation.
Employ a JIS "00" screwdriver to detach the battery and screen cable covers.Two screws, each measuring 1.2 mm in length, fasten the covers; removal requires a JIS screwdriver.iFixit's small Phillips bits are specifically engineered for compatibility with JIS screws, providing a safer alternative.While Phillips screwdrivers from other brands may function, utilizing them carries the potential for screw head damage.To prevent screw stripping, prioritize the use of a JIS screwdriver during this procedure.

Detach the pair of protective housings.

• Employ the tip of a spudger to carefully lift and detach the battery press connector.The battery press connector must be separated from its position by utilizing a spudger's pointed end.To release the battery press connector, apply the spudger's point and gently disengage it.

• Employing the pointed end of a prying tool or a spudger, carefully lift and separate the display assembly and associated front sensors, ensuring disconnection by releasing their respective connectors.The connectors securing the screen and front sensors must be released through careful leverage using a pointed instrument, such as a prying tool or spudger.To detach the screen and front sensors, utilize the pointed tip of a prying tool or a spudger to apply force and disengage the press-fit connectors.

• Detach the display panel.

• Employ a Torx Plus 4IP screwdriver for the task of unscrewing the battery tray fasteners.A single screw, measuring 7.5 millimeters in length, is utilized.A separate screw, with a length of 5.9 millimeters, is also present.
  Another screw, measuring 3.5 millimeters, contributes to the battery tray's retention.A fourth screw, with a length of 2.4 millimeters, is part of the securing mechanism.
  Ten screws, each 3.7 millimeters long, are used to hold the tray in place.An additional screw, also measuring 3.7 millimeters, is incorporated into the assembly.
  Certain iPhone versions, those incorporating a physical SIM card, lack this particular screw.The battery tray is affixed using a combination of screw sizes to ensure stability.
  Carefully unscrew the fasteners using the specified Torx Plus 4IP screwdriver.The varying lengths of the screws are critical for proper alignment and secure attachment.
  Note that the absence of the 3.7 mm screw is exclusive to iPhones with a physical SIM.Ensure the Torx Plus 4IP screwdriver is properly seated to avoid stripping the screw heads.
  The 7.5 mm screw is typically located at a corner of the battery tray.The 5.9 mm screw is often positioned near the center of the tray's attachment point.
  Refer to the parts list to confirm the presence and location of each screw size.

• Employ a fingertip to elevate the battery compartment's upper-left corner, subsequently detaching the tray.Exercise caution to prevent any smearing of the front-facing camera's lens during this process.The battery tray's removal necessitates a careful lifting action at its top-left corner, utilizing a finger.
  To avoid compromising the front camera's clarity, ensure no fingerprints are left on its surface while handling the battery tray.

• Employ a specialized tri-point screwdriver, specifically a Y000 type, for disassembly.The screw, measuring 1.0 millimeters in length, requires a tri-point Y000 screwdriver for removal.A tri-point Y000 screwdriver is essential for the task of detaching the front camera connector cover.To release the front camera connector cover, a Y000 tri-point screwdriver is needed to unscrew the fastener.The front camera connector cover is affixed with a 1.0 mm screw that necessitates a tri-point Y000 screwdriver for its removal.

• Employing tweezers facilitates detachment and removal of the protective cover situated on the front camera connector.The front camera connector's cover can be disengaged and taken away with the assistance of specialized tweezers.To detach and extract the cover safeguarding the front camera connector, utilize a pair of tweezers.

• Employ the tip of a spudger to carefully separate and release the two front camera connectors, noting that one is situated beneath the other, from their connection points on the logic board.To detach the front camera connectors, utilize a spudger, applying force to its pointed end to lever them away from the logic board, ensuring the separation of both connectors, which are stacked.Disconnect the two front camera connectors from the logic board by using a spudger to gently pry them upwards, observing that one connector is positioned directly below the other.

• Employ the tip of a spudger to carefully separate the right side of the front camera module from its housing.The spudger's point should be used to leverage the edge of the front camera assembly.Gently lift the front camera assembly, disengaging it from its mounted position.
  Completely detach the front camera assembly by raising it out of its designated space.

Having finished the disassembly process, the following instructions detail the reassembly procedure for your iPhone.
Slight variations in the visual appearance of reassembly images might occur based on the specific iPhone model, but the outlined steps remain accurate for all versions.

Position the front-facing camera module within its designated space, ensuring the connecting wires are routed correctly within the provided channel.

Employ your fingertips to meticulously position and secure the two front camera assembly press connectors.The press connectors must be precisely aligned with their corresponding receptacles on the logic board.Apply gentle, even pressure to ensure a firm and reliable connection between the connectors and the board.

Secure the camera connector cover to the logic board by engaging its features and positioning it correctly.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for the installation process.A screw measuring 1.0 millimeters in length is required for this step.The purpose of this screw is to firmly affix the front camera connector cover.Securely fasten the cover utilizing the aforementioned screw to ensure proper connection.Utilize the Y000 tri-point screwdriver to properly drive the 1.0 mm screw into the front camera connector cover.

• Position the battery tray correctly within its designated area.
• Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

• Employ a Torx Plus 4IP screwdriver for the battery tray screw installation process.A 7.5-millimeter-length screw is required for a specific location.A 5.9-millimeter-length screw is needed for another designated area.
• A 3.5-millimeter-length screw is necessary for a third mounting point.A 2.4-millimeter-length screw is needed for a fourth attachment location.
• Ten screws, each measuring 3.7 millimeters in length, are utilized for securing the tray.An additional 3.7-millimeter-length screw is also used in the assembly.
• Certain iPhone versions, those incorporating a physical SIM card, lack this particular screw.The Torx Plus 4IP screwdriver is essential for proper screw engagement.
• Precise screw lengths are critical for ensuring secure and correct component placement.The battery tray is affixed using a combination of different screw sizes.
• Carefully note the length of each screw to avoid improper installation.The absence of the screw is exclusive to iPhone configurations with a physical SIM.
• Properly matching the screw length to the designated hole is vital.Ensure the Torx Plus 4IP screwdriver is correctly seated on the screw head.

Variations in screw length serve specific mounting requirements within the device.

1. Exercise caution when cleaning the frame, carefully avoiding damage to the delicate grounding clips; should a clip become displaced, restore its original shape with careful manipulation using your fingers or tweezers.
2. Employing tweezers or fingertips, detach sizable portions of the adhesive material adhering to the frame's edges.
3. Employ a spudger to eliminate any remaining adhesive residue from the frame's surface.
4. Should the adhesive prove difficult to remove, utilize a hair dryer or heat gun to apply warmth, then attempt removal once more.

• To dissolve the remaining adhesive, introduce a small quantity of isopropyl alcohol possessing a concentration exceeding 90% onto the affected area.
• Employ a microfiber cloth or a similar lint-free material to meticulously cleanse the frame's edges by wiping in a single direction, removing the adhesive traces.
• Execute this cleaning process deliberately, as a pristine frame surface facilitates the uniform application of replacement adhesive, which is crucial for a stronger, more reliable bond.

To facilitate proper adhesion when reinstalling a display, use a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%.Thoroughly clean the display's edges by wiping them with the alcohol-moistened cloth to remove any residue.This preparatory cleaning step ensures optimal contact between the display and the fresh adhesive.

• Before removing any protective films, position the adhesive layer onto the device frame to establish the correct alignment.
• Employ elements like the camera aperture and indentations situated on the superior and inferior frame borders to assess the adhesive's intended placement.

• To reveal a portion of the adhesive, lift the corner tab of the adhesive sheet's backing and detach the liner, exposing approximately one-third of the adhesive surface.
• Exercise caution, as the newly revealed adhesive possesses a high degree of tackiness; prevent unintended contact with other surfaces until its application to the frame is prepared.
• Should your adhesive product incorporate several liners, remove the liner that reveals the side intended for bonding to the frame.

• After applying pressure to secure the adhesive, adjustments are impossible; complete removal and replacement with fresh adhesive will be necessary.
• Precisely match the visible perimeter of the adhesive strip to the matching boundary on the iPhone's chassis.
• Apply a light, even pressure to adhere the visible adhesive strip to the frame once proper alignment has been achieved.

• Carefully remove the protective liner from the adhesive backing while applying even pressure to ensure proper bonding.
• Accurate alignment of the adhesive is indicated when the borders seamlessly integrate with the device frame.
• To correct minor positioning errors, delicately reposition the extended borders until they are parallel to the frame's structure.
• Should the adhesive develop folds or distortions, discard it and apply a replacement set to guarantee a smooth seal.
• In the absence of spare adhesive strips, the iPhone can be reassembled and used temporarily; however, be aware that its water resistance will be diminished until a replacement is installed.

Employ a spudger to apply pressure to the adhesive securing the iPhone's enclosure, encompassing its full circumference.Exercise caution to avoid damaging the delicate grounding clips during this process.Should a grounding clip become displaced, carefully reposition it to its original form using your fingers or tweezers.
The adhesive's release requires consistent and even pressure distribution around the device's edges.

Detach the extensive front adhesive liner by grasping the designated pull tab, which is typically situated within a corner of the liner.

• Remaining liners continue to protect the adhesive edges; postpone their removal until the iPhone reassembly process is complete, as they inhibit premature adhesion.

To ensure adequate cable reach to the logic board, align the iPhone display adjacent to the frame.

1. Employ either a fingertip or the broad, planar edge of a spudger tool to establish a secure physical connection between the two screen connectors and the logic board.The screen connectors must be affixed to the logic board with a firm, even pressure.Avoid applying excessive force during the connector attachment process; should resistance be felt, adjust the connector's alignment and attempt the connection once more.
   • Successful engagement of the connectors necessitates careful positioning to prevent damage or misalignment.

Apply pressure with a fingertip or the broad, planar edge of a spudger tool to establish a secure physical connection between the battery connector and the logic board.The battery connector must be firmly seated against the logic board to ensure proper electrical contact.Ensure the connector's alignment is correct prior to applying pressure to avoid damage to the connector or the logic board.

1. Prior to final enclosure, it's advisable to verify the functionality of your iPhone repair.
     Initiate the device's power sequence to confirm operational status.Following verification, deactivate the iPhone and proceed with the remaining reassembly steps.
   Should the iPhone fail to energize, establish a connection to an external power supply and attempt the startup process once more.A suitable power source is necessary for troubleshooting and confirming proper operation.Reconnection to power may resolve issues preventing the iPhone from activating.

Carefully slide the upper border of the battery connector cover beneath the designated notch.
Verify that each of the two retaining tabs are securely positioned beneath the cover's edge.
Position the cover precisely using the screw aperture as a guide, then set it down into its intended location.

• Employ a JIS 00 screwdriver for the installation process of the screw.The screw utilized for securing the battery connector cover possesses a length of 1.2 mm.To fasten the battery connector cover, a JIS 00 screwdriver is required.A 1.2 mm screw is designated for the purpose of securing the battery connector cover.Secure the battery connector cover by utilizing a JIS 00 screwdriver and a 1.2 mm screw.

• Carefully slide the left side of the screen connector cover beneath the designated notch.
  Position the cover precisely using the screw aperture as a guide, then set it down into its intended location.

• Employ a JIS 00 screwdriver for the installation process.A 1.2 mm screw length is required for proper fastening.The screen connector cover's attachment necessitates the use of the screwdriver.Secure the cover by utilizing the specified screw length.Installation of the cover involves the use of a JIS 00 screwdriver and a 1.2 mm screw.

• Maintain the screen's stability by grasping it securely with one hand.
  Employing either your fingertips or a spudger, carefully separate the perimeter liners to reveal the underlying adhesive.
  Prevent any contact with the newly exposed adhesive to avoid contamination.
  Thoroughly inspect the internal components, eliminating any detached liners to ensure complete adhesive exposure.

• Position the display assembly against the chassis, initiating the alignment from the uppermost boundary.
  Should you encounter opposition during placement, a retaining clip might be deformed and experiencing compression from the chassis; carefully inspect the area of obstruction and delicately restore any bent clips to their original shape.
  Verify that no flexible circuit cables are being compressed between the display and the chassis.
  Apply even pressure across the display's periphery to ensure complete and uniform contact with the chassis.

• Employ a hair dryer, heat gun, or iOpener to apply warmth around the screen's edges, achieving a temperature just beyond comfortable touch.This thermal application serves to reduce the adhesive's rigidity, facilitating a more secure reattachment.
• The applied heat causes the bonding agent to become pliable, which improves the subsequent adhesion process.

• Employ a P2 pentalobe screwdriver for the installation process.Secure the two screws, each measuring 7.5 millimeters in length.Position these fasteners on both lateral aspects of the charging port.Properly aligning the screws ensures a stable connection to the device.
