iPhone 17 Pro USB-C Port Assembly Replacement

To mitigate fire hazards associated with compromised lithium-ion cells, ensure the iPhone's battery is depleted to a level below 25% prior to commencing this repair procedure, as a fully charged battery presents a heightened risk of ignition upon damage.

• Disconnect all connected cables from the device to prevent electrical interference during the repair process.
• Initiate a power-off sequence by simultaneously pressing and maintaining the power button alongside either volume button, then utilize the slide-to-power-off gesture.

Important safety note: Fragments of broken glass present disassembly challenges and potential physical harm.Should your device exhibit a cracked screen, proceed with the following procedure.

• Secure the fractured glass surface by applying packing tape strips, ensuring complete coverage to prevent glass dispersal and facilitate suction cup adhesion.
• A solitary strip of tape, devoid of overlaps, must be positioned across the lower edge, providing sufficient area for suction cup attachment.
• Limit tape application exclusively to the glass portion; avoid contact with the surrounding frame.

Employ a P2 pentalobe screwdriver for the task of detaching the two screws, each measuring 7.5 millimeters in length, positioned laterally around the charging port.The two screws securing the device near the charging port must be unscrewed using a specialized P2 pentalobe screwdriver.To facilitate removal of the screws flanking the charging port, a P2 pentalobe screwdriver is required; these screws are each 7.5 mm long.

A critical warning: improper insertion depth of the opening pick may result in device damage.To mitigate the risk of harm, implement a method for precisely limiting the pick's insertion distance.

• Using a permanent marker, create a visible indication on the pick's tip at a distance of precisely 3 millimeters.
• As an alternative approach, secure a coin to the pick's tip with adhesive tape, positioning it 3 millimeters from the end.

Applying warmth to the screen's lower border with a hair dryer or heat gun will soften the adhesive, but ensure the surface reaches a temperature just beyond comfortable touch.

• A critical safety note:Failure to operate a heat gun according to the provided instructions carries a significant risk of irreparable damage to the display panel and/or the battery.

Secure a suction handle to the screen's lower boundary, positioning it as near the perimeter as feasible.

Ensure the positioning of your prying tool is accurate for the subsequent procedure.

• A plastic bezel, situated beneath the screen, rests upon the device's frame; position your tool here, verifying its full insertion beneath the bezel.
• Avoid inserting the prying tool into the visible gap between the plastic bezel and the display panel, as this will result in unintended separation of these components and increase repair complexity.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display screen from its surrounding frame, creating a visible space.
Overcoming the adhesive bond might require considerable effort; should initial attempts prove unsuccessful, reapply heat to the screen's surface and repeat the separation process.
Carefully position the pointed end of a specialized opening tool within the newly formed separation to facilitate further screen detachment.

To prevent potential harm to internal parts, ensure the insertion depth of your prying tool remains limited to a maximum of 3 millimeters.Proximity to the volume and Action buttons places the screen and ambient light sensor cables in a vulnerable area.The phone's chassis incorporates sensitive spring contacts positioned along its edges, requiring careful handling.

• Thin, metallic clips secure the display assembly, engaging with matching receptacles situated on the device's frame.
• Exercise caution to prevent damage to the screen and its associated cabling, which are situated close to the volume and Action buttons.
• Avoid exceeding a 3-millimeter insertion depth when using a prying tool, as doing so risks damaging delicate components.

Utilize a specialized opening tool and carefully maneuver it along the lower perimeter to release the bonding agent.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from reforming a bond.

Apply warmth to the right-hand perimeter of the screen assembly using a hair dryer or heat gun, ensuring the temperature reaches a level just beyond comfortable touch.The purpose of applying heat is to soften the adhesive securing the screen.Exercise caution during this process to prevent damage to surrounding components due to excessive heat.

• Position a second prying tool beneath the lower-rightmost section of the display assembly.
• Advance the tool along the right-hand perimeter to sever the adhesive bond and disengage the two retaining clips.
• A minor upward displacement of the screen might be necessary to facilitate clip release.
• Maintain the tool's placement beneath the upper-right corner to inhibit adhesive re-adhesion.

To loosen the adhesive securing the display, apply warmth to its upper border using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right quadrant.
• Moving the pick along the top perimeter, carefully maneuver it past the upper-left corner to sever the adhesive bond and disengage the two retaining clips.
• Avoid advancing the pick further, as doing so risks damaging the ambient light sensor cable.
• Maintain the pick's placement beneath the upper-left corner to inhibit the adhesive from reforming a seal.

To loosen the adhesive securing the display, apply warmth to the left screen perimeter utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the right side to sever the adhesive bond and disengage the retaining clip, pausing its movement immediately before reaching the volume up control.
• A slight upward lift of the display may be necessary to free the clip; avoid further pick movement to prevent potential damage to the display cable.

Ensure the display panel is fully disengaged from its surrounding structure; if resistance is encountered, re-examine the edges to release any lingering adhesive or securing fasteners.
Elevate the display vertically and rotate it towards the left side, utilizing a stable support like a container or pile of literature to prevent cable tension.
As an alternative approach, the display can be positioned horizontally across the left lateral surface.

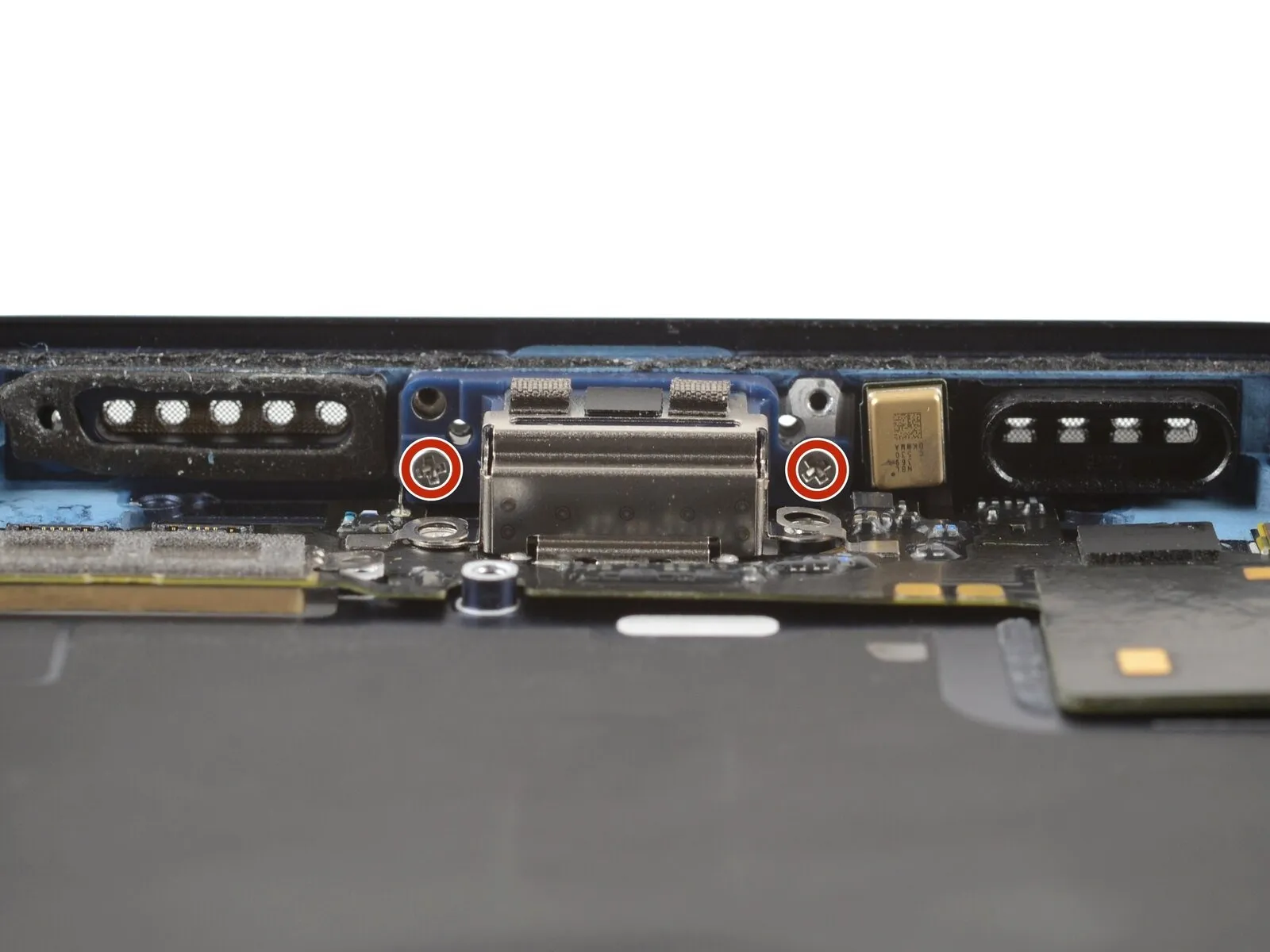

Carefully monitor the location of each screw during disassembly to ensure correct reinstallation.
Employ a specialized tool for the following steps.A JIS 00 screwdriver is required for the next procedure.The two cable covers are fastened with screws that necessitate this specific screwdriver for removal.

• A 1.4 mm screw secures the cover protecting the screen and front sensor cable.The battery cover is held in place by a 1.3 mm screw.iFixit-branded Phillips bits are manufactured to interface with JIS screws, providing a compatible alternative.
• While drivers from other brands might be attempted, doing so carries the potential for damaging the screw heads.Stripping the screw heads is a risk associated with using non-iFixit Phillips drivers.The potential for screw head damage should be considered before using alternative screwdriver types.

Detach the pair of protective housings.

• Employing the tip of a spudger, carefully lift and detach the battery press connector.The battery press connector should be separated from its position using the pointed end of a spudger.A spudger's point facilitates the separation and disconnection of the battery press connector.

• Employing the pointed end of a prying tool or a spudger's tip, carefully lift and separate the screen and ambient light sensor press connectors from their housings.The connectors linking the screen and ambient light sensor to the circuit board require detachment via a precise prying action.To release the screen and ambient light sensor press connectors, apply gentle upward force using a specialized tool like a prying pick or a spudger.

• Detach the display panel.The screen component must be carefully disengaged.Proceed with removal of the visual interface.

• Employ a Torx Plus 4IP screwdriver for the disassembly of fasteners holding the battery tray in place.A single screw, measuring 7.5 millimeters in length, is present.A solitary screw with a length of 5.9 millimeters is also required.
  One screw, with a 3.4-millimeter length, contributes to the assembly.A single fastener, measuring 2.3 millimeters in length, is included.
  Nine screws, each with a length of 3.7 millimeters, are used for retention.An additional screw, also measuring 3.7 millimeters in length, is incorporated.
  Certain iPhone versions, those incorporating a physical SIM card, lack this particular screw.The battery tray is affixed using a combination of screw lengths for secure attachment.
  To access the battery compartment, the Torx Plus 4IP screwdriver is essential for screw removal.The varying screw lengths (2.3 mm, 3.4 mm, 3.7 mm, 5.9 mm, and 7.5 mm) contribute to the tray's stability.
  Carefully unscrew the fasteners using the specified Torx Plus 4IP screwdriver.Note that the presence of this screw is dependent on the iPhone model's SIM card configuration.
  The battery tray's retention is achieved through the strategic placement of multiple screw sizes.Ensure the correct Torx Plus 4IP screwdriver is used to avoid damaging the screw heads during removal.
  The 3.7 mm screws are the most numerous fasteners securing the battery tray.

• Employ a fingertip to elevate the battery compartment's upper-left corner, subsequently detaching the cover.Exercise caution to prevent any smearing of the front-facing camera's lens.

Utilize the pointed end of a prying tool to gently disengage the plastic buffer strip, which is affixed to the Taptic Engine, by working it along the upper perimeter.

• Employ a JIS 00 screwdriver for the task of detaching the six screws that hold the loudspeaker in place.
• The loudspeaker is fastened with two screws, each measuring 2.7 millimeters in length.
• Two additional screws, each possessing a length of 2.0 millimeters, are also utilized.
• A single 1.5-millimeter screw contributes to the loudspeaker's securement.
• An additional 1.5-millimeter screw is affixed to the lower boundary of the component.

A gasket utilizing adhesive material secures the loudspeaker component to the device's frame.
To disengage the loudspeaker, incline the upper portion outward from its designated cavity.
Gradually separate the loudspeaker from the frame, overcoming the adhesive bond's resistance.
Complete the removal process by extracting the loudspeaker entirely.

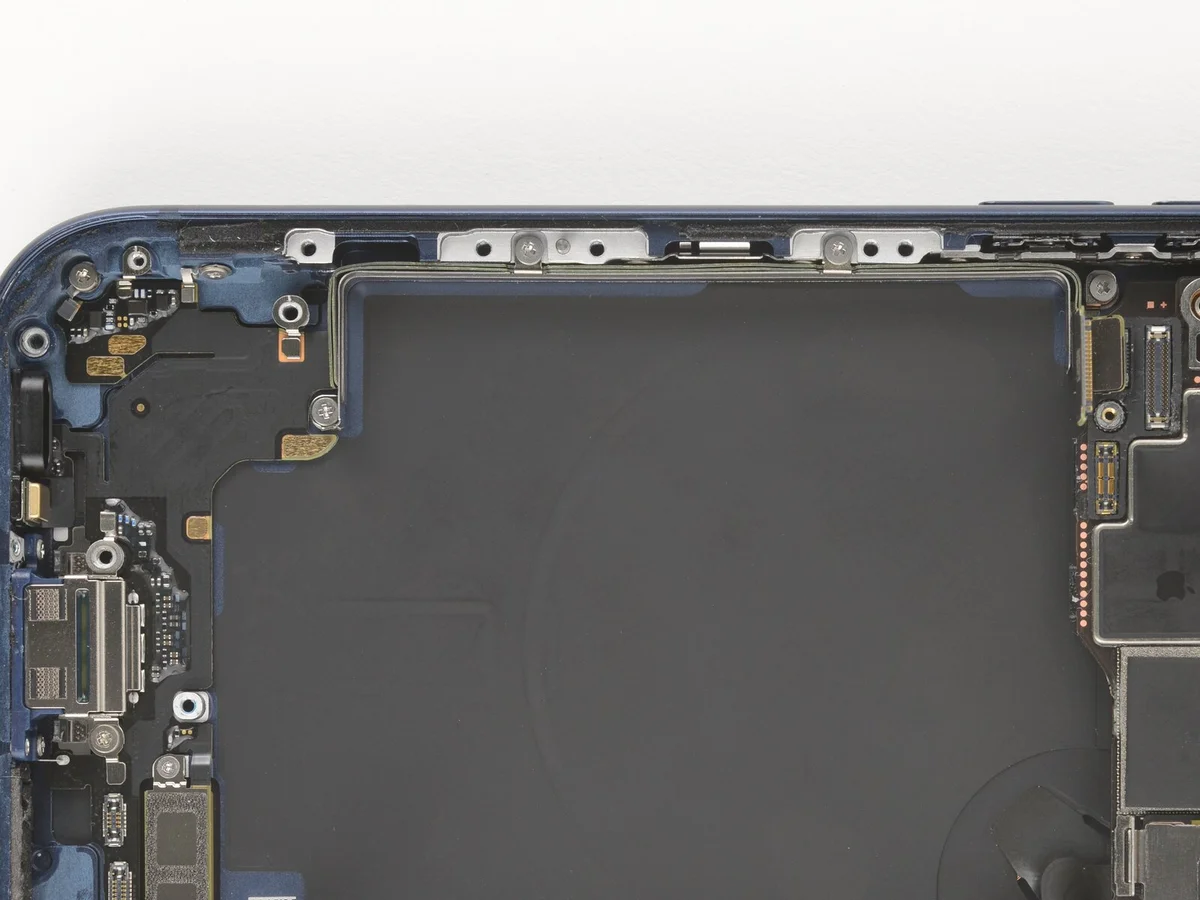

Employ a JIS 00 screwdriver for the task of detaching the ground clip.The two screws, each measuring 2.0 mm in length, must be removed using the specified tool.Securely hold the component while unscrewing to prevent damage.Ensure the JIS 00 screwdriver's tip properly engages with the screw heads for optimal torque transfer.The ground clip is fastened with these screws and requires careful removal to avoid component breakage.

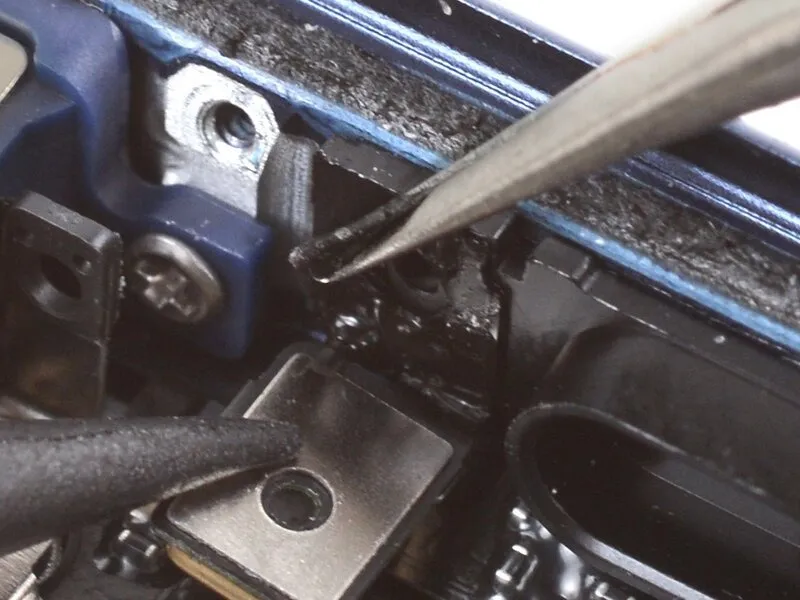

Employ tweezers for the removal of the ground clip.
Due to its fragile nature and small size, the clip presents a risk of being misplaced; safeguard it in a secure location to ensure its availability during reassembly.

• Utilize a JIS 00 screwdriver to detach the three 2.0 mm screws.These screws fasten the flex antenna in place.Carefully remove the screws to release the antenna's attachment.Ensure the JIS 00 screwdriver is properly seated to avoid stripping the screw heads.

Employing either your fingertips or a specialized plastic pry tool, carefully maneuver the flexible antenna aside to gain access to the securing screws located underneath.The screws previously concealed by the flex antenna can now be reached by displacing the antenna using a finger or spudger.

• Employing a standoff screwdriver, detach the two 4.0 mm screws that fasten the Taptic Engine in place.

• Carefully extract the Taptic Engine from its housing by manually maneuvering it towards the iPhone’s exterior edge.
• Maintain a firm grip on the component to avoid undue stress on its connecting cable during subsequent procedures.

• Employ a spudger to lever the Taptic Engine press connector upwards and detach it.

Detach the Taptic Engine component.

• A single, 3.2-millimeter-length standoff screw is utilized for this process.Additionally, a 3.1-millimeter-length JIS 00 screw is also involved.
• These fasteners are positioned along the lower edge of the iPhone's frame.Carefully unscrew each fastener to release the microphone's attachment.The microphone is affixed to the iPhone frame via these two distinct screw types.

• Employ the planar aspect of a spudger to gain access to the separation situated between the lower microphone assembly and the device's structural frame.Rotate the spudger in a controlled manner to disengage the microphone from its mounting.Apply gentle prying force using the spudger to release the microphone's adhesion to the frame.
  The microphone's detachment from the frame should be achieved through a gradual twisting motion.Carefully extract the lower microphone component from its secured position.Ensure the microphone is completely dislodged from the frame before proceeding.
• The lower microphone is now free for removal.

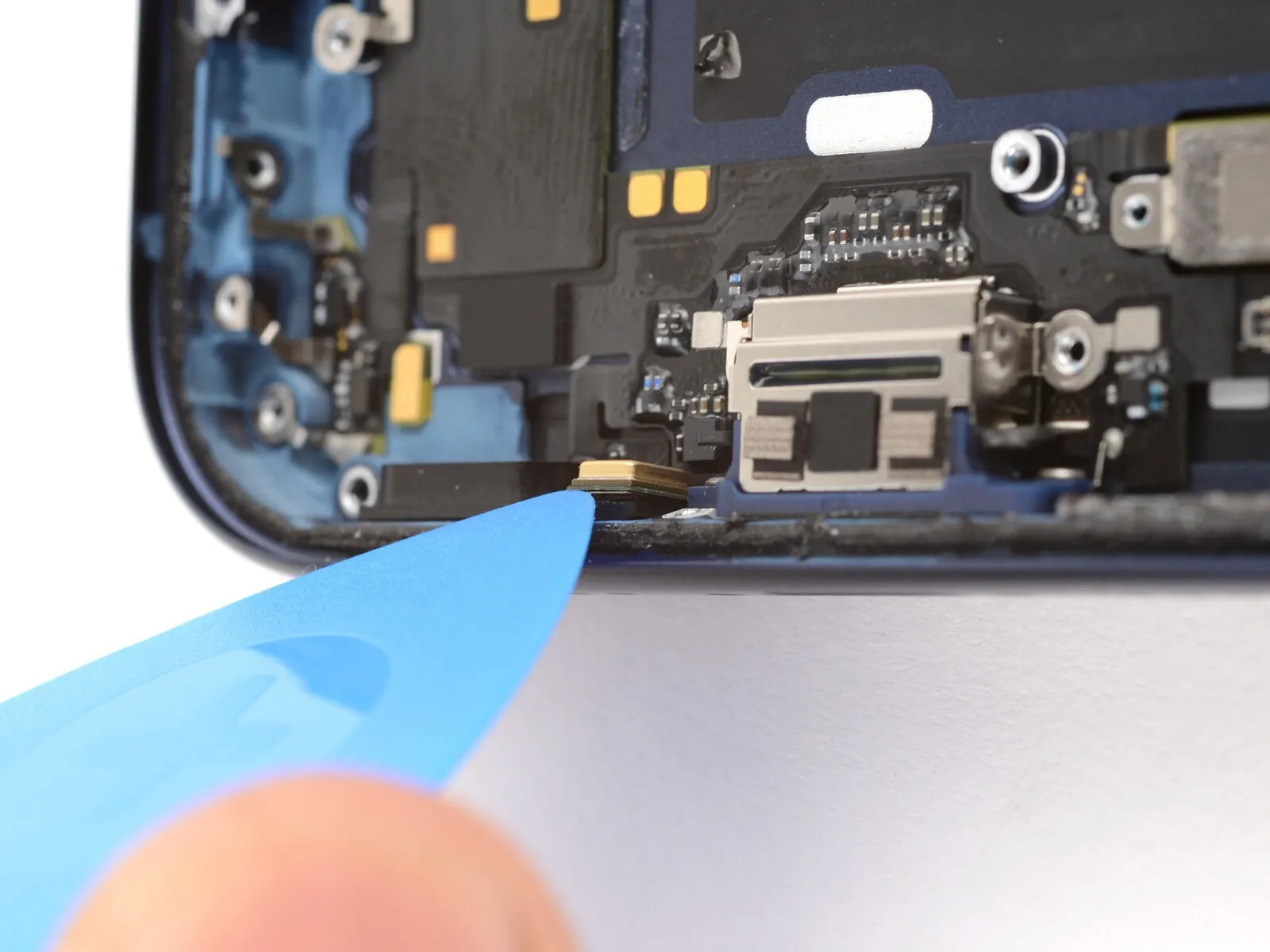

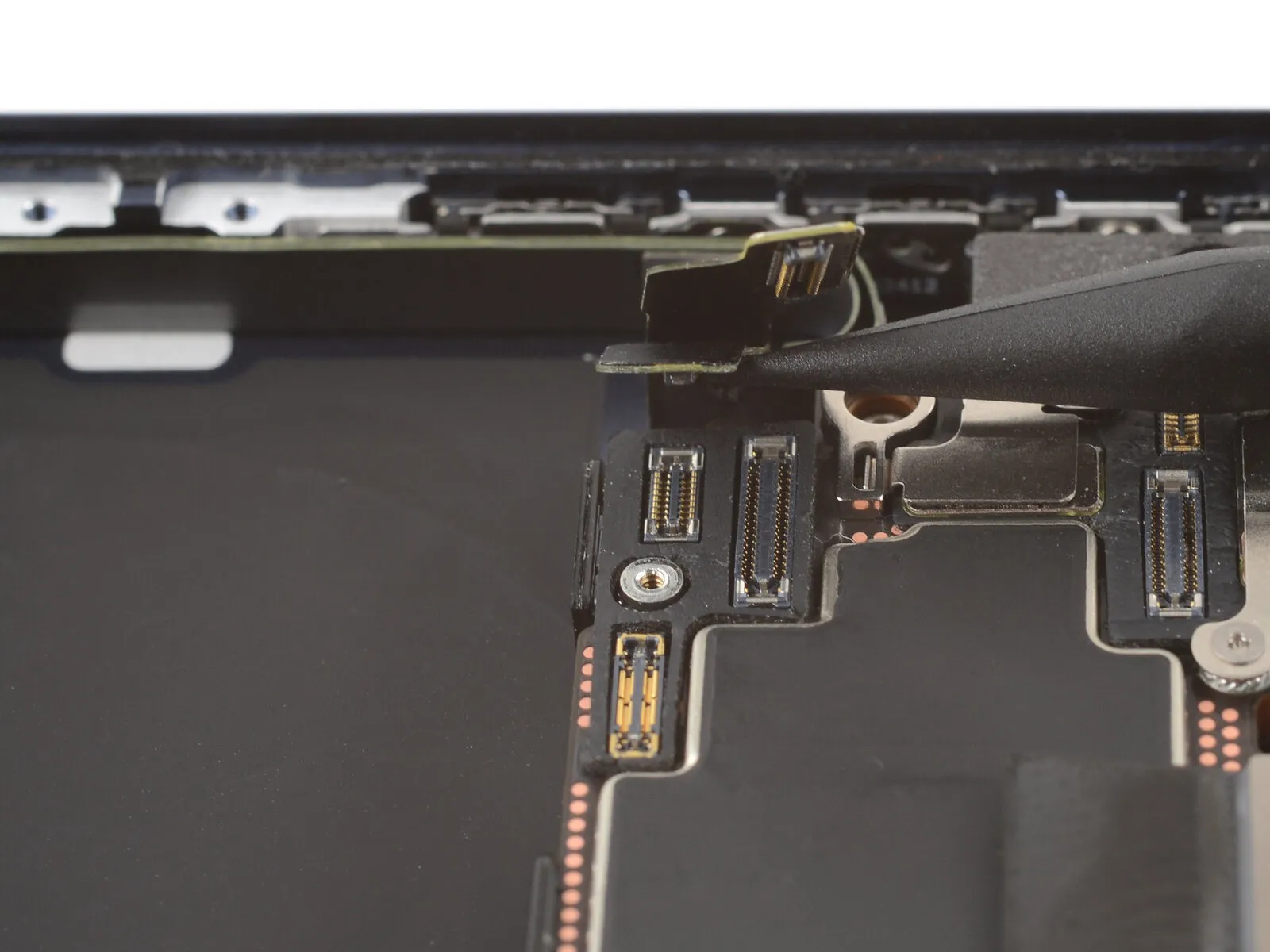

Employ the tip of a spudger to carefully lift and release the two USB-C port assembly press connectors, noting that one is positioned beneath the other, from the lower-left edge of the logic board.To detach the connectors, apply gentle prying force with the spudger, ensuring separation from the logic board's surface.These connectors are located in the bottom-left corner and must be disconnected before proceeding with further repairs.

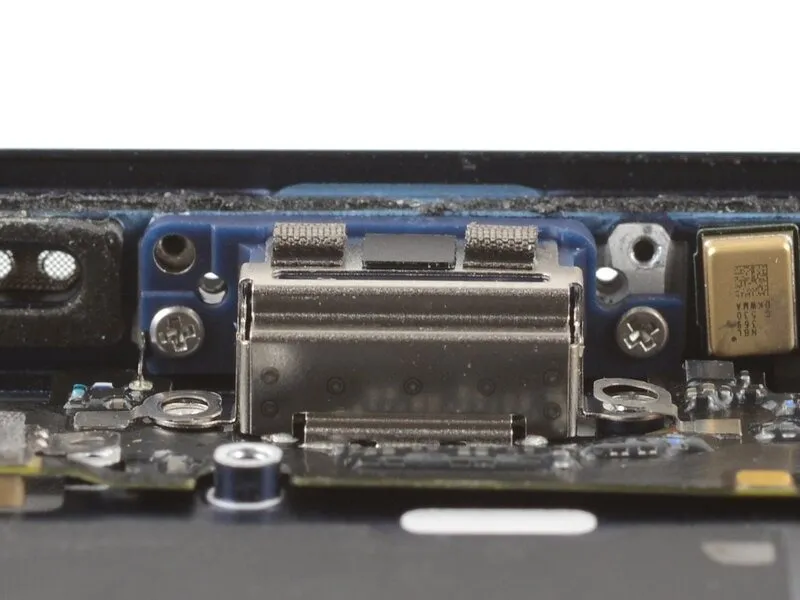

• To detach the USB-C port component, first release the fasteners that hold it in place.
• A quantity of three screws, each measuring 1.5 millimeters in length and utilizing a JIS 00 head, are present.Two screws, each possessing a 1.7-millimeter length and a JIS 00 drive type, are also required.A single screw, with a 1.3-millimeter length and a JIS 00 head, is incorporated into the assembly.
• Additionally, a 1.2-millimeter-long tri-point Y000 screw is used for securing the component.Models lacking millimeter wave capabilities may not include this particular screw.Ensure the USB-C port assembly is properly aligned before proceeding with screw removal.
• Carefully unscrew each fastener to avoid stripping the screw heads or damaging the surrounding components.The JIS 00 screws are small and delicate; handle them with precision to prevent damage.The tri-point Y000 screw requires a specialized driver to prevent damage to the screw head or surrounding components.
• Note the location of each screw as they are removed to ensure correct reassembly.The length of each screw is critical for proper function and should be verified during reassembly.The absence of the 1.2 mm tri-point screw indicates the device lacks mmWave functionality.
  Properly securing the USB-C port assembly relies on the correct screw types and lengths.

Employ a JIS 00 screwdriver for the removal process of the screw.The screw, measuring 1.2 mm in length, fastens the USB-C port assembly.Its location is specifically the bottom left corner of the device's frame.Carefully unscrew the fastener to detach the USB-C port assembly.Ensure the correct screwdriver type is used to prevent damage to the screw head.

Employ a JIS 00 screwdriver for the disassembly process.The two screws, each measuring 3.3 mm in length, require a JIS 00 screwdriver for removal.Securely fastened to the frame's lower border is the USB-C port, held in place by these fasteners.To detach the USB-C port, the two 3.3 mm screws must be unscrewed using a JIS 00 screwdriver.A JIS 00 screwdriver is essential for loosening and extracting the two screws that affix the USB-C port to the frame's bottom edge.

• Employ a JIS 00 screwdriver for the disassembly process.The screw, measuring 1.2 mm in length, requires a JIS 00 screwdriver for removal.A JIS 00 screwdriver is essential for loosening the specified fastener.The USB-C port assembly is affixed to the frame's right side by a 1.2 mm screw.To detach the USB-C port assembly, a JIS 00 screwdriver must be utilized to unscrew the 1.2 mm fastener located on the right edge of the frame.

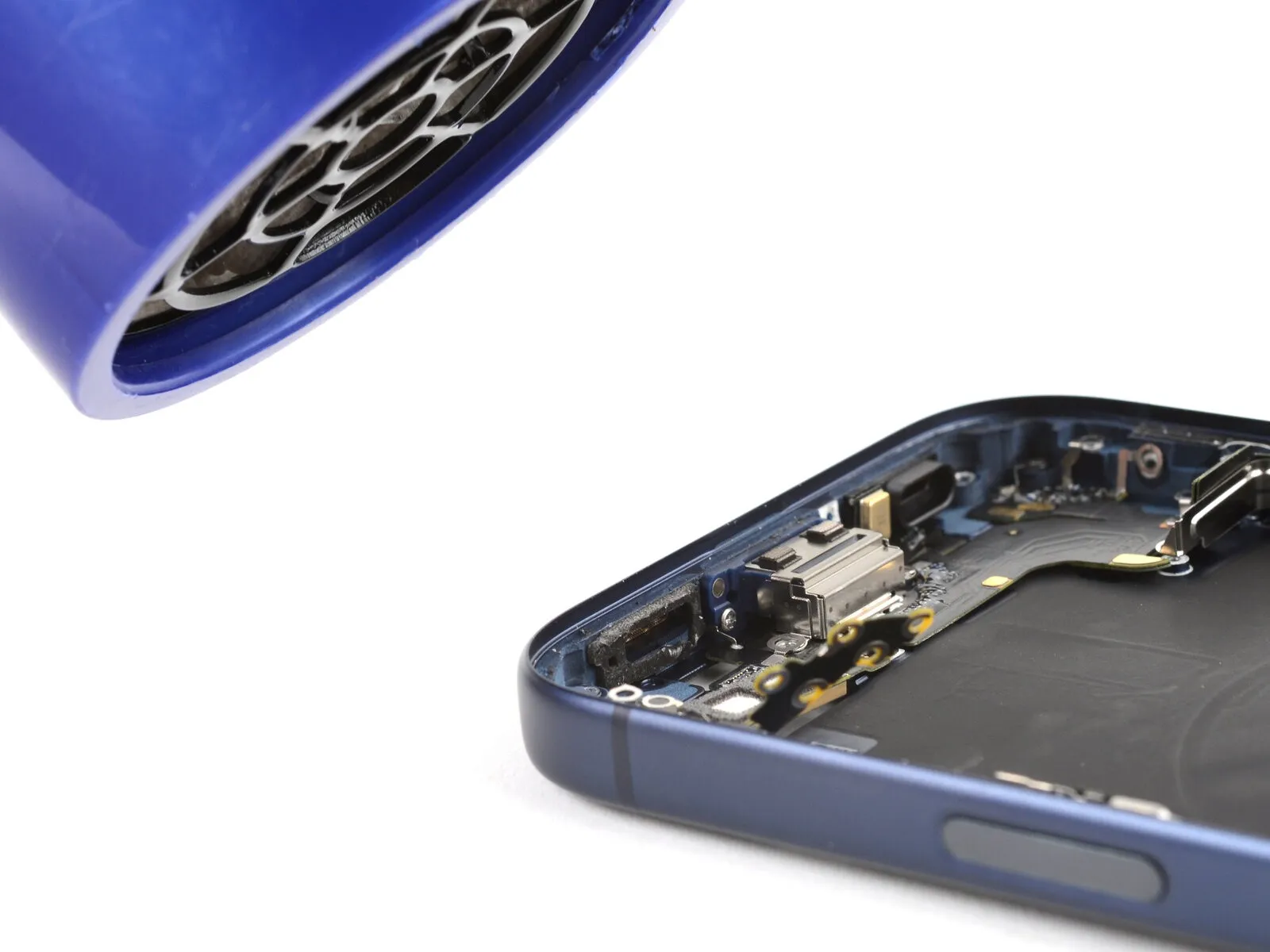

• Apply warmth uniformly across the USB-C port assembly using a hair dryer or iOpener, ensuring the surface reaches a temperature that is comfortably warm when touched.The purpose of this heating process is to soften the adhesive securing the USB-C port assembly.This facilitates easier disassembly without causing damage to surrounding components.

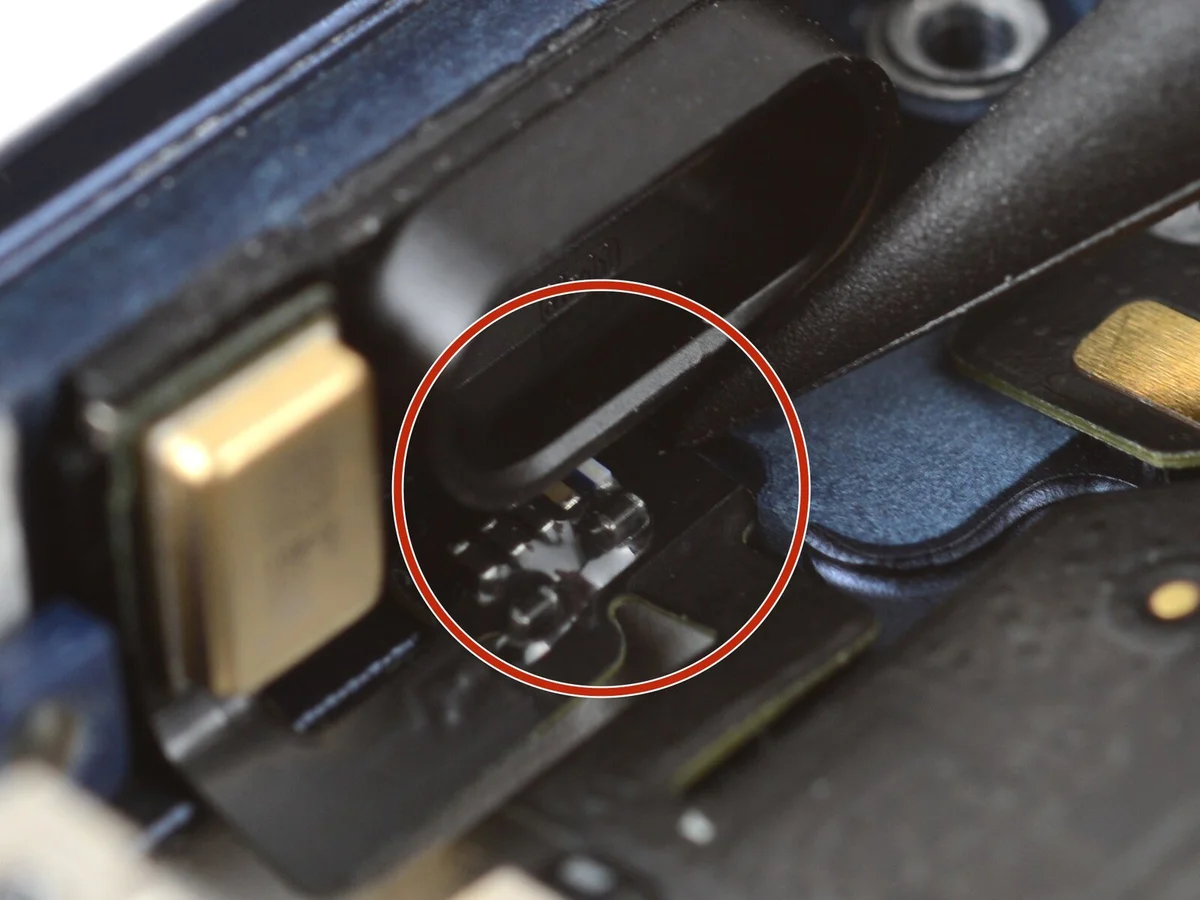

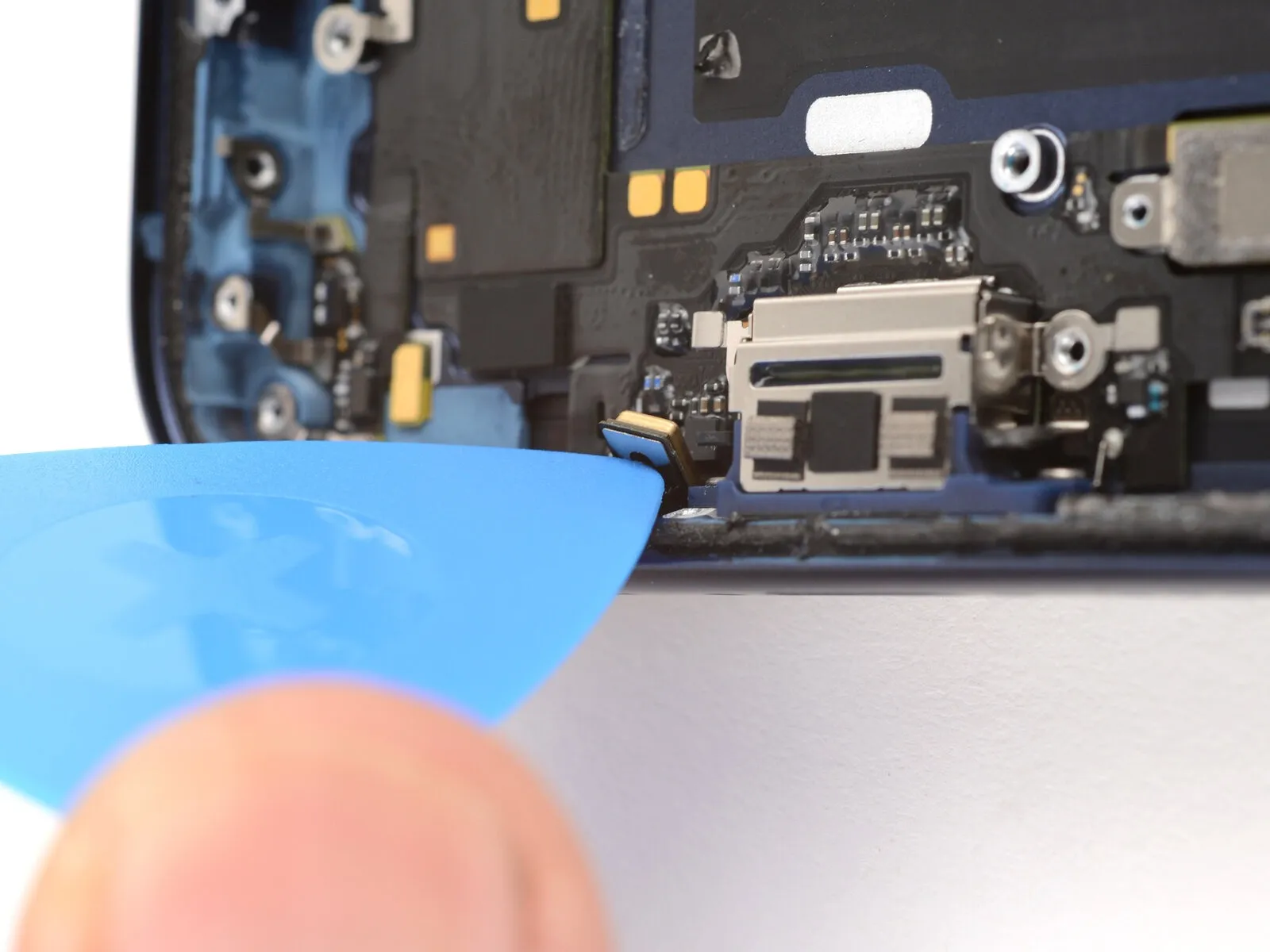

• Insert the tip of a prying tool into the space located between the microphone assembly (positioned to the left of the USB-C connector) and the lower border of the device's chassis.Apply a slight separating force with the tool to disengage the microphone component.The microphone element must be released from its attachment to the frame.
  Carefully maneuver the opening pick to avoid damaging adjacent components.Maintain a delicate pressure to prevent breakage of the microphone or frame.Ensure the microphone is fully detached from the frame before proceeding.

• Exercise extreme caution when handling the sizable, dark gray graphite layer situated within the device's frame, as it is prone to damage.Avoid puncturing the graphite sheet with the opening tool during disassembly.Position the opening pick beneath the USB-C port component, focusing on the central region.
  Advance the pick along the frame's right side to release the adhesive securing the USB-C port assembly.
  The adhesive bond between the frame and the USB-C port assembly must be broken by sliding the opening pick in the described manner.

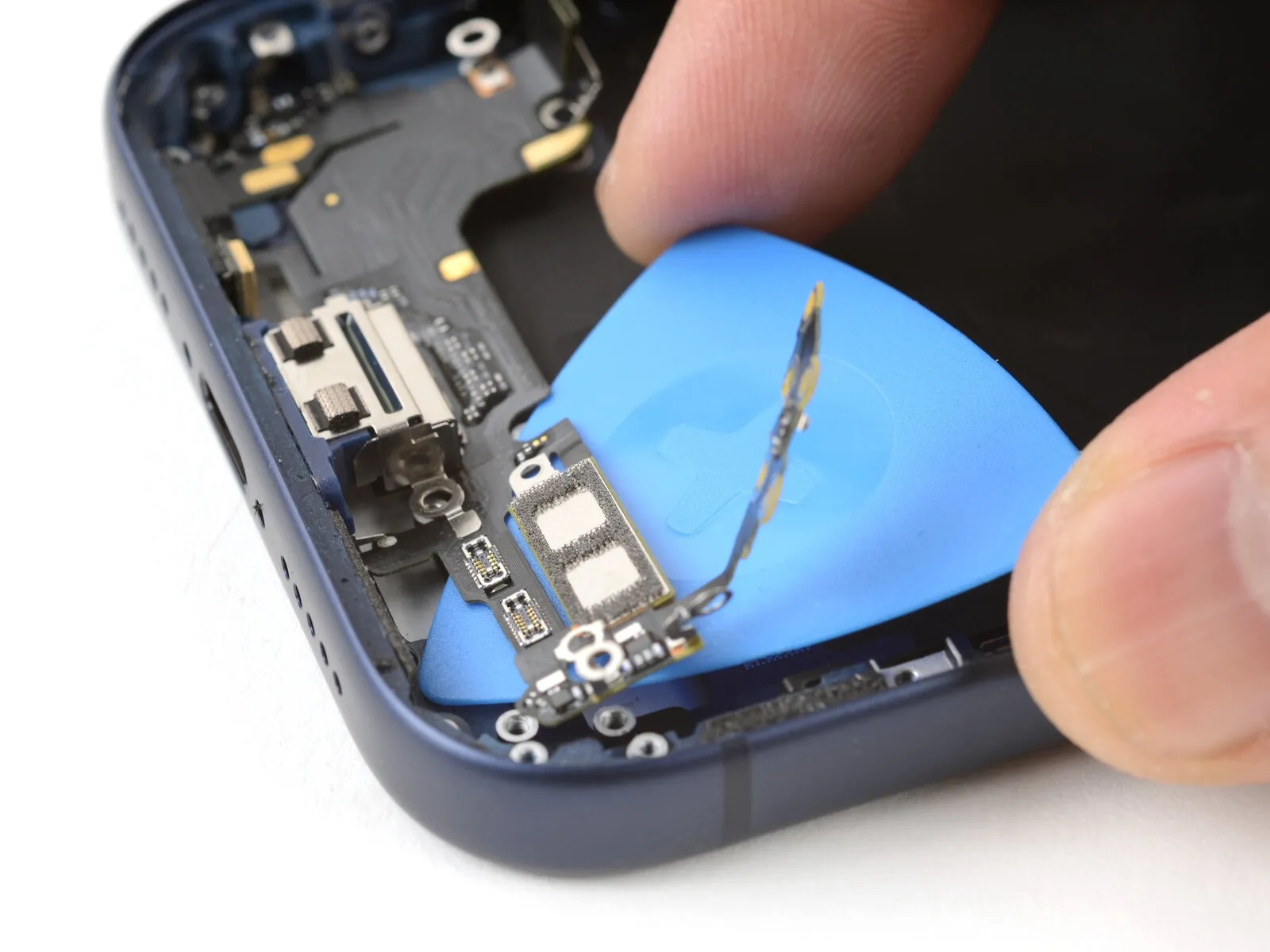

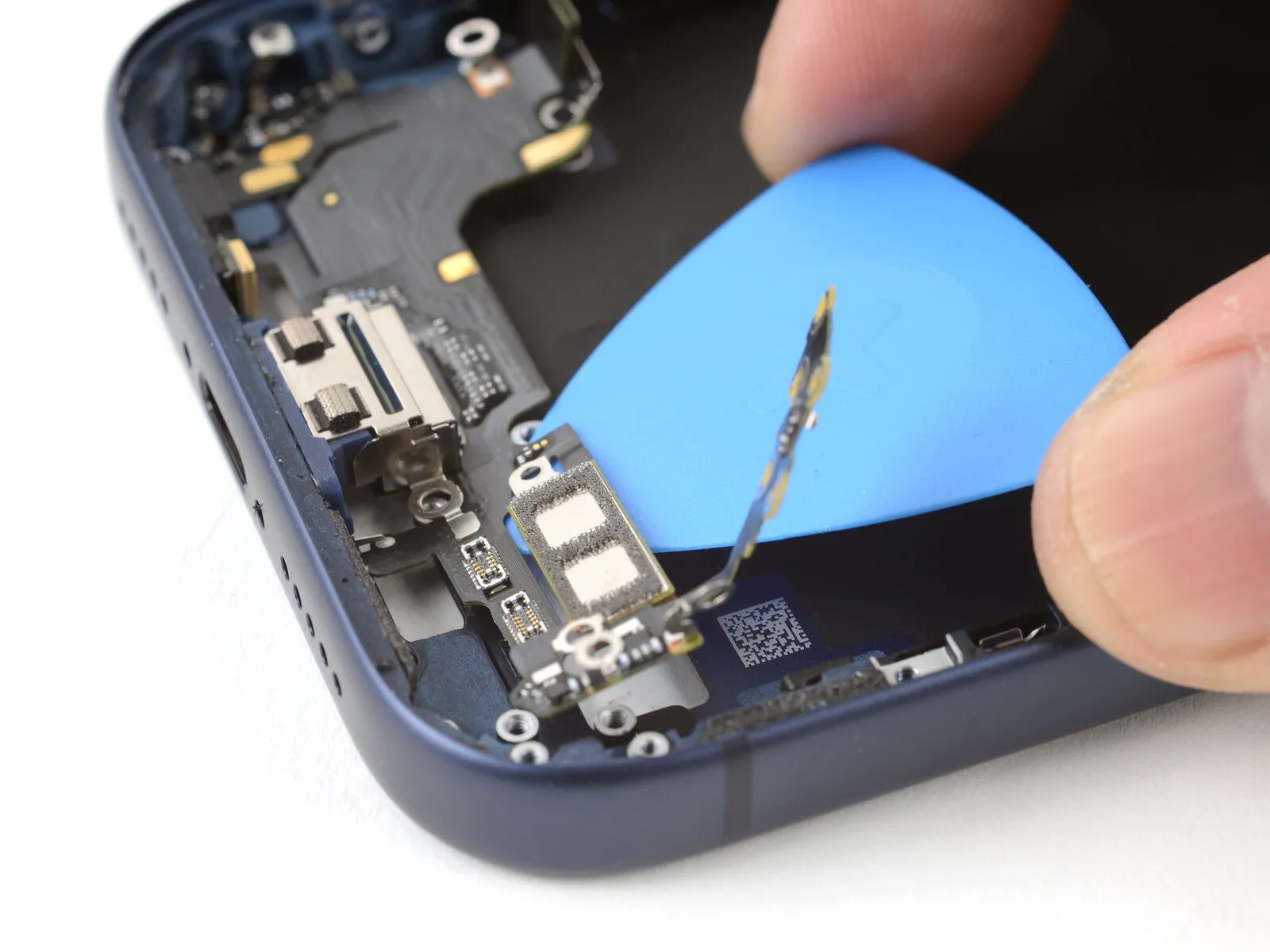

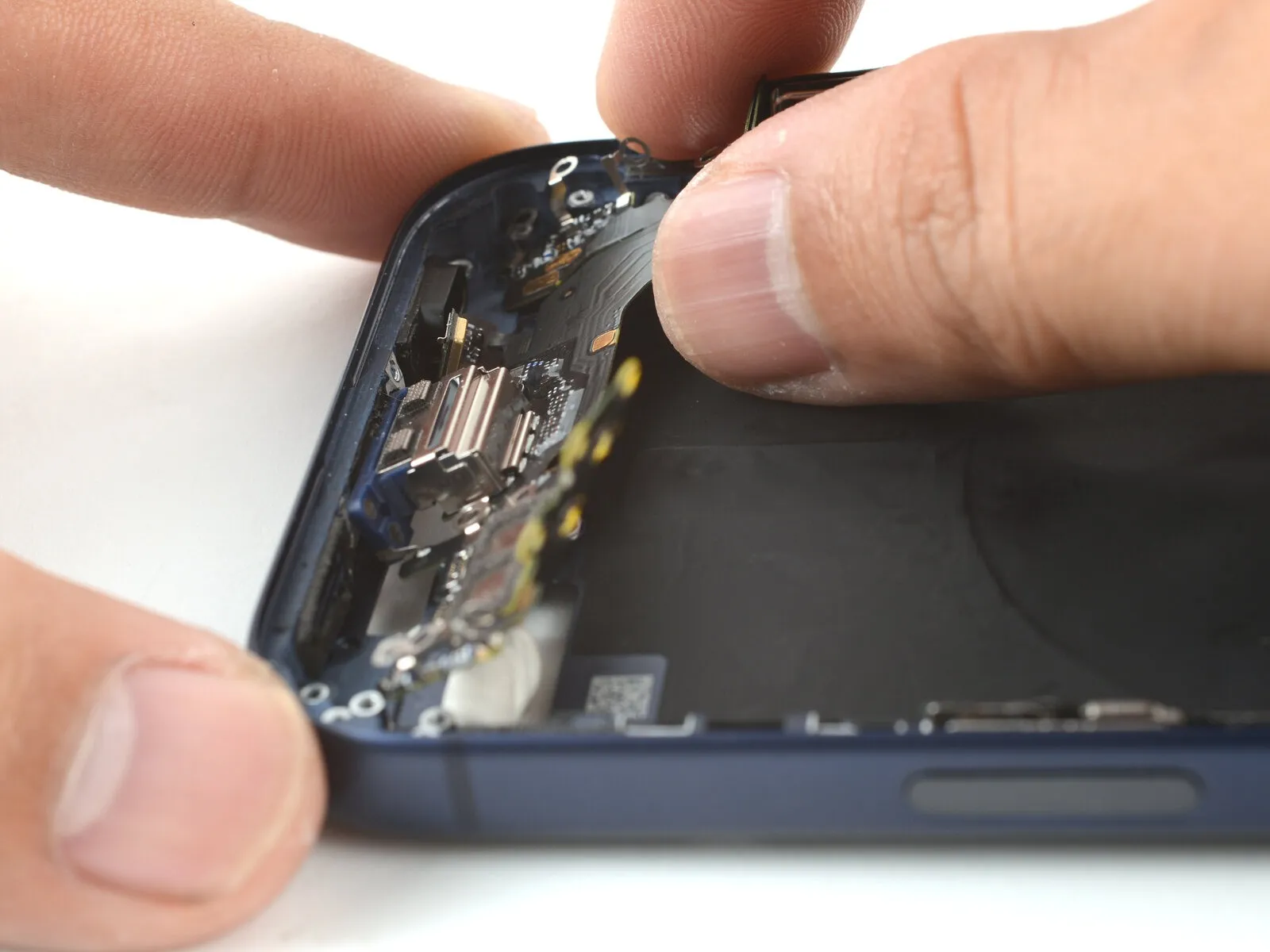

• Employ your hands to detach the USB-C port assembly, exerting a gentle, controlled pulling force to disengage it from the device's chassis.Should resistance be encountered during removal of the USB-C port assembly, meticulously inspect for any unfastened screws and address any lingering adhesive.Carefully extract the USB-C port assembly by applying a gradual, steady force to overcome its connection with the frame.
  Persistent adhesion of the USB-C port assembly may indicate the presence of overlooked fasteners or residual adhesive bonds.To facilitate the removal process, thoroughly examine the area for any remaining screws that might be impeding the separation of the USB-C port assembly.If the USB-C port assembly does not readily release, a detailed inspection for any overlooked screws and separation of any residual adhesive is necessary.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
Slight variations in the visual appearance of reassembly images might occur based on the specific iPhone model being serviced, but the outlined steps remain accurate for all versions.

Thoroughly examine the new USB-C port assembly, ensuring all protective liners are detached.Position the assembly against the lower border of the device's frame, initially setting it without securing it.The replacement component should be situated beneath the black plastic speaker channel.
Precise alignment with the frame's bottom edge is crucial before proceeding with installation.
Removal of any remaining adhesive backing from the USB-C port assembly is essential for proper function.

A deformation exists on the metal mounting tab, located close to the upper portion of the USB-C port assembly, requiring it to be situated beneath the logic board.

• Carefully slide the bent section of the metal mounting tab beneath the logic board's surface.
• Correct alignment is indicated when the mounting tab's screw aperture aligns precisely with its intended location.

Employ a JIS 00 screwdriver for the installation of the two USB-C port screws, each measuring 3.3 mm in length, into the frame's lower border.The USB-C port screws must be secured within the designated green-marked holes during installation.Avoid placing the screws into the holes identified by the red markings.

• Proper screw placement is essential, ensuring the 3.3 mm screws are aligned with the green indicators when using the JIS 00 screwdriver.

Secure the USB-C port assembly using designated screws.

• Employ three screws, each measuring 1.5 millimeters in length, and conforming to the JIS 00 standard.Utilize two screws with a length of 1.7 millimeters, also adhering to the JIS 00 screw specification.
• A single screw, 1.3 millimeters in length, is also required, maintaining the JIS 00 standard.One screw, measuring 1.2 millimeters in length, should be used, employing a Y000 screw type.
• The presence of this particular screw is contingent upon whether the iPhone supports millimeter wave capabilities.Models lacking mmWave functionality may not include this specific screw.
• Ensure correct screw type and length to avoid damaging the USB-C port assembly.Refer to the parts list to verify the appropriate screw sizes for your specific iPhone model.

Secure the USB-C port assembly to the frame's lower left section with a JIS 00 screwdriver, utilizing a screw measuring 1.2 millimeters in length.A JIS 00 screwdriver is essential for properly tightening the USB-C port assembly screw to the frame's bottom left corner.The screw, specifically designed for this application, must be precisely 1.2 mm long to ensure a secure and stable connection with the frame.

Secure the USB-C port assembly to the frame's right side with a JIS 00 screwdriver, employing a screw measuring 1.2 mm in length.

• Provided the microphone's adhesive gasket remains undamaged and your new USB-C port assembly lacks pre-applied adhesive, the original gasket can be reutilized; however, doing so will compromise the device's water and dust resistance.
• Employing tweezers, carefully remove the residual adhesive securing the microphone to the device's frame.
• As an alternative adhesive, double-sided tape can be implemented; create an initial small perforation in the tape with a pin, then gradually expand the opening to match the microphone's aperture before applying it to the microphone's surface.
• To ensure proper positioning, use a fingertip to precisely align and firmly secure the microphone module against the frame.

Employ a hair dryer or iOpener to gently warm the complete USB-C port assembly to a touch temperature, facilitating improved adhesive release.

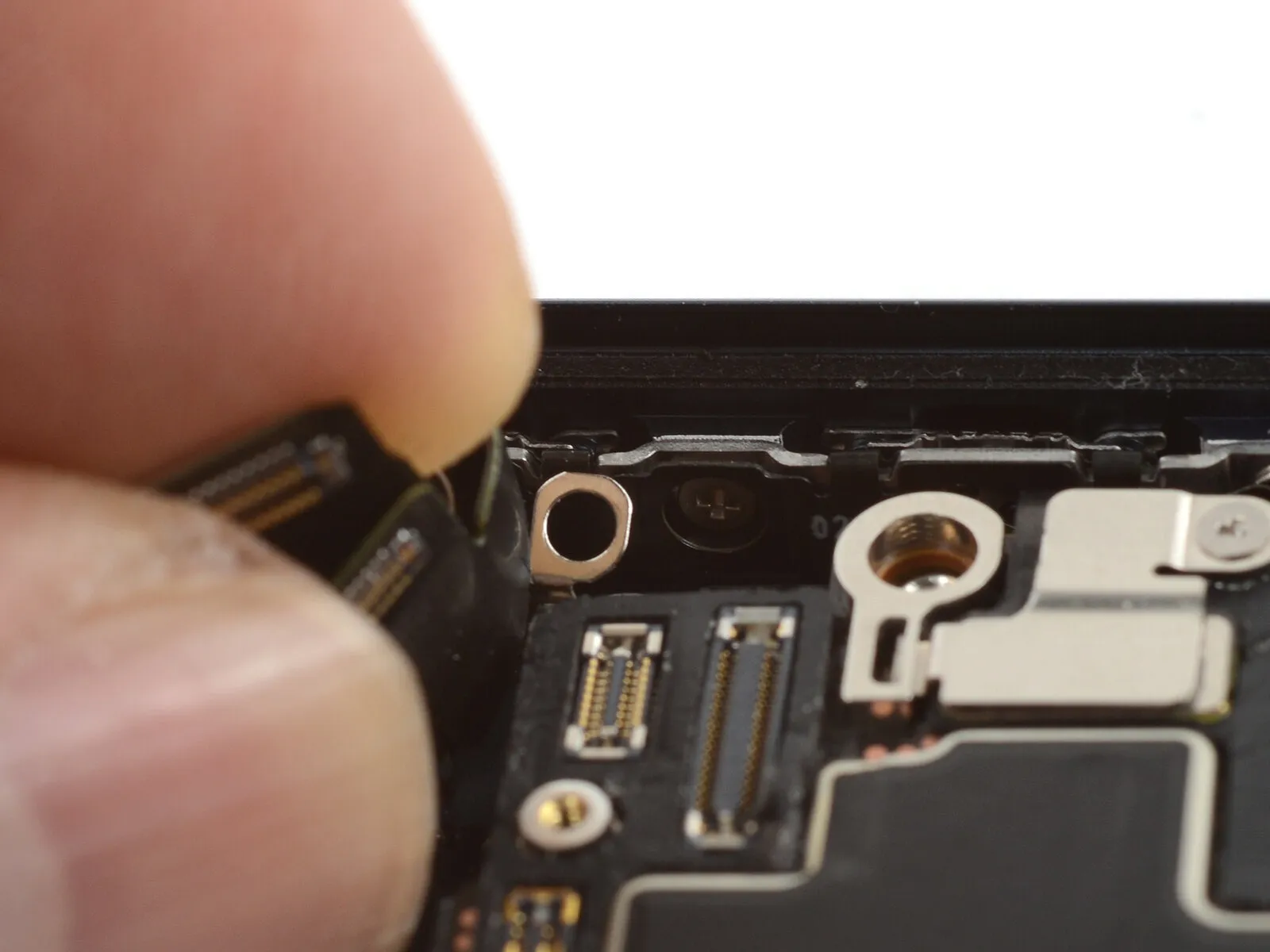

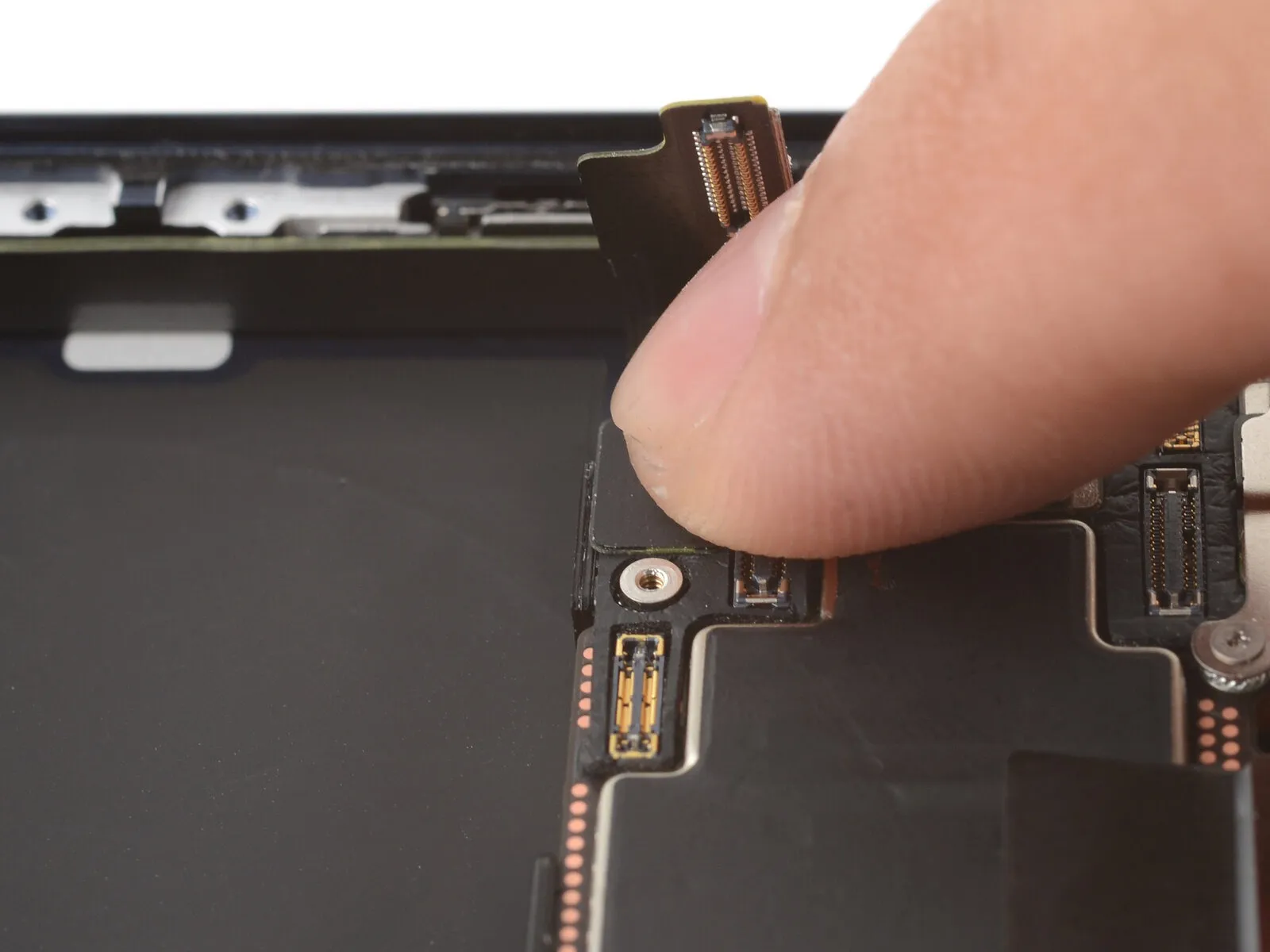

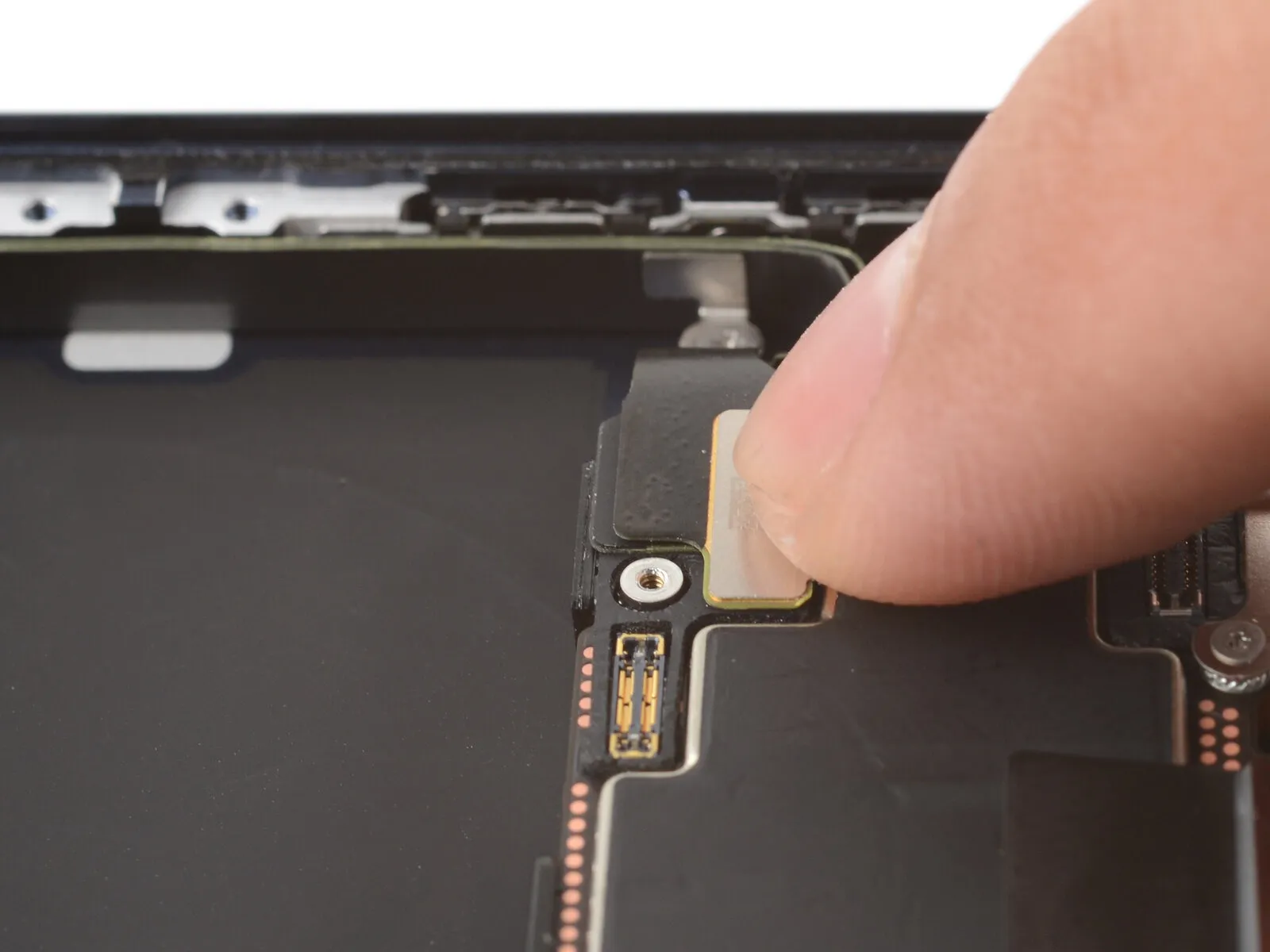

Employ your finger to secure the two USB-C port assembly press connectors, aligning them vertically, and attaching them to the logic board.

Provided the adhesive gasket maintains its original shape and a replacement gasket wasn't included with the lower microphone assembly, the existing gasket can be retained for subsequent use; however, doing so will compromise the device's water and dust sealing capabilities.

• Employing tweezers, carefully detach the microphone's adhesive gasket from the surrounding frame.

Prior to installation, if the new lower microphone includes a pre-applied adhesive gasket, carefully peel away any protective liners to reveal the adhesive surface.

• Employing tweezers provides a precise method for positioning the microphone in relation to the device's frame.
• To secure the microphone, insert it into its designated cavity and apply pressure until it sits flush against the frame, leaving a minimal separation.

To soften the adhesive securing the lower microphone assembly, apply warmth using a hair dryer or iOpener until the component reaches a comfortably warm surface temperature.

Secure the lower microphone assembly using two specific screws.

• A 3.2 mm length standoff screw is required for this step.
• Also needed is a 3.1 mm length JIS 00 screw, which is pre-attached to the iPhone frame's lower edge.

Apply finger pressure to establish a connection between the lower microphone and its corresponding press connector.Ensure the lower microphone press connector is securely engaged by manual depression.The connection of the lower microphone press connector should be achieved through direct finger actuation.

• Position the Taptic Engine with its underside against the iPhone's frame edge.
• Maintain a secure grip on the Taptic Engine with one hand, then employ a finger to apply pressure and establish a connection with the Taptic Engine press connector.The Taptic Engine press connector facilitates the electrical interface.This connector is specifically designed for the Taptic Engine.

• Position the Taptic Engine onto the device frame, ensuring proper alignment by matching the screw apertures.
• The flexible Taptic Engine cable must be carefully routed and folded to maintain a clean path between the engine and the frame.

Employ a standoff screwdriver for the installation process.Secure the Taptic Engine with two screws, each measuring 4.0 millimeters in length.The standoff screwdriver is essential for proper screw engagement.Ensure the screws are fully tightened to prevent Taptic Engine displacement.Carefully position the screws to avoid damaging the surrounding components.

Employing either your fingertips or a specialized plastic pry tool, carefully bend the flexible antenna cable downwards, ensuring it remains positioned correctly.

Employ a JIS "00" screwdriver for the installation process of the three flex antenna screws.The flex antenna screws each possess a length of 2.0 millimeters.Secure the antenna with the screws using the appropriate screwdriver.A JIS "00" screwdriver is essential for properly tightening the screws.Ensure the screws are fully seated when using the 2.0 mm flex antenna screws.

• Employ tweezers to precisely position the ground clip.
• Ensure correct clip orientation, referencing the provided visual documentation.

Employ a JIS "00" screwdriver for the installation process of the ground clip screws.The screws securing the ground clip possess a length of 2.0 millimeters.Secure the ground clip with screws utilizing a JIS "00" screwdriver.A JIS "00" screwdriver is required to fasten the two ground clip screws.To affix the ground clips, utilize a JIS "00" screwdriver and the provided 2.0 mm screws.

• Position the lower boundary of the speaker so it is flush with the device's casing, then place it within its designated area.
• Confirm that the lower-right securing fastener engages correctly with the frame; a slight adjustment may be required to ensure proper contact.
• Apply downward pressure on the speaker's surface using your fingertip until you hear an audible click, indicating secure installation.

Secure the loudspeaker with six screws, requiring a JIS 00 screwdriver for proper engagement.

• Employ two screws, each measuring 2.7 millimeters in length, during the installation process.
• Additionally, utilize two screws, each with a length of 2.0 millimeters, as part of the assembly.
• A single 1.5-millimeter screw is also necessary for secure fastening.
• One further 1.5-millimeter screw is affixed to the lower boundary of the iPhone's frame.

Reattach the buffer strip to the upper edge of the Taptic Engine, applying pressure with either your fingertips or a specialized spudger tool.

• Position the battery tray correctly within its designated area.
• Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

Secure the battery tray using a Torx Plus 4IP screwdriver.A single screw, measuring 7.5 millimeters in length, is required for this step.A separate screw, with a length of 5.9 millimeters, is also needed.

• Another screw, measuring 3.4 millimeters long, must be utilized.A screw with a 2.3-millimeter length is also necessary for the installation.
• Nine screws, each measuring 3.7 millimeters in length, are incorporated into the process.An additional screw, also measuring 3.7 millimeters in length, is included.
• Certain iPhone versions, those retaining a physical SIM card slot, will not require this particular screw.Employ the Torx Plus 4IP screwdriver to properly affix the battery tray.
• The 7.5 mm screw provides primary support for the tray's attachment.The 5.9 mm screw contributes to the overall stability of the assembly.
• The 3.4 mm screw assists in aligning the tray components.The 2.3 mm screw is used for securing smaller features of the tray.
• The nine 3.7 mm screws reinforce the tray's structural integrity.The final 3.7 mm screw completes the fastening of the battery tray.

To maintain the integrity of the delicate grounding clips during frame cleaning, exercise caution and avoid displacement.

• Should a grounding clip become bent, restore its original shape with careful manipulation using either your fingertips or tweezers.For the removal of sizable adhesive sections from the frame's edges, tweezers or your fingers are suitable tools.Employing a spudger is recommended for the process of eliminating adhesive residue that remains on the frame's surface.Persistent adhesive can be softened by applying warmth with a hair dryer or heat gun, facilitating its removal.Carefully maneuver around the grounding clips during cleaning to prevent unintended bending.
• Gentle correction of bent grounding clips is possible through manual adjustment with fingers or tweezers.Large adhesive fragments should be detached from the frame's border with tweezers or by hand.A spudger provides an effective method for scraping away the lingering adhesive residue.
• Should the adhesive prove difficult to remove, applying heat can assist in the process.A hair dryer or heat gun can be utilized to warm the adhesive and ease its removal.The grounding clips are susceptible to damage, so avoid applying excessive force during cleaning.Manual straightening of bent grounding clips requires a delicate touch to prevent further deformation.Residue removal is best accomplished with a spudger, ensuring a clean and smooth frame surface.

Eliminate adhesive remnants located around the frame's edges.
Employ a material that does not shed fibers, such as a lint-free cloth.Alternatively, a coffee filter can be utilized for wiping.Always move the wiping material in a single, consistent direction.Should the adhesive feel tacky to the touch, introduce a small quantity of isopropyl alcohol.Apply the alcohol sparingly to the wiping material before proceeding.
Repeat the wiping process after applying the alcohol.Perform this cleaning process deliberately and with care.A thoroughly cleaned frame surface facilitates the even distribution of replacement adhesive.
Consistent adhesive application results in a stronger and more reliable bond.

To facilitate adhesion when reinstalling a display panel, introduce a small quantity of isopropyl alcohol with a concentration exceeding 90 percentonto a microfiber cloth or a similar material devoid of fibersand utilize it to clean the edges, ensuring a suitable bonding surface.

Prior to removing any protective films, position the adhesive sheet onto the frame's surface to establish the correct alignment.Employ visual cues like the camera aperture and the indentations situated on the upper and lower borders to assess the adhesive's placement within the frame’s confines.This preliminary placement allows for a visual confirmation of how the adhesive material will adhere to the frame’s structure before permanent bonding.

To begin, grasp the corner tab on the adhesive sheet.Remove the liner to reveal approximately one-third of the adhesive surface.Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness.Prevent unintended contact with other surfaces until the adhesive is positioned correctly on the frame.Should your adhesive sheet contain multiple liners, remove only the liner that will adhere to the frame's surface.

After applying the adhesive, any adjustments are impossible; complete removal and replacement with fresh adhesive will be necessary.Ensure precise positioning by matching the visible border of the adhesive strip to the matching edge on the iPhone's frame.Correct alignment is critical before proceeding, as repositioning is not possible.The adhesive strip's exposed edge must be meticulously aligned with the iPhone frame's corresponding edge.A gentle, even pressure should be applied to the exposed adhesive strip to secure it to the frame.Any attempt to shift the adhesive after initial placement will require a complete redo with a new adhesive strip.To guarantee a secure bond, carefully align the adhesive strip's exposed edge with the iPhone frame's designated edge before applying pressure.

Proceed with removing the protective backing from the adhesive material, ensuring firm contact as you apply it.Carefully position the adhesive, applying even pressure to secure it.Successful alignment of the adhesive will result in seamless edge integration with the device frame.Should minor misalignment occur, delicately adjust the longer sides to match the frame's contours.Creasing or wrinkling of the adhesive indicates a need to discard it and reapply with a new section.If replacement adhesive strips are unavailable, the iPhone can be reassembled and used temporarily.Understand that using the iPhone without the adhesive will reduce its water resistance capabilities.Replacing the adhesive is necessary to restore the device's original water resistance.The adhesive strip serves to create a watertight seal between the frame and the back glass.Ensure the adhesive is clean and free of debris before application.Use a plastic spudger to avoid scratching the frame during adhesive placement.The adhesive strip is approximately 1.5mm thick.The adhesive strip measures 150mm in length.Apply consistent pressure for 30 seconds after the adhesive is in place.A misaligned adhesive strip can cause a pop-off of the back glass.The adhesive strip is designed to bond securely to both the frame and the back glass.Inspect the adhesive strip for any tears or damage before installation.

Employ a spudger to apply pressure to the adhesive securing the iPhone's edges, ensuring complete coverage around the device's circumference.Exercise caution to avoid damaging the delicate grounding clips during this process; should one become displaced, carefully reposition it using your fingers or tweezers.Prevent excessive force, as this could permanently alter the adhesive's properties through stretching and deformation.

Detach the extensive front adhesive liner by grasping the designated pull tab, which is typically situated within a corner of the liner.

• Remaining liners will continue to shield the outer edges at this stage.
• Refrain from discarding these liners for the time being, as they are essential to avoid unintended adhesion during iPhone reassembly.

Position the iPhone display adjacent to the frame, ensuring sufficient cable length to connect to the logic board.

Apply pressure with either a fingertip or the broad, planar end of a spudger to establish a secure electrical connection between the two screen connectors and the logic board.Avoid applying excessive force when aligning the connectors; a gentle touch is crucial for preventing damage.Should you encounter resistance during the connection process, carefully realign the connector and attempt the procedure once more.
Repositioning the connector can often resolve alignment issues and facilitate a successful attachment to the logic board.

Employing either a fingertip or the planar edge of a spudger tool, ensure the battery connector's secure attachment to the logic board via firm pressure.A spudger's flat end, or a finger, can be utilized to establish a reliable electrical connection between the battery connector and the logic board through applied force.To guarantee proper electrical contact, apply pressure to the battery connector, utilizing either a finger or the broad, flat surface of a spudger, and affix it to the logic board.

Prior to finalizing the enclosure, it's advisable to verify the functionality of the repair by activating the iPhone and confirming its expected operational status.

• Following the verification process, deactivate the device's power and proceed with the remaining reassembly steps.
• Should the iPhone fail to power on, establish a connection to an external power source and attempt activation once more.

1. Carefully slide the upper border of the battery connector cover beneath the designated edge.
   • Verify that each of the two tabs is securely positioned beneath the lip.
   • Position the cover precisely using the screw aperture as a guide, then set it into its intended location.

Employ a JIS 00 screwdriver for the installation process of the screw.The screw, measuring 1.2 mm in length, is necessary for securing the battery connector cover.A JIS 00 screwdriver is required to properly install the fastener.To ensure the battery connector cover is firmly attached, utilize a 1.2 mm screw.Secure the battery connector cover by utilizing a JIS 00 screwdriver and a screw with a length of 1.2 mm.

• Carefully slide the left side of the screen connector cover's edge beneath the designated lip on the device's frame.Position the cover accurately, utilizing the screw hole as a reference point for precise alignment.Gently place the cover onto the intended surface, ensuring proper seating.
  The cover should be situated so that the screw hole is correctly oriented for subsequent fastener installation.

Employ a JIS 00 screwdriver for the installation process of the screw.The screw's length must be precisely 1.2 millimeters.The screen connector cover is affixed using this screw.Ensure proper alignment before tightening the fastener.This cover provides protection and secures the screen connector.

• Maintain a firm grip on the display assembly with one hand.Carefully separate the adhesive backing from all surrounding liners using your fingertips or a specialized spudger tool.Prevent any contact with the newly revealed adhesive to avoid contamination.
  Inspect the internal components for any detached liner fragments and eliminate them.
  Ensure the complete absence of any remaining liners within the device's interior.
  The device's internal area must be entirely free of liner material following this process.

Position the display assembly downwards onto the device chassis, initiating the alignment from the uppermost border.Should you encounter opposition during placement, a retaining clip might have become deformed and is being compressed by the chassis; examine the area of obstruction and carefully restore any bent clips to their original shape.Verify that the display's periphery isn't exerting pressure on any internal wiring harnesses.
Ensure the display panel is free from any cable interference.
Carefully align the display's edges to prevent damage to internal components.Apply even pressure across the entire perimeter of the iPhone's frame to guarantee proper seating of the display.Confirm the display is correctly positioned before proceeding with further steps.
A slight bend in a clip can prevent proper screen alignment; rectify this with gentle manipulation.The display must make full contact with the frame for optimal functionality and structural integrity.Proper alignment is crucial to avoid future issues with the display's operation.

Apply consistent, substantial pressure encompassing the complete outer edge of the iPhone.

• Apply warmth around the display's edges utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.This thermal application loosens the adhesive securing the screen, which facilitates improved adhesion during reassembly.

Employ a P2 pentalobe screwdriver for the installation of the two screws, each measuring 7.5 mm in length, positioned on both sides of the charging port.Securely fasten the 7.5 mm screws to their respective locations flanking the charging port, utilizing a specialized P2 pentalobe screwdriver.To affix the screws, which have a length of 7.5 mm, to the areas adjacent to the charging port, a P2 pentalobe screwdriver is required.
