iPhone 17 Pro Top Speaker Replacement

To ensure optimal conditions for this repair procedure, allow your iPhone's battery to discharge to a level below 25% prior to commencement.Because of the potential fire hazard, a lithium-ion battery that retains a charge poses a significant risk of ignition if compromised during the repair process.

• Disconnect all connected cables from the device before proceeding with the repair.
• Initiate a power-off sequence by simultaneously pressing and holding the power button alongside either volume button, subsequently sliding the power-off indicator.

Important safety note: Broken glass presents a risk during the repair process, potentially causing harm or hindering disassembly.Should your device exhibit a cracked display, proceed with the following procedure to mitigate these risks.

• To prevent glass fragments from scattering and to facilitate suction cup adhesion, secure the damaged area with packing tape.
• Affix a non-overlapping strip of tape, adequately sized to accommodate a suction cup, along the lower edge.
• Ensure the tape adheres solely to the glass surface, avoiding contact with the phone's frame.

Employ a P2 pentalobe screwdriver for the task of detaching the two screws, each measuring 7.5 mm in length, which secure the charging port's lateral edges.The two screws, each with a length of 7.5 mm, located on both sides of the charging port, require removal using a P2 pentalobe screwdriver.To disassemble the charging port, utilize a P2 pentalobe screwdriver and carefully unscrew the two fasteners, each precisely 7.5 mm long, positioned on the port's sides.

A critical warning necessitates careful attention to prevent potential harm.Excessive insertion of the opening pick poses a risk of device damage.

• To ensure proper depth, accurately determine a 3-millimeter distance from the pick's tip and clearly indicate this point with a permanent marker.
• As an alternative method for depth control, securely affix a coin to the pick's tip, positioning it precisely 3 millimeters from the end.

A critical warning: Incorrect operation of a heat gun presents a significant risk of damage to the display panel and/or battery; adhere meticulously to the provided instructions.To soften the adhesive securing the screen, apply heat to the lower perimeter using either a hair dryer or a heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• The linked instructions must be followed precisely to prevent damage when using a heat gun.

Secure a suction handle to the lower screen border, positioning it as near the edge as feasible.

Confirm the precise placement of your prying tool before proceeding to the subsequent action.

• A plastic trim piece, situated beneath the screen's surface and resting upon the chassis, requires careful tool insertion; ensure the prying tool is fully positioned beneath this trim piece.
• Avoid inserting the prying tool into the visible gap between the plastic bezel and the display panel, as this will cause unintended separation of these components and increase repair complexity.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display screen from its surrounding frame, creating a visible space.
Overcoming this separation might require considerable effort; should initial attempts prove unsuccessful, reapply heat to the display screen and subsequently retry the process.
Carefully position the pointed end of a specialized opening tool within the newly formed separation between the display and its frame.

To prevent harm to internal parts, ensure the insertion depth of your separation tool remains below a maximum of 3 millimeters.Proximity to the volume and Action buttons places the screen and ambient light sensor cables at risk of damage.The phone's frame incorporates fragile spring contacts positioned along its edges, demanding careful handling.

• Thin, metallic clips secure the display to the chassis, engaging with matching receptacles within the frame.
• These clips are situated on the underside of the screen, requiring meticulous separation to avoid breakage.
• Exercise caution to prevent unintended dislodgement of these clips during the disassembly process.

Utilize a specialized opening tool and carefully maneuver it along the lower perimeter to detach the adhesive bond.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from reforming a seal.

Detach the suction cup from the display surface by actuating the small protrusion located on its body.

To loosen the adhesive securing the screen, apply warmth to the screen's right perimeter using a hair dryer or heat gun, ensuring the surface reaches a temperature just above comfortable touch.

• Position a second opening pick beneath the lower-right corner of the display assembly.
• Advance the pick along the right side to detach the adhesive layer and disengage the two retaining clips, potentially requiring a slight upward lift of the screen to facilitate clip release.
• Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-adhesion.

Apply warmth to the screen's upper border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right quadrant.
• Carefully maneuver the pick along the top perimeter, slightly rounding the top-left corner to detach the adhesive and disengage the two clips, exercising caution to avoid potential damage to the ambient light sensor cable.
• Maintain the pick's placement beneath the top-left corner to inhibit adhesive re-adhesion.

To loosen the adhesive securing the display, apply warmth to the left-hand perimeter of the screen with a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the right perimeter to sever the adhesive bond and disengage the retaining clip, pausing its movement immediately prior to the volume up button's location.
• A slight upward lift of the display may be necessary to free the clip; avoid further pick manipulation beyond this point to prevent potential damage to the display cable.

Ensure the display assembly is fully disengaged from the chassis; if resistance is encountered, re-examine the surrounding edges to release any lingering adhesive or securing fasteners.
Elevate the display vertically and rotate it over the left side, supporting it with a stable object like a container or pile of literature to prevent stress on the connecting wires.
As an alternative approach, the display can be positioned horizontally across the left lateral surface.

Carefully monitor the location of each fastener during disassembly, ensuring correct reinstallation.
Employ a JIS "00" screwdriver for the subsequent steps.The two cable covers are fastened with screws that require a JIS "00" screwdriver for removal.A 1.4 mm-length screw is utilized to secure the cover protecting the screen and front sensor cable.

• The battery cover is held in place by a 1.3 mm-length screw.Phillips-head screwdrivers from iFixit are specifically engineered to interface with JIS screws, though alternatives may be attempted with caution.Using non-iFixit Phillips drivers carries the potential for damaging the screw heads.
• Stripping the screw heads is a risk associated with using non-iFixit Phillips drivers.Maintaining the integrity of the screw heads is crucial for successful reassembly.Proper driver selection minimizes the likelihood of screw head damage.

Detach the pair of protective enclosures.

Employ the tip of a spudger to carefully lift and detach the battery press connector.The battery press connector must be separated from its position by utilizing the pointed end of a spudger.To release the battery press connector, apply the spudger's tip for prying and subsequent disconnection.

Employing the pointed end of a prying tool or a spudger, carefully separate and detach the screen and ambient light sensor press connectors from their sockets.The connectors securing the screen and ambient light sensor press must be released using a pointed instrument, such as a prying tool tip or a spudger.To release the screen and ambient light sensor press connectors, utilize the pointed tip of a suitable prying tool or a spudger for separation and disconnection.

Detach the display panel.

Employ a Torx Plus 4IP screwdriver for the disassembly of screws holding the battery tray in place.A single screw, measuring 7.5 millimeters in length, is present.A single screw with a length of 5.9 millimeters is also required.

• One screw, with a specified length of 3.4 millimeters, must be removed.A single screw, measuring 2.3 millimeters in length, is also part of the assembly.
• Nine screws, each with a length of 3.7 millimeters, secure the tray.An additional screw, also measuring 3.7 millimeters in length, is included.
• Certain iPhone versions, those incorporating a physical SIM card, will lack this particular screw.The battery tray is fastened with a specific set of screws requiring careful removal.
• To access the battery compartment, utilize the appropriate Torx Plus 4IP screwdriver.The screw lengths vary, necessitating attention to detail during reassembly.
• Carefully unscrew the fasteners to prevent damage to surrounding components.Note the presence of a 7.5 mm screw, distinguishing it from the others.
• The 5.9 mm screw is another unique fastener within the assembly.The 3.4 mm and 2.3 mm screws contribute to the tray's secure attachment.

Employ a fingertip to elevate the battery compartment's upper-left corner, subsequently detaching it from the device.
Exercise caution to prevent any transference of residue onto the front-facing camera lens.

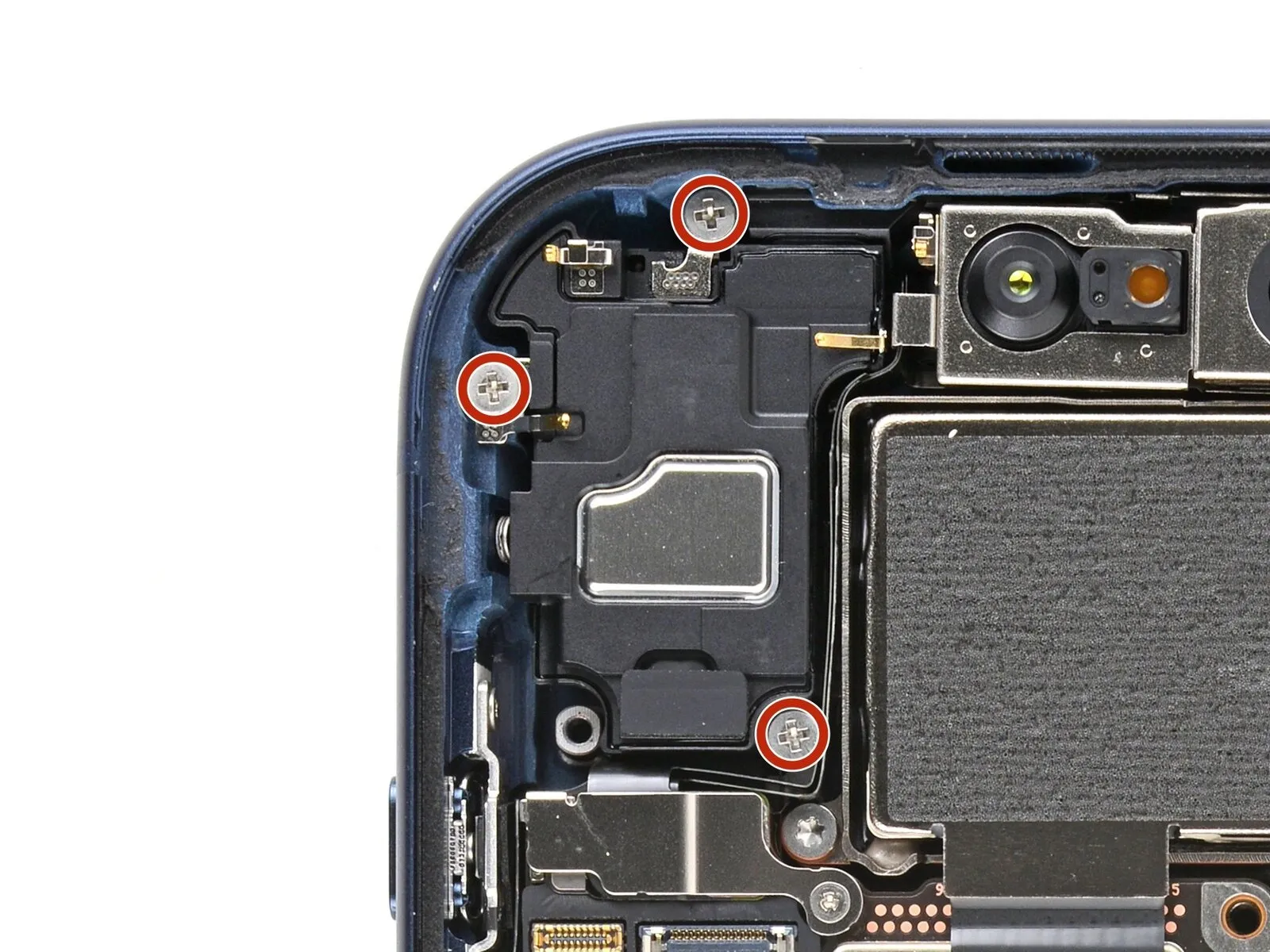

Employ a JIS 00 screwdriver for the task of detaching the top speaker's securing hardware.The three screws, each measuring 2.2 mm in length, must be removed using the appropriate tool.Removal of these fasteners will allow access to the top speaker assembly.A JIS 00 screwdriver is the specifically recommended tool for this operation, ensuring proper engagement and preventing damage.These small screws, with their 2.2 mm length, hold the top speaker in place and require careful handling with a JIS 00 screwdriver.

Employ the tip of a spudger to carefully separate and release the adhesive securing the upper speaker assembly.

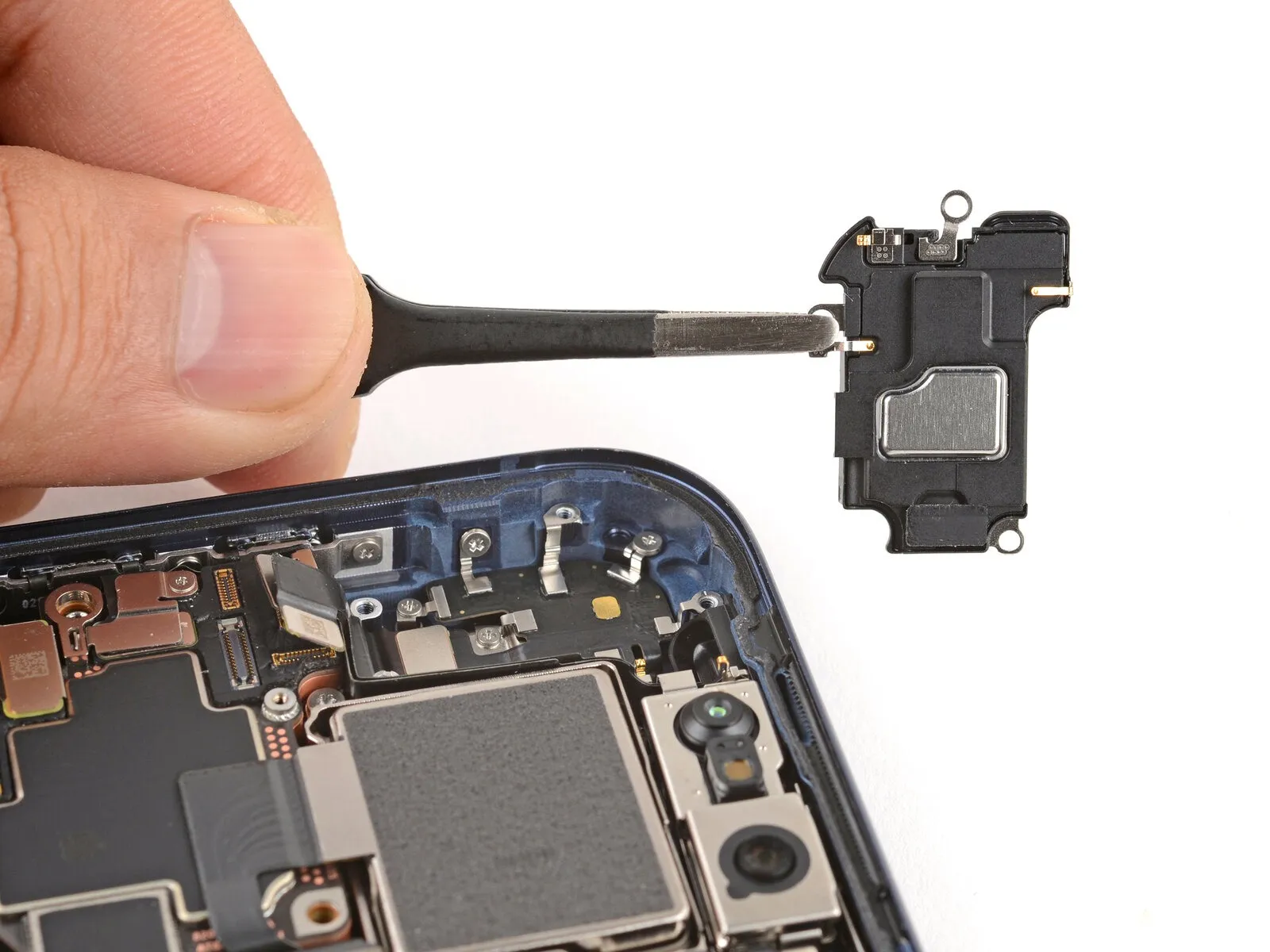

Detach the top speaker from its position within the device.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
Slight variations in the visual appearance of reassembly images might occur based on the specific iPhone model being serviced, but the outlined steps remain accurate for all versions.

Ensure the superior boundary of the top speaker is precisely positioned relative to the iPhone's surface.

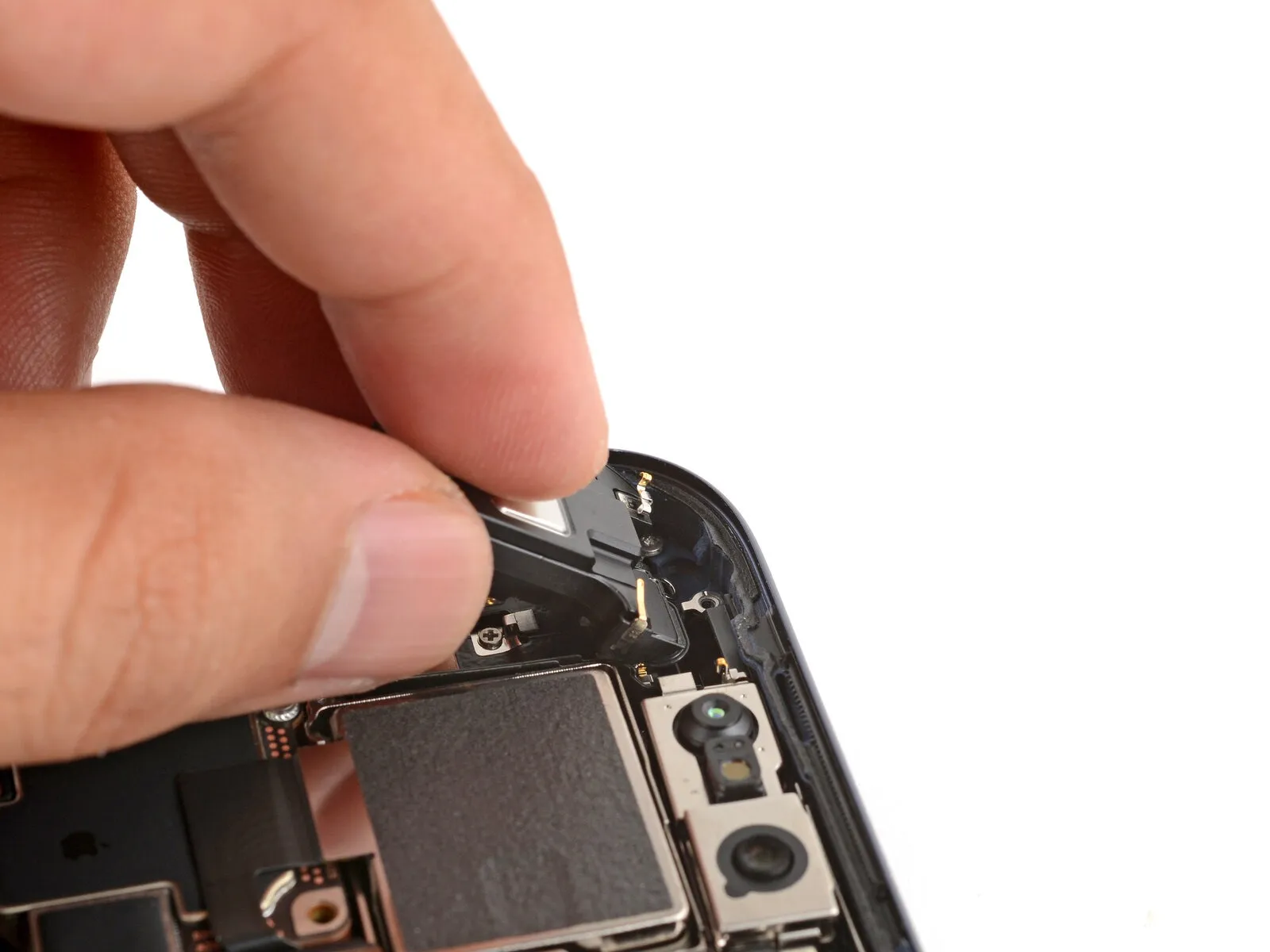

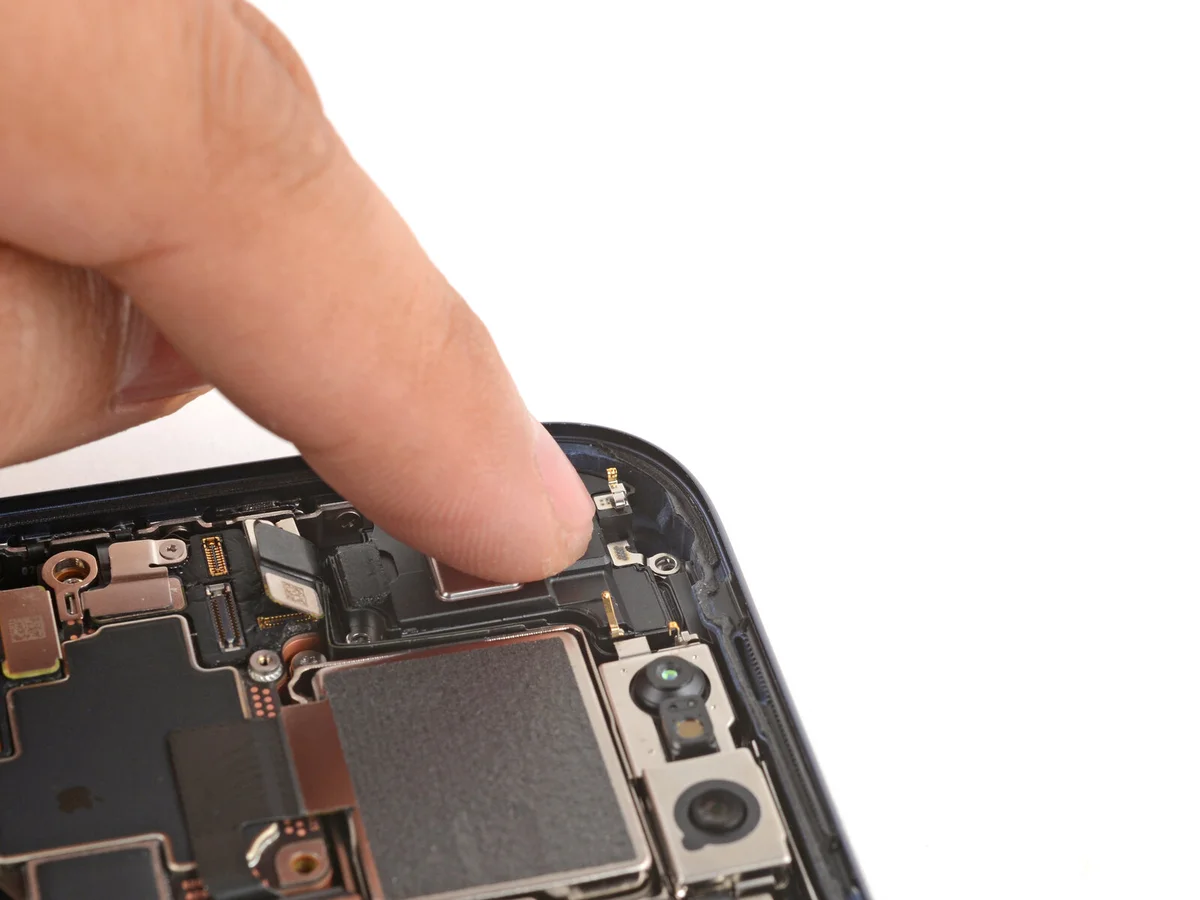

Carefully seat the speaker component within its designated cavity.

Employ a JIS 00 screwdriver for the purpose of affixing the top speaker.The three screws securing the speaker are each 2.2 millimeters in length.Secure the speaker utilizing the provided screws.A JIS 00 screwdriver is essential for proper installation.Installation of the top speaker necessitates the use of three screws, each measuring 2.2 mm.

Position the battery tray correctly within the designated area.
Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

Employ a Torx Plus 4IP screwdriver for the subsequent screw installations.A single screw, measuring 7.5 millimeters in length, is required.One screw, with a length of 5.9 millimeters, must be utilized.

• A screw of 3.4 millimeters in length is also necessary.A 2.3-millimeter screw is needed for this procedure.Nine screws, each with a length of 3.7 millimeters, are included.
• An additional screw, also measuring 3.7 millimeters, is part of the assembly.Be aware that iPhone versions incorporating a physical SIM card will lack this final screw.The Torx Plus 4IP screwdriver is essential for proper screw engagement.
• Ensure the 7.5 mm screw is correctly positioned during installation.The 5.9 mm screw contributes to the structural integrity of the device.Precise placement of the 3.4 mm screw is crucial for functionality.
• The 2.3 mm screw serves a specific purpose in the assembly.The nine 3.7 mm screws provide secure fastening.The final 3.7 mm screw completes the fastening sequence.
• Models equipped with a physical SIM card exhibit a different screw configuration.The absence of the final screw is a characteristic of SIM-enabled iPhones.Carefully align the 7.5 mm screw before tightening.
• The 5.9 mm screw should be installed with appropriate torque.Properly secure the 3.4 mm screw to prevent loosening.The 2.3 mm screw's placement is critical for optimal performance.

The nine 3.7 mm screws contribute to overall stability.

Exercise caution while cleaning the frame, carefully avoiding damage to the delicate grounding clips; should a clip become displaced, restore its original shape with careful manipulation using your fingers or tweezers.

• Employ tweezers or your fingertips to detach substantial portions of adhesive from the frame's edges.
• Employ a spudger to eliminate any remaining adhesive residue adhering to the frame's surface.
• Should the adhesive prove difficult to remove, apply warmth with a hair dryer or heat gun to soften it, then attempt removal again.

Employ a lint-free cloth or a coffee filter, wiping unidirectionally along the frame's edge to eliminate adhesive remnants.

• Should the residue maintain a tacky texture, dispense a small quantity of isopropyl alcohol onto the cloth and repeat the wiping process.

To facilitate adhesion when reinstalling a display, use a microfiber or lint-free cloth lightly moistened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and clean the edges of the screen.

To ascertain the correct placement, position the adhesive layer onto the frame's surface, ensuring that no protective films are removed.

• Employ elements like the camera aperture and indentations situated on the upper and lower boundaries to mentally simulate the adhesive's final position within the frame.

Begin the process by securing the corner tab on the adhesive sheet and carefully removing a portion of the liner to reveal approximately one-third of the adhesive surface.Exercise caution, as the revealed adhesive possesses a high degree of tackiness; prevent any unintended contact with other surfaces until it is prepared for application to the frame.

• Should your adhesive material incorporate several layers of liners, prioritize the removal of the liner that will facilitate adhesion to the frame's surface.
• To prevent premature adhesion, avoid contact of the exposed adhesive with any unintended surfaces until it is ready for placement on the frame.

Following application, the adhesive's bonding properties prevent repositioning, necessitating removal and replacement with fresh adhesive if misalignment occurs.Precisely match the visible perimeter of the adhesive strip to the matching boundary on the iPhone's structural frame.

• Ensure accurate placement by aligning the adhesive strip's exposed edge with the iPhone frame's designated edge.
• Apply a light, even pressure to secure the adhesive strip to the frame once proper alignment is confirmed.

Proceed to step 3.Carefully separate the liner from the adhesive backing, ensuring firm contact between the adhesive and the surface.

• Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame.
• To correct minor misalignments, delicately reposition the extended edges towards the frame's boundaries.
• Should the adhesive develop creases or wrinkles, discard it and apply a new set for optimal results.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used temporarily; however, be aware that water resistance will be diminished until the adhesive is properly replaced.

Proceed to step four.Employ a spudger to apply pressure to the adhesive securing the iPhone's edges.

• Exercise caution to avoid damaging the delicate grounding clips; should one become displaced, carefully reposition it using your fingers or tweezers.
• Avoid excessive force, as it can distort the adhesive's structural integrity.

To expose the adhesive, detach the extensive front liner utilizing the provided pull tab, which is typically situated within a corner.

• Remaining liners will continue to shield the outer edges at this stage of the process.

Position the iPhone display adjacent to the frame, ensuring sufficient cable length to connect to the logic board.

Employ either a fingertip or the broad, planar edge of a spudger tool to establish a secure connection between the two screen connectors and the logic board.Avoid applying excessive pressure when aligning the connectors.Should difficulties arise during the connection process, carefully realign the connector and attempt the procedure once more.

• Proper engagement of the connectors is essential for device functionality.

To establish the electrical connection, apply pressure to the battery connector using either your fingertip or the broad, planar surface of a spudger tool.Ensure the battery connector makes firm contact with the designated area on the logic board during this process.Proper alignment and secure seating of the battery connector are essential for reliable power delivery to the device.

Prior to final enclosure, it is advisable to verify the functionality of your iPhone repair.Activate the iPhone and confirm its operational status according to design specifications.Following the verification, deactivate the device and proceed with the remaining assembly steps.

• Should the iPhone fail to power on, establish a connection to an external power supply and attempt another activation.
• A successful power-on confirms the integrity of the repair process.Ensure the iPhone exhibits expected behavior after the repair.Reconnecting to power may resolve initial startup issues.

1. Carefully slide the upper edge of the battery connector cover beneath the designated lip feature.
   • Verify that each of the two tabs is securely positioned beneath the lip's edge.
   • Position the cover so that the screw aperture is aligned, then gently set it into its intended location.

• Employ a JIS 00 screwdriver for the installation of the screw.The screw utilized for securing the battery connector cover measures 1.2 mm in length.Secure the battery connector cover by fastening with the specified screw.A JIS 00 screwdriver is essential for proper screw installation.To affix the battery connector cover, utilize a screw with a length of 1.2 mm and install it with a JIS 00 screwdriver.

1. Carefully slide the left side of the screen connector cover beneath the designated notch.
   • Position the cover precisely using the screw aperture as a guide, then set it down onto the device.

• Employ a JIS 00 screwdriver for the installation process.A 1.2 mm screw length is required for this fastening operation.The screen connector cover necessitates secure attachment via this screw.Utilize the JIS 00 screwdriver to facilitate the screw's insertion.Properly affix the screen connector cover with the specified screw.

1. Maintain the screen's stability by grasping it securely with one hand.
   Employing either your fingertips or a spudger, carefully separate all perimeter liners to reveal the underlying adhesive.
   Prevent any contact with the newly exposed adhesive to avoid contamination.
   Thoroughly inspect the internal components, eliminating any remaining liners to ensure complete removal.

Position the display assembly onto the chassis, initiating the alignment from the uppermost border.
Should you encounter opposition during placement, a surrounding retaining clip might be deformed and experiencing compression from the chassis; carefully examine the area of obstruction and delicately restore any bent clips to their original shape.
Verify that the display's perimeter isn't compressing any flexible circuit cables.
Apply even pressure across the iPhone's borders to ensure the display sits uniformly against the chassis.

Apply consistent, substantial pressure encompassing the complete outer edge of the iPhone's casing.

Apply warmth around the display's edges using a hair dryer or heat gun.Ensure the temperature reaches a level just beyond comfortable touch, indicating sufficient heat.This localized heating process will reduce the adhesive's viscosity.The purpose of softening the adhesive is to facilitate a more secure reattachment.A hair dryer or heat gun can be employed to generate the necessary warmth.
The perimeter of the screen requires targeted heat application for optimal results.Reaching a slightly uncomfortable temperature signifies the adhesive has been adequately softened.The heat's effect is to lower the adhesive's resistance to separation and subsequent bonding.

Employ a P2 pentalobe screwdriver for the installation of the two screws.The screws possess a length of 7.5 millimeters.Securely fasten these screws to both sides of the charging port.
