iPhone 17 Pro Lower Microphone Replacement

To mitigate potential fire hazards associated with compromised lithium-ion cells, ensure your iPhone's battery level drops below 25% prior to commencing the repair procedure, as a fully charged battery presents a heightened risk of ignition upon damage.

• Disconnect all connecting wires and cords from the device to prevent electrical interference during the repair process.
• Initiate a power-down sequence by simultaneously pressing the power button and either volume button, subsequently moving the power slider to the off position.

Important safety note: Fragments of broken glass present a hazard during the repair process and may lead to physical harm.Should your device's display exhibit cracks, proceed with the following procedure.

• To prevent glass dispersal and facilitate suction cup adhesion, affix packing tape strips across the entire damaged glass surface.
• Ensure a solitary, non-overlapping strip of tape is positioned along the lower edge, providing sufficient area for suction cup attachment.
• Confine the tape application solely to the glass portion, avoiding contact with the surrounding frame.

Employ a P2 pentalobe screwdriver to detach the two screws, each measuring 7.5 mm in length, located on both sides of the charging port.The two screws securing the charging port are fastened with a P2 pentalobe screwdriver, and their length is 7.5 mm.To release the screws positioned laterally around the charging port, a P2 pentalobe screwdriver is required; these screws each have a 7.5 mm length.

A critical safety note: Over-insertion of the opening pick poses a risk of device harm.To safeguard against potential damage, it's essential to implement a method for limiting the pick's insertion depth.

• Employing a permanent marker, precisely note a point 3 millimeters from the pick's distal end to serve as a depth indicator.
• As an alternative approach, affixing a coin, positioned 3 millimeters from the pick's tip, can also effectively restrict its insertion.

Apply warmth to the screen's lower border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Warning:Incorrect operation of a heat gun poses a risk of irreparable damage to the display assembly and/or battery; adhere meticulously to the provided instructions.

To facilitate separation, position a suction handle along the lower screen perimeter, maintaining proximity to the edge.

Confirm the proper placement of your prying tool before proceeding to the subsequent stage.

• A plastic bezel, situated beneath the display screen and resting upon the device's frame, requires careful tool insertion; ensure the tool is fully positioned beneath this bezel.
• Avoid inserting the prying tool into the visible gap between the plastic bezel and the display panel, as this action will result in unintended separation of these components and increase the complexity of the repair process.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display assembly from its surrounding structure, creating a discernible space.
Considerable effort might be necessary for this separation; should initial attempts prove unsuccessful, applying additional heat to the display panel and retrying the process is recommended.
Carefully position the pointed end of a specialized opening tool into the newly formed separation to facilitate further disassembly.

To prevent harm to internal parts, ensure the insertion depth of your prying tool remains no greater than 3 millimeters beneath the display surface.Proximity to the volume and Action buttons places the screen and ambient light sensor cables in a vulnerable area.The phone's construction incorporates sensitive spring contacts positioned along its edges, demanding careful handling.

• Thin, metallic clips secure the display panel, engaging with matching recesses within the device's frame.
• These clips are located on the underside of the screen and must be disengaged with precision.
• Exercise caution to avoid contact with these clips during separation, as they are prone to damage.

Utilize a separation tool to carefully release the adhesive bond by moving it along the lower perimeter of the device.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from reforming a seal.

Detach the suction cup from the display by actuating the small protrusion located on its surface.

Apply warmth to the screen's right border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a second opening pick beneath the lower-rightmost section of the display assembly.
• Advance the pick along the right vertical edge to sever the adhesive bond and disengage the two retaining clips.A slight upward displacement of the screen may be necessary to facilitate clip release.
• Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-adhesion.

To loosen the adhesive securing the screen, apply warmth to its upper boundary utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right corner.
• Moving the pick along the top perimeter, gently maneuver it past the top-left corner to detach the adhesive and disengage the two securing clips.Exercise caution, as excessive pick movement could potentially harm the ambient light sensor cable.
• Maintain the pick's placement beneath the top-left corner to inhibit the adhesive from re-bonding.

To loosen the adhesive securing the screen, apply warmth to the left side using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the right side to detach the adhesive and disengage the retaining clip, pausing immediately prior to the volume up control.
• A slight upward lift of the screen might be necessary to free the clip; refrain from sliding the pick further to prevent potential damage to the display cable.

Ensure the display assembly is fully disengaged from its surrounding structure; if resistance is encountered, re-examine the edges to release any lingering adhesive or securing fasteners.
Elevate the display vertically and rotate it across the left side, supporting it with a stable object like a container or pile of literature to prevent cable tension; as an alternative, the display can be positioned horizontally across the left surface.

Carefully document the location of each screw during disassembly to ensure proper reassembly.
Employ a specialized tool for the following steps.A JIS 00 screwdriver is required for the subsequent operations.The two cable covers are fastened with screws that necessitate this specific screwdriver type.

• A 1.4 millimeter screw secures the cover protecting the screen and front sensor cable.The battery cover is held in place by a 1.3 millimeter screw.Phillips screwdrivers, although sometimes usable, carry a significant risk of damaging the screw heads.
• iFixit-branded Phillips bits are specifically engineered for compatibility with JIS screws.Alternative Phillips driver brands may not provide adequate engagement and could lead to stripping.Prioritize using the correct JIS 00 screwdriver to prevent screw damage.

Detach the pair of protective housings.

• Employ the tip of a spudger to carefully lift and detach the battery press connector.A spudger's pointed end facilitates separation of the battery press connector from its socket.To release the battery press connector, utilize a spudger, applying force to its tip.

• Employing the pointed end of a prying tool or a spudger, carefully separate and release the screen and ambient light sensor press connectors from their housings.The connectors securing the screen and ambient light sensor press must be disengaged by applying gentle lifting force with a specialized tool’s tip.To release the screen and ambient light sensor press connectors, utilize the pointed end of a suitable prying tool or a spudger for separation.

• Detach the display panel.The screen component must be separated.Disassembly of the display is required.

• Employ a Torx Plus 4IP driver to detach the fasteners holding the battery compartment in place.
  A single screw, measuring 7.5 millimeters in length, is required.A solitary fastener, with a length of 5.9 millimeters, is present.
  A lone screw, extending 3.4 millimeters, is utilized.A single screw, possessing a length of 2.3 millimeters, is needed.
  Nine screws, each with a length of 3.7 millimeters, are incorporated.A single fastener, also measuring 3.7 millimeters in length, is included.
  Certain iPhone versions that incorporate a physical SIM card lack this particular screw.The battery tray is affixed with screws that necessitate a specialized Torx Plus 4IP driver for removal.
  The battery compartment's retention is achieved through a combination of screw sizes.A 7.5-millimeter screw contributes to the battery tray's secure attachment.
  A 5.9-millimeter screw is also part of the fastening assembly.Shorter screws, including a 3.4-millimeter and a 2.3-millimeter variant, are utilized.
  Multiple 3.7-millimeter screws, alongside a lone additional 3.7-millimeter screw, secure the battery tray.

• Employing a fingertip, elevate the battery compartment's upper-left corner to facilitate its removal.
  Exercise caution to prevent any smearing of the front-facing camera lens.

Utilize the pointed end of a prying tool to gently disengage the plastic buffer strip, which is affixed to the Taptic Engine, by working along its upper boundary.

Required implements include a JIS 00 screwdriver.The repair necessitates two screws, each measuring 2.7 millimeters in length.

• Additionally, two screws are needed, with a length of 2.0 millimeters.A single 1.5-millimeter-long screw is also essential for the procedure.One further 1.5-millimeter-long screw is required, pre-attached to the lower border.
• Ensure the availability of a JIS 00 screwdriver for this repair task.Two fasteners, each 2.7 mm in length, are necessary for assembly.Two additional screws, measuring 2.0 mm in length, are also required.
• A single screw, precisely 1.5 mm long, is part of the necessary components.The process demands a supplementary 1.5 mm screw, already affixed to the device’s base.A JIS 00 screwdriver is the designated tool for this repair.
• The assembly calls for two screws, each with a 2.7 mm dimension.Two more screws are needed, each measuring 2.0 mm in length.A 1.5 mm screw is also needed, and another is already attached to the bottom edge.

A gasket utilizing adhesive material secures the loudspeaker to the device frame.

1. To disengage the loudspeaker, incline the upper portion outward from its designated cavity.
2. Gradually separate the loudspeaker from the frame, allowing the adhesive bond to disengage.
3. Complete the removal process by extracting the loudspeaker from the assembly.

Required implements for this procedure include a JIS 00 screwdriver.The ground clip is fastened by two screws, each measuring 2.0 mm in length.

• These screws provide the connection for the ground clip.A JIS 00 screwdriver is necessary to manipulate the screws.The screws, with their 2.0 mm length, are integral to the ground clip's attachment.

Required implements for this procedure include fine-tipped tweezers.Due to its fragile nature and small size, the clip is susceptible to being misplaced; secure storage is recommended to ensure its availability during reassembly.
Maintaining the clip's location prevents complications during the reassembly process.

Employing a JIS 00 screwdriver, detach the three screws, each measuring 2.0 mm, which fasten the flex antenna in place.The flex antenna is held by three screws, necessitating their removal with a JIS 00 screwdriver to facilitate further disassembly.To release the flex antenna, a JIS 00 screwdriver is required to unscrew the three fasteners, each with a 2.0 mm head size.

To gain access to the screws located underneath, carefully maneuver the flex antenna aside using your fingers or a spudger.

• Employing a standoff screwdriver, detach the two 4.0 mm screws that fasten the Taptic Engine in place.

• To remove the Taptic Engine, gently pivot it from its housing and toward the iPhone's perimeter, ensuring you support its weight to avoid stressing the connecting cable during the subsequent procedure.

• To release the Taptic Engine press connector, employ a spudger for leverage and separation, subsequently disconnecting it.

• Detach the Taptic Engine component.

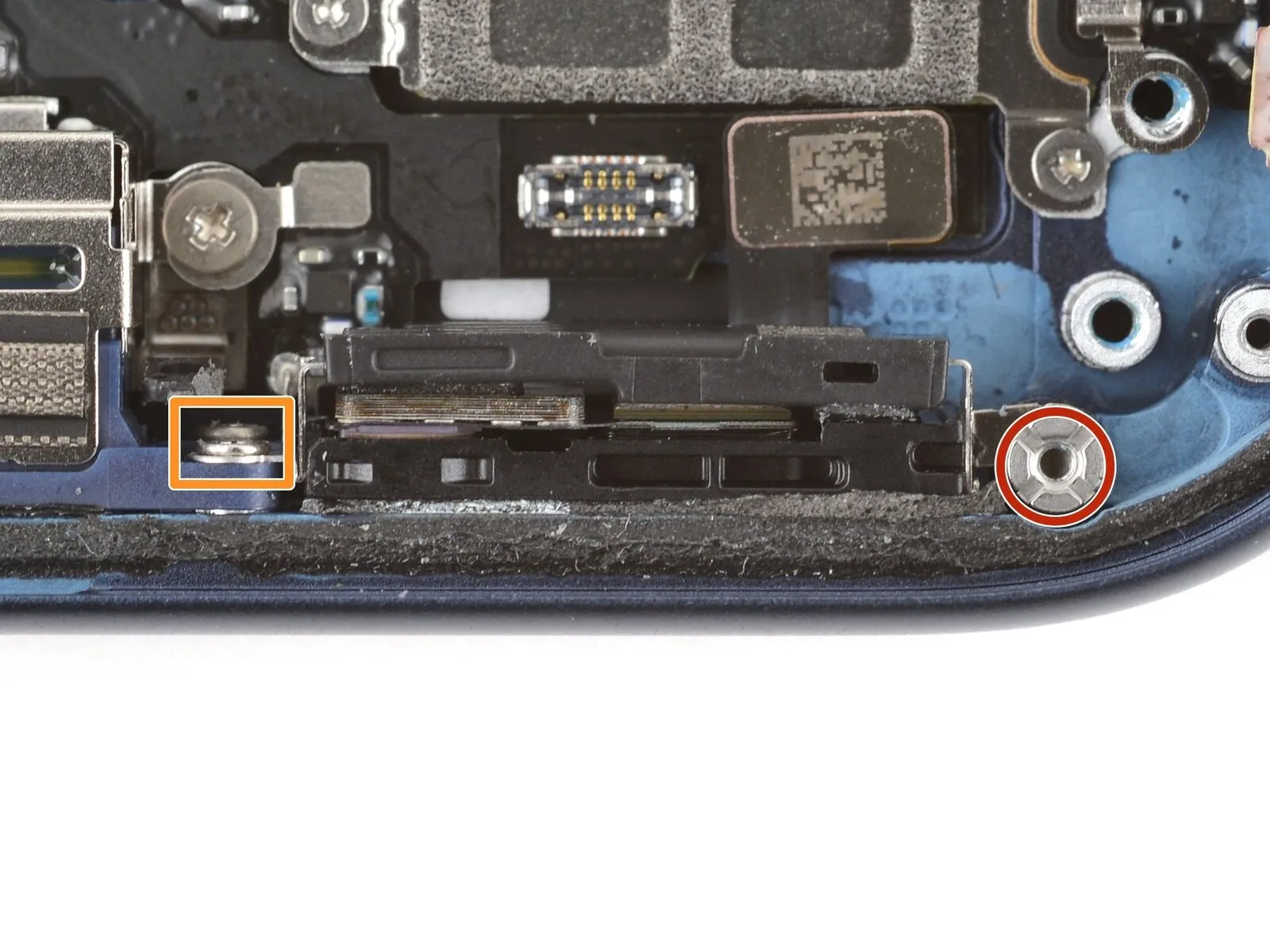

• A single, 3.2-millimeter-length standoff screw is utilized for this process.Additionally, a 3.1-millimeter-length JIS 00 screw is required.

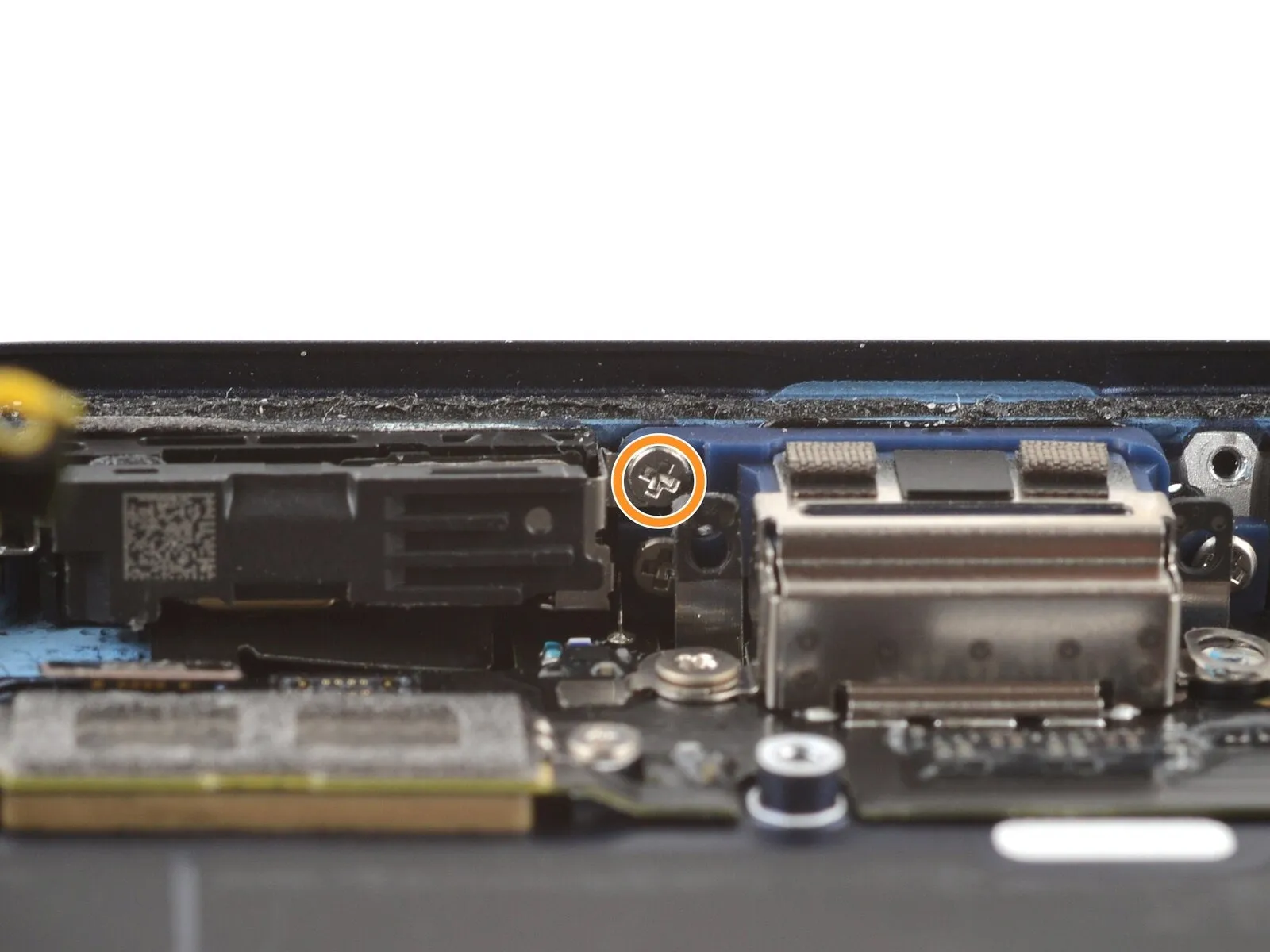

• These screws are positioned along the lower edge of the iPhone's frame.Carefully unscrew these fasteners to release the microphone.The microphone is affixed to the iPhone frame's bottom edge via these two screws.

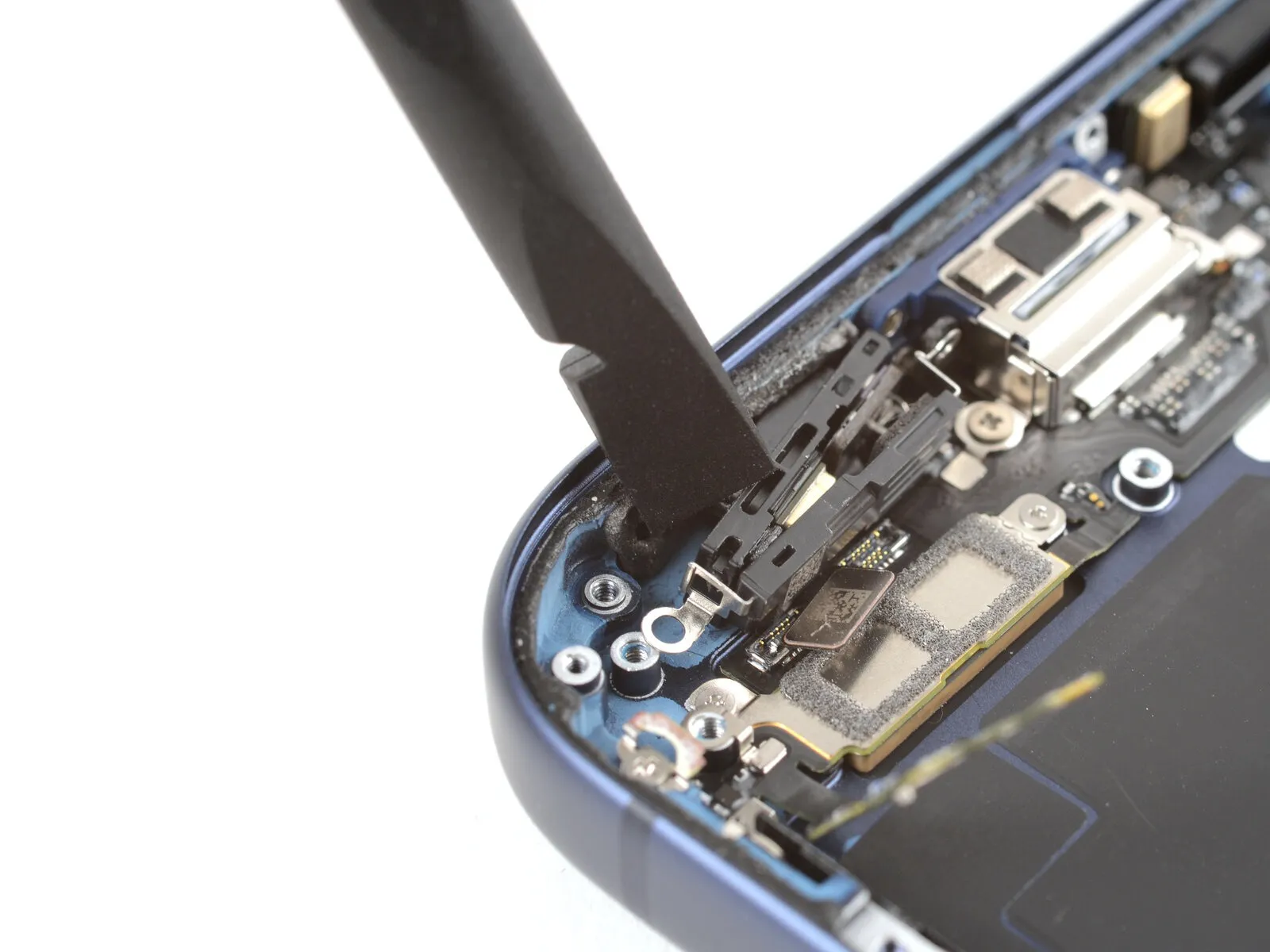

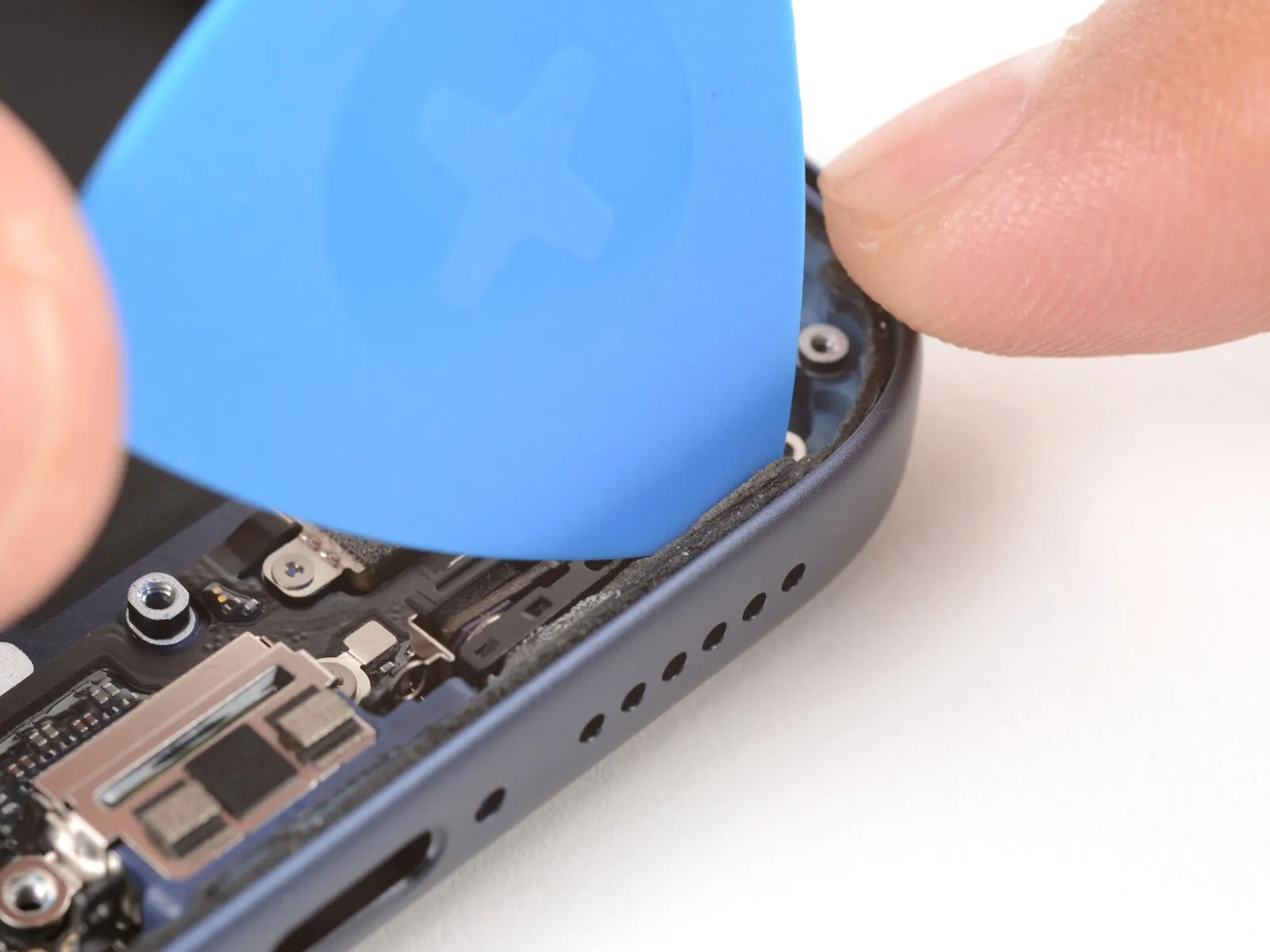

• Employ the planar aspect of a spudger to gain access to the space separating the lower microphone assembly and the device's structural frame.Rotate the spudger in a controlled manner to gently disengage the microphone from its mounting.Apply a gradual twisting force with the spudger to facilitate separation of the microphone from the frame.

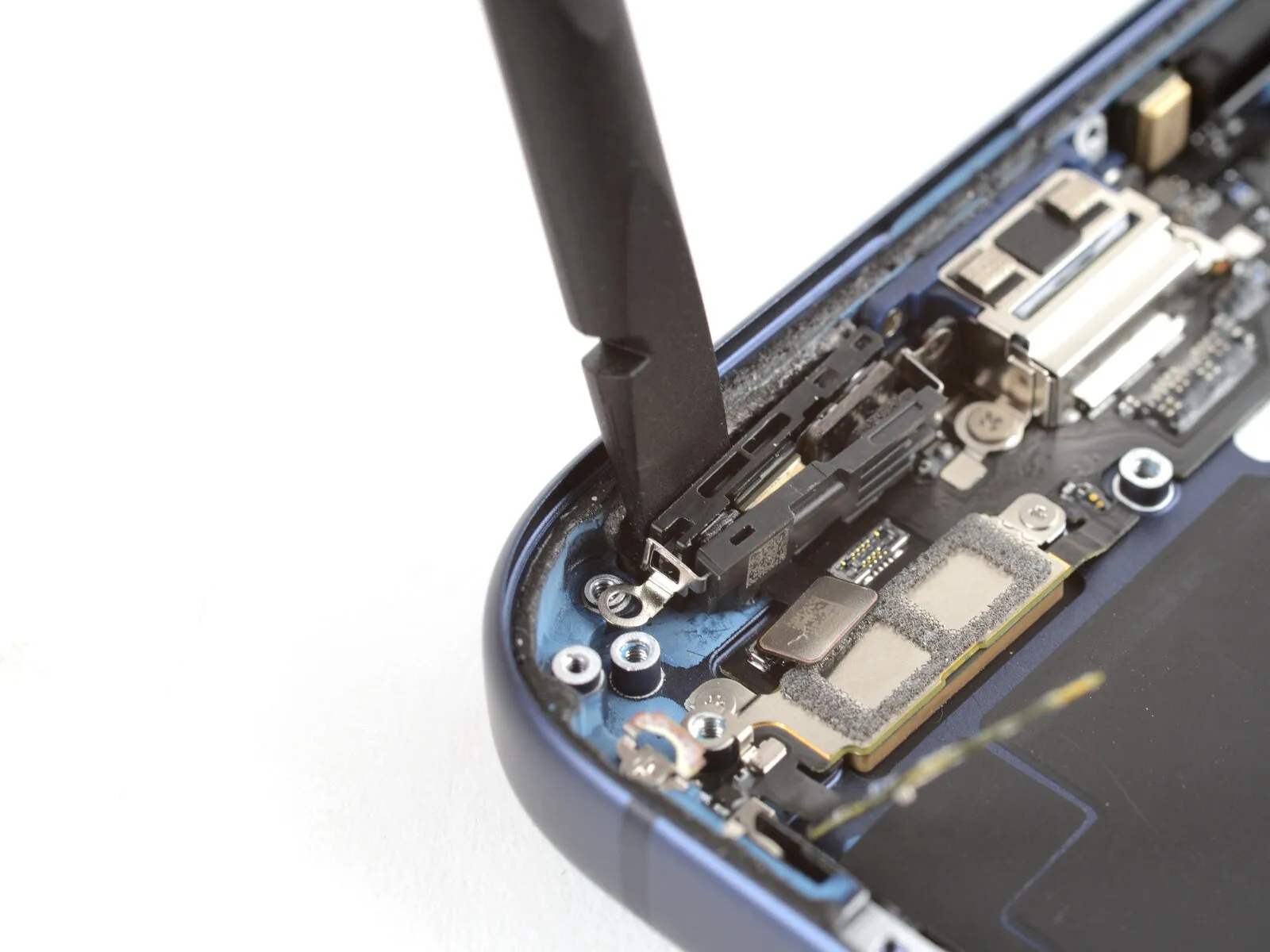

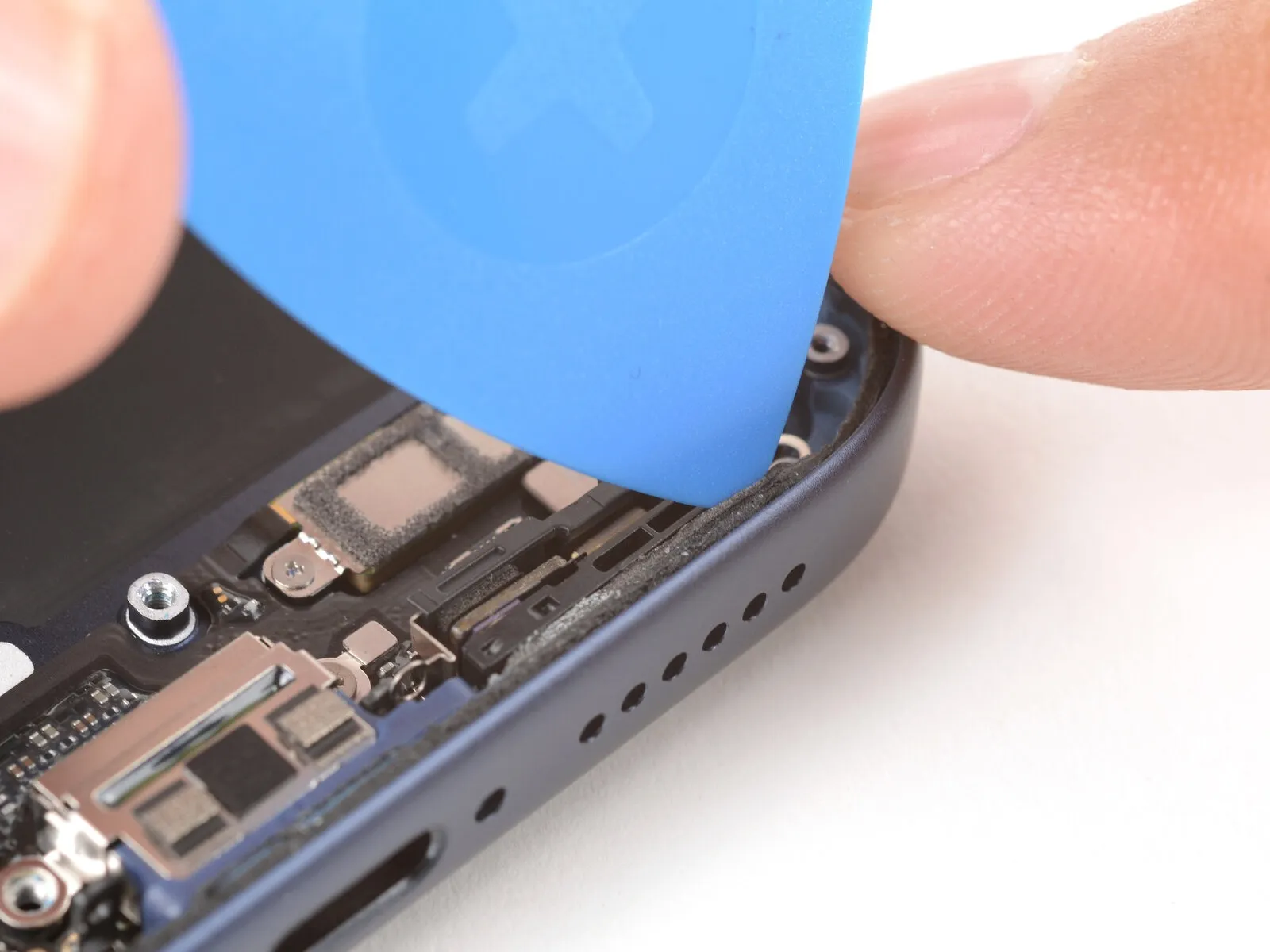

• The microphone's detachment from the frame should be achieved through careful manipulation.Carefully leverage the spudger to release the lower microphone's adhesive or fastener.Proceed with the removal of the lower microphone component.

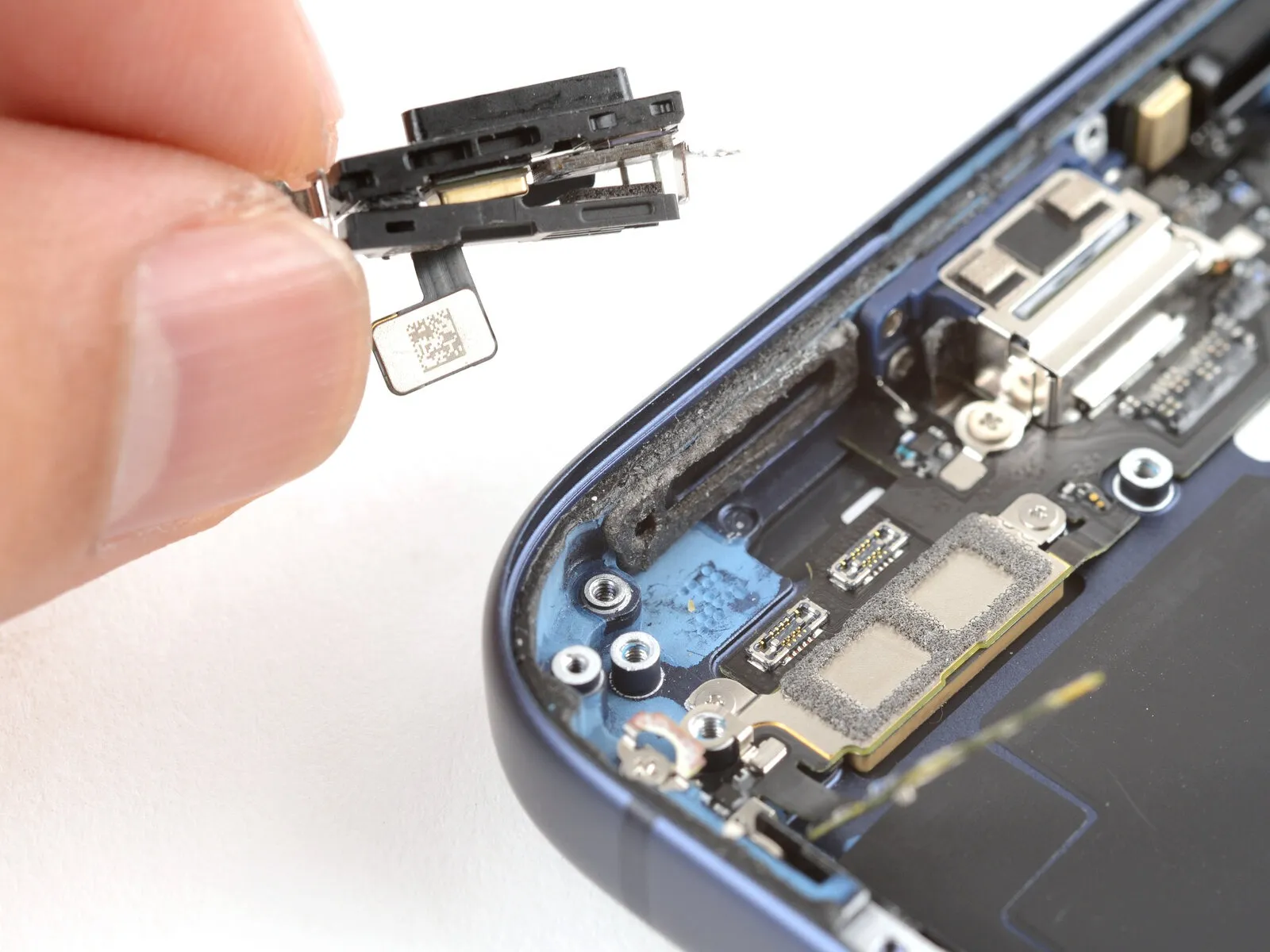

• Ensure the lower microphone is completely dislodged from the frame after prying.

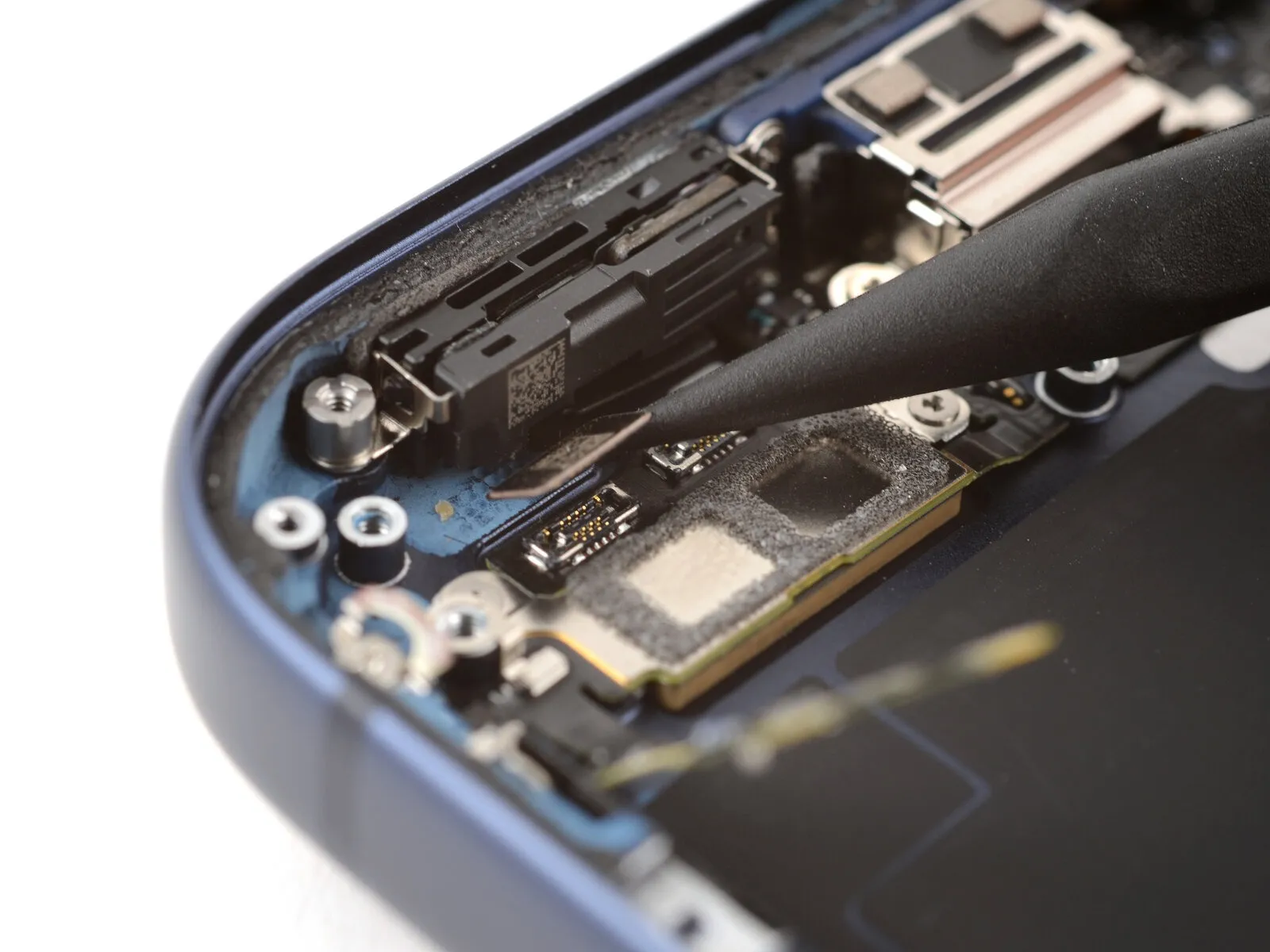

• Employ the tip of a spudger to release the retaining clip securing the lower microphone's bracket.The bracket can now be detached from the device.Carefully extract the bracket, ensuring its preservation for subsequent reinstallation.
• Maintain possession of the bracket to facilitate proper reassembly later.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
Visual differences in the reassembly photographs might occur based on the specific iPhone model being serviced, but the outlined steps remain accurate for all variations.

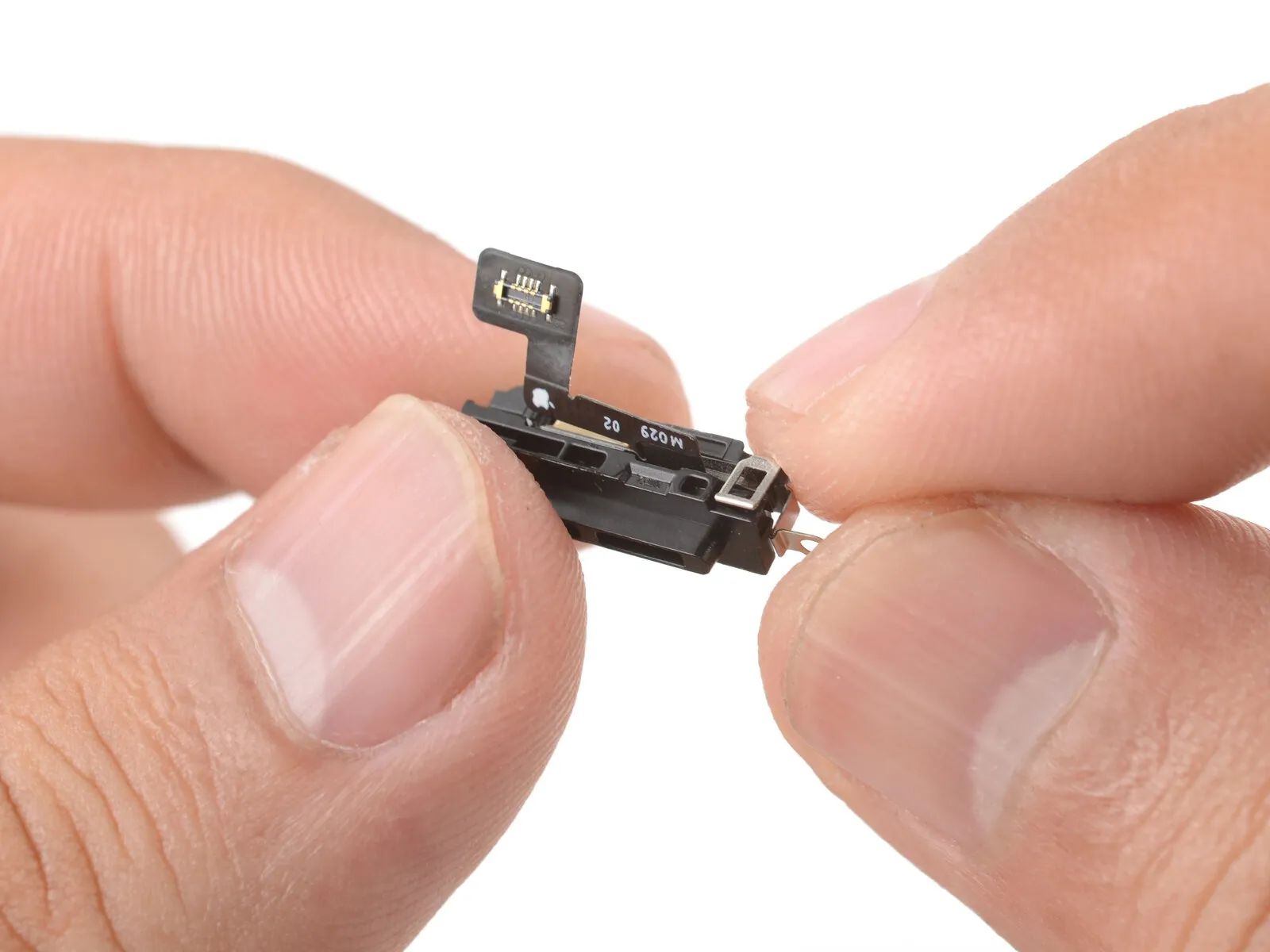

• Position one extremity of the slender microphone bracket alongside the microphone's base, securing it with the integrated latch mechanism.The microphone bracket's second end should also be aligned and fastened to the microphone using the same clipping procedure.Ensure the bracket is firmly attached at both locations to maintain proper microphone positioning.
• This two-point attachment method stabilizes the microphone within the designated mounting area.

Provided the adhesive gasket maintains its original shape and a replacement gasket wasn't included with the lower microphone assembly, the existing gasket can be retained for subsequent use; however, doing so will compromise the device's water and dust sealing capabilities.

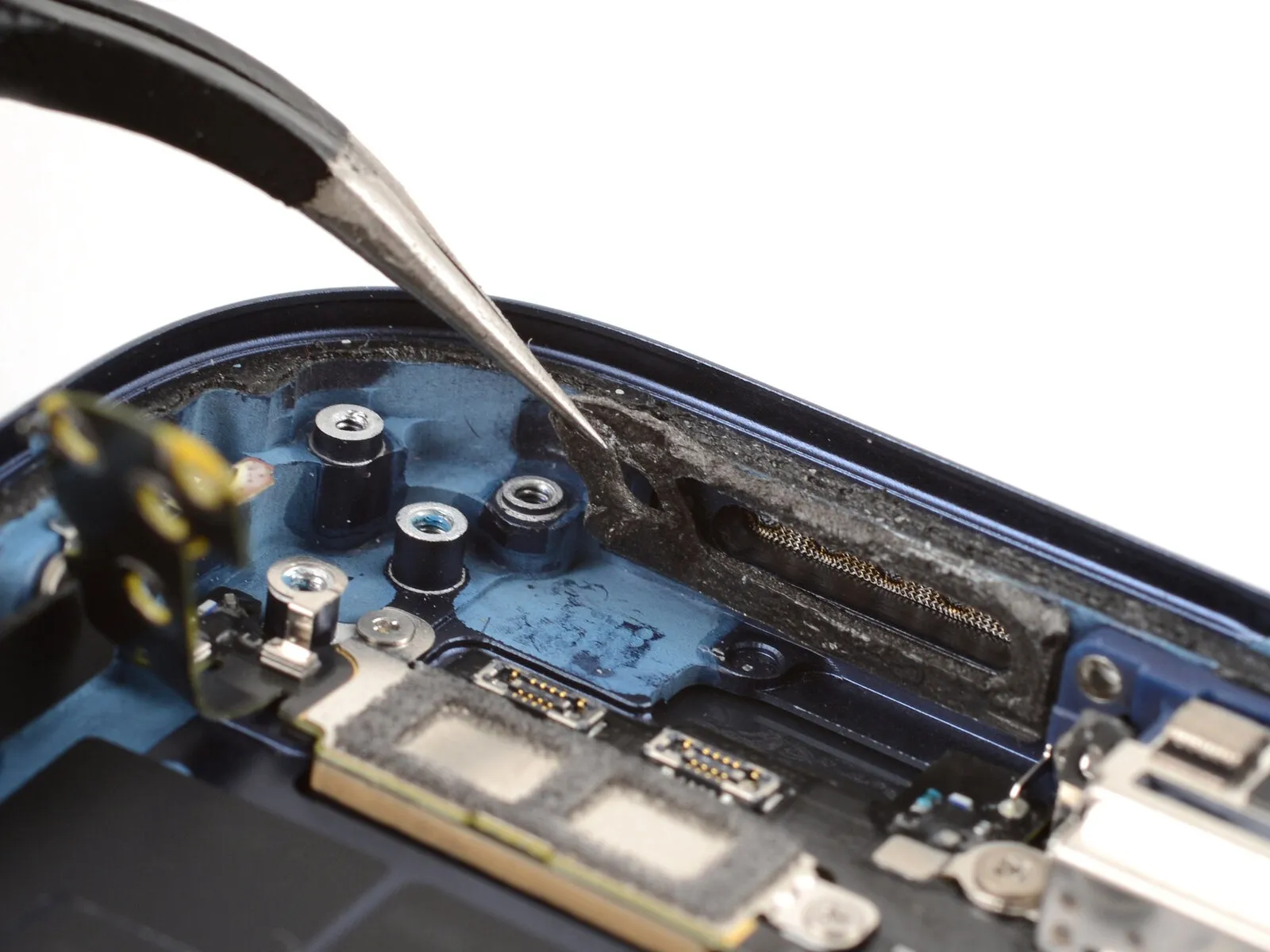

• Employing tweezers, carefully detach the microphone's adhesive gasket from the frame.

Prior to installation, if the new lower microphone includes a pre-applied adhesive gasket, ensure the protective liners are detached to reveal the adhesive surface.

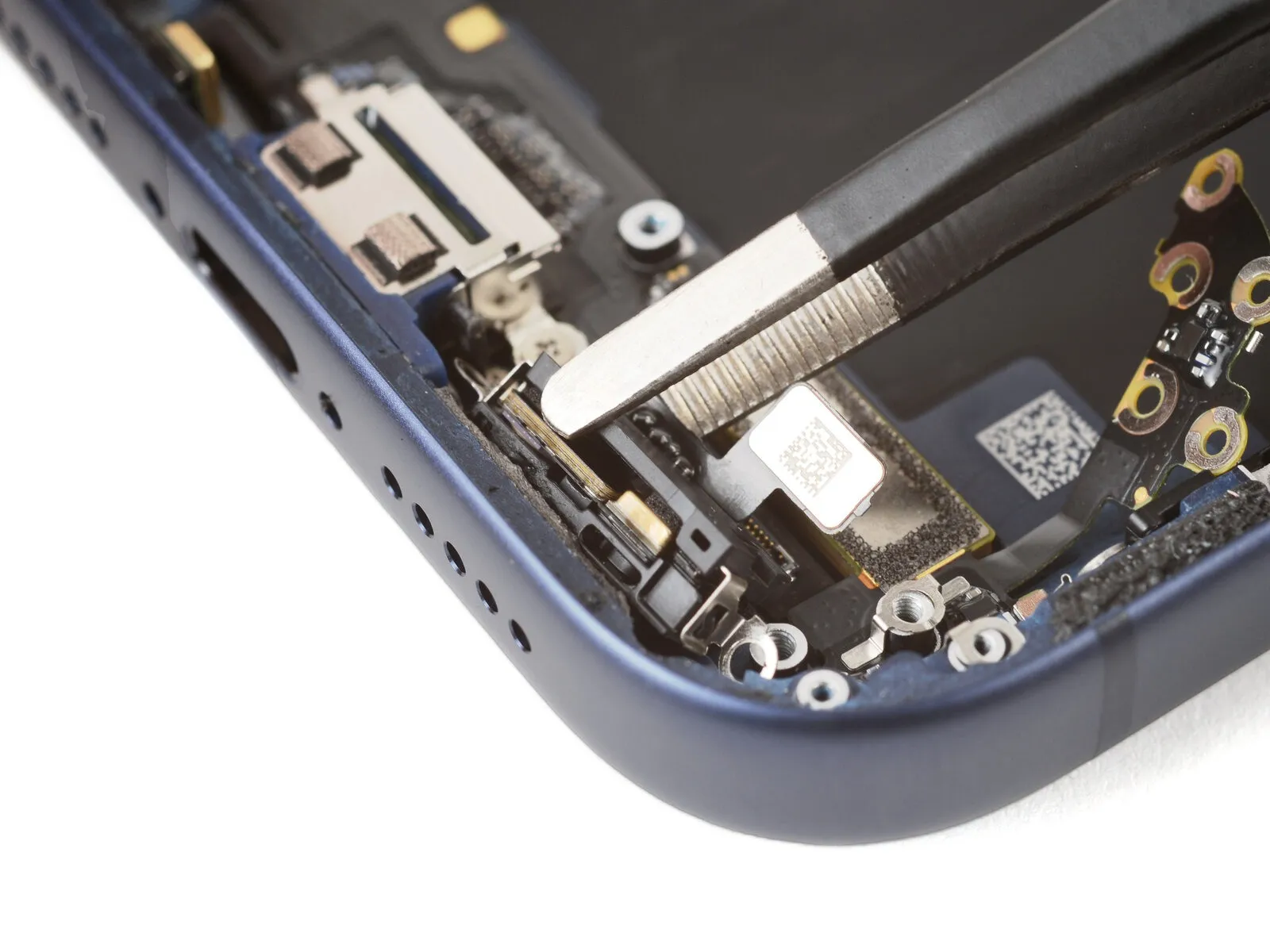

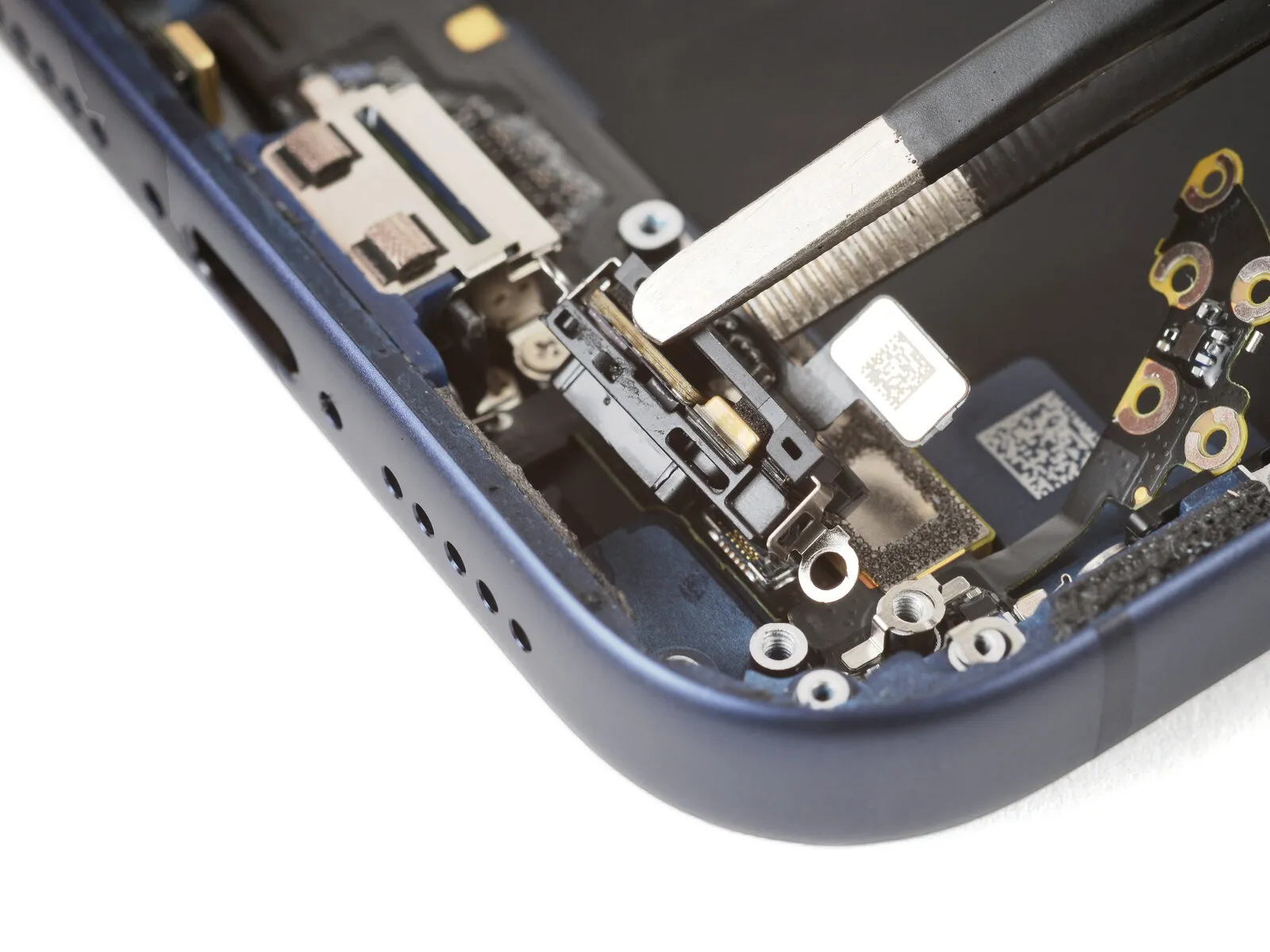

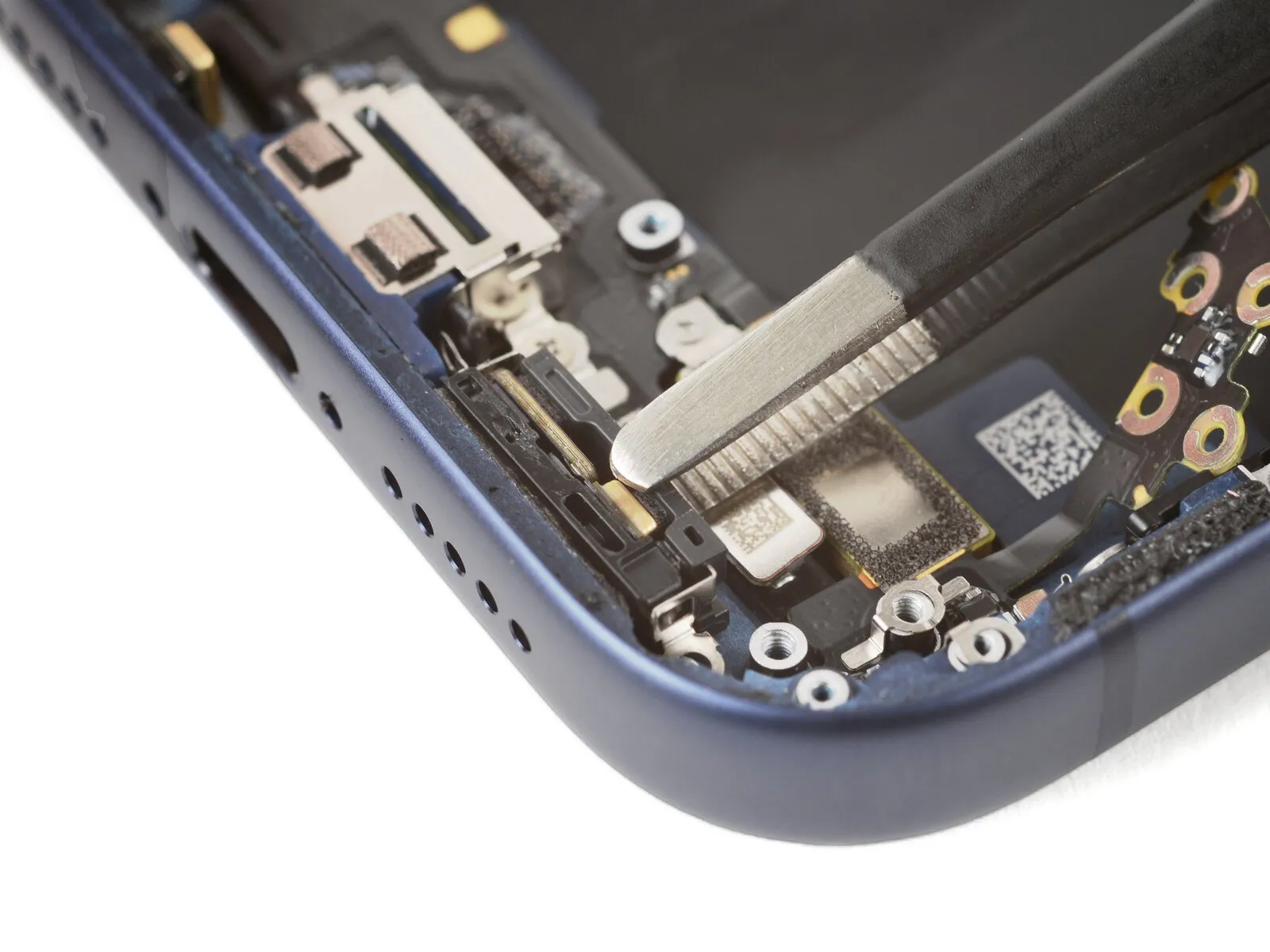

• Employing tweezers facilitates precise alignment of the microphone component with the device's frame.
• Carefully insert the microphone into its designated cavity and apply pressure to secure it, ensuring a minimal separation between the microphone and the frame.

To soften the adhesive securing the lower microphone assembly, apply warmth using a hair dryer or iOpener until the component reaches a comfortably warm surface temperature.

Secure the two lower microphone components using the provided microphone screws.

• The first screw requires a 3.2 mm length, which is a standoff screw.
• The second screw, a 3.1 mm length, is pre-attached to the iPhone frame's lower edge and should be utilized.

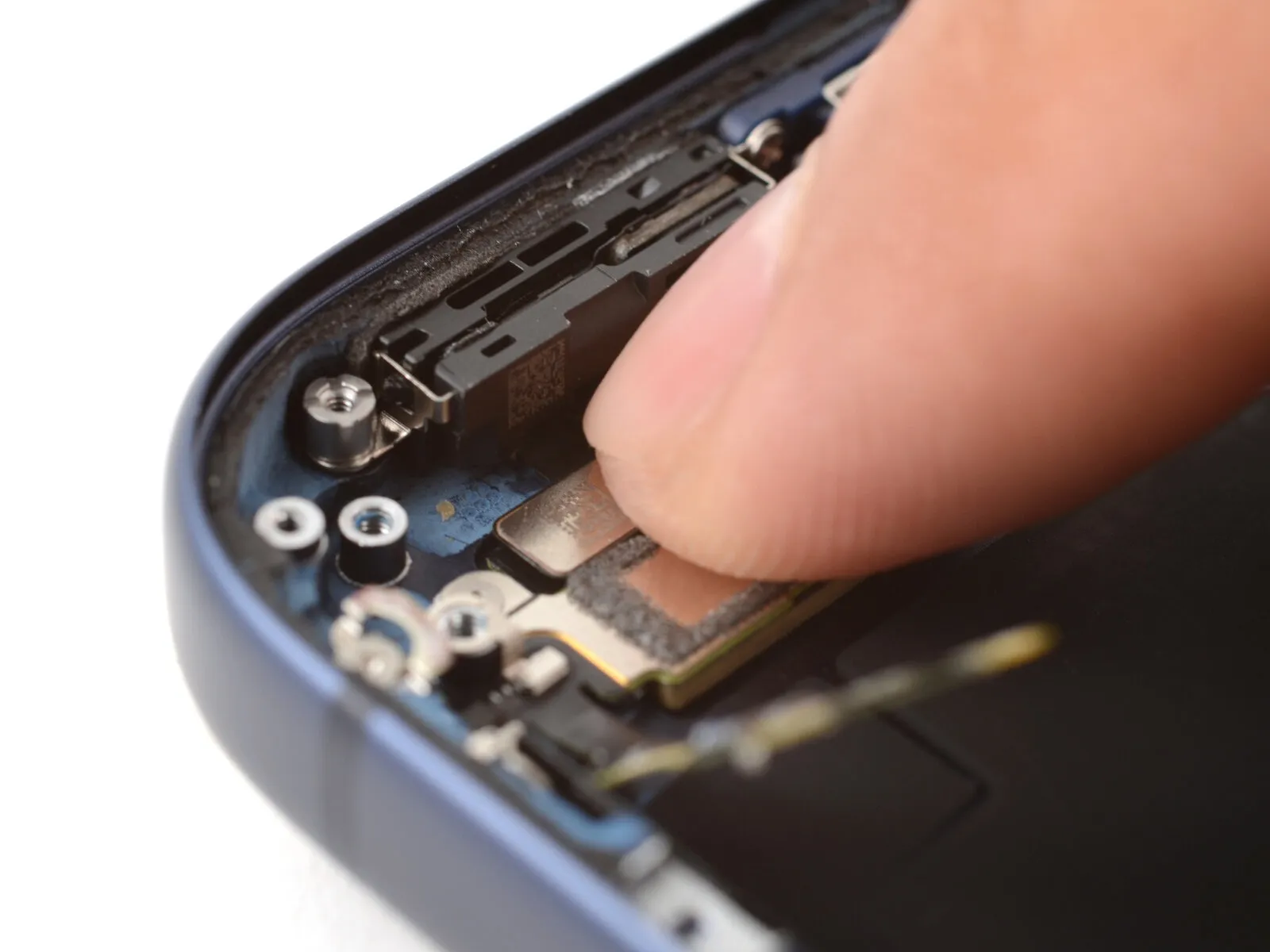

Apply finger pressure to establish a connection between the microphone and its corresponding connector.The lower microphone press connector requires manual engagement via finger pressure.Ensure a secure electrical link by manually joining the microphone to the lower press connector.

• Position the Taptic Engine with its bottom surface against the iPhone's frame edge.
• Maintain a secure grip on the Taptic Engine with one hand, then utilize a finger to establish contact and secure the connection with theTaptic Engine press connectorThis ensures proper electrical engagement.

Position the Taptic Engine onto the device frame, ensuring the screw apertures are precisely matched, then secure it. Arrange the Taptic Engine flex cable so it bends smoothly and is situated properly between the engine and the frame.

Employ a standoff screwdriver to facilitate the installation process.The two Taptic Engine screws, each measuring 4.0 mm in length, require secure fastening.A standoff screwdriver is essential for proper engagement with the screw heads.Securely affix the Taptic Engine using the provided screws, ensuring they are precisely 4.0 mm long.To ensure accurate installation, utilize a standoff screwdriver when tightening the 4.0 mm Taptic Engine screws.

Employing either your fingertips or a specialized spudger tool, carefully bend the flexible antenna downwards while it remains positioned within the device.The flex antenna should be gently folded using either manual pressure or a spudger to maintain its current location.To manipulate the flex antenna into a folded position, utilize either your fingers or a spudger, ensuring it stays in its original spot.

Employ a JIS 00 screwdriver for the installation process of the flex antenna screws.The appropriate tool for this task is a JIS 00 screwdriver.Three screws, each measuring 2.0 mm in length, secure the flex antenna.Secure the flex antenna using three screws, each precisely 2.0 mm long.A JIS 00 screwdriver is required to fasten the three flex antenna screws, which have a length of 2.0 mm.

Employ tweezers to precisely position the ground clip, ensuring correct orientation according to the provided visual references.

• Employ a JIS 00 screwdriver for the installation process of the ground clip screws.The screws securing the ground clips possess a length of 2.0 millimeters.Secure the ground clips utilizing the specified screws, ensuring proper alignment.A JIS 00 screwdriver is essential for accurately tightening the fasteners.To affix the ground clips, utilize a screwdriver conforming to the JIS 00 standard to drive the 2.0 mm screws.

• Position the lower border of the loudspeaker so it is flush with the device's frame, then insert it into its designated cavity.
  Verify that the lower-right securing tab makes full contact with the frame; if misaligned, carefully deflect it to achieve proper seating.
• Apply downward pressure to the loudspeaker using your fingertip until an audible click confirms its secure installation.

• Employ a JIS 00 screwdriver for the installation of the six screws securing the loudspeaker.
• Two screws, each measuring 2.7 millimeters in length, are required.Additionally, two screws, each with a length of 2.0 millimeters, must be used.A single 1.5-millimeter-long screw is also necessary.
• Another 1.5-millimeter-long screw is needed for assembly.One 1.5-millimeter screw is affixed to the lower border of the iPhone's frame.Secure the loudspeaker with the provided screws using the JIS 00 screwdriver.
• The six loudspeaker screws should be fastened with precision.Ensure the 2.7 mm screws are properly aligned during installation.The 2.0 mm screws contribute to the loudspeaker's stability.
• Carefully position the 1.5 mm screw attached to the frame's bottom edge.The bottom edge of the iPhone frame incorporates a pre-attached 1.5 mm screw.Utilize the JIS 00 screwdriver to drive each screw to the correct torque.

• Reattach the buffer strip to the upper edge of the Taptic Engine, utilizing either your fingertips or a spudger to ensure proper placement.

1. Position the battery tray correctly within its designated area.
   Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

• Employ a Torx Plus 4IP screwdriver for the battery tray screw installation process.A single screw, measuring 7.5 millimeters in length, is required.A separate screw with a length of 5.9 millimeters must also be utilized.
• Another screw, specifically 3.4 millimeters long, is needed for this step.
• A screw with a 2.3-millimeter length is also part of the assembly.
• Nine screws, each measuring 3.7 millimeters in length, are incorporated.
• Additionally, a single 3.7-millimeter screw is included in the hardware.
• Devices such as iPhones that incorporate a physical SIM card will not require this particular fastener.
• The screw in question is not present in those iPhone configurations.

Secure the battery tray using the provided fasteners to ensure a stable connection.Properly aligning the screw lengths is crucial for correct assembly and functionality.Carefully manage the small screws to prevent loss and ensure correct placement during reassembly.

1. Exercise caution while cleaning the frame, carefully avoiding damage to the delicate grounding clips; should a clip become displaced, restore its original position with careful manipulation using your fingers or tweezers.
2. Employ tweezers or your fingertips to detach sizable portions of adhesive adhering to the frame's outer edges.
3. Utilize a spudger to eliminate any remaining adhesive residue from the frame's surface.
4. Should the adhesive prove difficult to remove, apply warmth with a hair dryer or heat gun, then attempt removal once more.

Employ a lint-free cloth or coffee filter, moving in a single direction along the frame's edge, to remove any adhesive remnants.
Should the residue maintain a tacky feel, introduce a small quantity of isopropyl alcohol onto the cleaning cloth and repeat the wiping process.
Execute this task deliberately, as a pristine frame surface facilitates uniform application of the replacement adhesive, which promotes a stronger connection.

To facilitate proper adhesion when reinstalling a display, utilize a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and meticulously clean the display's edges.

• Prior to removing any protective films, position the adhesive sheet onto the frame's surface to establish the correct alignment.Employ elements like the camera aperture and indentations situated on the upper and lower borders to assess the adhesive's intended placement within the frame's confines.Confirming the appropriate positioning is crucial before proceeding, ensuring the adhesive aligns precisely with the frame’s design.

• Visualizing the adhesive's contact area with the frame, utilizing the aforementioned features, aids in achieving a secure and accurate bond.

Securely grasp the corner tab located on the adhesive sheet.Remove the protective liner to reveal approximately one-third of the adhesive surface.Exercise caution, as the newly exposed adhesive possesses a strong tackiness; prevent unintended contact with other surfaces.
Prior to application onto the frame, ensure the adhesive remains free from any contaminants.
For adhesive products featuring multiple liners, detach the layer that will bond with the frame's surface.

After applying the adhesive, any adjustments are impossible; a complete removal and replacement with fresh adhesive will be necessary.The adhesive's placement is irreversible, necessitating a fresh application if repositioning is attempted.Precisely match the visible perimeter of the adhesive strip to the matching boundary on the iPhone’s casing.
Ensure accurate positioning of the adhesive strip's exposed edge relative to the iPhone frame's corresponding edge.Successful alignment requires careful matching of the adhesive strip's edge to the iPhone's frame edge.A gentle, even pressure should be applied to the exposed adhesive strip to secure it to the frame.
To ensure proper adhesion, the exposed portion of the adhesive strip must be pressed firmly against the iPhone's frame.Correct alignment is critical, as repositioning the adhesive after initial contact is not feasible.The adhesive strip's exposed edge must be precisely aligned with the iPhone frame's edge before applying pressure.

Proceed with removing the protective backing from the adhesive material, ensuring firm contact during application.Carefully position the adhesive, applying even pressure to secure it.Proper alignment of the adhesive is indicated when the borders seamlessly integrate with the device's frame.Should minor discrepancies in the adhesive's placement occur, reposition it by delicately adjusting the extended borders.Creasing or wrinkling of the adhesive necessitates complete removal and replacement with a new set.
In the absence of replacement adhesive strips, the iPhone can be reassembled and utilized temporarily without the adhesive.Be aware that the device's water resistance capabilities will be diminished until the adhesive is properly reapplied.Continue removing the liner from the adhesive.
Apply gentle pressure as you position the adhesive.Confirm correct alignment by observing the edges settling precisely within the frame.If the adhesive is off by a small amount, carefully shift the longer sides to match the frame’s contours.
Discard and replace the adhesive if it develops folds or creases.It is acceptable to reassemble the iPhone for temporary use without replacement adhesive strips.Understand that the iPhone's water resistance will be reduced until a new adhesive is installed.
The adhesive material's backing should be peeled away gradually.Ensure the adhesive makes full contact with the surface by applying pressure.Successful alignment is confirmed when the adhesive's borders fit neatly within the frame’s boundaries.Minor misalignments can be corrected by gently repositioning the extended edges.Damaged adhesive should be discarded, and a fresh adhesive strip should be used.

Employ a spudger to apply pressure to the adhesive sealant encompassing the device's full outer edge.Exercise caution to avoid damage to the delicate grounding connectors.

• Should a grounding clip become displaced, carefully reposition it using your fingers or tweezers.
• Excessive force should be avoided to prevent distortion and over-extension of the adhesive's properties.
• The adhesive layer's structural integrity is vulnerable to deformation if subjected to undue pressure.

Initiate liner removal by grasping the designated pull tab.The pull tab, typically located within a corner of the liner, facilitates separation from the adhesive backing.

• Remaining liners, which encircle the device's edges, should remain in place to inhibit premature adhesive bonding during reassembly.

To ensure adequate cable reach to the logic board, align the iPhone display assembly adjacent to the frame.

1. Employing either a fingertip or the broad, planar edge of a spudger tool, establish a secure connection between the two screen connectors and the logic board through gentle pressure.Ensure the connectors are properly aligned and seated on the logic board by applying pressure, avoiding any undue exertion.
   • Should resistance be felt during the connection process, readjust the connector's position and attempt the attachment once more, preventing the application of excessive force.

Employing either a fingertip or the planar edge of a spudger tool, ensure the battery connector's secure attachment to the logic board through applied pressure.A spudger's broad, flat end, or a finger, can be utilized to establish a firm electrical connection between the battery connector and the logic board.To properly engage the battery connector with the logic board, apply pressure using a finger or the specialized, flat surface of a spudger.

• Prior to reassembly and final enclosure of the iPhone, it is advisable to verify the repair's functionality; confirm proper operation by powering on the device.
  Should the iPhone fail to power on, establish a connection to a power source and attempt activation once more.

Slide the upper border of the battery connector cover beneath the designated edge of the opening.
Verify that each of the two retaining tabs is securely positioned beneath the cover's lip.
Position the cover precisely using the screw aperture as a guide, then set it into its intended location.

• Employ a JIS 00 screwdriver for the installation process.A 1.2 mm screw length is required for proper fastening.The battery connector cover necessitates secure attachment.Utilize the screwdriver to drive the screw into place.This screw secures the cover, maintaining its position.

• Carefully slide the left side of the screen connector cover beneath the designated lip of the frame.Position the cover precisely, utilizing the screw hole as a reference point for accurate alignment.Ensure the cover is correctly situated by verifying its alignment with the screw hole.
  Gently place the cover into its intended location, ensuring proper seating.

• Employ a JIS 00 screwdriver for the installation process of the screw.The screw's length must be precisely 1.2 millimeters.The screen connector cover is affixed using this screw.Secure attachment of the cover is achieved through the screw's placement.Properly utilize the JIS 00 screwdriver to fasten the 1.2 mm screw to the screen connector cover.

• Maintain a firm grip on the display assembly with one hand to prevent movement.Carefully detach the adhesive backing from all perimeter liners using a spudger or your fingertips, revealing the underlying adhesive.Prevent any contact with the newly exposed adhesive to avoid contamination or premature bonding.
  Thoroughly inspect the internal components for any detached liner fragments and eliminate them.
  Ensure complete removal of all liners from within the device's housing.
  The absence of any remaining liners is essential for proper reassembly and sealing.

• Position the display assembly downwards onto the device chassis, initiating the alignment from the uppermost border.Should you encounter opposition during placement, a retaining clip along the boundary might be deformed and compressed by the frame; carefully examine the area of obstruction and delicately realign any bent clips.Verify that the display's periphery isn't exerting pressure on any internal wiring harnesses.
  Ensure the display panel is free from any obstructions that would prevent it from seating correctly.
  Apply even pressure across the entire perimeter of the iPhone's frame to guarantee the display is properly seated.Confirm the display panel's alignment by applying consistent force around its edges.The display should make complete contact with the frame surface without gaps.
  A secure fit is achieved when the display panel is level with the chassis.Any misalignment can be corrected by carefully adjusting the retaining clips.Properly seated displays are essential for optimal functionality and appearance.

• Apply consistent, substantial pressure encompassing the device's complete outer edge.

• To loosen the adhesive securing the screen, apply warmth around its edges using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Employ a P2 pentalobe screwdriver for securing the two screws, each measuring 7.5 mm in length, positioned laterally around the charging port.
