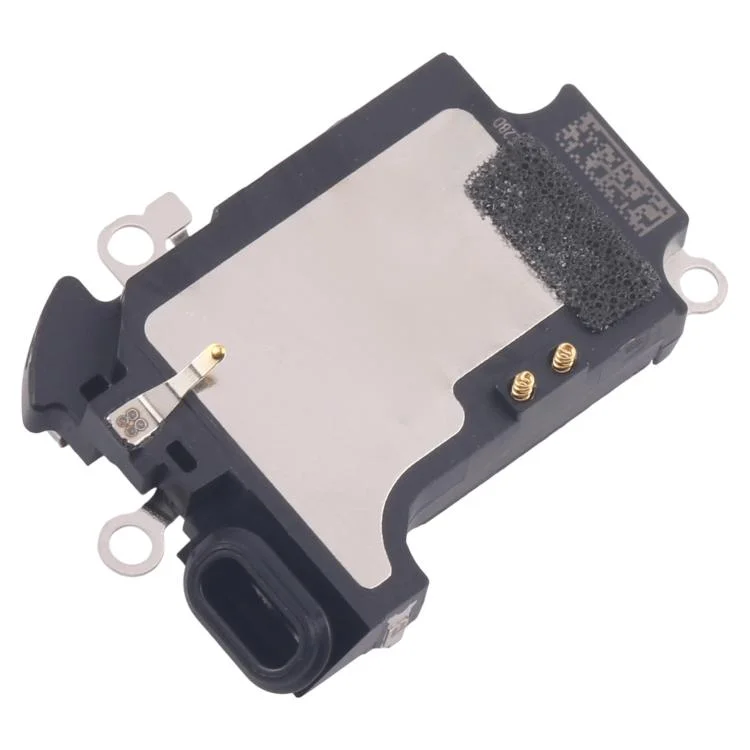

iPhone 17 Pro Loudspeaker Replacement

To mitigate fire hazards stemming from potential damage, ensure your iPhone's battery discharges to a level below 25% prior to commencing the repair procedure; a fully charged lithium-ion battery presents a significant fire risk if compromised.

• Disconnect all connecting wires and cables from the device.
• Initiate the power-off sequence by simultaneously pressing and maintaining the power button and either volume button, then utilize the sliding mechanism to turn off the phone.

Important safety note: Fragments of glass present a hazard during the repair process, potentially complicating disassembly and causing physical harm.Should your device exhibit a cracked screen, proceed with the following procedure to mitigate risks.

• Secure the fractured glass surface by applying packing tape strips, ensuring complete coverage to prevent glass dispersal and facilitate suction cup adhesion.
• A solitary strip of tape, without overlaps, must be positioned across the lower edge, providing sufficient area for suction cup attachment.
• Restrict tape application solely to the glass panel; avoid contact with the surrounding frame.

Employ a P2 pentalobe screwdriver for the task of detaching the two screws, each measuring 7.5 mm in length, located on both lateral sides of the charging port.The two screws securing the device near the charging port require removal using a specialized P2 pentalobe screwdriver.To access the charging port area, utilize a P2 pentalobe screwdriver and unscrew the pair of fasteners, each with a 7.5 mm length, positioned on the left and right sides.

A critical warning: excessive insertion of the opening tool poses a risk of device harm.To mitigate potential damage, implement a method for limiting the tool's depth during insertion.

• Accurately determine a 3-millimeter distance from the tool's point and visibly indicate this measurement using a permanent marking instrument.
• As an alternative approach, affix a standard coin, positioned 3 millimeters from the tool's tip, to serve as a depth gauge.

Apply warmth to the screen's lower border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Warning:Incorrect heat gun operation carries the risk of irreparable damage to the display panel and/or battery; adhere meticulously to the provided instructional guide.

Secure a suction handle to the screen's lower boundary, positioning it as proximate as feasible to the perimeter.

Prior to proceeding, confirm the precise placement of your prying tool.

• A plastic bezel, situated beneath the display, rests upon the device's frame; position your tool beneath this bezel to ensure complete separation.
• Avoid inserting the prying tool into the visible joint between the plastic bezel and the display, as this will result in unintended separation of those components and increase repair difficulty.

Apply consistent, substantial upward pressure to the suction cup's handle to separate the display panel from its surrounding structure, creating a visible space.
Overcoming the adhesive bond might require considerable effort; should initial attempts fail, applying additional heat to the display screen and retrying the separation process is recommended.
Carefully position the pointed end of a specialized opening tool within the newly formed separation to facilitate further detachment.

To prevent harm to internal parts, ensure the insertion depth of your prying tool remains below a maximum of 3 millimeters.Proximity to the volume and Action buttons places the screen and ambient light sensor cables at risk of damage.The phone's frame incorporates sensitive spring contacts positioned along its edges, demanding careful handling.

• Thin, metallic clips secure the display assembly, engaging with matching slots within the device's frame.
• Exercise caution to prevent unintended stress on these components during separation.
• The underside of the display is secured by these clips, which must be released carefully to avoid damage.

Utilize a separation tool to disengage the adhesive bond by moving it along the lower perimeter.
Maintain the tool's position beneath the lower-right corner to inhibit adhesive re-adhesion.

Apply warmth to the right-hand perimeter of the screen assembly using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.The purpose of this heating process is to soften the adhesive securing the screen.Exercise caution during this step to prevent damage to surrounding components from excessive heat.

• Position a second opening pick beneath the lower-rightmost section of the display assembly.
• Advance the pick along the right vertical edge to sever the adhesive bond and disengage the two retaining clips.
• A slight upward displacement of the screen may be necessary to facilitate clip release.
• Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-adhesion.

Apply warmth to the screen's upper boundary utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.The application of heat facilitates separation by softening adhesives securing the screen.Exercise caution during this process to prevent burns or damage to surrounding components; excessive heat can be detrimental.

• Position a third opening pick beneath the screen's upper-right quadrant.
• Moving the pick along the top perimeter, carefully maneuver it around the top-left corner to detach the adhesive and disengage the two retaining clips.
• Avoid advancing the pick further, as this carries a risk of damaging the ambient light sensor cable.
• Maintain the pick's position beneath the top-left corner to inhibit the adhesive from reforming a seal.

Apply warmth to the screen's left border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.The application of heat facilitates separation by softening adhesives securing the screen.Exercise caution to avoid excessive heat, which could damage the display components.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the right side to detach the adhesive and disengage the retaining clip, pausing immediately prior to the volume up control.
• A slight upward lift of the display may be necessary to free the clip from its position.
• Avoid further pick movement to prevent potential damage to the display cable.

Ensure the display panel is fully disengaged from its surrounding structure; if resistance is encountered, re-examine the edges for any lingering adhesive or retaining clips that require separation.

Elevate the display vertically and rotate it over the left side, supporting it with a stable object like a container or pile of literature to prevent stress on the connecting wires.

As an alternative approach, the display can be placed horizontally across the left surface.

Carefully catalog each screw during the repair process, ensuring its correct replacement in the original location.

• Employ a specialized tool for the subsequent steps.A JIS 00 screwdriver is essential for disassembly.The two cable covers are fastened with screws that require a JIS 00 screwdriver for removal.

• The screen and front sensor cable cover utilizes a 1.4 mm screw.A 1.3 mm screw is used to secure the battery cover.Phillips-head screwdrivers from iFixit are specifically engineered to interface with JIS screws.
• Alternative Phillips-head drivers from other brands may be attempted, but carry a risk of screw damage.Stripping the screw heads is a potential consequence of using non-iFixit Phillips drivers.Proper screw management is crucial to avoid complications during reassembly.

Maintaining the correct screw placement prevents damage to internal components.

Detach the pair of protective housings.

• Employ the tip of a spudger to carefully lift and release the battery press connector's connection.A spudger's pointed end facilitates separation of the battery press connector from its socket.To detach the battery press connector, utilize a spudger and apply gentle prying force.

• Employing the pointed end of a prying tool or a spudger, carefully lift and separate the screen and ambient light sensor press connectors from their housings.The connectors securing the screen and ambient light sensor press must be released by applying gentle upward force with a specialized tool.To detach the screen and ambient light sensor press connectors, utilize a prying tool's tip or a spudger's point, ensuring a secure grip for separation.

• Detach the display panel.

• Employ a Torx Plus 4IP screwdriver for the task of detaching the screws that hold the battery tray in place.A single screw, measuring 7.5 millimeters in length, is present.A solitary screw with a length of 5.9 millimeters is also included.
  • You will find one screw that measures 3.4 millimeters in length.A screw with a 2.3-millimeter length is also required.
  • Nine screws, each with a length of 3.7 millimeters, are used in this assembly.An additional screw, also measuring 3.7 millimeters in length, is incorporated.
  • Certain iPhone versions, those incorporating a physical SIM card, will lack this particular screw.The battery tray is fastened with screws requiring a specialized Torx Plus 4IP driver for removal.
  • A 7.5 mm screw is among the fasteners securing the battery tray.A 5.9 mm screw is also part of the screw set used to retain the battery tray.
  • One of the screws used to secure the battery tray has a length of 3.4 mm.A 2.3 mm screw is also needed to remove the battery tray's securing screws.
  • Nine screws, each measuring 3.7 mm in length, contribute to the battery tray's secure attachment.An additional 3.7 mm screw is present in the battery tray assembly.

  Models of the iPhone that utilize a physical SIM card do not include this screw.

• Employ a fingertip to elevate the battery compartment's upper-left corner, subsequently detaching the cover.
• Exercise caution to prevent any smearing of the front-facing camera lens.

• Employ a JIS 00 screwdriver for the removal of the six screws that fasten the loudspeaker.
  • A quantity of two screws are present.These screws each measure 2.7 millimeters in length.Two additional screws are also required.
  • The length of these screws is 2.0 millimeters.A single screw, with a length of 1.5 millimeters, is also needed.Another screw, also 1.5 millimeters long, is part of the assembly.
  • This latter screw is affixed to the lower edge of the component.Carefully detach the screws to avoid damage.Ensure the JIS 00 screwdriver is properly seated on the screw heads.
  • The loudspeaker is held in place solely by these screws.Note the precise location of each screw during disassembly.Replacement screws must match the original dimensions and type.

• A gasket utilizing adhesive material secures the loudspeaker assembly to the device frame.
• To disengage the loudspeaker, incline the upper portion outward from its designated cavity.
• Carefully separate the loudspeaker from the frame, allowing the adhesive bond to gradually disengage.
• Complete the removal process by extracting the loudspeaker component.

• Due to variations across iPhone models, certain reassembly images might exhibit slight visual differences.
• Despite potential visual variations, the outlined steps remain accurate for all iPhone versions.

Position the lower border of the loudspeaker so that it is flush with the device's frame, then insert it into its designated cavity.

• Confirm that the lower-right securing tab engages correctly with the frame; if misaligned, carefully deflect it to achieve proper contact.
• Apply downward pressure on the loudspeaker using your fingertip until you hear an audible click, indicating secure placement.

• Employ a JIS 00 screwdriver for the installation of six loudspeaker securing screws.Six screws of differing lengths are required for proper loudspeaker attachment.Two screws, each measuring 2.7 millimeters in length, must be utilized.
  • The assembly process also necessitates two screws, each with a length of 2.0 millimeters.
  • A single 1.5-millimeter screw is needed for the assembly.
  • Another 1.5-millimeter screw is affixed to the lower border of the iPhone's frame.
  • Ensure correct screw length to avoid damage during loudspeaker installation.

Reattach the buffer strip to the upper edge of the Taptic Engine, employing either your fingertips or a spudger for the necessary pressure.

• Position the battery tray correctly within the designated area.
  Exercise caution to prevent any wires from becoming pinched or obstructed by the tray's placement.

Employ a Torx Plus 4IP screwdriver for the battery tray screw installation process.A single screw, measuring 7.5 millimeters in length, is required.A separate screw, with a length of 5.9 millimeters, is also needed.

• Another screw, specifically 3.4 millimeters long, is part of the assembly.A screw measuring 2.3 millimeters in length is also included.
  Nine screws, each with a length of 3.7 millimeters, are incorporated.An additional screw, also measuring 3.7 millimeters, is part of the hardware.
  Certain iPhone versions, those incorporating a physical SIM card, lack this particular screw.The Torx Plus 4IP screwdriver is essential for secure fastening.
  Ensure the correct screw length is used for each designated location.The 7.5 mm screw secures a specific component of the battery tray.
  The 5.9 mm screw provides additional stability to the assembly.The 3.4 mm screw contributes to the overall structural integrity.
  The 2.3 mm screw is utilized in a smaller mounting point.The nine 3.7 mm screws reinforce the battery tray's attachment.

Exercise caution while cleaning the frame, carefully maneuvering around the delicate grounding clips to prevent damage; should a clip become displaced, restore its original shape with careful manipulation using your fingers or tweezers.

Employing tweezers or your fingertips, detach sizable portions of the adhesive material adhered to the frame's edges.

Employ a spudger to eliminate the remaining adhesive residue from the frame's surface.

Should the adhesive prove difficult to remove, utilize a hair dryer or heat gun to apply warmth and attempt removal once more.

Employing a lint-free cloth or a coffee filter, meticulously clean the frame's edge by wiping in a single direction to eliminate adhesive remnants.
Should the adhesive residue retain a tacky feel, carefully apply a small quantity of isopropyl alcohol to the cleaning cloth and repeat the wiping process.
Execute this cleaning process deliberately, as a pristine frame surface facilitates the uniform application of replacement adhesive, which is crucial for a robust bond.

To ready a previously used display panel for fresh adhesive application, utilize a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and meticulously clean the surrounding edges.

• To ascertain the correct positioning of the adhesive layer, place it upon the frame's surface, ensuring that no protective films are removed.
• Employ elements like the camera aperture and indentations situated on the superior and inferior borders to mentally simulate the adhesive's final placement within the frame.

• To reveal a portion of the adhesive, carefully lift the corner tab on the adhesive sheet's backing and remove a third of the liner.
• Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness; prevent unintended contact with surfaces until application to the frame is prepared.
• Should your adhesive contain several liners, remove only the topmost liner to expose the surface intended for bonding to the frame.

After applying pressure to secure the adhesive, adjustments are impossible; any repositioning necessitates complete removal and replacement with fresh adhesive material.
Precisely match the visible perimeter of the adhesive strip to the matching boundary on the iPhone's structural frame.
To ensure proper placement, softly apply pressure to the visible adhesive strip against the frame's surface.

• Proceed with removing the protective liner, ensuring the adhesive makes firm contact with the surface.Proper alignment of the adhesive is indicated when the borders seamlessly integrate with the device's frame.
• To correct minor positioning errors, carefully draw the extended borders toward the frame for adjustment.
• Should the adhesive develop folds or distortions, discard it and reapply a new set.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used temporarily, acknowledging a reduction in its water resistance.
• Maintaining the iPhone's original water resistance requires eventual replacement of the adhesive strips.

• Employ a spudger to apply pressure to the adhesive sealant that secures the iPhone's edges.Exercise caution to avoid damaging the delicate grounding clips during this process; if displacement occurs, carefully reposition them using your fingers or tweezers.Excessive force should be avoided, as it can distort and overextend the adhesive's original shape.
• The adhesive perimeter requires complete coverage with the spudger's applied pressure.
• Grounding clips are susceptible to damage, requiring careful manipulation to prevent bending beyond their intended position.

• Grasp the designated pull tab to detach the expansive front adhesive liner.
• Remaining liners continue to protect the outer edges; refrain from their removal, as they inhibit premature adhesion during iPhone reassembly.

Position the iPhone display adjacent to the frame, ensuring sufficient cable slack to connect to the logic board.

• Employ either a fingertip or the broad, planar edge of a spudger to establish a secure connection between the two screen connectors and the logic board.Avoid applying excessive pressure when aligning the connectors; a gentle touch is crucial for preventing damage.Should you encounter resistance during the connection process, carefully adjust the connector's position and attempt the alignment once more.
• Properly seating the connectors is essential for device functionality; ensure a firm, even contact without undue force.

To establish a secure electrical connection between the battery connector and the logic board, apply pressure using either a fingertip or the broad, planar edge of a spudger.Ensure the battery connector's pins fully engage with the corresponding receptacles on the logic board by employing consistent force.A spudger's flat end provides a controlled method for pressing the battery connector, preventing potential damage from concentrated pressure.

• Prior to finalizing the enclosure, it's advisable to verify the functionality of the repair; initiate the device, confirming expected operational behavior, then deactivate it to proceed with reassembly.
• Should the iPhone fail to power on, establish a connection to an external power supply and attempt activation once more.

Position the upper boundary of the battery connector cover beneath the recessed edge, ensuring that both retaining tabs are securely nestled within the lip's contour; subsequently, orient the cover utilizing its screw aperture and gently set it into its designated location.

Employ a JIS 00 screwdriver for the installation process.A 1.2 mm screw is required for this step.The screw's length is precisely 1.2 millimeters.Secure the battery connector cover using the provided screw.

Position the left side of the screen connector cover beneath the designated lip, ensuring proper alignment with the screw aperture before setting it down.

Employ a JIS 00 screwdriver for the installation process.A 1.2 mm screw is required for this step.The screw's purpose is to fasten the screen connector cover.Properly secure the screen connector cover using the specified screw.

1. Maintain a firm grip on the display panel with one hand to prevent movement.
   Carefully separate the protective liners surrounding the screen's edges, revealing the adhesive layer, employing either your fingertips or a spudger.A spudger can be utilized to assist in the liner removal process.Refrain from direct contact with the newly exposed adhesive to preserve its bonding properties.
   Thoroughly inspect the area to ensure complete liner removal; any remaining liners must be eliminated.
   Confirm the absence of any residual liners after the inspection.

• Begin the screen installation by positioning it onto the chassis, initiating the alignment from the uppermost border.
  Should you encounter opposition during the placement, a perimeter clip might be deformed and compressed by the frame’s structure.Carefully examine the area experiencing the obstruction and delicately restore any clips that are not properly aligned.Exercise caution to prevent damage to any internal wiring harnesses during the screen's descent.
  Ensure that no cables are stressed or damaged during the lowering process.Apply even pressure across the iPhone’s borders to guarantee the screen makes full contact with the frame.The screen should be secured against the frame, creating a level and consistent surface.
  Confirm the screen is seated uniformly against the frame, eliminating any gaps or inconsistencies.

1. Apply consistent, substantial pressure encompassing the complete outer edge of the iPhone's housing.

• Apply warmth around the display's edges using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.
  Elevated temperatures will reduce the adhesive's viscosity, facilitating a more secure reattachment.

• Employ a P2 pentalobe screwdriver for the installation process.The required tool is a P2 pentalobe screwdriver.Secure the two screws, each measuring 7.5 mm in length, using the appropriate screwdriver.Two screws, each with a length of 7.5 mm, must be affixed to each side of the charging port.Installation of the screws, which are 7.5 mm long, necessitates the use of a P2 pentalobe screwdriver on both sides of the charging port.
