iPhone 17 Pro Logic Board Replacement

To mitigate potential hazards, ensure your iPhone's battery level drops below 25% prior to commencing the repair procedure, as a fully charged lithium-ion battery presents a fire risk if compromised.

• Disconnect all connected cables from the device to prevent electrical interference during the repair process.
• Initiate a power-off sequence by simultaneously pressing the power button and either volume button, subsequently sliding the power control to deactivate the device.

Important safety note: Broken glass presents hazards during the repair process and poses a risk of physical harm.Should your device exhibit a cracked screen, proceed with the following procedure.

• To prevent glass fragments from scattering and to facilitate suction cup adhesion, affix packing tape strips across the entire damaged glass surface.
• Ensure a solitary, non-overlapping strip of tape is positioned along the lower edge, providing adequate surface area for suction cup attachment.
• Confine the tape application solely to the glass portion, avoiding contact with the surrounding frame.

Employ a P2 pentalobe screwdriver for the task of detaching the two screws, each measuring 7.5 mm in length, located on both sides of the charging port.The two screws securing the device near the charging port must be unscrewed using a specialized P2 pentalobe screwdriver.To access the charging port area, utilize a P2 pentalobe screwdriver and carefully remove the two screws positioned laterally, with each screw having a length of 7.5 mm.

Important safety note: Excessive insertion of the opening tool may result in device harm.To mitigate potential damage, implement a marking procedure for the opening pick, as detailed below.

• Using a permanent marker, create a visible indicator precisely 3 millimeters from the tool's distal end.
• As an alternative method, secure a coin to the pick's tip using adhesive tape, ensuring the coin's edge is positioned 3 millimeters from the end.

Applying warmth to the screen's lower border with a hair dryer or heat gun will soften the adhesive, making separation easier; the surface should reach a temperature just beyond comfortable touch.

• A critical safety note:Adhering to the provided instructions precisely when utilizing a heat gun is essential to prevent irreparable damage to the display assembly and/or the battery.

Secure a suction handle to the screen's lower border, positioning it as near the edge as feasible.

Confirm the proper placement of your prying tool before proceeding to the subsequent repair stage.

• A plastic bezel, situated beneath the screen and resting against the device's frame, requires careful tool insertion; ensure the tool is fully positioned beneath this bezel.
• Avoid inserting the prying tool into the visible seam located between the plastic bezel and the display panel, as this action will cause unintended separation of these components and increase repair complexity.

Apply consistent, considerable upward pressure to the suction cup's handle to separate the display screen from its surrounding frame, creating a discernible space.
Overcoming this separation may require substantial effort; should difficulties arise, reapply heat to the display screen and attempt the process anew.
Carefully position the pointed end of a prying tool within the newly formed separation between the display and its frame.

To prevent component damage, ensure the insertion depth of your repair tool remains below a maximum of 3 millimeters.Proximity to the volume and Action buttons places the screen and ambient light sensor cables in a vulnerable area.The phone's frame incorporates sensitive spring contacts positioned along its edges, requiring careful handling.

• Thin, metallic clips secure the screen to the frame, engaging with matching slots.
• These clips are located on the underside of the display assembly.
• Exercise caution to avoid dislodging the clips during separation, as they are designed for a precise fit within the frame's corresponding receptacles.

Utilize a separation tool to gently release the adhesive bond by moving it along the lower perimeter of the device.
Maintain the tool's position beneath the lower-right corner to inhibit the adhesive from reforming a seal.

Apply warmth to the right-hand perimeter of the screen assembly utilizing a hair dryer or heat gun, ensuring the surface temperature reaches a level just beyond comfortable touch.The purpose of this heating process is to soften the adhesive securing the screen.Exercise caution during this step to prevent overheating and potential damage to the device's components.

• Position a second opening pick beneath the lower-right corner of the display assembly.
• Advance the pick along the right side to sever the adhesive bond and disengage the two retaining clips.
• A slight upward lift of the display might be necessary to facilitate clip release.
• Maintain the pick's position beneath the upper-right corner to inhibit adhesive re-adhesion.

To loosen the adhesive securing the screen, apply warmth to its upper border using a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a third opening pick beneath the screen's upper-right quadrant.
• Moving the pick along the top perimeter and slightly past the top-left corner will disengage the adhesive and release two retaining clips.
• Avoid advancing the pick further, as doing so risks damaging the ambient light sensor cable.
• Maintain the pick's placement beneath the top-left corner to inhibit adhesive re-adhesion.

Apply warmth to the screen's left border utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.

• Position a fourth opening pick beneath the lower-left corner of the display assembly.
• Advance the pick along the right side to detach the adhesive and disengage the retaining clip, pausing immediately before the volume up control.
• A slight upward lift of the screen may be necessary to free the clip from its position.Avoid further pick movement to prevent potential damage to the screen cable.The screen cable is a delicate component and requires careful handling during separation.

Ensure the display assembly is fully disengaged from its surrounding structure; should resistance be encountered, re-examine the edges to release any lingering adhesive or securing fasteners.
Elevate the display vertically and rotate it towards the left side, supporting it with a stable object like a container or pile of literature to prevent stress on the connecting wires; as an alternative, the display can be positioned horizontally across the left portion of the device.

Carefully monitor the location of each screw during the repair process, ensuring their correct reinstallation.
Employ aJIS 00 screwdriverto detach the two screws that hold the cable covers in place.

• A1.4 mm-length screwis needed for the screen and front sensor cable cover.
• A1.3 mm-length screwis required for the battery cover.

Detach the pair of protective housings.

• Employ the tip of a spudger to carefully lift and detach the battery press connector.The battery press connector must be separated from its position using a spudger's pointed end.To release the battery press connector, utilize a spudger and apply gentle prying force.

• Employing the pointed end of a prying tool or a spudger, carefully lift and separate the screen and ambient light sensor press connectors from their housings.The connectors securing the screen and ambient light sensor press must be released by applying targeted upward pressure with a specialized tool’s tip.To detach the screen and ambient light sensor press connectors, utilize a prying tool or spudger, focusing force on its pointed end to avoid damage.

• Detach the display panel.

• Employ a Torx Plus 4IP screwdriver for the disassembly of screws holding the battery compartment in place.A single screw, measuring 7.5 millimeters in length, is utilized in the assembly.A separate screw, with a length of 5.9 millimeters, is also present.
  Another screw, measuring 3.4 millimeters long, contributes to the fastening.A further screw, with a length of 2.3 millimeters, is incorporated.
  Nine screws, each possessing a length of 3.7 millimeters, are used for securing the tray.An additional screw, also measuring 3.7 millimeters in length, is included in the hardware.
  Certain iPhone versions, which incorporate a physical SIM card slot, lack this particular screw.The Torx Plus 4IP screwdriver is essential for manipulating the fasteners.
  The battery tray is secured by a specific arrangement of screws of varying lengths.Careful attention should be paid to the differing lengths of the screws during reassembly.
  Proper identification of each screw length is crucial for correct reinstallation.The 7.5 mm screw serves a distinct purpose in the battery tray's attachment.
  The 5.9 mm screw contributes to the overall stability of the battery compartment.The 3.4 mm and 2.3 mm screws are part of the fastening mechanism.
  Models equipped with a physical SIM card deviate from the standard screw configuration.

• Employ your index finger to elevate the upper-left corner of the battery compartment, subsequently detaching it.Exercise caution to prevent any smearing of the front-facing camera lens during this process.The battery tray's release requires a careful upward motion applied with your finger.
  Removing the battery tray necessitates attention to avoid compromising the integrity of the front camera's image quality.

Employ a Y000 tri-point screwdriver for the disassembly of the rear camera connector cover's securing screw.The screw affixing the cover measures precisely 1.0 millimeters in length.Carefully extract the screw using the specialized tri-point screwdriver to avoid damage.

Employing tweezers, release the rear camera connector cover's securing latch from the logic board, subsequently detaching it.

Employing the tip of a spudger, carefully lift and detach the three press connectors associated with the rear camera assembly; note that one connector is positioned beneath another.

Employ a Torx Plus 4IP screwdriver for disassembly.The rear camera assembly is fastened with three screws requiring a Torx Plus 4IP screwdriver.Two screws, each measuring 4.0 millimeters in length, are used to secure the camera.

• A single screw, with a length of 4.4 millimeters, also contributes to the assembly's retention.To release the rear camera, utilize a Torx Plus 4IP screwdriver to loosen the securing screws.
• The camera's attachment involves a combination of two 4.0 mm screws and one 4.4 mm screw.A Torx Plus 4IP screwdriver is essential for accessing and removing the three screws holding the rear camera in place.

Employ the tip of a spudger to carefully lift the upper boundary of the rear camera module.Following the release, secure a firm grip on the assembly with your hands.Disengage the component from its position by maneuvering it away from the device.

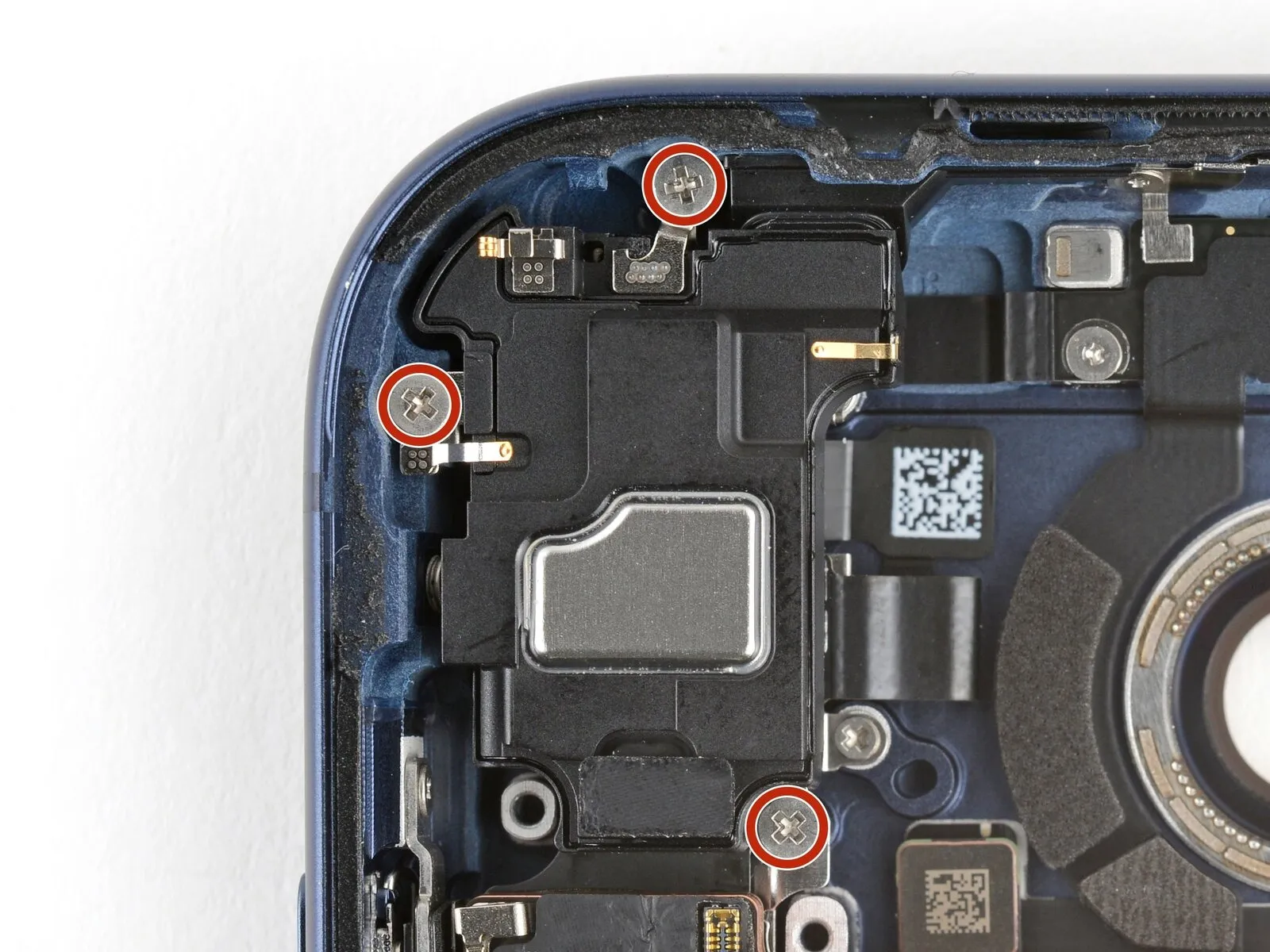

Employ a specialized tri-point screwdriver, specifically a Y000 type, for disassembly.The screw, measuring 1.0 millimeters in length, requires a tri-point Y000 screwdriver for its removal.A tri-point Y000 screwdriver is essential for detaching the front camera connector cover.To release the front camera connector cover, utilize a tri-point Y000 screwdriver to unscrew the fastener.The front camera connector cover is held in place by a 1.0 mm screw that necessitates a tri-point Y000 screwdriver for removal.

Employing tweezers facilitates the detachment and removal of the protective cover situated on the front camera connector.The front camera connector's cover can be disengaged and taken away with the assistance of tweezers.To detach and extract the cover safeguarding the front camera connector, utilize a pair of tweezers.

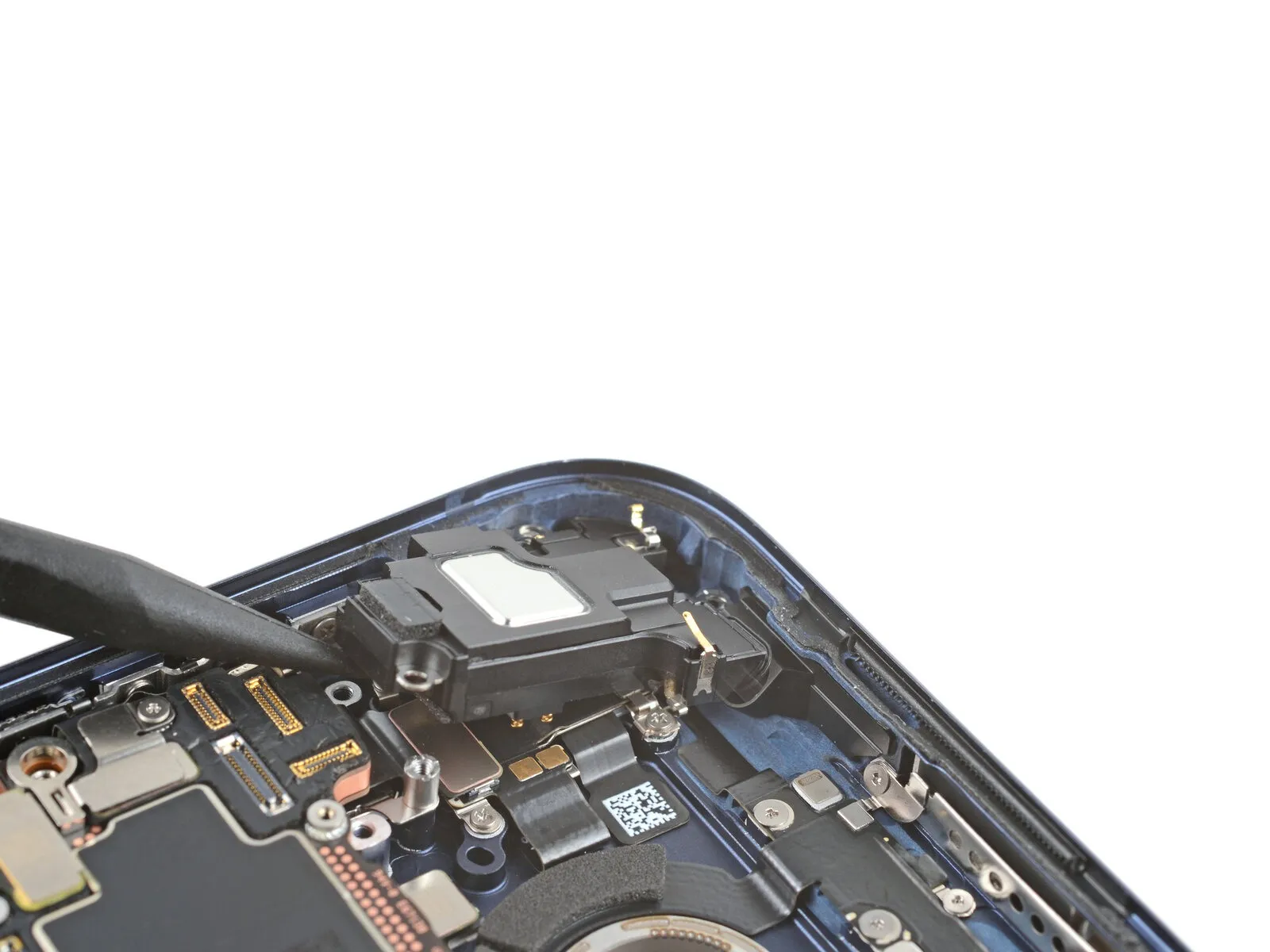

• Employ the tip of a spudger to carefully separate and release the adhesive securing the upper speaker assembly.The spudger's pointed end facilitates leverage to disengage the speaker without causing damage.Once loosened, lift the top speaker to free it from its mounting position.

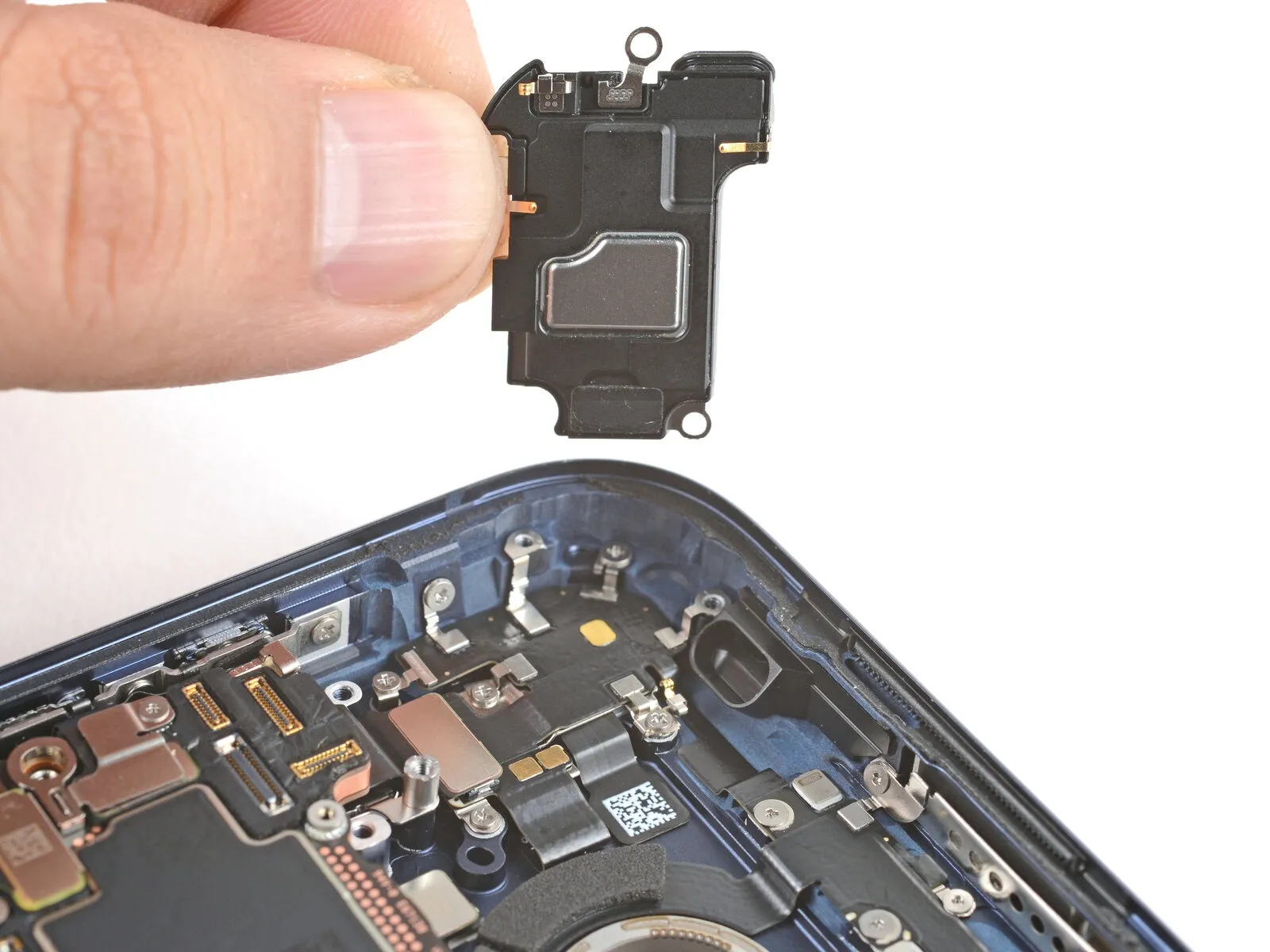

• Complete the speaker removal by detaching it from the device's housing.

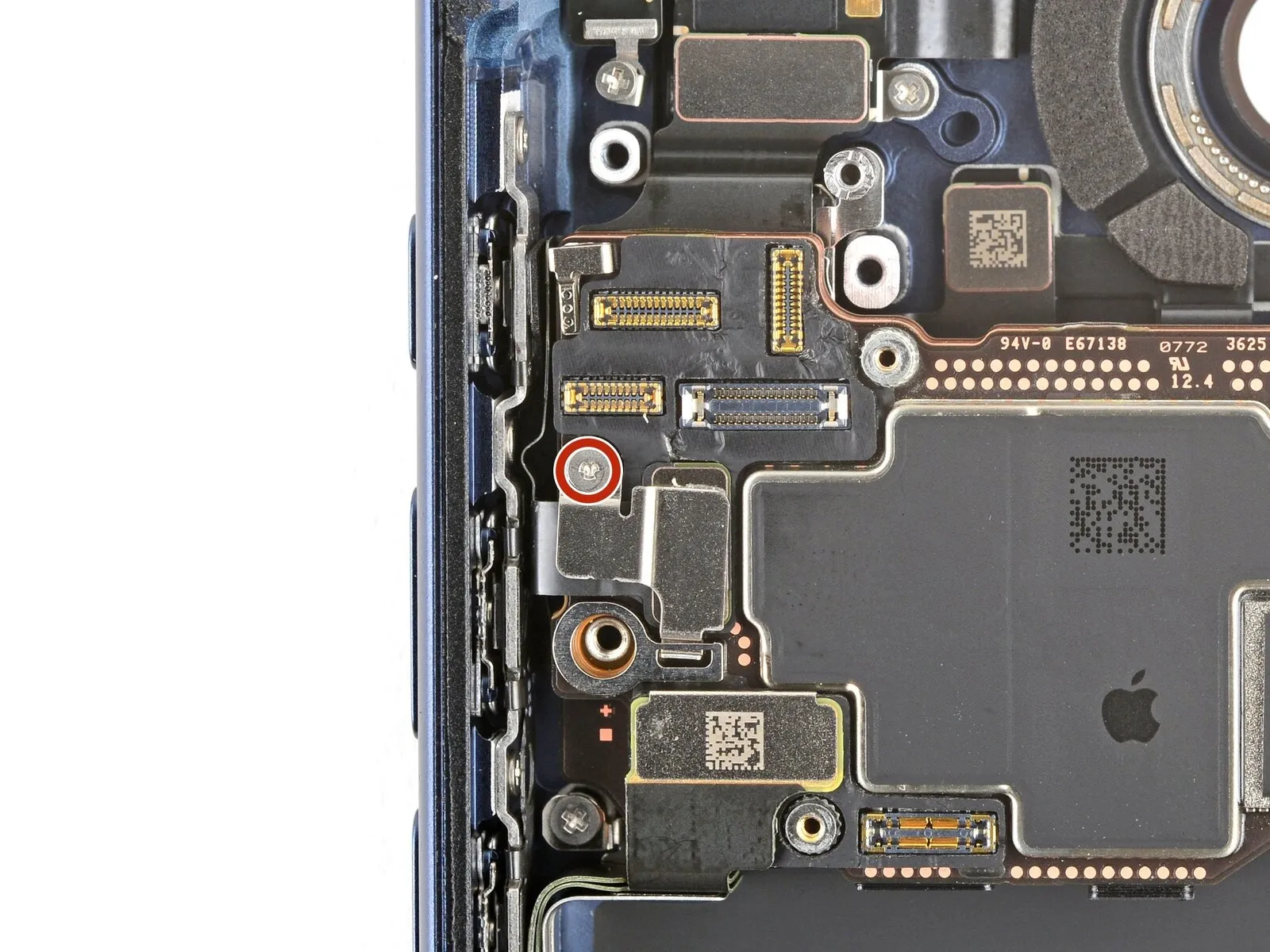

Employ a specialized tri-point screwdriver, specifically a Y000 type, for disassembly.The fastener in question is a screw measuring 1.0 millimeters in length.This diminutive screw serves to maintain the button connector cover's attachment.Carefully extract the screw using the appropriate tri-point Y000 screwdriver.Removal of the screw will allow access to the button connector cover.

Employing tweezers, release the retaining clip securing the button connector cover to the logic board, then detach the cover.

Employ the tip of a spudger to carefully lift and release the two press-fit connectors situated on the superior margin of the logic board.Disconnecting the two press connectors necessitates utilizing a spudger's pointed end to apply leverage and separate them from their receptacles along the logic board's upper edge.To detach the two press connectors positioned at the top of the logic board, a spudger should be used to gently pry and disengage them.

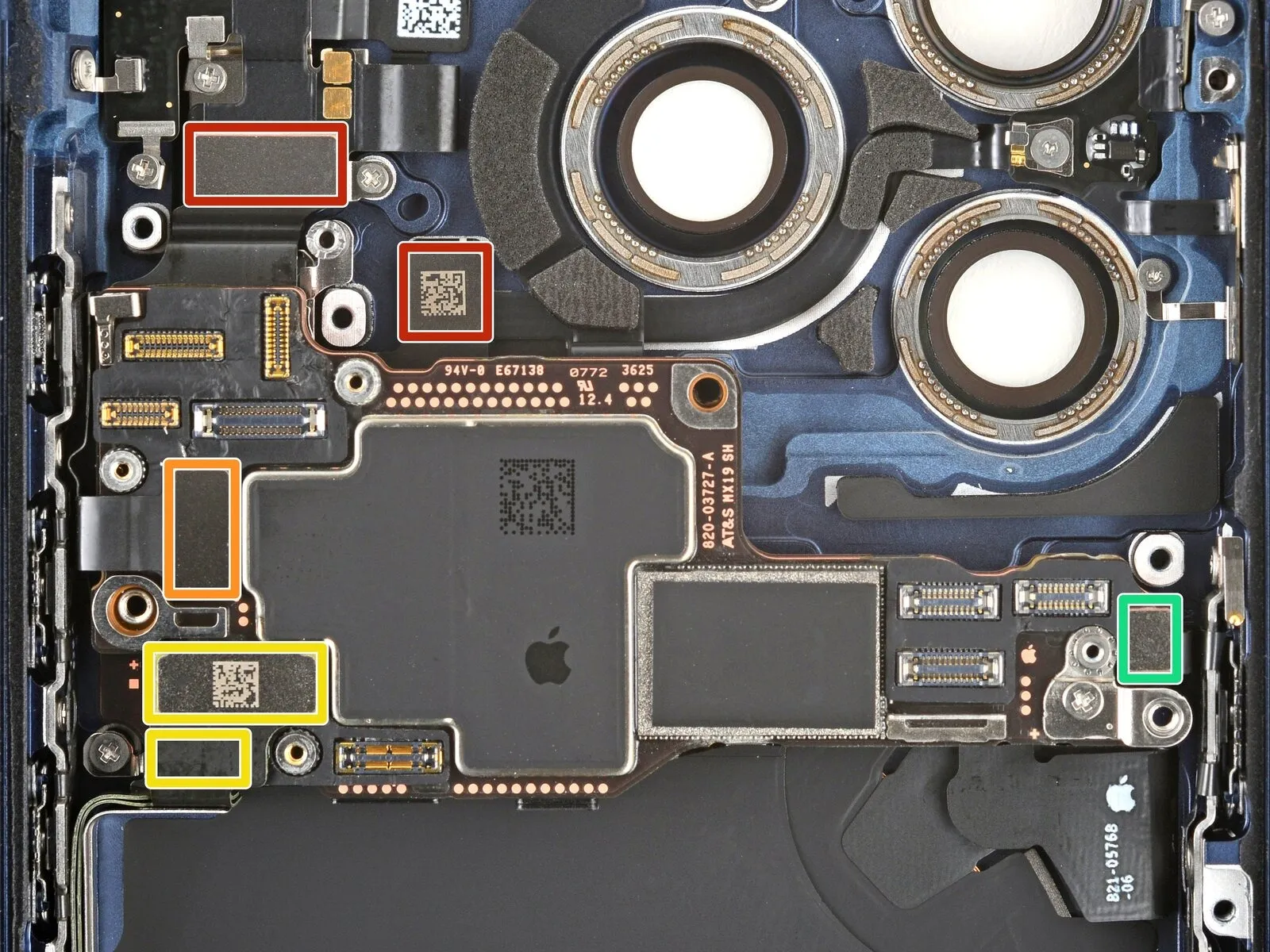

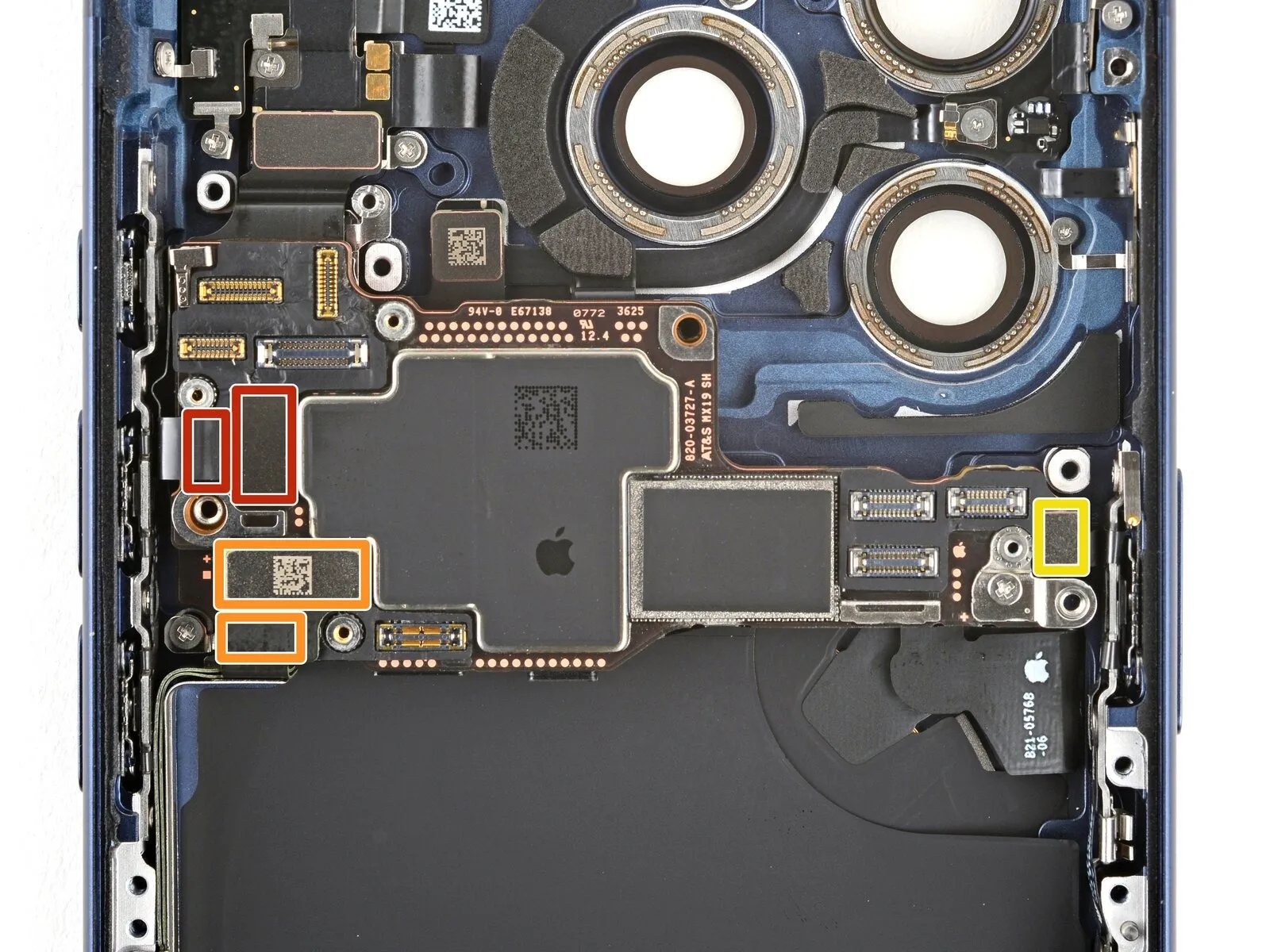

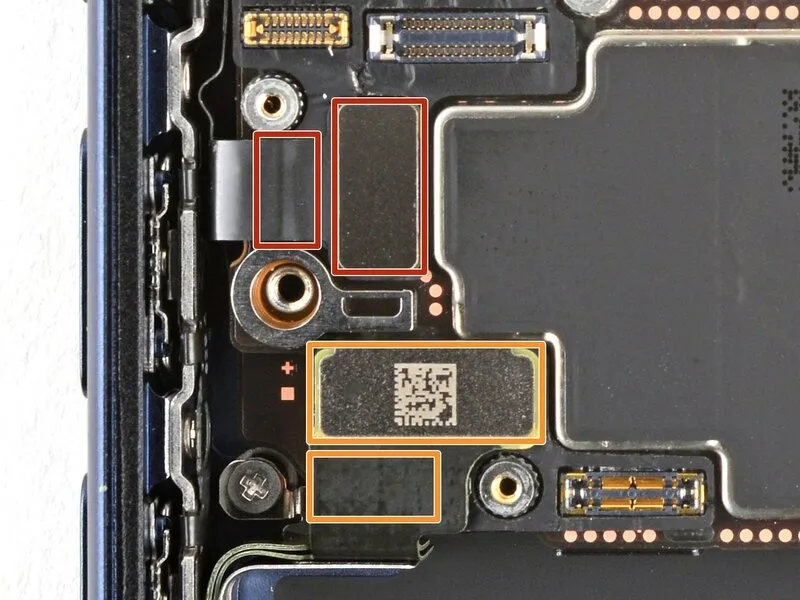

Employ the tip of a spudger to release and detach five press-fit connectors affixed to the logic board.Five press connectors must be separated from their sockets using the spudger, ensuring careful manipulation to avoid damage.Among these connectors are two assemblies linking the button board, with one positioned beneath the other.

• Additionally, two connector assemblies secure the USB-C port, also arranged with one beneath the other.
• A single connector provides the electrical link for the power button functionality.
• Carefully disconnect each press connector using the spudger, observing the layered arrangement of the button board and USB-C port connectors.

Refrain from detaching the logic board, as it remains secured to the device's frame via one or more underside flex cables; instead, gently elevate the lower-left corner of the logic board using your fingers until it achieves a vertical orientation. Adjust the logic board's position as necessary to prevent tension on the underside flex cable(s).

Models lacking millimeter wave capabilities will not include the corresponding connector cover or associated cable; therefore, proceed past the subsequent two instructions.A specialized tri-point screwdriver, specifically a Y000 type, is required for the removal process.The 1.0-millimeter screw that fastens the mmWave antenna connector cover must be detached using the appropriate screwdriver.

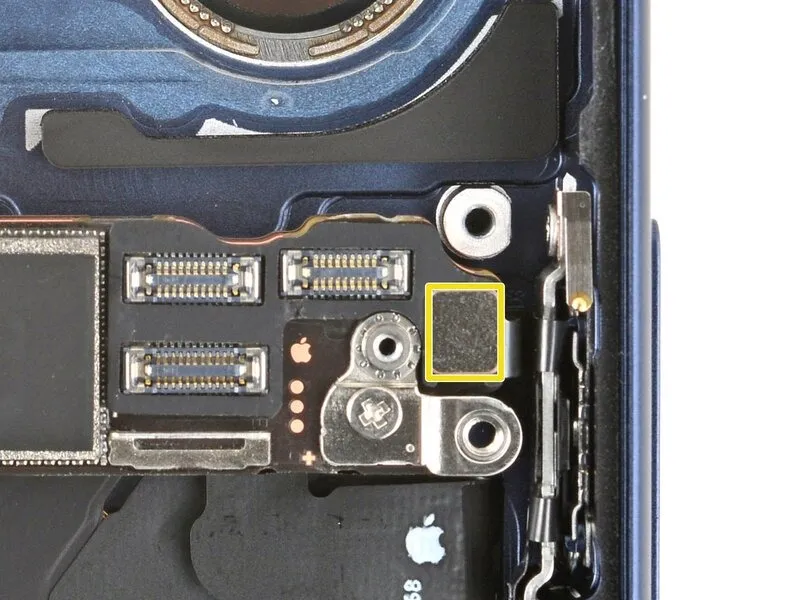

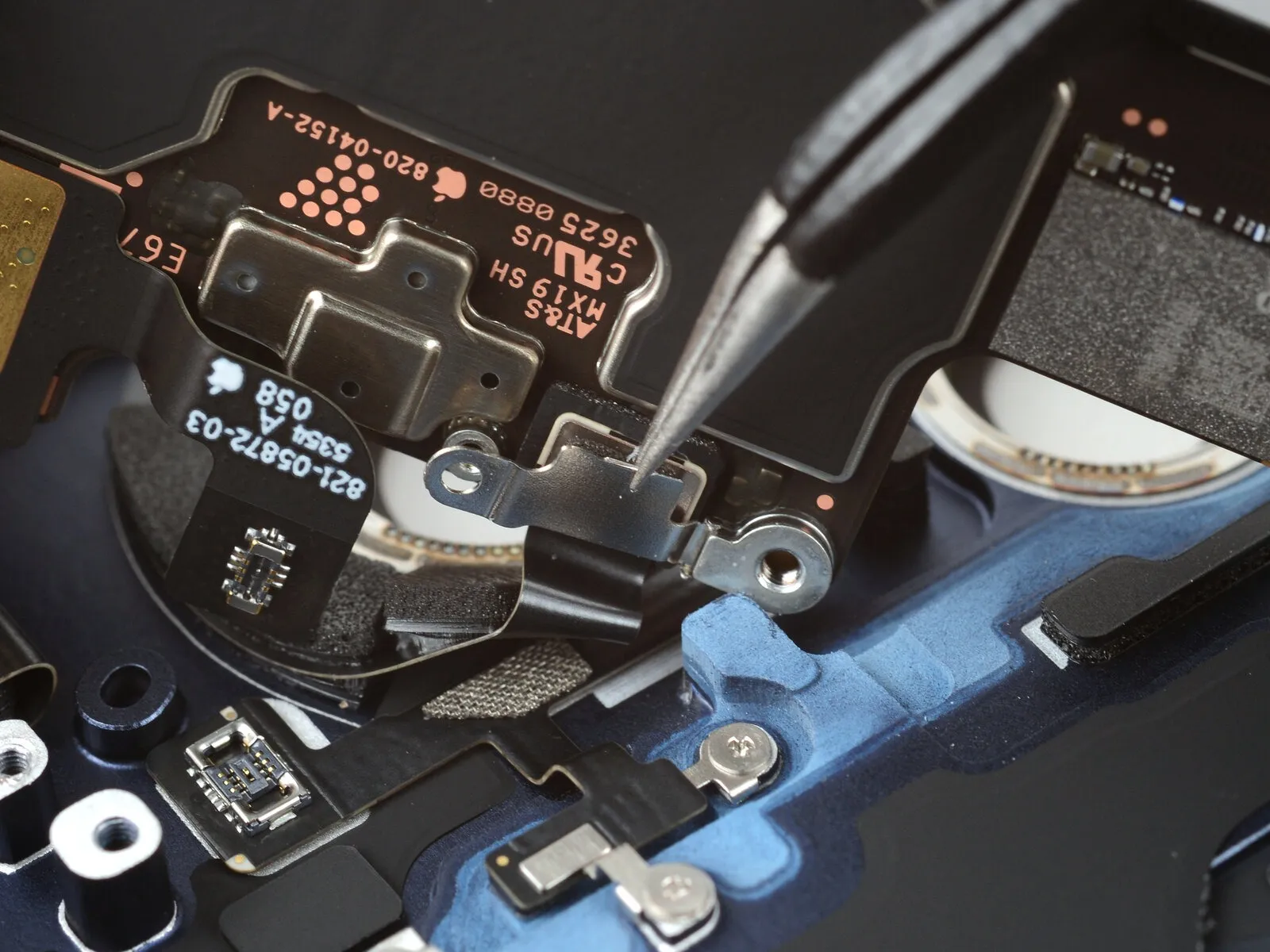

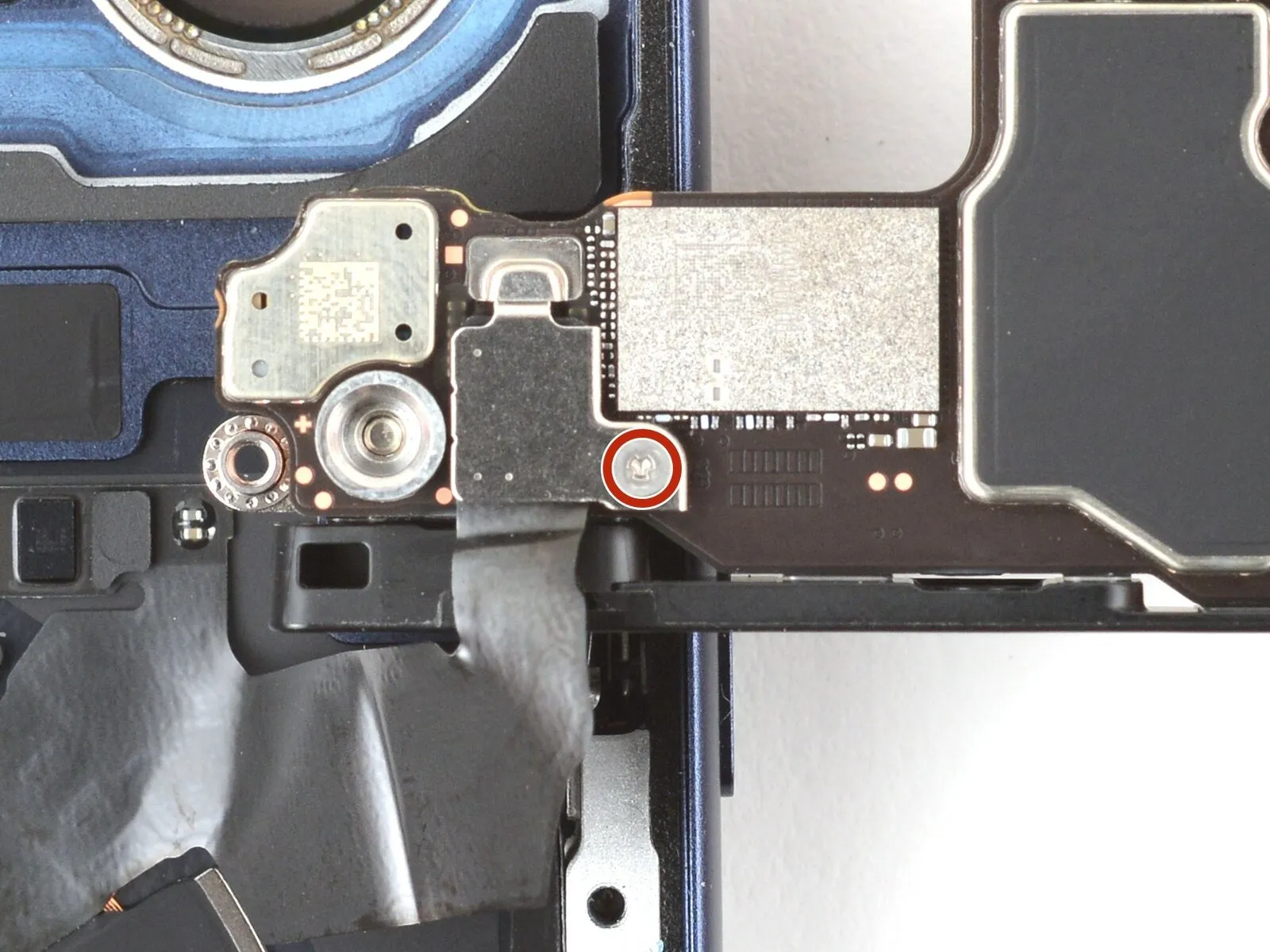

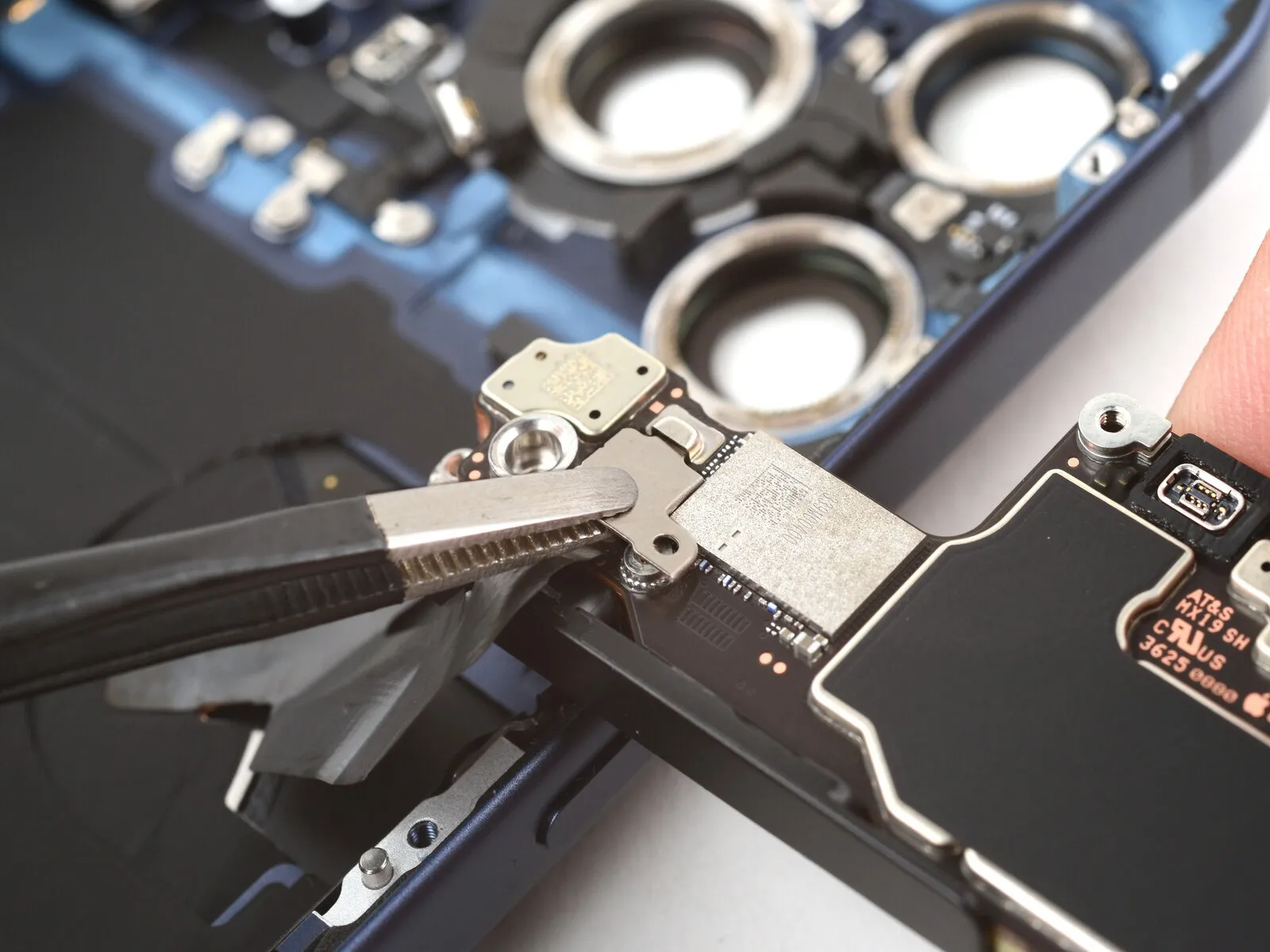

Employing tweezers, carefully disengage and extract the millimeter wave connector cover.The millimeter wave connector cover must be detached using tweezers to avoid damage.To remove the millimeter wave connector cover, utilize tweezers for precise manipulation.

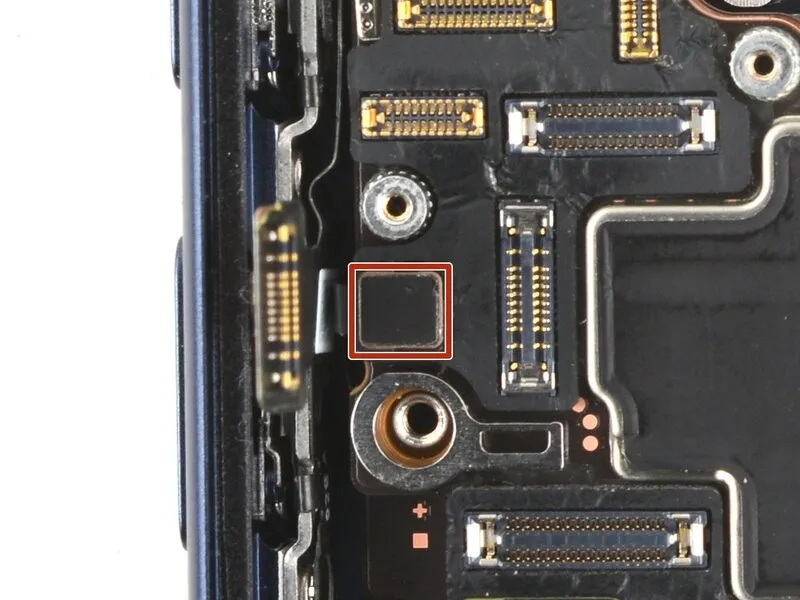

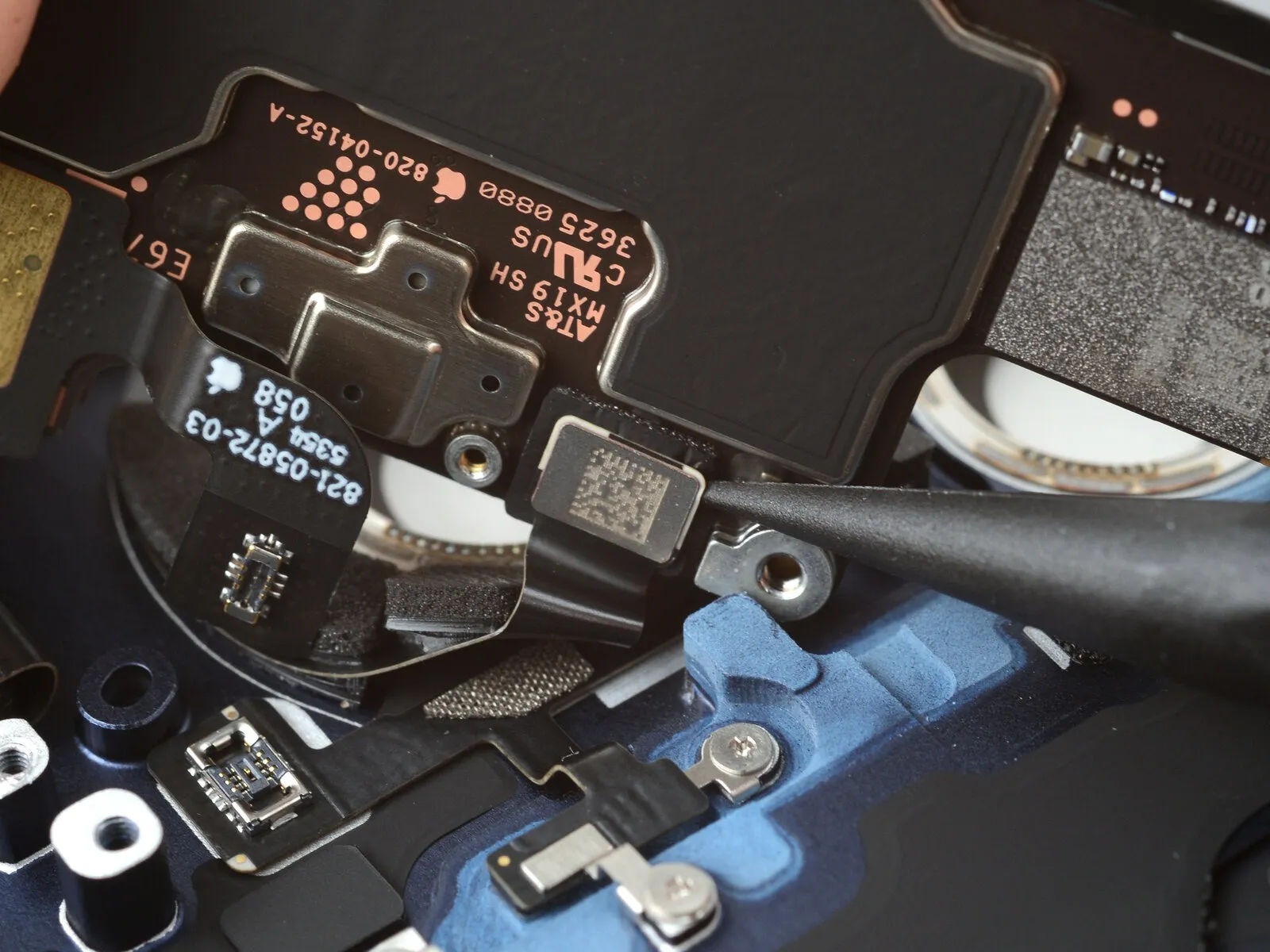

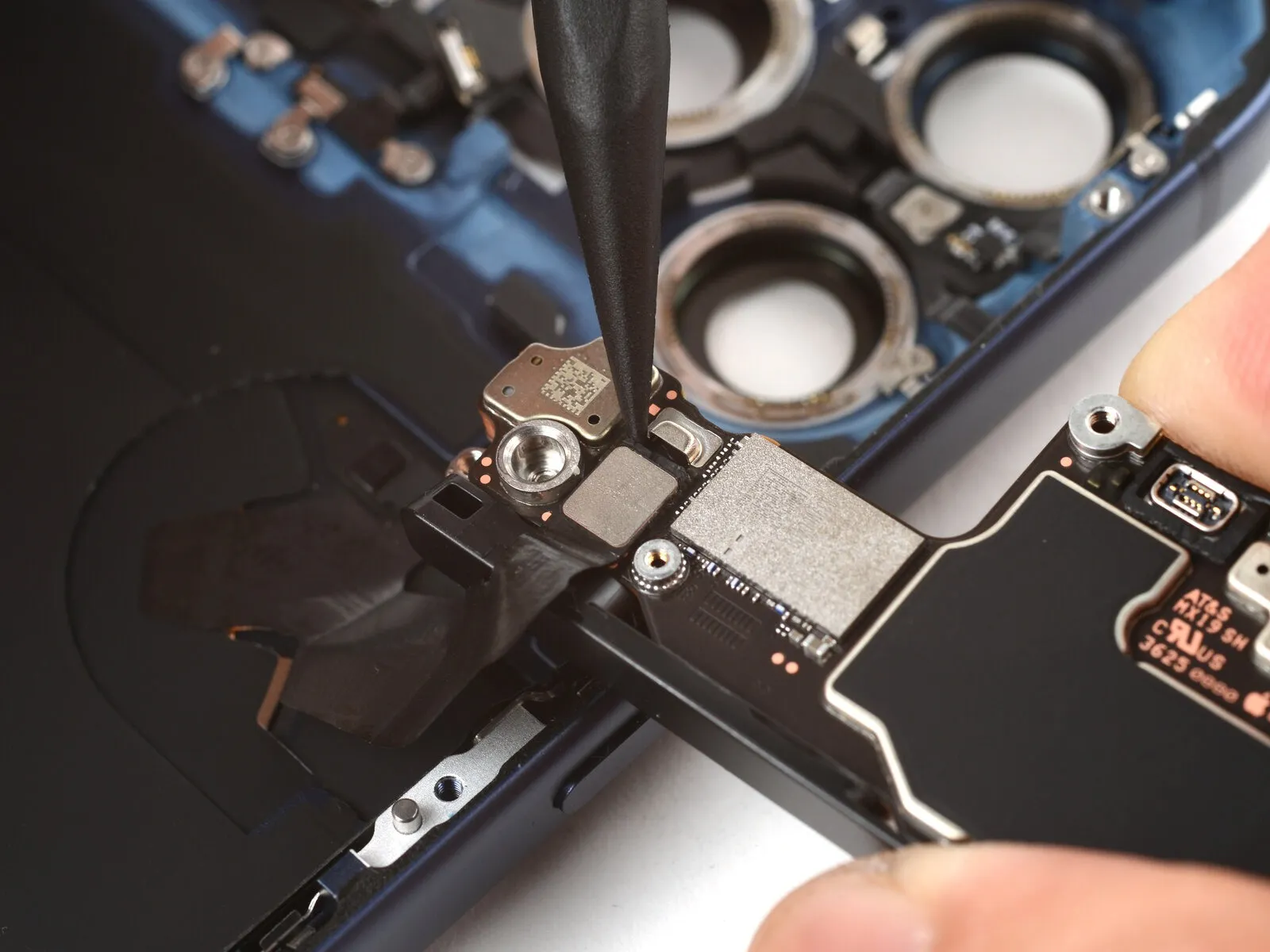

Employ the tip of a spudger to carefully lift and detach the mmWave connector.A spudger's pointed end facilitates separation of the mmWave connector.To release the mmWave connector, utilize the pointed end of a spudger for prying.The mmWave connector must be disconnected by applying leverage with a spudger's tip.Disconnecting the mmWave connector requires using a spudger to apply upward force.

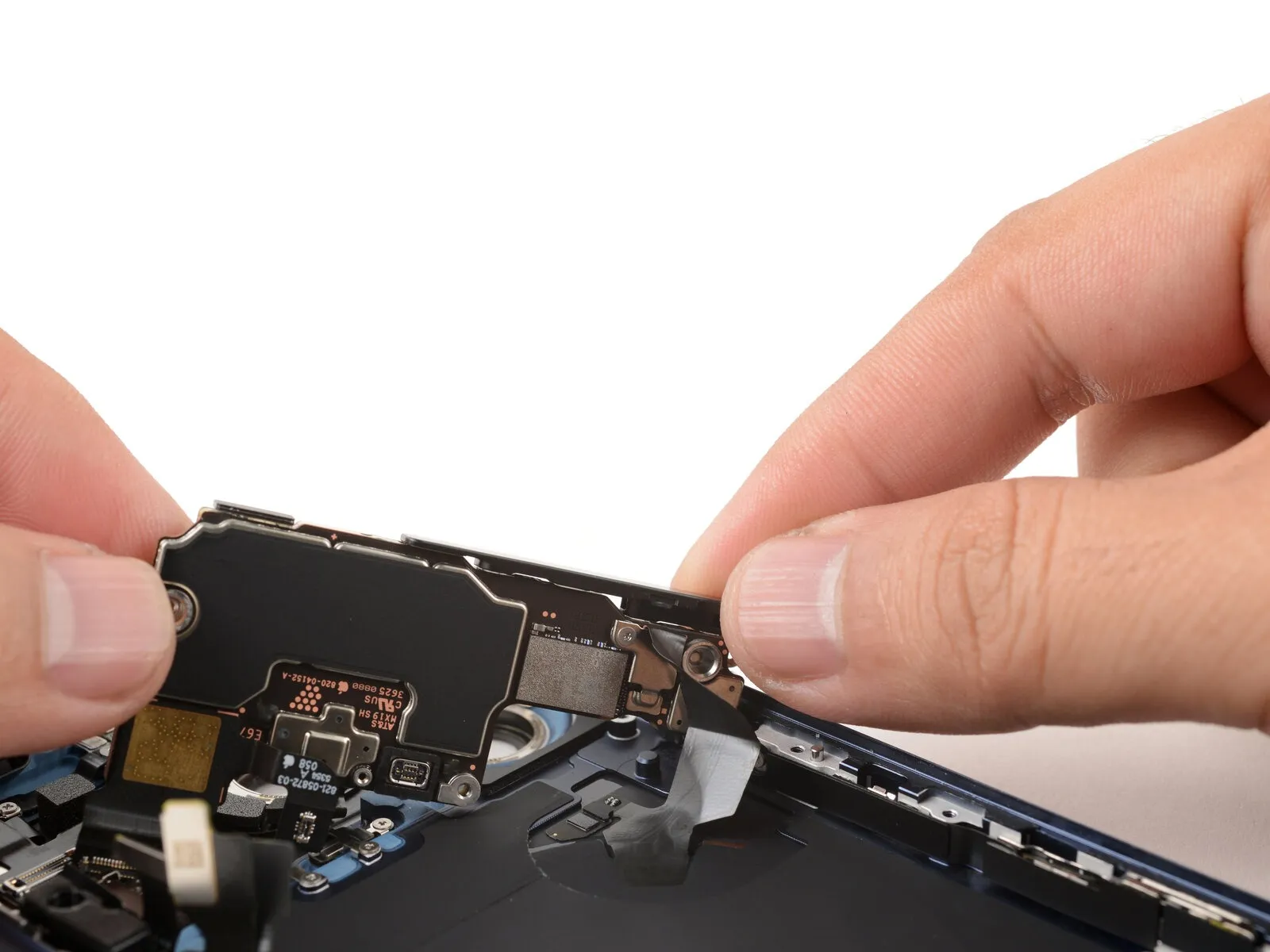

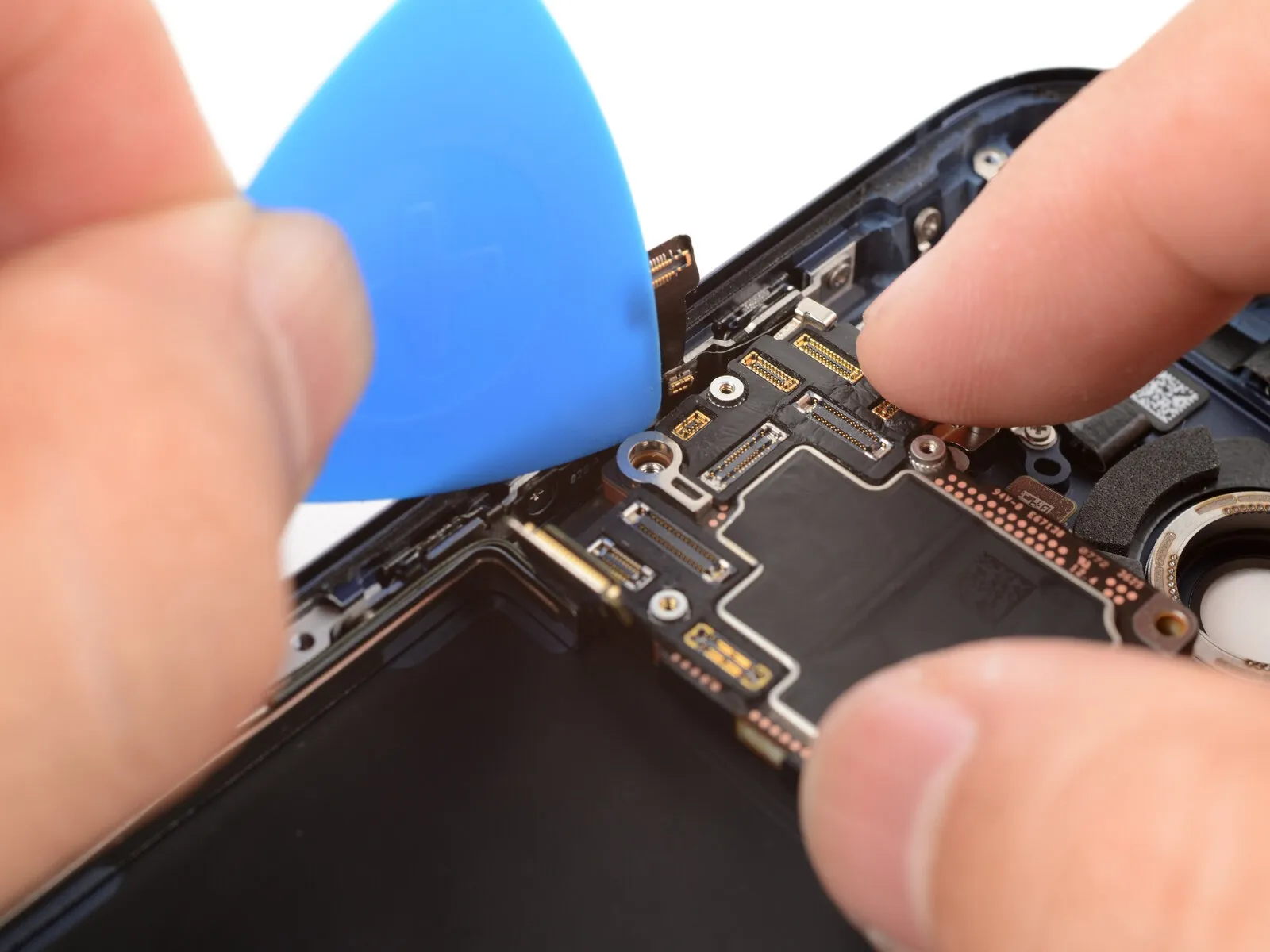

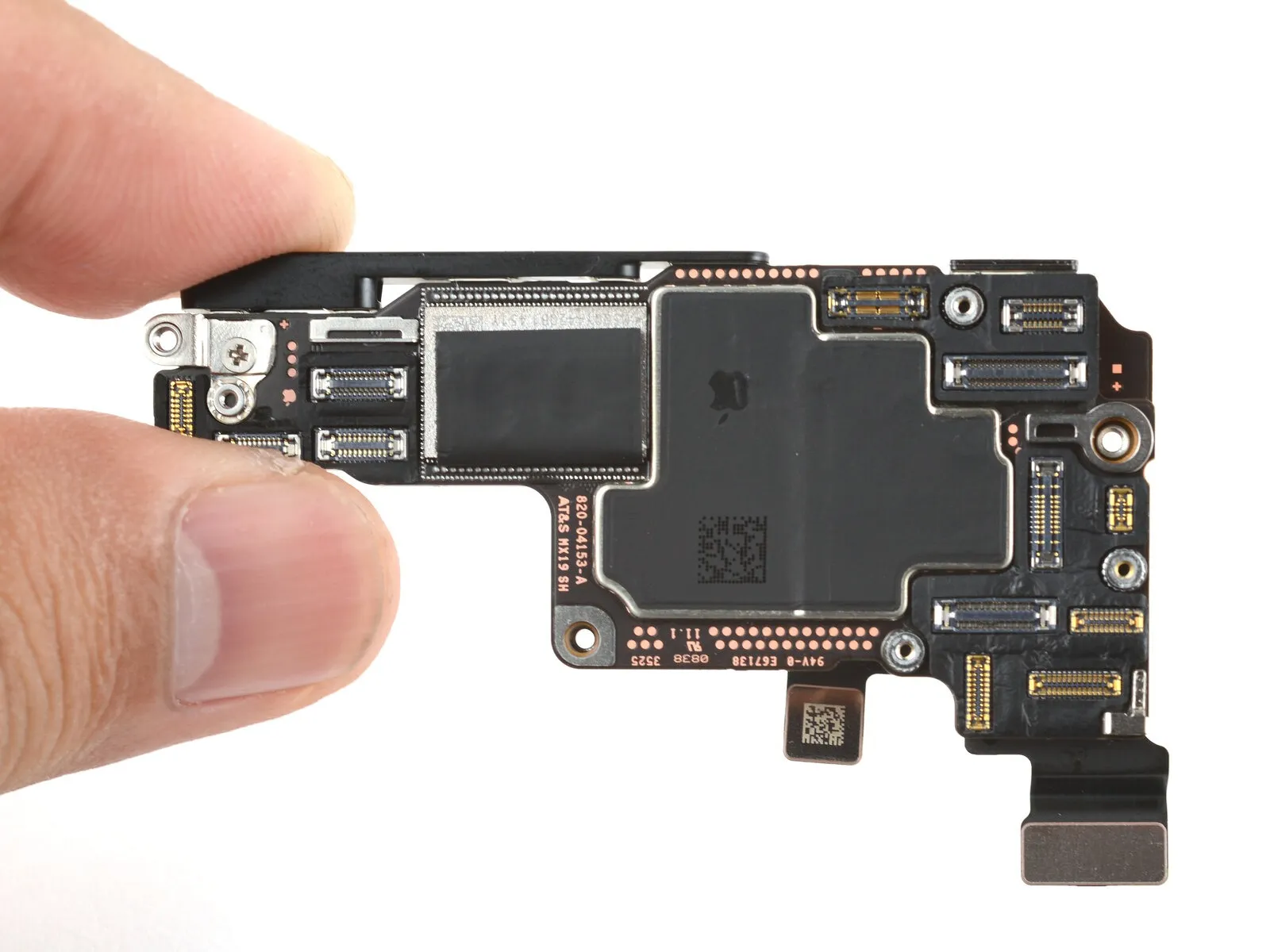

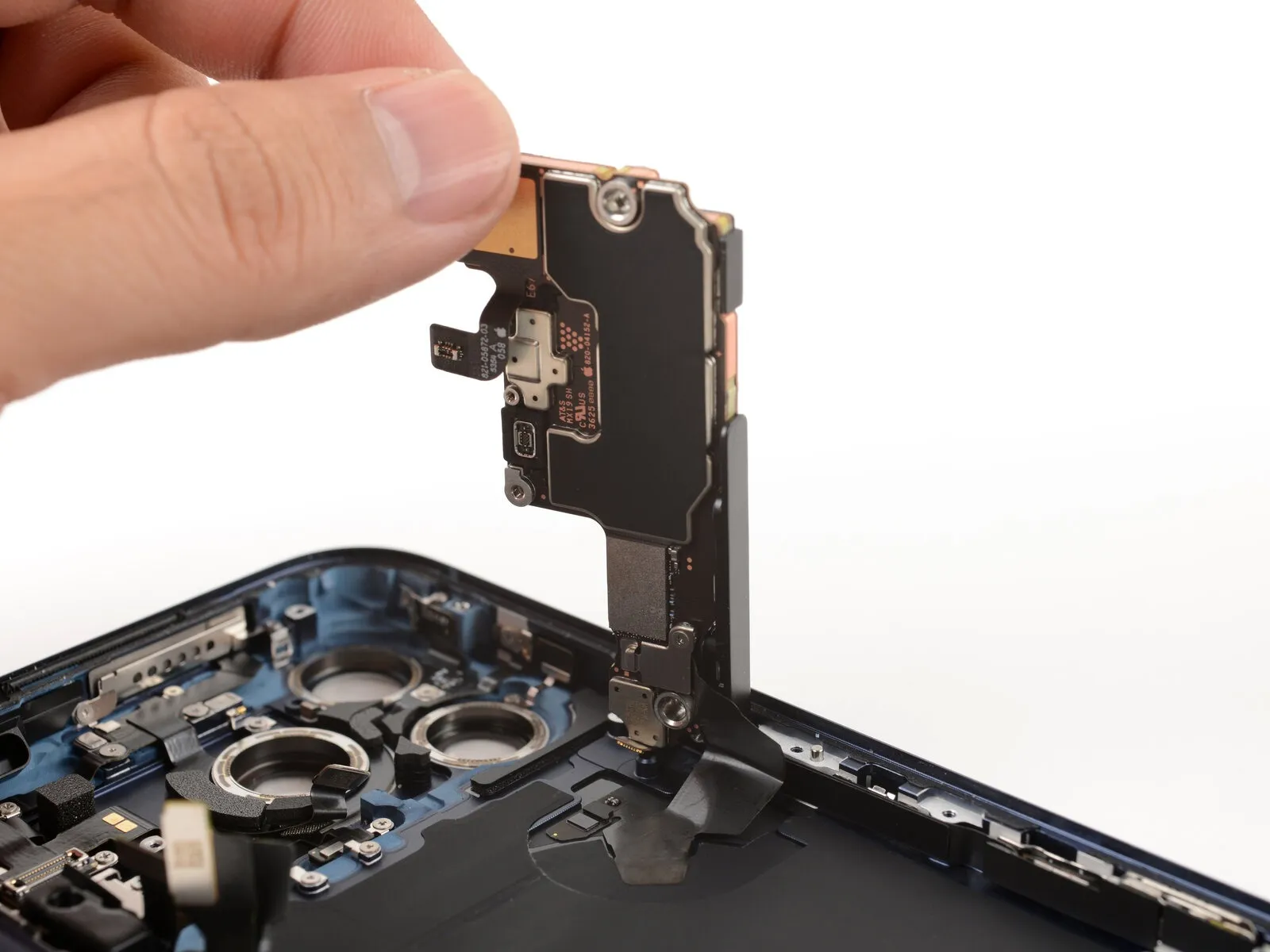

• Gently maneuver the logic board across the iPhone's right side, ensuring a controlled arc.
• Exercise caution to prevent damage to the wireless charging cable, which remains connected to the logic board's lower surface.

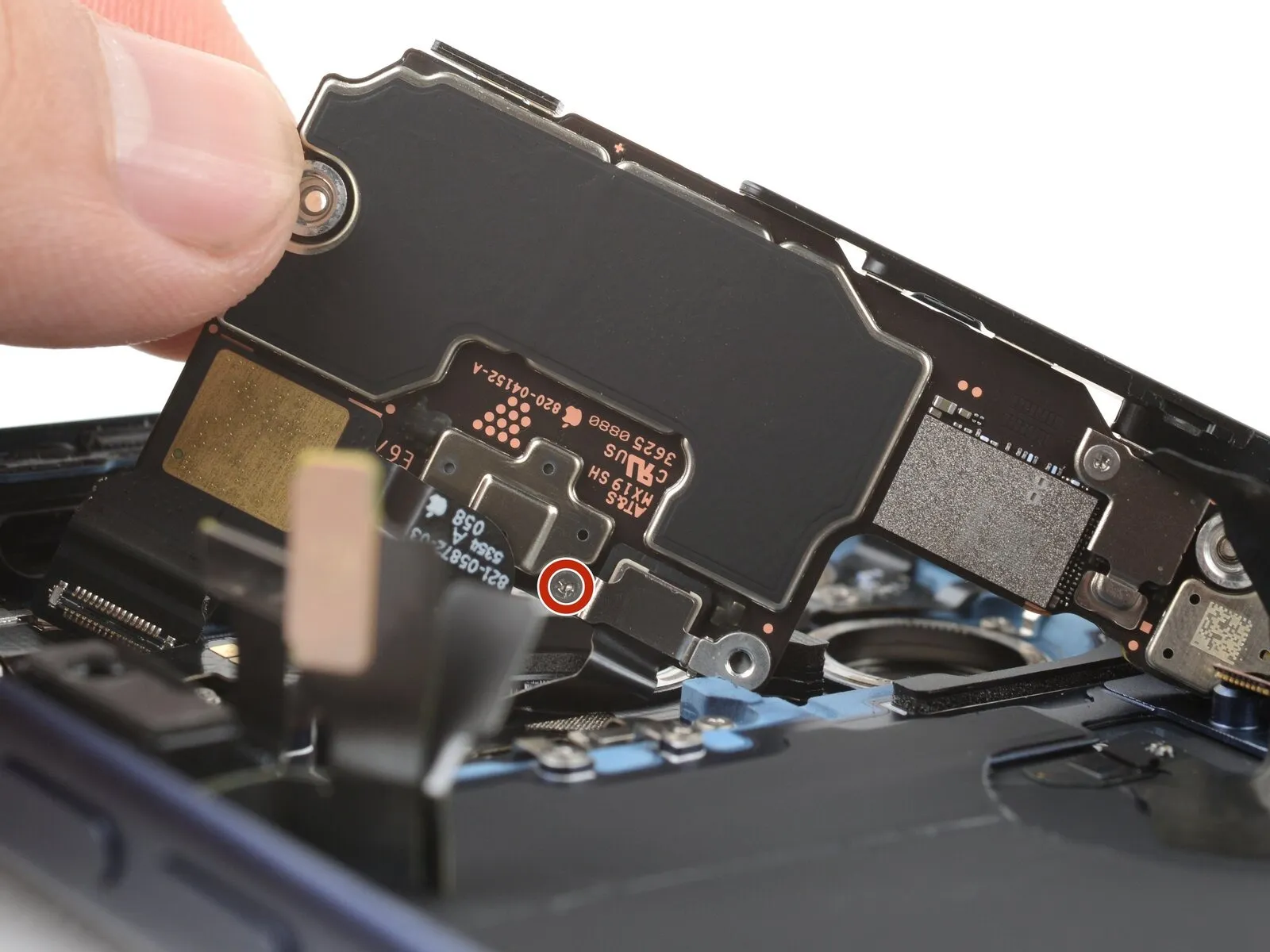

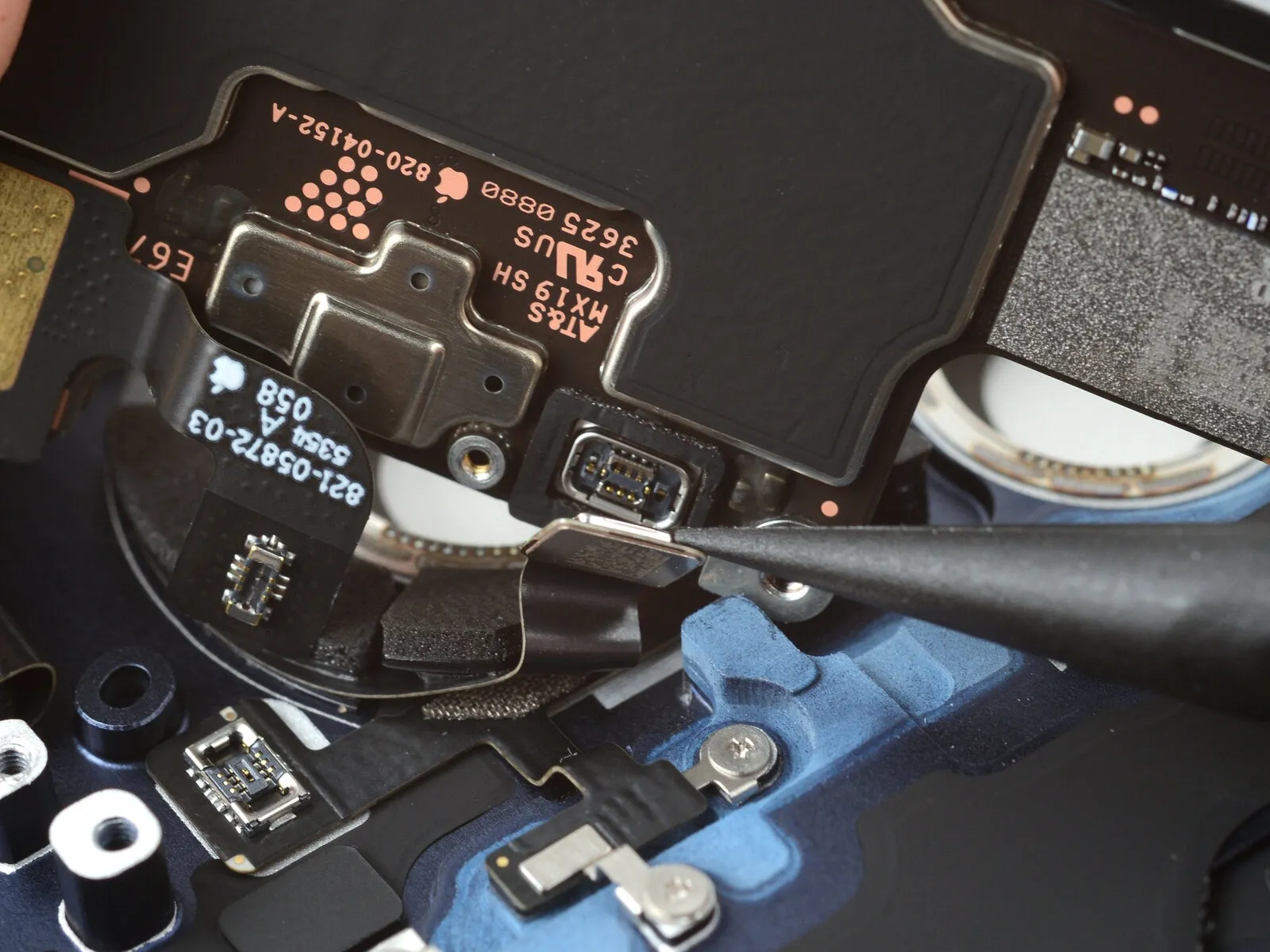

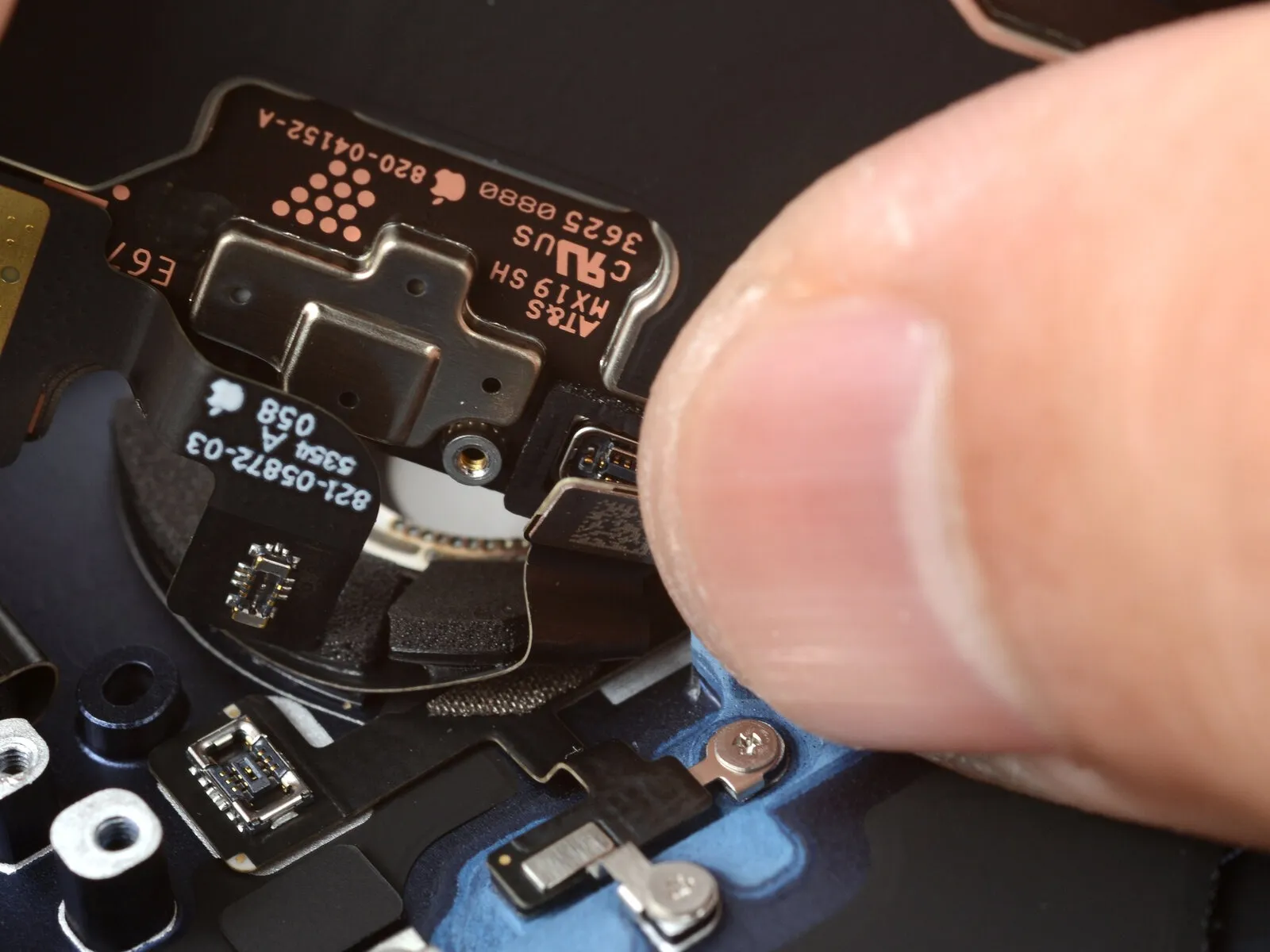

• To access the wireless charging connector, detach the protective cover.

• Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
• Slight variations in the visual appearance of reassembly images might occur based on the specific iPhone model being serviced, though the outlined steps remain accurate for all versions.

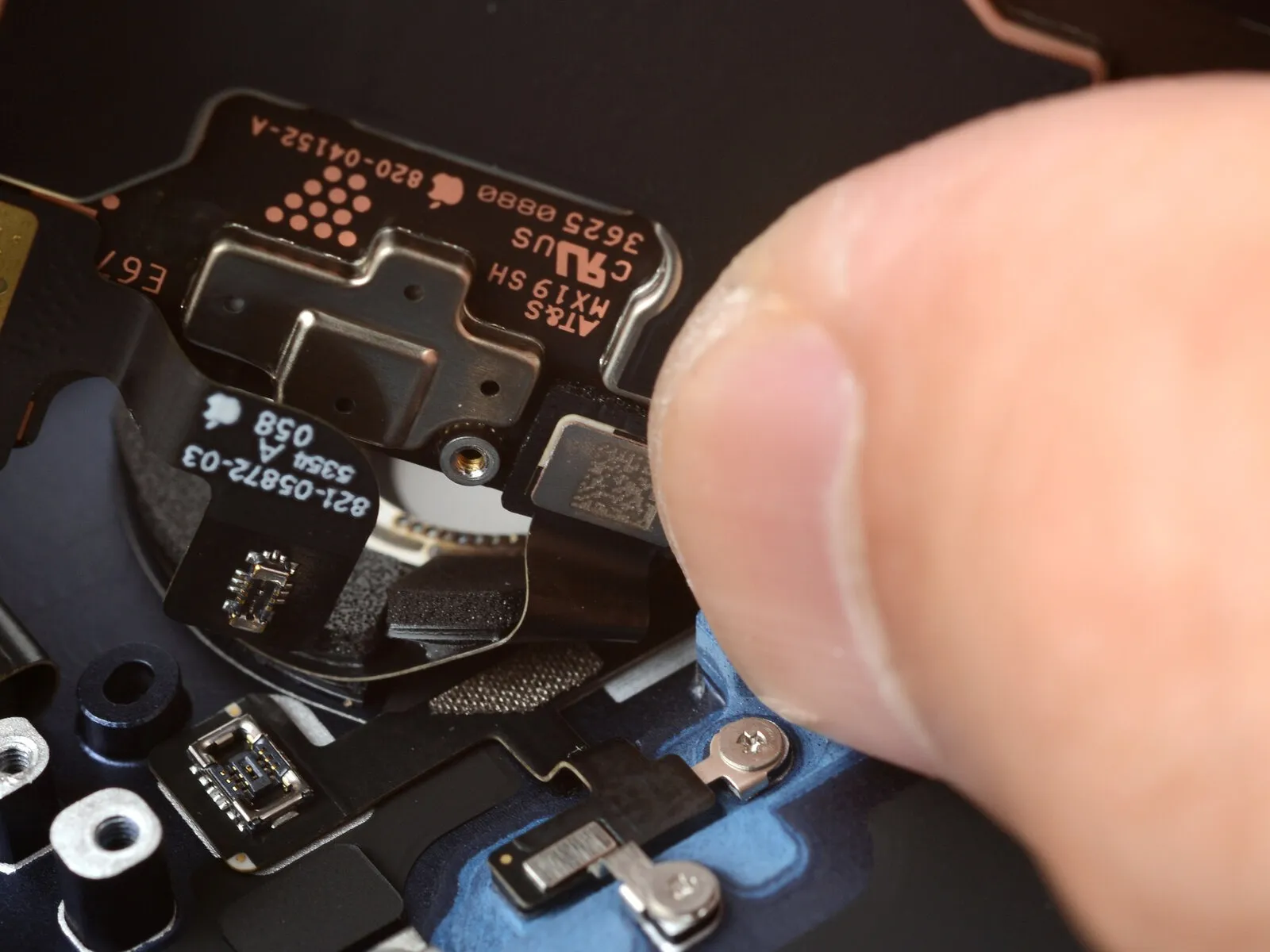

• Secure the wireless charging connector cover by inserting its protruding tab into the corresponding groove located on the logic board.
• Position the component onto the designated area.

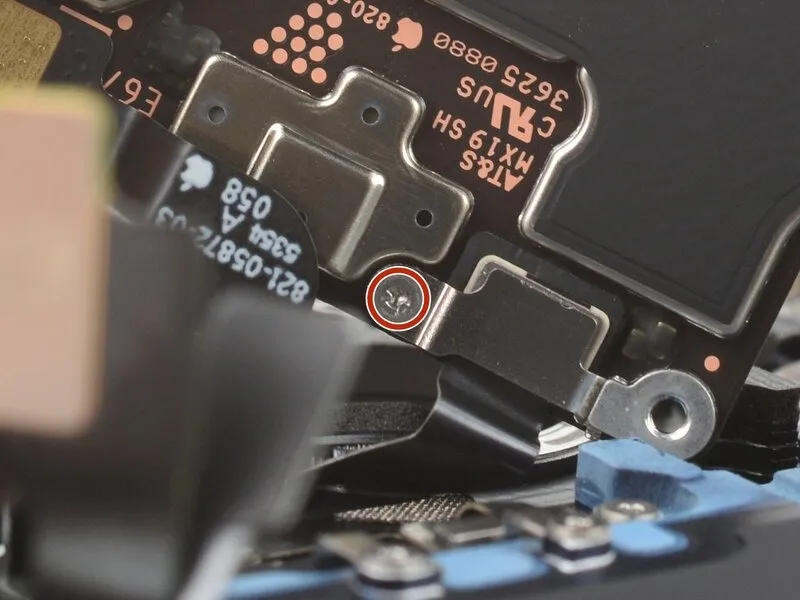

• Employ a specialized tri-point screwdriver, specifically a Y000 type, for the subsequent task.A screw measuring precisely 1.0 millimeters in length, designated for the wireless charging connector, requires installation.The designated screw must be affixed using the appropriate screwdriver.Secure the wireless charging connector screw with the tri-point Y000 screwdriver.Installation of the 1.0 mm screw necessitates the utilization of a tri-point Y000 screwdriver.

• Absence of millimeter wave capabilities in your iPhone may be indicated by a lack of this feature.Millimeter wave functionality refers to a specific cellular communication technology.A colon signifies the start of a conditional instruction set.
  Gently maneuver the logic board within the iPhone's chassis, ensuring it settles securely.
  Proceed to the subsequent repair instructions only if the following conditions are not met.
• The presence of millimeter wave capabilities in your iPhone can be verified through device specifications.Millimeter wave functionality represents a high-frequency cellular communication standard.A colon denotes a branching pathway in the repair procedure.

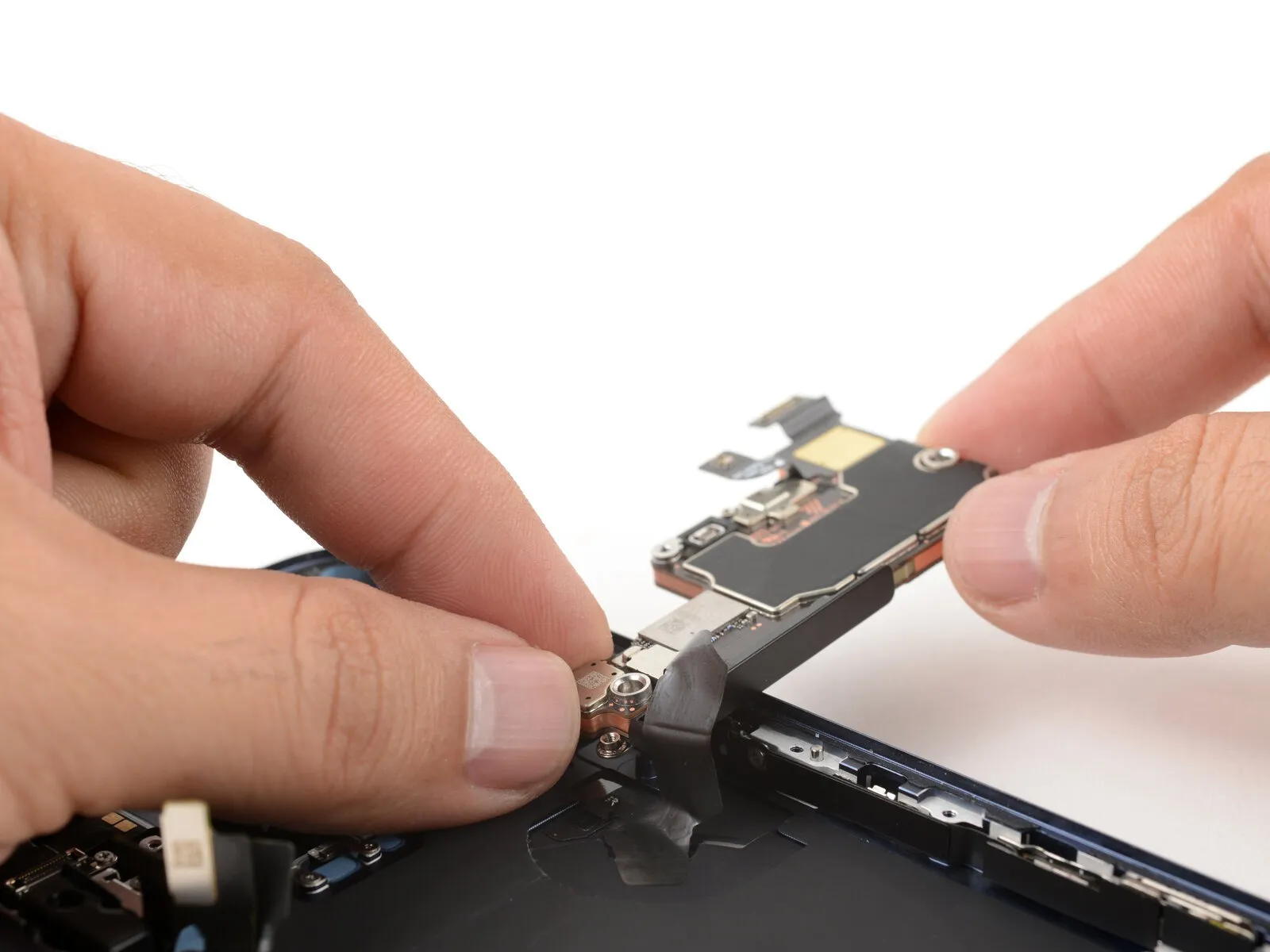

  Position the logic board within the iPhone by pivoting it, aligning the millimeter wave cable with its corresponding connector.The millimeter wave cable is a specialized component facilitating high-frequency data transmission.The logic board socket serves as the interface for the millimeter wave cable's connection.

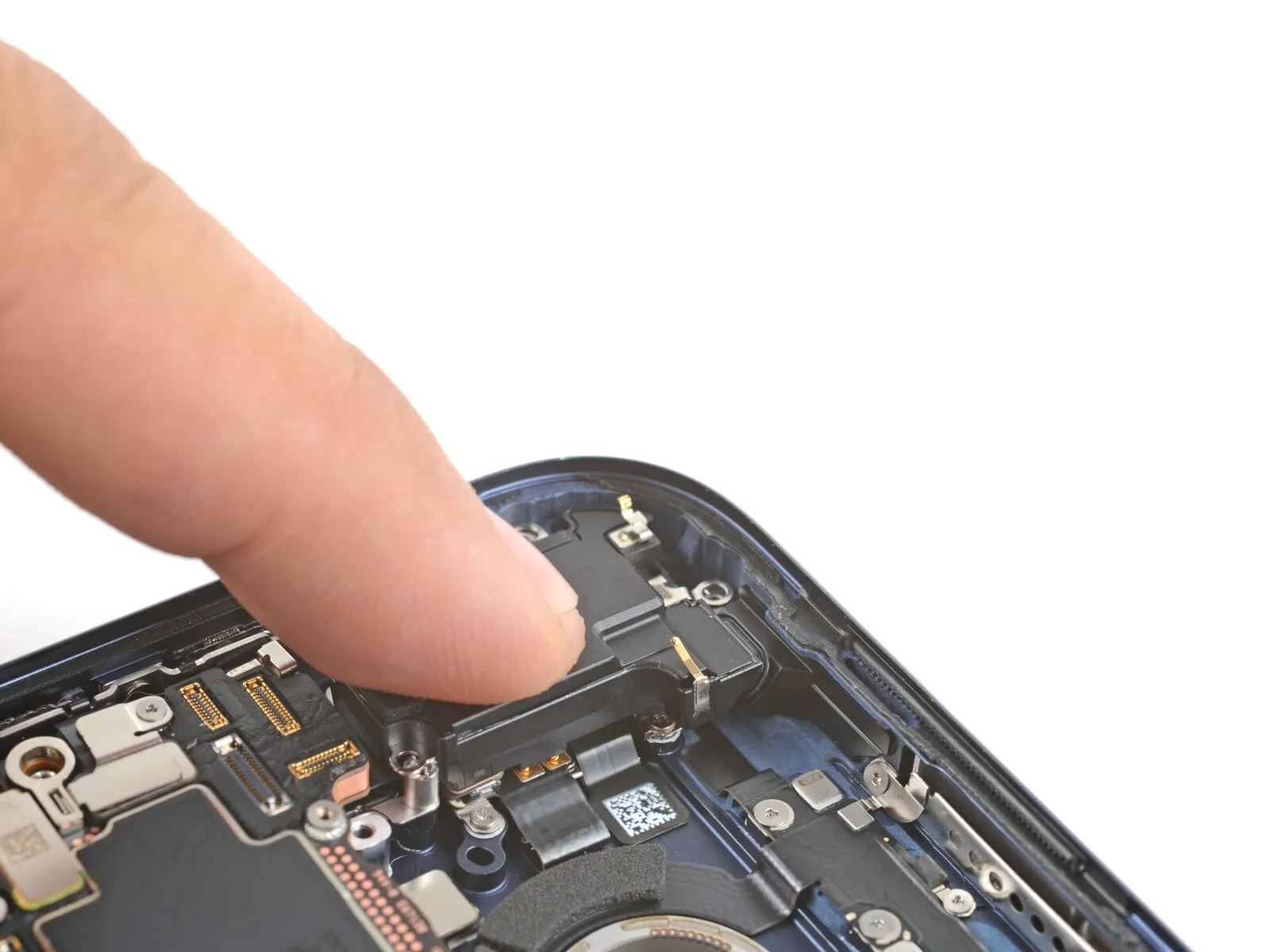

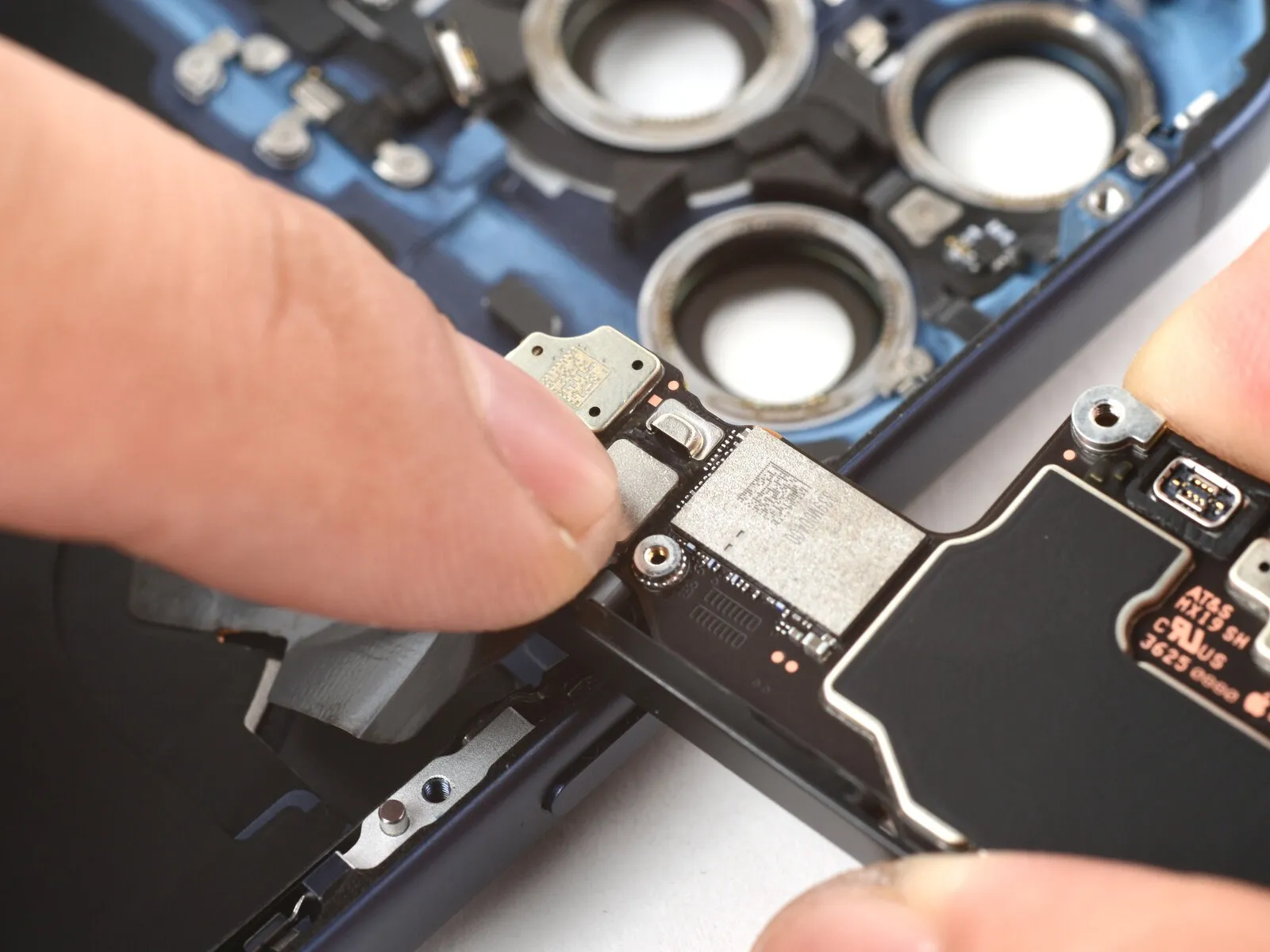

• Employ a fingertip to meticulously position and secure the mmWave antenna press connector.The mmWave antenna press connector must be precisely aligned before applying pressure.Ensure proper contact by applying even pressure with your finger to the mmWave antenna press connector against the logic board.

• Position the right extremity of the mmWave antenna connector cover.Secure the cover beneath the protruding edge situated adjacent to the fastener aperture.This placement ensures proper alignment and retention of the component.

• Employ a prying tool to secure the flexible connectors situated on the iPhone's left side, safeguarding them from becoming lodged beneath the main circuit board.The flex cables must remain free from obstruction during this process to avoid damage.
• Carefully lower the logic board, ensuring that no flexible connectors are pinched between the board and the device's casing on either the left or lower side.Verification of proper flex cable positioning is essential to guarantee correct functionality after reassembly.

• Employ a fingertip to establish a secure connection between the diminutive button connector and the logic board's left edge.Discontinue the procedure should resistance be encountered during connector alignment.
• The button cable's inherent curvature frequently obstructs its passage beneath the logic board.Elevate the logic board to release the cable's bend and permit reconnection.Following cable liberation, attempt the connection once more.This obstruction is a common occurrence during this repair process.

• Securely fasten six press connectors using manual finger pressure.

  • Position two connectors along the superior border of the logic board.
  • Affix a single connector to the remaining button board.
  • Connect two press connectors to the USB-C port assembly, stacking them vertically.
  • Ensure the power button connector is firmly attached.

• Ensure the superior boundary of the top speaker is precisely positioned relative to the iPhone's surface.

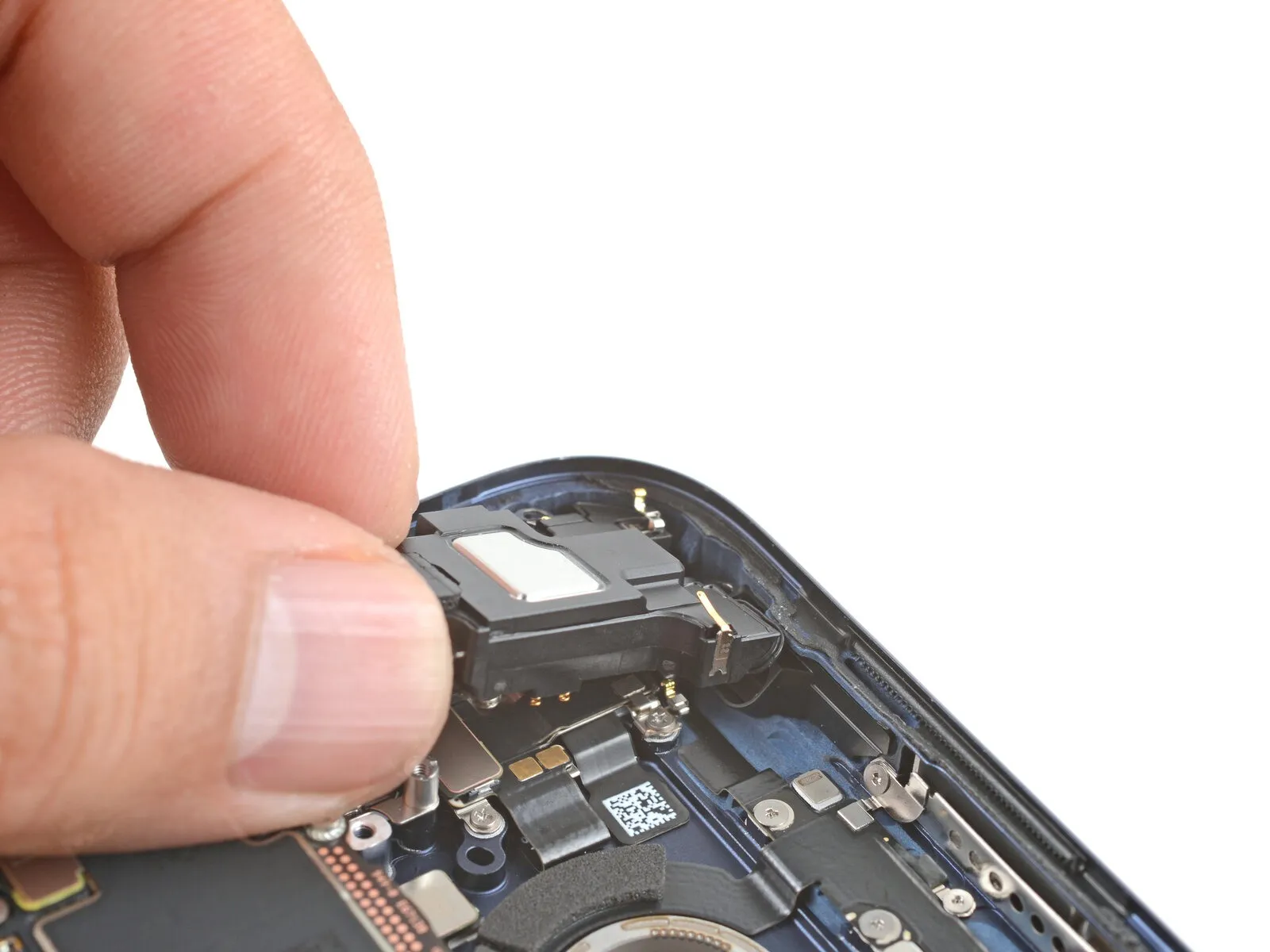

  Carefully seat the speaker within its designated cavity.

• Employ a JIS 00 screwdriver for the installation process.Secure the top speaker with three screws, each measuring 2.2 mm in length.The specified screwdriver type is essential for proper engagement with the screw heads.Ensure the screws are fully seated to prevent loosening or damage.Maintaining the correct screw length is vital to avoid speaker component interference.

• Employ manual pressure to ensure a secure physical connection between the two front camera assembly connectors.The two connectors for the front camera assembly must be joined using finger pressure.To establish a reliable electrical link, apply force with your fingers to the two front camera assembly connectors.

• To secure the camera connector cover, engage the small latch located at its corner with the corresponding receptacle on the logic board, ensuring it is properly seated.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for the installation process.Secure the front camera connector with a screw measuring precisely 1.0 millimeters in length.The Y000 tri-point screwdriver is essential for proper engagement with the screw head.Accurate screw length of 1.0 mm is critical for maintaining component alignment and preventing damage.Utilize the designated tri-point Y000 screwdriver to avoid stripping the screw head during installation.

Position the rear camera component within its designated cavity.

To establish a secure electrical connection, apply direct pressure with a fingertip to engage the three camera press connectors with the corresponding receptacles on the logic board.

Employ a Torx Plus 4IP screwdriver for the subsequent screw installations.Secure the components utilizing two screws, each measuring 4.0 millimeters in length.A single screw, extending 4.4 millimeters, is also required for this process.

• Proper alignment of each screw within its designated aperture is essential for correct assembly.
• The specified Torx Plus 4IP screwdriver is necessary to avoid damaging the screw heads during installation.

Careful positioning of the fasteners is vital to maintain structural integrity and prevent operational issues.

Employing tweezers, secure the rear camera connector cover's attachment to the logic board, ensuring proper alignment.The rear camera connector cover must be positioned correctly on the logic board using tweezers to guarantee a secure connection.To affix the rear camera connector cover to the logic board, utilize tweezers for precise placement and latching.

Employ a specialized tri-point screwdriver, specifically a Y000 type, for the installation process.Secure the camera connector cover with a screw measuring precisely 1.0 millimeters in length.This fastening utilizes a unique screw design necessitating the correct tool for proper engagement.

• Position the battery tray correctly within its designated area.
• Verify that no wiring harnesses or cables are pinched or obstructed beneath the battery tray's placement.

• Employ a Torx Plus 4IP screwdriver for the attachment of the battery tray's fasteners.
  • A single fastener, measuring 7.5 millimeters in length, is required.A solitary screw, with a length of 5.9 millimeters, is needed.
  • A single fastener, extending 3.4 millimeters, is necessary.One screw, possessing a 2.3-millimeter length, is also needed.
  • Nine screws, each 3.7 millimeters in length, are required for assembly.An additional screw, also measuring 3.7 millimeters, is included.
  • Certain iPhone variants, which incorporate a physical SIM card, lack this particular fastener.Secure the battery tray utilizing a specialized Torx Plus 4IP screwdriver.
  • The battery tray is affixed with a 7.5 mm screw.A 5.9 mm screw is also used to secure the tray.
  • A 3.4 mm screw is required for another attachment point.A 2.3 mm screw provides additional fastening.

• Models featuring a physical SIM card do not include this screw.

• Exercise caution near the delicate grounding clips during frame cleaning, as displacement can occur; if a clip is bent, restore its shape carefully with finger manipulation or tweezers.
• Employ tweezers or fingertips to detach sizable adhesive segments from the frame's edges.
• Employ a spudger to eliminate remaining adhesive traces from the frame surface.
• Should the adhesive prove difficult to remove, apply warmth via a hairdryer or heat gun and reattempt the removal process.

Employing a lint-free cloth or a coffee filter, meticulously remove adhesive remnants by wiping unidirectionally along the frame's edge.
Should the adhesive residue maintain a tacky texture, introduce a small quantity of isopropyl alcohol to the cleaning cloth and repeat the wiping process.
Careful execution is crucial during this step; a thoroughly cleaned frame facilitates the even application of replacement adhesive, which is essential for a robust bond.

To facilitate adhesion when reinstalling a display, utilize a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and meticulously clean the screen's edges.

• Prior to removing any protective films, position the adhesive layer onto the frame to establish the correct alignment.
  Employ elements like the camera aperture and indentations situated on the superior and inferior borders to assess the adhesive's placement within the frame.

• To reveal a portion of the adhesive, carefully lift the corner tab of the adhesive sheet's backing and remove a third of the liner.
• Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness; prevent unintended contact with surfaces until application to the frame is prepared.
• In instances where the adhesive incorporates several liners, remove only the topmost liner to expose the surface intended for bonding to the frame.

• Because the adhesive bonds immediately upon contact, adjustments are impossible; any misplacement necessitates complete removal and replacement with fresh adhesive material.
• Precisely match the visible perimeter of the adhesive strip to the matching boundary on the iPhone's structural frame, exercising caution during placement.
• After achieving proper alignment, apply a light, even pressure to secure the exposed adhesive strip to the device's frame.

• Carefully remove the adhesive backing, ensuring firm contact between the adhesive and the surface.
• Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.
• To correct minor misalignments, delicately reposition the longer sides of the adhesive relative to the frame.
• Should creases or wrinkles appear in the adhesive, discard it and apply a new set for optimal results.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used, understanding that its water resistance will be diminished until the adhesive is properly replaced.

• Employ a spudger to apply pressure to the adhesive sealant encompassing the complete edge of the iPhone's housing.Exercise caution to avoid damaging the delicate grounding clips during this process; should one become displaced, carefully reposition it using your fingers or tweezers.Excessive force should be avoided to prevent distortion or over-extension of the adhesive layer.
• The adhesive's integrity is maintained by applying measured pressure with the spudger around the iPhone's circumference.
• Grounding clip misalignment can occur, necessitating a gentle realignment with fingertip or tweezer manipulation.

Detach the extensive front adhesive liner by grasping the designated pull tab, typically situated within a corner of the liner's structure.

• Remaining liners will persist along the device's edges at this stage of the process.
• Defer removal of these protective liners, as their presence inhibits premature adhesive bonding during iPhone reassembly.

Position the iPhone display adjacent to the frame, ensuring sufficient cable slack to connect to the logic board.

Employing either a fingertip or the planar edge of a spudger tool, establish a secure physical connection between the two screen connectors and the logic board.Avoid applying excessive pressure when aligning the connectors with their corresponding sockets.Should initial attempts at connection prove unsuccessful, slightly adjust the connector's position and reattempt the process.

• The connectors must be properly aligned to ensure a reliable electrical pathway.
• Forcing the connectors can result in damage to the delicate pins on either the connector or the logic board.

Employ either a fingertip or the planar edge of a spudger tool to establish a secure physical connection between the battery connector and the logic board.Ensure the battery connector is firmly seated against the logic board by applying pressure with a finger or a spudger's flat end.To join the battery connector with the logic board, apply pressure using a finger or the broad, flat surface of a spudger.

• Prior to finalizing the enclosure, it's advisable to verify the functionality of the repair by activating the iPhone and confirming its expected operation.
• Following the verification process, deactivate the device and proceed with the remaining assembly steps.
• Should the iPhone fail to energize, establish a connection to a power supply and attempt to initiate it once more.

• Carefully slide the upper border of the battery connector cover beneath the designated edge.
• Verify that each of the two tabs is securely positioned beneath the lip.
• Position the cover precisely using the screw aperture as a guide, then set it down.

• Employ a JIS 00 screwdriver for the installation of the screw.The screw utilized for securing the battery connector cover measures 1.2 mm in length.To fasten the battery connector cover, a JIS 00 screwdriver is required.A 1.2 mm screw provides the necessary fastening for the battery connector cover.Installation of the battery connector cover necessitates the use of a JIS 00 screwdriver and a 1.2 mm screw.

1. Carefully slide the left side of the screen connector cover beneath the designated notch.
   Position the cover precisely using the screw aperture as a guide, then set it down into its intended location.

• Employ a JIS 00 screwdriver for the installation process.A 1.2 mm screw length is required for proper fastening.The screen connector cover necessitates secure attachment.Utilize the screwdriver to engage the screw head.This screw's dimensions are critical for maintaining the cover's stability.

1. Maintain the display panel's stability by securing it with one hand.
   Employing either your fingertips or a spudger, carefully separate the perimeter liners to reveal the underlying adhesive.
   Prevent any contact with the newly exposed adhesive to avoid contamination.
   Thoroughly inspect the internal components, eliminating any remaining liners to guarantee their complete absence.

1. Position the display assembly onto the chassis, initiating the alignment process from the uppermost border.
   Should you encounter opposition during placement, a surrounding retaining clip might be deformed and undergoing compression by the chassis; carefully examine the area of obstruction and delicately restore any bent clips to their original shape.
   Verify that the display's perimeter isn't compressing any flexible circuits.
   Apply even pressure across the iPhone's borders to ensure the display rests uniformly against the chassis.

Apply warmth around the display's edges utilizing a hair dryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch to loosen the adhesive.This thermal application facilitates adhesive softening and promotes a more secure reattachment of the screen.

• Employ a P2 pentalobe screwdriver for the installation process.Secure the two screws, each measuring 7.5 mm in length.Position these fasteners on both lateral aspects of the charging port.Properly aligning the screws is essential for a secure connection.
