iPhone 16e Loudspeaker Replacement

• To optimize battery health, permit the battery's charge level to descend below a 25% threshold.A fully charged lithium-ion battery presents a possible safety risk and should be handled with caution.Disconnect all connected cables from the device before proceeding.
• Initiate the power-off sequence by pressing and maintaining the power button alongside either volume button, subsequently sliding to confirm.
• This action will properly shut down the phone's operating system.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
• Ensure a sufficiently sized, uninterrupted section exists close to the lower perimeter, allowing for secure adhesion of a suction cup.

Employ a pentalobe P2 screwdriver for the disassembly process.The required tool is a pentalobe P2 screwdriver, specifically.Two screws, each measuring 7.8 millimeters in length, secure the component.Locate the two fasteners, each with a length of 7.8 mm, positioned adjacent to the charging port.Removal of the screws flanking the charging port necessitates the use of a pentalobe P2 screwdriver.

• Excessive insertion of a pick can potentially harm the device's internal components.
• To mitigate the risk of damage, implement the following procedure to identify your pick.
• Using a measuring tool, determine a distance of3 mmfrom the pick's distal end and apply a permanent marker to create a visible indicator.
• For enhanced differentiation, consider marking the pick's other corners with varying measurement distances.
• As an alternative method, affix a coin to the pick's tip, ensuring a separation of precisely 3 mm.

• Utilize a heated iOpener on the lower perimeter of the rear glass panel, maintaining application for 90 seconds.As an alternative method, a hair dryer or heat gun can be employed to warm the lower edge of the back glass until it reaches a warm surface temperature.Exercise caution to prevent overheating the device, as the battery is vulnerable to thermal degradation.
• Prolonged exposure to excessive heat poses a risk of damage to the battery's internal components.
• The recommended heating duration and temperature are critical to avoid compromising the battery's structural integrity.

• Securely attach a suction cup to the lower border of the rear glass panel.
• Exert a consistent and considerable upward pull on the suction cup to generate separation between the rear glass and the device's frame.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

Carefully separate the adhesive holding the rear glass in place during the subsequent procedures, ensuring the tool does not penetrate beyond a depth of 3 millimeters to prevent potential harm.

• A sensitive connector linking the rear glass assembly to the device's internal components is situated near the volume increase button.
• Numerous resilient electrical connectors are positioned along the device's outer edges.

Using a specialized opening pick, carefully disengage the adhesive securing the rear glass by inserting it along the lower edge.
Maintain the position of the opening pick close to the lower-left corner to facilitate separation.

• Utilize a heated iOpener on the left side of the rear glass panel, maintaining heat for a duration of 90 seconds.To facilitate separation, elevate the temperature of the back glass with a hair dryer or heat gun until it reaches a surface temperature that is comfortable to touch.The application of heat softens the adhesive securing the back glass, easing its removal.
• Consistent and even heat distribution is crucial to prevent damage to the device's internal components during this process.

Employ a specialized opening pick, pivoting it near the lower-left area, then gliding it along the left side to detach the adhesive bond and disengage the metallic fasteners.
Audible and tactile confirmation of the metal clip disengagement will occur during their passage.
Maintain the opening pick's position in close proximity to the upper-left region.

• Utilize a heated iOpener, directing its application to the right side of the rear glass panel for a duration of 90 seconds.To facilitate separation, a hair dryer or heat gun can be employed, ensuring focused heat application.
• The rear glass assembly should be warmed to a temperature that registers as hot upon contact.Heat should be consistently directed towards the back glass surface.A period of 90 seconds of heat application with the iOpener is required for optimal results.

• To prevent harm to the concealed wiring, ensure the tool's insertion depth remains no greater than 3 millimeters.Care must be taken to prevent damage to the internal cable during this process.
• Employ the opening pick, rotating itPosition the opening pick near the upper right corner, then move it along the right side to detach the remaining adhesive and the metal clip.The detachment of the metal clip will be indicated by both an audible click and a tactile sensation as the pick passes.
  A distinct release of the metal clip will be noticeable through both sound and feel during the pick's movement.

• Ensure the adhesive securing the rear glass has fully detached.Employ an opening pick to maneuver around the perimeter of the back glass, releasing any residual adhesive if separation is incomplete.The opening pick serves to mechanically break the bond between the adhesive and both surfaces.Carefully pivot the back glass away from the device's body, positioning it vertically against a stable and sanitized surface.
• Maintaining the upright posture of the back glass prevents damage and facilitates subsequent repair steps.

Employ a tri-point screwdriver, specifically a Y000 type, to detach the lower connector cover.The lower connector cover is fastened with two screws, each measuring 1.3 millimeters in length.Removal of these screws necessitates the use of the designated tri-point Y000 screwdriver.

• Employ tweezers or manual dexterity to elevate the lower connector cover, subsequently sliding it upwards along the device's chassis to disengage it from the securing metal clip.The lower connector cover's detachment from the metal clip is achieved through this upward sliding motion.Following the release from the clip, proceed to remove the lower connector cover.This component's removal is essential for accessing underlying components.
• Ensure the cover is fully disengaged before attempting to lift it.Carefully manipulate the cover to avoid damage to the retaining clip during the removal process.

• Employ the tip of a spudger to carefully lift and detach the battery press connector.Disconnect the battery press connector by leveraging the pointed end of a spudger to gently separate it.

• Employ a specialized tri-point screwdriver, specifically a Y000 type, to detach the fastener.The screw, measuring 1.0 millimeters in length, holds the central connector cover in place.Carefully unscrew the fastener to release the connector cover.A Y000 tri-point screwdriver is essential for accessing the screw securing the middle connector cover.

• The central connector cover is secured by two metallic fasteners positioned above and below.
  Employthe tip of a spudger to gently disengage the middle connector cover, directing it downward to free the retaining clips.
• Utilizetweezers or manual dexterity to extract the cover.The cover's release is achieved by manipulating it away from the securing clips.Carefully detach the component to avoid damage to surrounding elements.

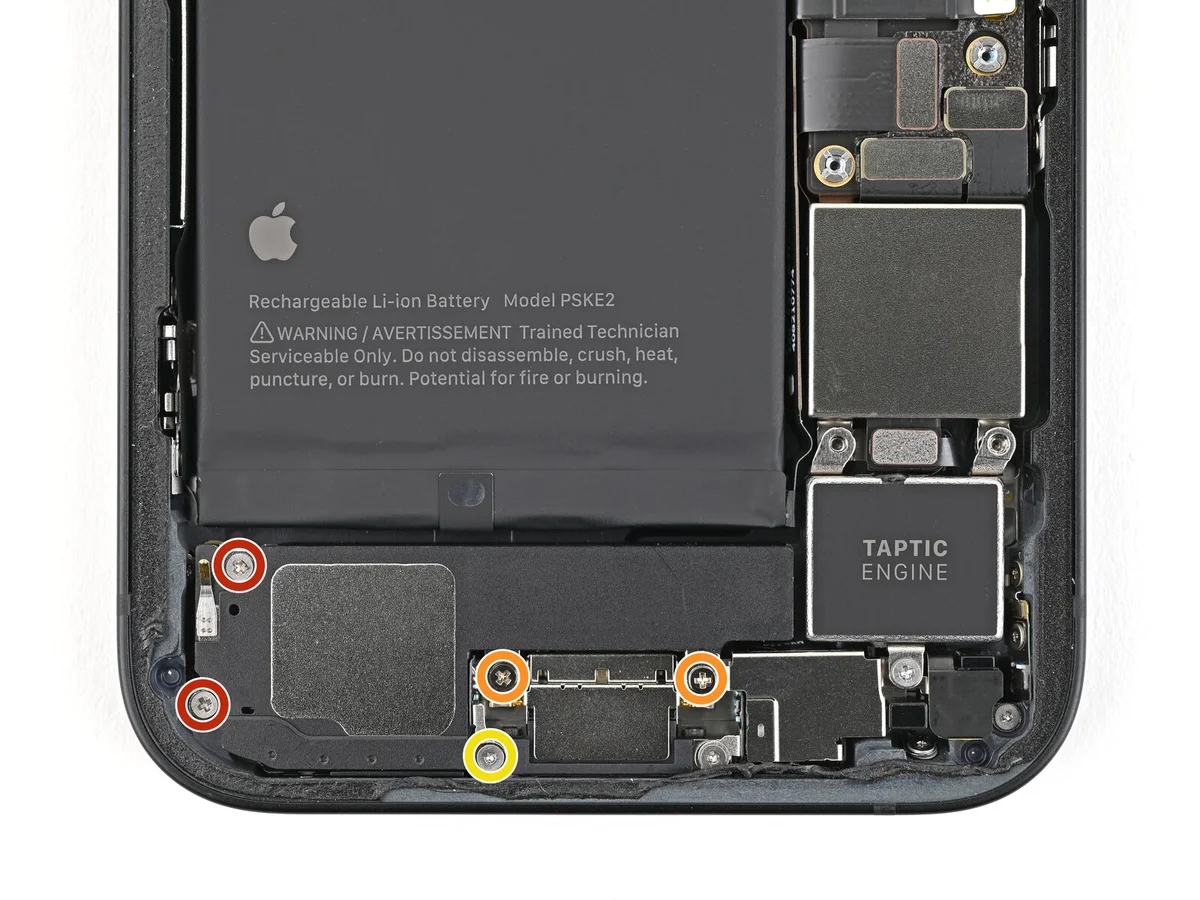

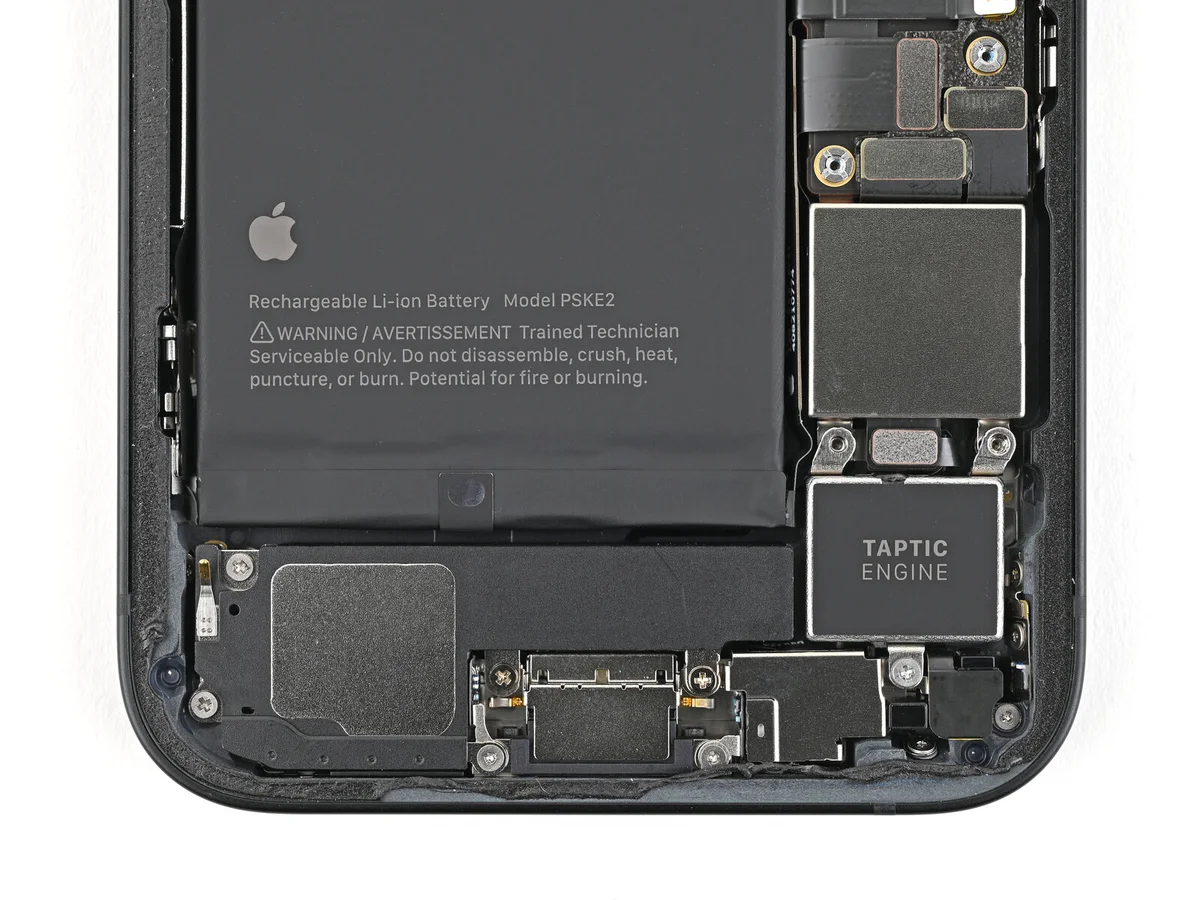

• Employ a Phillips screwdriver for the task of detaching the four screws that hold the loudspeaker in place.The loudspeaker is fastened with two screws, each measuring 1.4 millimeters in length.Additionally, two screws are used, and these are each 1.7 millimeters long.
• A tri-point Y000 screwdriver is required to unscrew the next fastener.
• The subsequent screw, measuring 1.3 millimeters in length, must be removed using the specialized screwdriver.

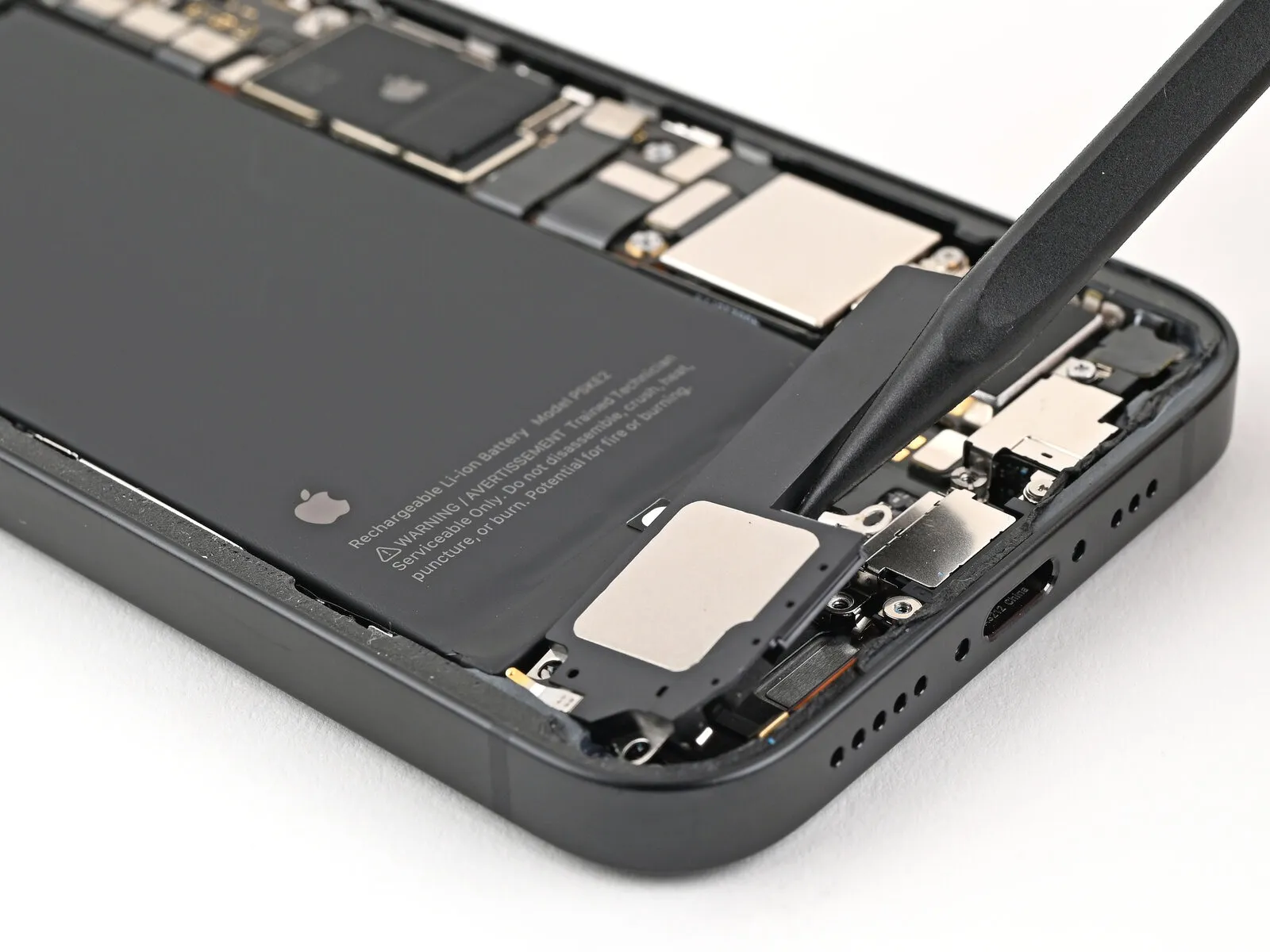

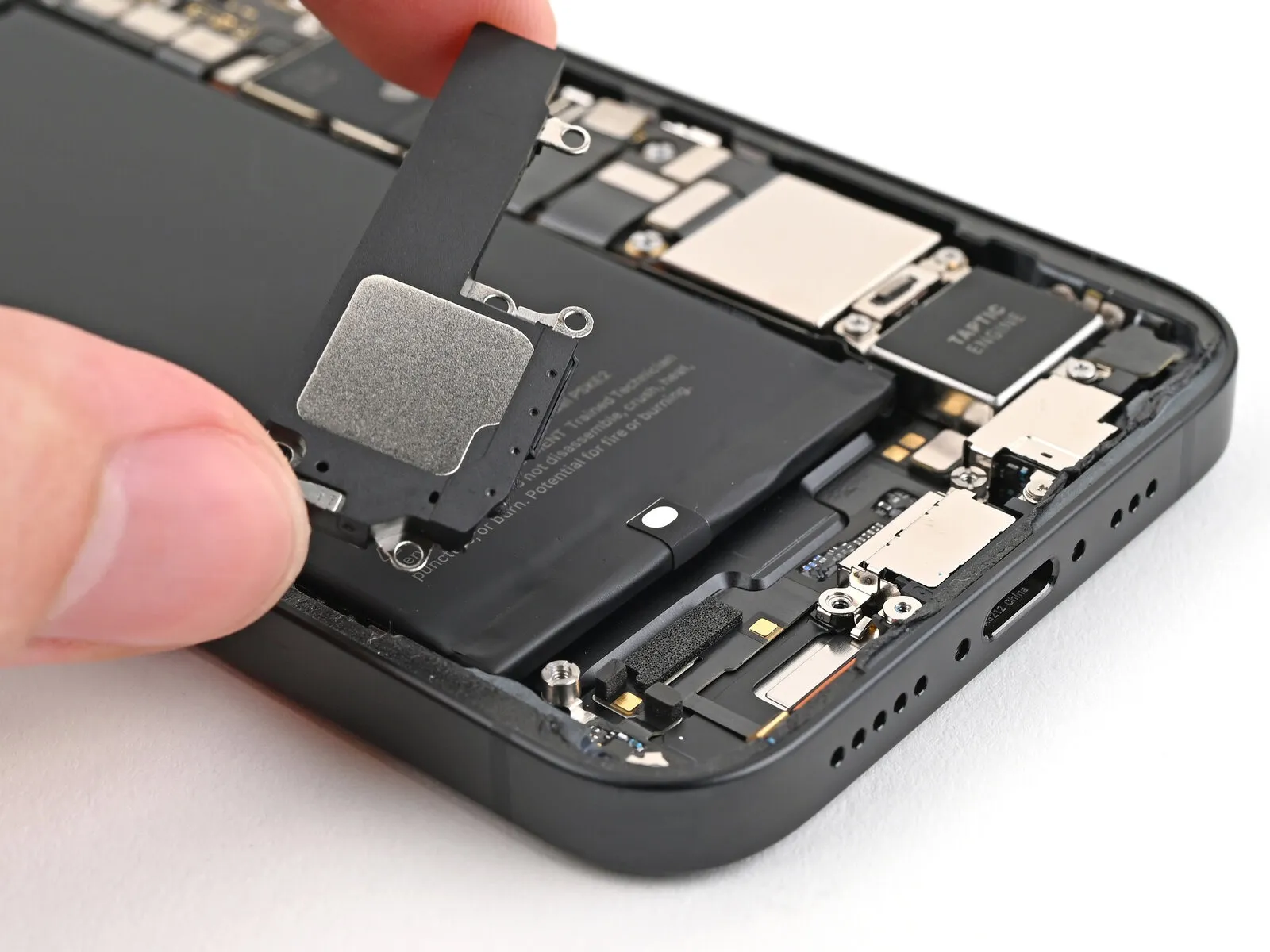

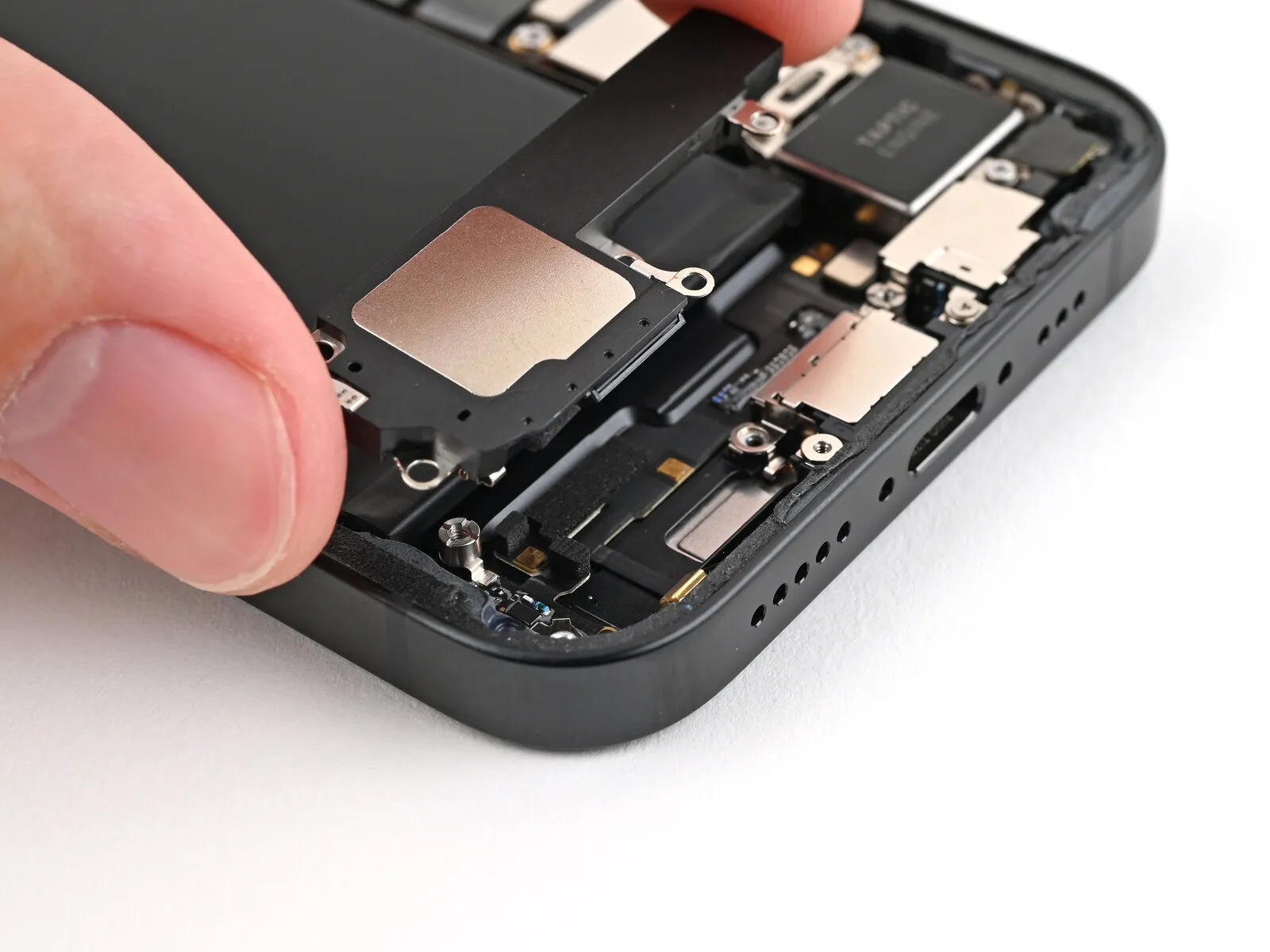

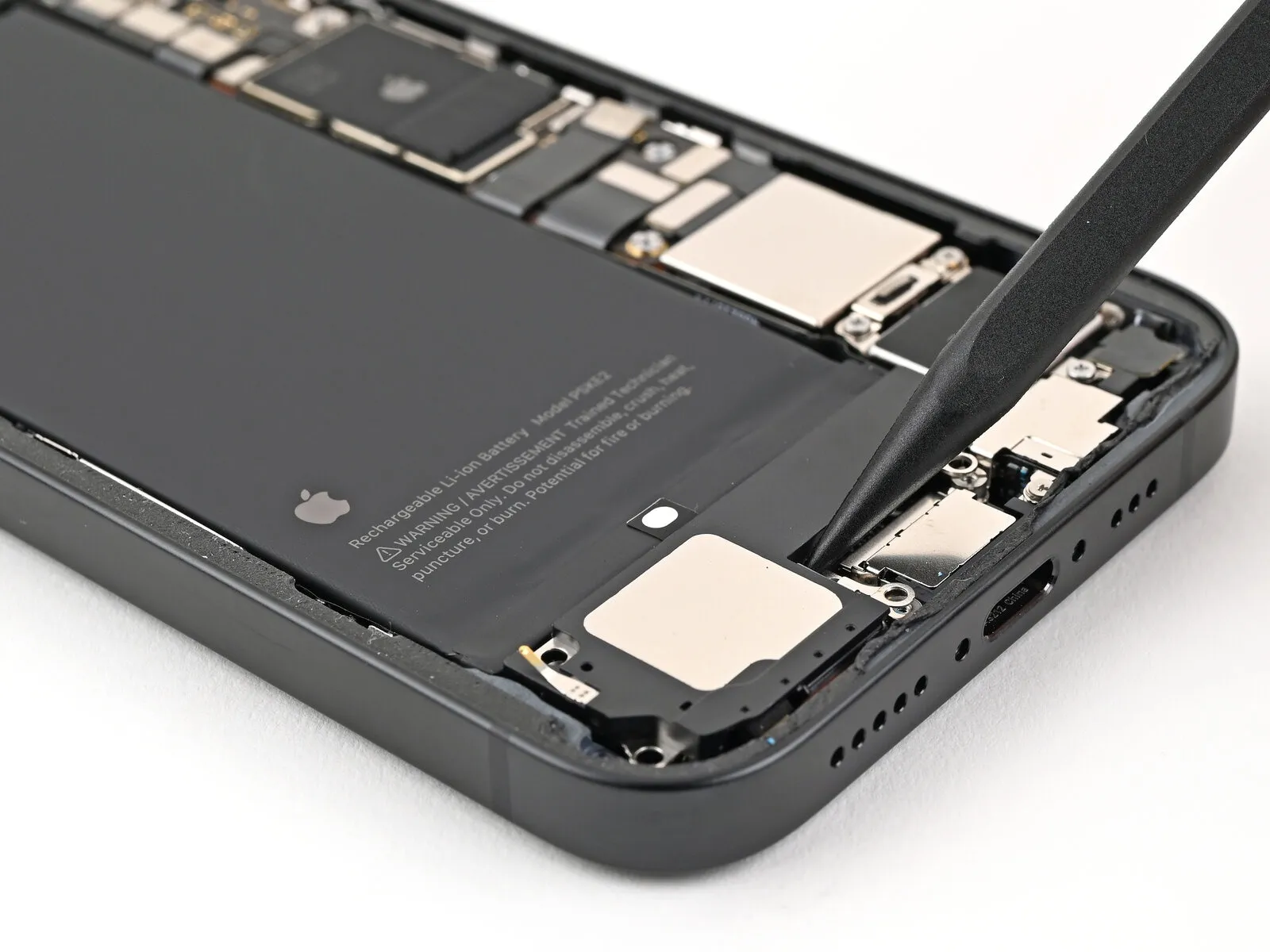

• The removal of the screws is necessary to proceed with the repair.Ensure the correct screwdriver type is used to avoid damaging the screw heads.Carefully unscrew each fastener, noting their positions for reassembly.The loudspeaker's attachment is maintained solely by these screws.Proper screwdriver selection is critical for successful component separation.

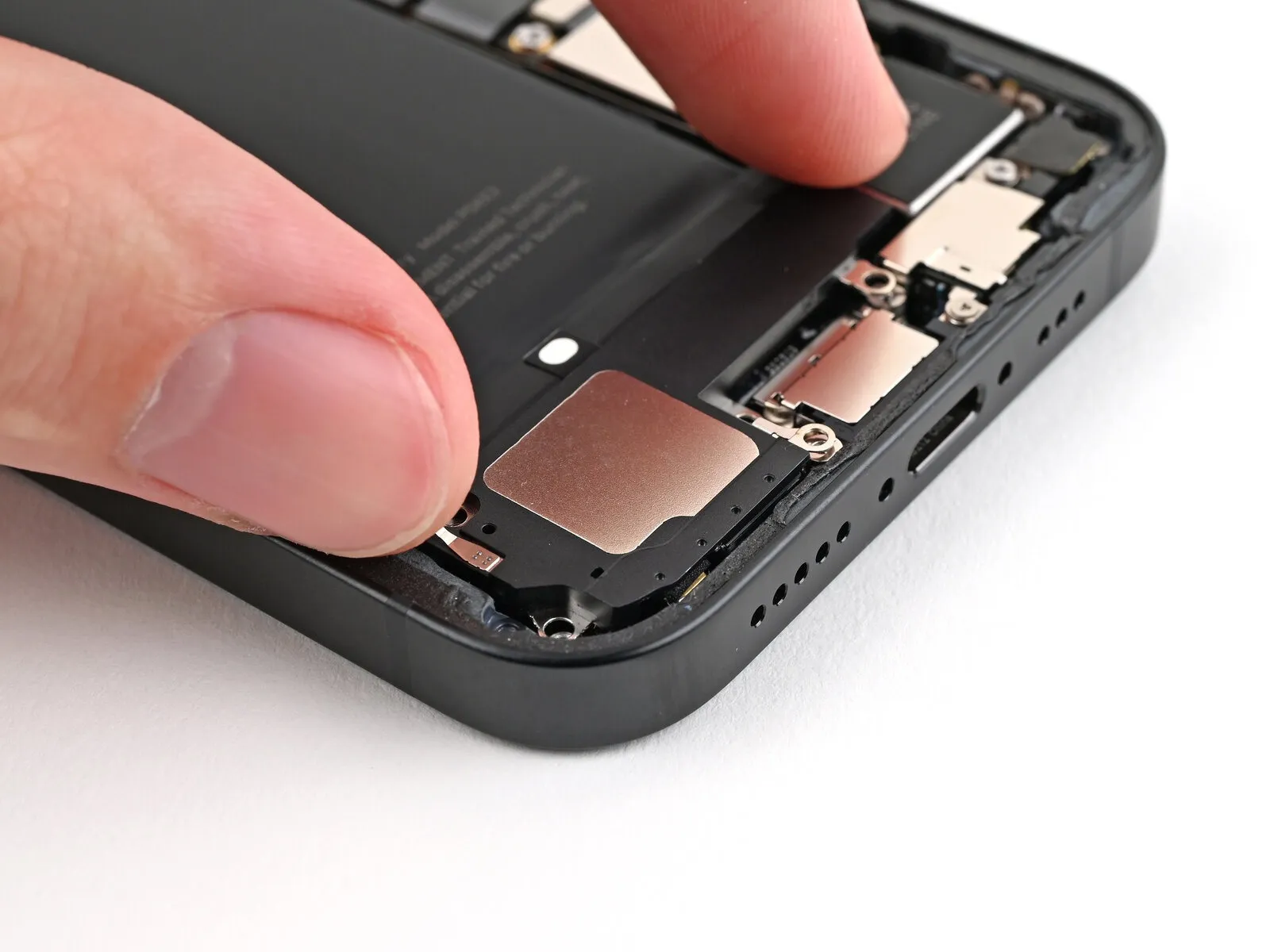

• Employ a Phillips screwdriver for the installation of the four screws that hold the loudspeaker in place.
• Secure the component with two screws, each measuring 1.4 millimeters in length.
• Additionally, utilize two screws, each possessing a length of 1.7 millimeters.
• A tri-point Y000 screwdriver is required to fasten the subsequent screw.The screw in question has a length of 1.3 millimeters.This concludes the procedure.

• Employing tweezers is necessary for extracting the adhesive sealant that borders the frame's edges.Prior to grasping the adhesive with tweezers, it might be required to gather it into a concentrated mass using the tip of a spudger.A spudger's pointed end can be utilized to manipulate the adhesive into a more accessible form.
• To eliminate any remaining adhesive traces, apply a coffee filter or a lint-free cloth saturated with isopropyl alcohol exceeding 90% concentration.High-concentration isopropyl alcohol, greater than 90%, is essential for effective adhesive residue removal.Thoroughly clean the frame's surface using a coffee filter or a lint-free cloth and the specified isopropyl alcohol.
• The adhesive surrounding the frame's boundary must be carefully removed with tweezers.

• Position the new adhesive onto the frame, ensuring the wider blue protective liner faces inward and the release tab is situated in the lower-right area.
• Variations in liner color and pull tab placement are possible among different adhesive replacements.
• Employ existing frame details, like the camera aperture and edge indentations, to guide the adhesive's proper alignment within the frame.

After applying pressure to secure the adhesive, any adjustments are impossible; complete removal and replacement with fresh adhesive will be necessary.
Initiate the peeling process of the adhesive's backing liner from the bottom edge using the provided pull tab, but avoid complete removal.
Maintain the blue liner aside while carefully positioning the adhesive so that it corresponds with the iPhone's lower boundary.
Ensure proper alignment of the iPhone’s spring contacts with the liner’s openings by seating the adhesive’s lower edge within its designated frame recess.

• Gradually remove the protective liner from the adhesive backing, ensuring firm contact with the iPhone's frame edges as you apply it.
• Proper alignment of the adhesive's lower edge will result in automatic positioning of the side and top edges; if misalignment occurs, discard the adhesive and reapply a fresh set.
• Should a replacement adhesive set be unavailable, the iPhone can be reassembled and used temporarily without adhesive; however, be aware that water resistance will be diminished until new adhesive is installed.

• Following the charging coil connection, proceed to engage the battery press connector.A robust object is required to maintain the rear glass's position during this procedure.The purpose of the spudger's flat end is to facilitate secure electrical contact with the connectors.
• Successful completion necessitates careful alignment and pressure application to both the charging coil and battery connectors.

• Proper alignment is achieved when both metal clips are fully seated within their corresponding locations on the logic board.

• The lower connector cover should be situated atop the press connector to facilitate proper engagement.

• The installation of these screws necessitates the continued use of the tri-point Y000 screwdriver.Properly securing these fasteners is essential for maintaining the structural integrity of the assembly.Ensure the screws are tightened adequately to prevent loosening during operation.

• Employing tweezers provides a secure method for grasping the protruding tabs located on each of the three blue adhesive liners, facilitating their removal to reveal the underlying adhesive.The adhesive backing will be exposed by carefully separating the blue liners.To ensure a clean separation along the right edge, it might be necessary to support the rear glass, preventing contact with the frame, while the liner is being peeled.
• Maintaining this separation prevents the liner from adhering to the frame during removal.

Position the replacement back glass over the device's body, ensuring its edges match the surrounding frame.

• Position the rear glass flat against the device frame, applying pressure to secure it with the retaining clips.
• Ensure all clips are properly fastened by applying even pressure across the entire circumference of the rear glass.

Facilitate the adhesive's adherence by warming the back glass's edges with an iOpener, hairdryer, or heat gun, ensuring a warm surface temperature.Apply consistent pressure along the entire outer edge of the rear glass component to promote adhesion.Employing screen vise clamps will enhance the newly applied adhesive's bond strength; otherwise, proceed to alternative securing methods.

Further methods for maintaining the back glass's secure attachment are detailed in the subsequent instructions.

• Achieving uniform pressure across the iPhone’s rear glass and ensuring a secure adhesion to the chassis necessitates consideration of the camera module's protrusion.
• Should the iPhone's original packaging be available, utilize the box lid and position it on a level work area.
• In the absence of the original packaging, proceed to an alternative compression technique, bypassing this initial step.
• Position the iPhone, with the display facing upwards, within the box lid, ensuring the camera bump aligns with the designated indentation.
• Locate an object with a height exceeding the box's sidewalls but approximating the iPhone's width; subsequently, place this object atop the iPhone, followed by several substantial weights.
• Maintain the applied pressure for a minimum of thirty minutes; reduce this timeframe proportionally to the weight of the applied objects, with overnight compression being the preferred duration.

• Lacking the iPhone's original packaging, proceed with the subsequent three actions to achieve uniform compression of the rear glass panel.
• Position the iPhone on a level, cushioned surface, ensuring the display faces downward.
• Secure the rear glass with adhesive tape to safeguard its cosmetic appearance.

• Position a single layer of coins, or alternative items possessing comparable thickness, onto the adhesive tape situated along the perimeter of the rear glass.
• The required number of coin layers may vary, contingent upon the coins' individual thickness.
• Ensure uniform coin placement and a minimum thickness equivalent to the camera module's protrusion.

• To apply downward pressure for screen realignment, position several books or a similar substantial weight on top of the iPhone's chassis.
• Because coins can potentially mark the surface beneath them, avoid placing the iPhone on delicate or valuable materials during this process.
• Maintain the applied pressure for a minimum of thirty minutes; if the weighting objects are less dense, extend the duration, with an overnight period being the optimal timeframe.

• Employ a P2 pentalobe screwdriver for the installation process.The required tool is a P2 pentalobe screwdriver.Two screws, each measuring 7.8 millimeters in length, must be affixed.Secure the two 7.8 mm screws to the device's chassis.Position the screws on both lateral aspects of the charging port.
