iPhone 16e Chip ID

Images of the circuit board were captured utilizing a United States-based iPhone 16e device.

  • A comprehensive disassembly analysis of the iPhone 16e is available for further examination.

Appreciation is extended to community participant Chunglin Chin.Chunglin Chin's contributions were instrumental in the creation of this guide.This resource acknowledges the assistance provided by Chunglin Chin.

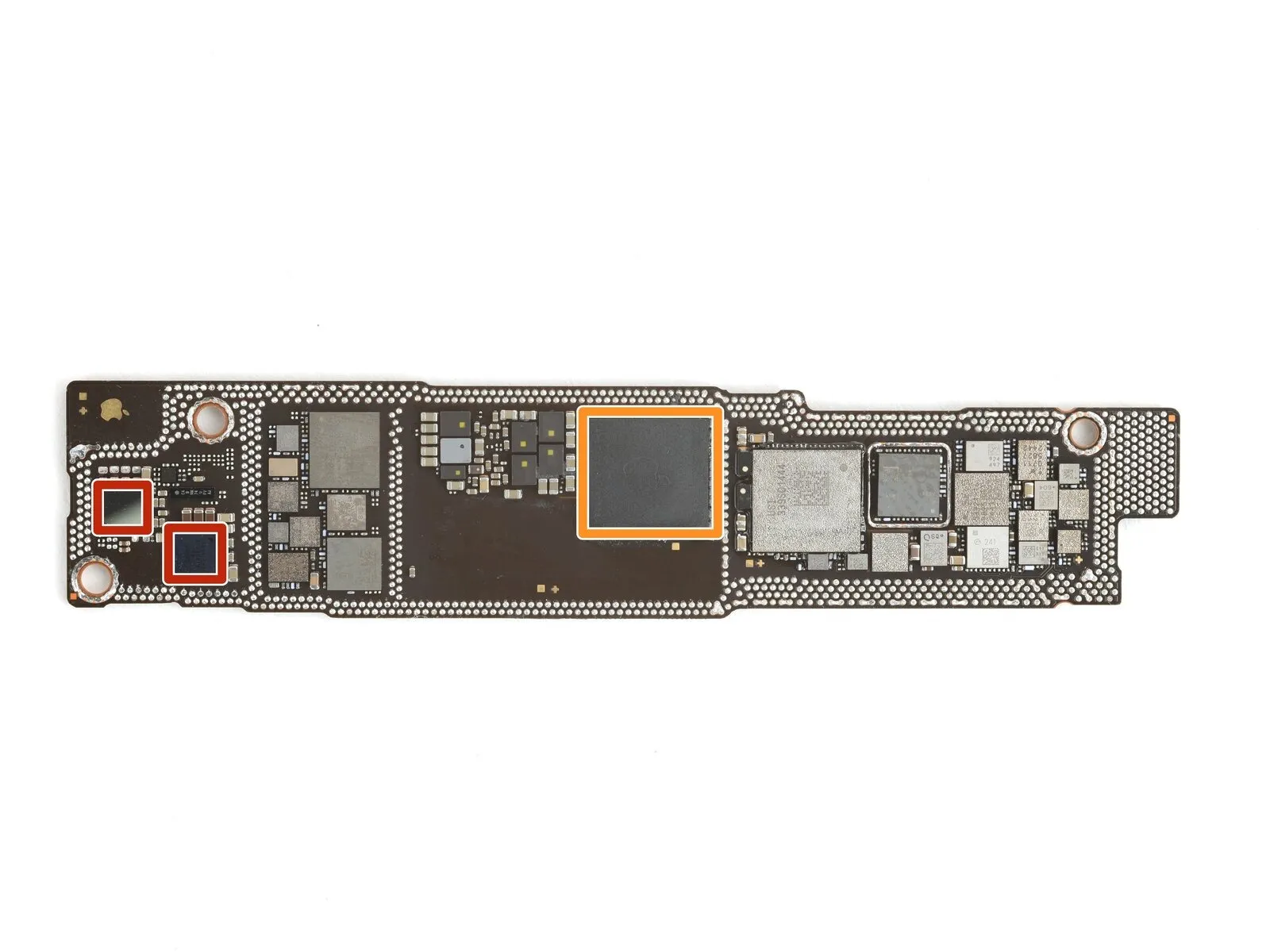

Step 1 | RF Board Bottom

Step 1 image
Thumbnail 1
Thumbnail 2

Substitute the Cirrus Logic 338S00537 audio amplifier component.The designated audio amplifier, identified as Cirrus Logic 338S00537, requires replacement.Perform a substitution of the audio amplifier, specifically the Cirrus Logic model 338S00537.

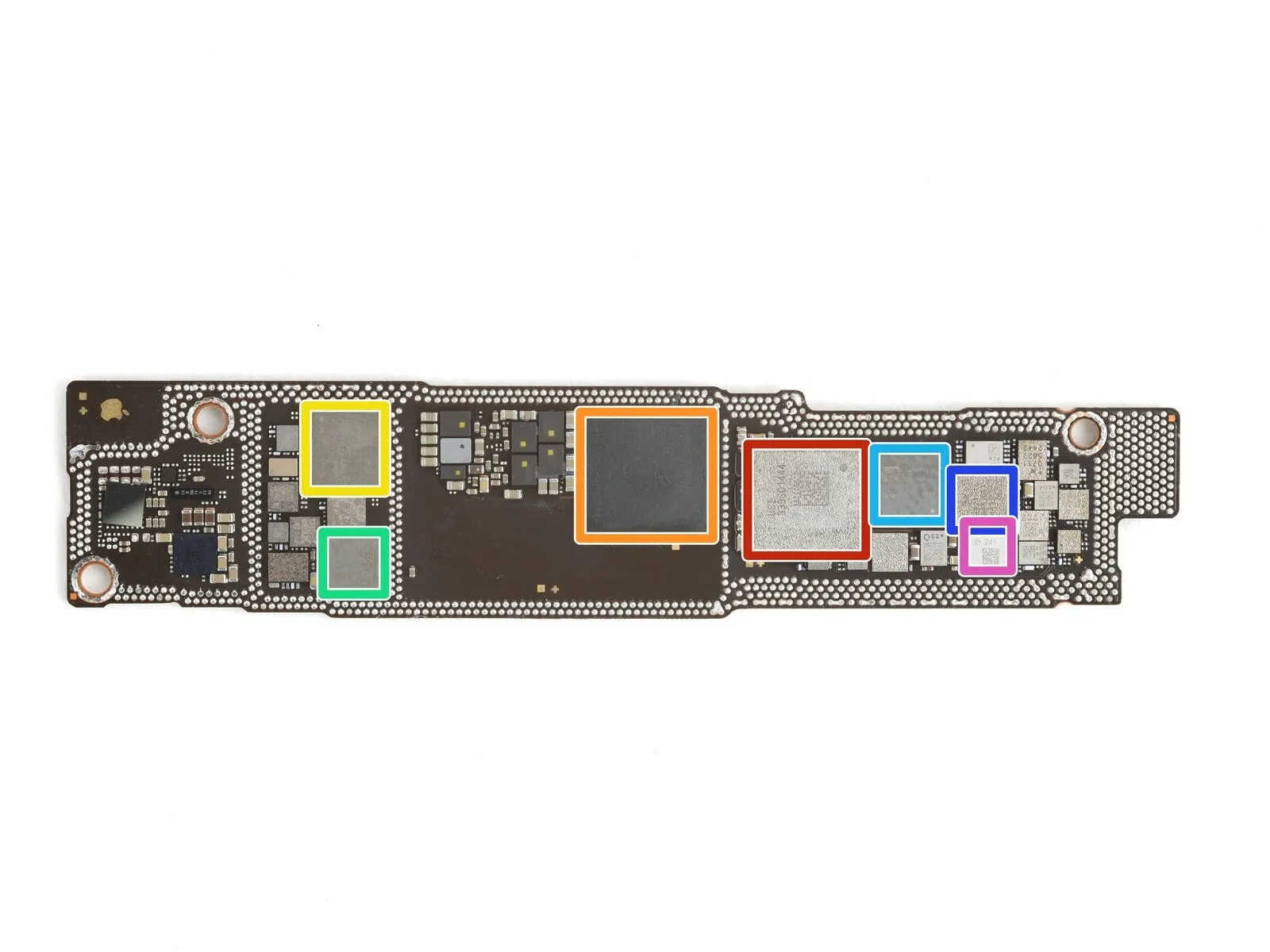

Step 2 | RF Board Bottom - Connectivity

Step 2 image
  • Substitute the USI 339S01444 component, which handles WiFi and Bluetooth functionality.The Apple APL1114/337S07030, responsible for 5G cellular connectivity, requires replacement.A necessary component swap involves the Broadcom AFEM-8254 front-end module.
  • The Broadcom AFEM-8255 front-end module also needs to be exchanged.
  • Ensure the Broadcom AFEM-8264 front-end module is replaced as part of this procedure.
  • The Skyworks SKY53921-16 front-end module must be substituted to restore functionality.
  • Include the Murata front-end module in the replacement process.
  • These modules are critical for maintaining wireless communication capabilities.
  • Carefully handle these components during the repair to avoid damage.

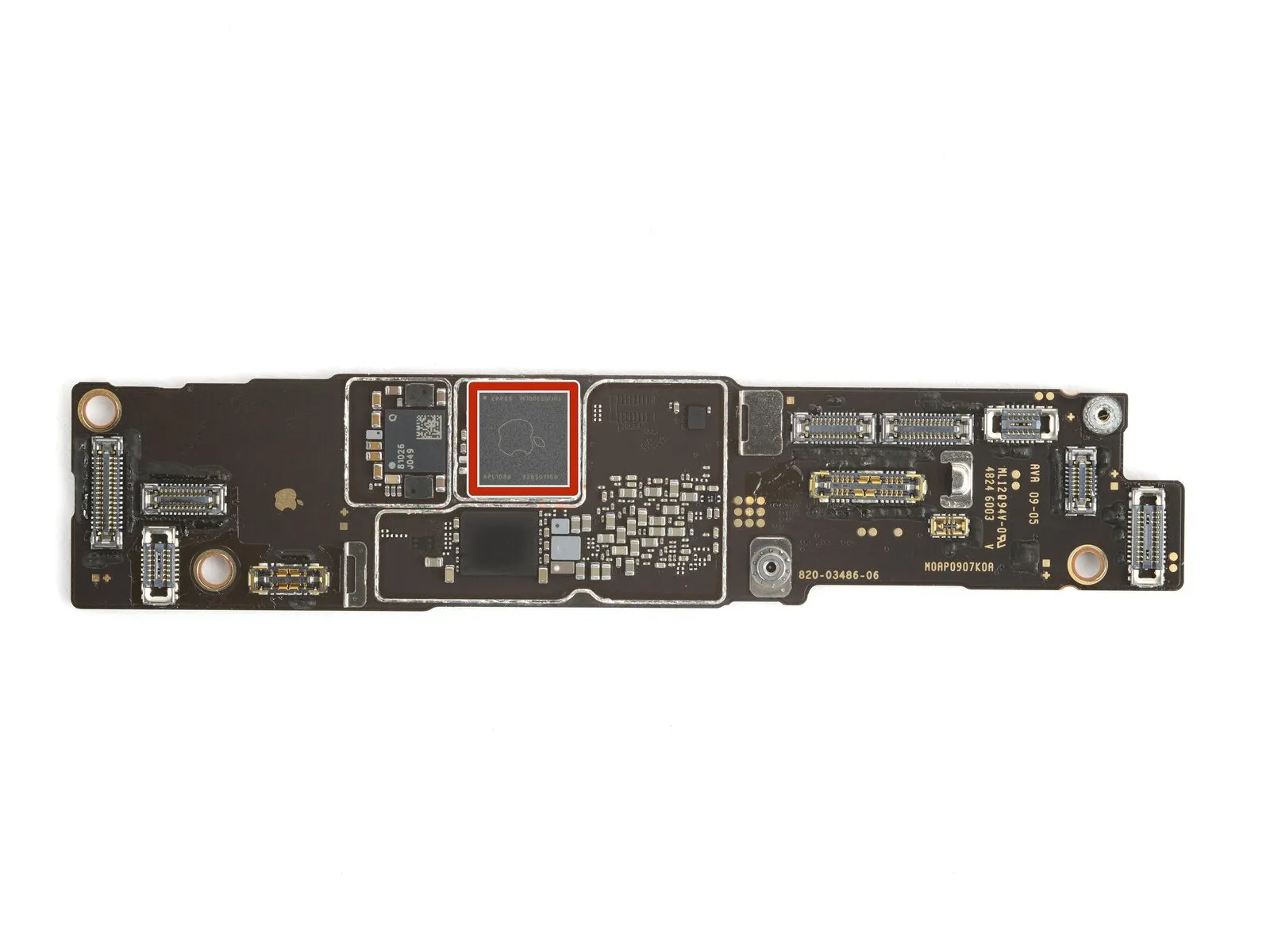

Step 3 | RF Board Top - Connectivity

Step 3 image

To resolve certain connectivity issues, a substitution of the Apple APL1088/338S01150 radio frequency transceiver is necessary.The affected component, identified as the Apple APL1088/338S01150 RF transceiver, should be replaced to restore proper functionality.Ensure the replacement of the Apple APL1088/338S01150 RF transceiver is performed accurately to maintain device integrity.

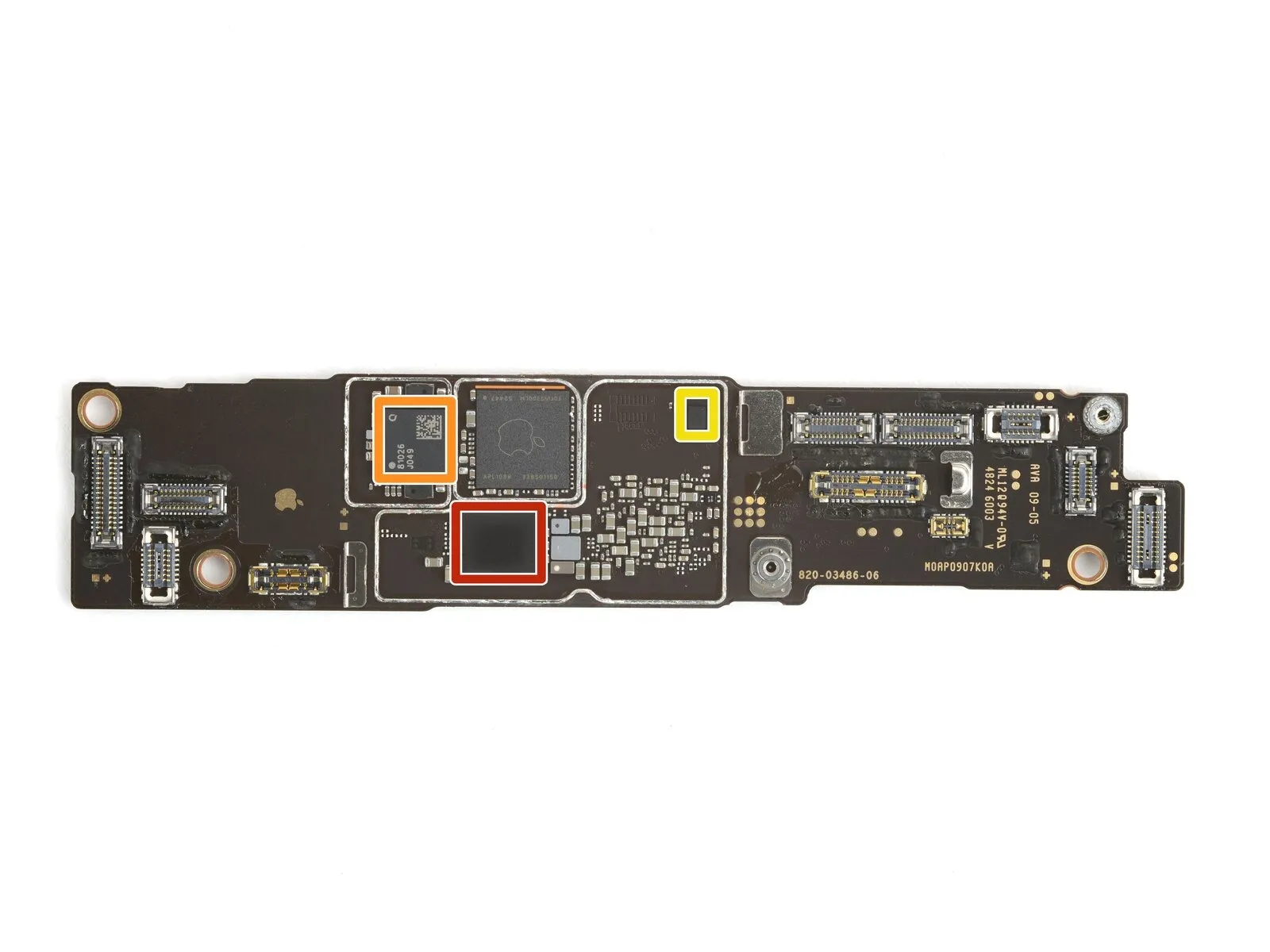

Step 4 | RF Board Top

Step 4 image
Thumbnail 1
Thumbnail 2
  • Substitute the Apple APL1034/338S01180 power management integrated circuit.Install a replacement Qorvo QM81026 envelope tracker module.
  • Implement a SiTime programmable MEMS oscillator to restore functionality.
  • The listed components—Apple APL1034/338S01180, Qorvo QM81026, and SiTime oscillator—require careful handling during replacement.

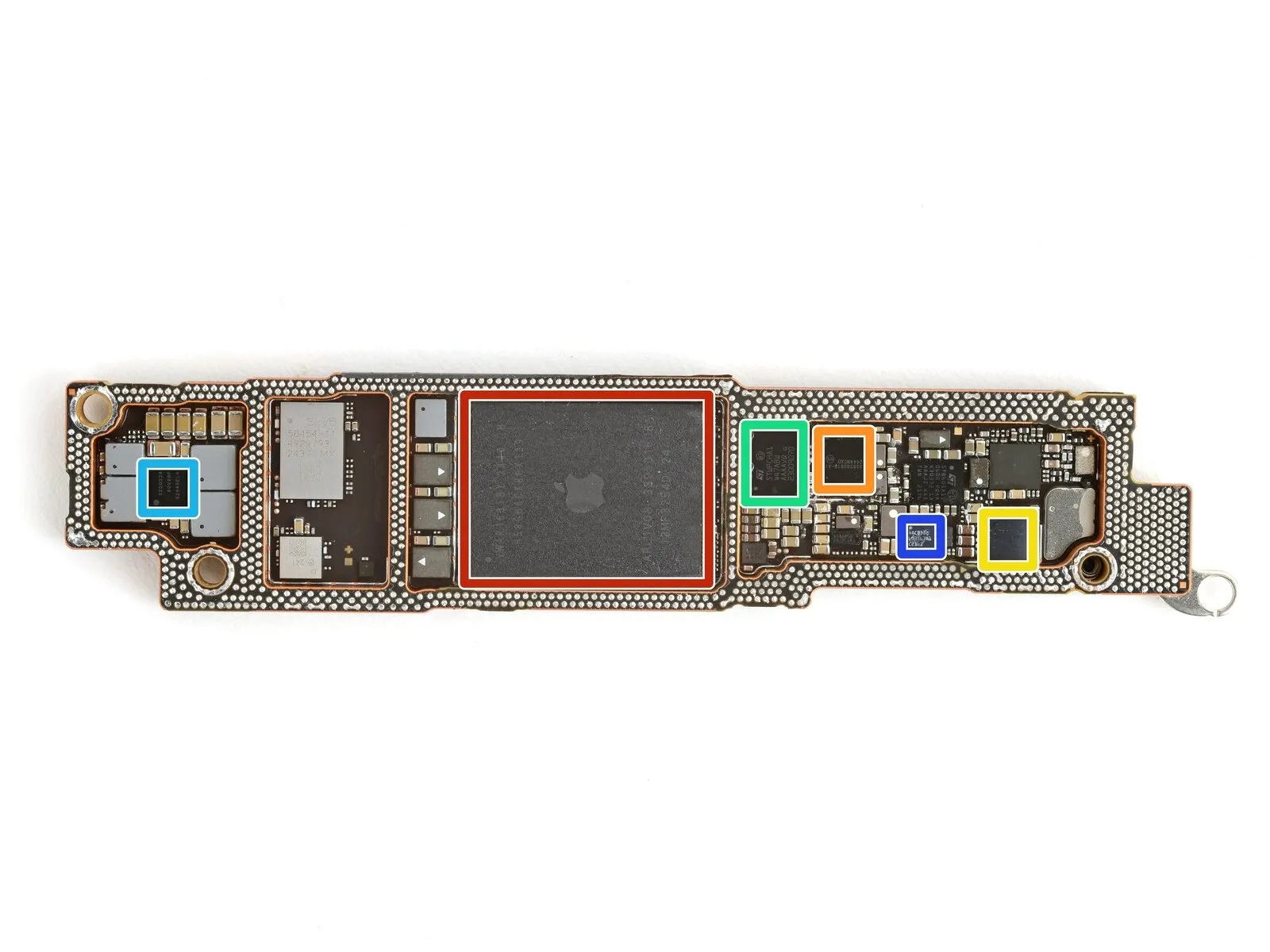

Step 5 | Main Board Top

Step 5 image
Thumbnail 1
Thumbnail 2

Substitute the Apple APL1V08/339S01608 A18 applications processor, which incorporates a GPU and is paired with 8 GB of SK hynix H58G66CK8HX139 LPDDR5X SDRAM memory, into the device.The replacement procedure involves the Apple APL1V08/339S01608 A18 applications processor, featuring an integrated GPU and 8 GB of SK hynix H58G66CK8HX139 LPDDR5X SDRAM.

  • A Renesas PMIC component is also part of this repair process.The Cirrus Logic 338S00537 audio amplifier requires replacement alongside the processor.
  • The STMicroelectronics STWPCHA1 wireless charging controller must be addressed during the repair.The Samsung S2DOS24 OLED display power supply is included in the component replacement list.
  • Ensure the Texas Instruments LM3567A1 flash LED driver is also replaced.The repair necessitates the substitution of the Apple APL1V08/339S01608 A18 applications processor.
  • The integrated GPU within the Apple APL1V08/339S01608 A18 applications processor utilizes SK hynix H58G66CK8HX139 8 GB LPDDR5X SDRAM.This repair task includes replacing the Renesas PMIC alongside other listed components.
  • The audio functionality relies on the Cirrus Logic 338S00537 audio amplifier, which needs replacement.Wireless charging capabilities are managed by the STMicroelectronics STWPCHA1 controller, requiring its substitution.The OLED display’s power is supplied by the Samsung S2DOS24, necessitating its replacement alongside the Texas Instruments LM3567A1 flash LED driver.

Step 6 | Logic board overview

Step 6 image
  • To resolve the issue, substitute the upper RF board, lower RF board, upper main board, and lower main board components.

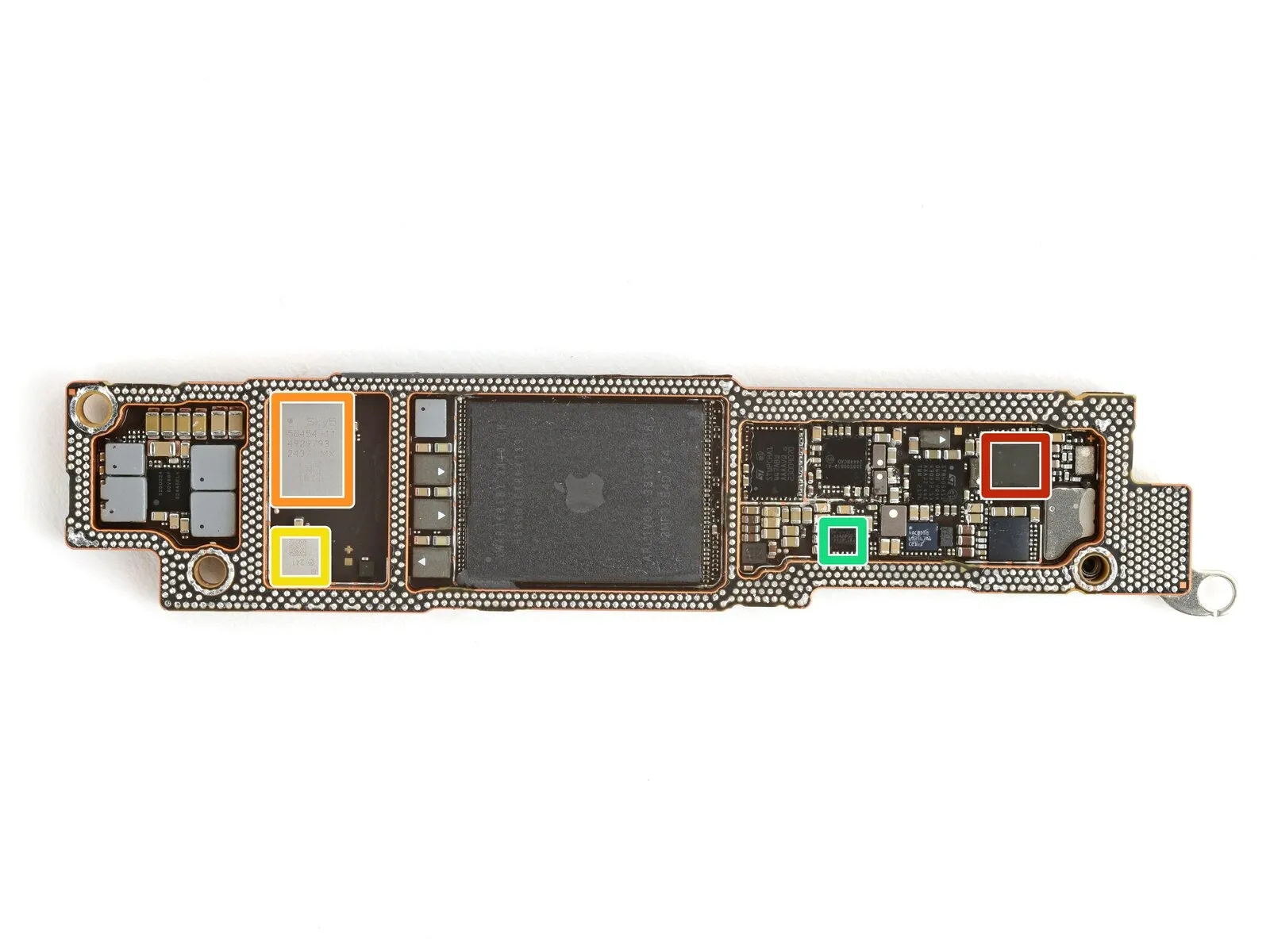

Step 7 | Main Board Top - Connectivity

Step 7 image
  • Substitute the NXP Semiconductor SN300 NFC controller, which integrates eSIM and a secure element, to restore functionality.The Skyworks SKY58454-11 front-end module requires replacement to rectify signal processing issues.A faulty Murata front-end module necessitates replacement to ensure proper radio performance.To correct backlight anomalies, the Renesas backlight driver must be exchanged.The NFC controller's replacement addresses failures in near-field communication capabilities.Addressing issues with cellular connectivity requires the substitution of the Skyworks front-end module.Malfunctions in the Murata module can be resolved through a direct component replacement.Backlight irregularities are typically corrected by installing a new Renesas driver component.These component replacements – the NFC controller, front-end modules, and backlight driver – are essential for device restoration.

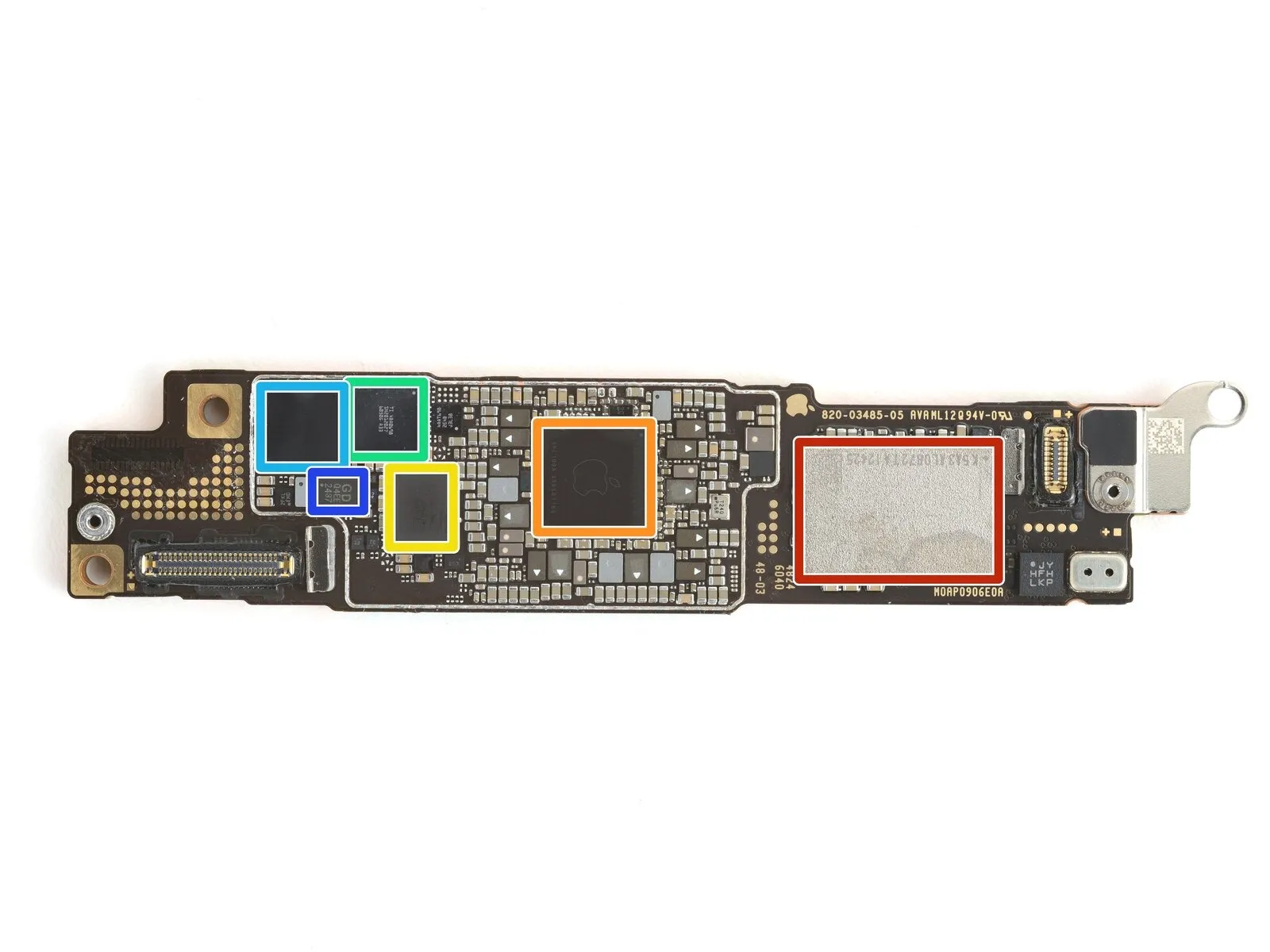

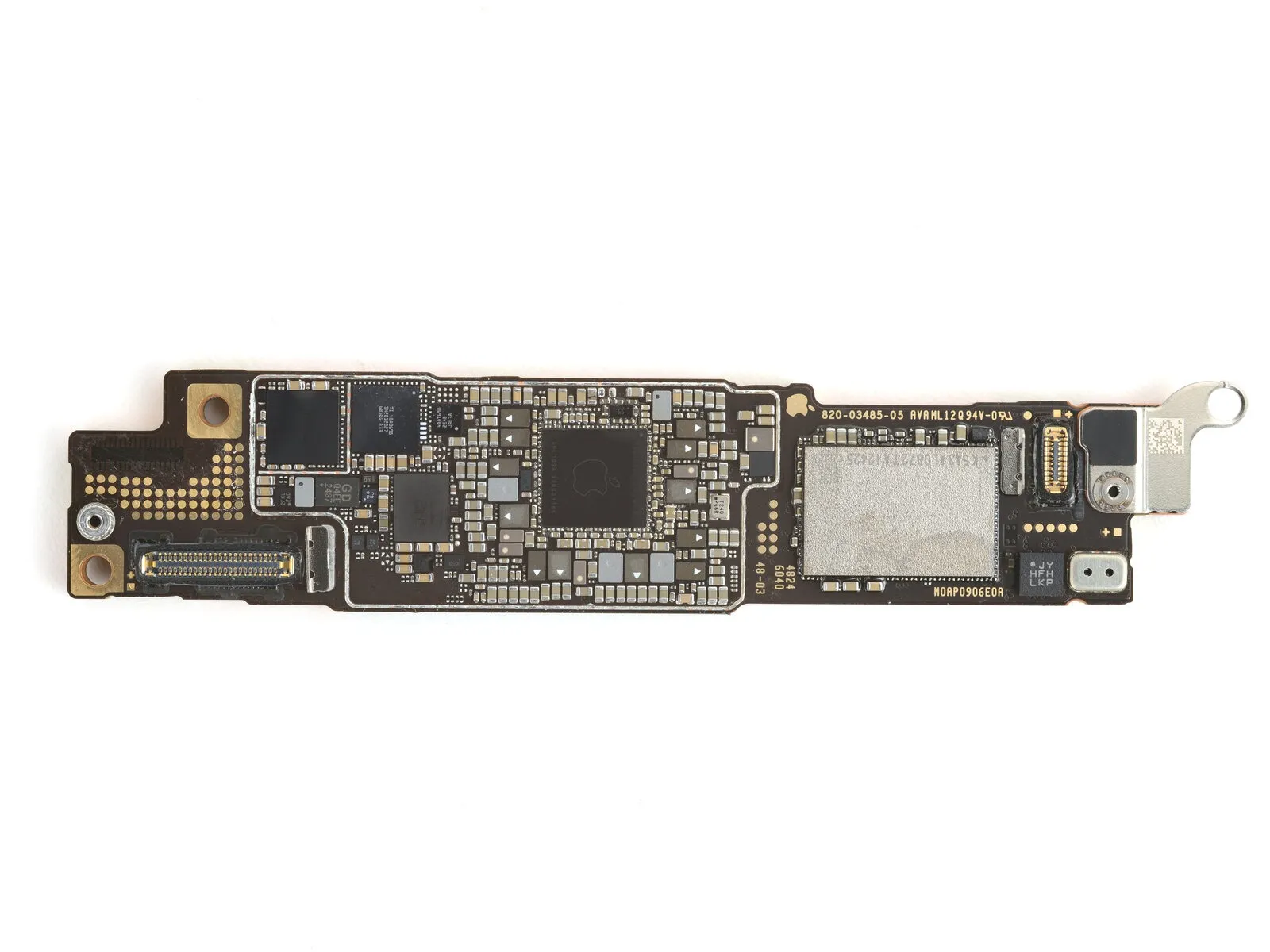

Step 8 | Main Board Bottom

Step 8 image
Thumbnail 1
Thumbnail 2
  • Substitute the Kioxia K5A3AL0872, a 128 GB NAND flash memory component.The Apple APL109A/338S01165 power management integrated circuit requires replacement.This power management functionality is provided by a Renesas PMIC.A Texas Instruments SN2012027, responsible for USB type-C controller operations, must be exchanged.The audio processing duties are handled by the Cirrus Logic 338S00739 audio codec, which also needs replacement.A GigaDevice GD25Q80E, a 1 MB serial NOR flash memory, is another component needing substitution.The original NAND flash memory should be carefully removed before installing the replacement.Ensure the new power management IC is properly seated to avoid connection issues.The Renesas PMIC's placement is critical for maintaining stable power delivery.Verify the USB type-C controller's orientation during the replacement process.Proper alignment of the Cirrus Logic audio codec is essential for correct audio output.The serial NOR flash memory's data integrity should be confirmed after replacement.All replaced components must be handled with antistatic precautions to prevent damage.

Step 9 | Main Board Bottom - Sensors

Step 9 image
  • Substitute the Bosch Sensortec accelerometer and gyroscope with a new unit.The SiTime programmable MEMS oscillator requires replacement as well.This procedure involves swapping out the integrated motion sensing component.Ensure proper alignment and secure fastening of the replacement parts during installation.The accelerometer and gyroscope are manufactured by Bosch Sensortec, while the oscillator originates from SiTime.
