iPhone 16 Pro Max Rear Camera Assembly Replacement

• To mitigate potential safety risks associated with charged lithium-ion batteries, permit your iPhone's battery level to decrease to less than 25% charge.
• Disconnect all connected cables from the iPhone device.
• Simultaneously depress the power button and either volume button, then utilize the sliding mechanism to deactivate the iPhone.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the damaged display or rear glass when significant cracking is present.
• Ensure a flat surface, sufficiently sized for secure adhesion, exists proximate to the lower edge, allowing for effective attachment of a suction cup.

Employ a P2 pentalobe driver for the task of unscrewing the pair of fasteners, each measuring 7.4 millimeters in length, situated on both lateral aspects of the charging port.The two screws, each possessing a length of 7.4 mm, flanking the charge port necessitate removal using a specialized P2 pentalobe driver.To detach the screws positioned on either side of the charging port, a P2 pentalobe driver is required; these screws are each 7.4 mm long.

• Caution is advised: Overly deep insertion of a prying tool risks device impairment.To mitigate potential harm, implement a marking procedure for your opening tool.
• Establish a reference point by measuring precisely 3 millimeters from the tool's distal end.
• Employ a permanent marker to clearly indicate the 3 mm location on the opening pick.For enhanced precision, consider marking additional corners of the pick with varying measurements.As an alternative method, affix a coin to the pick's tip, ensuring a 3 mm offset.
• This coin placement serves as a visual indicator to prevent excessive insertion depth.
• Adherence to this precaution safeguards against unintended damage during the repair process.

• Employing either a hair dryer or a heat gun, apply warmth to the lower perimeter of the rear glass panel until it reaches a temperature that is perceptible upon contact.
• Alternatively, an iOpener can be utilized for localized heating; ensure adherence to the provided guidelines for appropriate heating and application of the iOpener.

• Secure a suction handle to the lower perimeter of the rear glass panel.
• Exert a consistent, forceful upward traction on the handle to establish separation between the rear glass and the device's frame.
• Should separation fail to occur, increase the application of heat along the edge and attempt the process once more.
• Carefully introduce the pointed end of an opening tool into the newly formed space.

Carefully separate the adhesive holding the rear glass in place, ensuring your tool does not penetrate beyond a depth of 3 mm during the process.A fragile cable, situated adjacent to the volume up button and linking the rear glass assembly to the iPhone's internal components, is susceptible to damage.To prevent severance of this cable, exercise caution and avoid inserting the separation tool in its vicinity.

• Numerous spring contacts are positioned along the iPhone's outer edge, also presenting a risk of damage if the separation tool is inserted too deeply.
• Maintain a shallow insertion depth of no more than 3 mm when using a separation tool to prevent injury to the delicate cable and spring contacts.

• Utilize the opening pick, moving it along the lower perimeter to sever the bonding agent.
• Should resistance be encountered while separating the adhesive, apply heat to the edge for approximately one minute, then attempt separation once more.
• Maintain the opening pick's position within the lower-left corner to inhibit the adhesive from reattaching.

Apply warmth to the left side of the rear glass panel using a hair dryer or heat gun.The purpose of applying heat is to soften the adhesive securing the glass.Ensure the glass edge reaches a temperature that is comfortably warm when touched.This preparatory heating step facilitates separation of the back glass from the device's frame.

• Introduce a supplementary opening tool.Position this tool within the lower-left section, situated near the initial tool already in place.
• Limit the insertion depth of your tool to a maximum of 3 millimeters.Such a precaution safeguards the spring contacts from potential harm.Move the tool along the left border to detach the adhesive bond and disengage the metal fasteners.
• Audible and tactile cues will indicate the release of the metal clips as the tool advances.
• Maintain the placement of this tool in the upper-left area, preventing the adhesive from re-adhering.
• This secures the separation achieved and maintains the opening.

Employing a hair dryer or heat gun, apply warmth to the upper edge and upper-right corner of the rear glass panel.The application of heat should continue until the surface reaches a temperature that is perceptible upon contact.This process facilitates the separation of the back glass from the underlying adhesive.Ensure the tool remains in constant motion to prevent localized overheating and potential damage to the device.

• To prevent harm to the spring contacts, ensure the insertion depth of the pick remains no greater than 3 millimeters.A third prying tool should be positioned within the device's upper-left section.Carefully maneuver the third prying tool along the device's superior border, progressing around the upper-right corner, and pausing directly above the volume increase button.
• Maintain the placement of this prying tool, as it serves to obstruct the adhesive's reformation.Exceeding a depth of 3 mm risks compromising the integrity of the spring contacts.
• The third opening pick should be carefully guided along the top edge, completing a circuit around the upper-right corner.
• The positioning of the opening pick is crucial to inhibit the re-adhesion of the adhesive.

• Position a fourth opening tool within the lower-rightmost recess.
• Maneuver the opening tool along the corner's contour and upward along the right side, ceasing movement just before the volume down button's location.

• Initiate the opening of the rear glass by pivoting it towards the right side of the iPhone, facilitating adhesive separation.

• The cover is held in place by two screws, each measuring 1.3 millimeters in length.
• A single screw, with a length of 1.0 millimeter, is also part of the securing mechanism.

• A pair of fasteners, each measuring 1.3 millimeters in length, are present.The set includes two screws, each with a length of 1.0 millimeters.To release the back glass connector cover, a tri-point Y000 driver is essential for unscrewing the securing fasteners.
• The four screws fastening the back glass connector cover necessitate the use of a Y000 tri-point driver for removal.Two screws, each possessing a length of 1.3 mm, are included in the assembly.Two fasteners, each measuring 1.0 mm in length, are part of the hardware securing the back glass connector cover.

• The second screw utilized for securing the LiDAR sensor measures 2.9 millimeters in length.To release the LiDAR sensor, utilize a Phillips screwdriver to unscrew the two fasteners.
• The LiDAR sensor is held in place by a pair of screws, necessitating a Phillips screwdriver for removal.Two screws, differing in length at 1.6 mm and 2.9 mm respectively, are used to attach the LiDAR sensor.

Employing either your fingertips or a pair of tweezers, carefully detach the LiDAR sensor.The component requiring removal is the LiDAR sensor.Ensure a secure grip with your fingers or tweezers to facilitate the sensor's extraction.

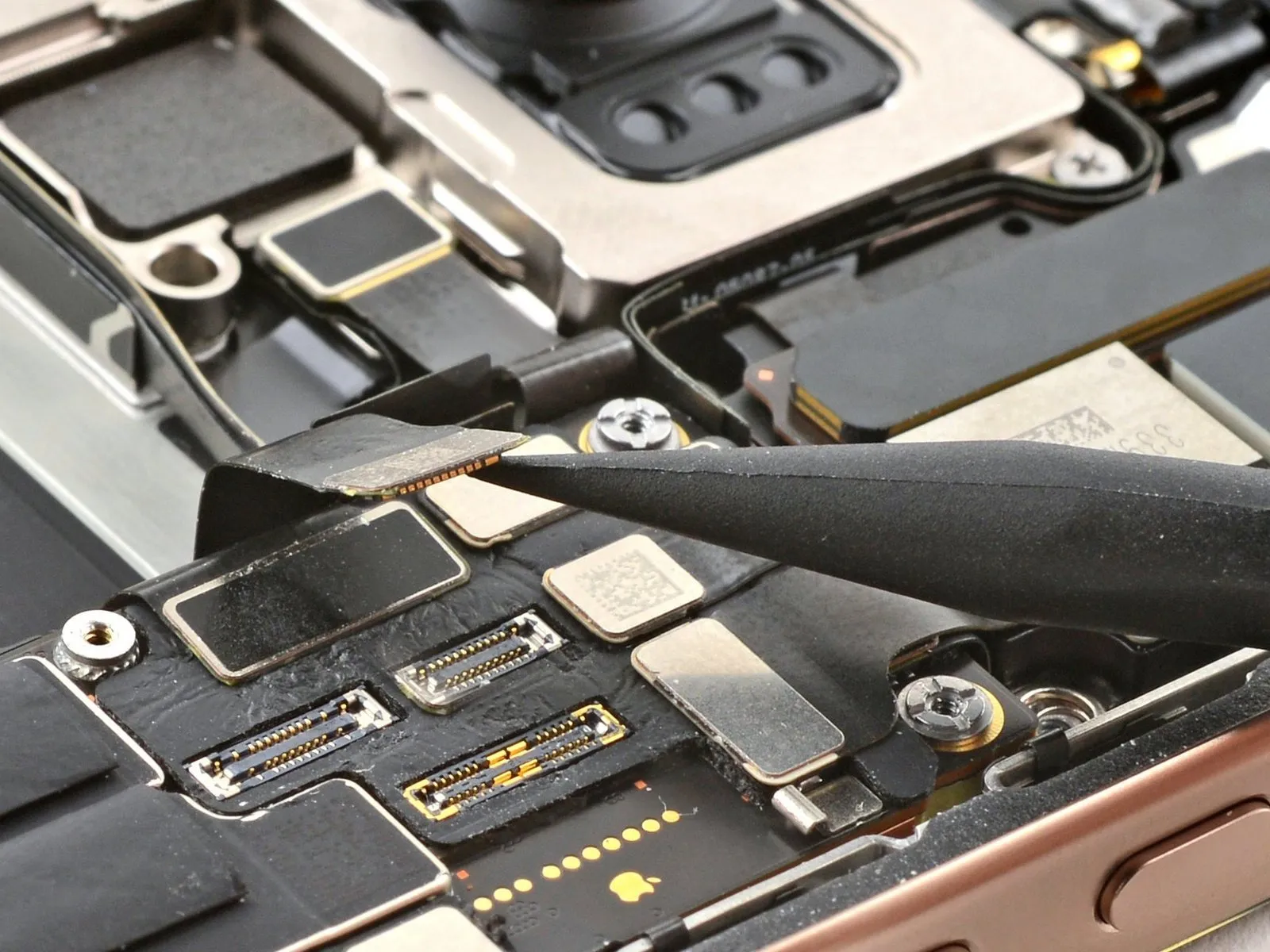

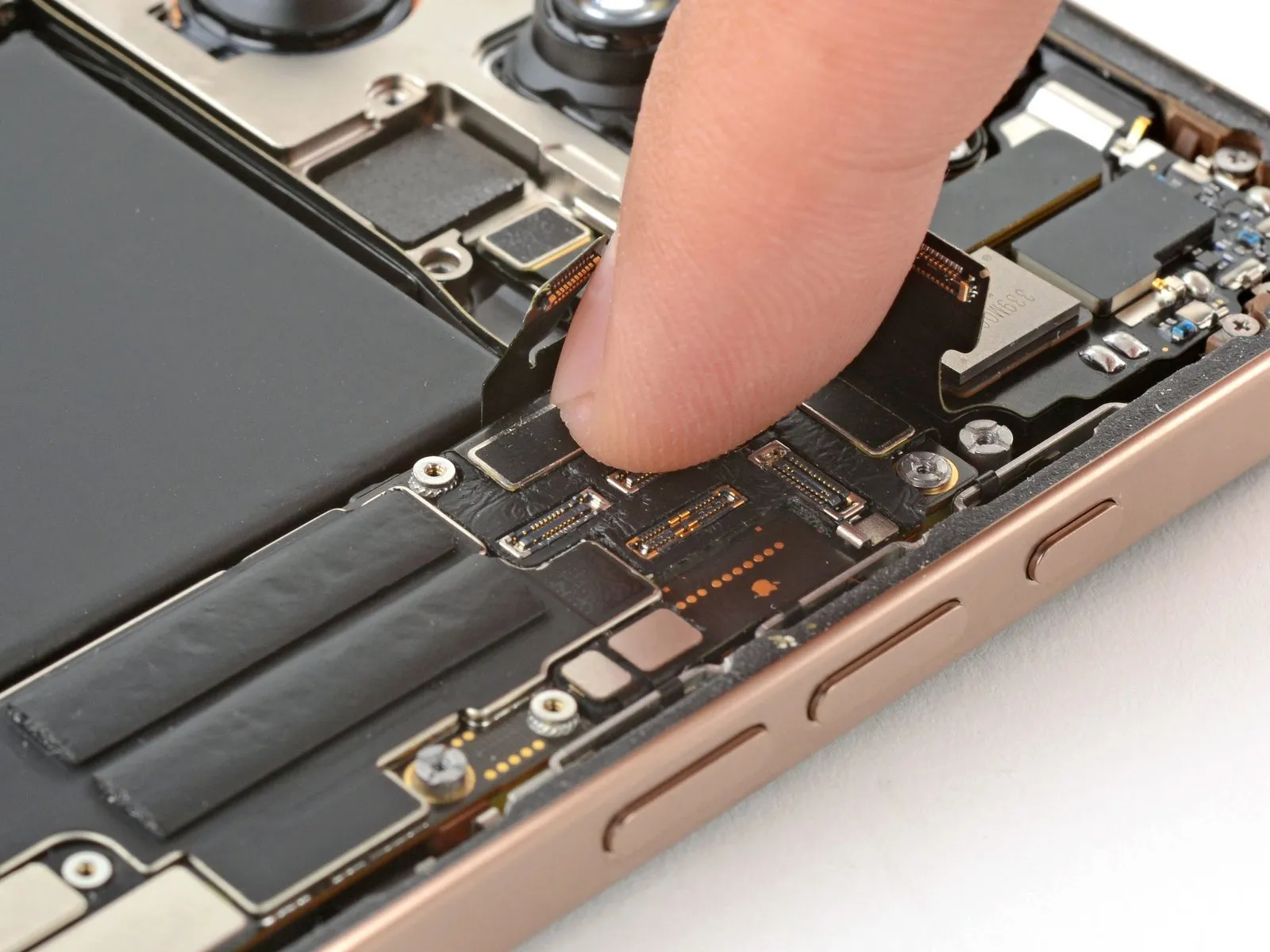

• Employ the tip of a spudger to leverage the initial rear camera connector free and detach it.

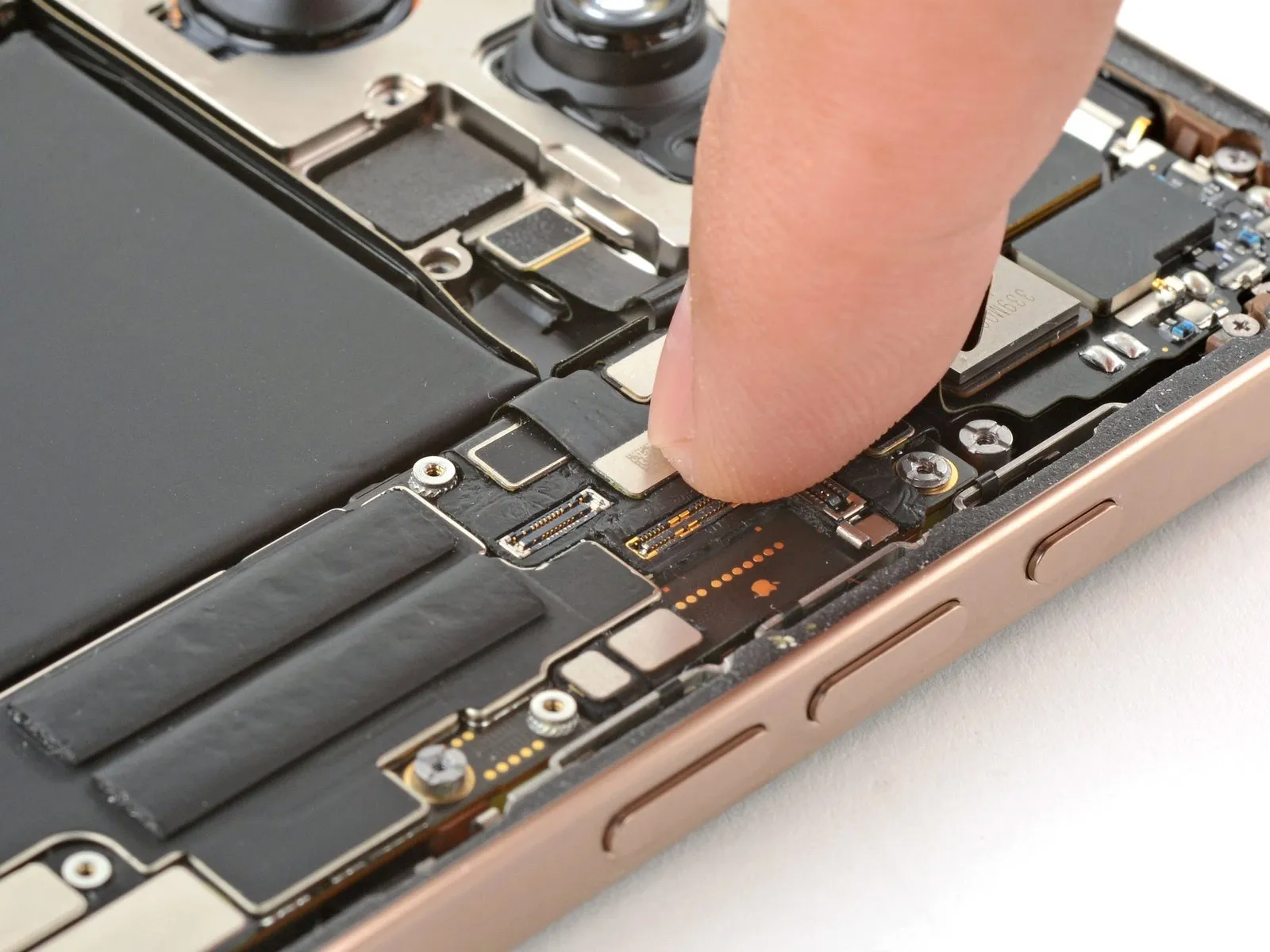

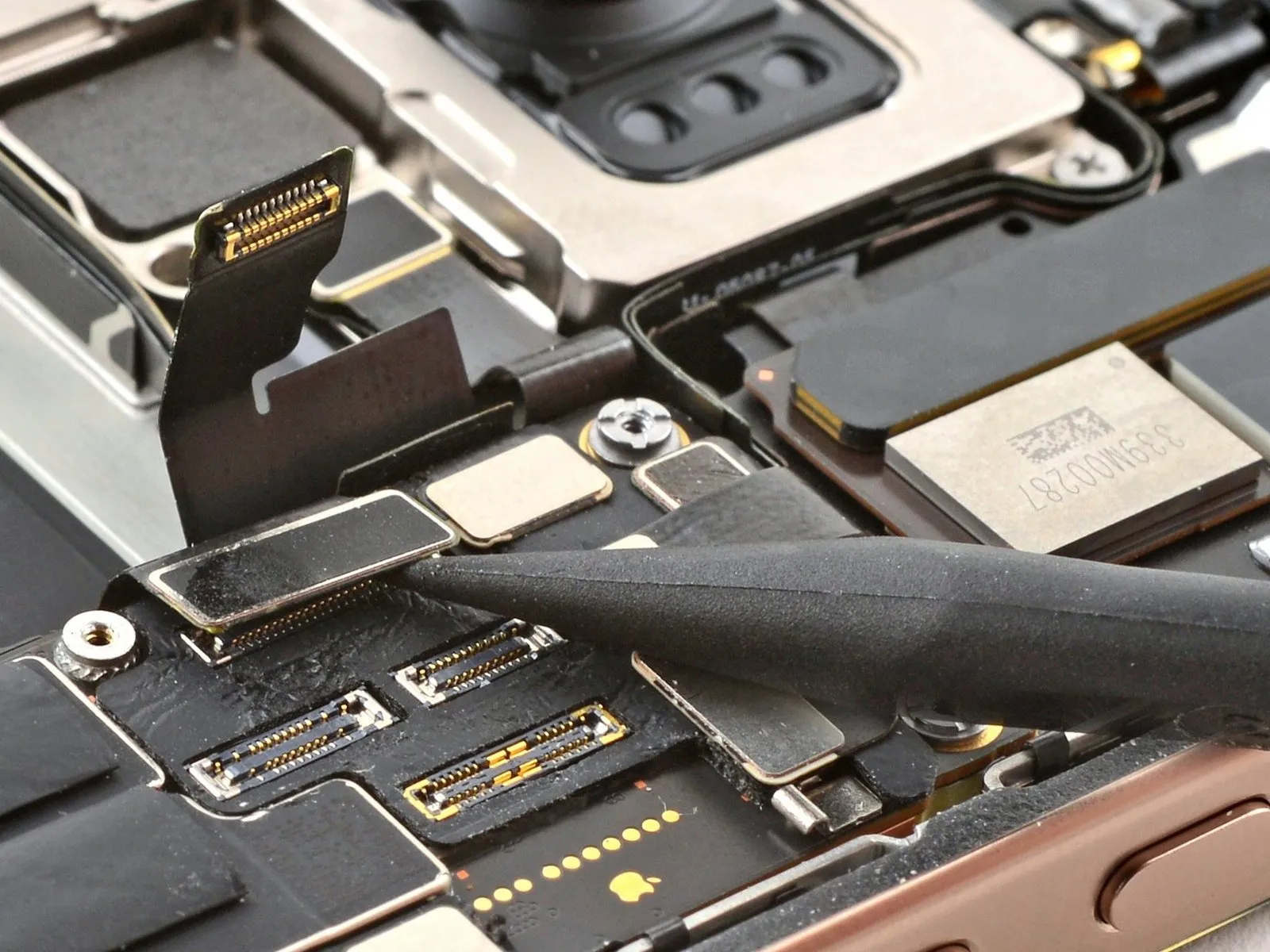

• Release the subsequent camera connector, located beneath the first, by disconnecting it.

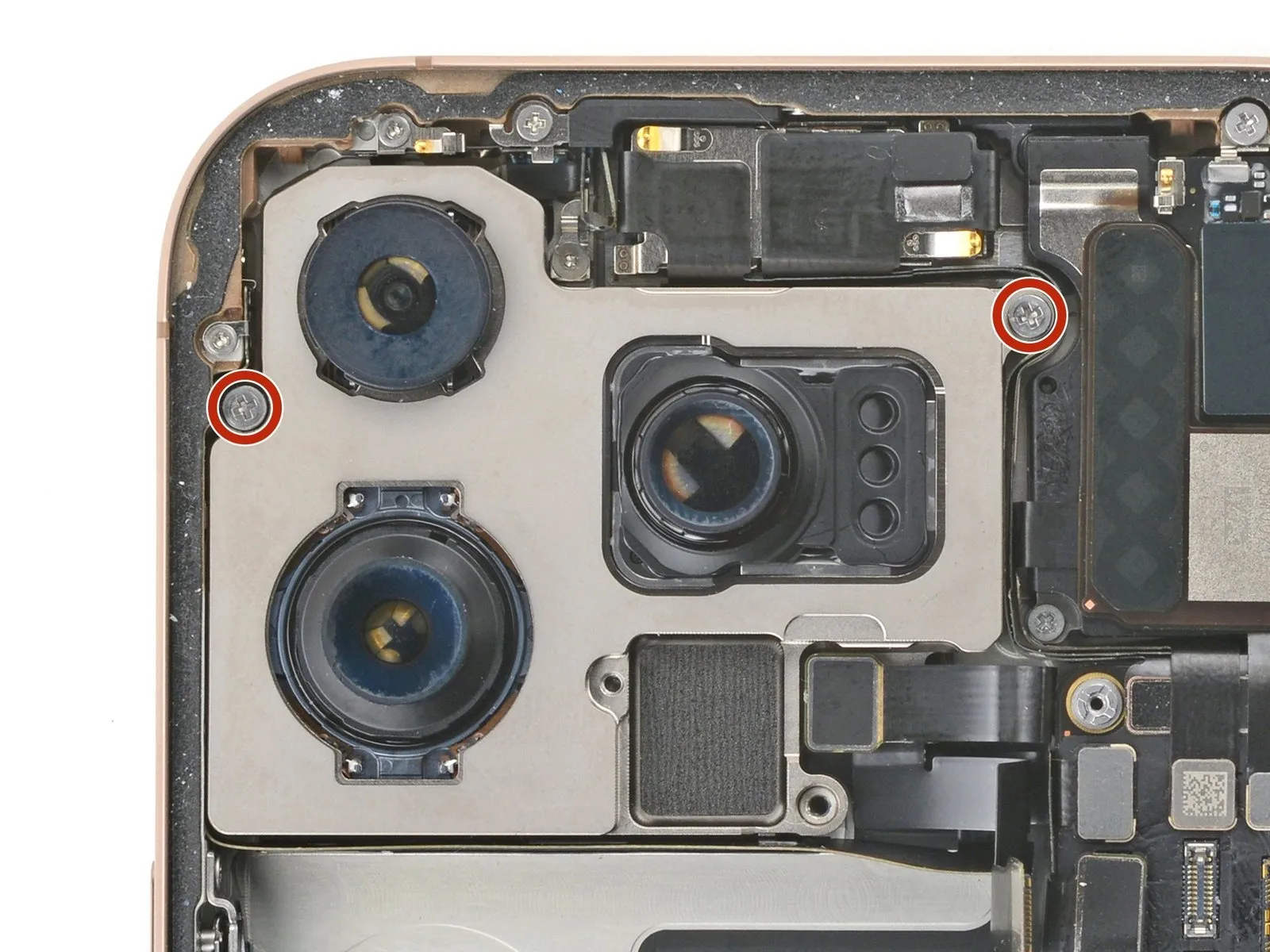

Employ a Phillips screwdriver for detaching the two screws.The screws, each measuring 2.9 millimeters in length, hold the rear camera assembly in place.These fasteners must be removed using the appropriate screwdriver.Securely grasp the Phillips screwdriver to ensure proper engagement with the screw heads.The rear camera assembly is affixed by these two screws of 2.9 mm length.

• Exercise caution to prevent contact with the camera's optical lens.
  Should contact occur, meticulously clean the lens surface utilizing a cloth designed without fibers.

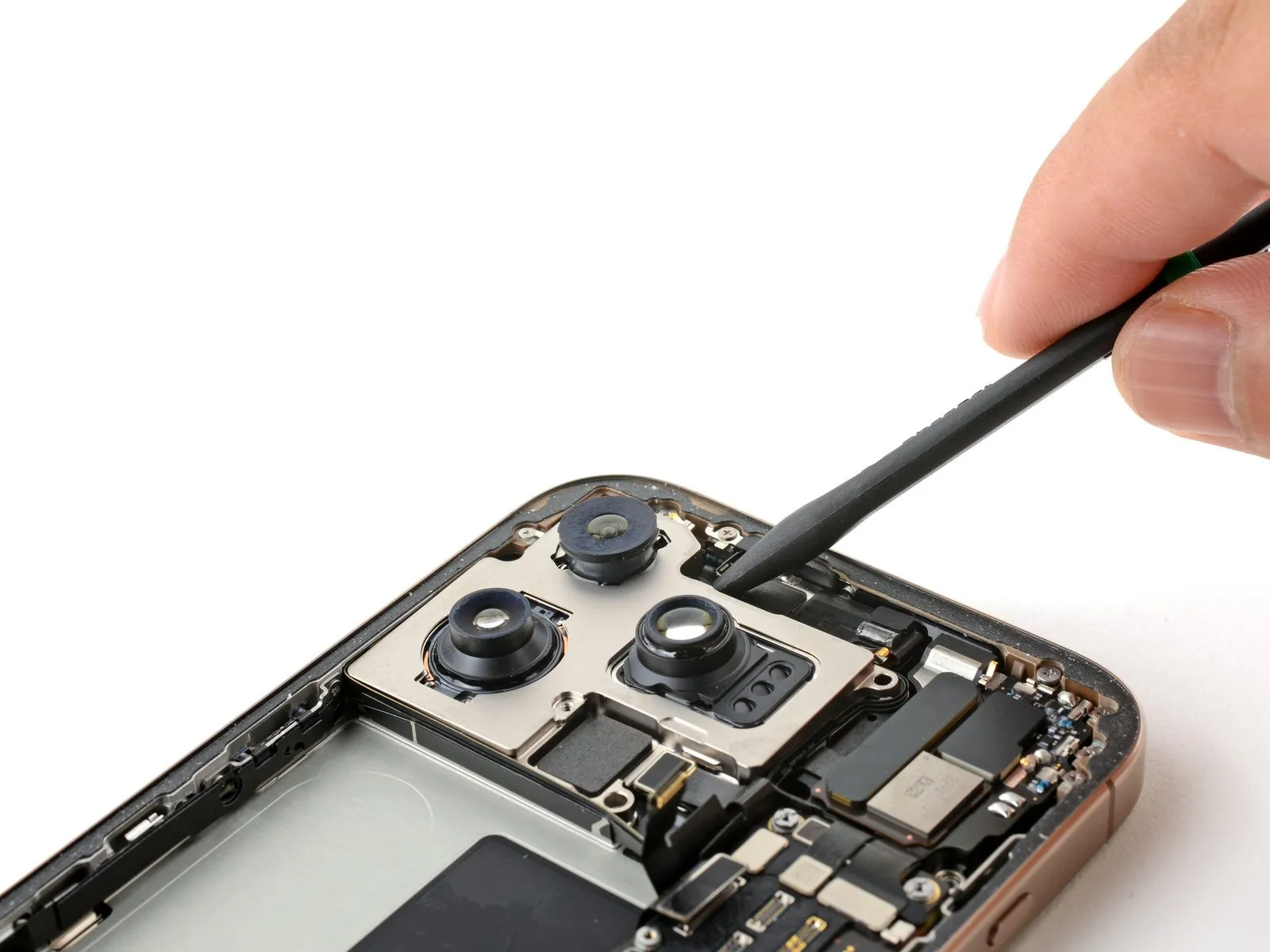

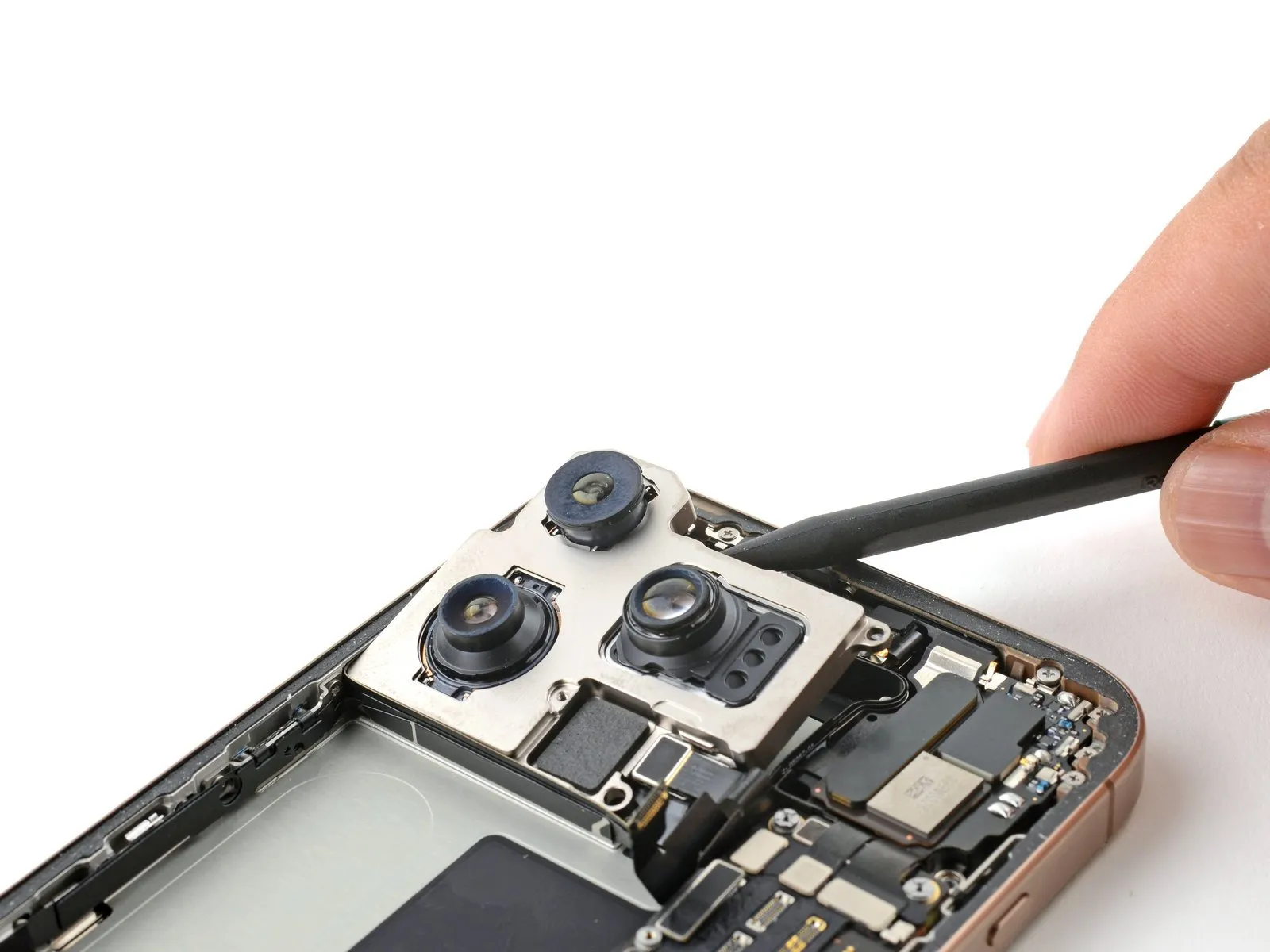

• Employing a spudger, position its tip beneath the uppermost boundary of the rear camera component.
• Apply upward force to the assembly, disengaging its adhesion from the device's structural frame.

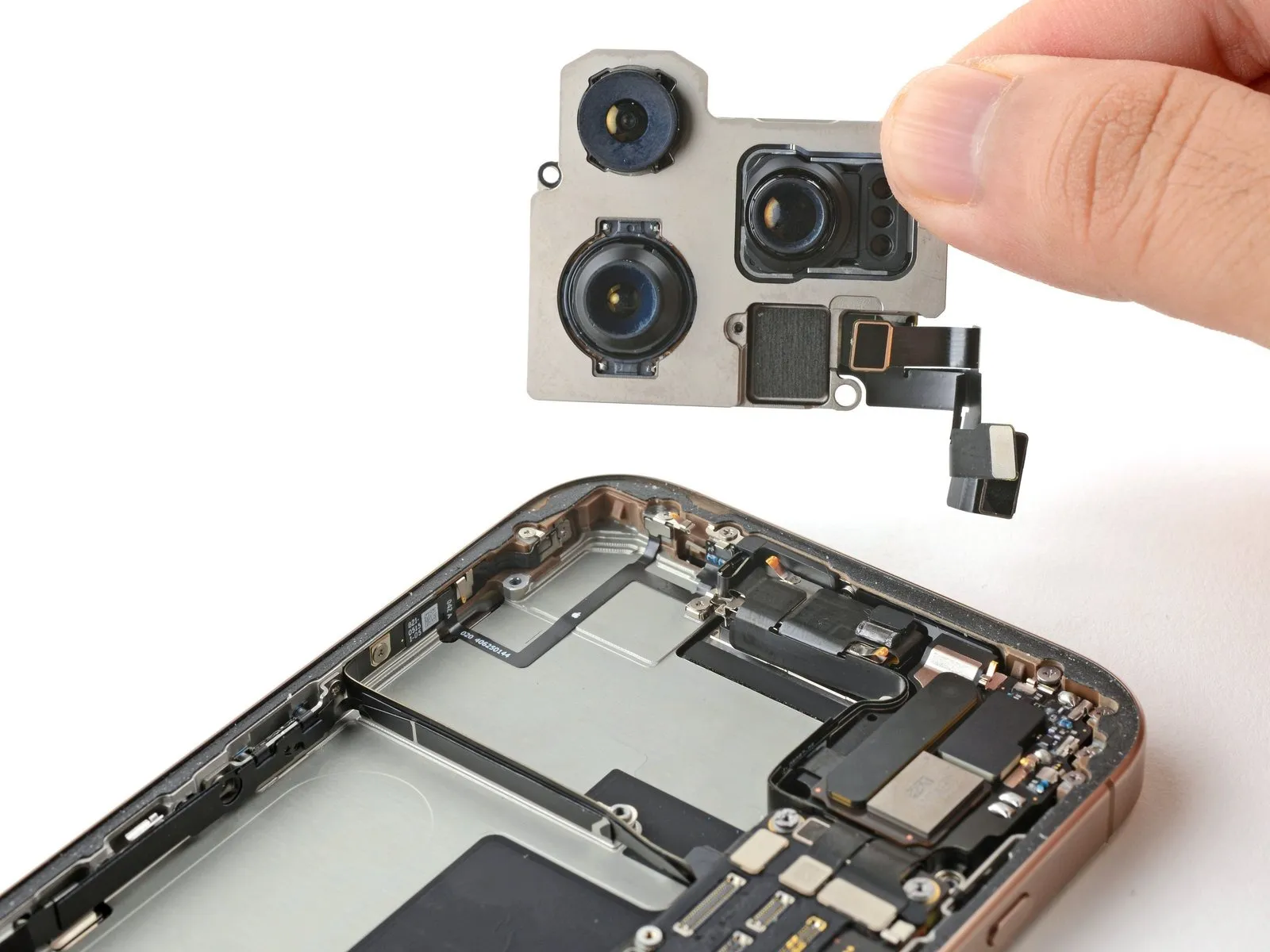

• Detach the rear camera assembly from its installed position.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
Slight variations in the visual appearance of reassembly images might occur based on the specific iPhone model being serviced, although the outlined steps remain accurate for all versions.

Position the rear camera component within its designated cavity.

Employ a Phillips screwdriver for the installation process.The screws, each measuring 2.9 millimeters in length, are to be affixed.These fasteners are responsible for maintaining the integrity of the rear camera assembly.Secure the rear camera assembly using the aforementioned screws.Properly positioning the Phillips screwdriver facilitates the installation of the 2.9 mm screws.

• Employ either a fingertip or a specialized plastic pry tool to secure the two camera interface cables to the main circuit board by applying even pressure.

For reconnection, meticulously position the connector, applying downward force to one edge until a distinct audible click is heard, then repeat the process on the opposing edge; avoid central pressure, as misalignment risks pin deformation and irreversible component failure.

• Employ a Phillips screwdriver for the installation of the screws that hold the LiDAR sensor in place.The LiDAR sensor is fastened with two screws requiring a Phillips screwdriver for their removal and installation.A 1.6-millimeter length screw is needed to secure one side of the LiDAR sensor.

  • The other side of the LiDAR sensor utilizes a screw measuring 2.9 millimeters in length.
  • Ensure proper alignment when installing the screws with the Phillips screwdriver to maintain the LiDAR sensor's secure attachment.

• Employing either a fingertip or a spudger, secure the LiDAR sensor connector's connection to the logic board by applying pressure.
  For reattachment, ensure proper alignment of connectors, such as this example, and apply downward force to one edge until a distinct click is heard; subsequently, repeat the process on the opposing edge, avoiding central pressure, as misalignment risks pin deformation and irreversible component failure.

• Employ blunt-nose tweezers or your fingers to detach sizable portions of adhesive adhering to the frame's outer edges.
• Employ a spudger tool to meticulously eliminate any remaining adhesive residue from the frame's surface.
• For particularly resistant adhesive, apply warmth with a hair dryer or heat gun, then attempt removal again.

• Employing a single direction, meticulously clean the frame's edge to eliminate any remaining adhesive.
• Careful execution is essential for this process.A pristine frame surface is critical for optimal adhesive application.Consistent adhesive placement is achieved through a clean frame, which contributes to a stronger bond.

• Employ elements like the camera aperture and indentations situated on the upper and lower borders to guide placement.These features assist in understanding the adhesive's intended positioning within the frame.Visual confirmation of the adhesive's layout is achieved through reference to these frame details.

• Exposure of the adhesive necessitates caution due to its inherent stickiness.
• Avoid any unintended contact of the exposed adhesive with surrounding objects until it is affixed to the frame.The side of the adhesive intended for attachment to the frame must be exposed by peeling the appropriate liner.Multiple liner layers on the adhesive require peeling only the layer that reveals the frame-bonding surface.

• Ensure the visible perimeter of the adhesive strip is precisely matched to the matching edge on the iPhone's housing.
• Because the adhesive will bond immediately upon contact, repositioning is impossible; any misalignment necessitates removal and replacement with a fresh adhesive strip.
• After achieving proper alignment, apply gentle pressure to secure the adhesive strip to the iPhone's frame.

• Carefully remove the adhesive backing while applying even pressure to ensure proper contact.
• Accurate positioning of the adhesive is indicated by a flush fit of the edges with the device frame.
• To correct minor misalignments, delicately reposition the longer sides relative to the frame.
• Should the adhesive develop folds or wrinkles, discard it and apply a new strip.
• In the absence of replacement adhesive, the iPhone can be reassembled and used temporarily; however, water resistance will be diminished until a new adhesive seal is applied.

• Employ a spudger to apply pressure to the adhesive securing the iPhone's edges.
• Exercise caution when working near the delicate grounding clips; should one become displaced, carefully restore its original position using your fingers or tweezers.
• Avoid excessive force, as this could distort and overextend the adhesive layer.

• Employing a spudger or manual dexterity, detach the pull tab affixed to the expansive front liner, typically located at a corner.
• Utilize the pull tab to carefully separate the substantial front liner from its adhesive backing.
• Remaining liners may still protect the adhesive edges, safeguarding them from unintended contact during reassembly; postpone their removal for the time being.

• Employ a finger or spudger to engage the battery press connector with the logic board by applying pressure.
• Before finalizing the iPhone's reassembly, it's advisable to verify the repair's functionality; initiate the device, confirm expected operation, then deactivate it to proceed.
• Should the iPhone fail to power on, establish a connection to an external power source and attempt startup once more.
• In situations where the logic board has been substituted, and the display remains unresponsive, consult the screen replacement guide to perform a manual connection of the display connector.

• Employ a tri-point Y000 driver for the installation of the screws that fasten the back glass connector cover.The cover is held in place by four screws, requiring the use of a specialized tri-point Y000 driver for removal and installation.Two screws, each measuring 1.3 millimeters in length, are utilized in the assembly.
  Additionally, two screws with a length of 1.0 millimeters are included in the fastener set.
  Securely fasten the back glass connector cover utilizing a tri-point Y000 driver and the provided screws, noting the differing lengths of 1.3 mm and 1.0 mm.

Position the battery connector cover so that the screw apertures are aligned, then set it down into its designated area.

• Employ a specialized tri-point Y000 driver for the installation process.The battery connector cover is fastened with three screws requiring a tri-point Y000 driver for removal and installation.Two screws, each measuring 1.3 millimeters in length, are utilized in the fastening process.
  A single screw, with a length of 1.0 millimeters, is also part of the securing mechanism.
  Securely affix the battery connector cover using the provided screws and a tri-point Y000 driver.

1. Employing either your fingertips or a spudger, carefully separate the surrounding liners to reveal the underlying adhesive.During liner removal, prevent any contact between surfaces and the newly exposed adhesive to maintain its bonding properties.Thoroughly inspect both the frame and rear glass components, eliminating any detached liner fragments.
   Ensure complete liner removal, verifying the absence of any residual adhesive protection.
   The adhesive should remain untouched and fully visible after the liners have been completely detached.

• Position the rear glass component onto the device's chassis, initiating the alignment with the uppermost boundary.
  Should you encounter opposition during placement, a retaining clip, specifically a perimeter clip, might be deformed and experiencing compression from the chassis; visually inspect the area of resistance and carefully restore any bent clips to their original shape.The perimeter clip is a small component that secures the back glass to the frame.Apply even pressure across the iPhone's borders to ensure the back glass makes complete contact with the frame's surface.
  Confirm uniform contact by observing that the back glass lies perfectly level with the frame.

Employ a hair dryer, heat gun, or iOpener, directing heat around the edges of the rear glass to a temperature just beyond comfortable touch.
Applying heat reduces the adhesive's viscosity, facilitating a more secure reattachment.

• Employ your fingertips to apply consistent, substantial pressure encompassing the entire outer edge of the iPhone's casing.

1. Position the iPhone, with the screen facing downwards, onto a pristine, level workspace.
2. Apply a strip of adhesive tape along the edges of the rear glass to safeguard its cosmetic appearance.
3. Arrange a series of metallic coins in a circular pattern bordering the rear glass, constructing a barrier matching the height of the rear camera lenses' elevations.The coins should be stacked to form a raised boundary.As an alternative method, secure vise clamps around the device's outer edges to establish a fresh adhesive seal.
4. These clamps provide a consistent pressure for proper adhesive setting.

1. Position several books atop the iPhone's surface.Employ 3 to 4 substantial volumes with considerable weight.Ensure the books are centered directly above the device.
2. To avoid damage, refrain from utilizing valuable books, as the coins could potentially create minor indentations on the cover.
3. Maintain the applied pressure by leaving the books undisturbed for approximately half an hour.
4. This sustained force facilitates the bonding of the adhesive material.

• Employ a P2 pentalobe driver for the screw installation process.The two screws, each measuring 7.4 millimeters in length, are positioned adjacent to the charging port.Secure the screws to the device's chassis using the specified driver.Placement of the screws occurs on both the left and right sides of the charging port opening.Properly tightening these fasteners requires the application of the P2 pentalobe driver.
