iPhone 16 Pro Max Earpiece Speaker Replacement

• To mitigate potential safety risks associated with charged lithium-ion cells, permit your iPhone's battery level to descend below the 25% threshold.
• Disconnect all connected cables from the iPhone device.
• Simultaneously depress the power button and either volume button, then utilize the sliding gesture to deactivate the iPhone.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of packaging tape across the fractured display or rear glass panel when significant cracking is present.
• Confirm the existence of a sufficiently sized, uninterrupted surface close to the lower perimeter, allowing for secure adhesion of a suction device.

Employ a P2 pentalobe driver to detach the two screws, each measuring 7.4 millimeters in length, positioned laterally around the charging port.The two screws securing the charge port are to be unscrewed using a specialized P2 pentalobe driver.For removal of the two screws, each 7.4 mm long, located on both sides of the charge port, a P2 pentalobe driver is required.

• Caution is advised: Over-insertion of a prying tool risks harming the device's internal components.To safeguard against potential damage, implement a marking procedure for your opening tool.
• Establish a reference point by measuring precisely 3 millimeters from the tool's distal end.
• Utilize a permanent marker to clearly indicate the 3-millimeter location on the opening pick.For enhanced precision, consider marking the tool's other corners with varying measurements.As an alternative method, affix a coin to the pick's tip, ensuring a 3-millimeter separation.
• This coin placement serves as a visual indicator to limit insertion depth.
• Adhering to these precautions minimizes the risk of accidental damage during the repair process.

• Employing a hair dryer or heat gun, warm the lower perimeter of the rear glass panel until it reaches a temperature that is perceptible upon contact.
• Alternatively, an iOpener can be utilized for localized heating; adhere to the provided guidelines for correct heating and application of the iOpener.

• Secure a suction handle to the lower border of the rear glass panel.
• Exert a consistent, powerful upward pull on the handle to establish separation between the back glass and the device's frame.
• Should a separation not form, increase the heat applied to the edge and attempt the process once more.
• Carefully introduce the pointed end of an opening tool into the newly formed space.

• During the process of separating the rear glass with a separation tool, maintain a maximum insertion depth of 3 millimeters to prevent potential harm to adjacent components.
• A fragile connector, situated near the volume up button, links the rear glass assembly to the iPhone's internal circuitry; avoid inserting the separation tool in this location to prevent cable severance.
• Numerous spring-based electrical connections are positioned along the iPhone's outer edge.

• Utilize the opening pick, moving it along the lower perimeter to sever the bonding agent.

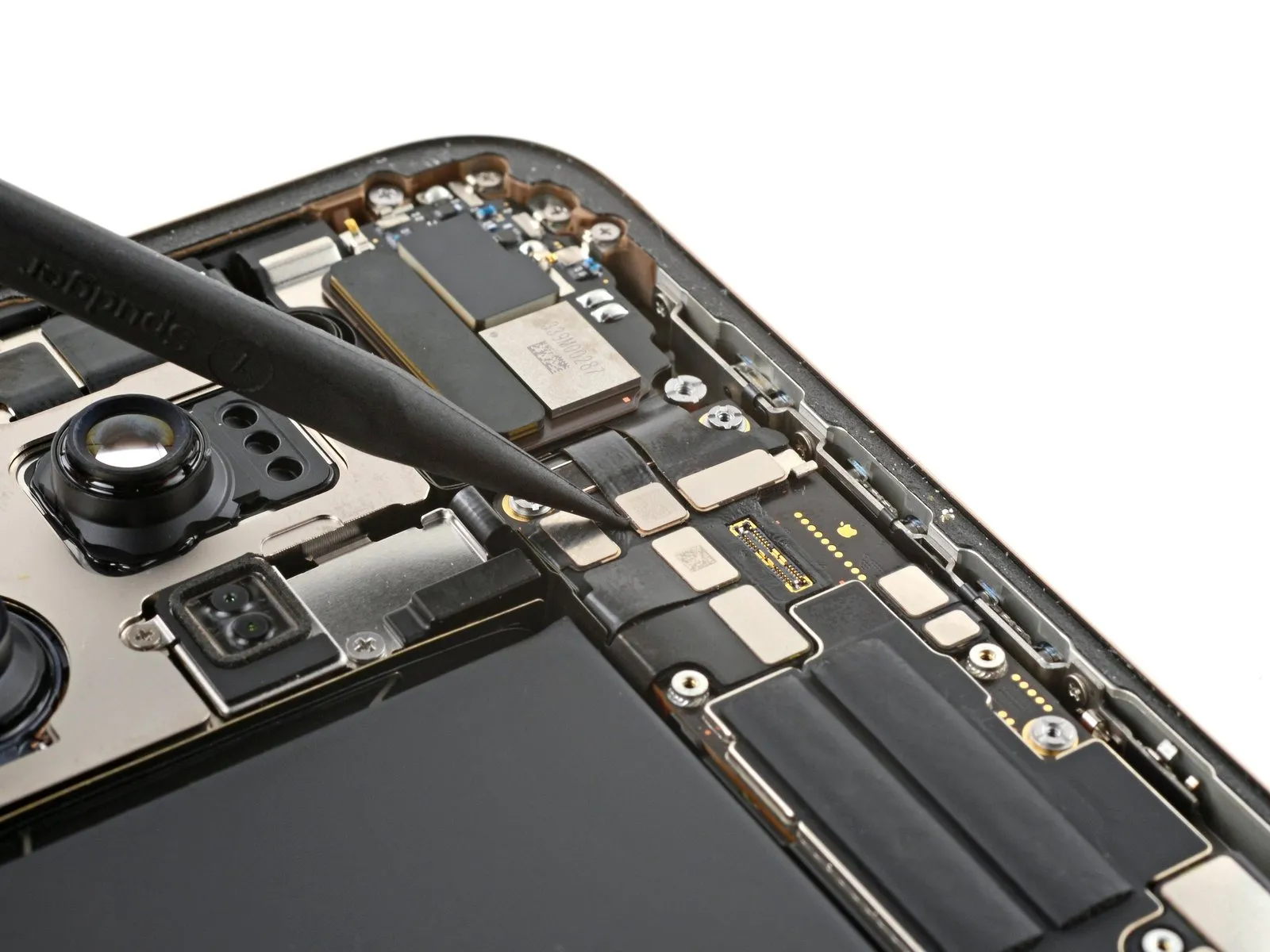

• Should resistance be encountered while attempting to cut the adhesive, apply heat to the edge for approximately one minute, then retry the cutting process.
• Maintain the opening pick's position within the lower-left corner to inhibit the adhesive from reattaching.

Applying warmth to the left side of the rear glass panel with a hair dryer or heat gun is necessary.Elevate the temperature of the glass's left border by using a heat source until it reaches a touchable warmth.The left edge of the rear glass requires heating with a hair dryer or heat gun to achieve a warm surface temperature.

• Introduce a supplementary opening tool into the lower-left area, positioned near the already inserted tool.
• Ensure the tool's insertion depth remains under 3 mm to safeguard the spring contact points from harm.
• Move the tool along the left side to detach the adhesive bond and disengage the metal fasteners.
• The release of the metal clips will be audibly and tactilely noticeable as the tool passes them.
• Maintain the initial tool's position within the upper-left corner to inhibit the adhesive from re-adhering.

Apply warmth to the upper edge and upper-right section of the rear glass panel using a hair dryer or heat gun, ensuring the surface reaches a temperature that is noticeable upon contact.The application of heat softens the adhesive securing the back glass, facilitating its separation from the device's frame.Maintain a safe distance during heating to prevent damage to surrounding components and avoid burns; a temperature that is comfortably warm to the hand is ideal.

• To preclude harm to the spring contacts, ensure the insertion depth of the tool remains no greater than 3 millimeters.Employ a third specialized tool through the uppermost left aperture.Advance the tool across the superior boundary and around the upper right corner, pausing directly over the volume increase button.
• Maintain the position of this tool to inhibit the adhesive from reforming a seal.
• Exceeding a depth of 3 mm risks compromising the integrity of the spring contacts.
• Positioning the tool strategically prevents adhesive re-bonding during the repair process.

• Position a fourth opening tool within the lower-rightmost section.
• Move the opening tool along the corner's contour and upward along the right side, pausing before reaching the volume down button.

• Initiate the opening of the rear glass by pivoting it towards the right side of the iPhone, which will break the remaining adhesive bond.

• The cover utilizes two screws, each measuring 1.3 millimeters in length.
• A single screw, with a length of 1.0 millimeters, is also part of the assembly.

• The assembly includes two fasteners.These fasteners are screws, each measuring 1.3 millimeters in length.Additionally, two more fasteners are present.
• These supplemental fasteners are also screws, each with a length of 1.0 millimeters.The screws' dimensions are critical for proper reassembly.Carefully note the length of each screw to ensure correct placement during reinstallation.

• A minimal quantity of stretch-release adhesive secures the 5G millimeter wave antenna in place.

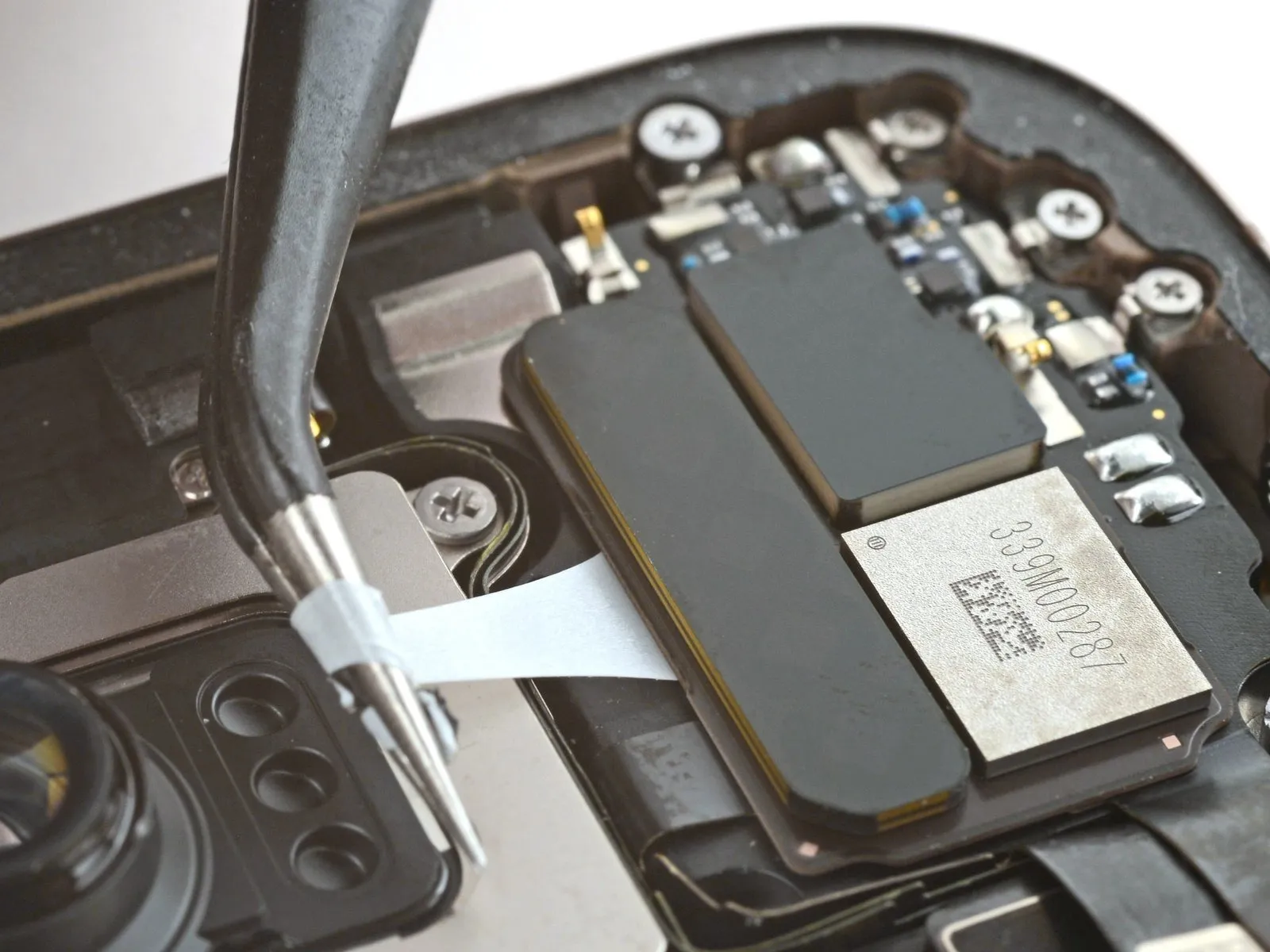

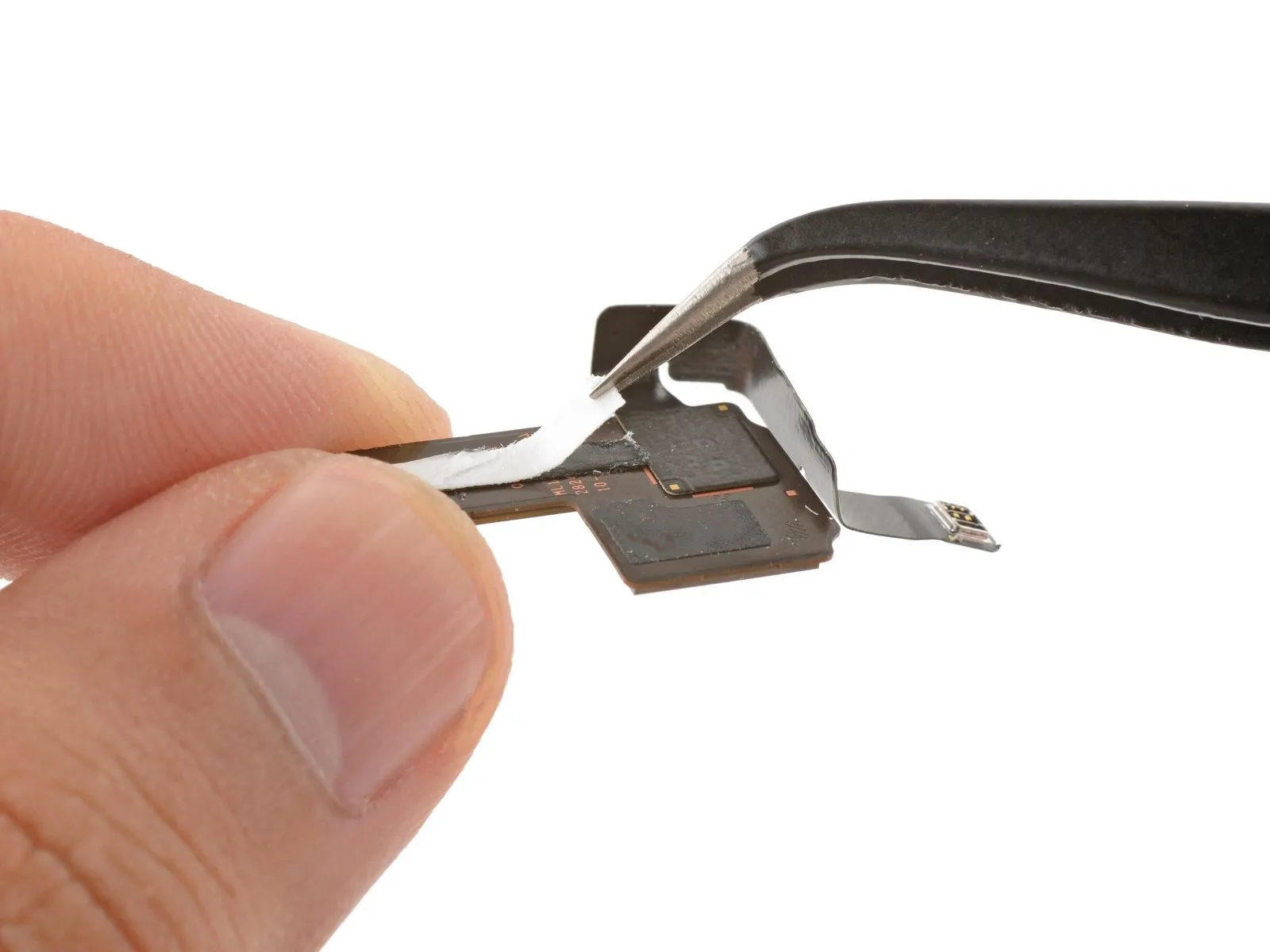

• Employ tweezers to gently lift the antenna's black adhesive release tab.

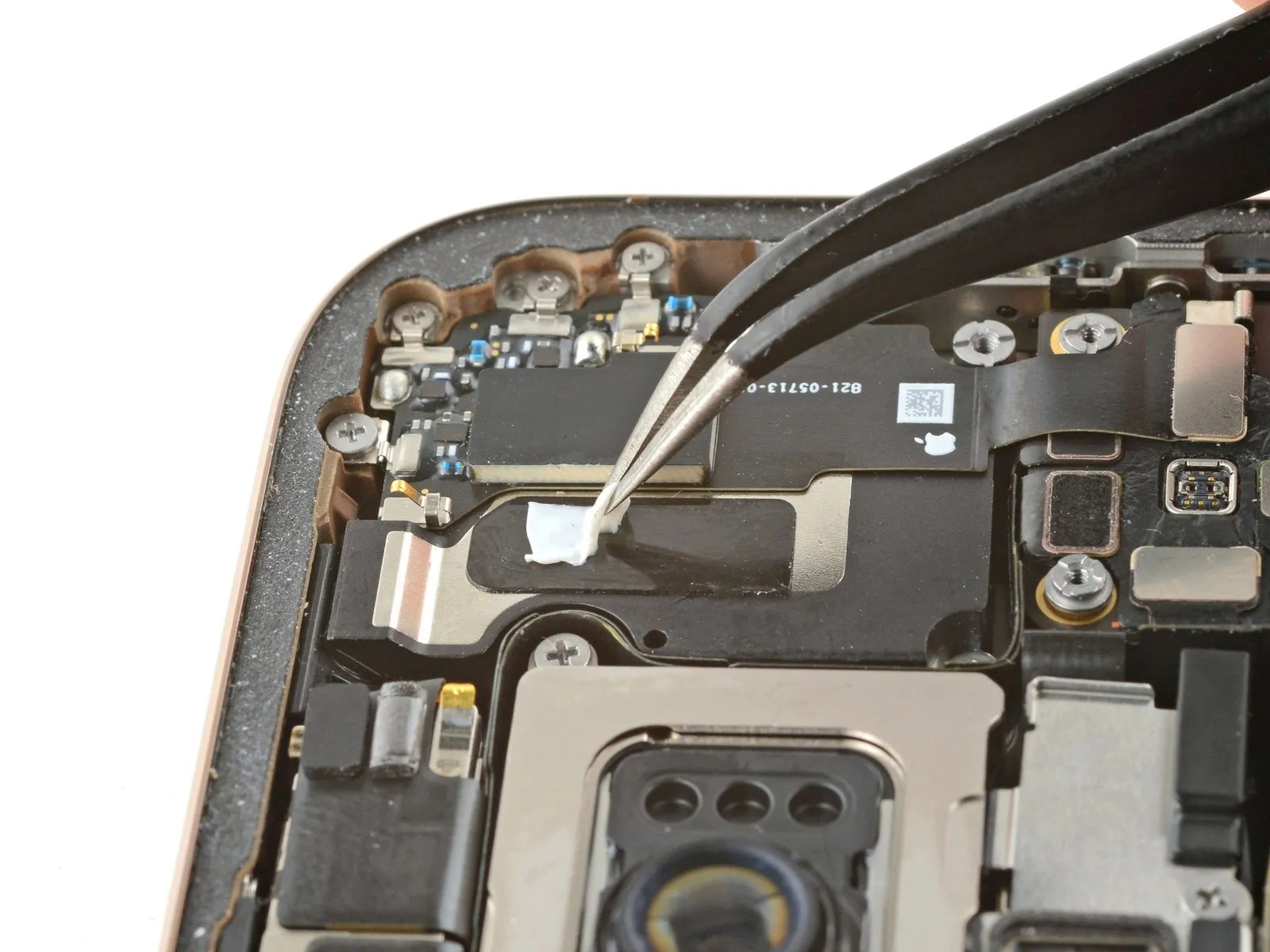

• Employing tweezers provides a secure hold on the adhesive pull tab, enabling a gentle, angled extraction.Should the adhesive bond fracture during removal, utilize tweezers to secure the detached segment and persist with the pulling action.When complete removal proves challenging, introduce a small amount of isopropyl alcohol, exceeding 90% concentration, beneath the antenna to facilitate the subsequent procedure.
• A shallow angle is crucial when pulling the adhesive pull tab with tweezers to prevent damage.Maintaining a firm grip with tweezers is essential for successful adhesive removal.Persistent pulling with tweezers is necessary if the adhesive initially breaks during the removal process.
• The application of isopropyl alcohol, with a concentration greater than 90%, assists in separating the adhesive from the surface, allowing for progression to the following repair stage.

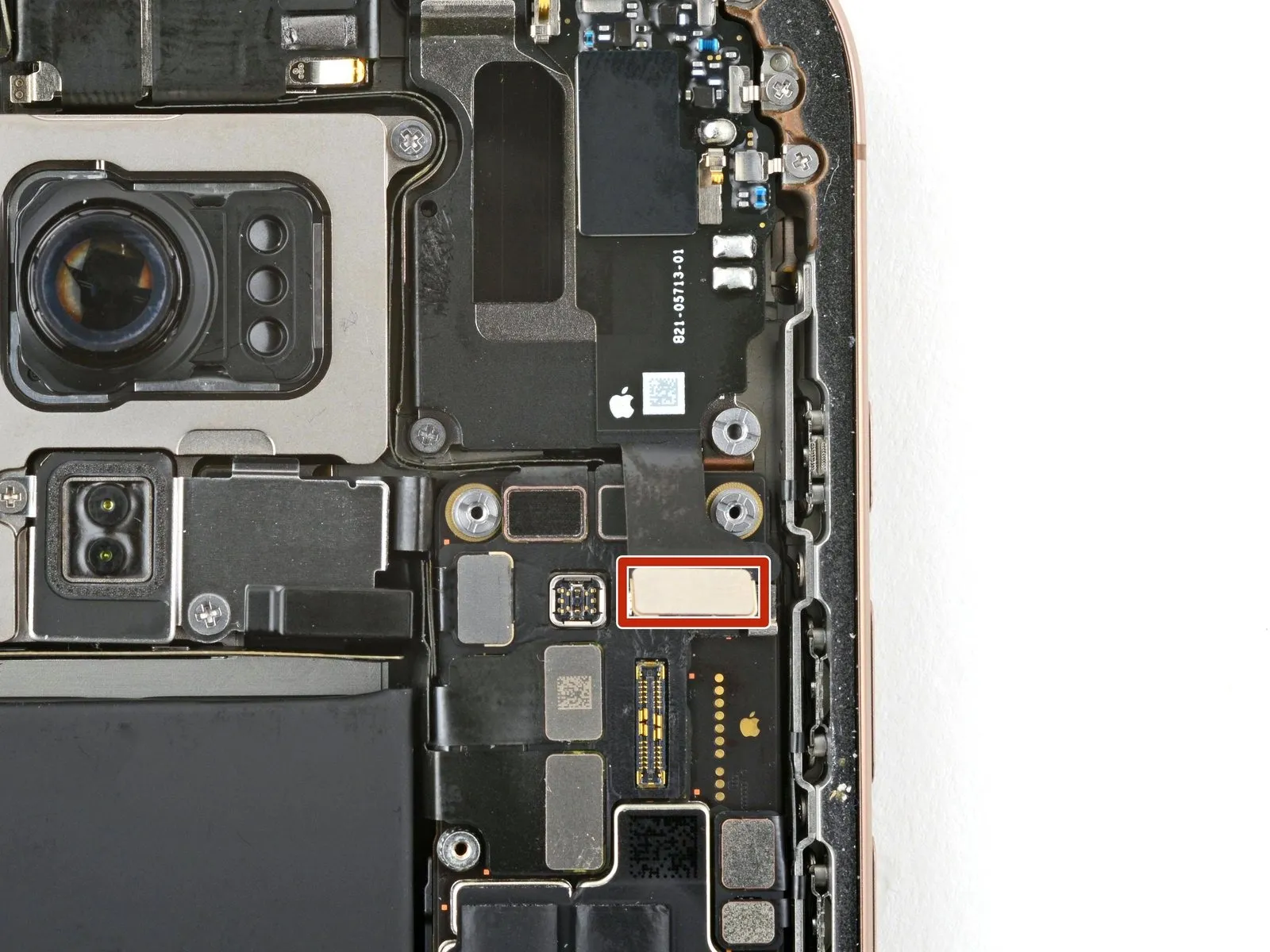

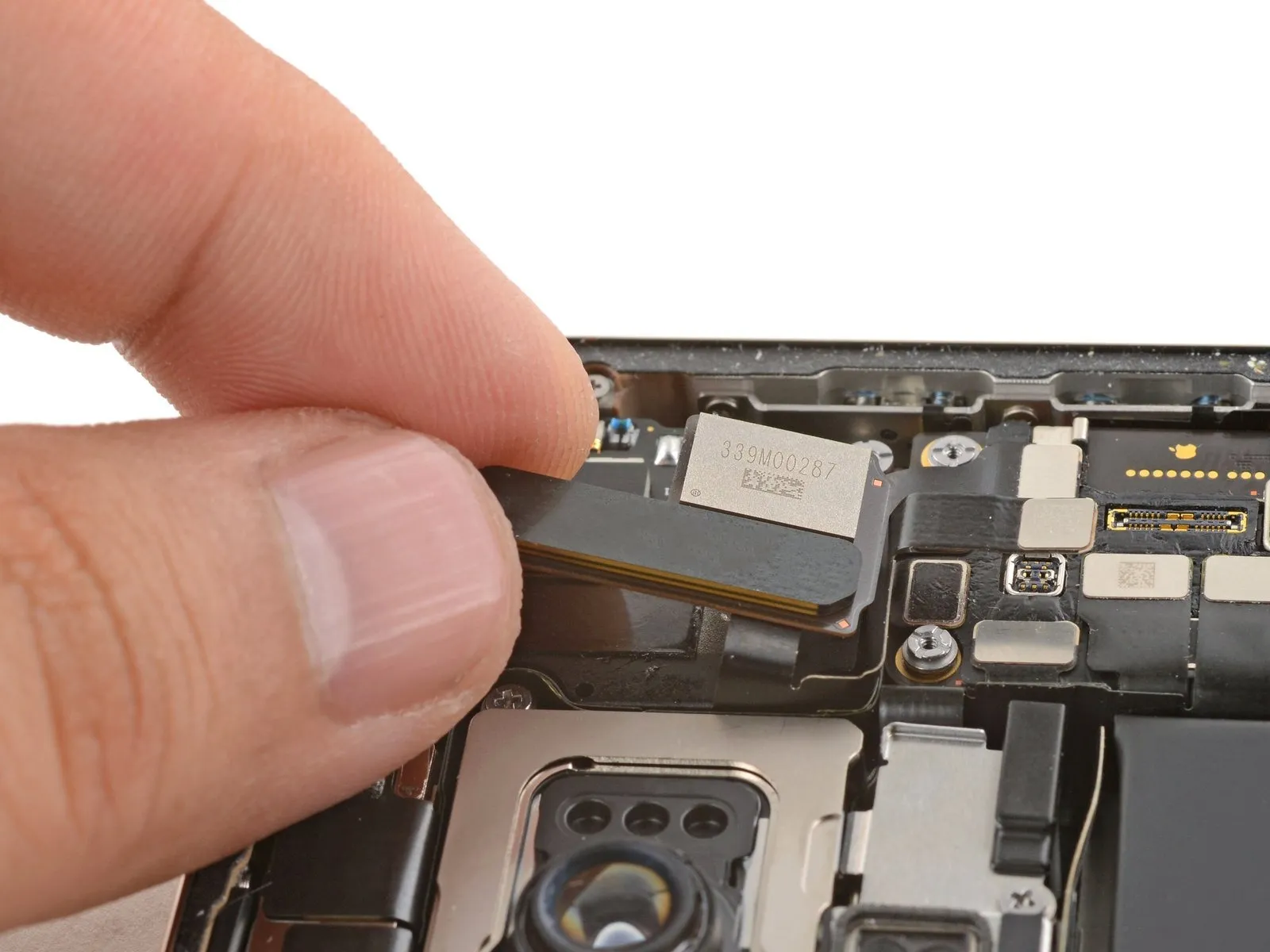

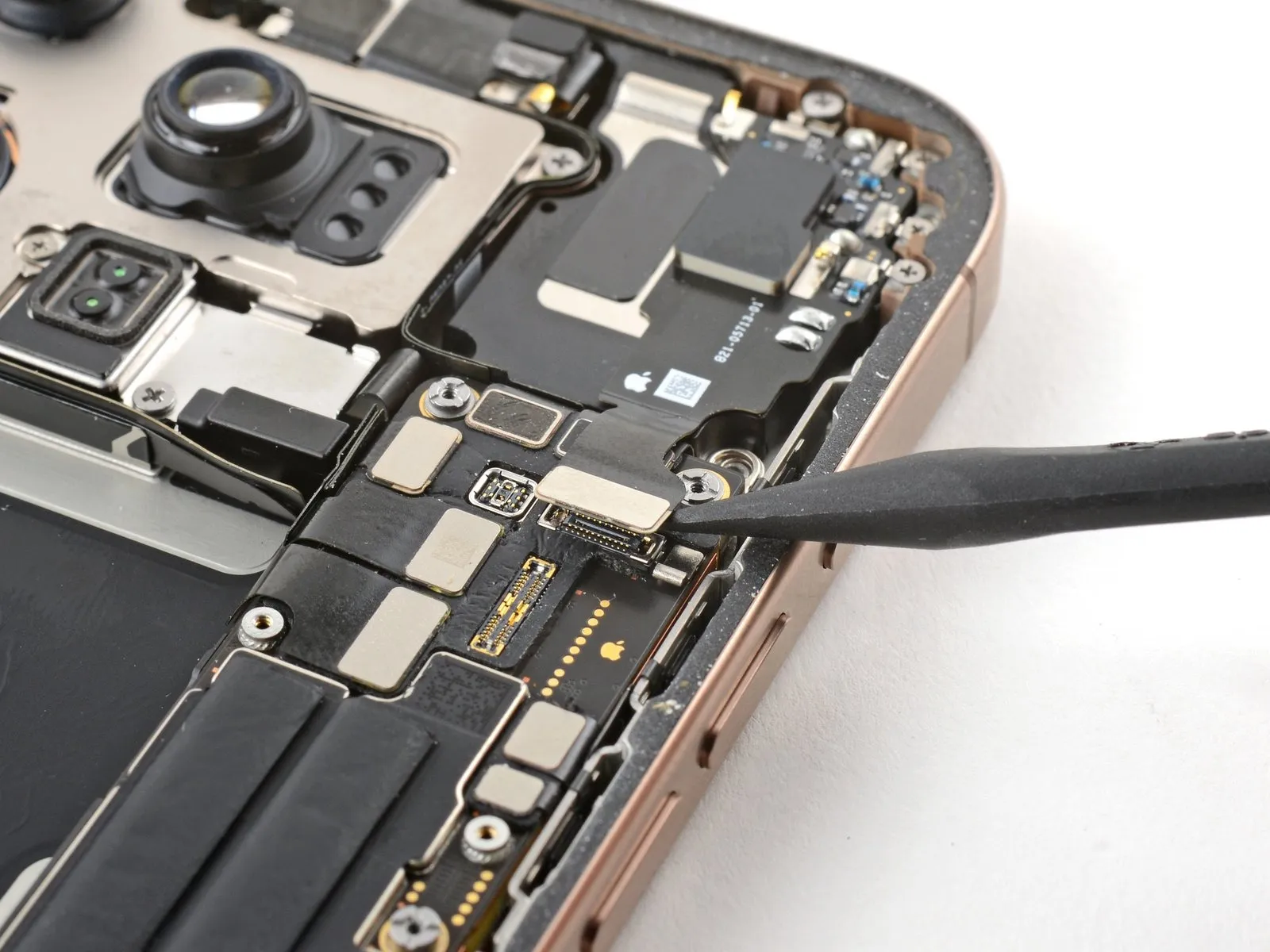

Employing the tip of a spudger, carefully lift and detach the 5G mmWave antenna.The antenna, responsible for 5G mmWave connectivity, must be dislodged using a spudger's pointed end.To release the 5G mmWave antenna, apply gentle upward pressure with a spudger.

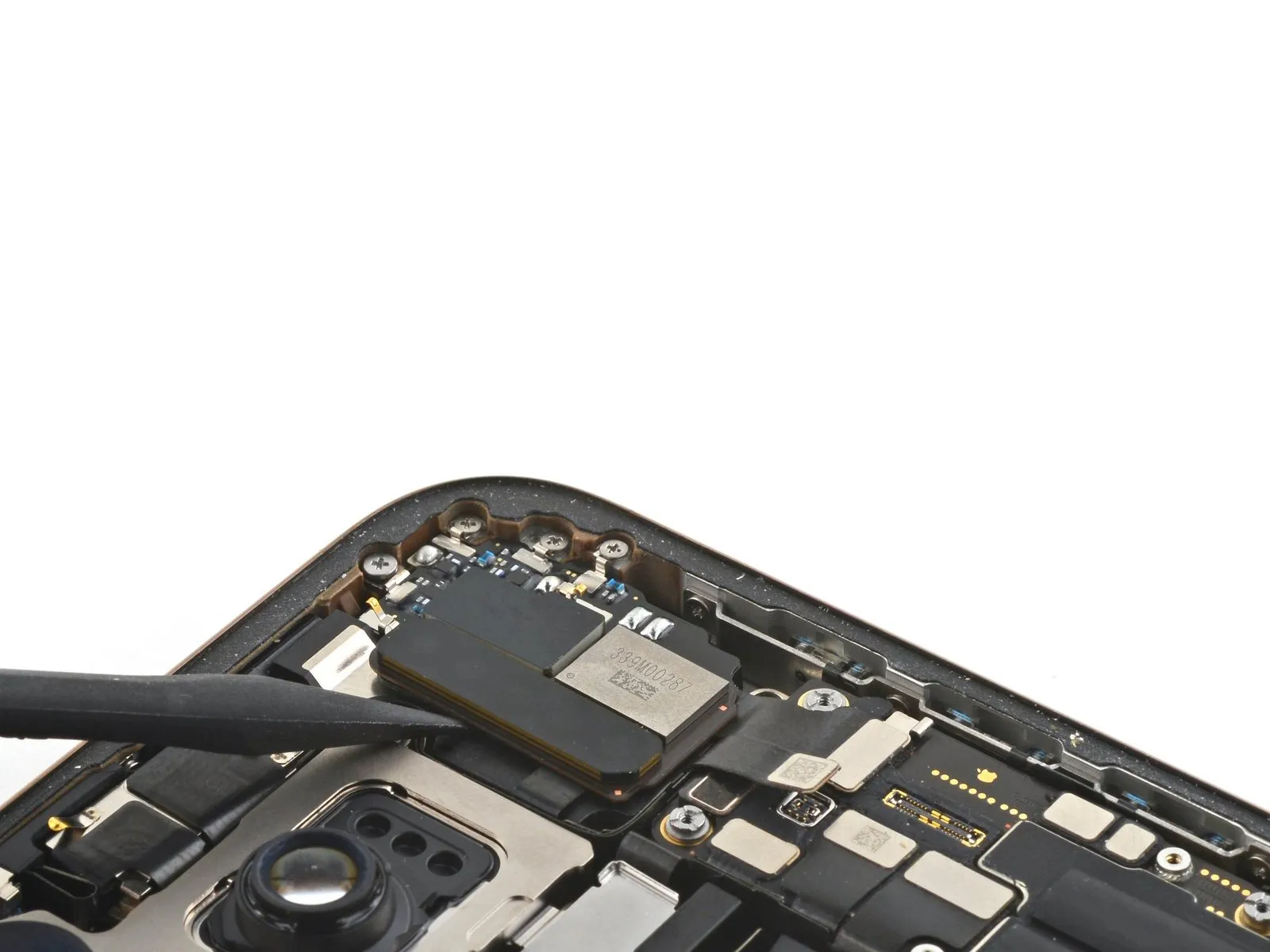

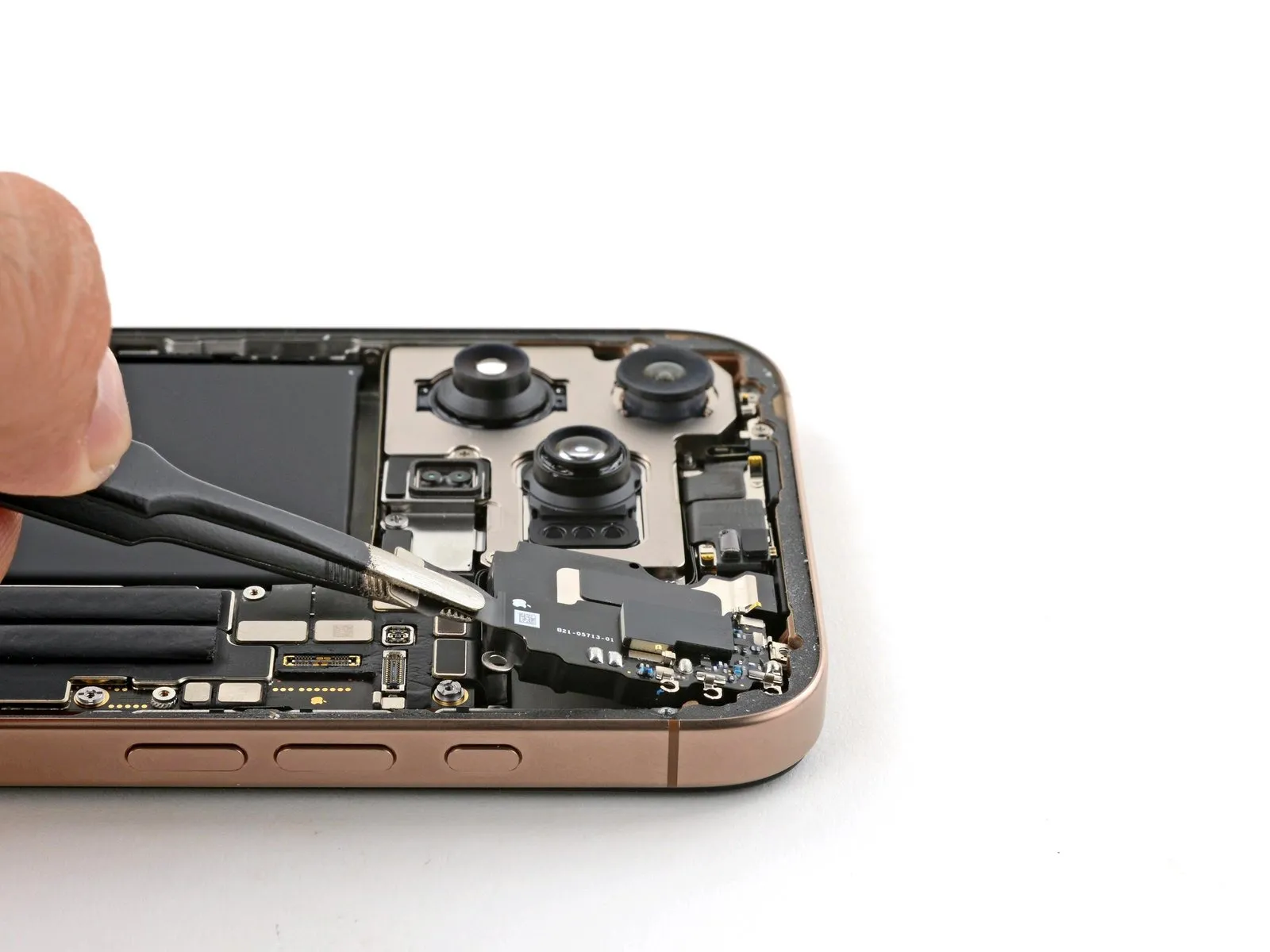

Employ the tip of a spudger to carefully lift and detach the earpiece speaker's electrical connection.The earpiece speaker connector must be separated from its socket using a spudger's pointed end.To release the earpiece speaker connector, a spudger should be utilized for prying and disconnection.

• To detach the earpiece speaker, initially loosen the six Phillips head screws that hold it in place.
  A Phillips screw measuring 2.4 millimeters in length is required for this step.Three Phillips screws, each with a length of 1.3 millimeters, are also necessary.
  Additionally, a Phillips screw with a 1.6-millimeter length is needed.A standoff screw, measuring 3.3 millimeters, must also be removed.
  For optimal results and to prevent damage, utilize a standoff driver or a compatible bit when removing standoff screws.If a standoff driver is unavailable, a small flathead screwdriver can be used as a substitute.
  Exercise extreme care when employing a flathead screwdriver to avoid slippage and potential harm to nearby components.The risk of damaging surrounding parts increases significantly if the screwdriver slips during removal.
  Careful manipulation is essential to prevent unintended damage to the device's internal structure.

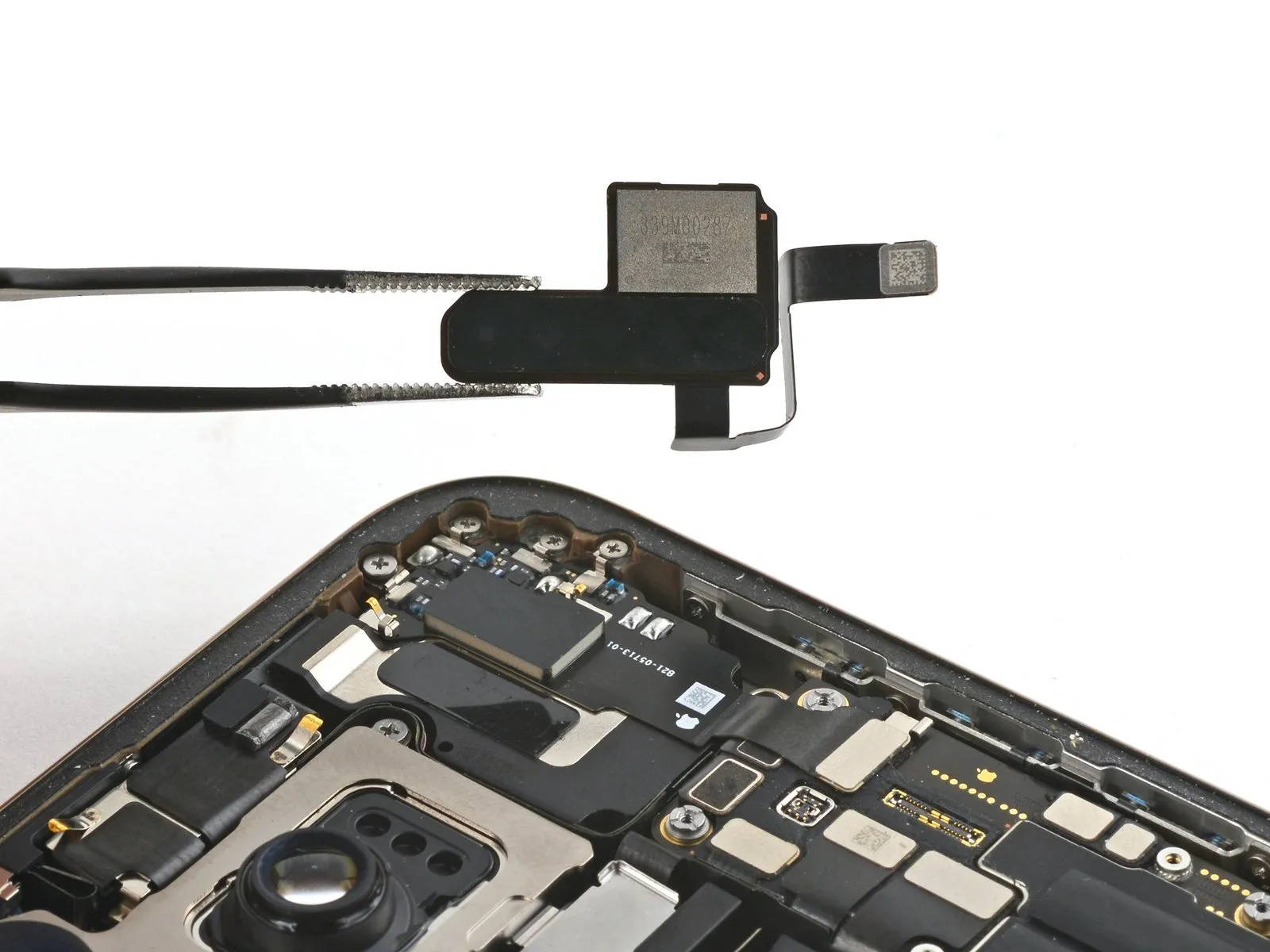

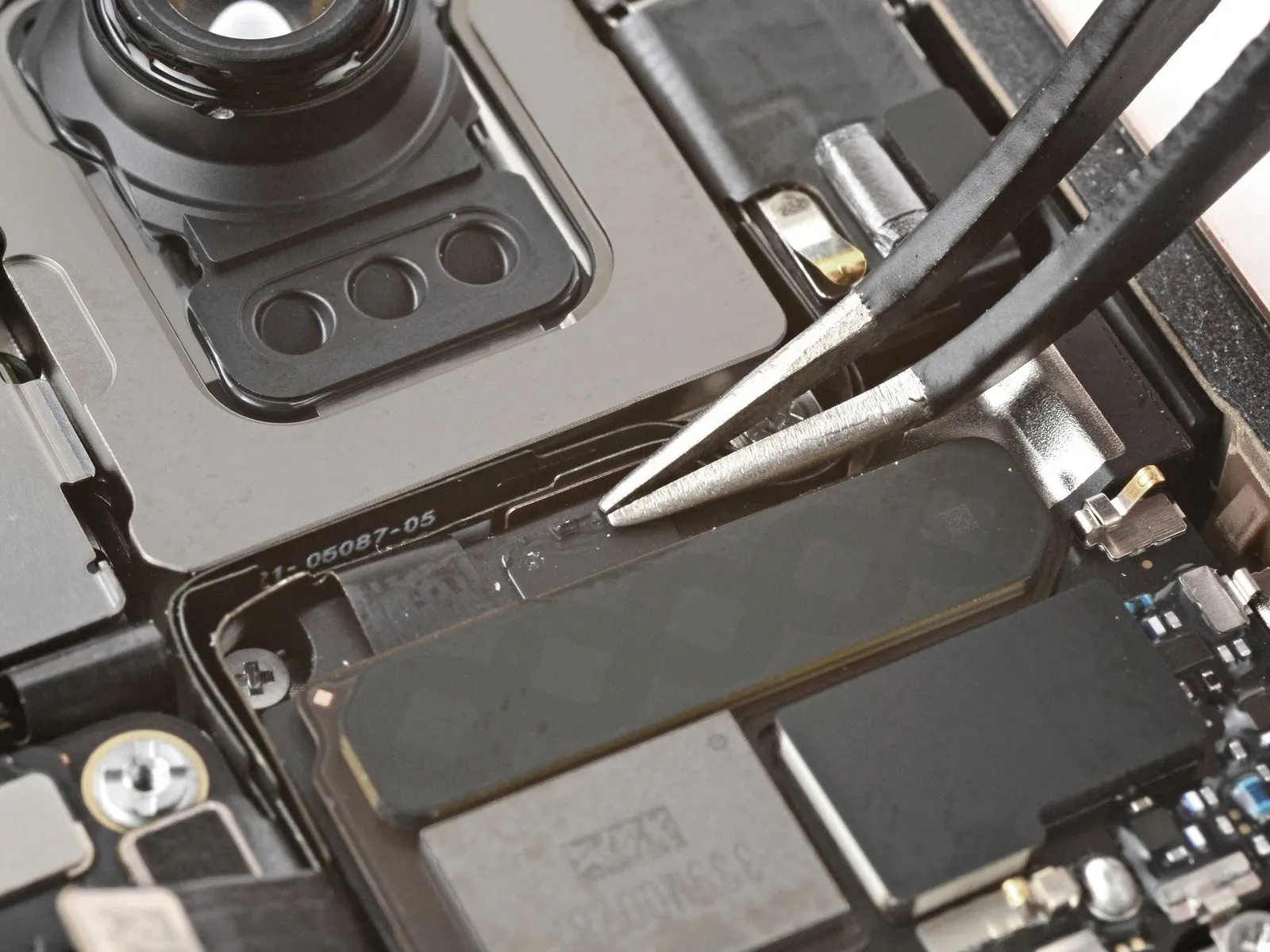

• Employing tweezers facilitates the lifting and removal of the earpiece speaker component.A degree of opposition might be encountered close to the uppermost border, attributable to the speaker gasket's adherence to the device's frame.To disengage the sealing mechanism, exercise caution and apply a gradual outward force when extracting the speaker.
• Gentle manipulation is crucial to avoid damage while separating the speaker from the frame's gasket.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone.
Slight variations in the visual appearance of reassembly images may occur based on the specific iPhone model being repaired, but the outlined steps remain accurate for all versions.

1. Ensure the superior border of the earpiece speaker is precisely matched with the superior border of the device frame.
2. Position the earpiece speaker within its designated cavity.
   Applying upward pressure on the speaker, directed towards the frame's upper edge, might be necessary to achieve a secure and complete fit.

• Affix the earpiece speaker utilizing six screws.
• Employ a single screw with a length of 2.4 millimeters and a Phillips head.Secure with three Phillips screws, each measuring 1.3 millimeters in length.Utilize a single Phillips screw, specifically 1.6 millimeters in length, for attachment.A single standoff screw, measuring 3.3 millimeters in length, is required.
• To fasten the earpiece speaker, use six fasteners.A 2.4 mm Phillips screw is needed for installation.Three fasteners are needed, each being a 1.3 mm Phillips screw.One Phillips head screw, with a 1.6 mm length, is necessary.
• A 3.3 mm standoff screw is essential for the process.The earpiece speaker is held in place by six screws; install these fasteners.A Phillips screw, precisely 2.4 millimeters in length, is used in this step.Three Phillips screws, each 1.3 millimeters long, are incorporated.
• A single Phillips screw, measuring 1.6 millimeters in length, is utilized.The assembly requires a standoff screw with a length of 3.3 millimeters.Ensure the earpiece speaker is firmly attached using the provided screws.Six screws are needed to maintain the earpiece speaker's position.

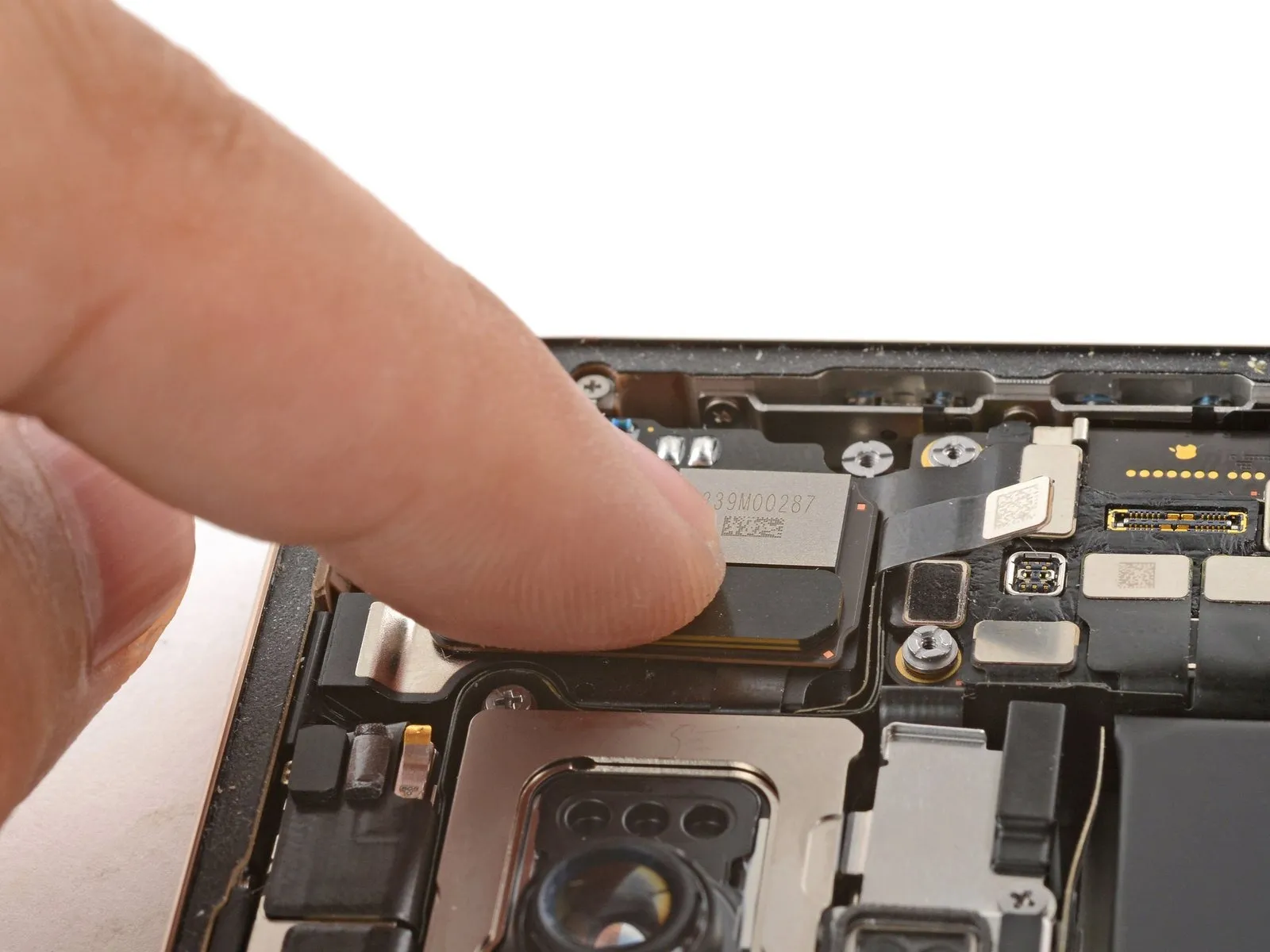

Apply pressure to the earpiece speaker connector utilizing either a fingertip or a spudger.The connector must be situated on the logic board's surface.To secure the connector, mirroring this procedure, ensure precise alignment and apply downward force to a single edge until an audible click is heard.

• Following the initial side's engagement, repeat the alignment and pressing process on the opposing side.
• Avoid applying pressure to the connector's central region, as this can risk bending the internal pins.

Employ tweezers or a spudger to eliminate any adhesive remnants adhering to both the earpiece speaker's upper surface and the antenna's rear side.

• Should your replacement component lack pre-applied adhesive, affix the antenna to the earpiece speaker utilizing a narrow segment of double-sided adhesive tape.

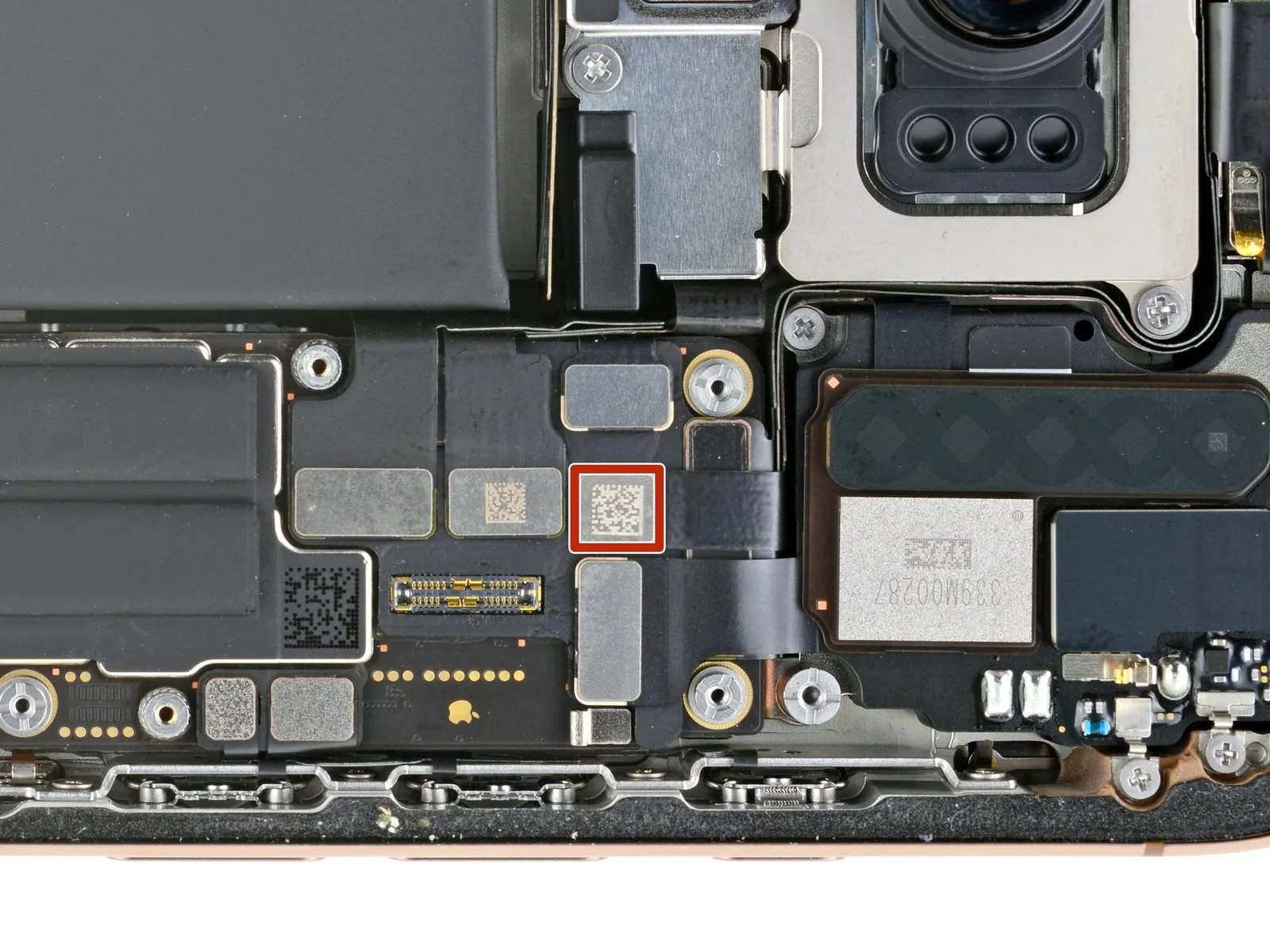

1. Position the mmWave antenna precisely above the earpiece speaker.Verify that the antenna connector establishes contact with its corresponding socket on the logic board.Ensure the antenna's connection is fully seated within the logic board socket.
2. Apply pressure to the antenna to maintain a stable connection to the earpiece speaker.

Proceed to step 36.Employ a finger or a spudger to secure the antenna connector to the logic board's surface.The antenna connector must be positioned correctly before applying pressure.To ensure a proper connection, meticulously align the connector and apply downward force to one edge until an audible click is heard.

• Repeat the alignment and pressing procedure on the opposing side of the connector.
• Avoid applying pressure to the central region of the connector to prevent pin distortion.

• Employ blunt-nose tweezers or manual pressure to detach sizable adhesive segments from the frame's edges.
• Employ a spudger to eliminate any remaining adhesive residue adhering to the frame's surface.
• For particularly resistant adhesive, utilize a hair dryer or heat gun to apply warmth and facilitate its removal.

• Using a single direction, carefully remove adhesive remnants from the frame's edges by wiping.
• Execute this cleaning process deliberately, as a pristine frame surface enables the new adhesive to spread uniformly, which is crucial for a strong seal.

• Visual confirmation of adhesive layout within the frame is achieved by utilizing these structural elements.

• To reveal a portion of the adhesive, carefully lift the corner tab of the adhesive sheet's liner and remove it, exposing approximately one-third of the adhesive surface.
• The adhesive's surface, once revealed, possesses a significant degree of tackiness.Avoid contact of the exposed adhesive with any other surfaces until it is prepared for application to the frame.Should your adhesive contain multiple protective liners, remove only the liner that exposes the side intended for bonding to the frame.
• Proper liner removal ensures the adhesive adheres correctly to the intended surface.

• Ensure the visible perimeter of the adhesive strip is precisely matched to the adjacent border of the iPhone's housing.
• Because the adhesive bond forms immediately upon contact, repositioning is impossible; any misalignment necessitates complete removal and replacement with a fresh adhesive strip.
• After confirming proper alignment, apply gentle pressure to secure the exposed adhesive strip to the iPhone's frame.

• Carefully remove the adhesive backing, ensuring firm contact between the adhesive and the surface.
• Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.
• To correct minor misalignments, delicately reposition the extended edges toward the frame's structure.
• Should the adhesive develop creases or folds, discard it and apply a new strip to ensure proper sealing.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used; however, be aware that water resistance will be diminished until a replacement is installed.

• Employ a spudger to apply pressure to the adhesive sealant located along the complete edge of the iPhone's housing.Exercise caution to avoid damaging the delicate grounding clips during this process; if displacement occurs, carefully reposition them using your fingers or tweezers.Excessive force should be avoided, as it can cause the adhesive to become distorted and elongated.
• The adhesive's structural integrity is maintained by applying only the necessary pressure to release it from the chassis.
• Careful manipulation of the spudger is essential to prevent unintended damage to internal components.

• Employ a spudger tool, or manually use your fingertips, to detach the pull tab affixed to the extensive front liner.The pull tab's typical location is situated within a corner of the liner.Utilize the pull tab to carefully separate the large front liner from its adhesive backing.
• A remaining liner may still be present around the device's edges, serving to protect the adhesive during reassembly; refrain from removing these smaller release liners at this stage.
• This perimeter liner prevents unintended adhesion during the reassembly process.

To facilitate access, carefully support the rear glass component by applying pressure along its right-hand border.

To establish a secure connection between the rear glass connector and the logic board, apply pressure using either a fingertip or the broad, planar edge of a spudger tool.Ensure the back glass connector is firmly seated on the logic board by exerting force with a finger or the specialized, flat end of a spudger.A spudger's flat end, or a fingertip, can be utilized to achieve proper adhesion of the rear glass connector to the logic board through applied pressure.

• Employ either a fingertip or a spudger to firmly secure the battery press connector to the logic board.Prior to final reassembly and sealing, it's advisable to verify the functionality of your iPhone; initiate the device and confirm expected operation, then deactivate it to proceed.Should the iPhone fail to power on, establish a connection to an external power source and attempt startup once more.
• In situations where the logic board has been substituted, and the display remains inactive, consult the dedicated screen repair guide for instructions on manually establishing the display connector.
• The battery press connector must be engaged with sufficient force to ensure a reliable connection to the logic board's contacts.
• Verification of proper device operation at this stage allows for troubleshooting before permanent closure of the iPhone housing.

• Employ a specialized tri-point Y000 driver to fasten the four screws that hold the back glass connector cover in place.
• The cover is secured with two screws, each measuring 1.3 millimeters in length.
• Additionally, two screws with a length of 1.0 millimeters are utilized for this attachment.

• Employ a tri-point Y000 driver for the installation of the three screws that fasten the battery connector cover in place.
• The battery connector cover is secured with two screws, each measuring 1.3 millimeters in length.
• A single screw, with a length of 1.0 millimeter, is also utilized for this attachment.

• Employ either your fingertips or a spudger tool to detach the surrounding liners, revealing the underlying adhesive.During liner removal, prevent any contact between surfaces and the newly exposed adhesive to avoid contamination.Thoroughly inspect both the frame and rear glass assembly for any detached liner fragments and eliminate them.Complete liner removal is essential to ensure proper adhesion during reassembly.Ensure the adhesive remains pristine by avoiding contact with any foreign objects during the liner peeling process.
• Residual liners can compromise the seal and structural integrity; therefore, their complete removal is critical.
• Confirm the absence of any remaining liners on the frame and back glass after the initial peeling procedure.

• Position the rear glass component onto the device chassis, initiating the placement with the uppermost boundary.
• Should you encounter opposition during installation, a surrounding retaining clip might be deformed and experiencing compression from the chassis; carefully examine the area of resistance and delicately restore any bent clips to their original shape.
• Apply even pressure across the iPhone's borders to ensure the rear glass makes complete contact with the chassis.

• Employ a hair dryer, heat gun, or iOpener to warm the edges of the rear glass.Continue applying heat until the surface becomes uncomfortably warm to the touch.This warming process reduces the adhesive's viscosity.The softened adhesive facilitates improved adhesion during reassembly.Ensure the temperature reaches a point where direct contact is uncomfortable, but not damaging.The application of heat is intended to loosen the adhesive bond, not melt the glass.Using these tools allows for controlled and even heating of the back glass perimeter.
• Care must be taken to avoid excessive heat, which could damage internal components.

Employ your digits to apply consistent, secure pressure encompassing the entire circumference of the iPhone's housing.A firm grasp around the iPhone's edges is achieved by utilizing your fingers.To ensure a secure hold, apply pressure with your fingers around the iPhone's complete outer boundary.

• Position the iPhone with its screen facing downwards onto a pristine, level workspace.
• Apply a continuous strip of adhesive tape along the outer edge of the rear glass to safeguard its cosmetic appearance.
• Arrange a circular stack of coins along the edge of the rear glass, constructing a barrier that matches the height of the rear camera lenses’ projections.
• As an alternative method, secure the device with vise clamps around its circumference to ensure proper adhesion.

• To apply even pressure, position four to five substantial volumes directly atop the iPhone's surface.
• Because the coins' weight might create a minor mark on the book covers, avoid utilizing precious or irreplaceable materials.
• Maintain the books' placement for approximately half an hour to ensure adequate contact time.
• This sustained force facilitates the bonding process of the adhesive material.

Employ a P2 pentalobe driver for the installation process.The two screws, each measuring 7.4 mm in length, require secure attachment.Position these fasteners on both lateral aspects of the charging port.Securely fasten the screws using the specified driver.Proper alignment is essential when installing the 7.4 mm screws adjacent to the charge port.
