iPhone 16 Pro Microphone Replacement

• Let the battery's charge level decrease until it reaches a state of depletion.One-quarter.Because fully charged lithium-ion batteries present a possible safety risk.
• Disconnect all wires and cords connected to the device.
• Simultaneously press and maintain the power button and one of the volume buttons, then swipe your finger across the screen to initiate the power-off sequence.

• To prevent cuts and simplify the repair process when the display or rear glass exhibits severe cracking, apply strips of packing tape across the damaged areas, ensuring they overlap.
• Ensure a flat surface, approximately the size needed to accommodate a suction cup, exists close to the lower border.

• To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; therefore, mark the pick's appropriate insertion point.
• Determine the dimension using an appropriate measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
• Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
• Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end, proceed from that point.

Employ a P2 pentalobe screwdriver to detach the pair of fasteners.The specified dimension is seven point four millimeters.Secure the USB-C port with the two long screws, one on each side.

• Use a heat source to introduce the material.Use a specialized iOpener tool.Apply consistent pressure to the lower border of the rear glass panel and maintain contact for a duration of 120 seconds.
• To soften the adhesive securing the rear glass, apply heat evenly to its lower perimeter using a hair dryer or heat gun until the surface becomes warm enough to comfortably touch.
• To prevent heat-related battery damage, ensure the device's temperature remains below the specified limit.

• Using a suction handle, secure it to the lower edge of the rear glass, positioning it directly over the USB-C port.
• Apply firm, consistent upward pressure to the handle to separate the rear glass from the frame.
• Carefully slide the pointed end of a prying tool into the separation.

• Exercise caution when separating the adhesive bonds holding the rear glass in place during the subsequent procedures, specifically avoiding damage to these locations.
• To prevent damage to the fragile cable linking the rear glass assembly and the device, refrain from inserting any tools near the upper volume button.
• To prevent damage, exercise caution during disassembly and avoid inserting tools beyond the recommended depth at each stage, as delicate spring contacts are situated along the phone's edges.
• Using a spudger or opening pick, carefully realign any bent spring contacts to ensure they make proper contact with the gold pads located on the rear glass.

• To prevent spring contact damage, limit the insertion depth of the pick to a maximum of 5 mm when working on the bottom edge.
• Using a pick, gently work along the lower edge, moving it back and forth to loosen the adhesive bond.
• To stop the adhesive from bonding prematurely, maintain a pick in the lower right section.

Apply warmth.Apply heat to the right side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

• Carefully insert a pick into the gap at the bottom right corner, progressing upward along the right edge to a point midway, stopping when you encounter a retaining clip that secures the rear glass.
• To prevent damage to the wireless charging/flash cable, exercise caution and avoid cutting in the vicinity of the volume buttons.
• Maintain the tool's position within the gap to stop the adhesive from bonding again.

Apply warmth to raise the temperature.Apply heat to the left side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

• Position another opening pick near the lower boundary.
• Using the second pick, carefully work your way around the lower-left corner and up the left side of the display, gently prying to loosen the adhesive and disengage the metal clips.
• As the clips slide past, you will notice and sense them disengaging.
• Maintain the pick's position in the upper left corner to obstruct adhesive re-bonding.

Apply heat evenly across the upper edge of the back glass, encompassing the volume button region, until the surface reaches a temperature that is comfortably warm to the hand.

• Avoid pushing the tool beyond the specified depth.Three millimeters.To prevent damage to the spring contacts, maneuver along the upper border.
• Carefully insert a separation tool along the top edge, progressing around the upper right corner until you reach the volume up button, to break the adhesive seal. Listen and feel for the distinct clicks indicating the release of the two upper retaining clips.

Avoid complete separation of the rear glass at this stage, as it remains connected via a fragile ribbon cable; proceed with the subsequent instructions to ensure safe detachment.

• Should you encounter resistance when attempting to open the rear glass, avoid applying excessive force; instead, carefully retrace the edges with your pick to identify and release any remaining adhesive or clipped fasteners.
• A small upward movement of the rear glass might be necessary to allow complete separation of the retaining clips before opening.
• Carefully pivot the rear glass assembly away from the volume controls.
• To prevent cable stress, use a rigid, non-contaminating support—such as a small box—to hold the rear glass in place.
• Carefully extract the retaining clips.
• To shield the rear camera lenses from potential scratches during internal repairs, apply polyimide tape; exercise caution and avoid applying pressure to the lenses themselves, as this could harm their sensitive stabilization components.

1. Employ a three-pronged screwdriver.Use a Y000 screwdriver.Using a Phillips screwdriver, detach the lower connector cover by unscrewing the three fasteners that hold it in place.
   • Two.One point two millimeters.Utilize screws with a length of long.
   • Begin the process by executing the action designated as "One."One millimeter.Employ a screw of extended length.

• Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.orUse your hands.Gently lift and detach the lower connector cover.

• Carefully insert the tip of a screwdriver to.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Use a prying tool to release and separate the battery press connector.

1. Employ a Y000 tri-point screwdriver to detach the four screws that hold the upper connector cover in place.
   • Two.A measurement of one millimeter.Utilize screws with a length designated as "long."
   • Begin the process by performing action one.One point two millimeters.Utilize a screw with a substantial length.
   • Begin the process by executing the action designated as "one."One point six millimeters.Employ a screw of extended length.

• Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.orUse your hands.Gently lift and detach the upper connector cover.

• Employ a 3/8-inch socket wrench to tighten the fastener to a torque of 15 Nm, ensuring the specified torque is achieved to prevent damage and maintain secure attachment.Use a screwdriver with a Phillips head to turn screws.Use a Phillips screwdriver to detach the Taptic Engine cover by unscrewing the three fasteners.
• A screw, measuring 3.0 millimeters in length, is required.
• Use screws, each measuring 1.7 millimeters in length.

• Carefully raise the Taptic Engine cover's upper border by gently prying with tweezers or fingertips.
• After releasing the lower edge from the frame's securing latches, detach the Taptic Engine cover.

• Carefully insert the tip of a screwdriver to actuate.Use a plastic pry tool, often referred to as a spudger, to separate components.Using a prying motion, detach the lower assembly cable connector from the logic board.

• Carefully insert the tip of a screwdriver to.Use a spudger.Using a prying tool, carefully release and separate the two press connectors located on the lower right side of the frame.

• Employ a Y000 tri-point screwdriver for removal.A measurement of one millimeter.A lengthy screw fastens the cable to the lower assembly.

• Apply heat to the area of the lower assembly cable situated directly above the Taptic Engine, using either an iOpener or a hair dryer, until the surface feels warm.

• Using an opening pick, carefully disengage the lower assembly cable by inserting it beneath the cable and gently prying it away from its attachment.The device incorporates a Taptic Engine..
• To permit access, gently maneuver the cable, ensuring it is not damaged, while avoiding any sharp bends.The device incorporates a Taptic Engine..

• Employ a Phillips screwdriver to detach theA screw measuring 1.9 millimeters in length.Ensure the component is firmly fixed.The device incorporates a Taptic Engine..

• Carefully insert the pointed end of a prying tool beneath the upper border.The device incorporates a Taptic Engine.Carefully detach the plastic buffer strip from its surface.

• Carefully lift the component using a spudger's tip.The device incorporates a Taptic Engine.Access the component by reaching into the upper rightmost area.
• Avoid applying force that could damage the battery during separation.
• Detach the component.The device incorporates a Taptic Engine..

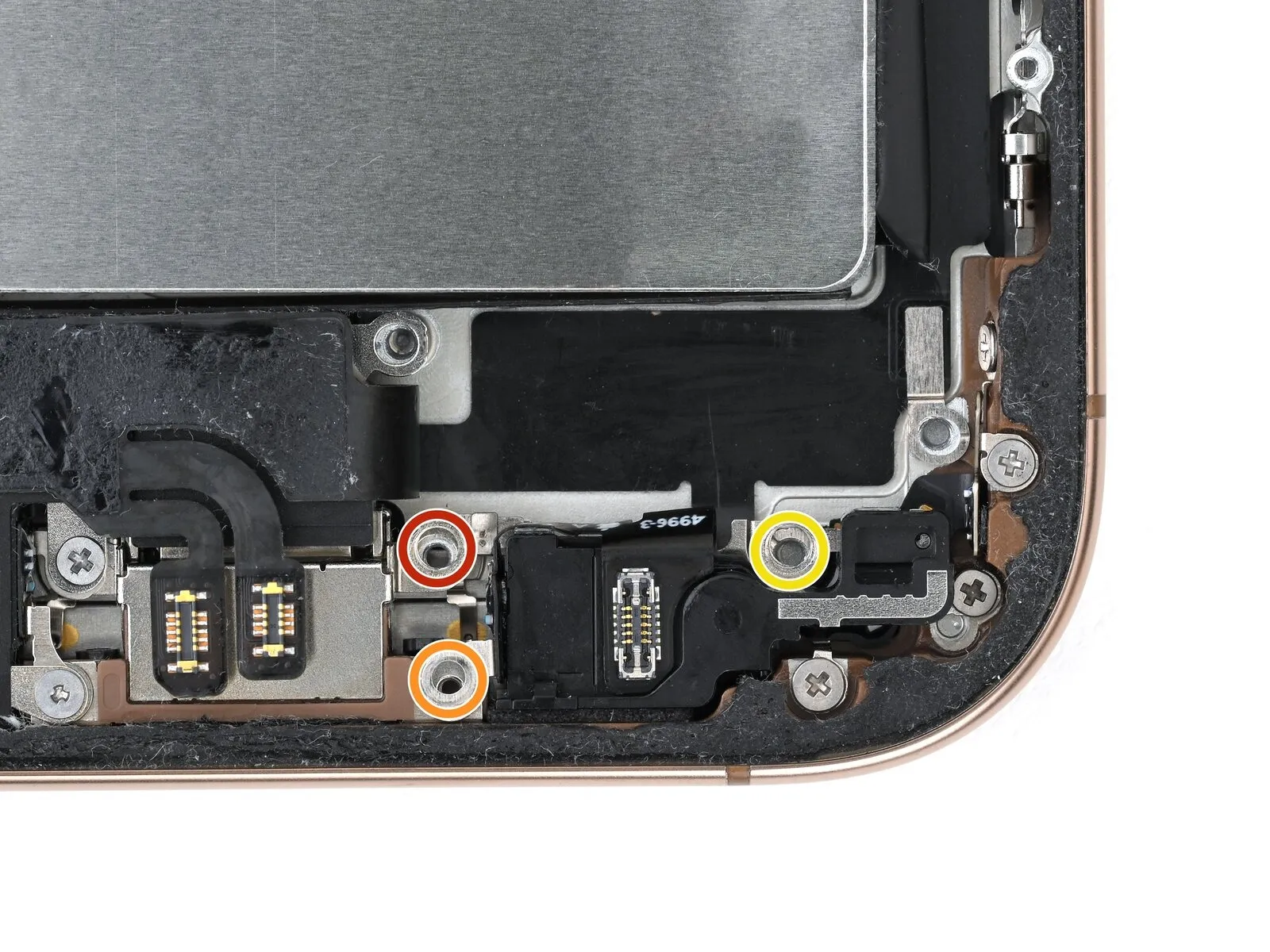

• Using a screwdriver, detach the microphone by unscrewing the three fasteners that hold it in place.
  A standoff screw with a length of 3.6 millimeters.
  The standoff screw measures 2.9 millimeters in length.
  Employ a Y000 tri-point screwdriver to loosen a screw measuring 1.3 millimeters in length.

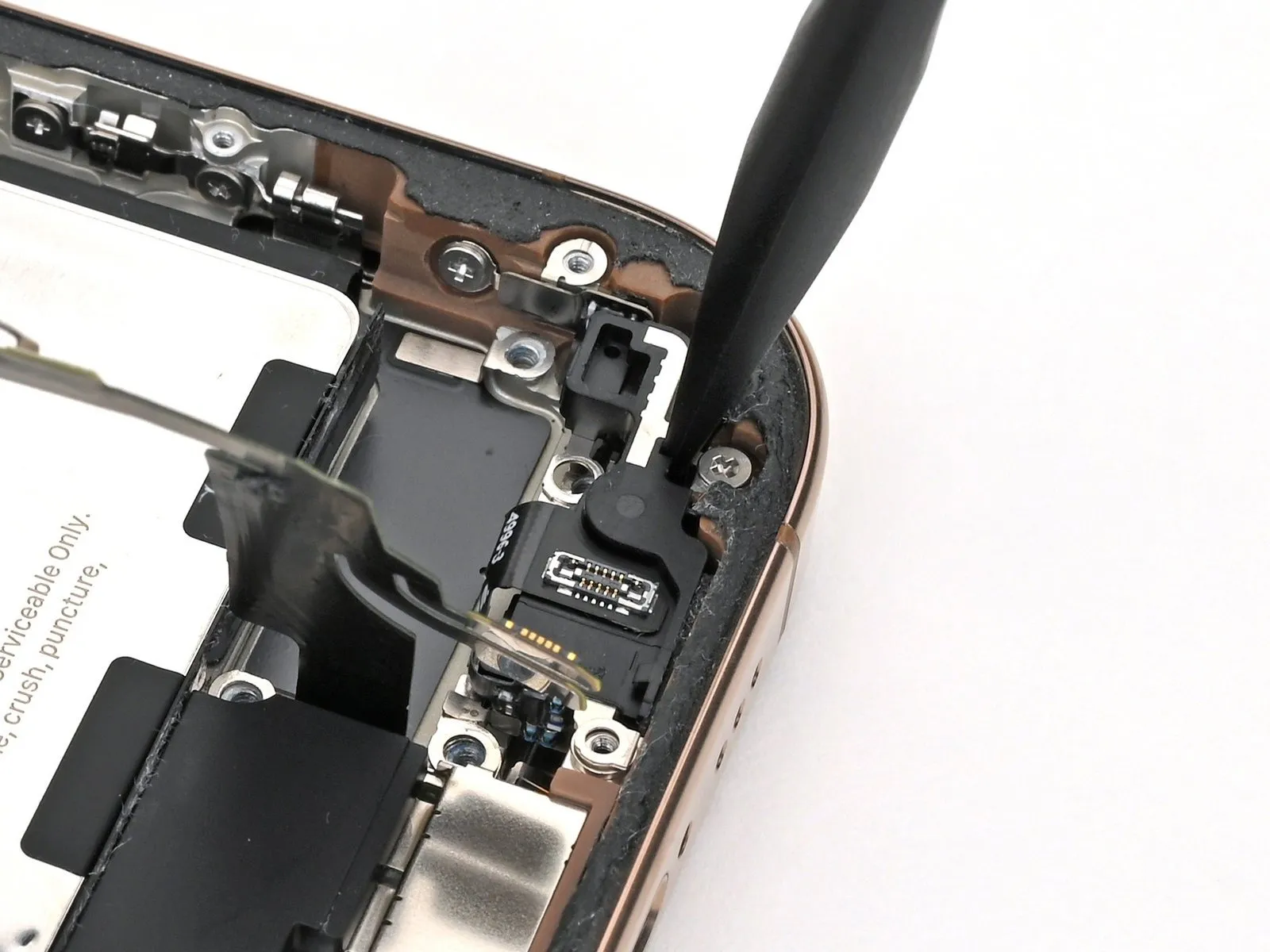

• Carefully leverage the microphone upward with a spudger's flat edge, freeing it enough to grasp securely by hand or with tweezers.
  Avoid applying force that could separate the battery from its housing.Failure to adhere to this precaution could result in component failure.
  Expect a slight binding sensation when the microphone separates from the frame gasket.

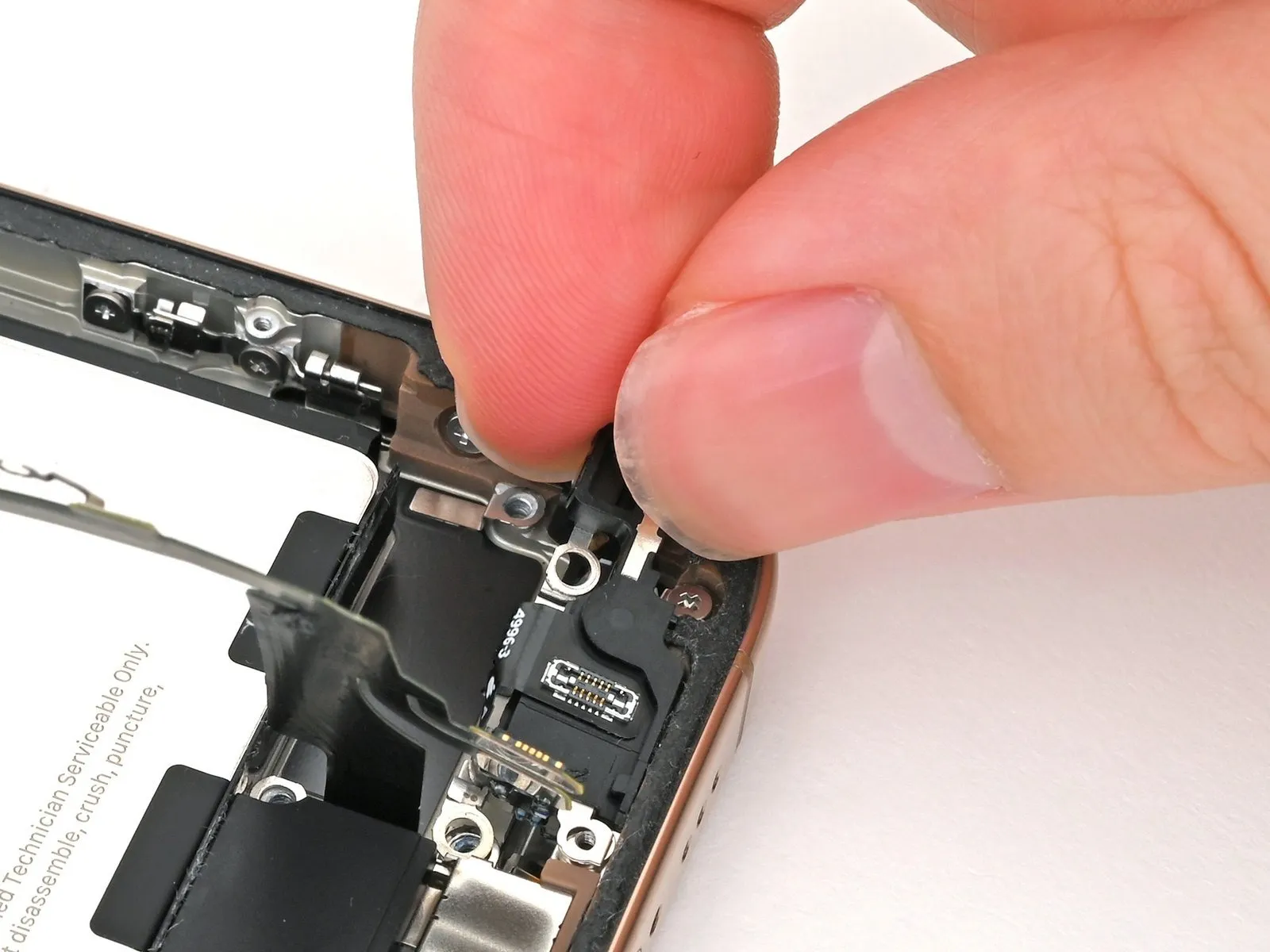

• To release the microphone, gently draw it in the direction of the battery, disengaging it from the adhesive gasket that secures it to the device's frame.

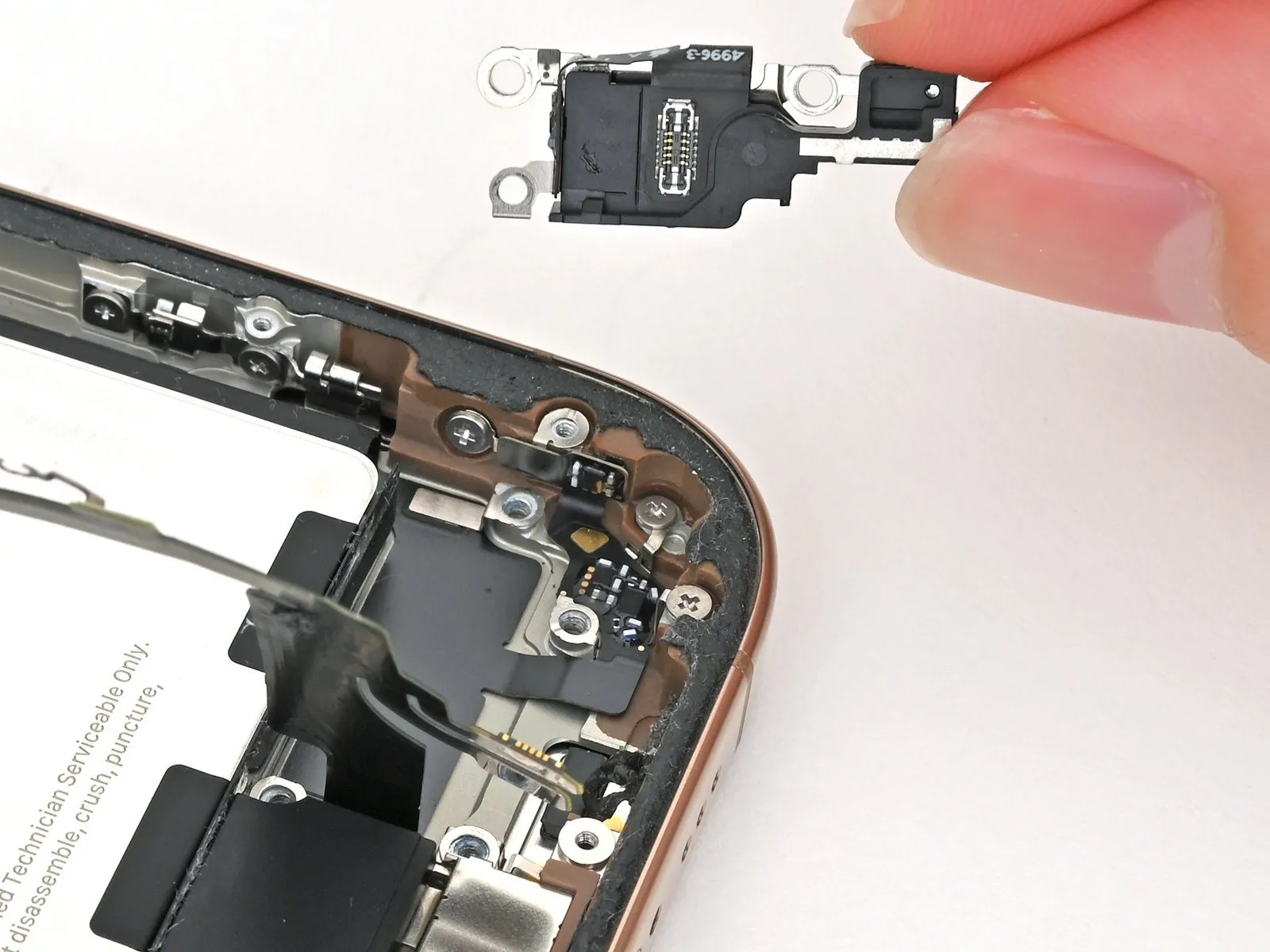

  Carefully detach the microphone assembly.

Having finished the disassembly process, the following instructions detail the reassembly of your iPhone. While some images illustrate the Pro Max, the steps are applicable to the Pro model as well.

• Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.Carefully detach the existing microphone adhesive from the frame's underside.

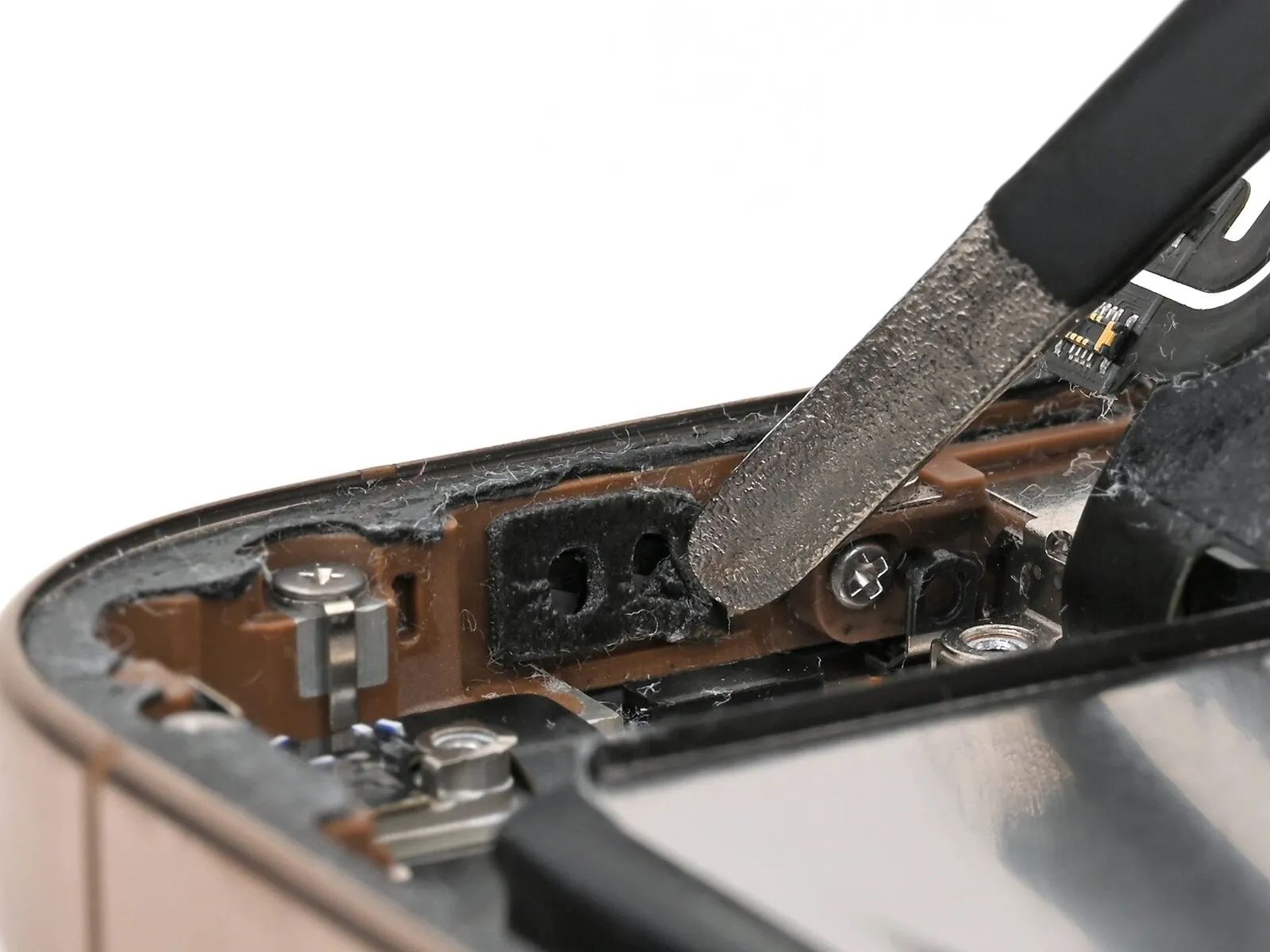

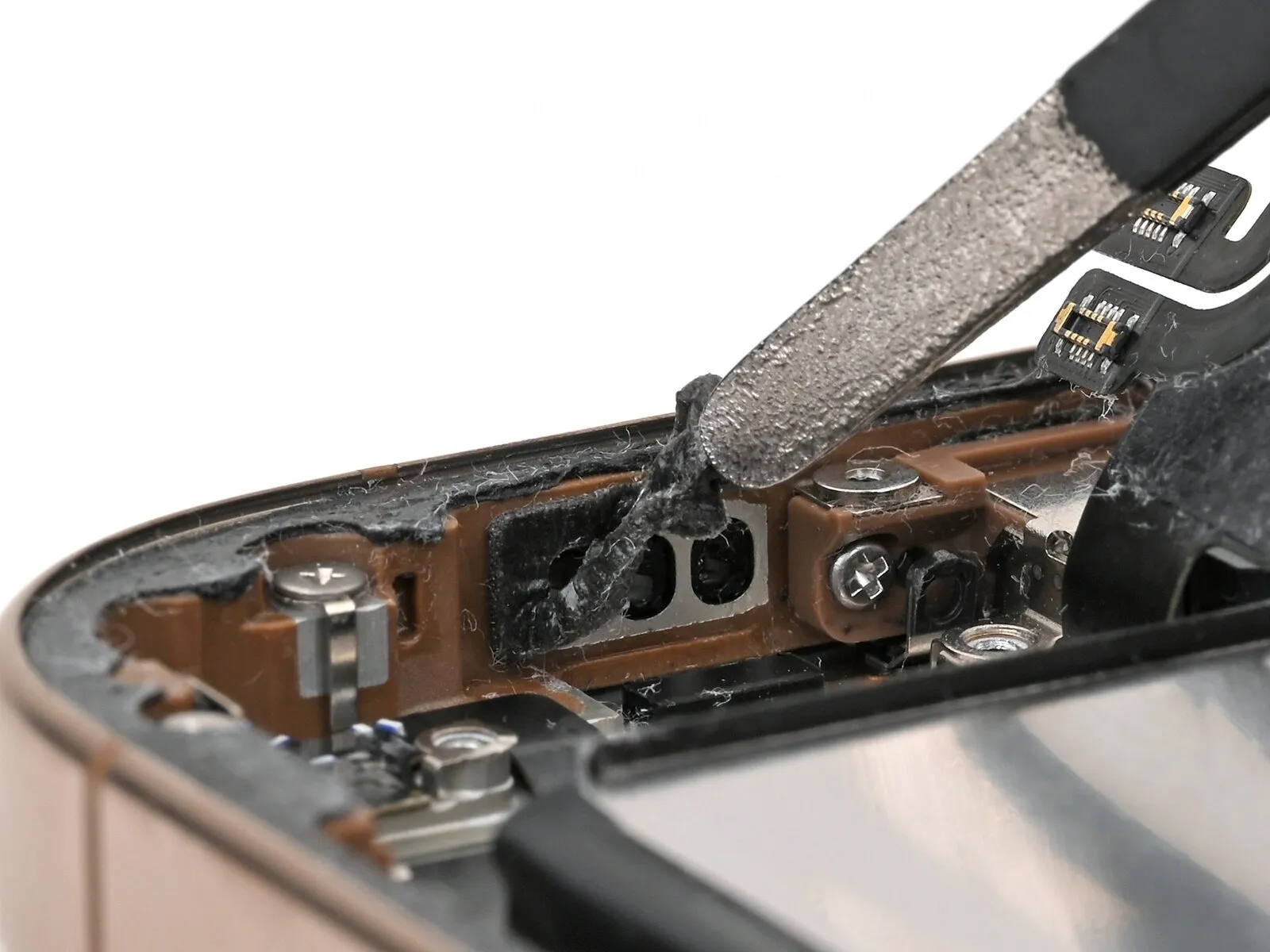

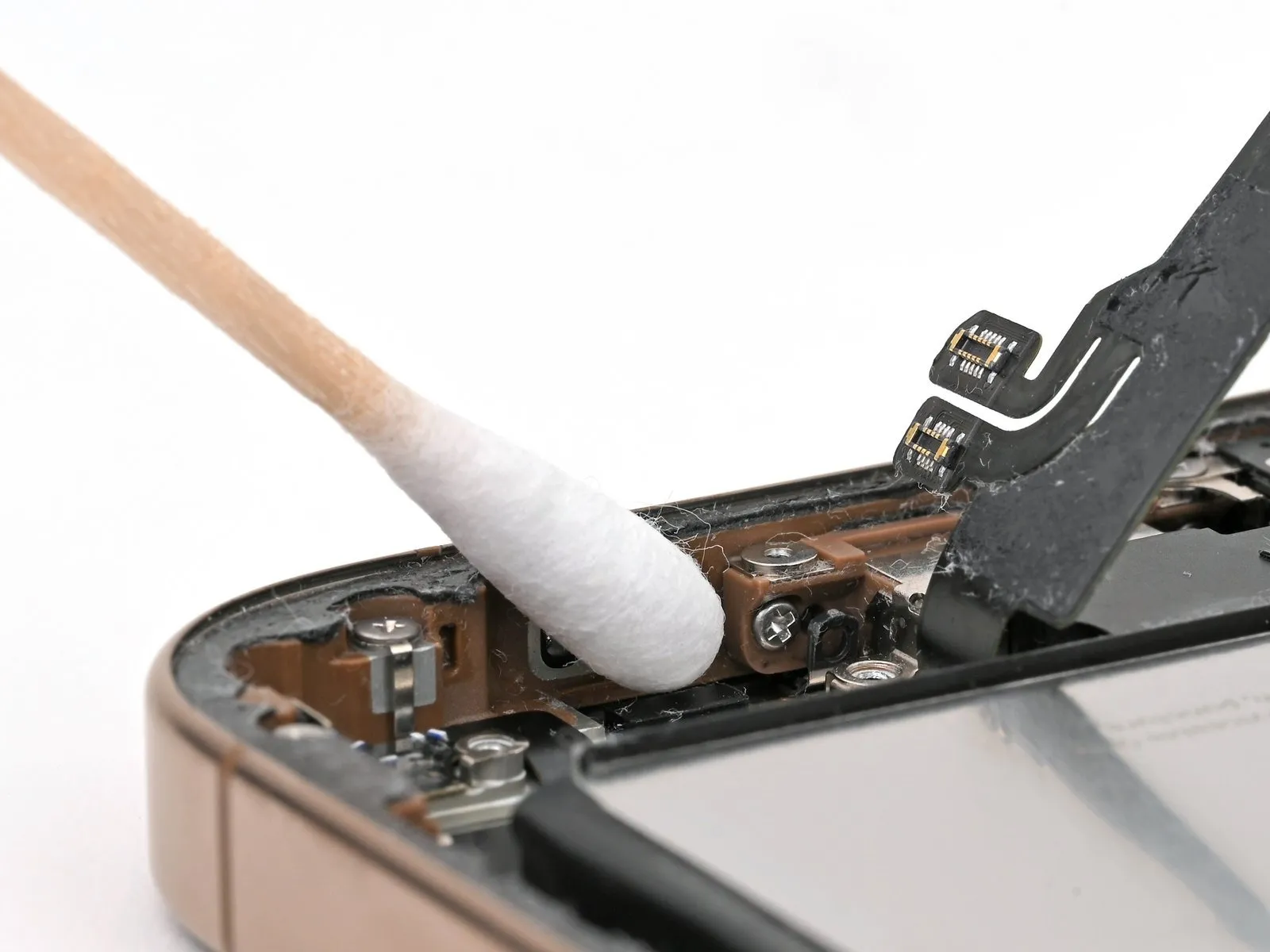

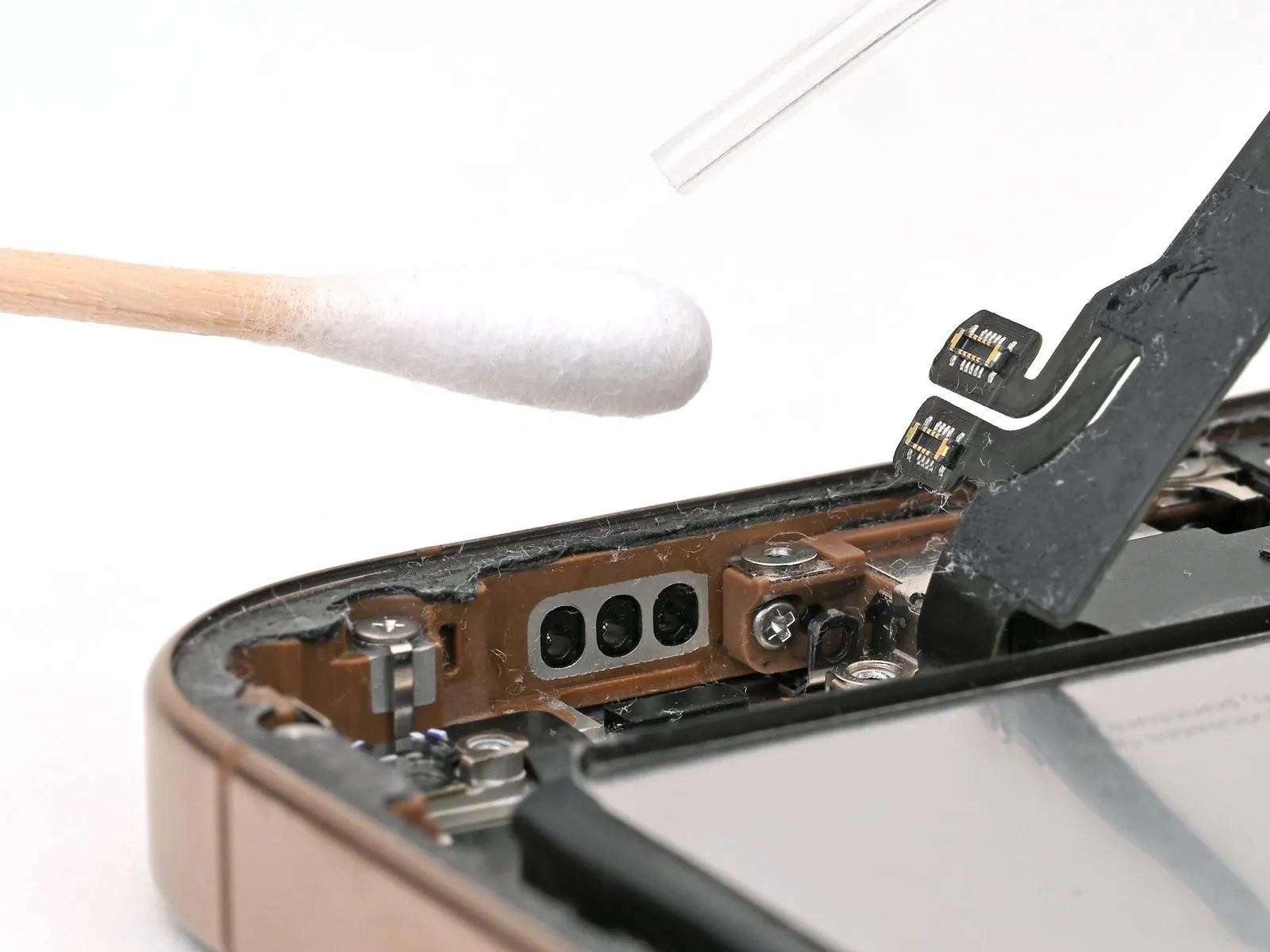

• Carefully remove any remaining microphone adhesive from the frame by gently wiping with a cotton swab or lint-free cloth dampened with isopropyl alcohol.

• If the new microphone has factory-applied adhesive, proceed to the next instruction.
  Please provide the original text you want me to rewrite. I need the sentence/instruction to work with.Employ a bonding agent.Because the adhesive permanently bonds the foam windscreen to the microphone, precise positioning is essential prior to application.

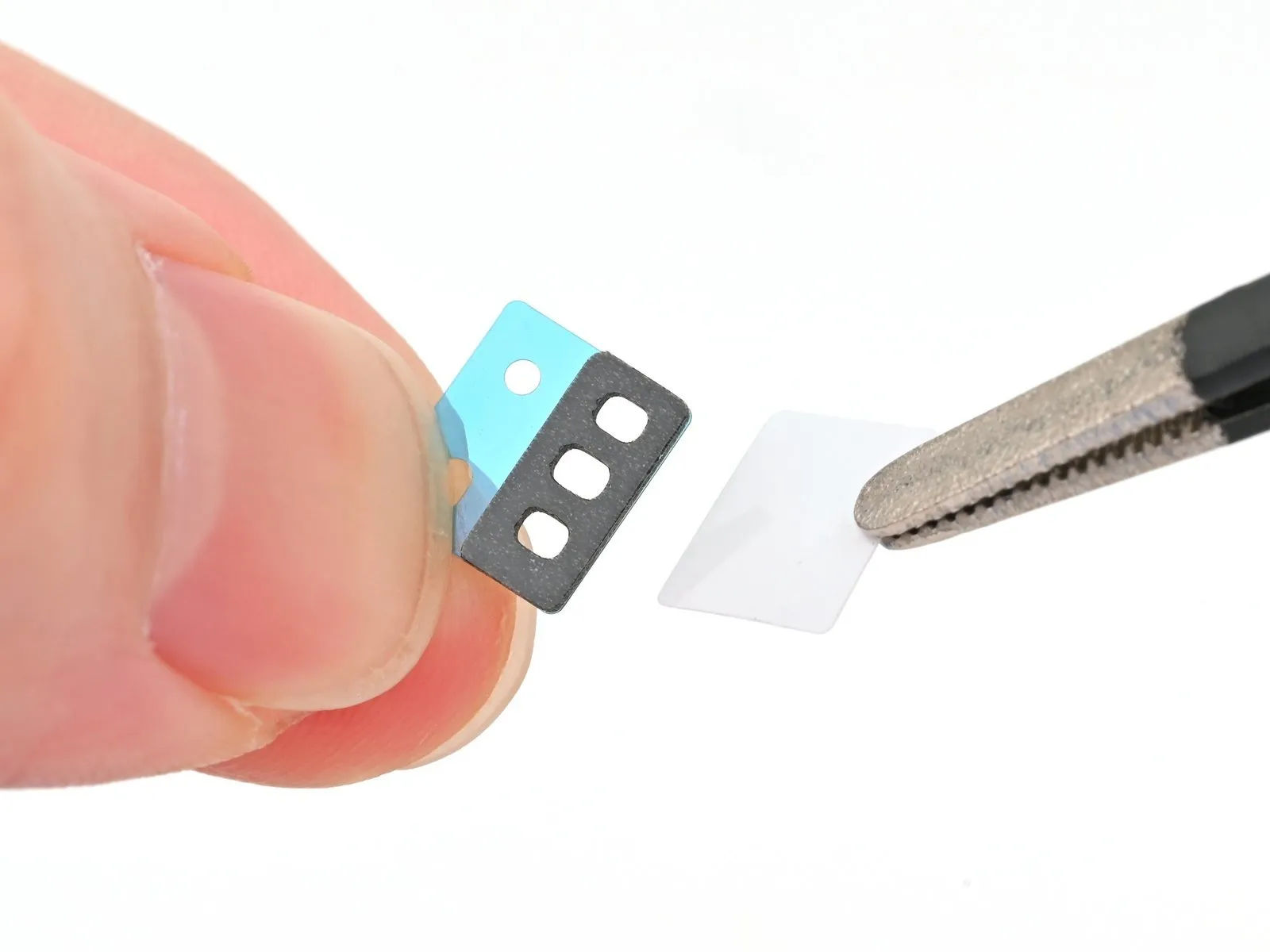

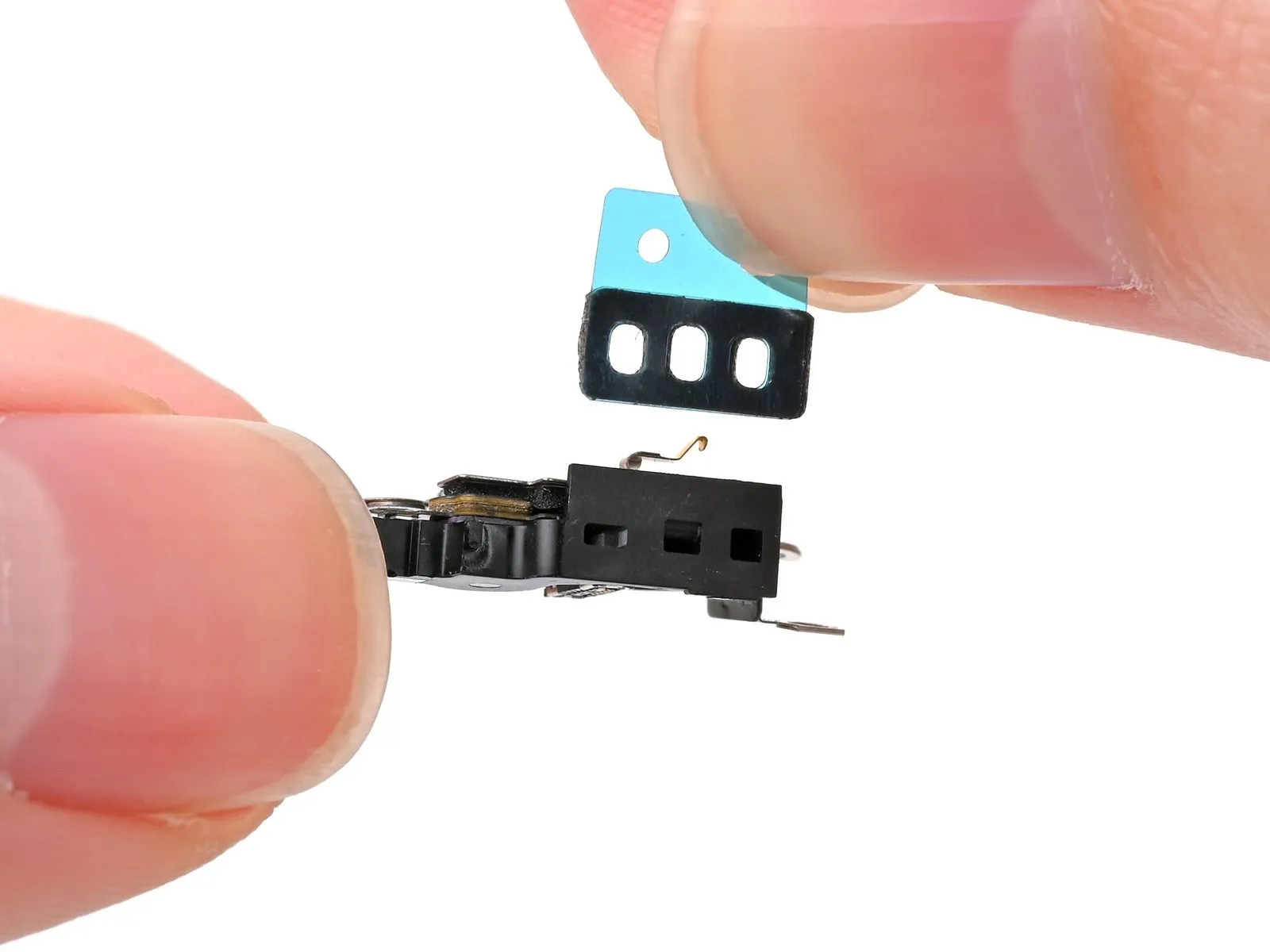

• Carefully peel away the pre-applied, opaque white adhesive backing from the replacement microphone adhesive.
• Carefully position the adhesive backing so that its three apertures match the microphone's three corresponding holes, then secure it in place.

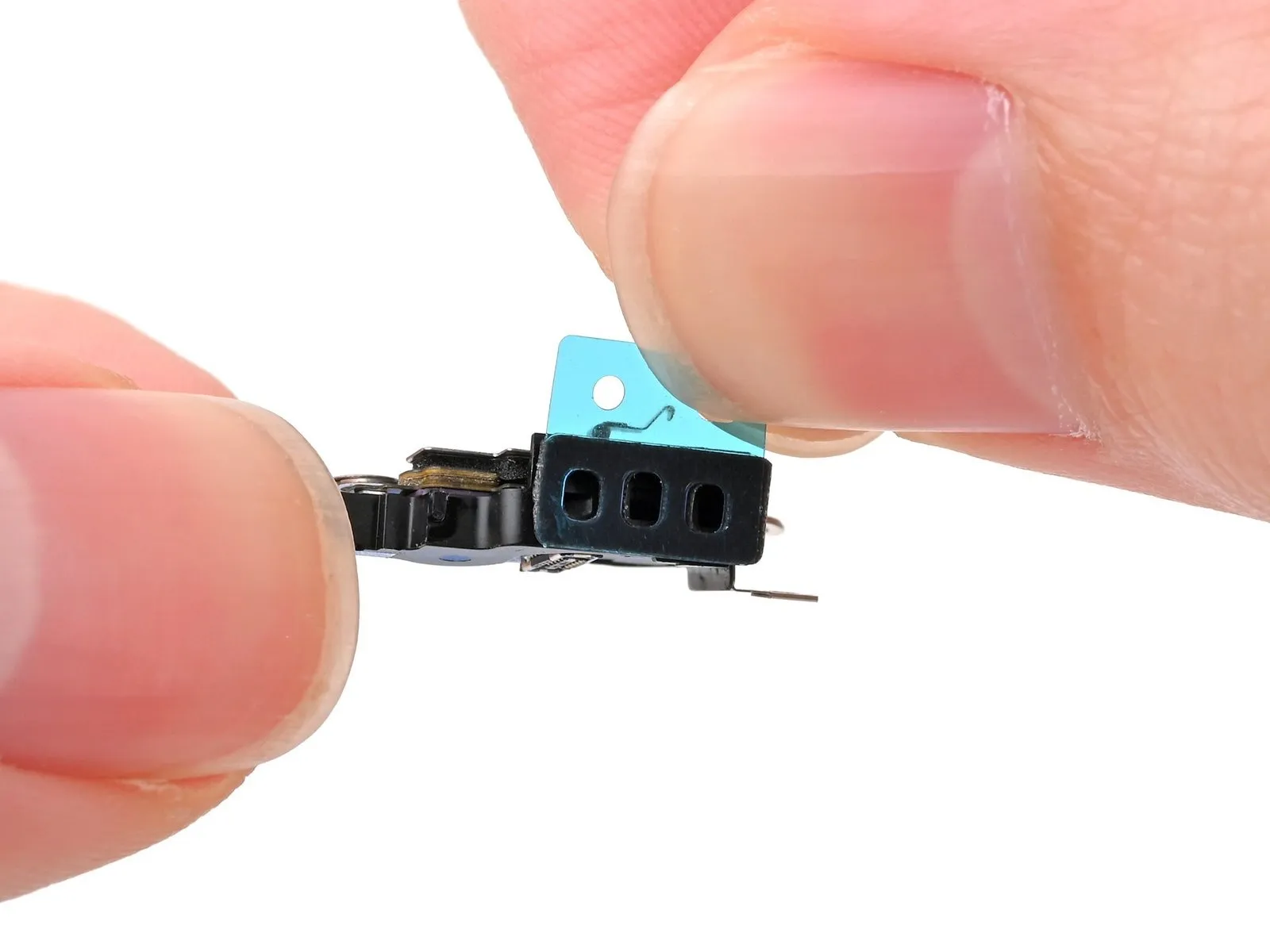

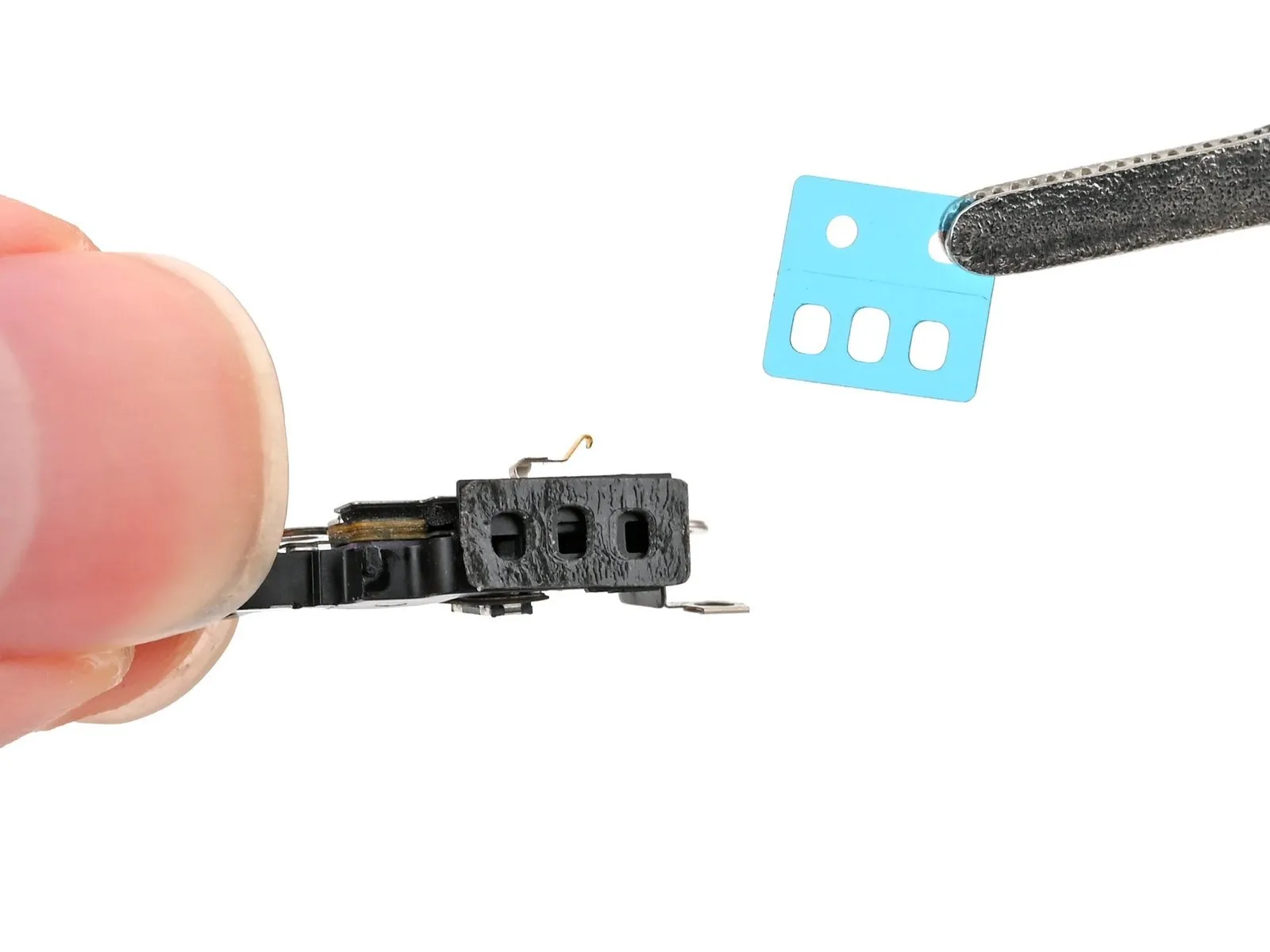

• Carefully peel away the microphone's plastic protective layer to expose the adhesive surface.

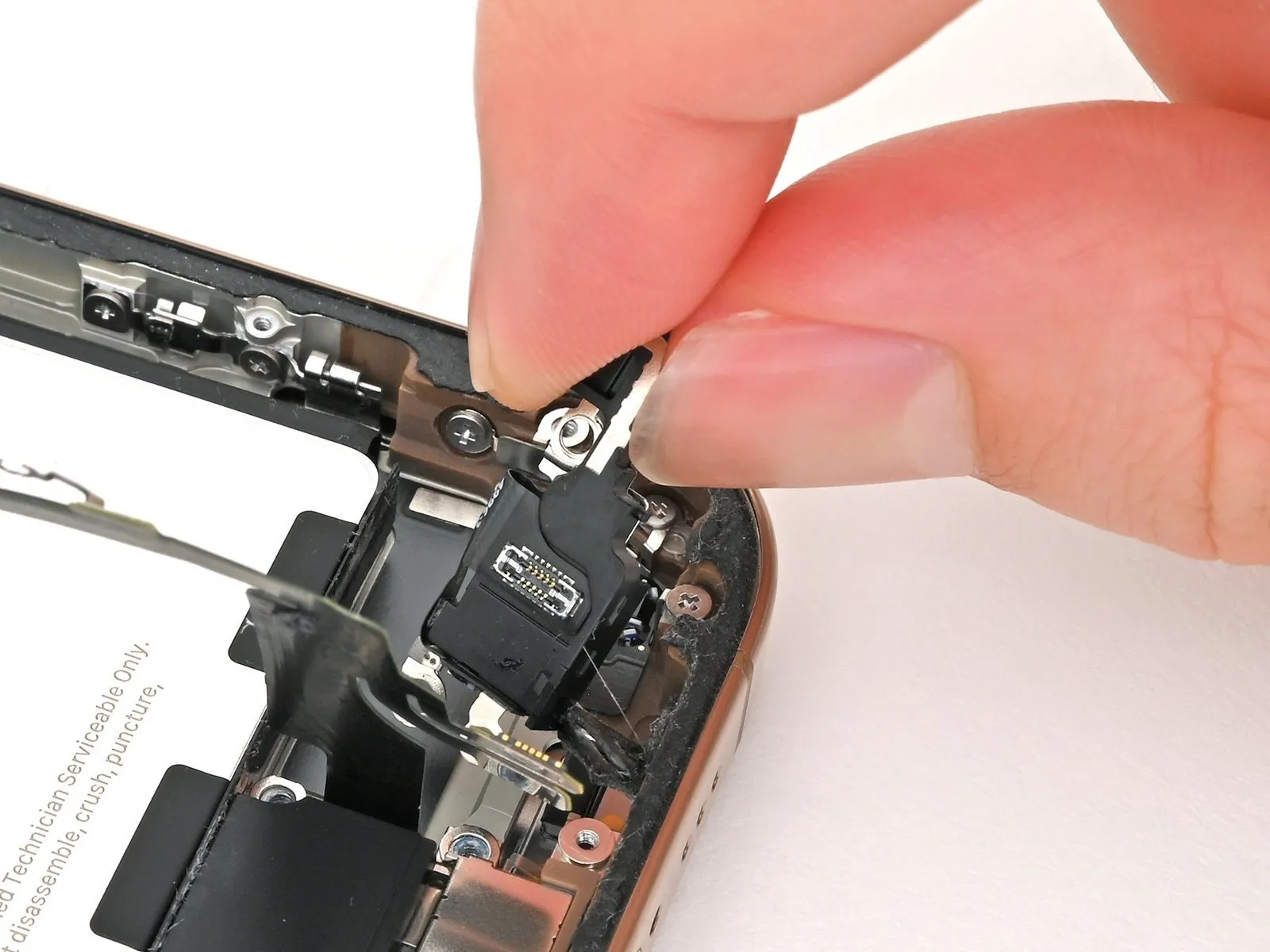

• Position the microphone within the frame, ensuring the screw holes are properly aligned.
• Fasten the microphone with three screws, but do not fully tighten them at this stage.
  • A standoff screw, measuring 3.6 millimeters in length, is required.
  • A standoff screw, measuring 2.9 millimeters in length, is required.
  • A tri-point screw, type Y000, measuring 1.3 millimeters in length.
• Apply firm pressure to the microphone’s surface while maintaining contact with the frame’s lower edge for a duration of 15 seconds to ensure the adhesive bonds securely.
• Ensure the microphone screws are secured with maximum torque.

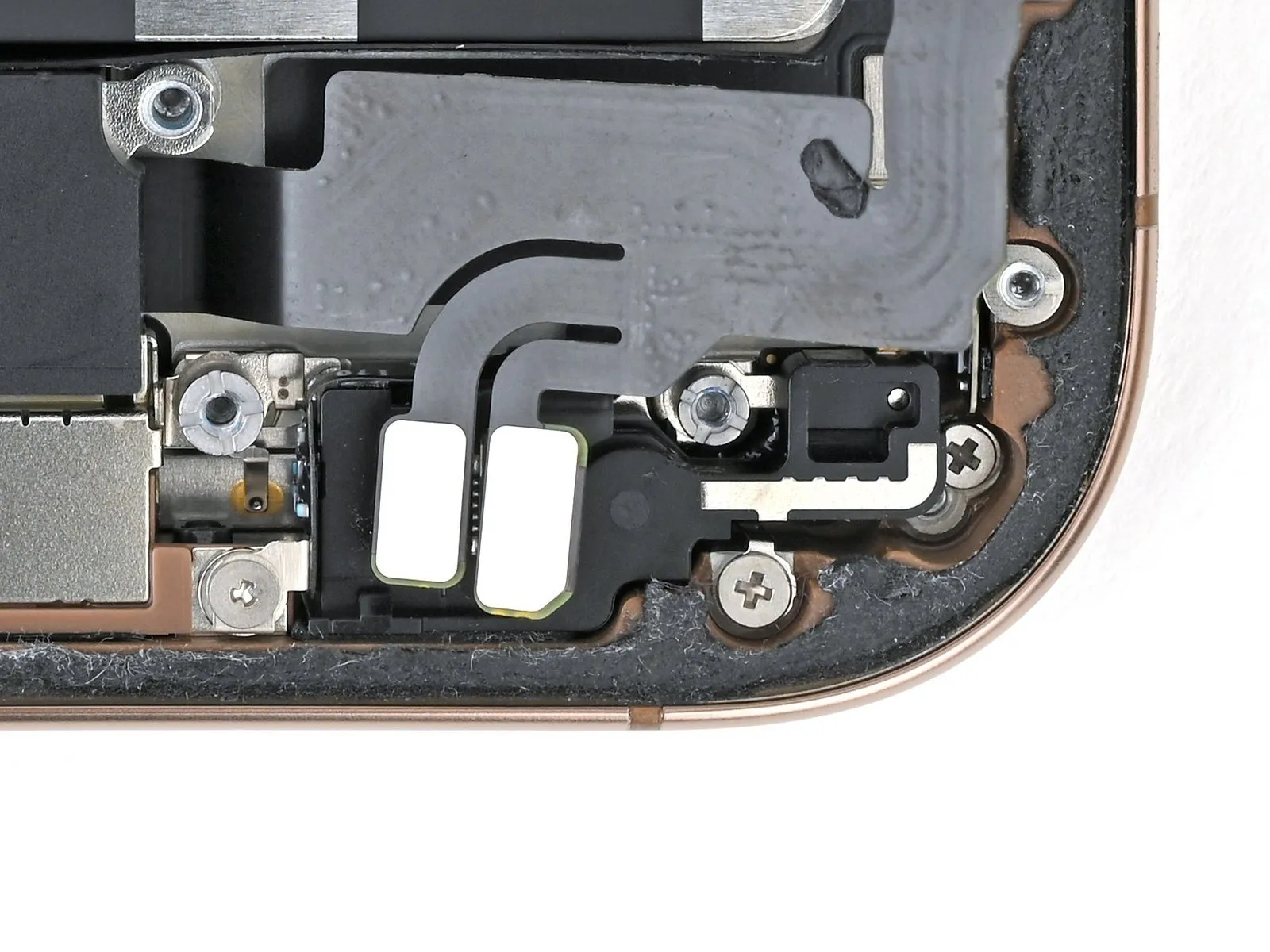

• Carefully position the Taptic Engine against the frame, ensuring the screw posts are properly aligned, and secure it using blunt-nose tweezers or by hand.

• Employ a Phillips screwdriver for the installation process.A screw measuring 1.9 millimeters in length.Affix the Taptic Engine, positioned along the device's right edge.

• Carefully join the two lower assembly press connectors using a fingertip or a spudger.
  • To install these press connectors, carefully position each one directly above its corresponding socket, then apply downward pressure sequentially to each side until you hear a distinct click, indicating secure engagement; avoid excessive force, and if alignment proves difficult, readjust the connector's position before attempting another press.

1. Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid excessive force to prevent damage to the bolt head.Use a Y000 tri-point screwdriver for this step.Secure the component using the specified fasteners, ensuring proper alignment with the designated mounting points and adhering to the torque specification of 8 Newton-meters.A screw measuring 1.0 millimeters in length.Ensure the lower assembly cable is firmly fastened.

1. Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you apply a steady force to prevent damage to the threaded connection and following the torque specifications outlined in section 4.2.Use a Phillips-head screwdriver.Use a screwdriver to fasten the three screws, each measuring 1/4 inch, that hold the component in place.Secure the Taptic Engine with its cover.:
   • Begin the process by initiating action one.A screw with a length of 3.0 millimeters.
   • A quantity of two is required.Screws measuring 1.7 millimeters in length.

• Exercise caution while cleaning the frame to avoid damaging the delicate grounding clips; should a clip become displaced, carefully restore it to its original position using your fingers or tweezers.
• Employ the specified tool to perform the action.Utilize tweezers with a flattened, non-pointed tip.Use your fingers to detach substantial adhesive remnants from the frame's edges.
• Carefully remove any remaining adhesive from the frame's surface using a spudger.
• To loosen a firmly bonded adhesive, direct warm air from a hair dryer or heat gun onto the area and repeat the process.

Before reattaching the rear cover, carefully dispense a small quantity of isopropyl alcohol with a high concentration onto the adhesive surfaces.Exceeding 90% is acceptable.Using a microfiber or lint-free cloth, clean the edges of the area, ensuring it's ready to receive fresh adhesive.

1. Using a spudger, carefully apply a small amount of highly-concentrated isopropyl alcohol to the area by covering the tool's tip with a lint-free cloth or a coffee filter.Exceeding 90% is acceptable.Secure the component using a 3.5mm Allen wrench, ensuring a torque of 6-8 in-lbs.
   Using a cleaning cloth, carefully remove any remaining adhesive by wiping along the frame's edges in a single, consistent direction.
   Careful execution is essential; a thoroughly cleaned frame surface promotes uniform adhesive distribution, which is critical for optimal bonding.

1. Position the adhesive sheet atop the frame to confirm correct alignment.
   Carefully observe the frame's top and bottom edges, noting the camera opening and any notches, to help guide proper adhesive placement.

• Carefully lift the corner tab of the adhesive sheet and remove the liner, revealing approximately one-third of the adhesive surface.
  Carefully remove the visible adhesive.The adhesive properties of the component are significant.Wait until you are prepared to bond it to the frame before allowing contact with any other surfaces.
  Remove the protective backing layers from the adhesive until the surface intended for attachment to the frame is revealed.

• Ensure the adhesive strip's visible border is precisely matched to the iPhone frame's matching edge.
  Because the adhesive bonds immediately upon contact, any adjustments after initial placement are impossible; instead, the adhesive must be completely removed and replaced with a fresh application.
  Ensure proper positioning, then apply even pressure to secure the adhesive strip against the frame.

• Carefully remove the backing material from the adhesive, ensuring firm contact with the surface as you apply it.
  Proper adhesive placement ensures the borders seat flush and precisely.
  Carefully reposition any minor adhesive deviations by gently drawing the extended edges toward the frame.
  Should the adhesive display creases or wrinkles during application, discard the affected material and reapply using a new portion of adhesive.
  Should a replacement set of adhesive strips be unavailable, the iPhone can be reassembled and used as normal without them; however, be aware that the device's water resistance will be reduced until the adhesive is properly replaced.

Employ a 5/32-inch hex key to tighten the retaining screw to a torque of 6-8 inch-pounds, ensuring that the component is securely fastened and preventing potential damage.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Ensure the adhesive strip is firmly applied by pressing evenly all the way around the device's edge.
Handle the delicate grounding clips with caution; if they become dislodged, carefully reposition them using your fingers or tweezers.
Apply gentle pressure to avoid distorting or overextending the adhesive material.

• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid excessive force to prevent damage to the threaded portion.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.To release the large front liner, locate the pull tab, typically situated in a corner, and use it to separate the liner.
• Carefully separate the extensive adhesive backing from the device by grasping and lifting the designated pull tab.
• To avoid unintended adhesion during reassembly, a protective liner likely remains along the edges; postpone its removal for now.

Using a prying tool, gently elevate the rear glass panel, applying upward pressure along its right side.

Gently depress the component with a fingertip or the broad, planar edge of a specialized tool.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully align the back glass connector and firmly secure it to the logic board.

• A fingertip or similar tool can be used to gently press.Use a plastic pry tool to gently separate.Carefully align and secure the battery press connector to the logic board.
• Before finalizing the iPhone's enclosure, verify the repair's functionality by powering on the device and confirming expected operation; subsequently, power it off and proceed with the remaining assembly steps.
• Attempt to power on the iPhone; if unsuccessful, establish a connection to a power source and repeat the power-on procedure.
• After logic board replacement, a non-functional display requires manual connection of the display connector, as detailed in the screen guide.

• Employ a Y000 tri-point screwdriver to fasten the four screws that hold the back glass connector cover in place.
• Use two fasteners with a diameter of 1.3 millimeters.Utilize screws with a length of long.
• Use two fasteners with a diameter of 1.0 millimeters.Utilize screws with a substantial length.

• Employ a Y000 tri-point screwdriver to fasten the three screws that hold the battery connector cover in place.
• Use two fasteners with a diameter of 1.3 millimeters.Utilize screws with a long shank.
• Use a 1.0 mm tool.Employ a screw with a substantial length.

• Employ the specified tool to perform the action.Use your hand to manipulate.This instruction is incomplete. Please provide the full original sentence/instruction to be rewritten.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully remove the complete border of liners, ensuring the adhesive layer remains visible.
  To prevent adhesive contamination, avoid any contact with the adhesive surface once the liners are removed.
  Carefully inspect both the frame and rear glass, ensuring all liners have been completely removed; any remaining liners must be discarded.

1. Carefully position the rear glass assembly against the frame, ensuring the upper edge aligns first.
   Should you encounter difficulty during movement, inspect the perimeter clips, as one might be deformed and pinched between the frame components. Carefully realign any clips found to be bent at the location of the obstruction.
   Apply even pressure around the perimeter of the iPhone to ensure the rear glass makes full contact with the chassis.

1. Apply warmth around the edge of the rear glass using a hair dryer, heat gun, or iOpener, ensuring the surface reaches a temperature just beyond comfortable touch.
   Applying warmth loosens the adhesive, facilitating a stronger connection.

• Employ the specified tool to perform the action.Use your hand to apply pressure.Apply consistent, even pressure with a firm grip encompassing the entire outer edge.

• Position the iPhone, with the display facing downward, on a clean, level workspace.
  To shield the back glass's surface from scratches, apply a length of tape completely around its edges.
  Using coins, build a circular barrier along the edge of the rear glass, raising it to the same height as the rear camera lenses.
  To ensure proper adhesion, secure the device's edges with vise clamps.

• Apply even pressure across the iPhone’s top surface by positioning three to four substantial volumes to ensure uniform weight distribution.
  To prevent potential marking of the lower book cover's surface, avoid using it as a resting place for valuable items, as the coins' weight could create a minor indentation.
  Allow the books to remain positioned atop the device for approximately 30 minutes.
  Applying force will engage the bonding properties of the adhesive.
