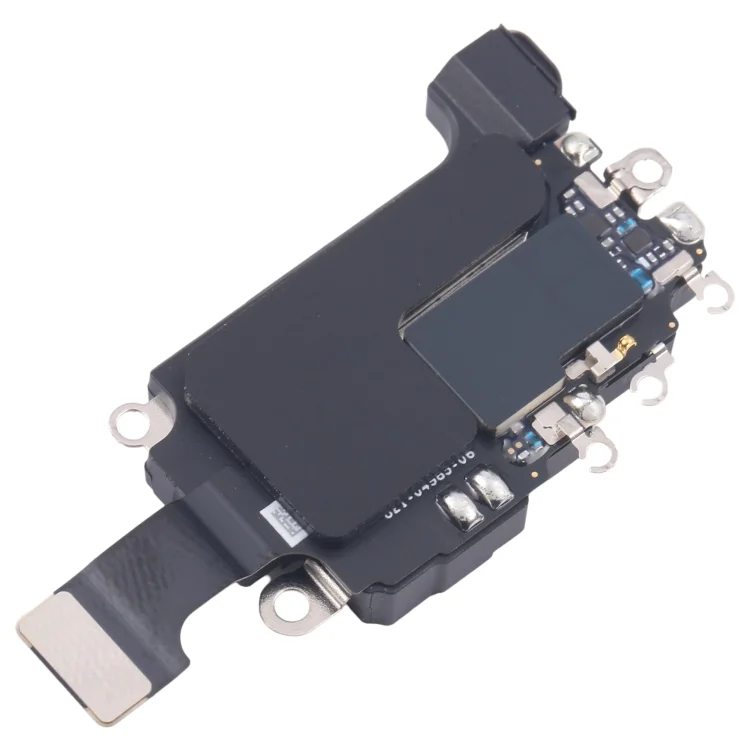

iPhone 16 Pro Earpiece Speaker Replacement

• To mitigate safety risks associated with fully charged lithium-ion batteries, permit the phone's power source to deplete to a level below 25 percent.Disconnect all connected cables from the device to ensure no interference during the power-down process.Simultaneously press and maintain the power button, along with either of the volume buttons, then utilize the slide mechanism to deactivate the phone.
• A fully charged lithium-ion battery presents a potential safety concern, necessitating a partial discharge before proceeding.
• The procedure requires severing all external connections to the phone, eliminating potential electrical interactions.

• To prevent injury and simplify the subsequent separation of components, apply several layers of adhesive packing tape across any significantly fractured screen or rear glass panel.
• Confirm the existence of a sufficiently large, uninterrupted surface region close to the lower perimeter, suitable for reliable adhesion of a suction cup.

• Excessive insertion of a spudger can potentially harm the device; therefore, it's crucial to implement a marking procedure to avoid such incidents.
• Using a precise measuring tool, determine a distance of3 millimetersfrom the pick's distal end, then clearly indicate this point on the spudger with a permanent marking instrument.
• For enhanced precision, consider applying distinct markings to the other corners of the spudger, each representing a different measurement.
• As an alternative method, affix a coin to the spudger's tip, positioning it3 millimetersaway from the very end.

Employ a P2 pentalobe screwdriver for the task of detaching the two screws, each measuring 7.4 mm in length, situated on both sides of the USB-C port.The screws securing the device near the USB-C port require removal using a specialized P2 pentalobe screwdriver.Two screws, precisely 7.4 mm long, are affixed to either side of the USB-C port and necessitate removal with a P2 pentalobe screwdriver.

• To initiate separation, use a heated iOpener applied to the lower perimeter of the rear glass panel for a duration of two minutes.As an alternative method, a hair dryer or heat gun can be employed to warm the bottom edge of the back glass until it reaches a temperature that is noticeably hot.Exercise caution to prevent overheating the device, as the battery exhibits vulnerability to heat-related degradation.
• Maintaining a safe operating temperature is crucial to avoid potential damage to the battery's internal components.
• The application of heat should be carefully controlled to ensure the battery remains within its safe temperature range, preventing irreversible harm.

1. Securely attach a suction handle to the lower boundary of the rear glass, positioned directly over the USB-C connector.
   Exert a consistent and considerable upward pull on the suction handle to generate separation between the rear glass assembly and the device's frame.
   Carefully introduce the pointed end of a specialized opening tool into the newly formed space.

• During the process of separating the rear glass with a slicing tool in the subsequent procedures, exercise caution regarding specific zones.
  A fragile cable, responsible for connecting the rear glass assembly to the device's internal components, is situated near the volume up button; therefore, refrain from inserting any tools in this location to prevent cable damage.
  Numerous spring contacts are positioned along the phone's edges, necessitating careful tool insertion, limiting depth as indicated in each step to prevent deformation.
  Should any of the spring contacts become bent due to accidental damage, they can be carefully realigned using a spudger or opening pick to ensure proper contact with the gold contact pads on the rear glass.

To prevent potential harm to the spring contact, ensure the pick's insertion depth remains no greater than 5 mm along the lower edge.Employ a reciprocating motion, sliding the pick across the lower edge, to effectively release the adhesive bond.Maintain the pick's position within the lower-right corner to inhibit the adhesive from reforming a seal.
Care must be taken to limit pick penetration to a maximum of 5 mm to safeguard the delicate spring contact.
A back-and-forth movement of the pick is necessary for successful adhesive separation along the bottom edge.

Apply warmth to the right-hand perimeter of the rear glass panel, ensuring it reaches a temperature comfortable to the touch.Elevate the temperature of the back glass's right side to a point where it can be felt as warm, but not burned, by hand.

1. Employ a prying tool to maneuver along the lower-right perimeter and ascend the right side to a midpoint, recognizing the point of resistance where a clip fastens the rear glass assembly.
   Exercise caution during separation to maintain clearance from the volume controls, as proximity may compromise the wireless charging coil and camera flash connector.
   Maintain the pick's position within the separation gap to inhibit the adhesive layer from re-bonding.

Apply heat to the left lateral surface of the rear glass panel, ensuring it reaches a temperature sufficient for comfortable tactile perception.Elevate the temperature of the back glass's left border to a point where it can be felt as warm by touch.

1. Introduce a supplementary opening tool into the gap located at the device's lower boundary.
   Maneuver the second tool along the lower-left corner and the left side of the display to detach the adhesive layer and disengage the securing metal fasteners.
   Audible and tactile confirmation of the metal clip detachment will occur during this separation process.
   Maintain the position of the initial tool at the upper-left corner to inhibit adhesive re-adhesion.

• To prevent harm to the spring contacts, ensure the insertion depth of your tool remains no greater than 3 millimeters along the upper perimeter.Moving your opening tool across the top edge and pivoting around the upper-right corner, toward the volume up button, will break the adhesive bond.Audible and tactile clicks will indicate the release of the upper two retaining clips during this separation process.
• The adhesive will detach as the top edge is manipulated, resulting in a noticeable release of the clips.

• Refrain from completely detaching the rear glass panel at this stage, as it remains connected via a fragile ribbon cable; proceed with the subsequent instructions to ensure a secure separation.
• Should the rear glass panel resist easy movement, avoid applying excessive force; instead, re-examine the edges with your tool to identify any remaining adhesive or obstructed clips.
• It might be necessary to elevate the rear glass panel slightly prior to swinging it open, facilitating complete disengagement of the retaining clips.
• Carefully pivot the rear glass panel towards the location of the volume controls.
• Utilize a firm, non-abrasive support, such as a small container, to stabilize the rear glass panel and prevent undue stress on the connecting cable.
• Extract the tools used to create the opening.
• Employing polyimide tape to shield the rear camera lenses during internal servicing is advisable; exercise caution to prevent contact with the lenses, which house sensitive stabilization components.

• Employ a tri-point Y000 screwdriver for the task of detaching the lower connector cover's fasteners.The lower connector cover is held in place by three screws that require a tri-point Y000 screwdriver for removal.Three screws, each requiring a tri-point Y000 screwdriver, secure the lower connector cover.
  • Two screws, each measuring 1.2 millimeters in length, are used to affix the lower connector cover.The lower connector cover is fastened with two screws, each having a length of 1.2 millimeters.A single screw, with a length of 1.0 millimeters, is also part of the lower connector cover's securing hardware.
  • One screw, measuring 1.0 millimeters in length, contributes to the lower connector cover's attachment.The attachment of the lower connector cover utilizes a combination of two 1.2 mm screws and one 1.0 mm screw.To release the lower connector cover, a tri-point Y000 screwdriver is necessary to unscrew the three fasteners, including two 1.2 mm screws and one 1.0 mm screw.

• Employing either tweezers or direct manual manipulation, detach the lower connector cover.The lower connector cover can be lifted away using specialized pliers or by hand.Carefully extract the lower connector cover, utilizing either precision tweezers or fingertip grip.To facilitate removal, grasp the lower connector cover with tweezers or your fingers.The lower connector cover should be disengaged and removed, employing either tweezers or manual dexterity.

• Employ the tip of a spudger to carefully lift and release the battery press connector's connection.A spudger's pointed end facilitates the separation of the battery press connector from its socket.To detach the battery press connector, utilize the pointed end of a spudger for prying and disconnection.

• Employ a Y000 tri-point screwdriver to detach the four screws that hold the upper connector cover in place.
  • A quantity of two screws are present.These screws each measure 1.0 millimeters in length.A single screw is also utilized.
  • The length of this particular screw is 1.2 millimeters.Furthermore, one screw is incorporated into the assembly.This screw's length is specified as 1.6 millimeters.
  • The removal of these screws will allow access to the connector cover.Ensure the screwdriver is properly seated on the screw head to prevent damage.Carefully manage the screws to avoid losing them during the disassembly process.

• Employing either tweezers or direct manual manipulation, carefully detach the upper connector cover.The upper connector cover can be dislodged using tweezers for precision or by hand.To facilitate removal, utilize tweezers or your fingertips to grasp and lift the upper connector cover.For the purpose of extracting the upper connector cover, tweezers or manual dexterity are suitable options.Carefully remove the upper connector cover by grasping it with tweezers or employing your fingers.

• Employ the tip of a spudger to gently lift and detach the earpiece speaker assembly.Release the press connectors securing the 5G mmWave antenna.The antenna's connectors are situated in the upper-right corner of the logic board.

• Employ a Phillips screwdriver to detach the six screws that hold the earpiece speaker in place.
  • A quantity of three screws is present.These screws each measure 1.2 millimeters in length.Additionally, two screws are affixed.
  • The length of these screws is 1.8 millimeters.A single screw is also utilized.This screw's length is 1.7 millimeters.
  • The speaker is retained by these screws.Carefully unscrew each fastener to avoid damage.Note the screw lengths for reassembly purposes.

• Utilize the tip of a spudger to access the lower-right portion of the earpiece speaker, then apply upward force to disengage it.
• Expect potential friction close to the upper boundary, resulting from the speaker gasket's adhesion to the device's frame; exert a delicate pulling action to break the seal.

1. Employ tweezers to secure the stretch release adhesive pull tab, which is situated along the perimeter of the 5G mmWave antenna.Extract the stretch release adhesive strip gradually and consistently at a shallow inclination, allowing ample time for it to extend and detach from beneath the antenna.To enhance your hold, consider winding the adhesive around the tweezers' tip during the extraction process.
2. Should the adhesive strip fracture, utilize your tweezers to recover any fragments and proceed with the removal.
3. The pull tab is positioned on the edge of the 5G mmWave antenna.
4. Ensure a controlled, low-angle extraction to prevent adhesive failure.

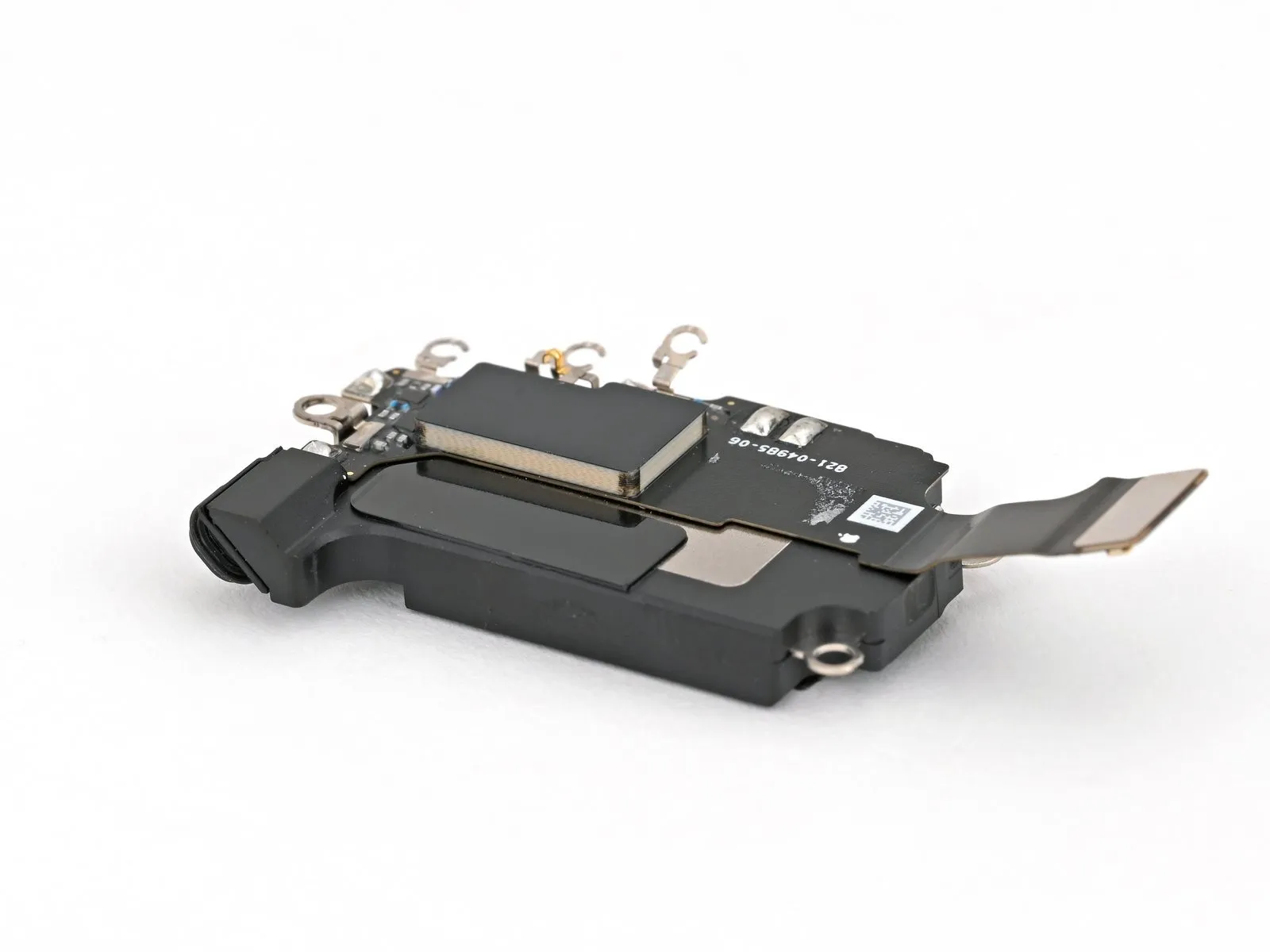

Carefully detach the 5G mmWave antenna assembly from the earpiece speaker.To proceed with the repair, completely separate the antenna from its connection to the speaker.Following separation, the 5G mmWave antenna can be fully removed from the earpiece speaker assembly.

Substitution is now limited to the earpiece speaker alone.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone; while certain reassembly images depict the Pro Max variant, the outlined steps are applicable to the Pro model as well.

Instructions for integrating the 5G mmWave antenna are presented next, preceding the earpiece speaker installation process.Should your device lack the aforementioned antenna, proceed to bypass the subsequent instructions.The 5G mmWave antenna, a component requiring installation prior to the earpiece speaker, is the subject of the following procedure.

To secure a reused antenna or one lacking pre-applied adhesive, affix narrow strips of double-sided adhesive tape to the antenna's rear surface, mirroring the location of the previous adhesive.For optimal placement, utilize strips measuring 5 millimeters by 16 millimeters, or equivalent sized pieces from a prepared adhesive card.Carefully peel away the protective liners from the adhesive strips to expose the bonding surface.
Employing tweezers or fingertips, detach the liners to reveal the adhesive.
Firmly press the antenna against the earpiece speaker to ensure a secure and lasting bond.

Position the gasket against the upper perimeter of the earpiece speaker, guiding it into its designated recess at a downward inclination, subsequently applying even pressure to secure it against the frame.
If necessary, slightly elevate the front-facing camera module to facilitate the insertion of the earpiece speaker into its corresponding opening; subsequently, direct both the antenna and earpiece speaker cables alongside the front camera cables, then seat the front camera assembly within its cutout, ensuring its cables align with the rear camera cables.

Employ a Phillips screwdriver for the installation of the earpiece speaker's securing hardware.Six screws of varying lengths are used to fasten the earpiece speaker in place.Three screws, each measuring 1.2 millimeters in length, are required for this process.

• Additionally, two screws with a length of 1.8 millimeters are needed.
• A single screw, measuring 1.7 millimeters in length, completes the set of fasteners.
• Ensure proper screw selection to avoid damaging the earpiece speaker during reassembly.

Employing a fingertip or a spudger tool, establish a connection between the earpiece speaker and the 5G mmWave antenna—exclusive to US models—by securing the press connectors situated in the upper-right quadrant of the logic board.To ensure proper engagement, utilize either your finger or a spudger for making contact with the press connectors on the logic board’s top right corner, which secure the earpiece speaker and the 5G mmWave antenna (applicable only to US devices).The press connectors, positioned on the logic board's upper right-hand side, require connection of the earpiece speaker and the 5G mmWave antenna (US-specific) which can be achieved using a fingertip or a spudger.

Exercise caution near the delicate grounding clips during frame cleaning to prevent damage.

• Employing blunt-nosed tweezers is an alternative to using your fingers for component manipulation.Large sections of adhesive adhering to the frame's edges should be detached using blunt nose tweezers or manual pressure.A spudger is the appropriate tool for removing the remaining adhesive material from the frame surface.
• Persistent adhesive residue can be softened by applying warmth with a hair dryer or heat gun.Re-alignment of any displaced grounding clips should be performed carefully, using fingers or tweezers.To avoid unintended damage, proceed with caution when manipulating the grounding clips.
• The application of heat may be necessary to facilitate adhesive removal.Adhesive sections can be separated from the frame by applying force with tweezers or fingertips.A spudger's edge is ideal for dislodging the adhesive's remnants.Heat application, using either a hair dryer or a heat gun, can reduce the adhesive's tenacity.Gentle manipulation with fingers or tweezers is the preferred method for restoring a grounding clip's original position.

To ready a salvaged rear cover for reapplication, utilize a microfiber or lint-free cloth dampened with a small quantity of isopropyl alcohol possessing a concentration exceeding 90%, and meticulously clean the edges.

• To protect delicate surfaces, cover the tip of a spudger with a clean, non-abrasive cloth or a coffee filter, then apply a small amount of isopropyl alcohol with a concentration exceeding 90%.Carefully clean the adhesive residue from the frame's edge by wiping in a single direction, exercising patience throughout the process.Thorough cleaning of the frame's perimeter is essential for even adhesive application.
• A uniformly clean frame surface promotes a consistent adhesive layer, which is critical for a secure bond during reassembly.

• To establish the correct positioning of the adhesive sheet relative to the frame, place it on the frame's surface, utilizing the camera opening and the markings on the upper and lower borders as visual references to ensure proper alignment.

• To reveal a portion of the adhesive, carefully lift the corner tab of the liner and remove it, exposing approximately one-third of the adhesive surface.Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness; avoid unintended contact with other surfaces until application to the frame is prepared.Should your adhesive product incorporate multiple liners, prioritize the removal of the liner that directly exposes the adhesive intended for bonding to the frame.
• The adhesive's inherent stickiness demands careful handling to prevent premature adhesion to unintended materials.
• Prior to application, ensure the adhesive remains free from contact with any surfaces to maintain its bonding capabilities.

• Ensure the visible border of the adhesive strip is precisely matched to the matching edge on the iPhone’s casing.Because the adhesive permanently bonds upon contact, repositioning is impossible; any misalignment necessitates removal and replacement with fresh adhesive.Correct alignment requires meticulous attention to detail before proceeding.
• After verifying proper positioning, apply gentle pressure to secure the adhesive strip to the iPhone’s frame.The adhesive strip's surface should make firm contact with the frame's surface during this step.Avoid shifting the adhesive strip once contact is made to prevent bonding errors.

• Carefully remove the adhesive backing, ensuring firm contact between the adhesive and the surface.
• Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.
• To correct minor positioning errors, delicately reposition the longer sides of the adhesive to match the frame's contours.
• Should the adhesive develop folds or creases, discard it and apply a new set for optimal results.
• In the absence of replacement adhesive strips, the iPhone can be reassembled and used; however, be aware that its water resistance will be diminished until a new adhesive seal is applied.

• Employ a spudger to apply pressure to the adhesive securing the iPhone's edges.
• Exercise caution near the delicate grounding clips; should one become displaced, carefully restore its position using your fingers or tweezers.
• Avoid excessive force, as it may cause the adhesive to extend and lose its original shape.

• Employ a spudger or manual dexterity to disengage the pull tab affixed to the extensive front liner, typically located within a corner.
• Utilize the pull tab to detach the expansive front liner from its adhesive backing.
• Remaining liners may still protect the outer edges, safeguarding the adhesive during reassembly; refrain from removing these smaller release liners at this stage.

To facilitate access, carefully support the rear glass component by applying pressure along its right-hand border.

To establish the electrical connection between the rear glass connector and the main circuit board, apply pressure using either a fingertip or the broad, planar edge of a specialized opening tool.

Proceed to step 46: Secure the battery press connector to the logic board by applying pressure with a finger or a spudger.

• Prior to final reassembly, it's advisable to verify the functionality of the repair; activate the iPhone and confirm normal operation.Following the operational test, deactivate the device and proceed with the remaining reassembly steps.Should the iPhone fail to power on, establish a connection to a power source and attempt startup once more.
• In situations where a logic board replacement has been performed and the display remains unresponsive, consult the screen replacement guide for manual connector connection procedures.
• The display connector requires manual connection if the screen does not activate after a logic board replacement.
• Ensure proper engagement of the battery press connector onto the logic board by applying force with either a fingertip or a spudger tool.

Ensure the back glass connector cover is properly positioned relative to the screw apertures before setting it down.

Position the back glass connector cover so that its screw holes are aligned, then place it into its designated location.

Proceed to step 48.

• Employ a tri-point Y000 driver for the subsequent operation.The back glass connector cover is fastened with four screws, requiring removal with the specified driver.Two screws, each measuring 1.3 millimeters in length, are included in the assembly.

  • Additionally, two screws with a length of 1.0 millimeters are also present.
  • Securely fasten the cover using the driver and the provided screws.

• Ensure proper alignment of the battery connector cover's screw openings before setting it into its designated position.

• The battery connector cover is affixed with three screws, each measuring 1.3 millimeters in length, requiring the Y000 driver for proper installation.

  • Additionally, a single screw with a 1.0-millimeter length is also necessary for securing the cover.
  • Ensure the correct driver is utilized to avoid damage to the screw heads during the installation process.

1. Employing either your fingertips or a specialized spudger, carefully detach the surrounding protective liners to reveal the underlying adhesive.
   During liner removal, prevent any contact between surfaces and the newly exposed adhesive to maintain its bonding properties.
   Thoroughly inspect both the device frame and rear glass, eliminating any detached liner fragments to guarantee a completely clean adhesive surface.

1. Position the rear glass component onto the device frame, initiating the alignment process from the uppermost boundary.
   Should you encounter opposition during installation, a surrounding retaining clip might be deformed and compressed by the frame; carefully examine the area of resistance and delicately restore any bent clips to their original shape.
   Apply even pressure across the iPhone's borders to ensure the rear glass makes complete contact with the frame.

Employing a hair dryer, heat gun, or iOpener, apply warmth to the outer edge of the rear glass.Continue heating the perimeter until the surface temperature reaches a point where it's uncomfortable to briefly touch.This thermal application reduces the adhesive's viscosity, facilitating a more secure reattachment.The purpose of this process is to weaken the adhesive bond, not to damage the glass itself.
Increased warmth allows for improved adhesion during the reassembly procedure.

1. Employ your fingertips to apply consistent, strong pressure encompassing the entire outer edge of the iPhone's casing.

1. Position the iPhone with its display facing downwards onto a pristine, level workspace.
   Apply a continuous adhesive strip along the outer edge of the rear glass to safeguard its cosmetic appearance.
   Arrange a circular stack of coins bordering the rear glass, constructing a barrier that matches the height of the rear camera lenses' projections.
   As an alternative method, secure the device with vise clamps along its outer edges to ensure proper adhesive placement.

1. Position a stack of three to four substantial books evenly across the surface of your iPhone.
   Because the weight can create minor indentations, avoid using valuable books that might be damaged.
   Maintain the books' placement for approximately 30 minutes to ensure sufficient contact time.
   Applying this consistent pressure facilitates the bonding of the adhesive material.

• Employ a P2 pentalobe screwdriver for the installation process.The required tool is a P2 pentalobe screwdriver.Two screws, each measuring 7.4 millimeters in length, must be affixed.Secure the two 7.4 mm screws using the P2 pentalobe screwdriver.Installation necessitates a P2 pentalobe screwdriver to fasten the 7.4 mm screws flanking the USB-C port.
