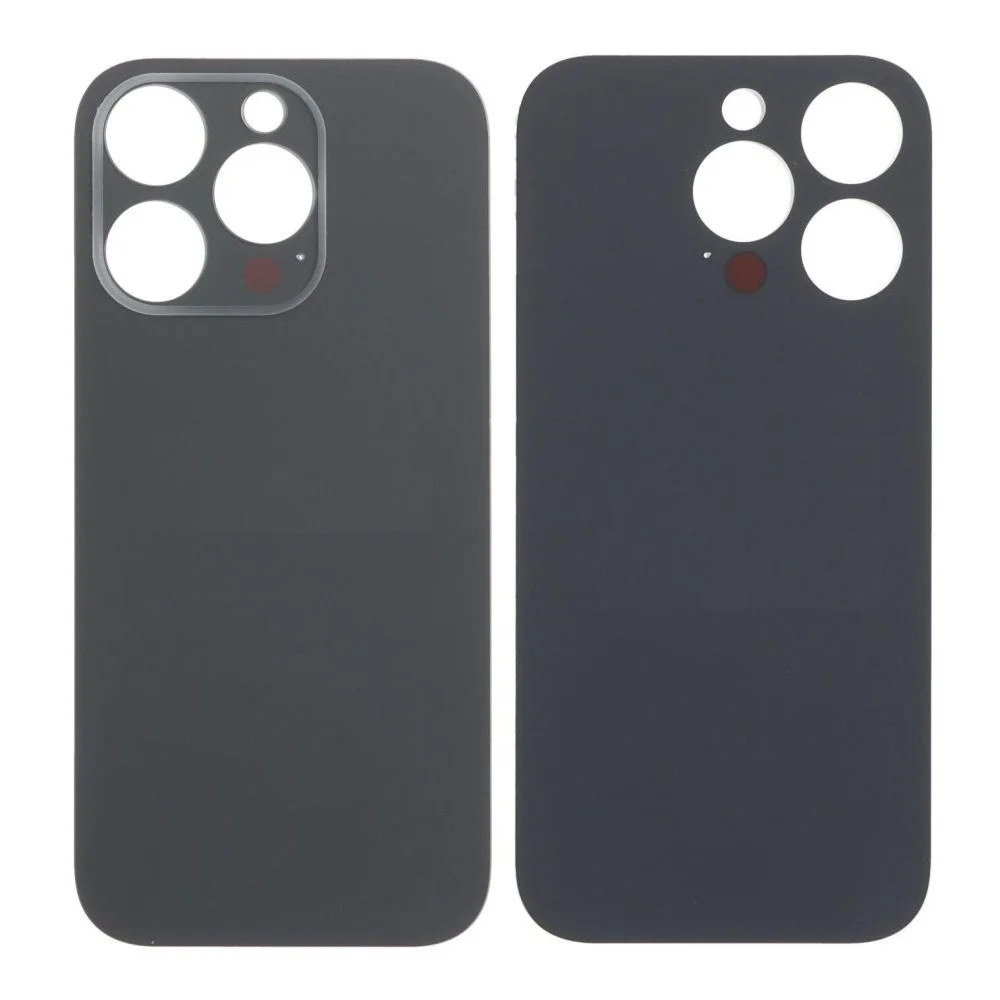

iPhone 16 Pro Back Glass Replacement

• To mitigate safety risks associated with fully charged lithium-ion batteries, permit the phone's power source to deplete to a level below 25 percent.Disconnect all connected wires and cords from the device to ensure no interference during the power-off procedure.Simultaneously depress the power button and either of the volume buttons, then utilize the sliding mechanism to initiate the phone's shutdown sequence.
• A fully charged lithium-ion battery presents a possible safety concern and should be discharged before proceeding with repairs.
• The procedure for deactivating the device involves pressing and holding the power button alongside one of the volume buttons, followed by a slide action.

• To prevent injury and simplify the subsequent separation of components, apply strips of packing tape in a layered fashion across the damaged screen or rear glass panel when significant cracking is present.
• Confirm the existence of a sufficiently sized, uninterrupted surface area close to the lower edge, allowing for secure adhesion of a suction cup.

• Excessive insertion of a prying tool poses a risk of device damage; therefore, implement a marking procedure to mitigate this potential issue.
• Using a precise measuring tool, determine a distance of3 millimetersfrom the tool's distal end and clearly indicate this point on the prying tool with a permanent marking instrument.
• For enhanced precision, consider applying distinct markings at other points along the tool's edges, each representing a different measurement.
• As an alternative method, affix a coin to the prying tool's tip, positioning it3 millimetersaway from the very end.

Employ a P2 pentalobe screwdriver for the disassembly of the two screws, each measuring 7.4 mm in length, situated on both lateral aspects of the USB-C port.The two screws securing the device near the USB-C port require removal using a specialized P2 pentalobe screwdriver.Located on either side of the USB-C connector are two screws, necessitating a P2 pentalobe screwdriver for their extraction, with each screw having a length of 7.4 mm.

• To initiate separation, use a heated iOpener against the lower perimeter of the rear glass panel, maintaining contact for a duration of two minutes.As an alternative method, a hairdryer or heat gun can be employed to warm the lower edge of the back glass until it reaches a comfortably warm temperature.Exercise caution to prevent overheating the device; the lithium-ion battery is vulnerable to thermal degradation.
• Excessive heat exposure can compromise the structural integrity and operational safety of the battery.
• The permissible temperature threshold should be carefully monitored to avoid irreversible damage to the battery.

1. Securely attach a suction handle to the lower perimeter of the rear glass, positioned directly over the USB-C connector.
   Exert a consistent and considerable upward pull on the suction handle to generate separation between the rear glass panel and the device's structural frame.
   Carefully introduce the pointed end of a specialized opening tool into the newly formed space.

• During the subsequent adhesive separation process for the rear glass, exercise caution regarding specific zones to prevent damage.
  A fragile cable, responsible for connecting the rear glass assembly to the device's internal components, is situated near the volume up control; therefore, avoid tool insertion in this area to preclude cable severance.
  Numerous spring contacts are positioned along the phone's outer edge; therefore, limit tool insertion depth as instructed in each procedure to safeguard against contact bending.
  Should the spring contacts become deformed, carefully restore their shape using a spudger or opening pick to ensure proper alignment with the gold contact pads on the rear glass.

To prevent damage to the spring contact, ensure the insertion depth of your pick does not exceed 5 mm along the lower edge.Employ a picking motion, oscillating the tool back and forth across the lower edge, to effectively release the adhesive bond.Maintain a pick's position within the lower-right corner to inhibit the adhesive from re-adhering.
Care must be taken to limit pick insertion to a maximum of 5 millimeters to safeguard the spring contact's integrity.
A reciprocating motion with the pick along the lower edge facilitates adhesive separation.

Apply warmth to the right-hand perimeter of the rear glass panel, continuing until surface temperature is sufficient for tactile perception.Elevate the temperature of the back glass's right side to a point where it can be comfortably felt as warm to the touch.

1. Employ a prying tool to maneuver along the lower-right perimeter and ascend the right side to a midpoint, recognizing the resistance of a retaining clip that fastens the rear glass assembly.
   Exercise caution during separation to maintain distance from the volume controls, as proximity could compromise the integrity of the wireless charging and flash component cabling.
   Maintain the pick's position within the separation gap to inhibit the adhesive layer from re-bonding.

Apply warmth to the left-hand border of the rear glass panel, ensuring it reaches a temperature that is perceptible upon contact.Elevate the temperature of the back glass's left side to a level where it can be felt as hot to the hand.

1. Introduce a supplementary opening tool at the lower border.
   Maneuver the second tool around the lower-left corner, subsequently tracing the left screen edge to detach the adhesive and disengage the metal fasteners.
   Audible and tactile confirmation of fastener release will occur during their passage.
   Maintain the position of this tool at the upper-left corner to inhibit adhesive re-bonding.

• To prevent harm to the spring contacts, ensure the insertion depth of your tool remains no greater than 3 millimeters along the upper perimeter.Employing a sliding motion, maneuver your opening tool across the upper edge, progressing around the top right corner toward the volume up button, facilitating adhesive separation.The release of the upper two clips will be accompanied by audible and tactile clicks, indicating successful separation.
• Listen and feel for the distinct clicks that confirm the detachment of the two upper retaining clips during the separation process.

• Refrain from attempting complete separation of the rear glass panel at this stage, as it remains connected via a fragile ribbon cable; proceed with the subsequent instructions to ensure safe detachment.
• Should the rear glass panel resist easy pivoting, avoid applying excessive force; instead, re-examine the edges with your prying tool to identify any remaining adhesive or obstructed clips.
• A slight vertical elevation of the rear glass panel might be necessary prior to pivoting to ensure complete disengagement of the retaining clips.
• Carefully pivot the rear glass panel in the direction of the volume buttons.
• To prevent stress on the cable, use a rigid, non-abrasive object, such as a small box, to provide support to the rear glass panel.
• Extract the opening tools from the device.
• To safeguard the rear camera lenses from scratches during internal work, it's advisable to apply polyimide tape; exercise caution and avoid pressure on the lenses to prevent damage to the sensitive image stabilization components.

1. Employ a tri-point Y000 screwdriver for the task of detaching the lower connector cover's fasteners.The lower connector cover is held in place by three screws, which require removal using the specialized screwdriver.Specifically, two screws, each measuring 1.2 millimeters in length, are present.
   • Additionally, a single screw with a length of 1.0 millimeters is also used in the securing process.Carefully unscrew the fasteners to avoid damage to surrounding components.The tri-point Y000 screwdriver's unique tip is essential for proper engagement with the screw heads.
   • Ensure the screwdriver is properly seated before applying torque to prevent stripping the screw heads.Note the screw lengths for accurate reassembly later in the repair procedure.Maintaining the original screw placement is crucial for proper functionality and stability.

• Employing either tweezers or direct manual manipulation, carefully detach the lower connector cover.The lower connector cover can be dislodged using specialized tweezers or by grasping it with your fingertips.To facilitate removal, utilize tweezers or your fingers for grasping and lifting the lower connector cover.For the purpose of extracting the lower connector cover, a tool such as tweezers or the use of fingertips is appropriate.Grasp the lower connector cover and lift it away, employing either tweezers or your fingers to accomplish this task.

• Employ the tip of a spudger to release the battery press connector by applying leverage.Disconnect the battery press connector by carefully lifting with the spudger's pointed end.A spudger's point facilitates separation of the battery press connector through controlled prying action.

1. Employ a tri-point Y000 screwdriver to detach the four screws that fasten the upper connector cover in place.
   • A quantity of two screws, each measuring 1.0 millimeters in length, are present.One screw, with a length of 1.2 millimeters, is also included.Additionally, a single screw is provided, extending 1.6 millimeters.
   • The upper connector cover is held in position by a fastening mechanism involving four screws.To access components beneath the upper connector cover, the screws must first be removed.A Y000 tri-point screwdriver is essential for the successful removal of these specialized fasteners.
   • The screws securing the upper connector cover vary in length, with measurements of 1.0 mm, 1.2 mm, and 1.6 mm.Careful handling of the screws is advised to prevent damage or loss during the disassembly process.Accurate identification of each screw's length (1.0 mm, 1.2 mm, 1.6 mm) is important for reassembly.

• Employing either tweezers or direct manual manipulation, carefully detach the upper connector cover.The upper connector cover can be lifted away from the assembly using specialized pliers or by hand.To facilitate removal, a grasping tool such as tweezers or fingertips can be utilized.Manual extraction or the use of a precision instrument like tweezers is appropriate for dislodging the upper connector cover.For the purpose of separating the upper connector cover, either tweezers or a fingertip can be employed to lift it away.

• Employ the tip of a spudger to carefully lift and detach the back glass press connector.The connector's release requires utilizing a spudger's pointed end for leverage.To separate the back glass press connector, apply the spudger's point with controlled force.

• Detach the rear glass component from its surrounding frame structure, subsequently removing it.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your iPhone; while certain reassembly images depict the Pro Max variant, the outlined steps are applicable to the Pro model as well.

• Exercise caution when cleaning the frame, carefully avoiding damage to the delicate grounding clips; if displacement occurs, restore them to their original position using your fingers or tweezers.
• Employ blunt-nosed tweezers or your fingers to detach sizable adhesive sections from the frame's edges.
• A specialized tool, a spudger, is necessary for removing the remaining adhesive residue from the frame's surface.To facilitate adhesive removal when it resists separation, utilize a hair dryer or heat gun to apply warmth and reattempt the process.The grounding clips are susceptible to damage, so maneuvering around them is crucial during the cleaning process.
• Gentle manipulation with fingers or tweezers is the preferred method for correcting any accidental displacement of the grounding clips.

• To prevent scratching, cover the spudger's tip with a clean, lint-free cloth or a coffee filter, then dispense a small amount of isopropyl alcohol with a concentration exceeding 90 percent onto the covering.Employing a single direction, meticulously wipe the frame's edge to eliminate any remaining adhesive.Careful execution is essential during this process.
  A uniformly clean frame surface enables the new adhesive to distribute consistently, which is vital for a secure bond.
  Proper preparation of the frame's surface is necessary to guarantee optimal adhesion during the replacement adhesive application.

• To establish the correct positioning of the adhesive sheet, place it upon the frame's surface.
  Employ existing frame characteristics, including the camera aperture and markings located on the superior and inferior borders, as visual references for adhesive placement.

• To reveal a portion of the adhesive, carefully lift the corner tab of the adhesive sheet's backing and remove a third of the liner.
  Exercise caution, as the newly exposed adhesive possesses a high degree of tackiness; prevent unintended contact with surfaces until application to the frame is prepared.
  Should your adhesive contain several liners, remove only the uppermost liner to reveal the surface intended for bonding to the frame.

• Ensure the visible perimeter of the adhesive strip is precisely matched to the matching edge on the iPhone's casing.
  After the adhesive makes contact, repositioning is impossible, necessitating removal and replacement with a fresh adhesive strip.
  With proper alignment achieved, apply even pressure to secure the adhesive strip to the iPhone's frame.

• Carefully remove the adhesive backing, ensuring firm contact between the adhesive and the surface.
  Proper alignment of the adhesive is indicated by a seamless fit of the edges within the frame's boundaries.
  To correct minor adhesive misplacement, delicately reposition the longer sides towards the frame.
  Should creases or wrinkles appear on the adhesive, discard it and apply a new strip for optimal results.
  In the absence of replacement adhesive strips, the iPhone can be reassembled and used temporarily; however, be aware that water resistance will be diminished until the adhesive is properly replaced.

Employ a spudger to apply pressure to the adhesive securing the iPhone's edges.Exercise caution near the delicate grounding clips; repositioning them requires careful manipulation with fingers or tweezers.Excessive force risks distorting and overextending the adhesive layer.
The adhesive's perimeter requires uniform pressure application via the spudger.
Should a grounding clip become displaced, restore its original position with gentle fingertip or tweezer adjustments.

• Employ a spudger tool, or manually use your fingers, to detach the pull tab affixed to the expansive front liner.The pull tab's typical location is situated within a corner of the liner.Utilize the pull tab to carefully separate the large front liner from its adhesive backing.
  A remaining liner might still be present around the edges, safeguarding the adhesive during reassembly; postpone its removal for the time being.
  These smaller release liners serve to prevent unintended adhesion and should remain in place until the final assembly steps are completed.

• Apply pressure to the battery press connector and secure its connection to the logic board, utilizing either a fingertip or a spudger tool.
• Before finalizing the iPhone's reassembly, it's advisable to verify the repair's functionality; initiate the device, confirm expected operation, then deactivate it to proceed.
• Should the iPhone fail to power on, establish a connection to an external power source and attempt activation once more.
• In the event a logic board replacement is performed and the display remains unresponsive, consult the screen replacement guide to execute a manual connection of the display connector.

• Employ a specialized tri-point Y000 driver for the installation process.The four screws that fasten the back glass connector cover necessitate removal using this driver.
  Secure the cover with two screws, each measuring 1.3 millimeters in length.
  Additionally, two screws with a length of 1.0 millimeters are also utilized.

Position the battery connector cover so that the screw apertures are aligned, then set it down into its designated location.

• Employ a specialized tri-point Y000 driver for the installation process.The battery connector cover is fastened with three screws, requiring their removal using the aforementioned driver.
  Two screws, each measuring 1.3 millimeters in length, are utilized in the assembly.
  A single screw with a length of 1.0 millimeter is also part of the securing mechanism.

Employing either your fingertips or a spudger tool, carefully separate the surrounding liners.The adhesive securing the components will become visible as the liners are detached.
To prevent premature adhesion, ensure that no surfaces contact the newly revealed adhesive during liner removal.
Thoroughly inspect both the frame and rear glass assembly, eliminating any residual liners to guarantee complete adhesive exposure.

• Position the rear glass component onto the device chassis, initiating the placement with the uppermost section.
  Should you encounter opposition during installation, a perimeter clip might be deformed and obstructed by the frame's structure.Carefully examine the area experiencing the obstruction and delicately realign any clips that appear to be out of shape.The perimeter clip is a small component that secures the back glass to the frame.
  Apply even pressure across the iPhone's borders to ensure the rear glass makes complete contact with the frame.

• Apply warmth around the edges of the rear glass using a hair dryer, heat gun, or iOpener until the surface reaches a temperature that is uncomfortable to briefly touch.
  This thermal application reduces the tackiness of the adhesive securing the glass.The increased temperature facilitates separation and promotes a more secure reattachment.Softening the adhesive through heat allows for improved adhesion during reassembly.

• Employ your fingertips to apply secure pressure encompassing the entire edge of the iPhone's casing.

• Position the iPhone with its screen facing downwards onto a pristine, level workspace.
  Apply a continuous strip of adhesive tape along the outer edge of the rear glass to safeguard its cosmetic appearance.
  Arrange a series of coins in a circular pattern bordering the rear glass's edge, building a barrier matching the height of the rear camera lenses' projections.Instead of coins, utilize clamping devices secured around the device's perimeter to establish a fresh adhesive seal.The purpose of the coins or vise clamps is to elevate the rear glass, facilitating access to the internal components.
  This elevation ensures proper adhesion when a new adhesive is applied to the rear glass.

• Position several books atop the iPhone's surface.Employ 3 to 4 substantial volumes with considerable weight.Ensure the books are centered directly above the device.
  To prevent damage, avoid using valuable books, as the coins' pressure might create a minor mark on the cover.
  Maintain the books' placement for approximately half an hour.
  This applied force facilitates the bonding of the adhesive material.
