iPhone 16 Plus Earpiece Speaker Replacement

• To optimize battery health, permit the battery's charge level to descend to a minimum of 25%.A lithium-ion battery that is fully charged presents a potential safety risk.The possibility of a safety concern arises when a lithium-ion battery maintains a full charge.
• Disconnect all connected cables from the device before proceeding.
• Simultaneously depress the power button and one of the volume buttons, subsequently moving the power slider to deactivate the phone.

• To prevent injury and simplify the subsequent dismantling process when the display or rear glass exhibits severe cracking, apply strips of packing tape, ensuring they overlap, across the damaged glass surfaces.
• Confirm the existence of a sufficiently large, uninterrupted surface area proximate to the lower edge, suitable for secure adhesion of a suction cup.

• Excessive insertion of a prying tool poses a risk of device harm; therefore, implement a marking procedure to mitigate potential damage.
• Using a precise measuring tool, determine a distance of3 mmfrom the tool's distal end and use a permanent marker to create a visible indication on the prying tool.
• For enhanced precision, consider marking the remaining corners of the tool with varying measurement distances.
• As an alternative method, affix a coin to the prying tool's tip, positioning it3 mmfrom the foremost edge.

Employ a P2 pentalobe driver for the disassembly of the two screws.The screws securing the USB-C port are each 7.7 millimeters in length.These screws are located on both lateral aspects of the USB-C port.

• To initiate separation, use a heated iOpener applied to the lower perimeter of the rear glass panel for a duration of two minutes.As an alternative method, a hair dryer or heat gun can be employed to warm the lower edge of the back glass until it reaches a comfortably warm temperature.Exercise caution to prevent overheating the device, as the internal battery is vulnerable to thermal degradation.
• The battery's sensitivity to excessive heat necessitates careful temperature management during this process.
• Maintaining a moderate temperature on the back glass is crucial to avoid potential damage to the battery.

1. Securely attach a suction handle to the lower perimeter of the rear glass, positioned directly over the USB-C connector.
   Exert a consistent and considerable upward traction on the suction handle to generate separation between the rear glass assembly and the device's frame.
   Carefully introduce the pointed end of a specialized opening tool into the newly formed space.

• During the subsequent removal of adhesive holding the rear glass in place, exercise caution regarding specific zones.
  A fragile connector links the back glass assembly to the device's internal components, situated near the volume increase button; refrain from tool insertion in this location to prevent cable damage.
  Numerous spring-loaded electrical contacts are positioned along the phone's edges; prevent contact bending by adhering to the depth limitations indicated for tool insertion in each procedure.

1. To prevent harm to the spring contacts, ensure the pick's insertion depth does not exceed 5 mm along the lower border.Movement of the pick, oscillating back and forth across the lower edge, will release the adhesive bond.Maintaining the pick's position within the lower-right corner will inhibit the adhesive from re-adhering.
   Care must be taken to limit pick penetration to a maximum of 5 millimeters when working along the lower edge.
   By gently sliding the tool along the bottom edge, the adhesive can be effectively detached.

• To initiate separation, utilize a heated iOpener on the right-hand vertical perimeter of the rear glass panel, maintaining heat for a duration of two minutes.The rear glass requires thermal conditioning prior to separation; achieve this by applying heat with a hair dryer or heat gun until the surface reaches a temperature that is comfortable to touch with bare skin.Consistent and even heat distribution is crucial to prevent damage to underlying components during the separation process.
  Employing a controlled heat source, such as an iOpener, hair dryer, or heat gun, is essential for softening the adhesive securing the back glass.

• To prevent harm to the spring contacts and ribbon cable, ensure your tool's insertion depth remains no greater than 5 mm near the right edge.Carefully maneuver your tool around the lower-right corner, progressing halfway up the right edge, until resistance is encountered from a securing clip for the rear glass.Exercise caution and avoid cutting close to the volume buttons, as this area houses the wireless charging and flash cable.
  The clip's presence will indicate the location of the adhesive securing the back glass.
  Maintain the tool's position within the gap to inhibit the adhesive from re-bonding.
  A firm barrier will be felt when the clip is located, signifying the adhesive's placement.

• Utilize a heated iOpener on the left side of the rear glass panel, maintaining heat for a duration of two minutes.To facilitate separation, warm the back glass with a hair dryer or heat gun until the surface reaches a temperature comfortable to touch.The application of heat softens the adhesive securing the back glass, easing its removal.
  Consistent, even heat distribution is crucial to prevent damage to the device's internal components during this process.

• To prevent damage to the spring contact, ensure the pick's insertion depth does not exceed 5 mm near the left edge.A second opening pick should be positioned at the lower edge.Maneuver the second pick along the bottom left corner and the left screen edge, facilitating adhesive separation and metal clip disengagement.
  The audible and tactile release of the metal clips will indicate successful separation.
  Maintain the initial pick's placement at the top left corner to inhibit adhesive re-adhesion.
  Careful manipulation is required to avoid compromising the spring contact's integrity, limiting pick insertion to a maximum of 5 mm.
  The adhesive bond will detach and metal clips will disengage as the second pick is slid along the lower and left edges.

• Utilize a heated iOpener on the upper perimeter of the rear glass panel, directing the heat to encompass the volume controls, maintaining this application for a duration of two minutes.The purpose of this heating process is to soften the adhesive securing the back glass.To ensure adequate heat transfer, the surface should reach a temperature comfortable to the touch when employing a hair dryer or heat gun.
• This warming step is crucial for successful separation of the back glass from the device's frame.

• To prevent potential damage to the spring contacts, ensure the insertion depth of your tool remains no greater than 3 millimeters along the device's upper boundary.Employing a sliding motion, maneuver your opening tool across the upper perimeter, progressing toward the top right corner and the volume up button, to sever the adhesive bond.The release of the upper two clips will be indicated by both audible clicks and a perceptible tactile sensation.
• Successful separation of the adhesive is confirmed by the distinct clicks and feeling of the top two clips disengaging.

• Refrain from completely detaching the rear glass at this stage, as it remains connected via a fragile ribbon cable; proceed with the subsequent instructions to ensure safe removal.
• Should the rear glass resist easy movement, avoid applying excessive force; instead, re-examine the edges with your pick to identify any remaining adhesive or obstructions.
• A slight upward lift of the rear glass might be necessary prior to swinging it open, facilitating complete clip disengagement.
• Carefully pivot the rear glass towards the location of the volume controls.
• Employ a clean, robust item, such as a small box, to provide support to the rear glass, preventing undue stress on the cable.
• Take out the opening tools.

• Employ a tri-point Y000 driver for the task of detaching the screws.The screws, each measuring 1.3 millimeters in length, fasten the middle connector cover.Two screws are responsible for securing the cover in place.Carefully remove these fasteners using the appropriate driver.The middle connector cover is held by these two screws.

• Employing blunt-nose tweezers or fingertips, maneuver the cover laterally, shifting it leftward to disengage the retaining hook situated within its corresponding slot on the logic board.
• Proceed to extract the cover from the device.

• To access the internal components, detach the upper connector cover by unscrewing the fasteners that hold it in place.
• The upper connector cover is secured with two Phillips screws, each measuring 1.4 millimeters in length.
• A single Phillips screw, with a length of 3.5 millimeters, is also used in the assembly.
• Additionally, a 1.0-millimeter-long tri-point Y000 screw is present.

• Employing either tweezers or direct manual manipulation, detach the protective covering situated over the upper connector.The upper connector's housing is released from its position by carefully removing its cover, which can be accomplished with tweezers or fingertips.To access the connector, the overlying cover must be disengaged, a task best performed using tweezers or by hand.

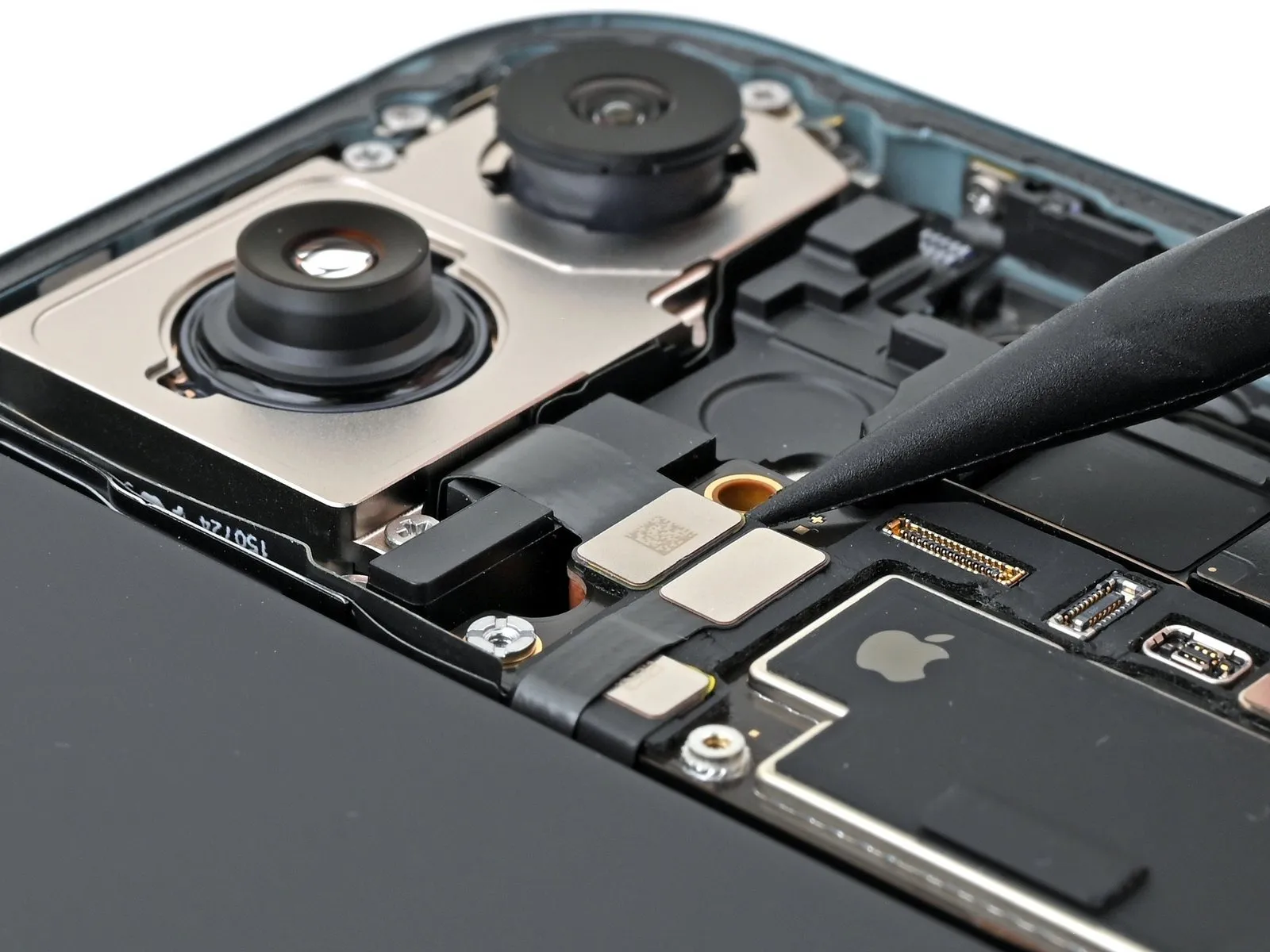

• Employ the tip of a spudger to carefully lift and detach the 5G mmWave antenna's press-fit connector.A spudger's pointed end is necessary for separating the press connector from the 5G mmWave antenna.To release the 5G mmWave antenna, utilize a spudger and its pointed tip to disengage the press connector.

• Employ your tweezers to secure the stretch-release adhesive pull-tab, which is situated on the right side of the 5G mmWave antenna.Carefully extract the stretch-release adhesive strip by applying slow, consistent tension at a shallow angle using your tweezers.Allow ample time for the adhesive to extend and detach from beneath the antenna during the extraction process.
• To enhance your grip, consider winding the adhesive around the tip of your tweezers as you exert pulling force.Should the adhesive strip fracture during removal, utilize your tweezers to recover any detached fragments and proceed with the extraction.The pull-tab is designed to release gradually when stretched.
• Maintain a low extraction angle to prevent abrupt separation.A slow, steady pace facilitates the adhesive's release from the antenna's surface.Twisting the adhesive around the tweezers' tip can improve control during removal.
• Recovering broken adhesive fragments with tweezers allows for continued, successful removal.The stretch-release adhesive is specifically engineered for controlled detachment.Gentle, consistent force is crucial for preventing adhesive breakage.

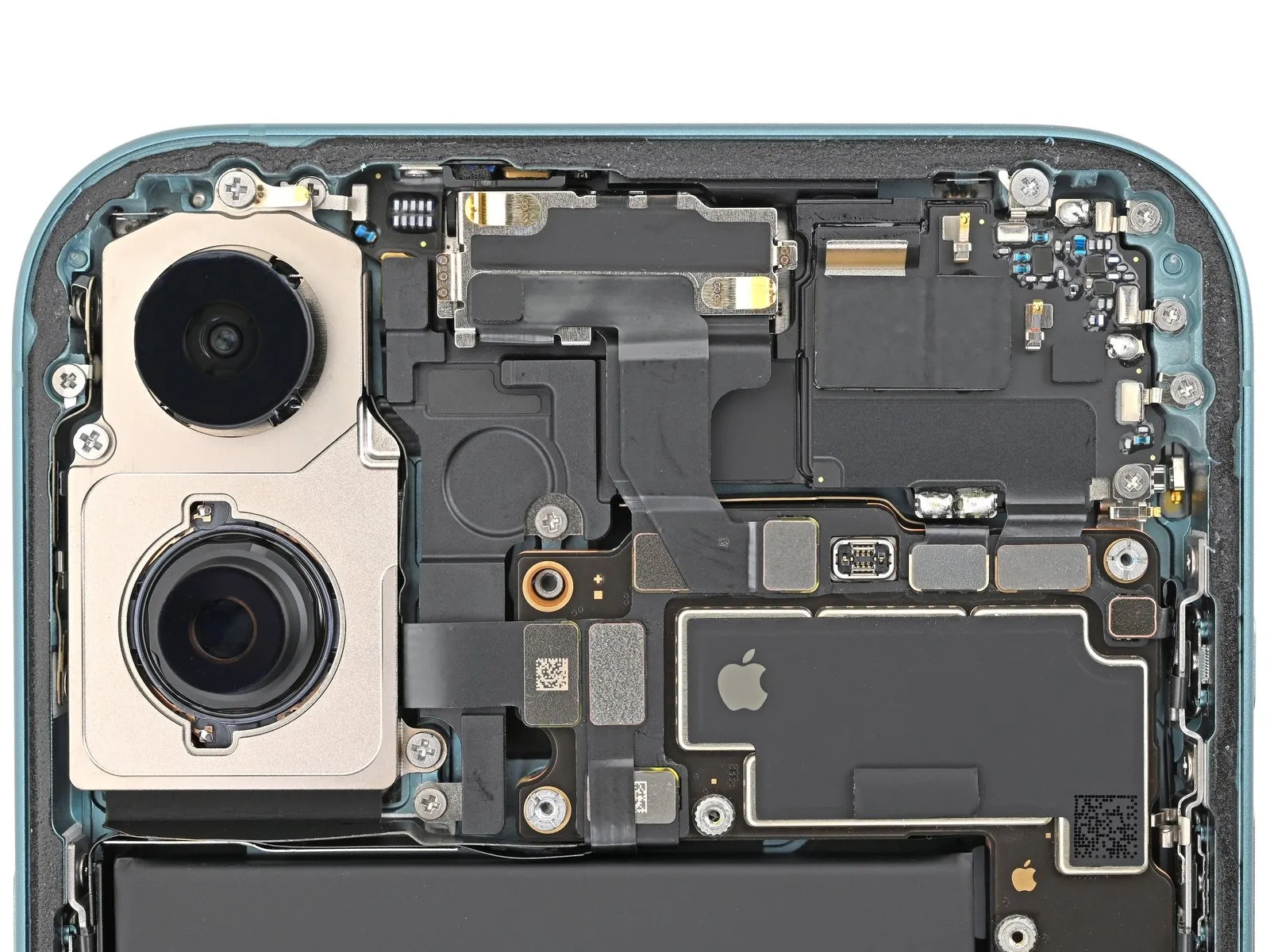

• Detach the 5G mmWave antenna from the earpiece speaker assembly, subsequently removing it.

• One screw, with a length of 2.0 millimeters, is also used to affix the earpiece speaker.Two screws, each possessing a length of 1.7 millimeters, contribute to the speaker's attachment.
• Three screws, each measuring 1.35 millimeters in length, are part of the fastening mechanism for the earpiece speaker.The earpiece speaker is secured using a combination of screw lengths, necessitating careful removal.

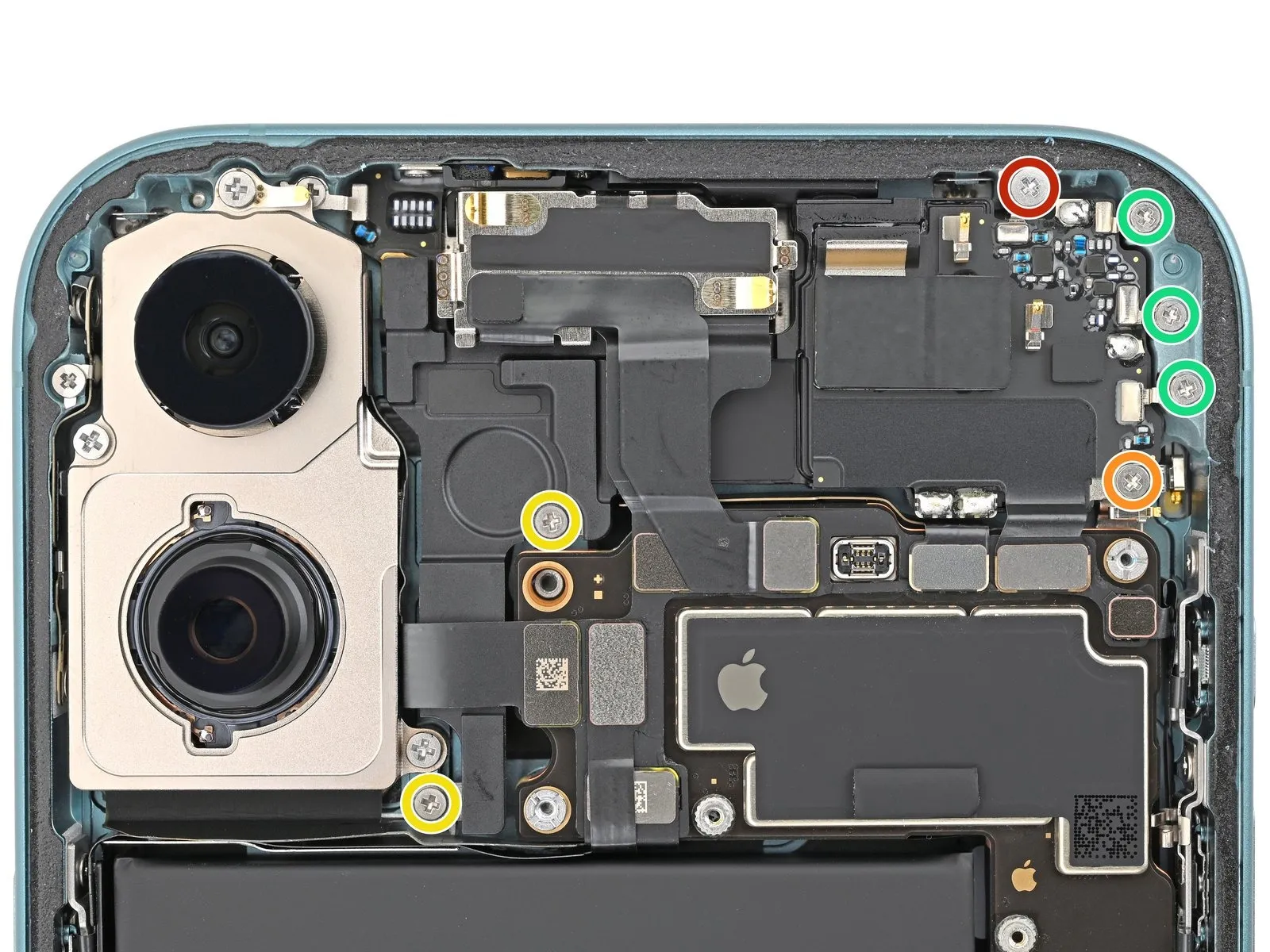

• A Phillips screwdriver is essential for the task of unscrewing the seven fasteners holding the earpiece speaker.Carefully remove the seven screws, noting their individual lengths for reassembly.

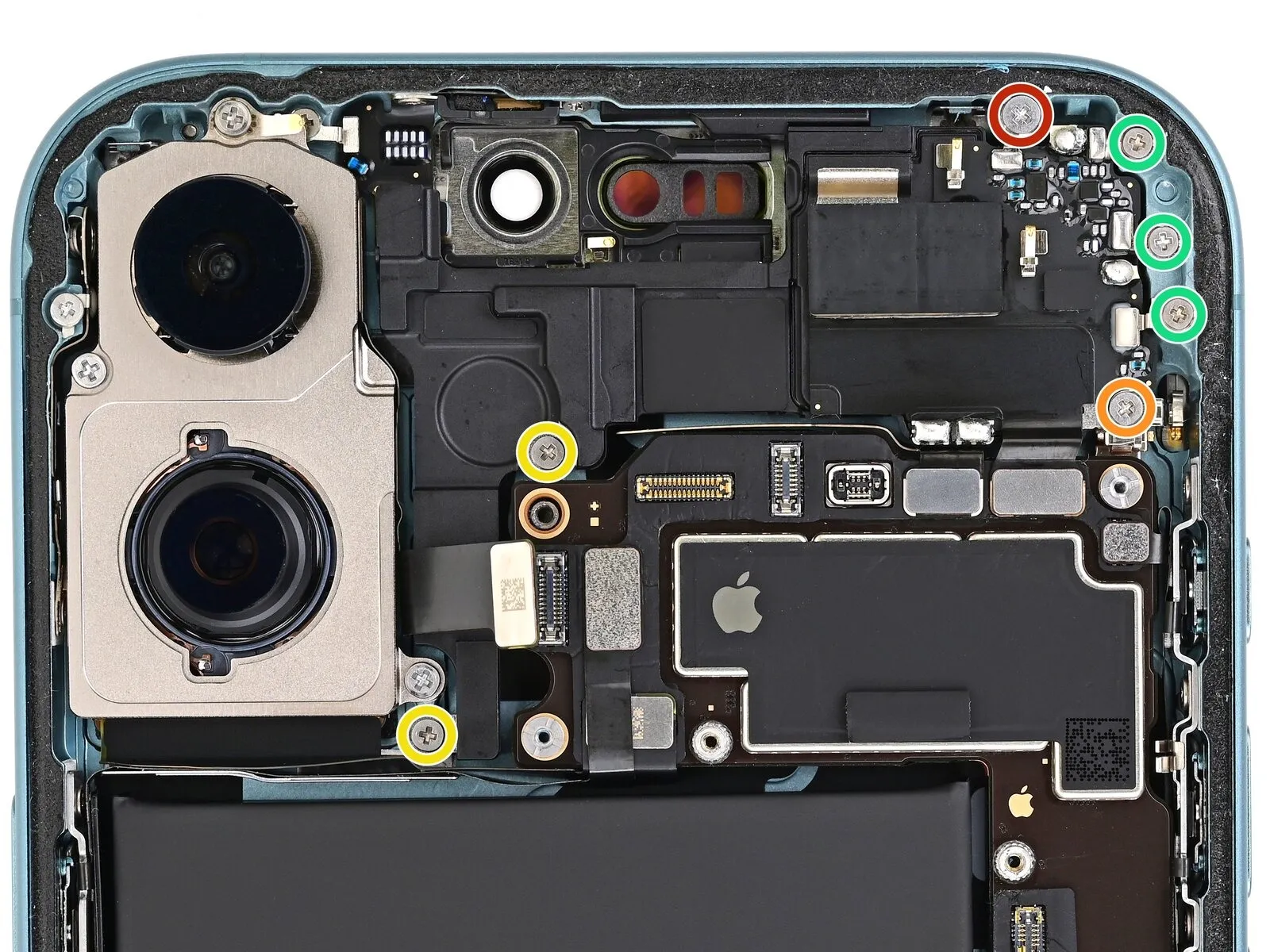

• The speaker's attachment involves a 2.1 mm screw, a 2.0 mm screw, two 1.7 mm screws, and three 1.35 mm screws.To release the earpiece speaker, a Phillips screwdriver is needed to address the seven screws of different lengths.

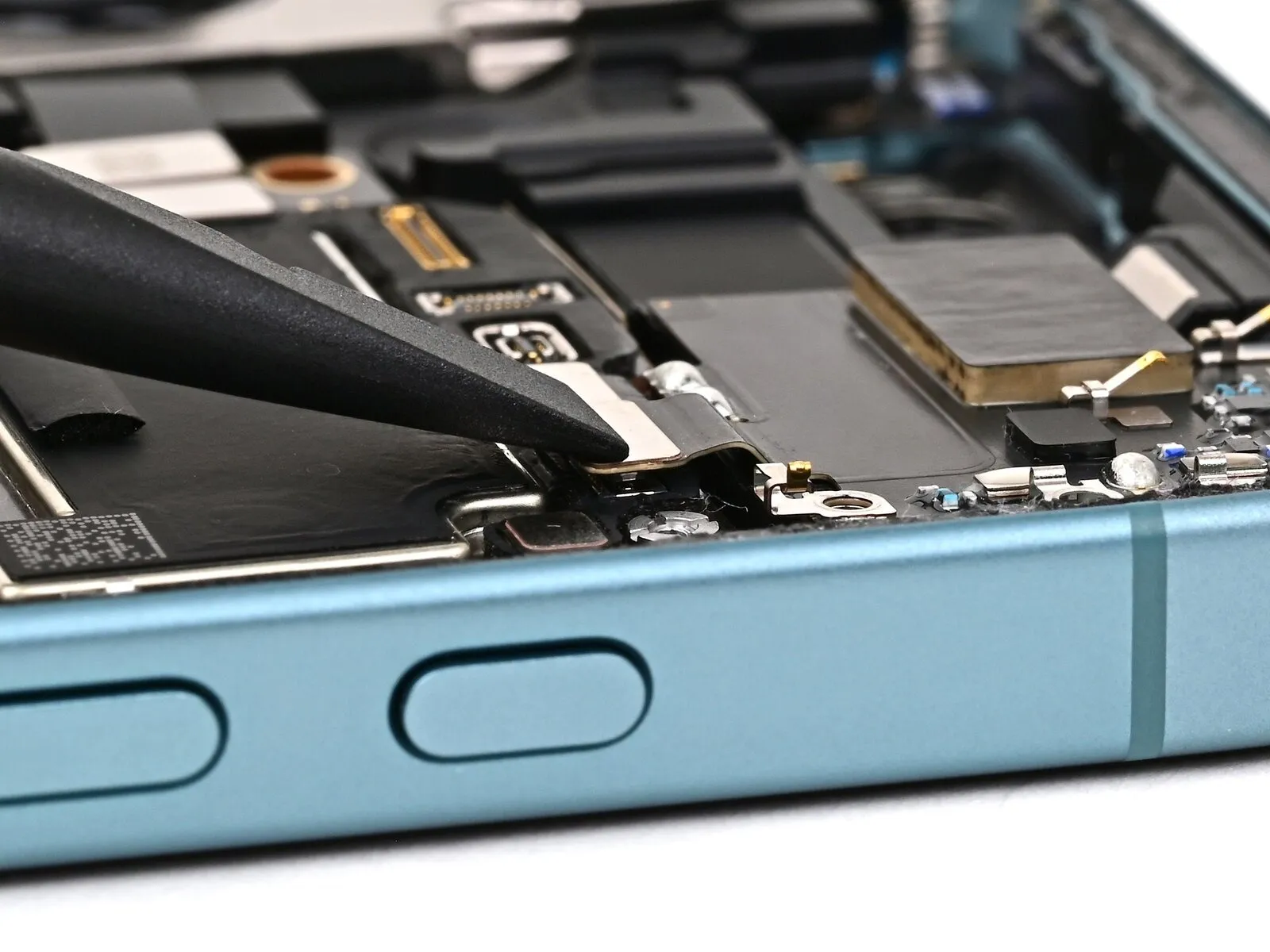

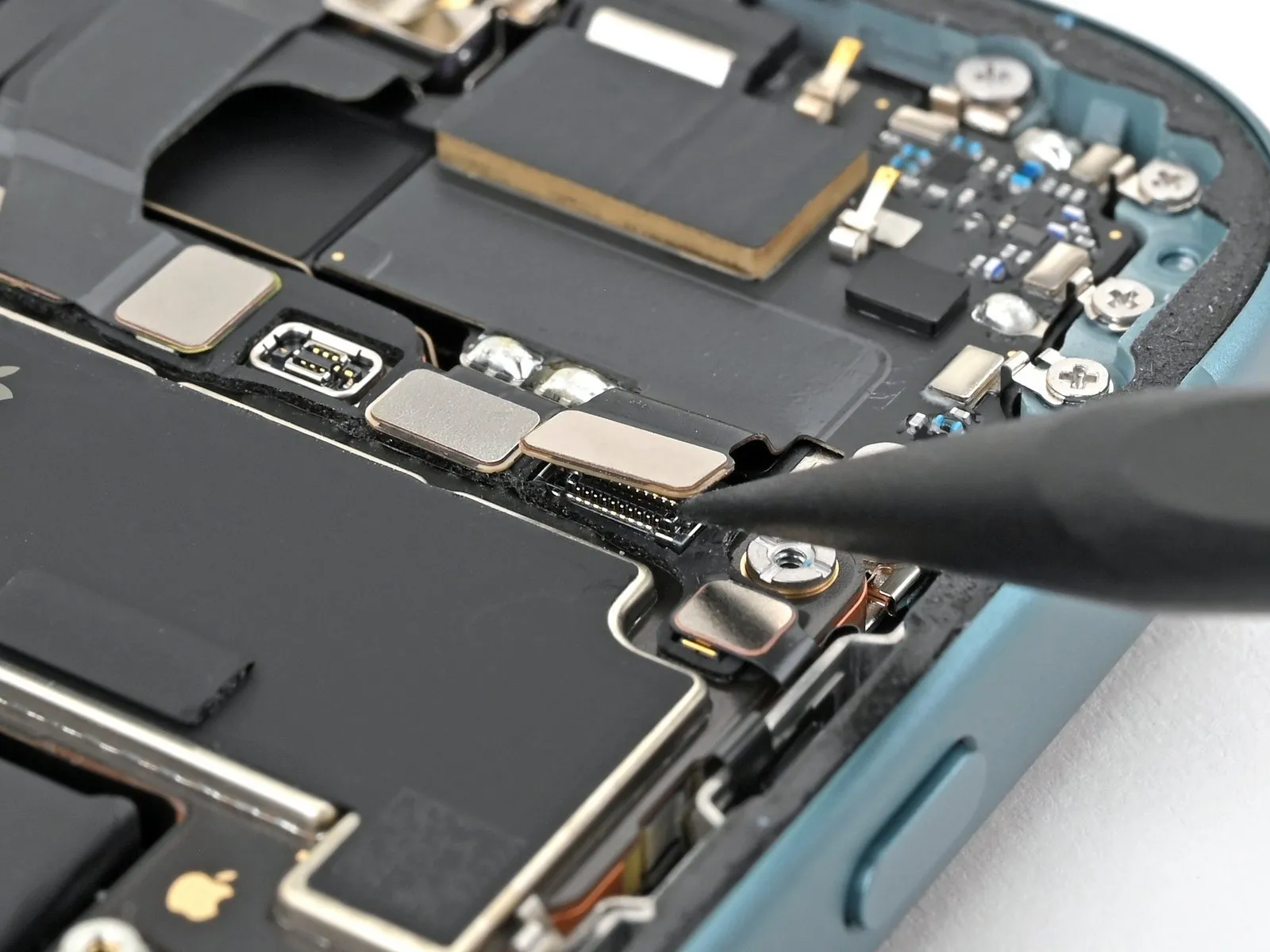

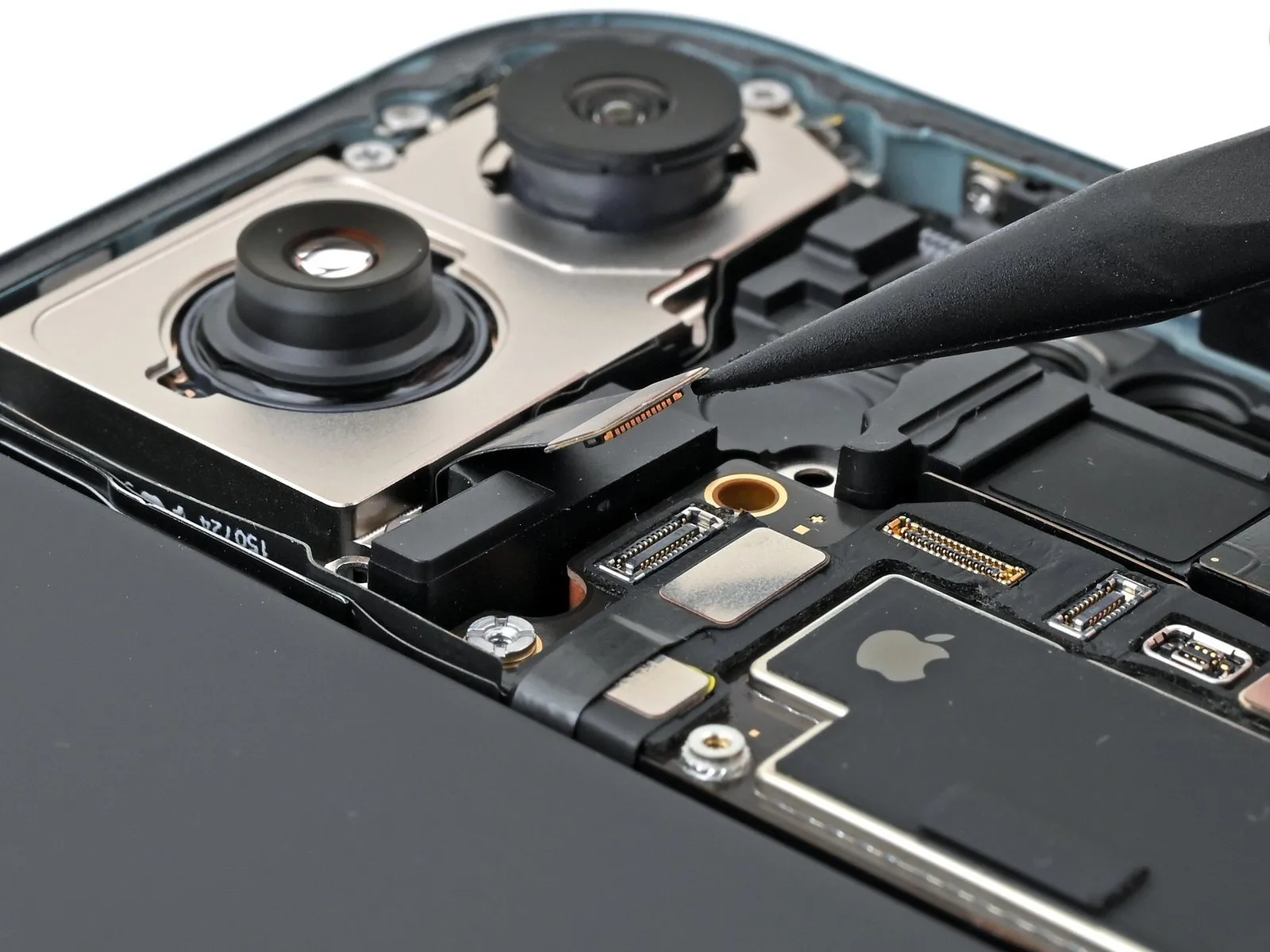

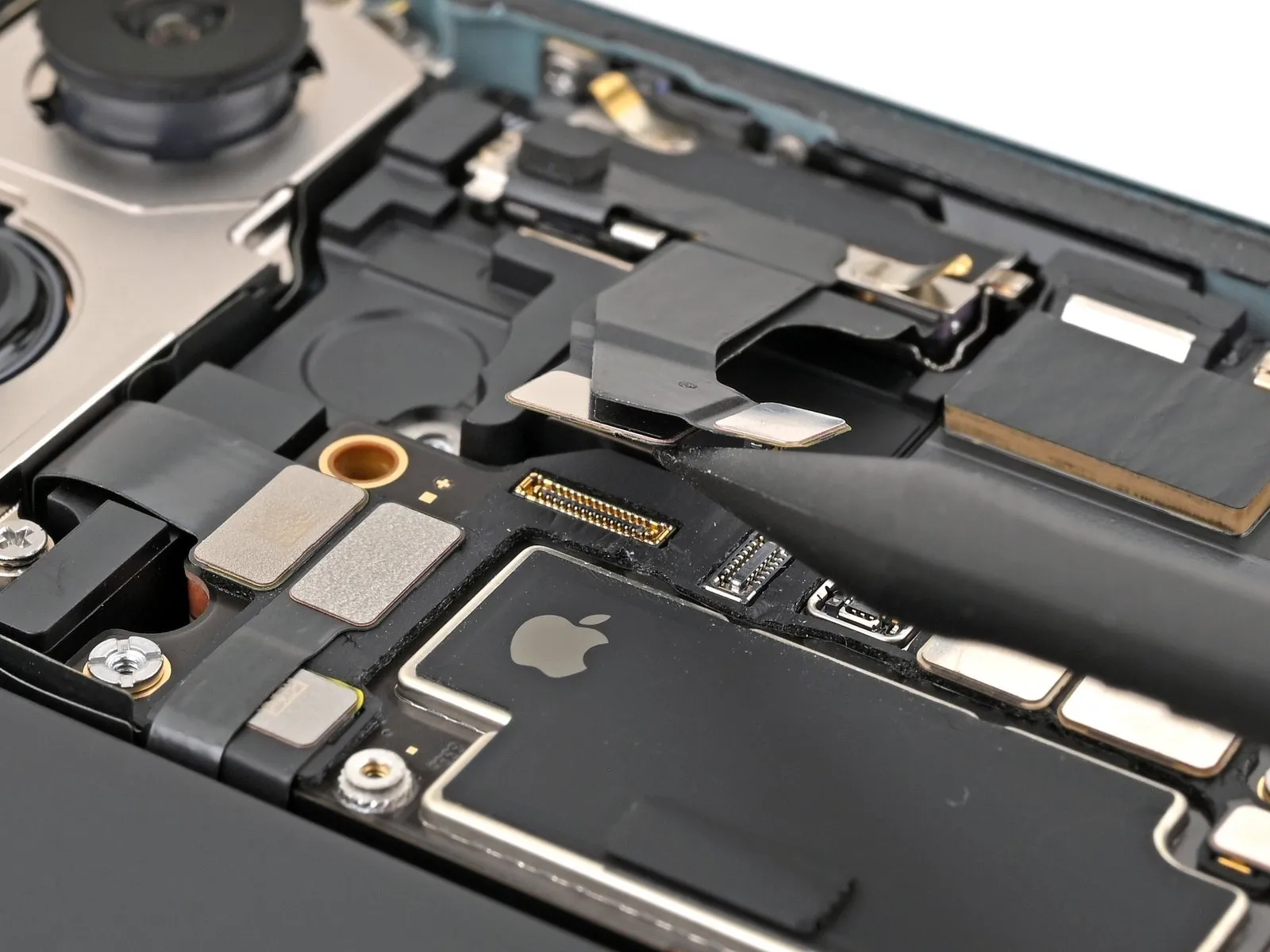

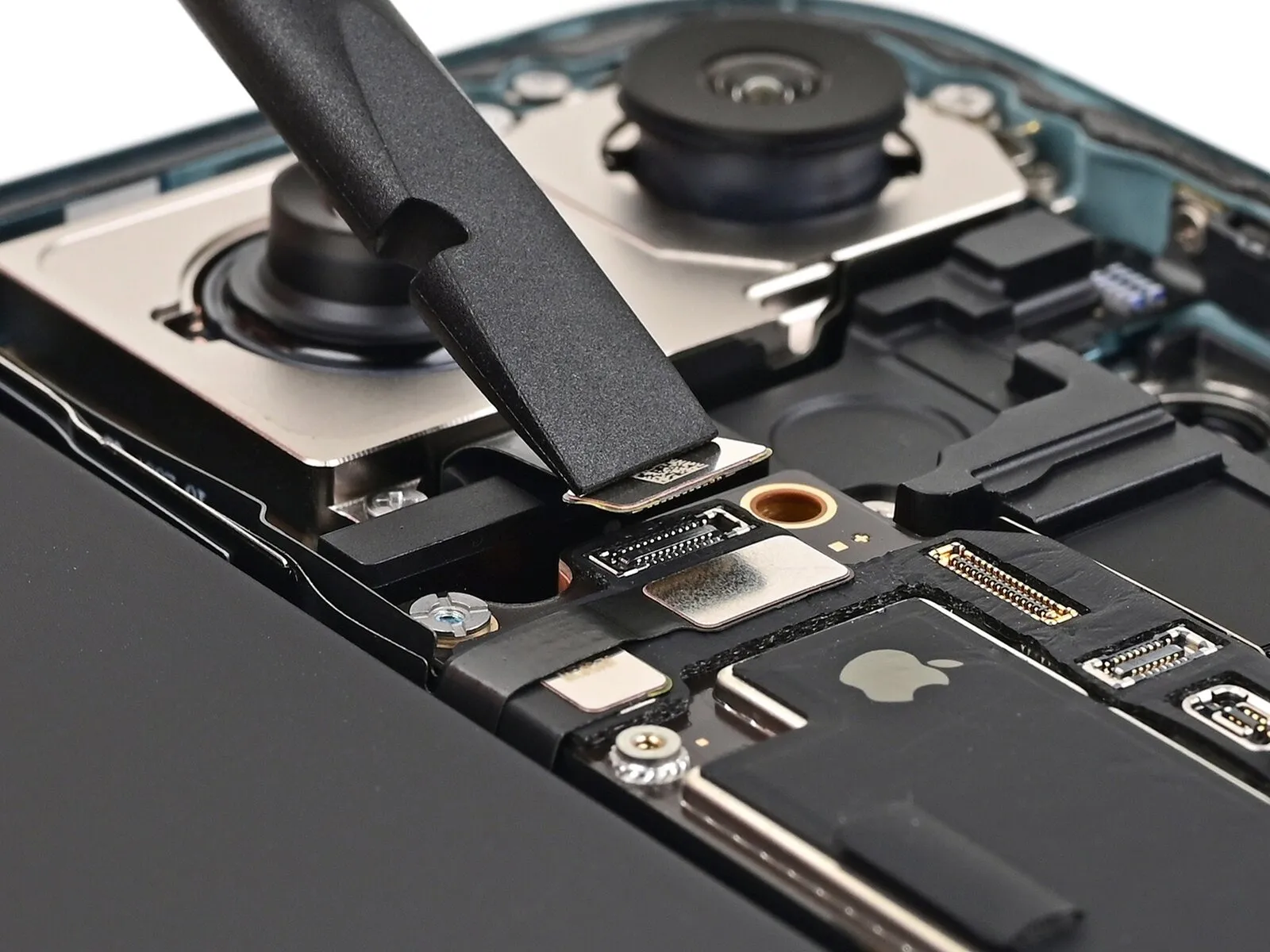

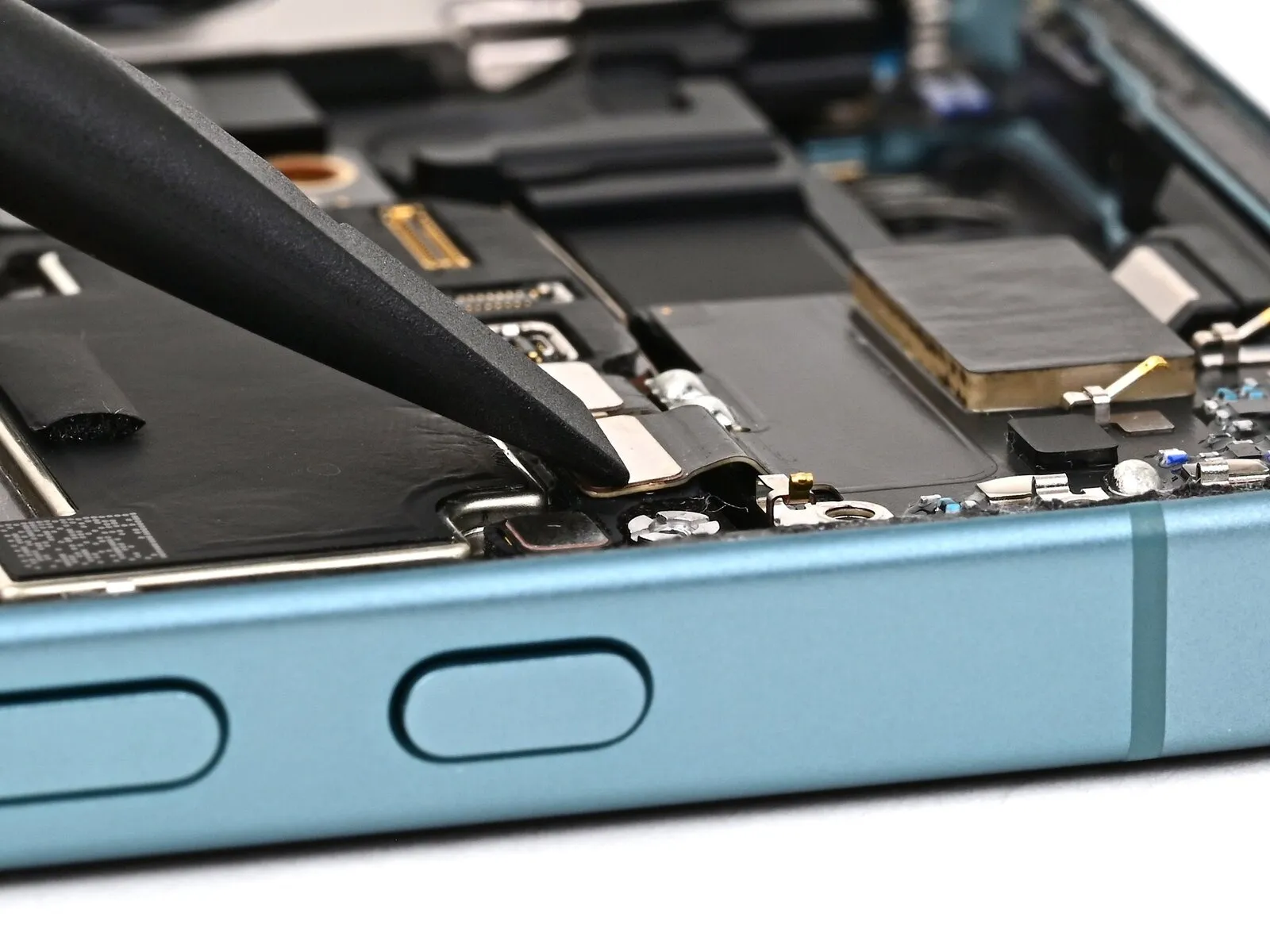

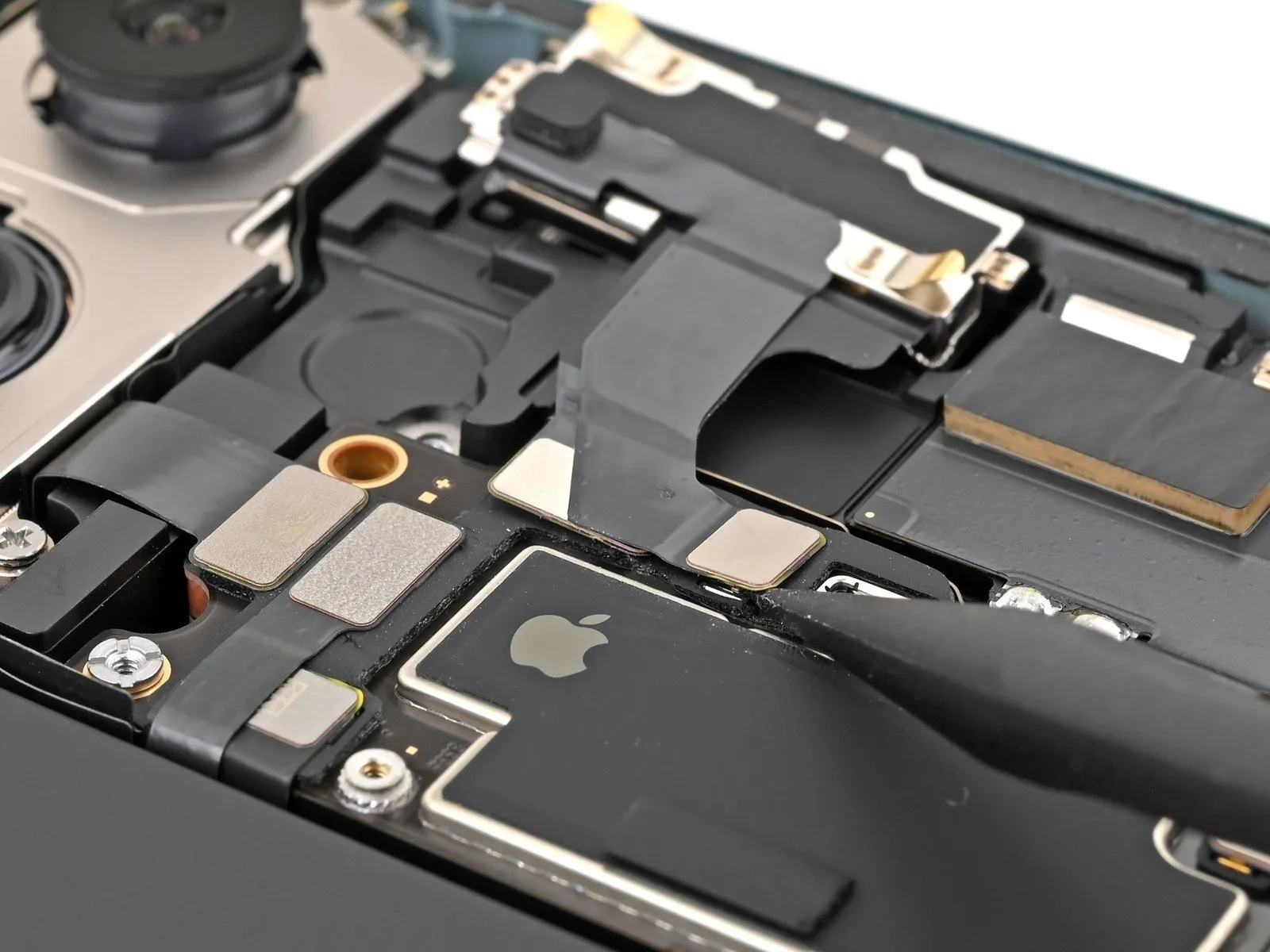

• Employing the tip of a spudger, carefully lift and detach the rear camera press connector, which is situated on the logic board's left side.The rear camera press connector, positioned along the left margin of the logic board, requires disconnection via a spudger's pointed end.To release the rear camera press connector from its position on the logic board's left edge, utilize a spudger and apply gentle prying force to separate it.

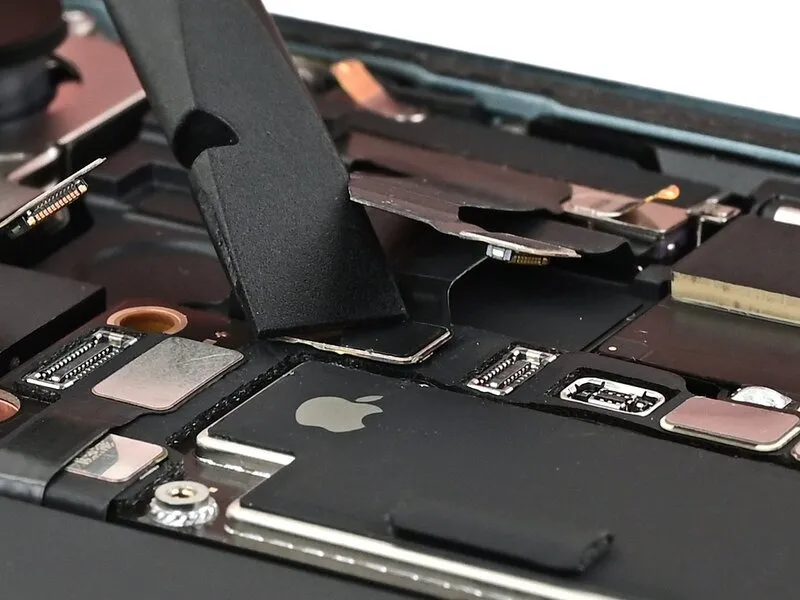

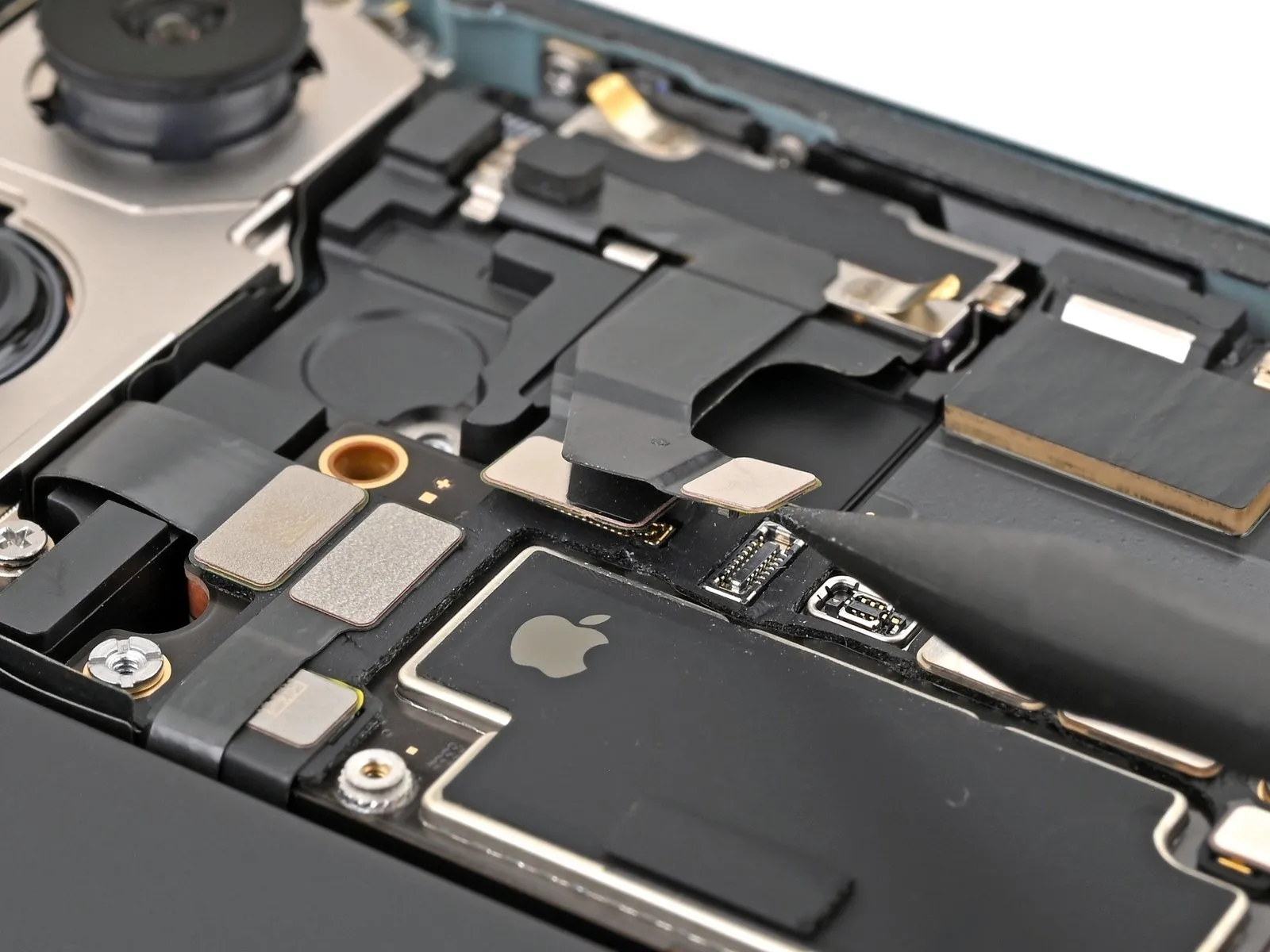

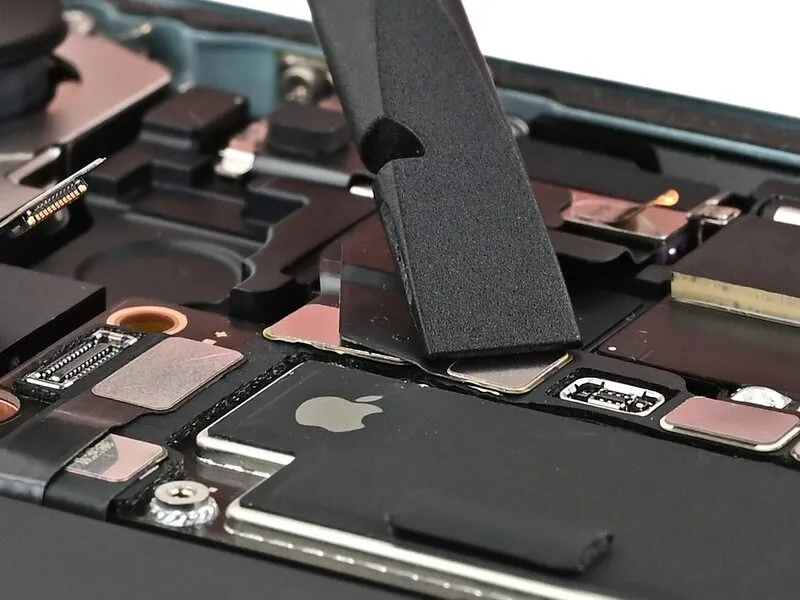

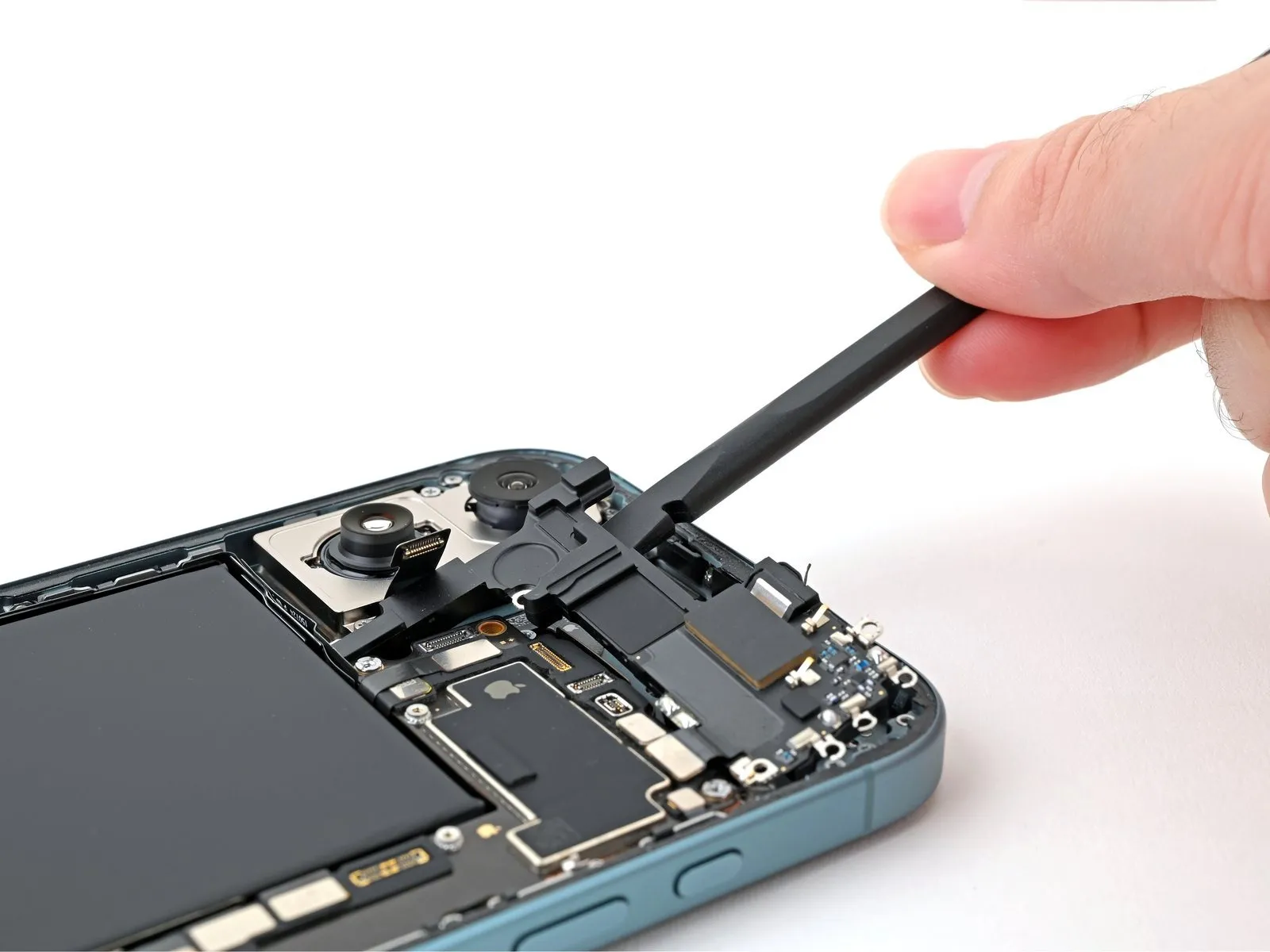

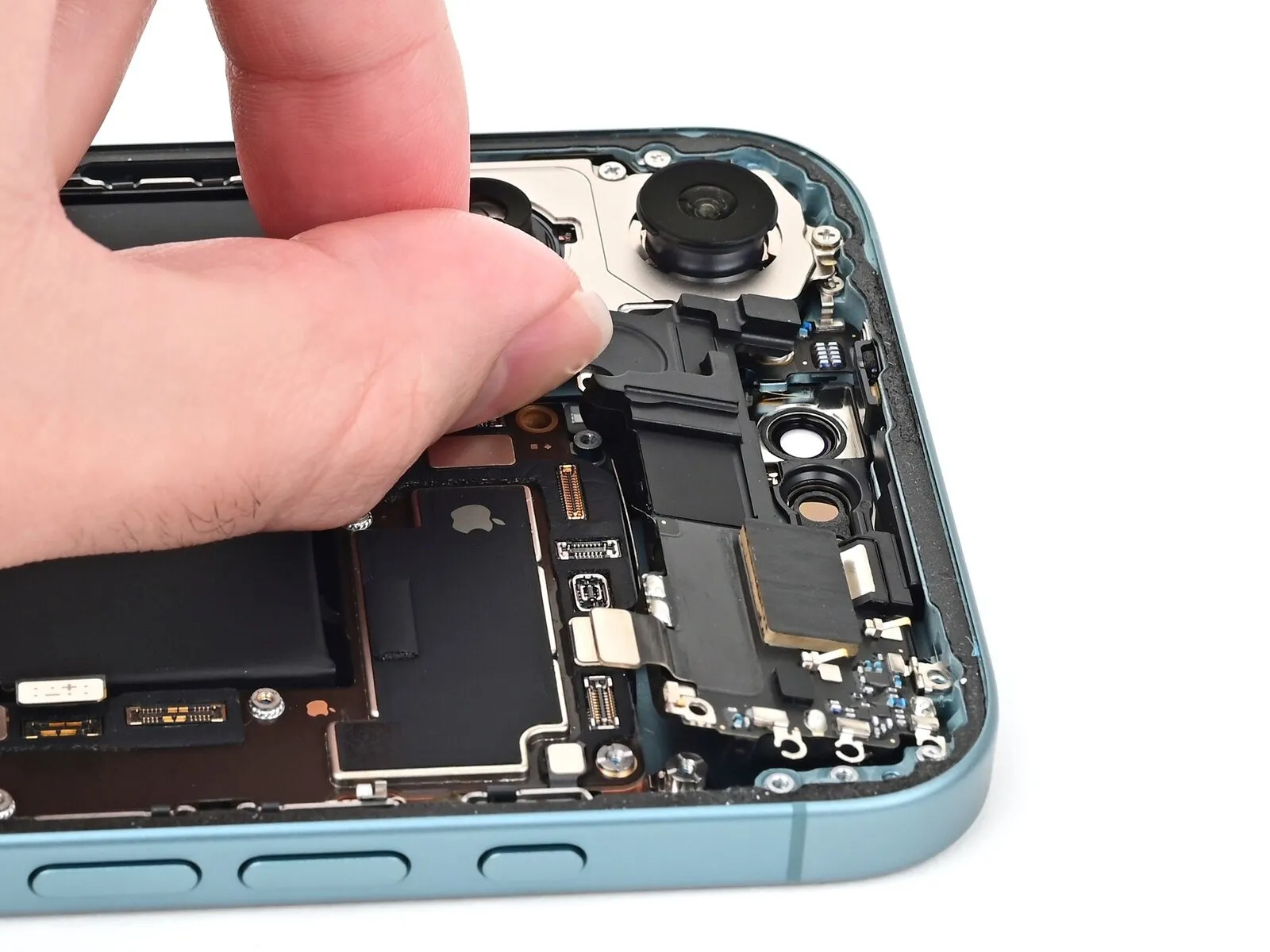

• Utilize the planar extremity of a spudger to gain access beneath the superior border of the earpiece speaker, positioned proximate to the frontal camera aperture.Employ the spudger to elevate the earpiece speaker, facilitating its detachment from the rectangular recess molded into the frame's upper edge.The separation action allows for the dislodging of the earpiece speaker assembly.

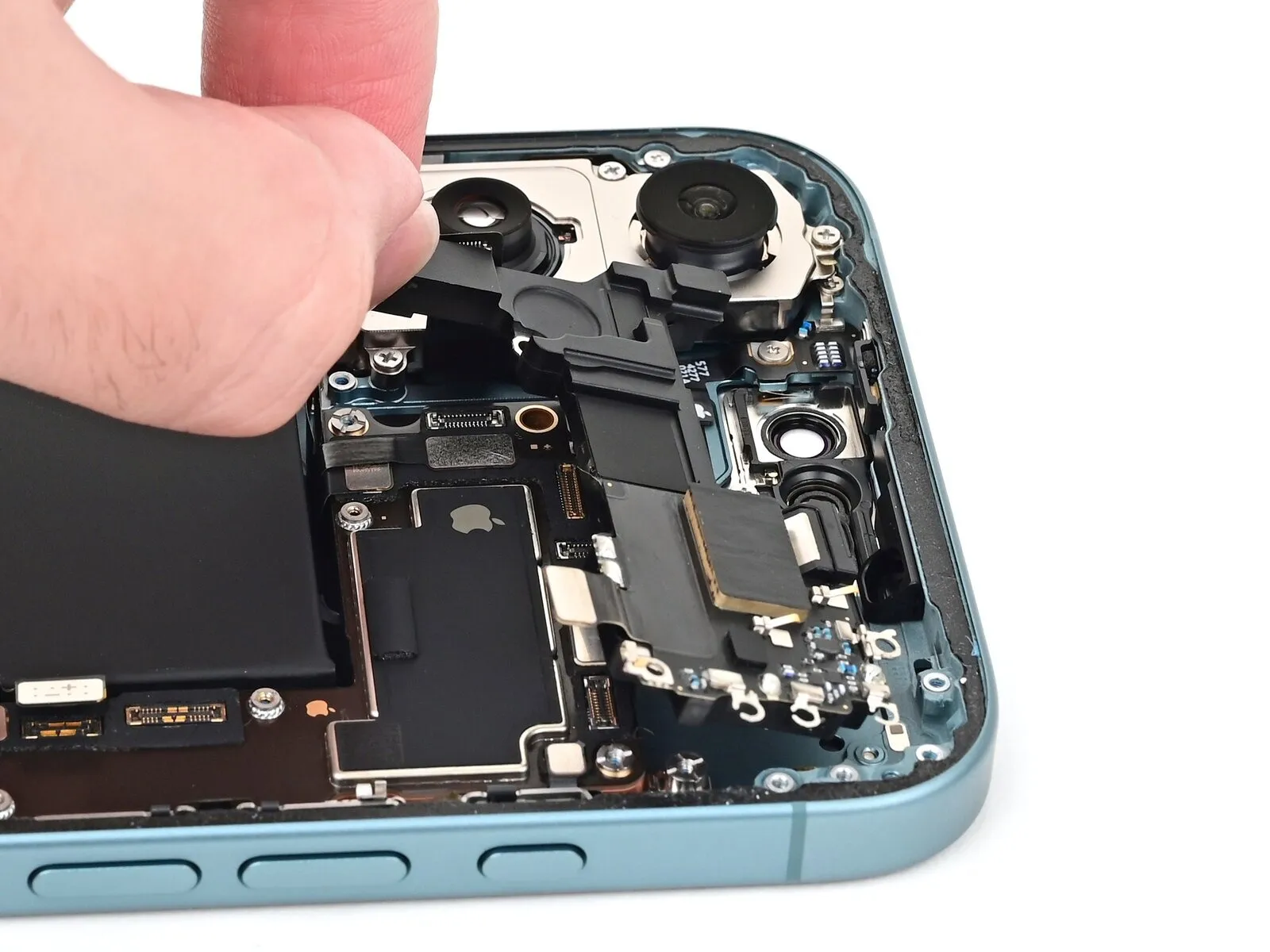

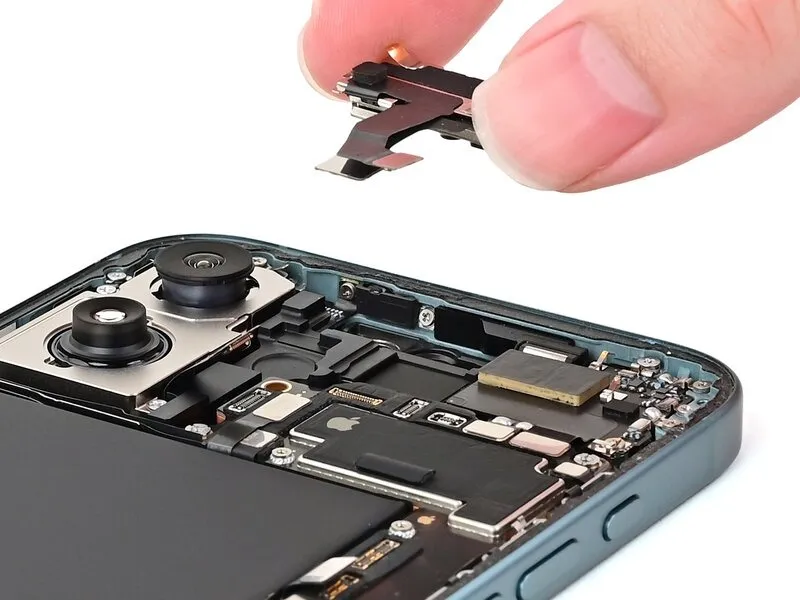

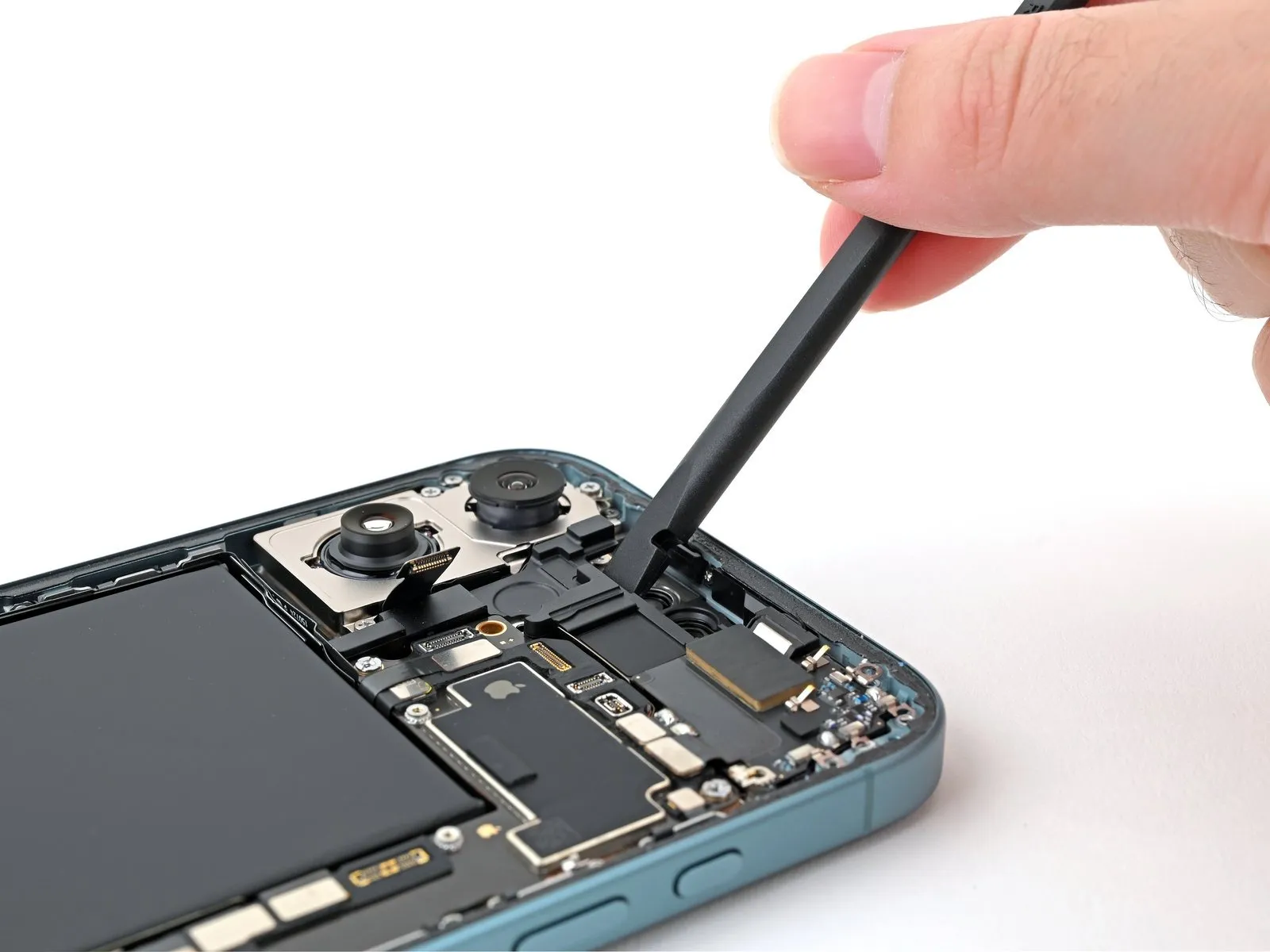

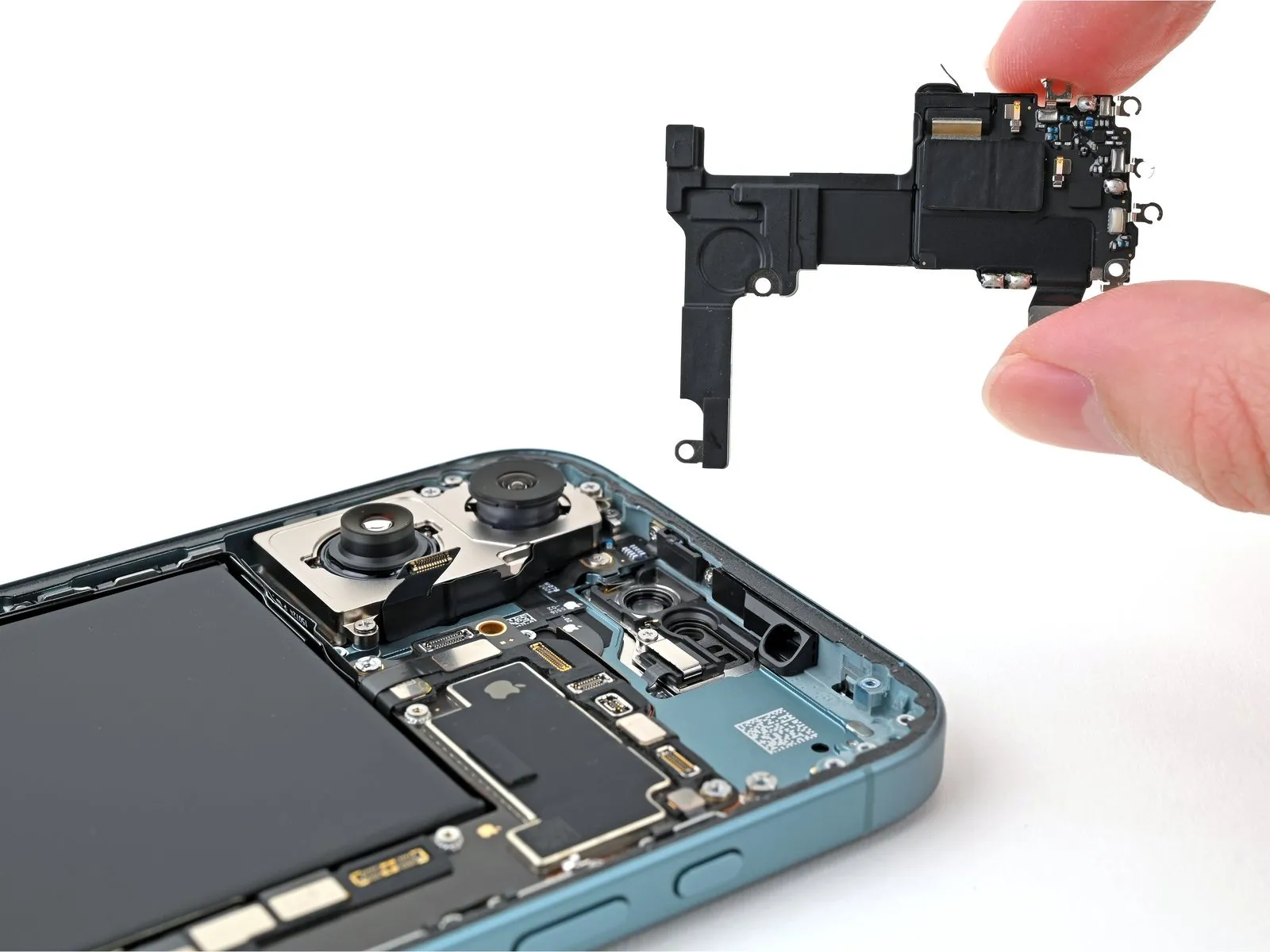

• Proceed with the complete removal of the earpiece speaker component.

Acknowledgement of successful component separation is appreciated.The subsequent instructions detail the process for reassembling the device.Illustrative imagery for certain reassembly stages depicts the iPhone 16 non-Plus model, exhibiting potential minor aesthetic variations.
Despite visual differences, the outlined reassembly procedure remains accurate and applicable.

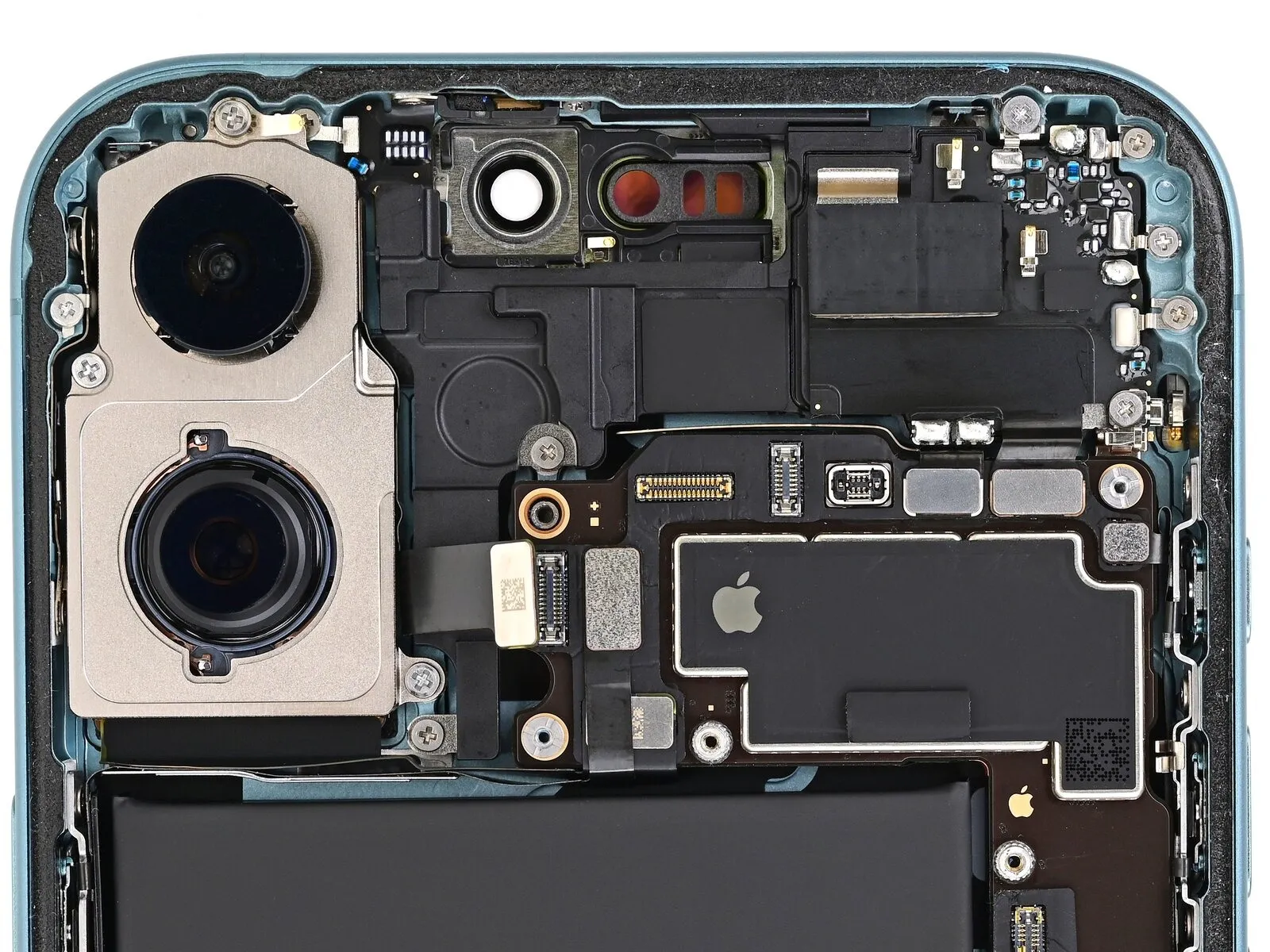

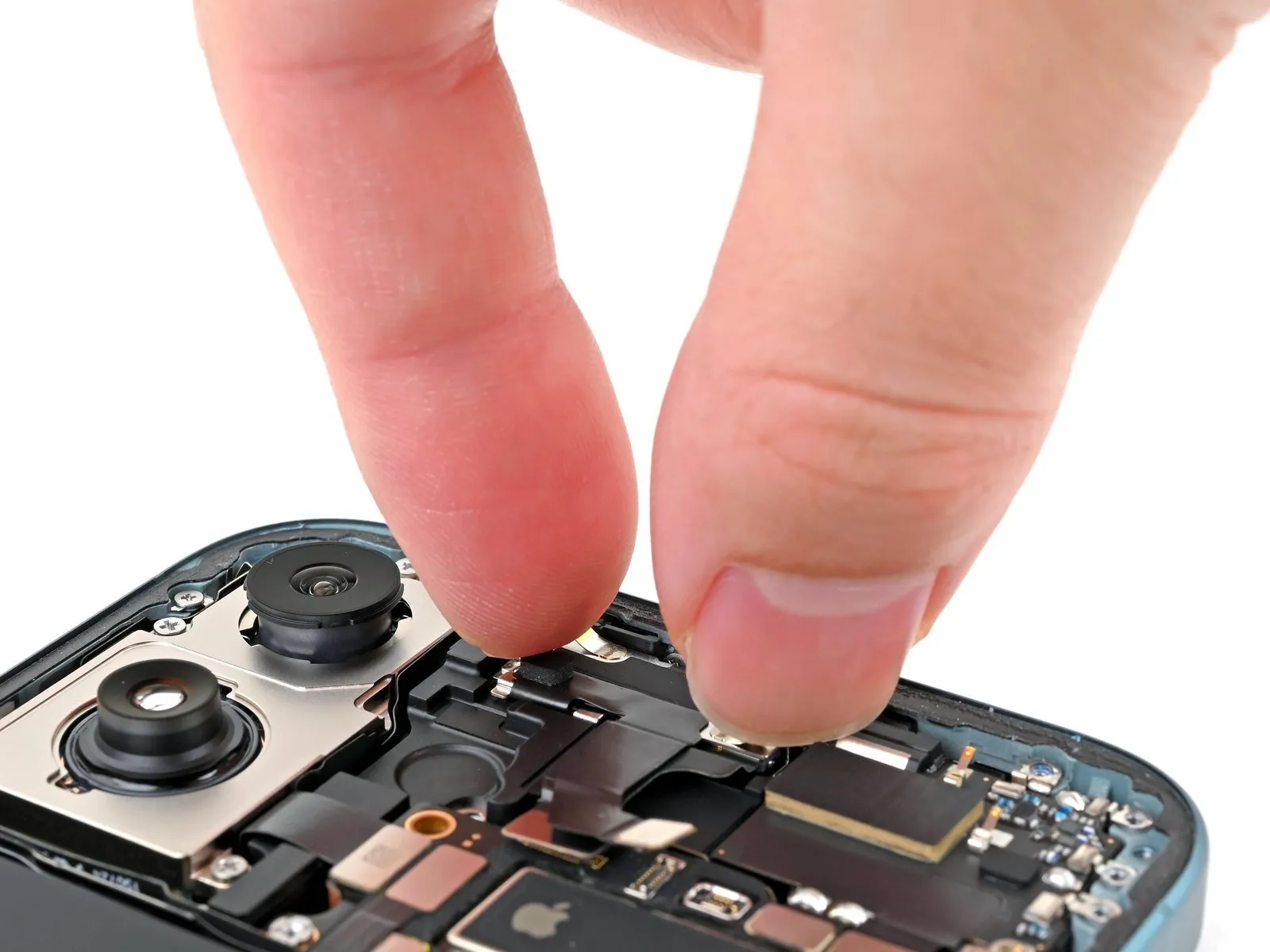

1. Position the earpiece speaker so that its edges correspond with the designated space within the device's housing.
2. Introduce the superior edge of the earpiece speaker into the corresponding opening, tilting it downwards initially, subsequently applying even pressure to secure it flush against the phone's chassis.
3. Verify that the rubber seal associated with the earpiece speaker is completely within the confines of its intended cavity.

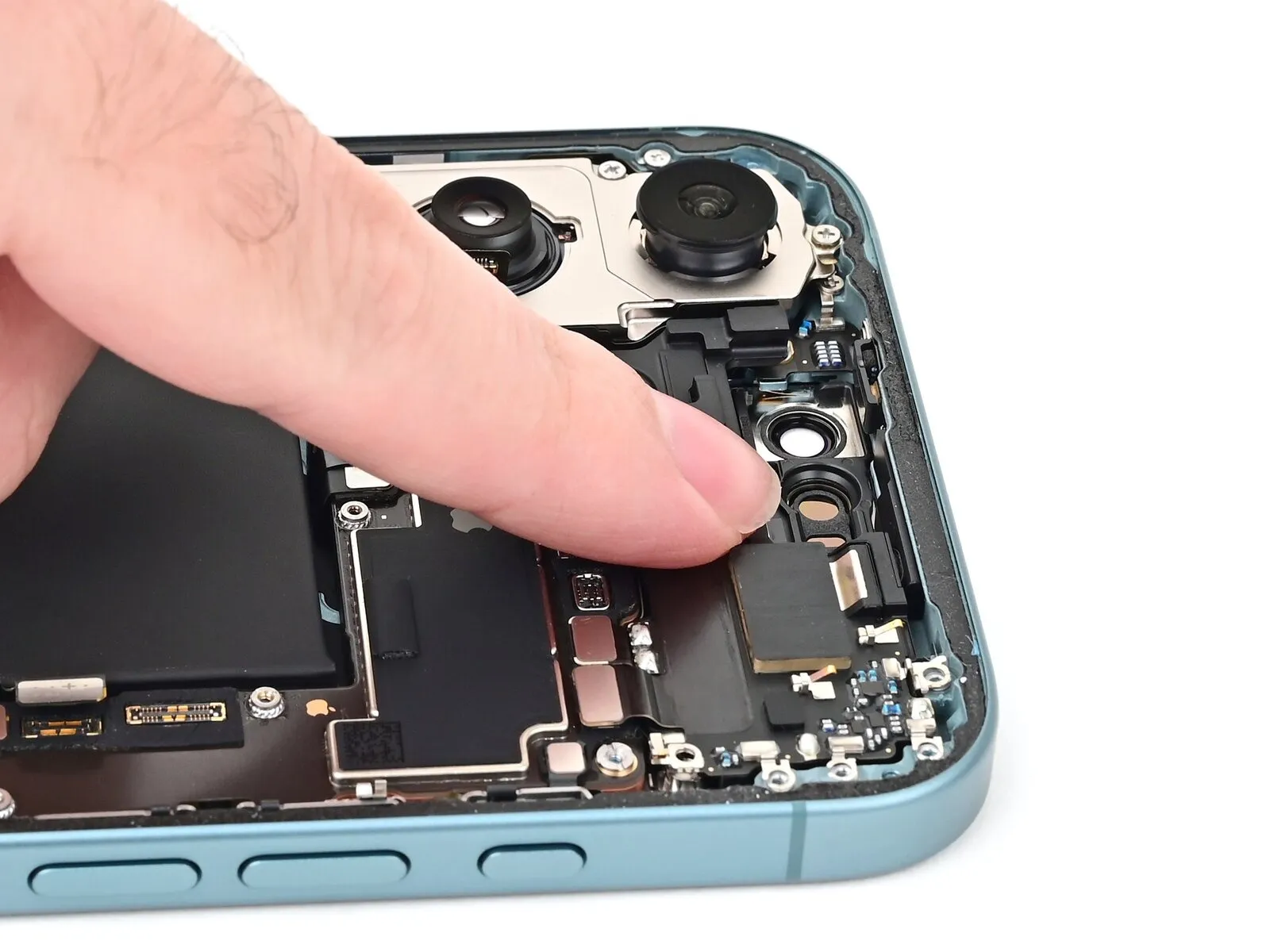

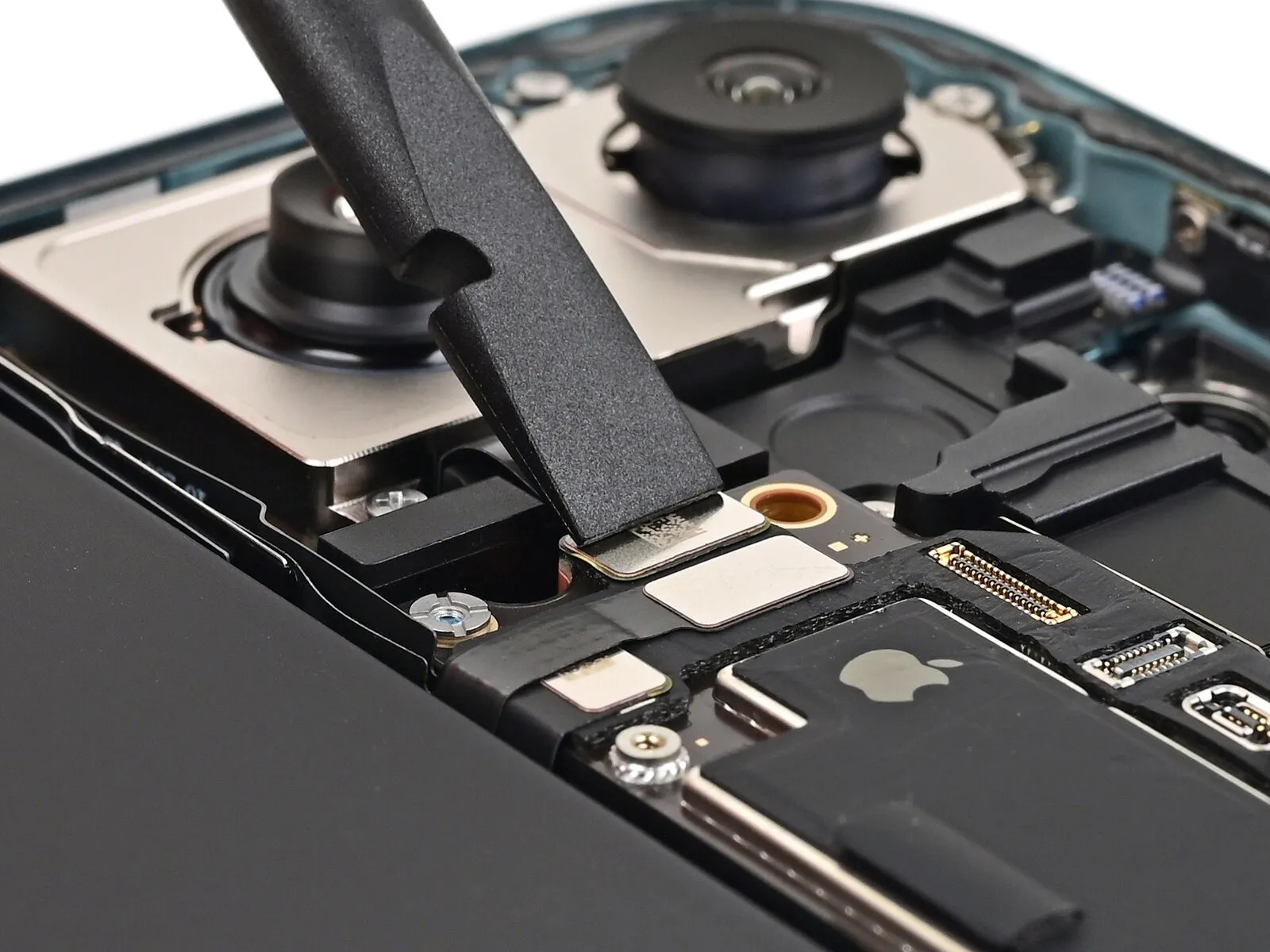

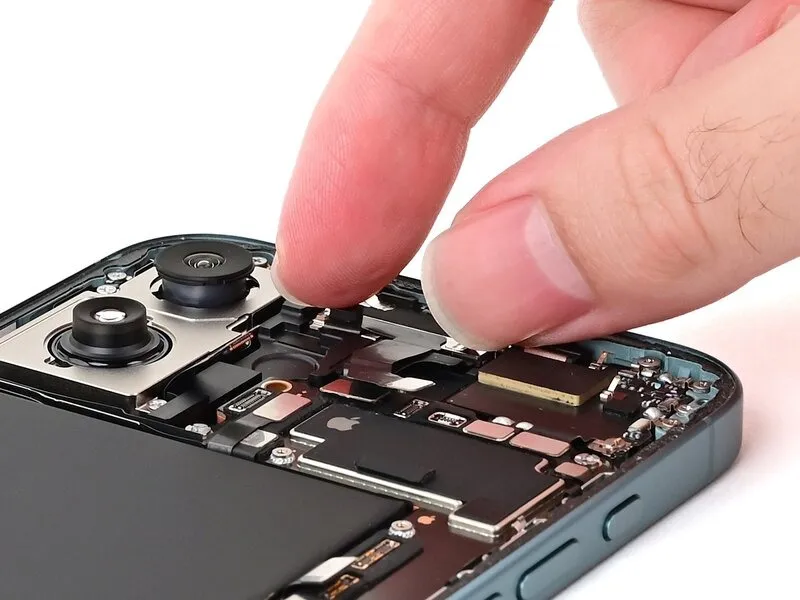

• Employ either a fingertip or a spudger to establish a connection with the earpiece speaker press connector.To secure the press connectors, mirroring the example provided, ensure precise alignment before applying downward pressure until an audible click confirms engagement.Avoid applying excessive force during reattachment; should resistance be encountered, reposition the connector and attempt the process anew.
  Successful connector reattachment necessitates careful alignment and a firm, controlled downward motion to achieve a positive locking engagement.

Employ a Phillips screwdriver for the installation of the seven screws that hold the earpiece speaker in place.A 2.1-millimeter length screw is required for one of these fasteners.One screw with a length of 2.0 millimeters is also needed.
Two screws, each measuring 1.7 millimeters in length, are part of the assembly.Three screws, each with a length of 1.35 millimeters, complete the securing hardware.
The earpiece speaker is affixed with a combination of screw lengths to ensure a secure fit.Carefully align each screw during installation to prevent damage to surrounding components.
Ensure the Phillips screwdriver head fully engages with the screw head to avoid stripping.Proper torque is essential; avoid over-tightening the screws, which could damage the speaker or housing.
The specific screw lengths are critical for correct assembly and optimal speaker performance.Refer to the parts list to verify the correct screw lengths before beginning the installation process.

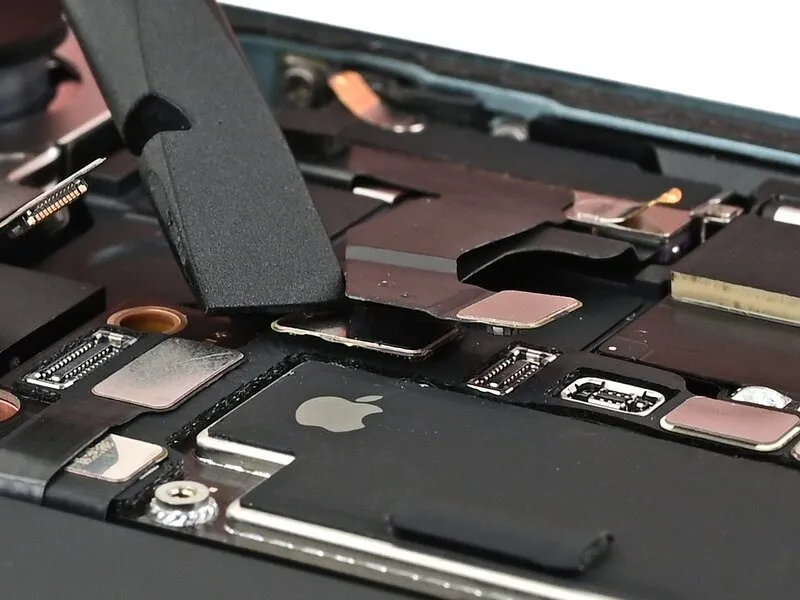

• Employing either a fingertip or a specialized spudger tool, establish a connection to the rear camera press connector situated on the device's left-hand side of the circuit board.The rear camera press connector, positioned along the left perimeter of the main circuit board, requires careful engagement using a finger or a spudger.To interface with the rear camera press connector, which is found on the left edge of the board, utilize a finger or a spudger for secure contact.

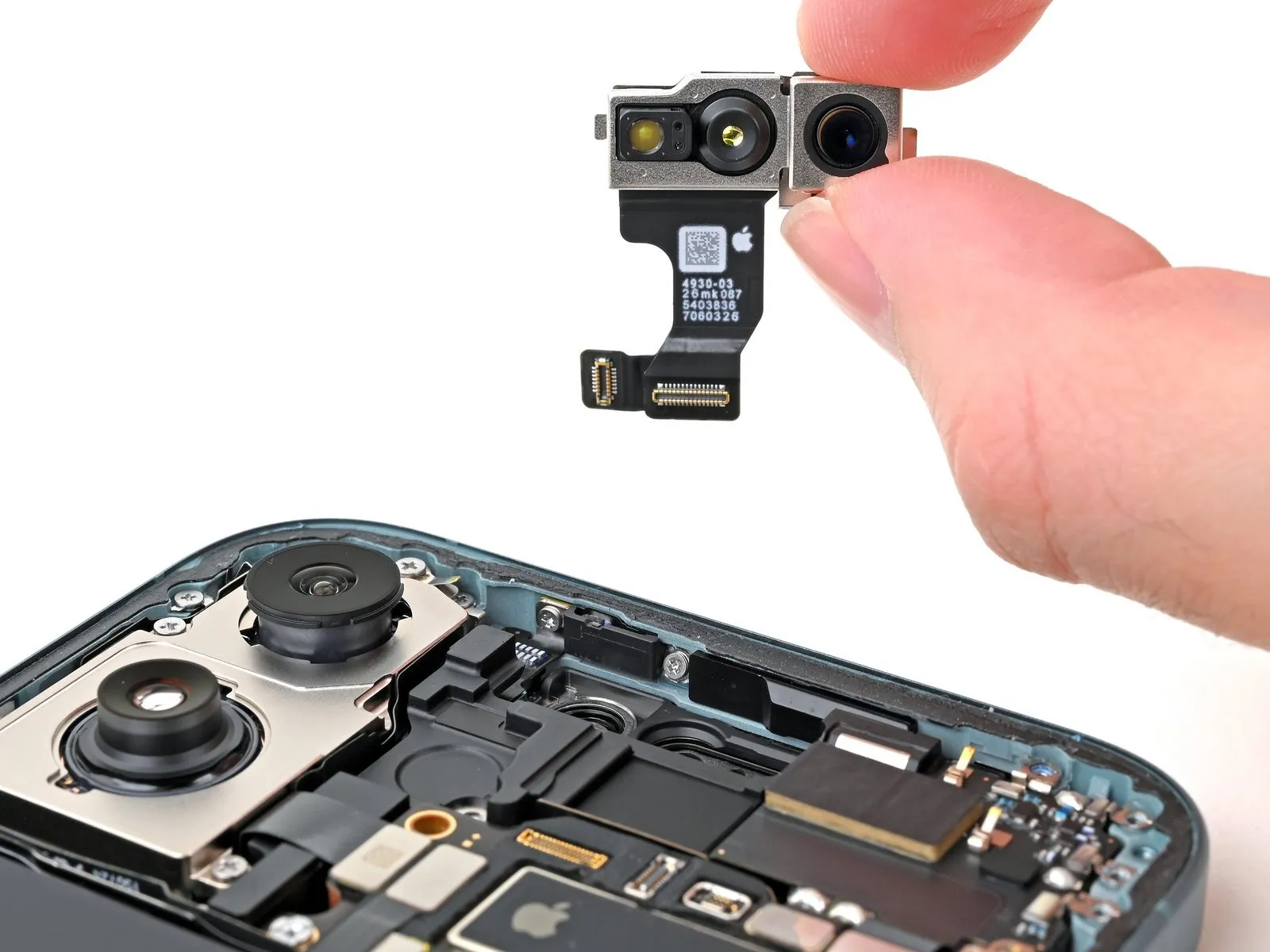

• Employing a fingertip or a spudger, establish a connection between the two press connectors securing the front camera assembly, which are situated in the upper-left region of the logic board.The location of the second press connector is directly above the previously engaged connector.Carefully engage the connectors to ensure a secure electrical connection for the front-facing camera system.
• Proper alignment and secure connection of these press connectors are essential for correct camera functionality.

• To affix the substitute component, apply a strip of adhesive if it wasn't pre-applied.A suitable adhesive for securing the antenna is a 5 mm by 16 mm piece of double-sided tape, chosen for its thin profile.The antenna must be firmly attached to the earpiece speaker using the adhesive.
• Caution is advised:Prior to bonding the antenna, confirm its precise positioning relative to the earpiece speaker.

• Position the fresh antenna beneath the wires connected to the front-facing camera, ensuring its cable is situated within the designated channel located above the main circuit board.
• Establish a connection with theantenna press connectorand secure the antenna to the earpiece speaker by applying pressure to ensure proper adhesion.

• To position the upper connector cover correctly, ensuring the screw apertures are properly aligned, use tweezers or your fingertips to secure it in its designated location.

• A quantity of two Phillips screws, each measuring 1.4 millimeters in length, are required. A single Phillips screw, with a length of 3.5 millimeters, is also necessary for this procedure.
• To complete the assembly, utilize one tri-point Y000 screw, characterized by a 1.0-millimeter length. The fasteners involved consist of Phillips and tri-point screw types.
• Precise screw lengths of 1.4 mm, 3.5 mm, and 1.0 mm are critical for proper component alignment. Ensure the correct screw type and length (1.4 mm Phillips, 3.5 mm Phillips, 1.0 mm tri-point Y000) are used to avoid damage.

• Exercise caution to prevent harm to the spring contacts during the frame cleaning process.
• Prior to final phone closure, it is recommended to verify the repair's functionality; reconnect the battery and rear glass, activate the device, and confirm proper operation, then deactivate, disconnect the battery and rear glass, and proceed with reassembly.
• The adhesive present on the phone's surfaces is challenging to eliminate and tends to leave behind a sticky film; if removal proves problematic, utilize a hair dryer or heat gun to apply warmth.
• Employ the tapered tip of a spudger to apply pressure and manipulate the adhesive, facilitating its grasp with tweezers.

• Employ the tweezers to detach the adhesive residue from the device's surface.
• Continue the process of adhesive removal, alternating between the prior action and this one, until all adhesive traces are eliminated.

• Remaining adhesive traces can negatively impact the iPhone's protective barrier, necessitating a complete cleaning of the chassis.
• Employing a spudger, cover its tip with a microfiber cloth or a similar lint-free material, then dispense a small quantity of isopropyl alcohol with a concentration exceeding 90% onto the cloth.To effectively remove adhesive remnants, utilize a single, consistent wiping direction around the frame's edges.The alcohol must fully dissipate before continuing the repair process, requiring a waiting period of several minutes.
• Ensuring complete evaporation of any excess alcohol is crucial to prevent interference with subsequent repair steps.
• A meticulous cleaning procedure is essential to guarantee the integrity of the iPhone's sealing properties.

• For those not intending to reinstall the existing rear panel, this preparatory action can be omitted.
• Utilize a small quantity of isopropyl alcohol possessing a concentration exceeding 90% by applying it to a microfiber cloth or a similar lint-free material, then clean the edges of the rear glass to ensure proper adhesive bonding.The purpose of this cleaning is to facilitate optimal adhesion of the replacement back glass.Any retaining clips on the rear glass that are deformed should be carefully manipulated back into their original shape using manual pressure.
• Gentle correction of these clips prevents potential damage during subsequent assembly.

1. Position the new adhesive onto the frame, ensuring the expansive blue liner faces inward and the release tab is situated in the lower-right area.
   Variations in liner coloration and pull tab placement are possible among different adhesive products.
   Employ characteristics like the camera aperture and edge indentations to confirm accurate adhesive alignment.

1. Initiate the separation of the adhesive backing's protective liner by grasping the designated pull tab and commencing the peeling process from the lower edge, ensuring the liner remains partially attached.

1. After applying pressure to secure the adhesive, any adjustments become impossible, necessitating complete removal and replacement with fresh adhesive material.
   Maintain the blue liner's position away from the work area while carefully positioning the adhesive strip along the iPhone's lower boundary.
   Ensure the adhesive's lower edge settles precisely within the designated channel on the frame, verifying that the iPhone's internal spring contacts correspond with the liner's openings.

• Gradually remove the protective backing from the adhesive strip, ensuring firm contact with the iPhone's perimeter during application.

  • Proper alignment of the lower edge ensures the side and top edges will automatically settle correctly.
  • Should misalignment occur, discard the adhesive and repeat the process with a fresh strip.
  • In the absence of replacement adhesive, the iPhone can be reassembled and operated without it; however, be aware that its water resistance will be diminished until new adhesive is applied.

• Apply pressure evenly around the frame's edges by utilizing the planar surface of a spudger to secure the adhesive.
  Exercise caution to prevent contact with the spring terminals exposed through the pink liner material.

• After the uppermost protective film is peeled away, observe three slender liners situated above the adhesive layer, each featuring a pull tab positioned close to the lower boundary.
  The location of these pull tabs can vary.
• Should these pull tabs be absent, it is possible the thin liners were prematurely detached during the prior procedure; if the adhesive surface is free of contaminants and correctly positioned, continuation is possible, but avoid any contact with the exposed adhesive until the back glass installation is ready to commence.

• To prevent damage, secure the rear glass on the right side of the iPhone by placing a rigid support, such as a box, beneath the display.
• Employ the broad, planar tip of a spudger, or a fingertip, to establish contact with the charging coil connector.The purpose of this contact is to depress the connector.This action is necessary to facilitate subsequent repair steps.

• Employ the planar edge of a spudger tool, or a fingertip, to establish contact with the battery.A spudger's flat end, or a similar blunt instrument like a finger, is necessary for making the battery connection.To properly interface with the battery, utilize the flat portion of a spudger or apply pressure with a finger.

• The connector cover incorporates two hooking features designed to engage with corresponding slots situated on the logic board.
• Position the connector cover atop the device, ensuring the hooking elements are marginally offset to the left relative to their intended slots within the logic board.
• Apply downward and rightward pressure with a fingertip to the connector cover, facilitating the insertion of both hooks into their designated slots.

• Employ a specialized tri-point Y000 driver for the installation process of the screws.The two screws, each measuring 1 millimeter in length, fasten the middle connector cover in place.Securely affix the cover utilizing the aforementioned driver to manage the 1 mm screws.

• During liner removal in this procedure, the adhesive backing becomes completely visible; therefore, prevent any contact with the newly exposed adhesive.
• Employ the blue tabs to detach the liners from the lower, left, and upper borders of the iPhone; defer liner removal from the right-hand side.

• To prevent adhesive contact with the rear glass surface, position the back glass above the device to facilitate access to the remaining liner situated on the right side of the phone.
• Employ tweezers or your fingertips to detach the last liner located along the right edge of the phone.

• Position the replacement back glass over the device's rear surface, ensuring precise alignment with the surrounding frame structure.
• Carefully lower the glass component onto the frame, applying even pressure until the retaining clips securely interlock.
• Apply consistent pressure along the entire edge of the back glass to guarantee that all fastening clips are fully engaged.

• For optimal adhesion, warm the borders of the rear glass with a specialized iOpener, a hairdryer, or a heat gun until they reach a warm surface temperature.
• Exert consistent pressure along the outer edge of the rear glass to ensure proper contact.
• Utilize screen vise clamps to reinforce the new adhesive's hold, or proceed to the following instructions for alternative securing methods if clamps are unavailable.

• Locate the iPhone's original packaging; the lid should be positioned on a level work area.
• Should the original packaging be unavailable, proceed to an alternative compression technique.
• Position the iPhone, display-side up, within the box lid, ensuring the camera bump aligns with the designated indentation.
• Acquire an object with a height exceeding the box's sidewalls but approximating the iPhone's width; then, place it atop the iPhone, followed by several substantial weights.
• Maintain the applied pressure for a minimum of thirty minutes; extend this duration proportionally to the weight's mass, with overnight stabilization being the preferred timeframe.

• Position the iPhone with its display surface facing downwards upon a cushioned, level plane.
• Adhesive tape should be applied to the posterior glass surface to safeguard its cosmetic appearance.

• Maintain uniform spacing between the coins and confirm their thickness is equivalent to or greater than the camera module's projection.

• Because coins can create a lasting mark, avoid using precious or irreplaceable materials as the base surface beneath the applied weight.
• Maintain the applied pressure for a minimum of thirty minutes; for less substantial weights, extend this duration, with an overnight period being the optimal timeframe.

• Employ a P2 pentalobe screwdriver for the installation process.Secure the two screws, each measuring 7.7 mm in length.Position these fasteners on both lateral aspects of the charging port.Ensure proper alignment during screw placement to avoid damage.
