iPhone 15 Front Camera Assembly Replacement

• To optimize battery health, permit the power cell to discharge to a level below 25% capacity.A fully charged lithium-ion battery presents a potential safety risk.Disconnect all connected cables from the device.
• Simultaneously depress the power button and either volume button, subsequently swipe to initiate the power-off sequence.
• This procedure ensures a complete shutdown, preventing unintended operation.

• To prevent injury and simplify the subsequent separation of components, apply multiple layers of adhesive packing tape across the fractured screen or rear glass surface.
• Confirm the presence of a sufficiently sized, uninterrupted region adjacent to the lower edge, ensuring it provides adequate surface area for reliable adhesion of a suction cup.

• Excessive insertion of a spudger tool may compromise the integrity of the device; therefore, implement the subsequent procedure to designate a reference point on the tool and mitigate potential harm.
• Utilize a measuring tool to determine a distance of3 mmfrom the distal end of the opening pick, then indicate this location with a durable, indelible marker.
• For enhanced precision, consider applying distinct markings to the remaining corners of the pick, each representing a unique measurement.
• As an alternative method, affix a coin to the pick's shaft, positioning it3 mmfrom the tip to serve as a visual guide.

Employ a P2 pentalobe screwdriver to detach the two screws.The screws securing the charging port are each 7.7 millimeters in length.These fasteners are situated on both lateral aspects of the charging port.

• Apply warmth to the lower perimeter of the rear glass panel utilizing a hair dryer or heat gun until the surface becomes warm.
• Avoid excessive heat application to the device, as the battery is vulnerable to thermal degradation.

• Securely attach a suction cup to the lower border of the rear glass panel.
• Exert a consistent, powerful upward pull on the suction cup to generate separation between the rear glass and the device's frame.
• Carefully introduce the pointed end of a prying tool into the newly formed space.

During the subsequent adhesive separation process for the rear glass, exercise caution regarding specific zones.

• A fragile cable, linking the rear glass assembly to the device's internal components, is situated proximate to the volume decrease button; refrain from tool insertion in this location to prevent cable damage.
• Numerous spring contacts are distributed along the device's outer edge; to preclude deformation of these contacts, adhere strictly to the depth limitations indicated within each procedural step.

Ensure the initial insertion depth of the opening pick remains at or below a 5 mm measurement from the lower border.

Employ a reciprocating motion, sliding the pick along the lower edge, to effectively sever the adhesive bond.

Maintain the pick's position within the lower-right corner to inhibit the adhesive's ability to reform a seal.

• Ensure the insertion depth of the tool remains under 7 millimeters.Proceed along the right-hand border of the device.
• Pivot the tool near the lower-right corner, advancing it towards the volume down button, or until resistance is encountered from a substantial clip that holds the rear glass in place.
• Exercise caution to prevent cutting beyond the volume controls.This precaution safeguards the wireless charging cable from potential harm.
• Maintain the tool's position within the gap.This action will discourage the adhesive from reforming a seal.

• Positioning along the left border, ensure the pick's insertion depth remains within a 5 mm limit.To facilitate separation, introduce a supplementary opening pick along the lower edge.Employing a rotational motion, maneuver the secondary pick around the lower-left corner area.
• Advance this pick upwards towards the top-left corner, effectively loosening the adhesive bond.
• Maintain the position of this pick within the gap.
• This secured placement inhibits the adhesive from reforming a bond.
• The adhesive's resealing action is thereby prevented.Keeping the pick in place helps maintain the separation achieved.

To facilitate separation, apply heat to the upper perimeter of the rear glass panel until it reaches a temperature that is comfortable to touch.

• Ensure the prying tool's insertion depth remains limited to a maximum of 3 millimeters near the upper boundary.Employing a second prying tool, perform a rotational maneuver around the upper-left corner, subsequently sliding it towards the upper-right corner to break the adhesive bond.Audible and tactile clicks may indicate the release of the uppermost two retaining clips during this separation process.
• Maintain the position of the initial prying tool to inhibit the adhesive from re-establishing a seal.
• The adhesive's separation is achieved through a controlled rotational and sliding motion of the second tool.
• Carefully monitor for the distinct clicking sounds and sensations signifying clip disengagement.

Apply heat to the upper right quadrant of the rear glass panel until its surface temperature is high enough to be felt as hot upon contact.

• Ensure the repair tool's insertion depth remains limited to a maximum of 4 millimeters along the device's right side.Employing a rotational motion, maneuver the second opening tool around the upper-right corner, subsequently guiding it toward the volume increase button.This controlled movement facilitates the separation of the adhesive bond.
• Carefully slide the tool to release the adhesive securing the components.

• Carefully raise the rear enclosure and pivot it open towards the right side of the device.
• Should the rear glass exhibit resistance to movement, re-examine the edges to identify any remaining adhesive or obstructed retaining clips.
• Support the detached rear glass on an elevated platform to prevent stress on the connecting cable.

• Carefully monitor the location of each fastener during the repair process, ensuring correct reinstallation in its original position.
• Employ a specialized tool, specifically a tri-point Y000 driver, for the subsequent steps.A tri-point Y000 driver is essential for manipulating the small fasteners in this procedure.The lower connector cover is held in place by two fasteners.Two screws, each measuring 1.3 millimeters in length, are used to secure the lower connector cover.To detach the lower connector cover, utilize a tri-point Y000 driver to unscrew the two 1.3 mm screws.

• Employing tweezers, maneuver the cover upwards along the phone's surface to release its connection from the logic board's securing mechanism.
• Detach the cover from its position.

• Maintain the vertical alignment of the rear glass panel using one hand, then pivot it slightly to expose the battery press connector situated directly beneath the volume controls.
• The head of this connector features markings indicating polarity, specifically a plus (+) and minus (-) symbol.
• Employ the pointed end of an opening pick to initiate the separation process.Carefully lift the battery press connector using the opening pick.Detach the battery press connector from the logic board by applying gentle prying force with the opening pick.

• Employ the planar surface of a spudger or your fingertip to apply force.This force should direct the cover downwards, disengaging the securing mechanism at its upper boundary.
• Following disengagement, the cover can be detached.The removal process is now complete.

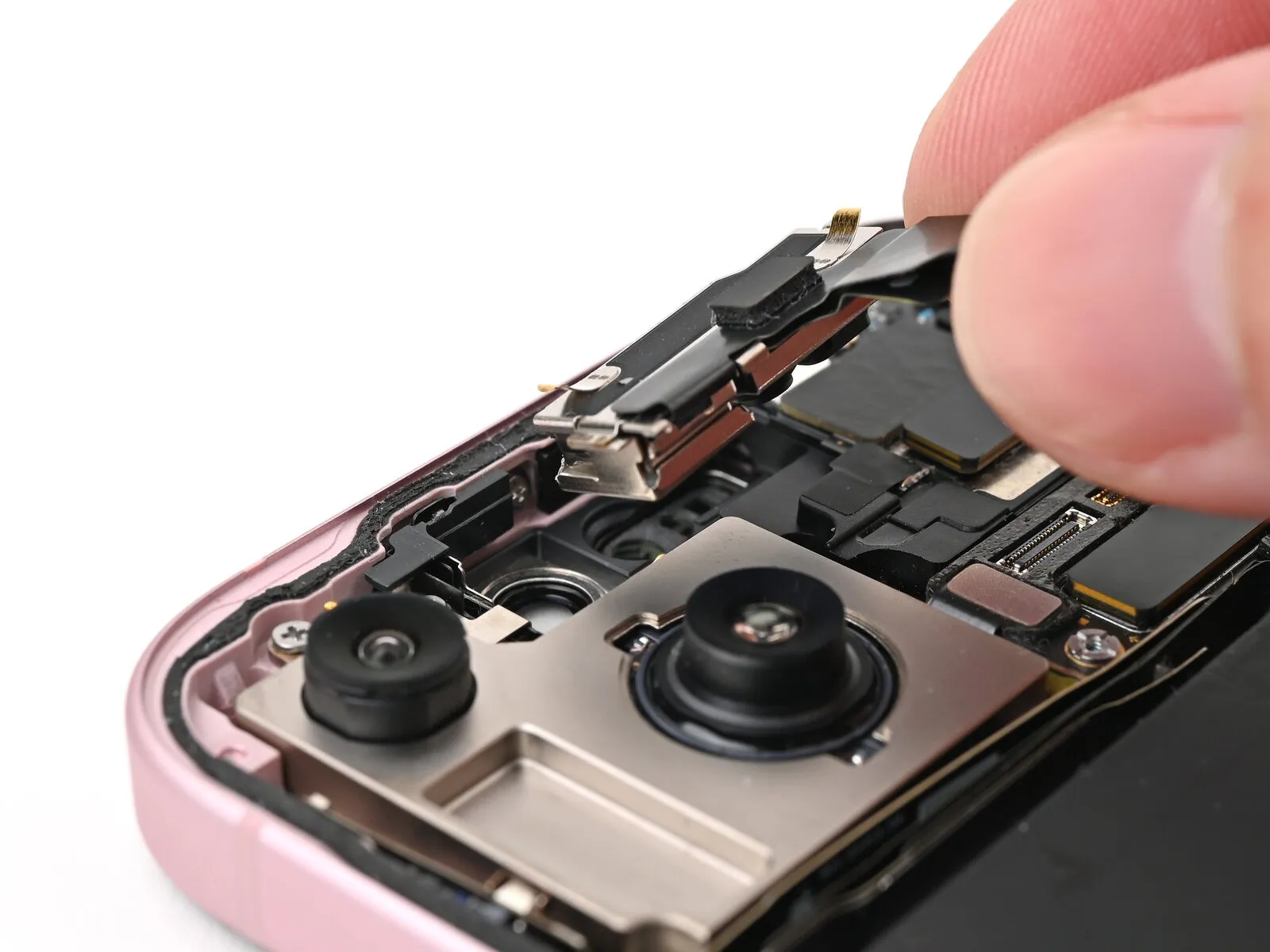

• Employ a tri-point Y000 driver for the task of detaching the upper connector cover.The two screws, each measuring 1.3 mm in length, must be unscrewed using the appropriate driver.These fasteners hold the cover in place and require careful removal.Ensure the tri-point driver is properly seated before applying torque to prevent damage.After loosening the screws, the upper connector cover can be lifted away.
• Complete the disassembly by separating the cover from the device.

• Employ the pointed end of a prying tool to release and detach the three connectors—specifically, those associated with the antenna, front sensors, and front-facing camera—by leveraging the tool to separate them.

• Employing tweezers or manual dexterity, extract the front-facing camera assembly and associated sensors from their designated housing within the device frame.

Having finished the disassembly process, the subsequent instructions detail the reassembly procedure for your device.
To ensure proper connection during reattachment, precisely position each connector above its corresponding socket, then apply downward pressure using a fingertip or spudger, initially on one side and subsequently on the other, until an audible click confirms secure engagement; avoid applying excessive force, and if difficulties arise, readjust the connector's position before attempting reconnection.

• Guide the front-facing camera module into its designated cavity within the device's frame.
• Apply downward pressure to the camera assembly until it achieves a flush, level position against the frame.

• Position the cover onto the logic board, ensuring the screw apertures are precisely matched.
• Employ a tri-point Y000 driver for the subsequent screw installation.Secure the upper connector cover by fastening the two screws, each measuring 1.3 millimeters in length.The screws must be installed using the tri-point Y000 driver to properly affix the cover.

• Exercise caution to prevent injury to the spring contacts during the cleaning process of the frame.
• Prior to final phone closure, it's advisable to verify the repair's functionality; reconnect the battery and rear glass, activate the device, and confirm proper operation, then deactivate, disconnect the battery and rear glass, and proceed with reassembly.
• The adhesive present on the phone is challenging to eliminate and tends to leave behind a sticky residue; if removal proves problematic, utilize heat from a hair dryer or heat gun to soften it.
• Employ the tapered tip of a spudger to apply pressure and manipulate the adhesive, facilitating a grip with tweezers.A spudger's pointed end is useful for pressing and rolling the adhesive to enable grasping with tweezers.Grasp the adhesive with tweezers and detach it from the phone's surface.
• To remove the adhesive, use tweezers to carefully lift it away from the phone.

• The presence of any remaining adhesive material can negatively impact the iPhone's protective seal, necessitating a complete cleaning of the frame.
• Secure a microfiber cloth or a lint-free alternative around the tip of a spudger tool.Apply a small quantity of isopropyl alcohol, possessing a concentration exceeding 90%, onto the cloth's surface.Employ a single, consistent wiping motion along the frame's edge to effectively remove adhesive traces.
• Allow several minutes to elapse prior to continuing the repair process, ensuring complete evaporation of any excess alcohol.
• Ensuring the alcohol has fully evaporated is crucial to prevent interference with subsequent repair steps.

• Ensure proper alignment of the adhesive strip relative to the device by utilizing existing openings, such as those for the spring contacts and rear camera.
• Variations in appearance may be observed among different adhesive components.

• After applying pressure to secure the adhesive, any adjustments are impossible; complete removal and replacement with fresh adhesive will be necessary.
• Initiate the peeling process of the adhesive's backing by grasping the pull tab and lifting from the lower edge, but avoid complete liner separation.
• Maintain the liner's position away from the work area while carefully positioning the adhesive against the iPhone's lower border.
• Ensure proper contact by guiding the adhesive's lower edge into its designated channel within the frame, verifying the iPhone’s spring contacts correspond with the liner’s openings.

Ensure the adhesive is properly positioned, then apply consistent pressure along the lower boundary utilizing the planar tip of a spudger or a fingertip.A spudger's flat end, or your finger, can be employed to secure the adhesive by pressing it downwards with force along the device's lower edge.Following adhesive alignment, a firm downward application of pressure is required along the bottom edge, achievable with a spudger's flat end or a finger.

• Gradually remove the protective backing from the adhesive strip, ensuring firm contact with the iPhone's frame perimeter during application.
• Proper alignment of the lower edge of the adhesive will naturally position the side and top edges correctly; if misalignment occurs, discard the adhesive and repeat the process with a fresh strip.
• Should misalignment occur and replacement adhesive is unavailable, the iPhone can be reassembled and used temporarily without adhesive; however, be aware that the device's water resistance will be diminished until new adhesive is applied.

• Verify correct liner positioning by confirming that the spring terminals and rear-facing camera are situated within their designated openings; if misaligned, discard the adhesive and initiate the process anew with a fresh liner sheet.
• Employ the planar edge of a spudger tool to secure the adhesive around the frame's edges by applying pressure.
• Exercise caution to prevent contact with the spring contacts that protrude through the pink liner material.

• Detach the uppermost adhesive backing layer.
• The adhesive liner's construction may vary; it could consist of several segments or be a unified sheet, contingent upon the adhesive type.

• To prevent damage, secure the rear glass on the right side of the iPhone by placing a stable object, such as a box, to provide support for the display assembly.
• Employ the broad, flat tip of a spudger tool, or a fingertip, to establish electrical contact with both the wireless charging coil connector and the battery connector, ensuring proper reconnection.

• Apply downward force to the cover utilizing your fingertip, ensuring contact with the logic board's surface.
• Simultaneously, move the cover in an upward direction, facilitating the engagement of both metal clips within their designated locations on the logic board.

• Employ tweezers to engage the upper edge of the lower connector cover with its corresponding receptacle on the logic board.
• Position the lower connector cover atop the press connectors.

• Employ a tri-point screwdriver, specifically a Y000 size, for the installation of the screw that fastens the central connector cover.The screw utilized for the middle connector cover measures 0.9 millimeters in length.To affix the lower connector cover, a tri-point Y000 screwdriver is required for screw installation.
• Two screws, each possessing a length of 1.3 millimeters, are used to secure the lower connector cover.Ensure the correct tri-point Y000 screwdriver is used to avoid damage during the installation process.Properly securing the connector covers with the specified screws maintains device integrity and functionality.

• Employing tweezers or direct manual manipulation, detach the retaining tabs located at the lower edge of the device's frame, in the vicinity of the charging port.Carefully disengage the pull tabs situated close to the charging port, utilizing either tweezers or your fingertips to accomplish this separation.To release the lower frame section, gently pry apart the tabs positioned near the charging port, which can be done with tweezers or by hand.

• Carefully detach the slim covering layer that secures the adhesive material situated on the left and upper borders of the frame.

To permit access to the leftover adhesive liners situated on the phone's right side, position the rear glass above the device's surface, ensuring it does not contact the adhesive.

• Employing a set of tweezers or manual dexterity, proceed to extract the remaining adhesive liners.A tool such as tweezers is appropriate for this task, or the process can be completed using your fingers.The liners must be removed from the right edge to facilitate proper adhesion of the replacement back glass.

• Position the rear cover glass flat against the device frame, applying pressure to secure it with the retaining clips.
  Ensure complete clip engagement by applying even pressure across the entire circumference of the rear cover glass.

• Facilitate the adhesive's adherence by warming the back glass's borders with an iOpener, hairdryer, or heat gun, ensuring a warm surface temperature.Apply consistent pressure across the back glass's outer boundary; employing screen vise clamps will enhance the new adhesive's bonding strength.Should screen vise clamps be unavailable, proceed to the following instructions to achieve secure back glass attachment.
• The application of heat assists in creating a stronger bond between the adhesive and the back glass surface.

• Consistent pressure across the iPhone's surface is essential to ensure proper adhesion between the rear glass and the chassis, necessitating consideration of the camera module's protrusion.
• Should the original iPhone packaging be available, utilize the box lid and position it on a level work area.
• If the original packaging is unavailable, proceed to an alternative compression technique, bypassing this initial step.
• Position the iPhone, with the display facing upwards, within the box lid, ensuring the camera bump aligns with the designated indentation.
• Locate an object with approximate dimensions to the iPhone, but exceeding the box's lateral boundaries; then, place this object atop the iPhone, followed by several substantial weights.
• Allow the applied pressure to remain constant for a minimum of thirty minutes; reduce this timeframe proportionally to the weight of the applied objects, with overnight duration being optimal.

Lacking the iPhone's initial packaging, alternative procedures involving even pressure distribution across the rear glass panel are detailed in the subsequent instructions.

• Position the iPhone with its display facing downwards upon a cushioned, level plane.
• Adhesive tape should be applied to the rear glass surface to safeguard its cosmetic appearance.

To ensure uniform compression, position coins or other items of comparable thickness at regular intervals along the tape's perimeter, adjacent to the rear glass's boundaries.

Accumulate these objects to a stable elevation exceeding the camera module's protrusion.

• To apply downward pressure, position several books or similarly weighty items atop the iPhone.
• Because coins can create marks, avoid placing them on delicate or valuable surfaces.
• Maintain the applied pressure for a minimum of thirty minutes; for less substantial weights, extend this duration, with overnight retention being optimal.
