iPhone 14 Pro Taptic Engine Replacement

• Power off your iPhone before beginning disassembly.

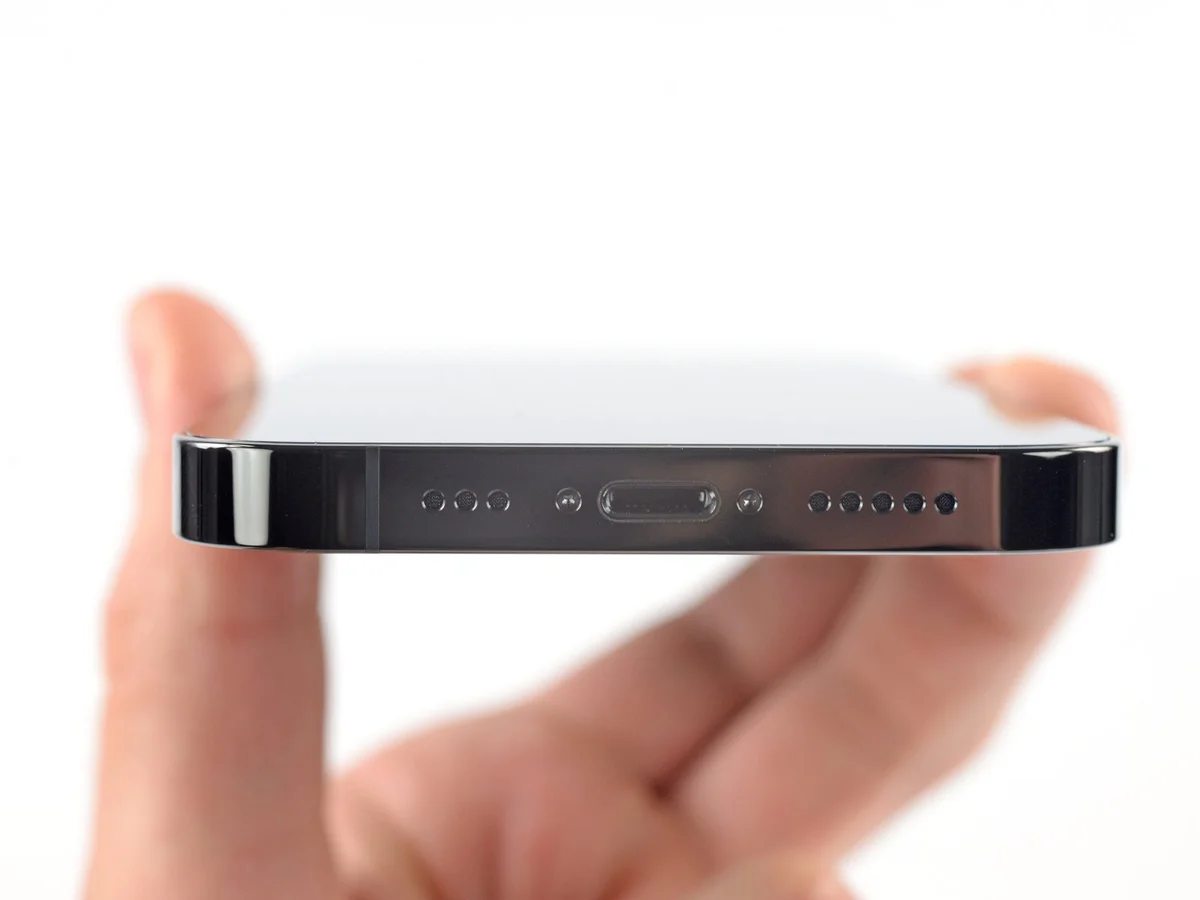

• Remove the two 6.8 mm-long pentalobe P2 screws at the bottom edge of the iPhone.

• If inserted too far, an opening pick can damage your device. Follow this step to mark your pick and prevent damage.
  Measure 3 mm from the tip and mark the opening pick with a permanent marker.
• You can also mark the other corners of the pick with different measurements.
• Alternatively, tape a coin to a pick 3 mm from the tip.

• If your iPhone has a cracked screen, keep further breakage contained and prevent bodily harm during your repair by taping over the glass.
  Lay overlapping strips of clear packing tape over the iPhone's screen until the whole face is covered.
• Wear safety glasses to protect your eyes from any glass shaken free during the repair.

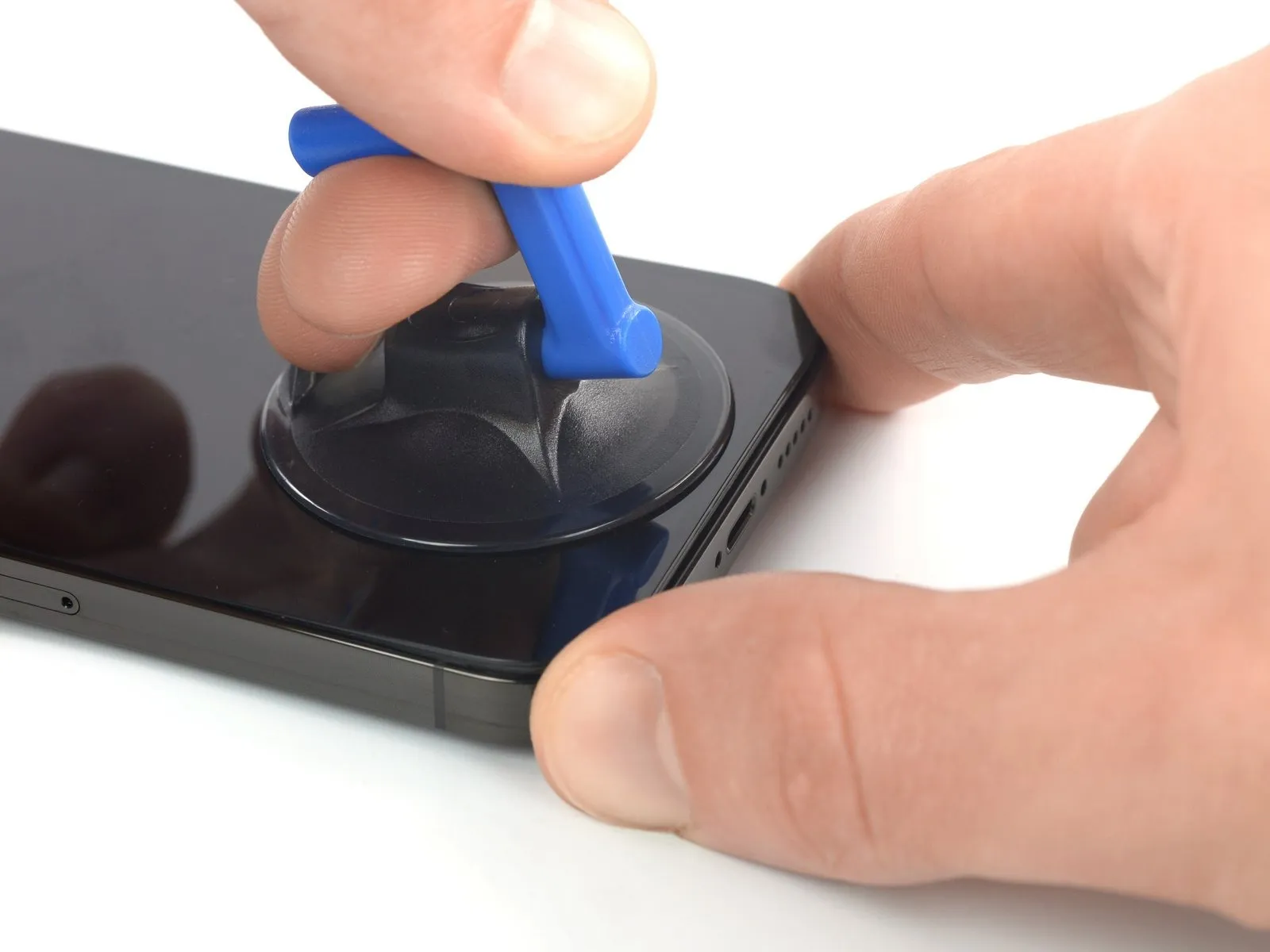

• If you can't get the suction cup to stick in the next few steps, fold a strong piece of tape (such as duct tape) into a handle and lift the screen with that instead.
• If all else fails, you can superglue the suction cup to the screen.

The next three steps demonstrate the Anti-Clamp, a tool we designed to make the opening procedure easier. If you aren't using the Anti-Clamp, skip down three steps for an alternate method.
For complete instructions on how to use the Anti-Clamp, check out this guide.

• Pull the blue handle backwards to unlock the Anti-Clamp's arms.
• Slide the arms over either the left or right edge of your iPhone.
• Position the suction cups near the bottom edge of the iPhone-one on the front, and one on the back.
• Squeeze the cups together to apply suction to the desired area.
• If you find that the surface of your iPhone is too slippery for the Anti-Clamp to hold onto, you can use tape to create a grippier surface.

• Pull the blue handle forwards to lock the arms.
• Turn the handle clockwise 360 degrees or until the cups start to stretch.
• Make sure the suction cups remain aligned with each other. If they begin to slip out of alignment, loosen the suction cups slightly and realign the arms.

• Use a hair dryer to heat along the bottom edge of the iPhone. The screen should feel slightly too hot to touch.
• For complete instructions on how to use a hair dryer, check out this guide.
• Wait one minute to give the adhesive a chance to release and present an opening gap.

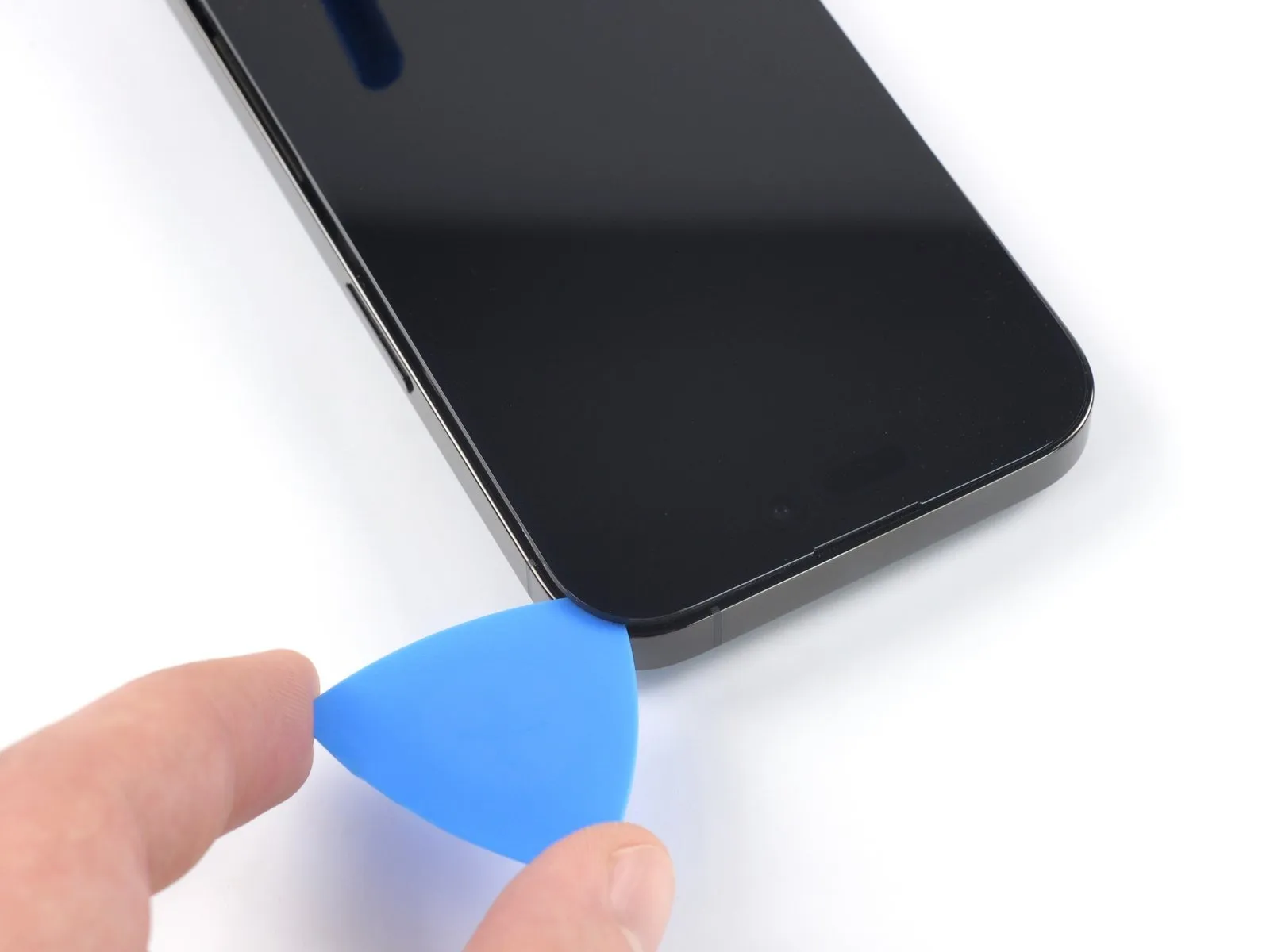

• Insert an opening pick under the screen's plastic bezel when the Anti-Clamp creates a large enough gap.
• If the Anti-Clamp doesn't create a sufficient gap, apply more heat to the area and rotate the handle a quarter turn.
• Don't crank more than a quarter turn at a time, and wait one minute between turns. Let the Anti-Clamp and time do the work for you.
• Skip the next two steps.

• Use a hair dryer or a heat gun to heat the bottom edge of the iPhone until the screen is slightly too hot to touch.
• Never leave your heat gun in one spot for an extended period of time.

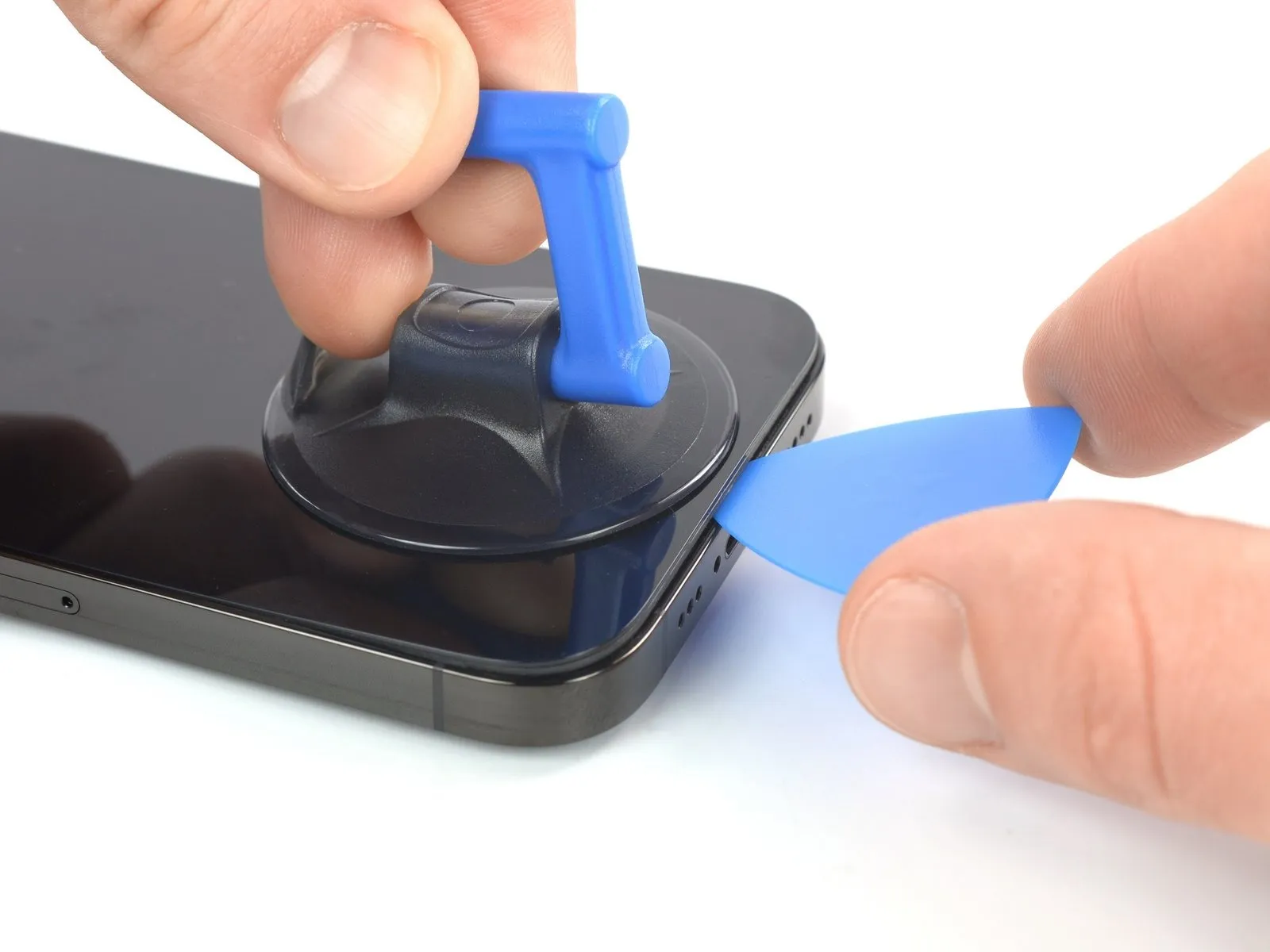

• Pull up on the suction cup with firm, constant pressure to create a slight gap between the screen and the frame.

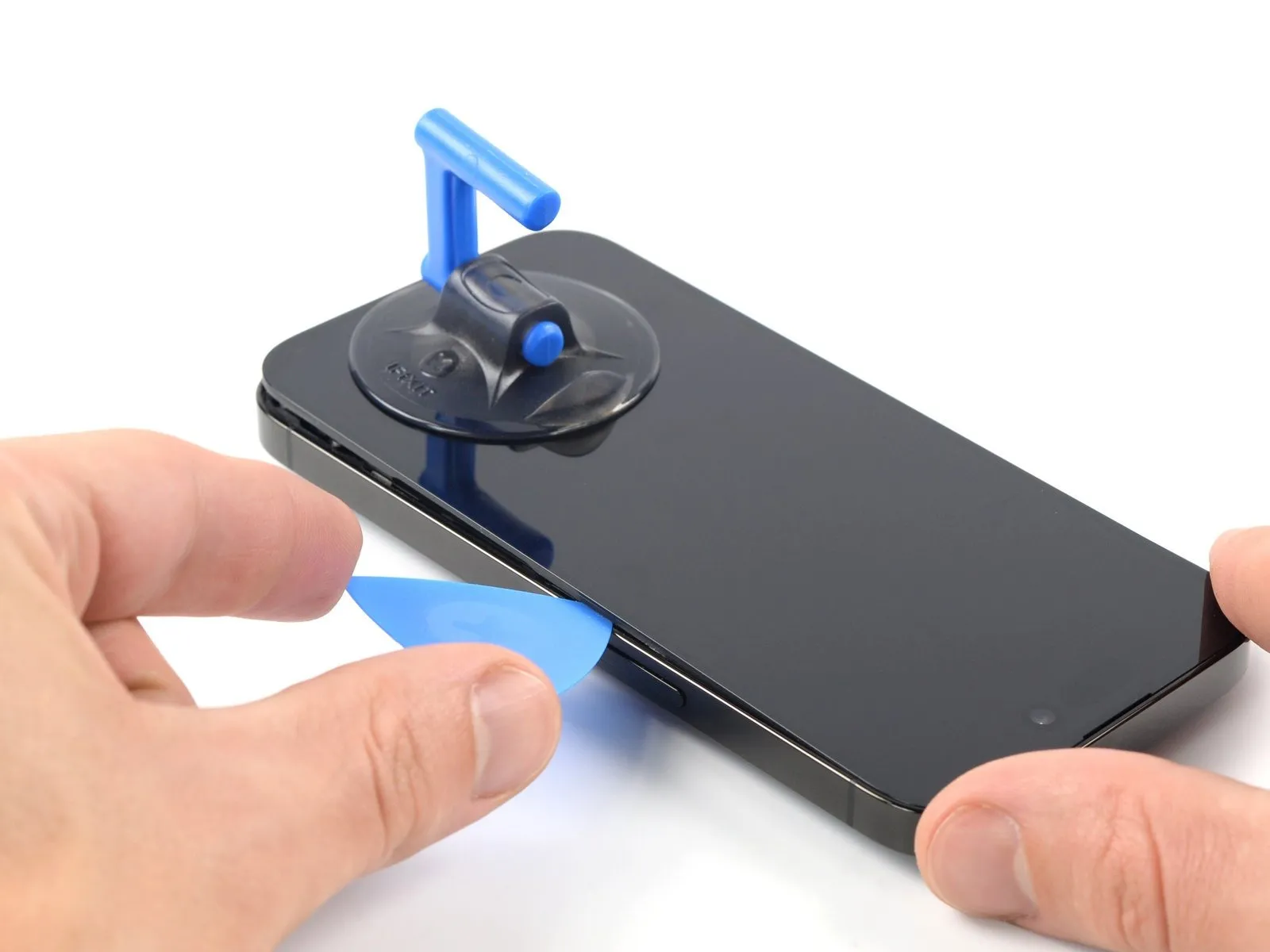

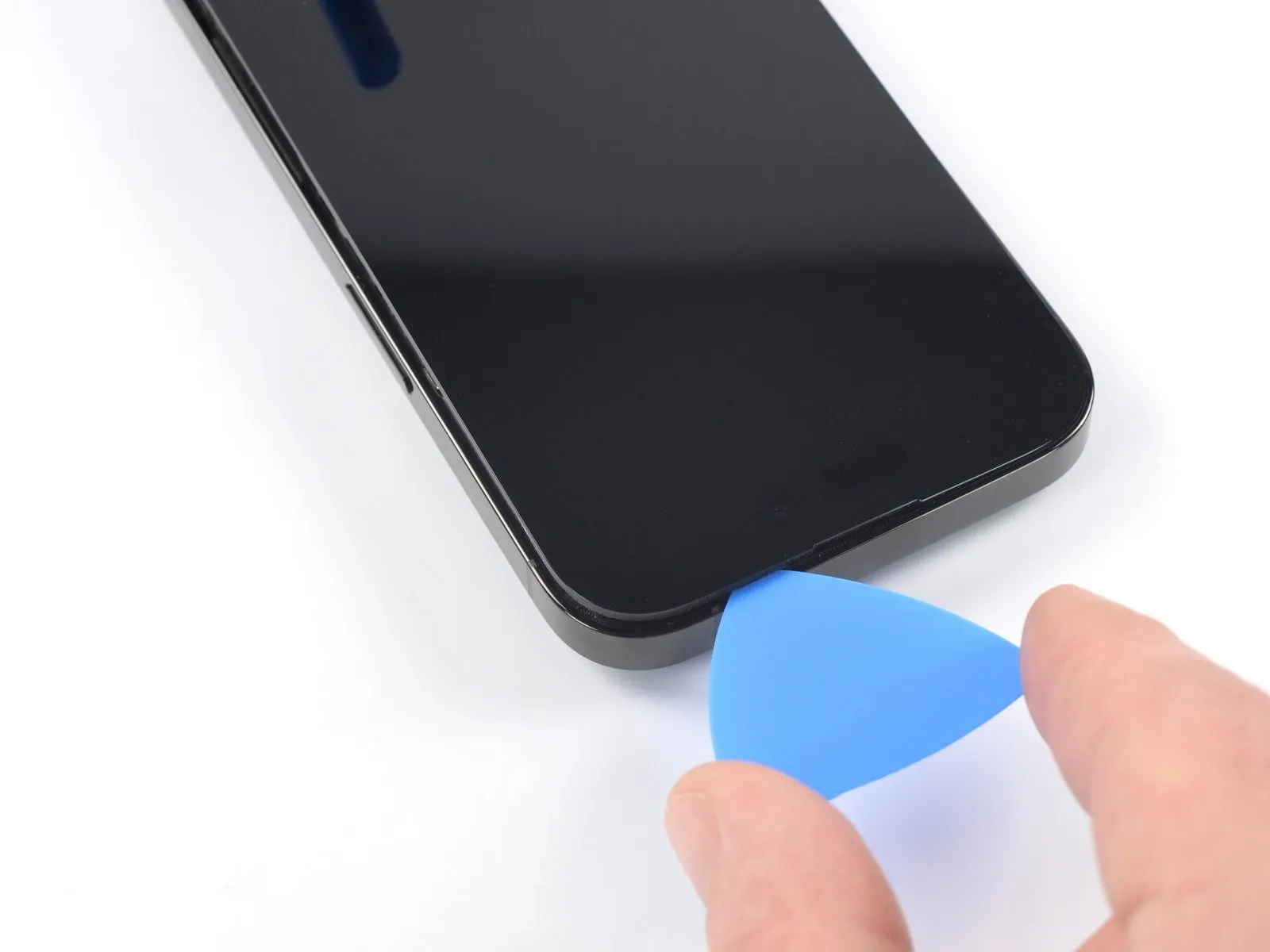

• Insert an opening pick into the gap under the screen's plastic bezel.
• The watertight adhesive holding the screen in place is very strong; creating this initial gap takes a significant amount of force. If you're having a hard time opening a gap, apply more heat, and gently rock the screen up and down to weaken the adhesive until you create enough of a gap to insert your tool.

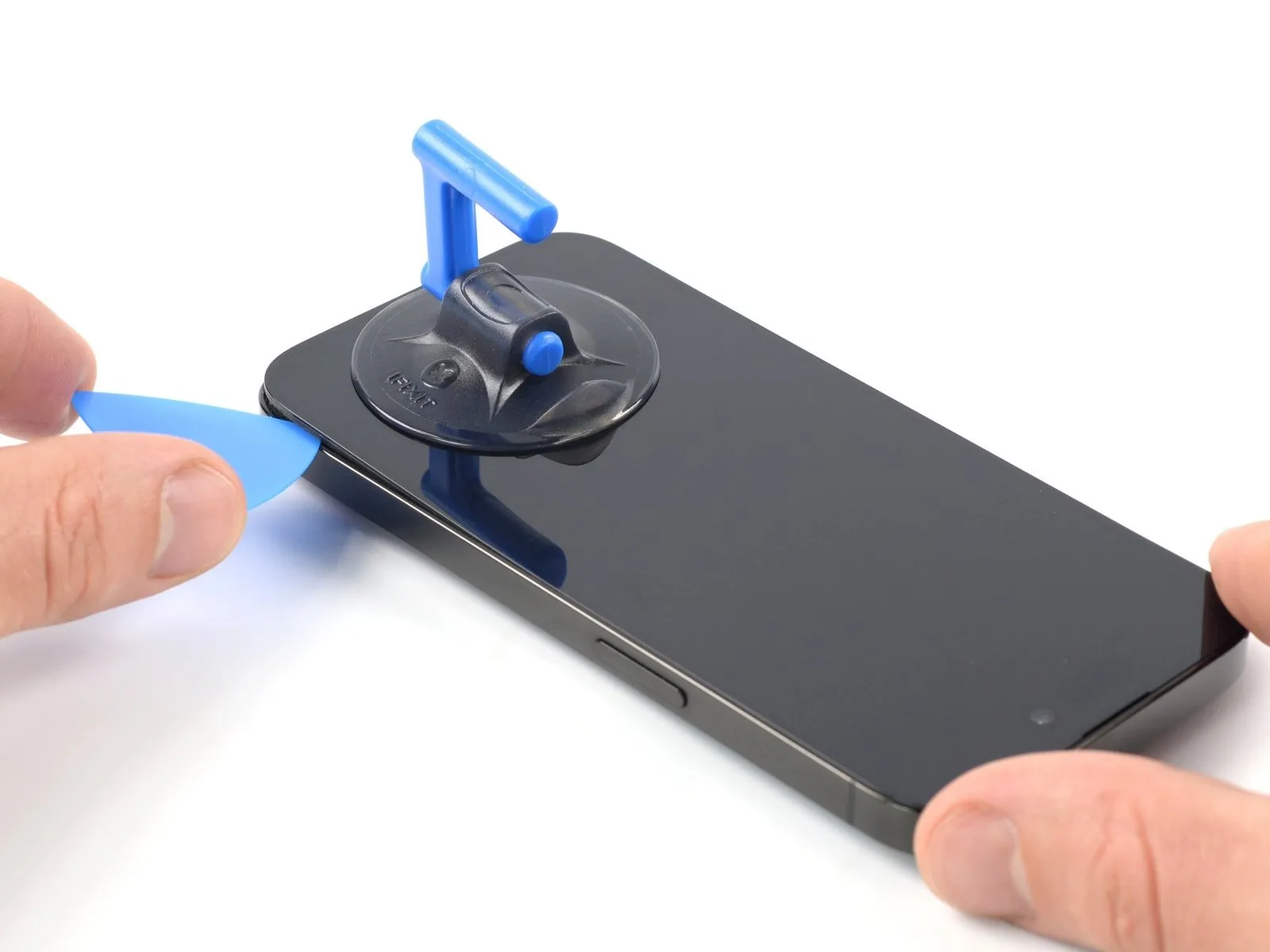

• Slide the opening pick around the bottom right corner of the iPhone to separate its adhesive.
• Continue sliding up the right edge of the iPhone until you reach the top right corner.
• Don't insert your pick more than 3 mm, as you may damage internal components.
• Leave the pick in the top right corner before continuing.

• Slide the opening pick around the top right corner of the iPhone to separate the top adhesive.
• Do not insert your pick more than 3 mm, as you may damage the top sensors.
• Leave the pick in the top left corner before continuing.

Heat the left edge of the iPhone until the screen is slightly too hot to touch.

• There are delicate cables along the left edge of your iPhone. Do not insert your pick deeper than 2 mm here, as you may damage the cables.
• Rotate your pick around the top left corner of the screen.
• Slide your pick to the bottom left corner of the screen to separate the adhesive.
• If you're having trouble separating the adhesive, reheat the left edge.

• Remove your suction handle from the screen.
• Rotate your iPhone so the right edge faces you.

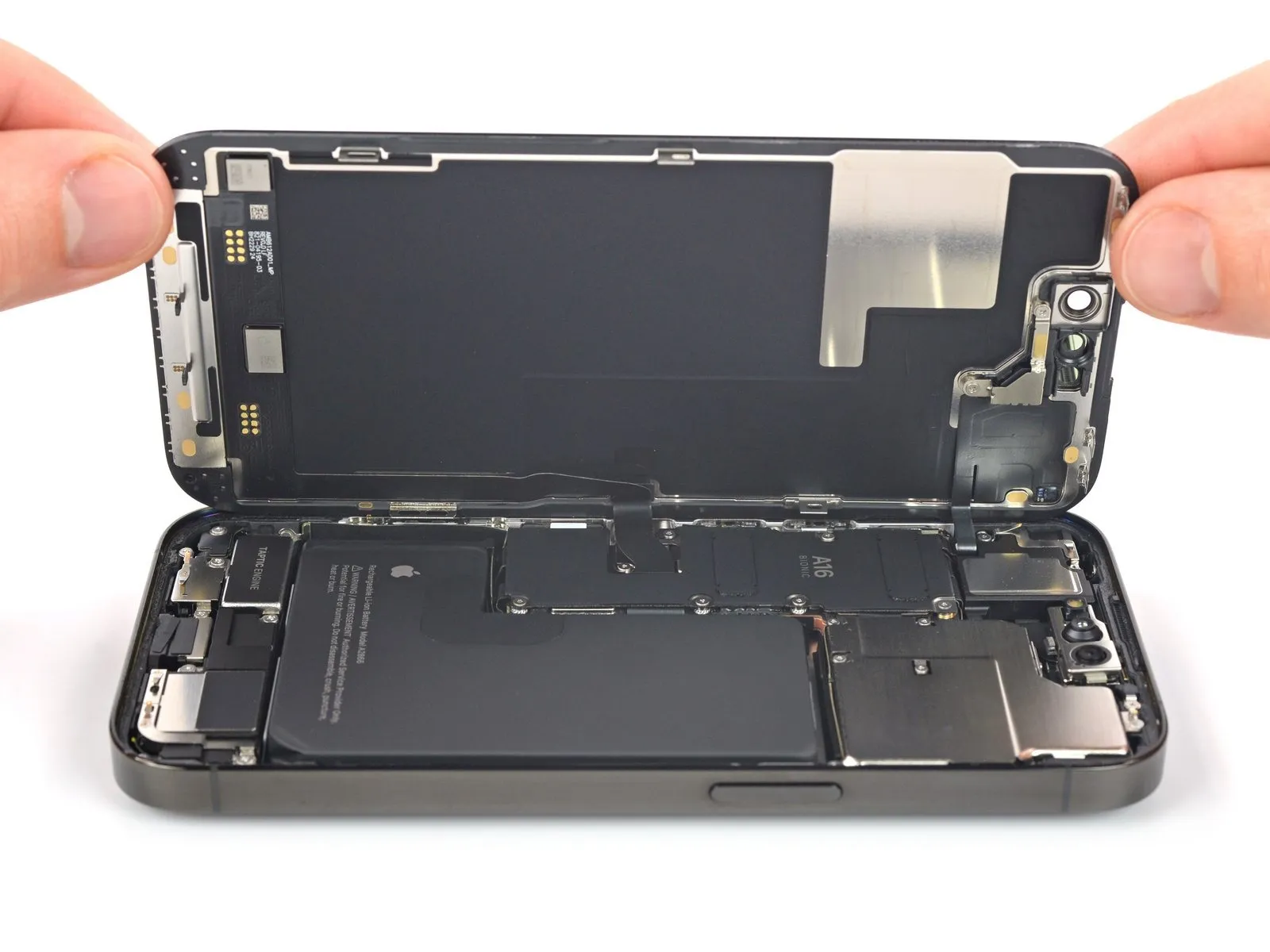

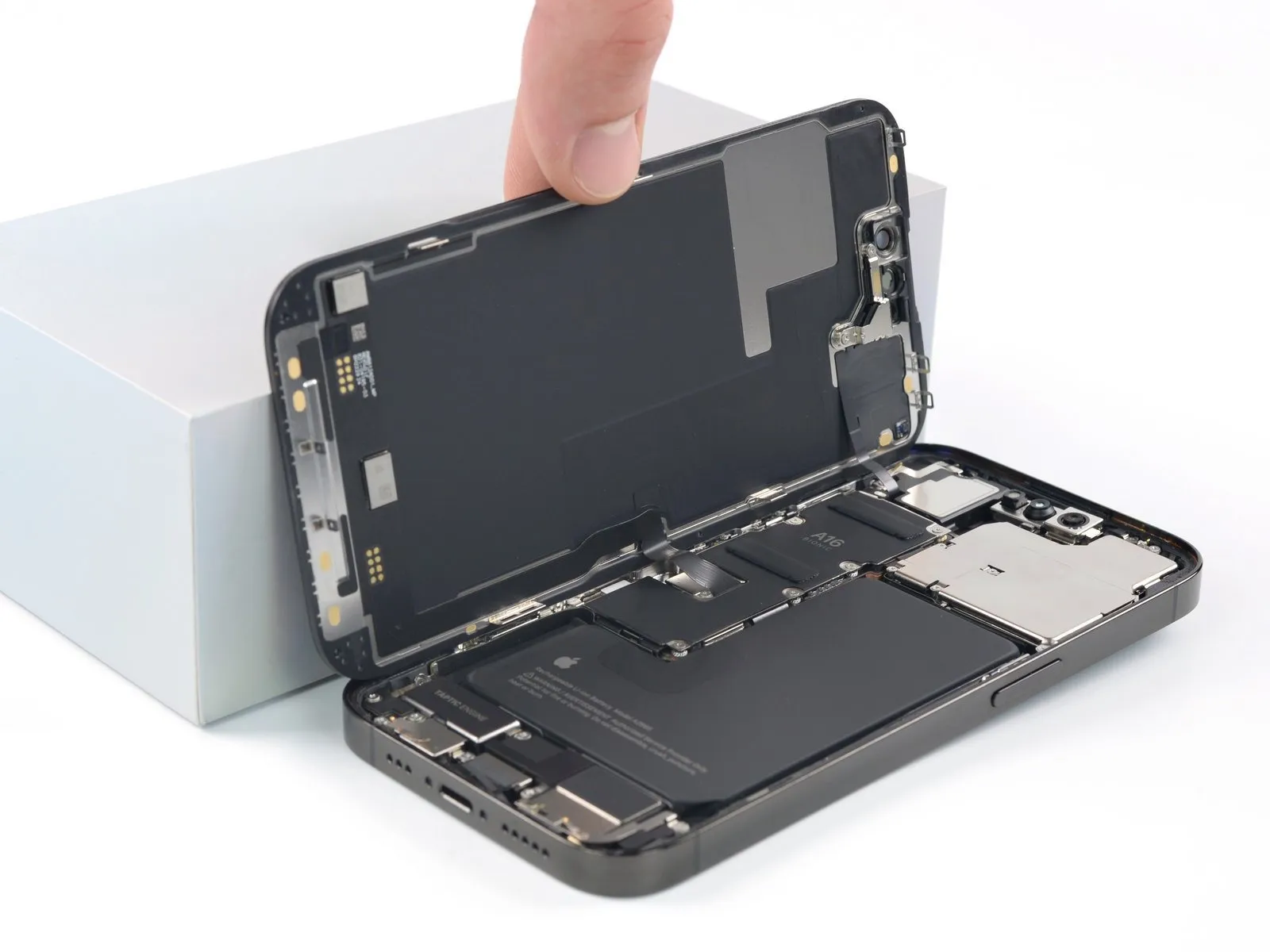

• Open your iPhone by swinging the screen up from the right side, like the front cover of a book.
• Lean the screen against something to keep it propped up while you're working on the phone.
• If you don't have anything at hand to lean the screen against, your suction handle can do the trick.

Step 16:

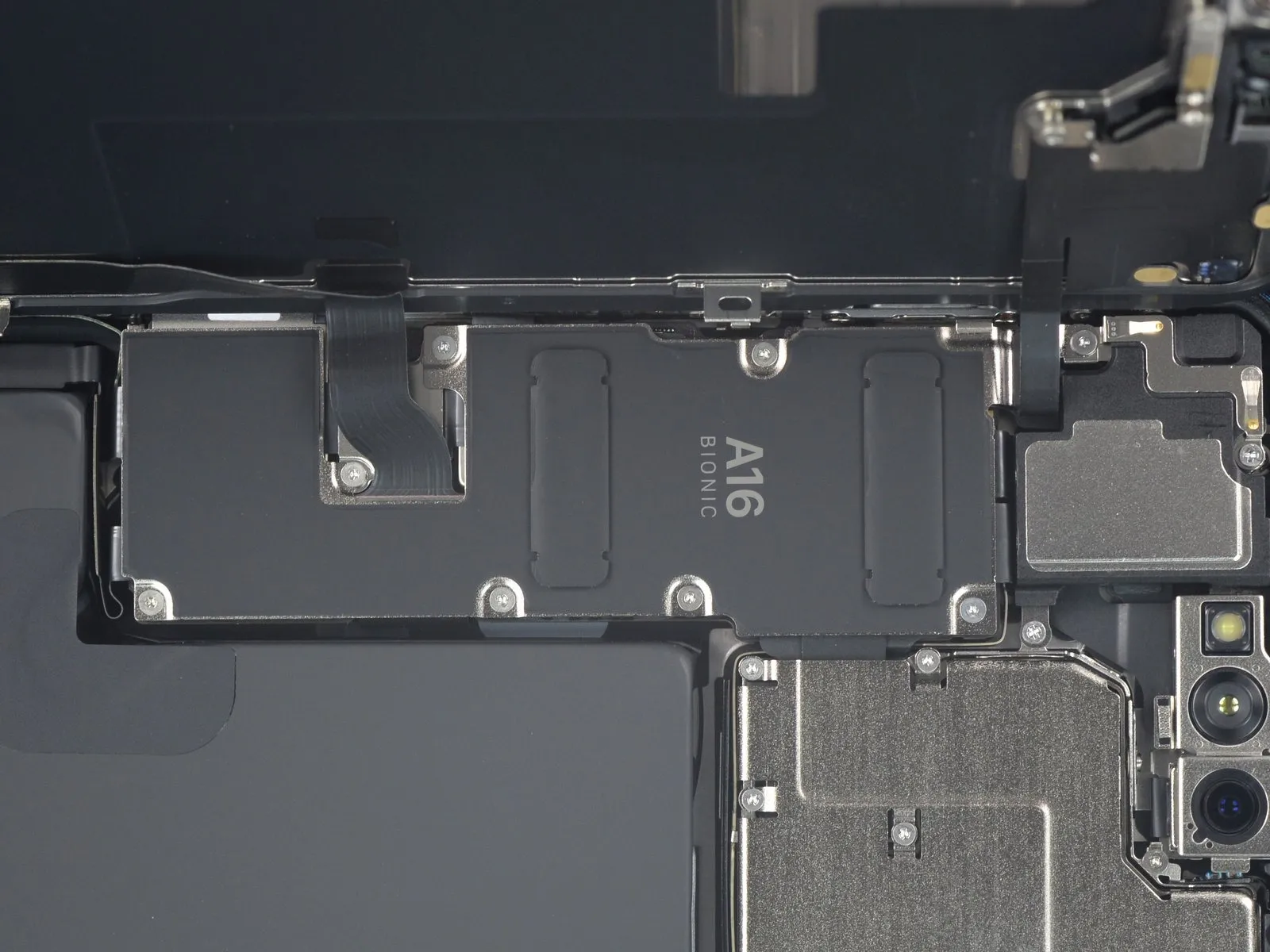

• Use a Y000 screwdriver to remove eight screws securing the battery connector cover:
  - Five 1.3 mm-long screws
  - Two 1.6 mm-long screws
  - One 1.9 mm-long screw
• Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your iPhone.
• During reassembly, power on your iPhone and test all functions before you seal the screen in place. Be sure to power down completely before continuing.

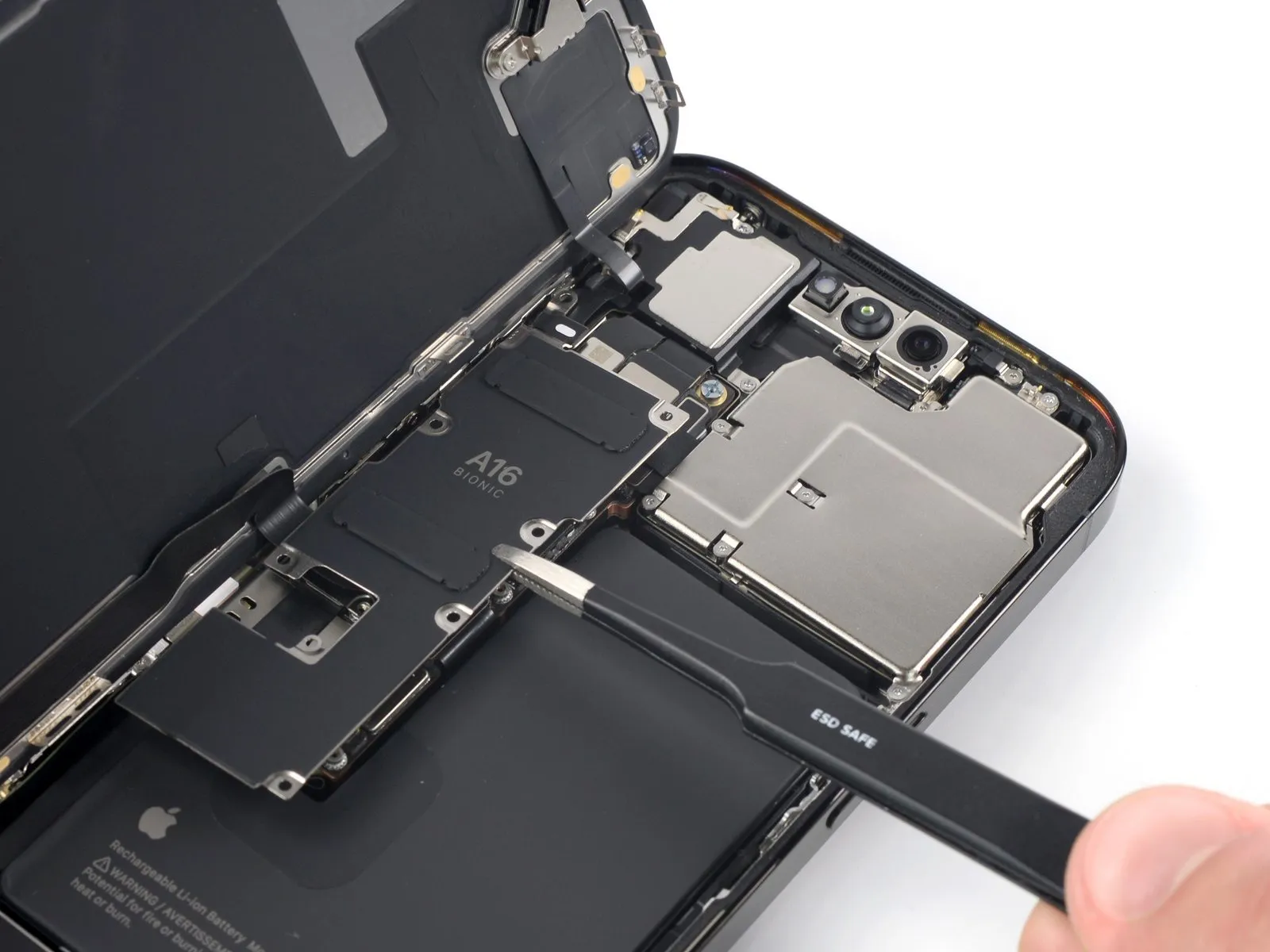

• Grasp the connector cover with a pair of tweezers and slide it downwards to clear the flex cables.
• Remove the connector cover.

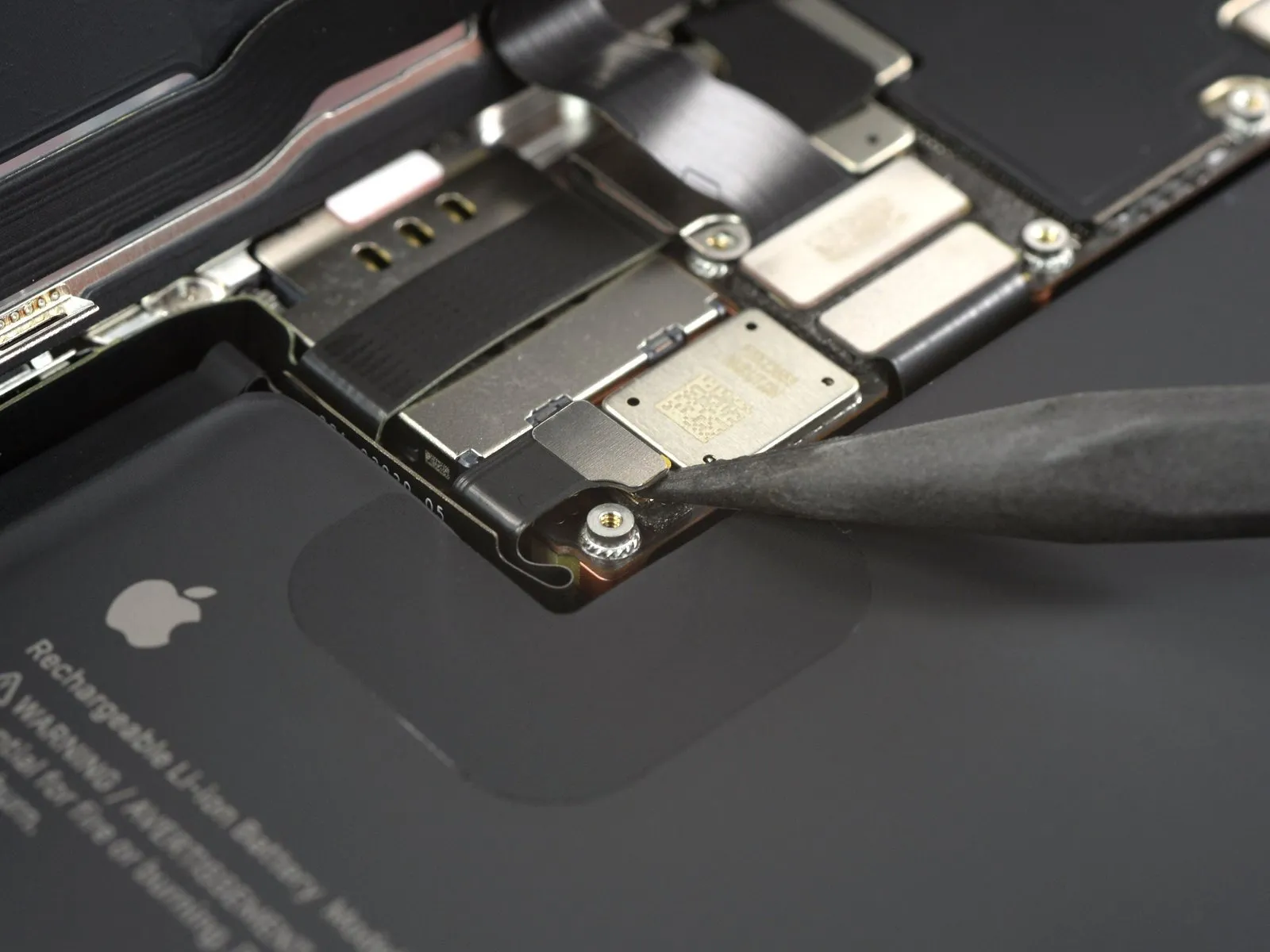

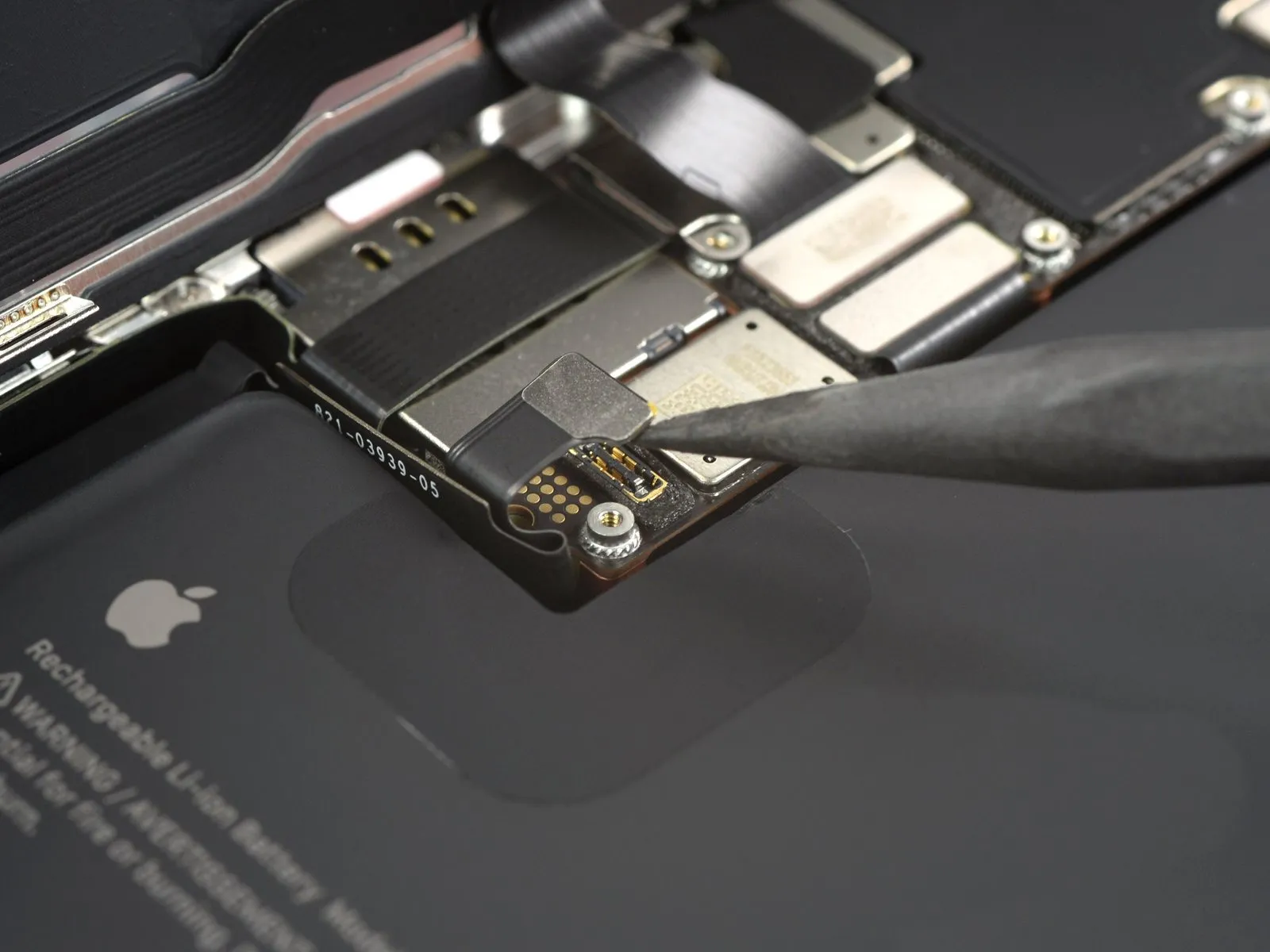

• Use the pointed end of a spudger to disconnect the battery cable by prying the connector straight up from its socket.
• Avoid damaging the black silicone seal surrounding this and other board connections. These seals provide extra protection against water and dust intrusion.
• Bend the connector slightly away from the logic board to prevent accidental contact with the socket during your repair.

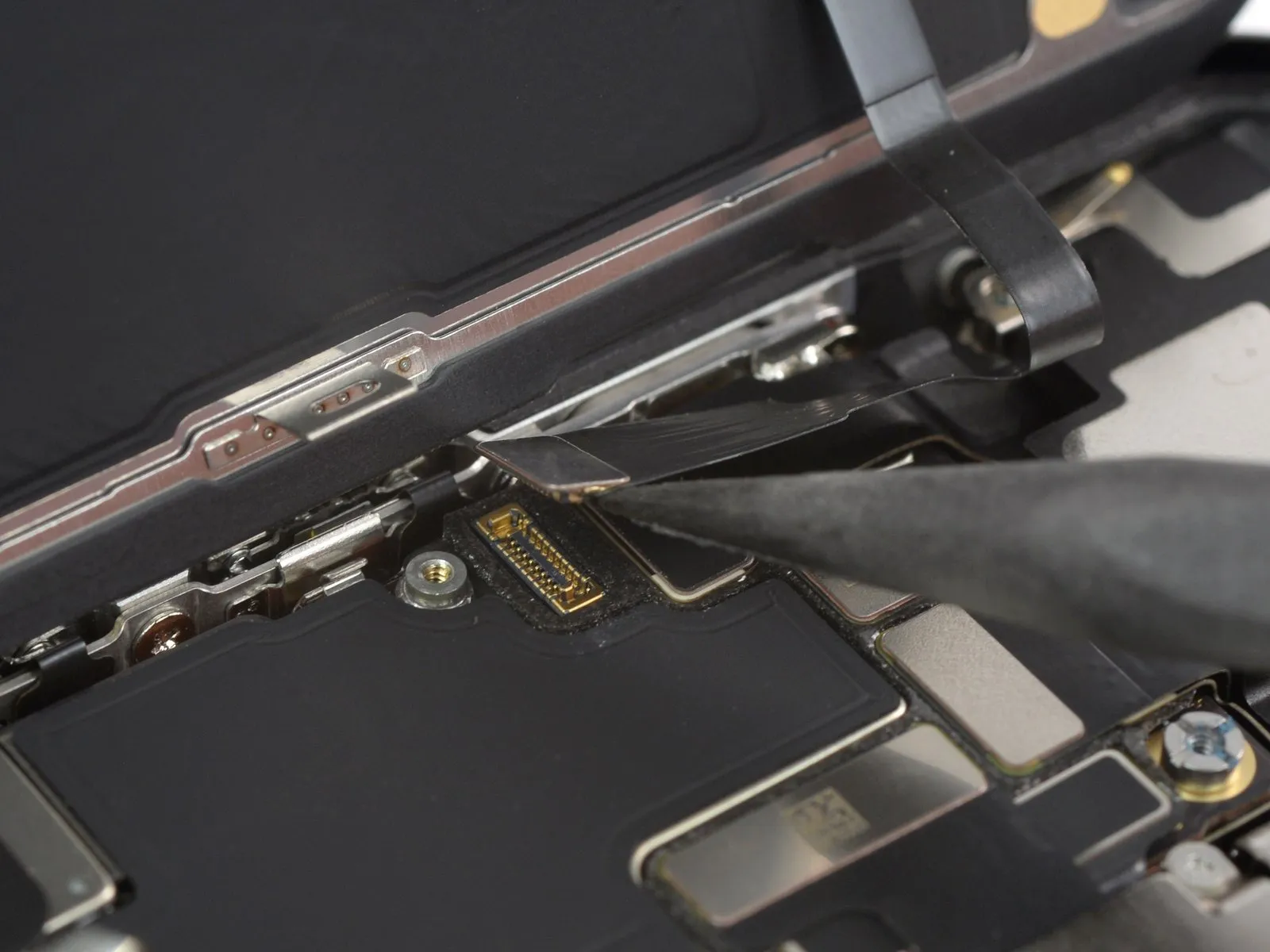

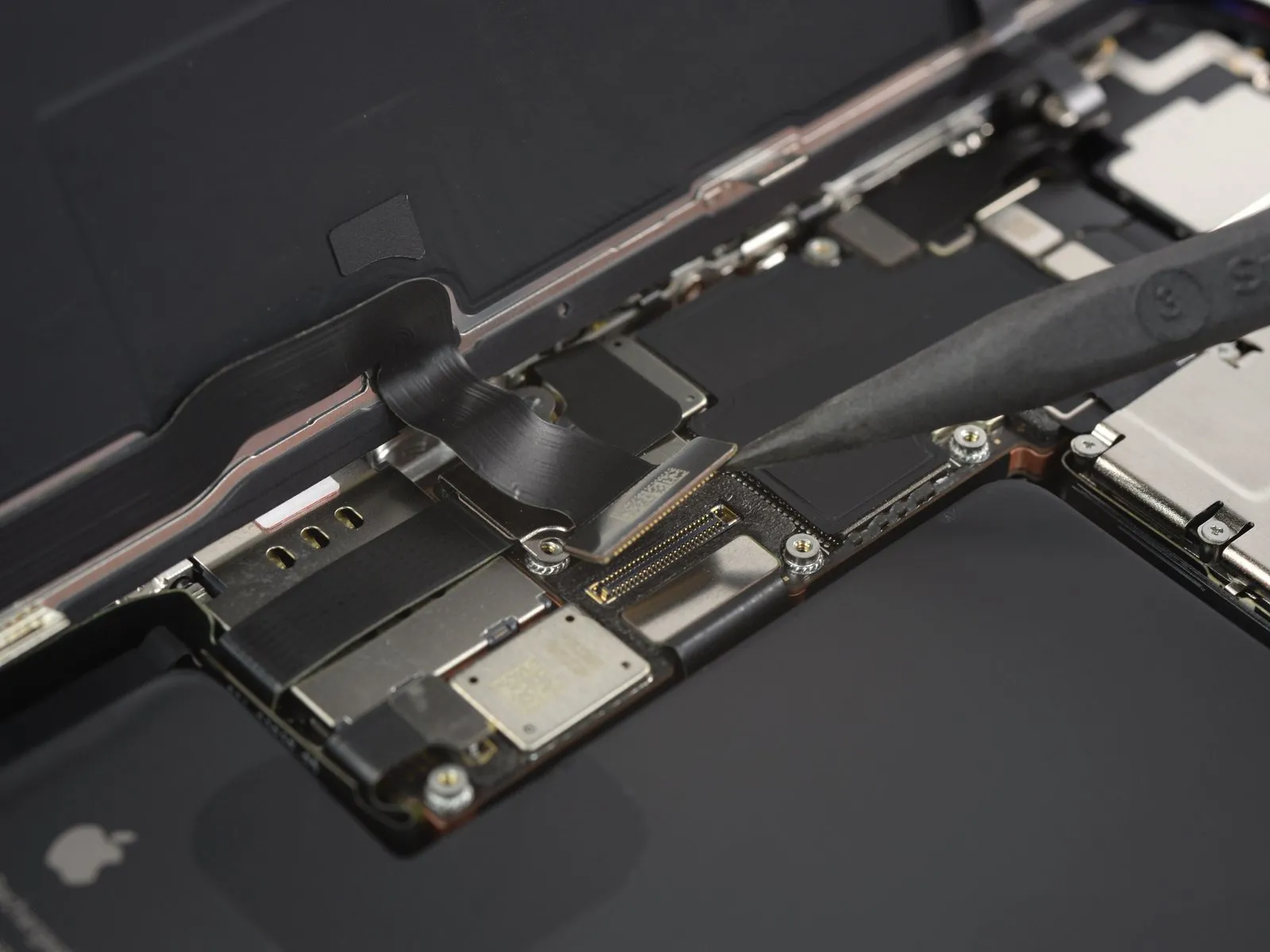

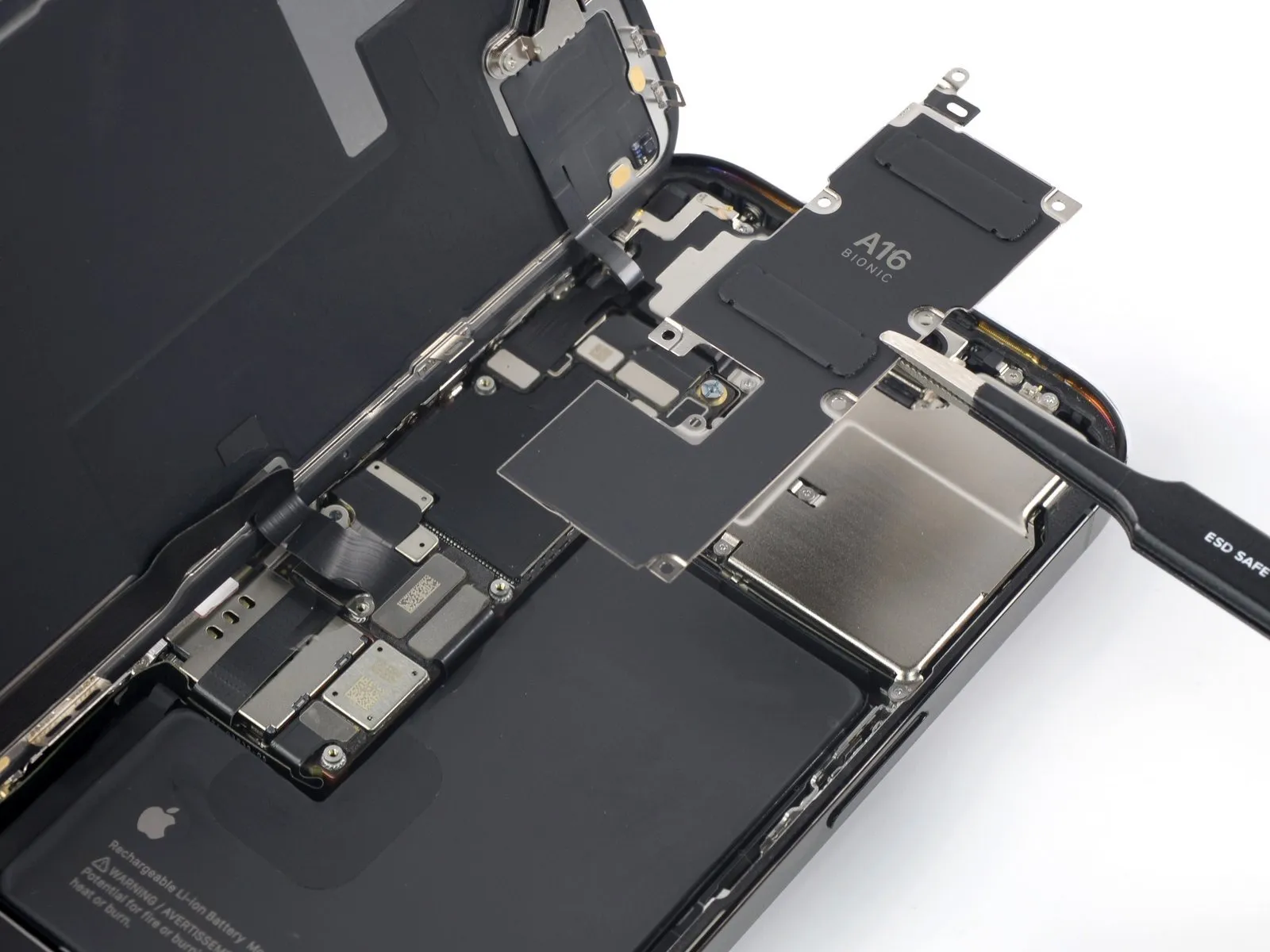

• Use the pointed end of a spudger to disconnect the first display cable by prying the connector straight up from its socket.
• To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down in the middle. If misaligned, pins can bend causing permanent damage.

• Use the pointed end of a spudger to disconnect the second display cable by prying the connector straight up from its socket.

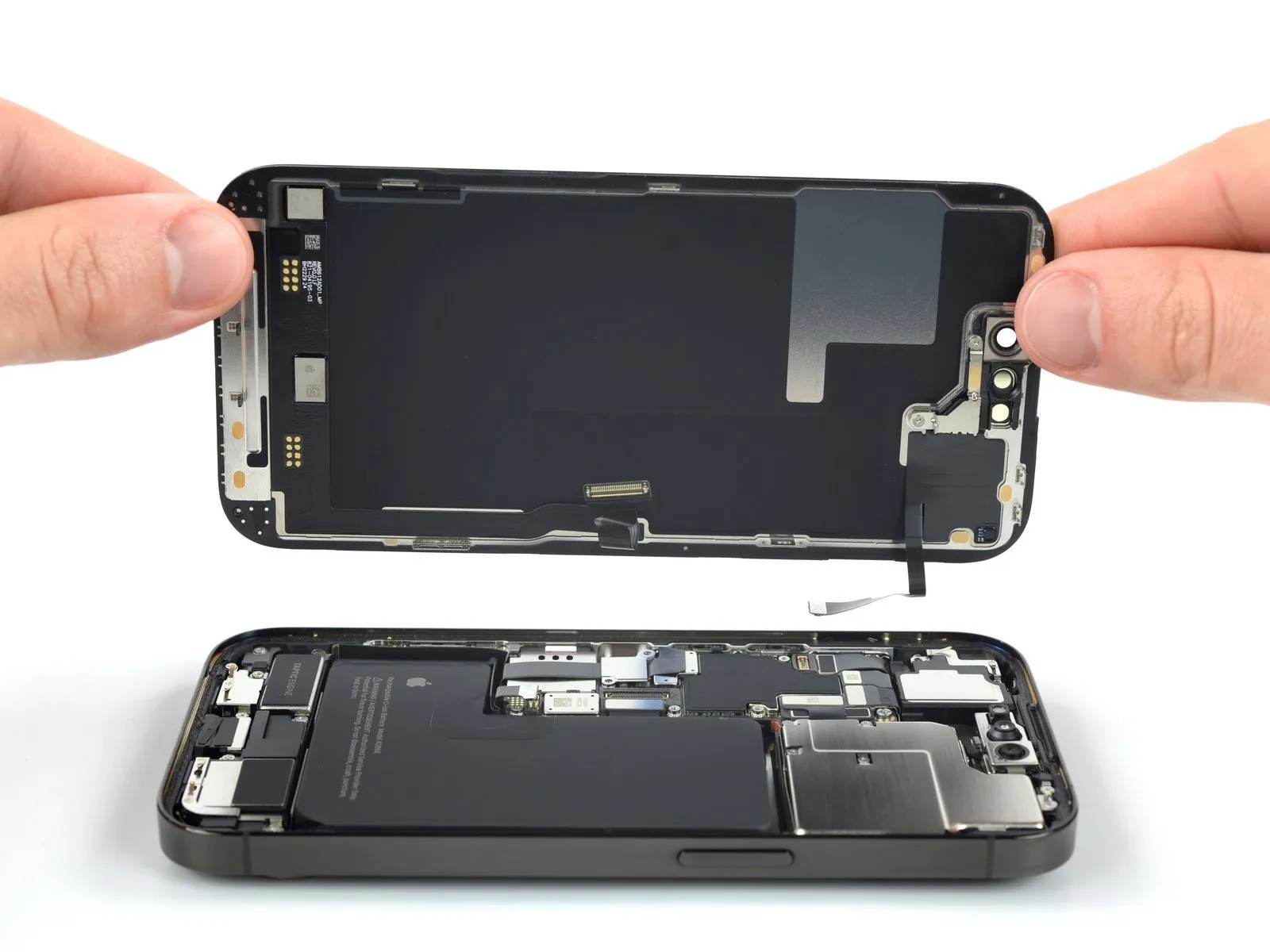

• Remove the screen.
• Apply new adhesive where necessary after cleaning relevant areas with isopropyl alcohol (>90%).
• During reassembly, pause here if you wish to replace the screen adhesives.

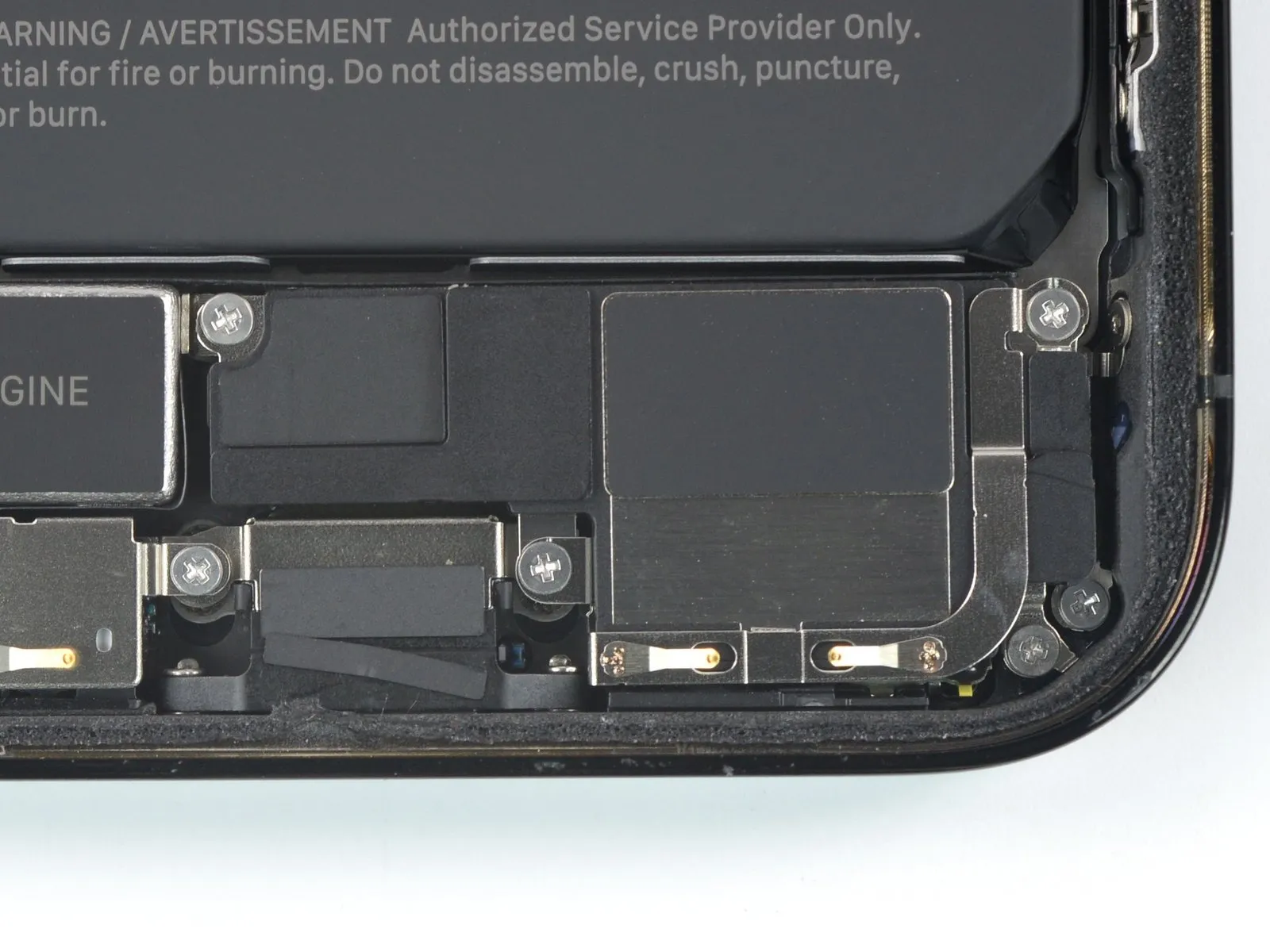

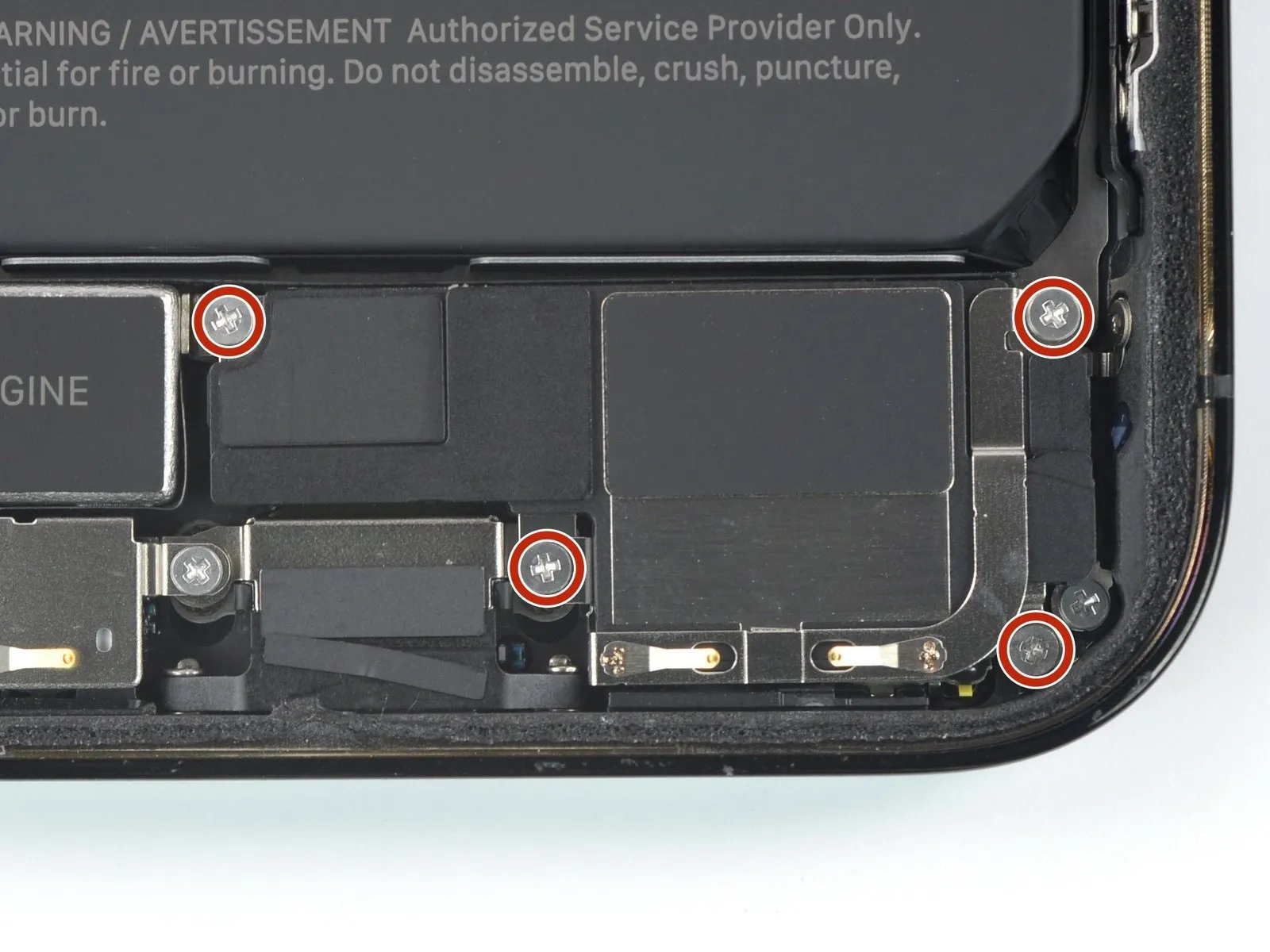

Use a Phillips #000 driver to remove four 1.5 mm-long screws securing the loudspeaker.

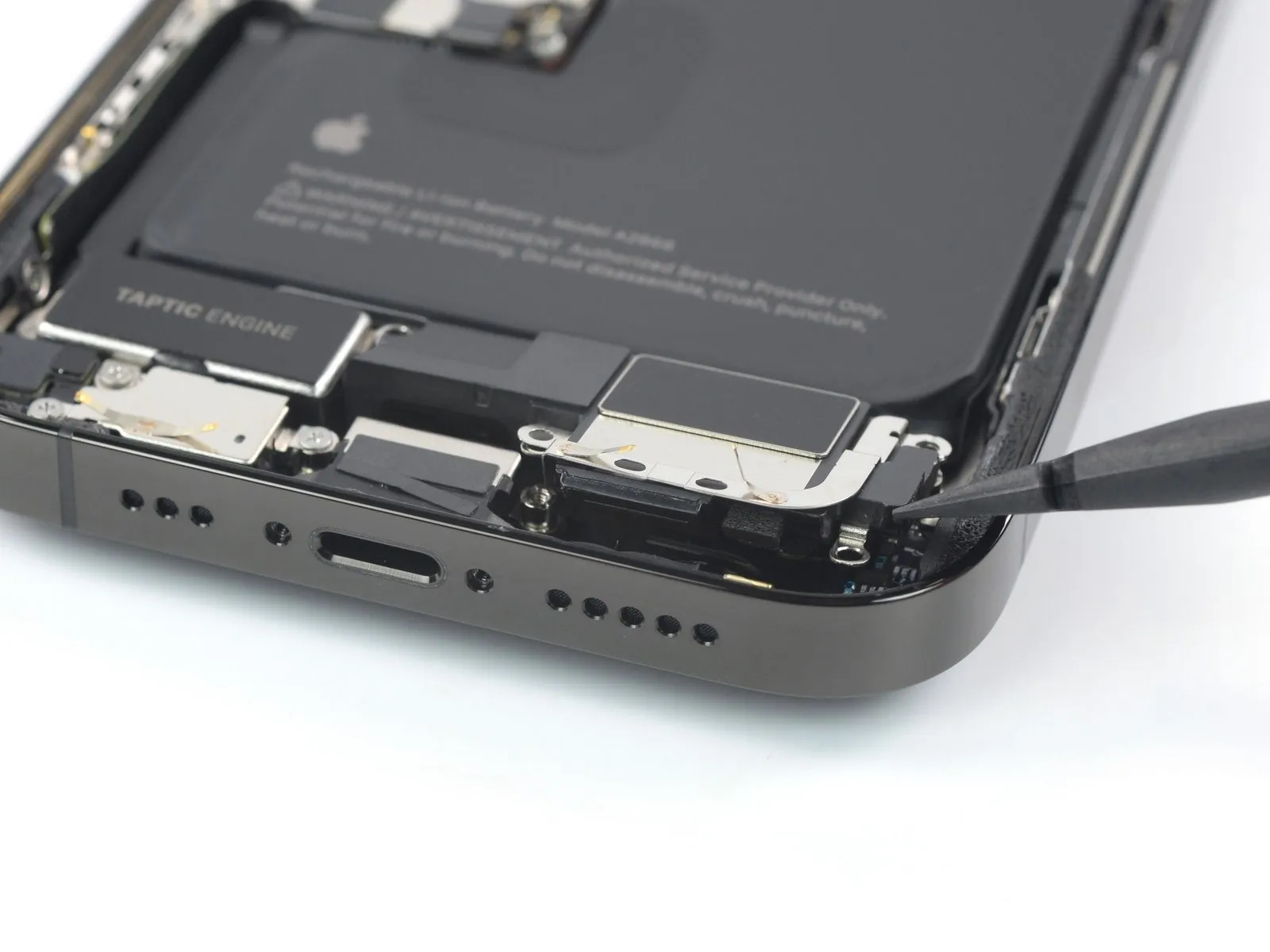

Use the flat end of a spudger to pry up and loosen the loudspeaker from the bottom-right corner of the phone.

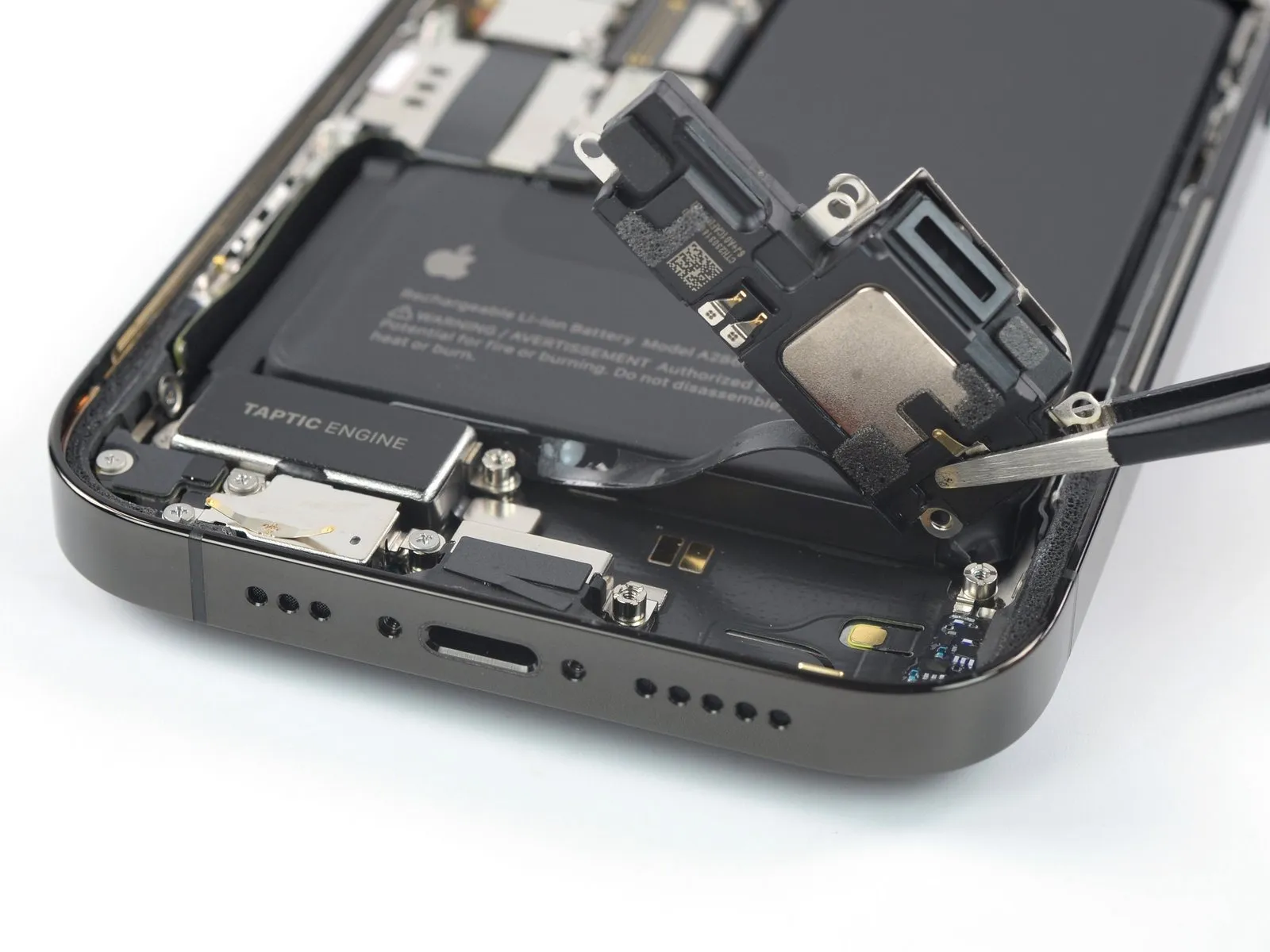

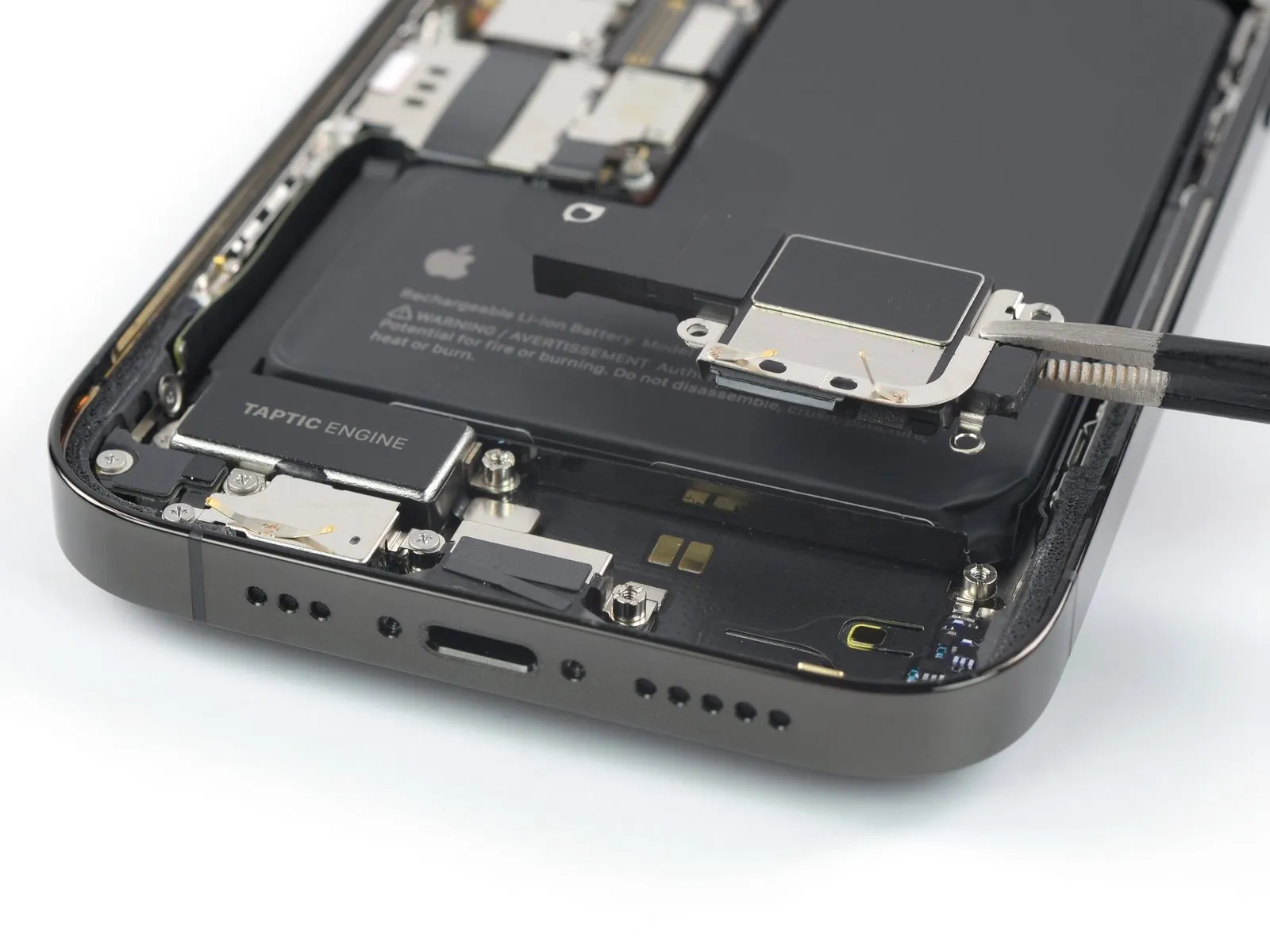

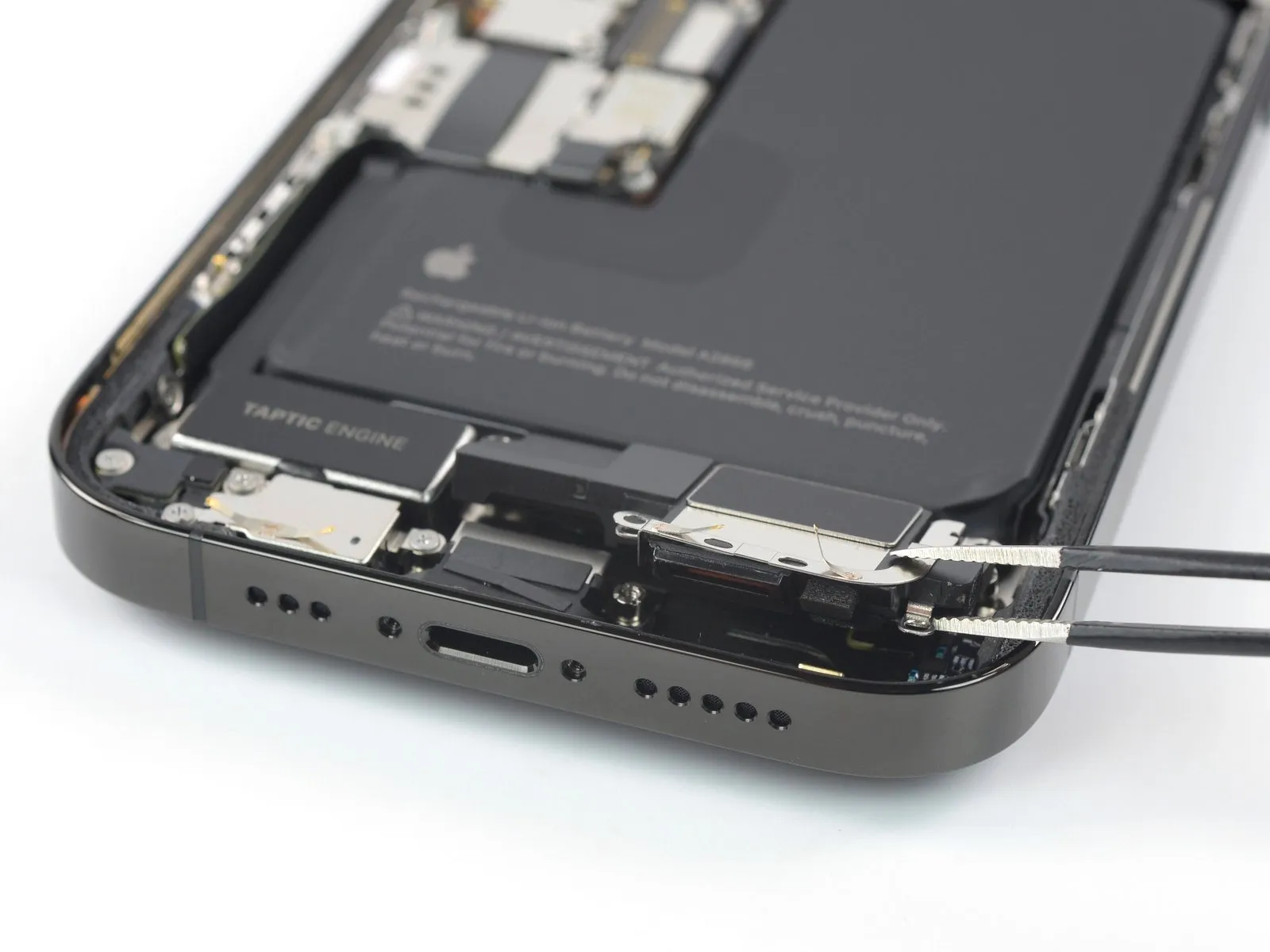

• Use a pair of tweezers to grab the loudspeaker.
• Tilt the loudspeaker to separate it from the adhesive-backed strip that leads to the Taptic Engine.
• Remove the loudspeaker.
• When reinstalling the loudspeaker, place it in its recess battery-side first to align it with the adhesive-backed strip.

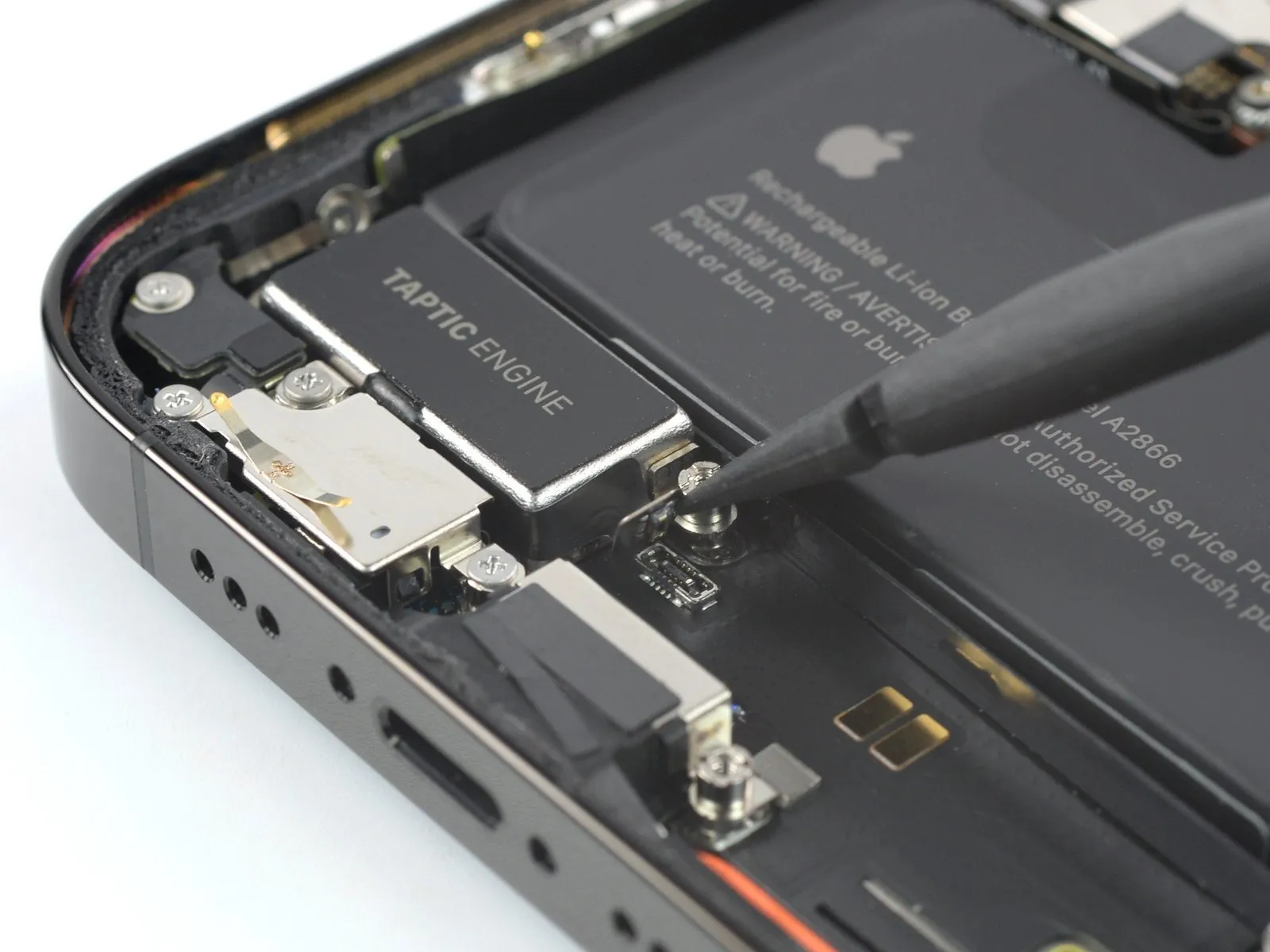

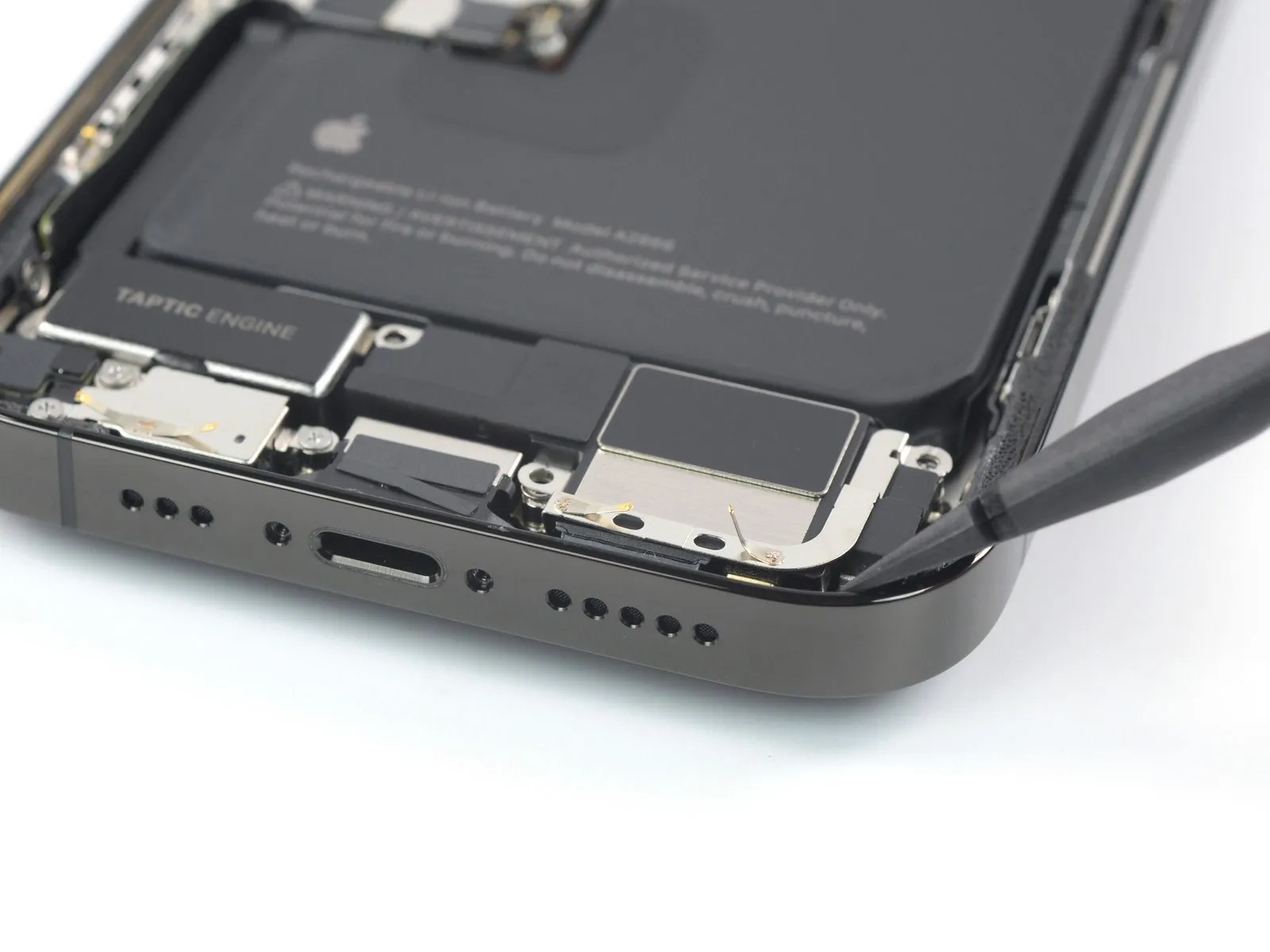

Use a spudger to disconnect the Taptic Engine by prying the connector straight up from its socket.

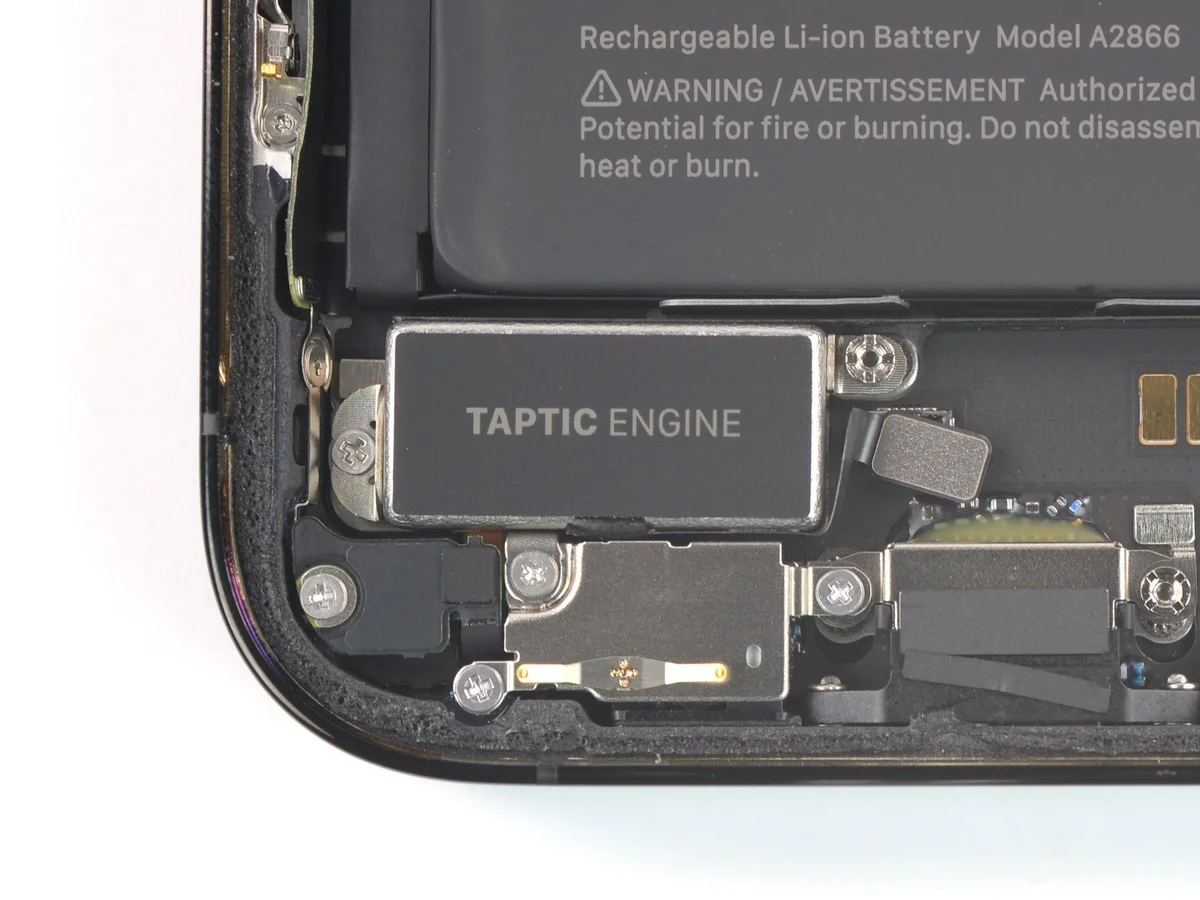

1. Use a Phillips screwdriver to remove the two screws securing the Taptic Engine:
   • One 1.8 mm-long screw
   • One 2.1 mm-long screw
2. Use a standoff screwdriver to remove the 2.9 mm-long standoff screw securing the Taptic Engine.
3. Standoff screws are best removed using a dedicated standoff driver or driver bit. In a pinch, a small flathead screwdriver will do the job-but use extra caution to ensure it doesn't slip and damage surrounding components.

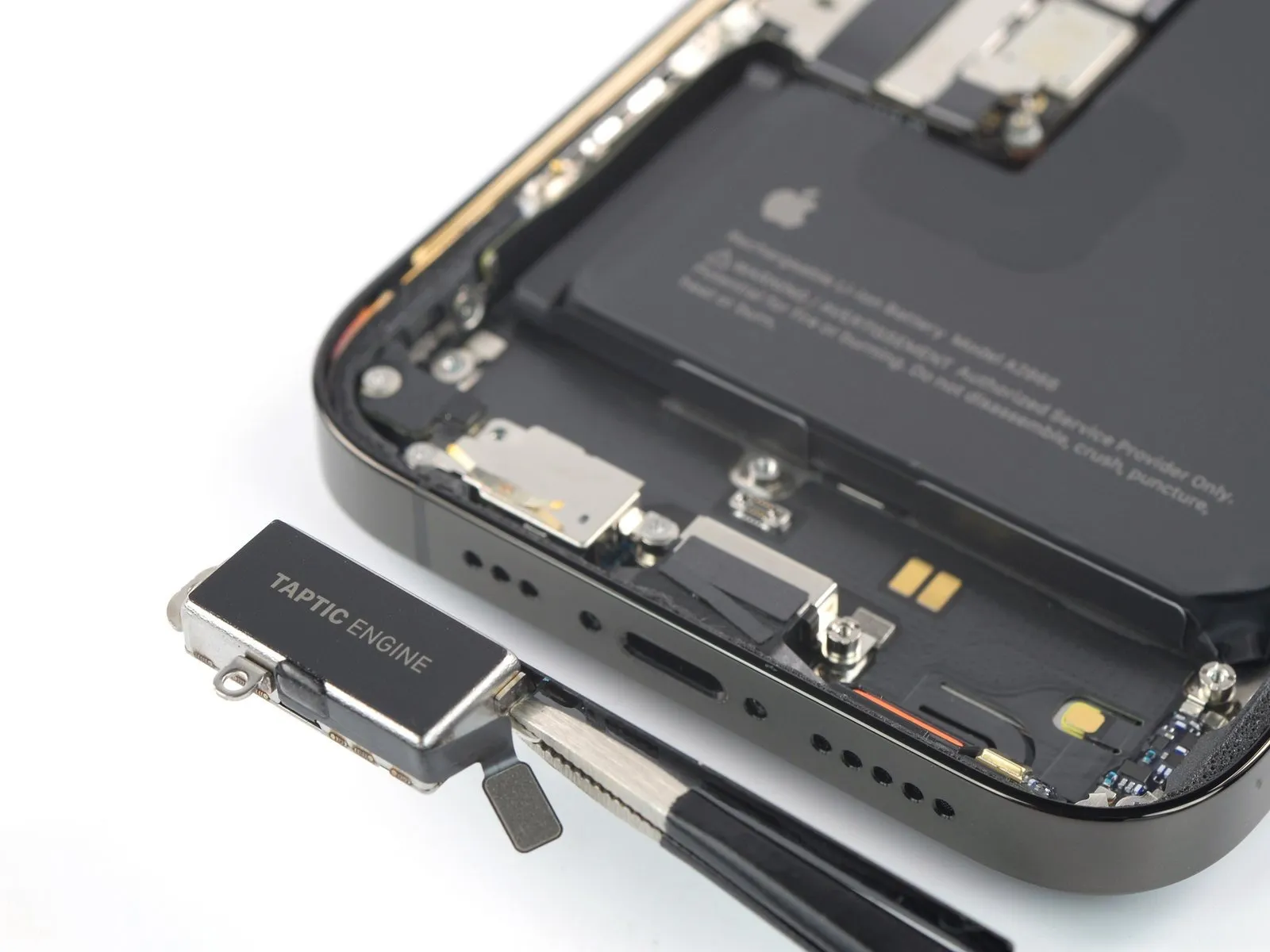

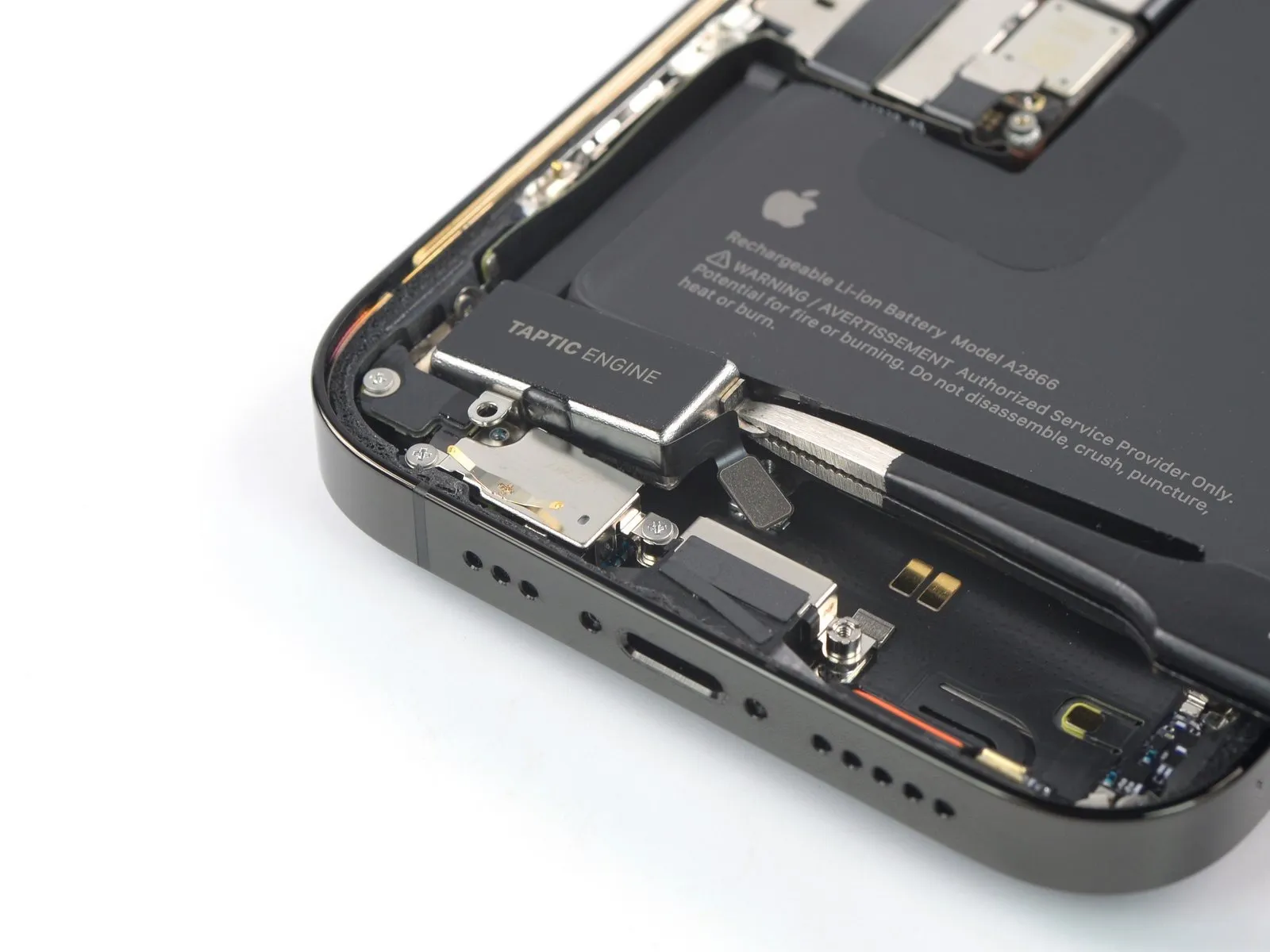

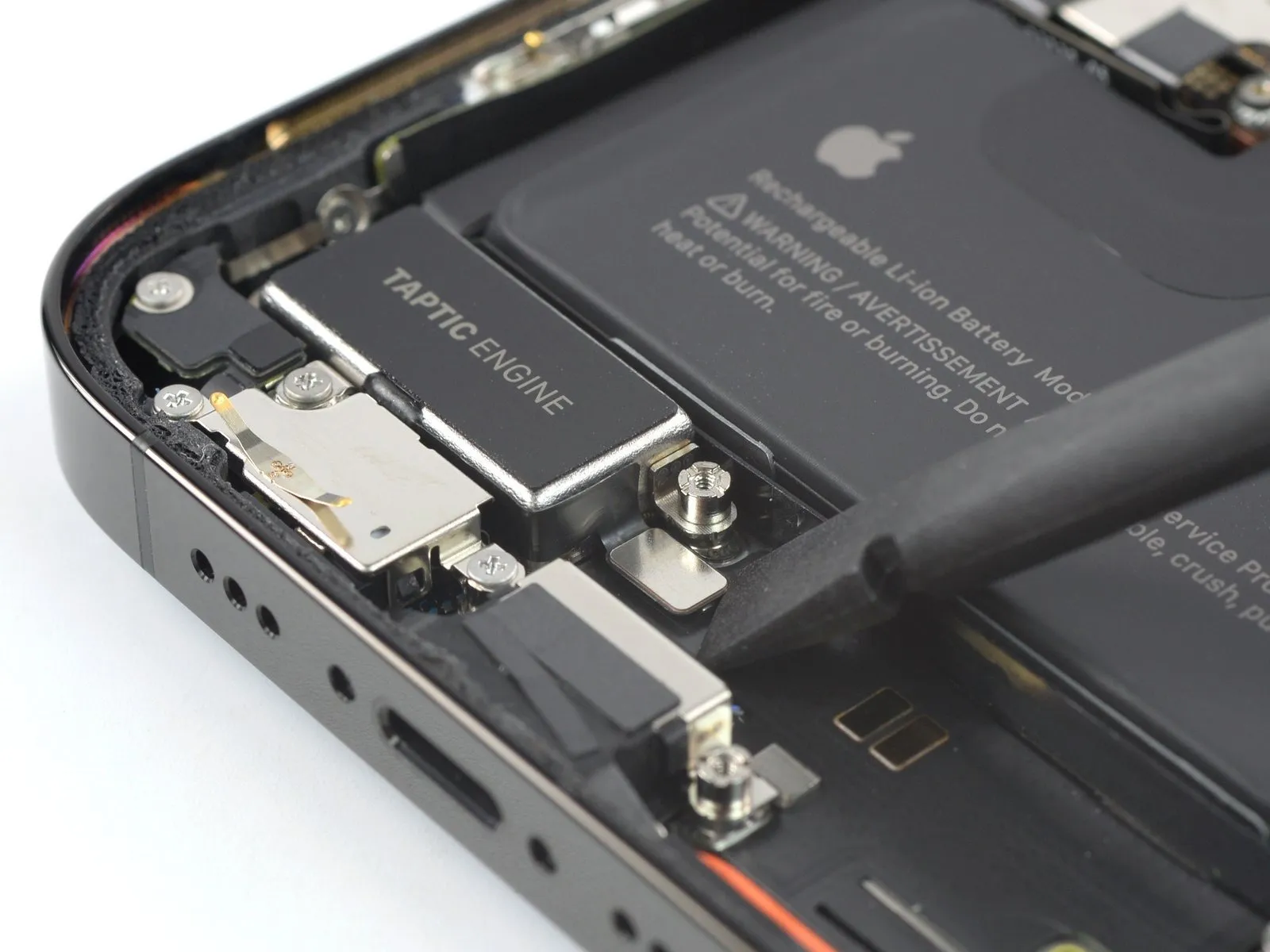

1. Use a pair of tweezers or your fingers to remove the Taptic Engine.

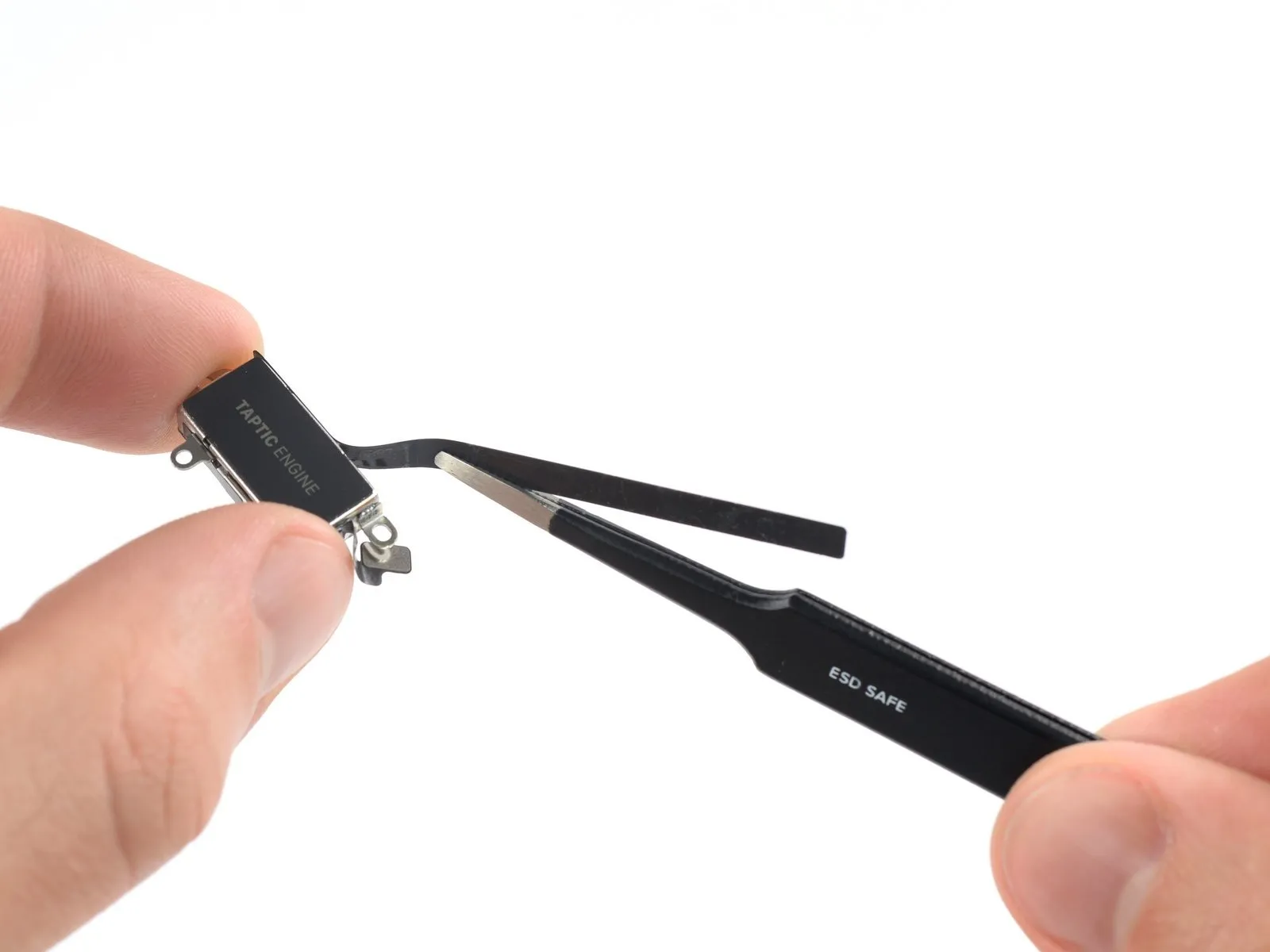

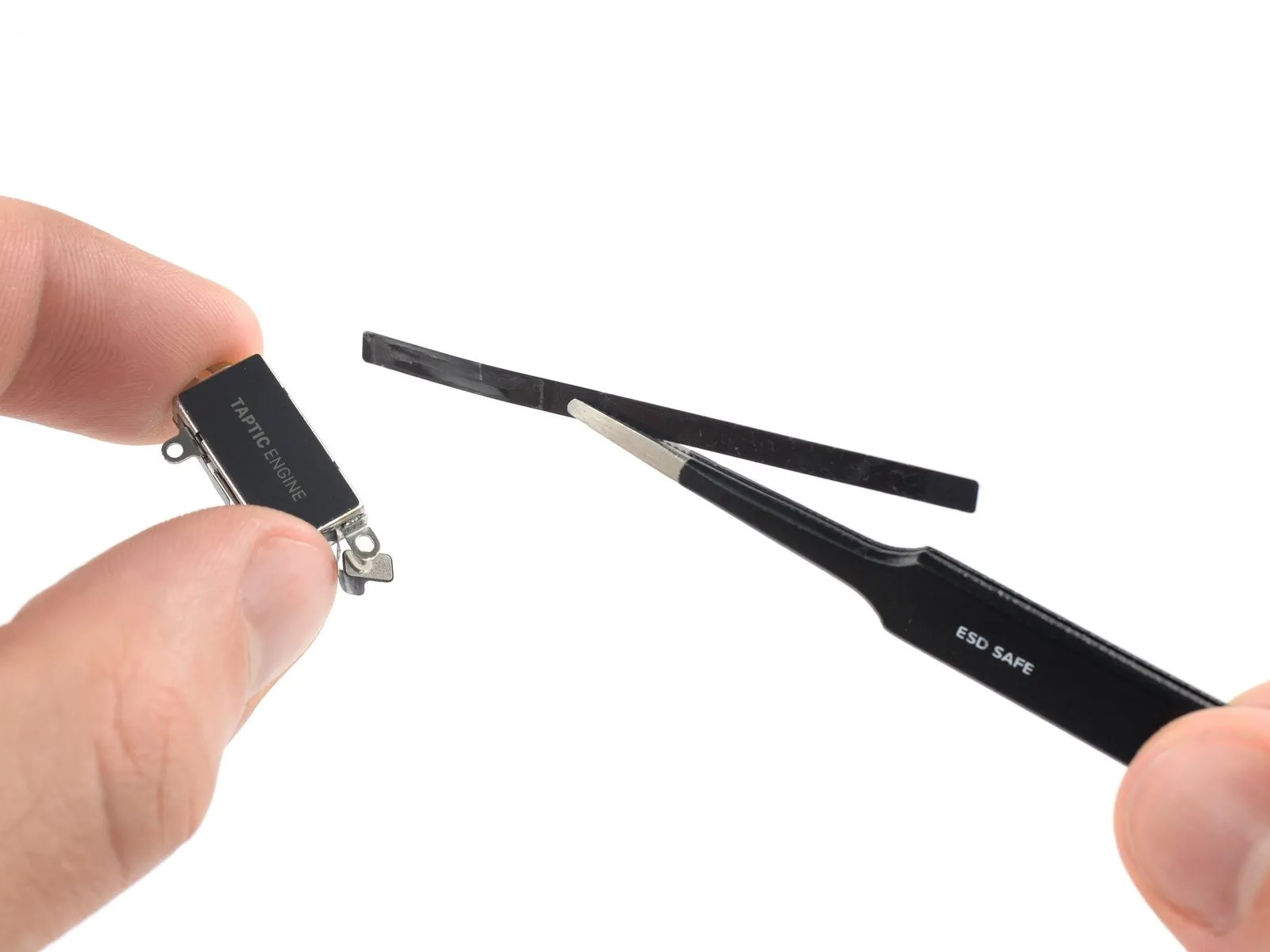

1. If your replacement part didn't come with the plastic strip along the top of the Taptic Engine, you'll need to transfer it to your replacement part.
   Use your fingers or a pair of tweezers to gently peel the adhesive-backed strip off of the Taptic Engine.
