iPhone 14 Plus Earpiece Speaker Replacement

• Prior to commencing the iPhone's disassembly process, ensure the device is completely de-energized.
• The two pentalobe P2 screws, each measuring 6.8 millimeters in length, must be extracted.These screws are located along the lower perimeter of the iPhone’s casing.Carefully unscrew these fasteners to proceed with the repair.

• Excessive insertion of a prying tool carries the risk of device harm; therefore, implement a marking procedure to mitigate potential damage.
  Accurately determine a distance of3 mmfrom the tool's leading edge and use a permanent marker to create a visible indicator on the prying tool.
• For enhanced precision, consider marking the other corners of the tool with varying measurement distances.
• As an alternative method, affix a coin to the prying tool's tip, positioning it3 mmfrom the foremost edge.

• To mitigate additional damage and potential injury while repairing a rear glass fracture on your iPhone, secure the compromised area with adhesive tape.
  Completely cover the iPhone's rear glass surface by applying multiple, overlapping layers of transparent packing tape.
• Protect your vision by utilizing safety eyewear, as fragments of glass may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent steps, create a handle from a robust tape, like duct tape, to facilitate lifting the rear glass.
• As a last resort, secure the suction cup directly to the rear glass using superglue to ensure a firm grip.

• Apply warmth to the lower perimeter of the iPhone's casing utilizing a hair dryer or heat gun, ensuring the rear glass panel reaches a temperature just beyond comfortable touch.
  Avoid prolonged, localized heat application with the heat gun to prevent damage.

• Secure a suction handle to the lower border of the back glass, ensuring you maintain clearance from its perimeter.
• Maintain steady, consistent upward force on the suction cup to generate a minimal separation between the rear glass and the device's frame.
• Introduce an opening tool into the newly formed space.
• Due to the robust nature of the adhesive securing the rear glass, a considerable amount of force may be necessary to initially separate the glass from the frame; if separation proves difficult, apply additional heat and gently oscillate the rear glass in an upward and downward motion to reduce adhesive strength until a sufficient gap is achieved for tool insertion.

To facilitate separation, apply heat to the left side of the iPhone's enclosure, ensuring the rear glass reaches a temperature just beyond comfortable touch.

• Employ the opening pick to maneuver along the lower-left perimeter of the iPhone's rear glass, then continue upward along the left side, severing the adhesive securing the glass.
• Ensure the pick's insertion depth remains below 3 mmto prevent potential harm to the device's internal parts.

To initiate separation, apply heat to the right-hand side of the iPhone's enclosure, specifically the area bordering the power button, until the temperature of the rear glass panel reaches a level just beyond comfortable touch.

• Position a repair pick along the lower edge of the iPhone's display assembly.
• Advance the pick upwards along the right-hand side to further release the adhesive bond.

• Position a prying tool beneath the upper-leftmost perimeter of the device's casing.
• Maneuver the tool along the upper-left corner, extending it to the midpoint of the top edge.Limit insertion depth to a maximum of 3 millimeters to prevent potential harm or distortion of the camera module.Refrain from completely disconnecting the rear glass panel at this stage, because a delicate flexible connector links it to the iPhone's main circuit board.
• The rear glass remains connected via a sensitive ribbon cable, so avoid complete separation for now.

• Detach the vacuum handle from the rear glass assembly.
• Carefully pivot the rear glass upward, initiating the movement from the left edge, mimicking the action of opening a book's cover.
• Exercise caution to prevent undue stress on the brief charging coil flex cable.
• Secure the rear glass in a propped position during the repair process; alternatively, the suction handle can be utilized for this purpose if a separate support is unavailable.

• Employ a Y000 screwdriver for the removal of the two screws, each measuring 1.3 mm in length, which fasten the battery connector cover.Meticulous organization of all screws is crucial during this repair process, ensuring each is reinstalled in its original location to prevent potential damage to the iPhone.A functional test of all iPhone features is recommended at this stage during reassembly, involving powering the device on, prior to the final display adhesion.
• To proceed with the repair, ensure the iPhone is completely powered off after performing the functional test.
• The battery connector cover is held in place by two fasteners, each with a length of 1.3 mm, and requires a Y000 screwdriver for their removal.

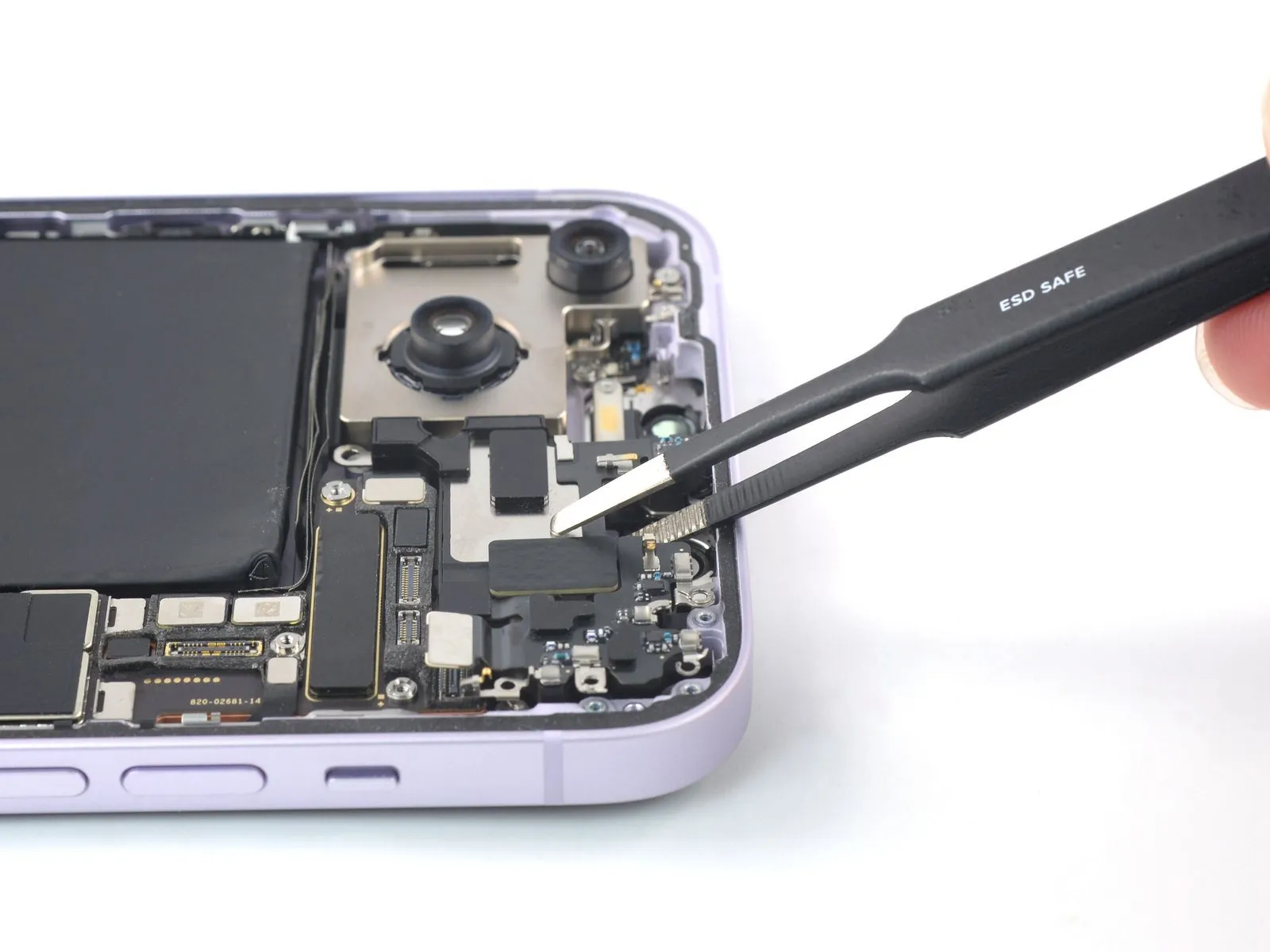

• Using tweezers, secure the battery connector cover and advance it vertically, in the direction of the 'A15' marking, to release the upper retaining clip.
• Detach the battery connector cover from the device.

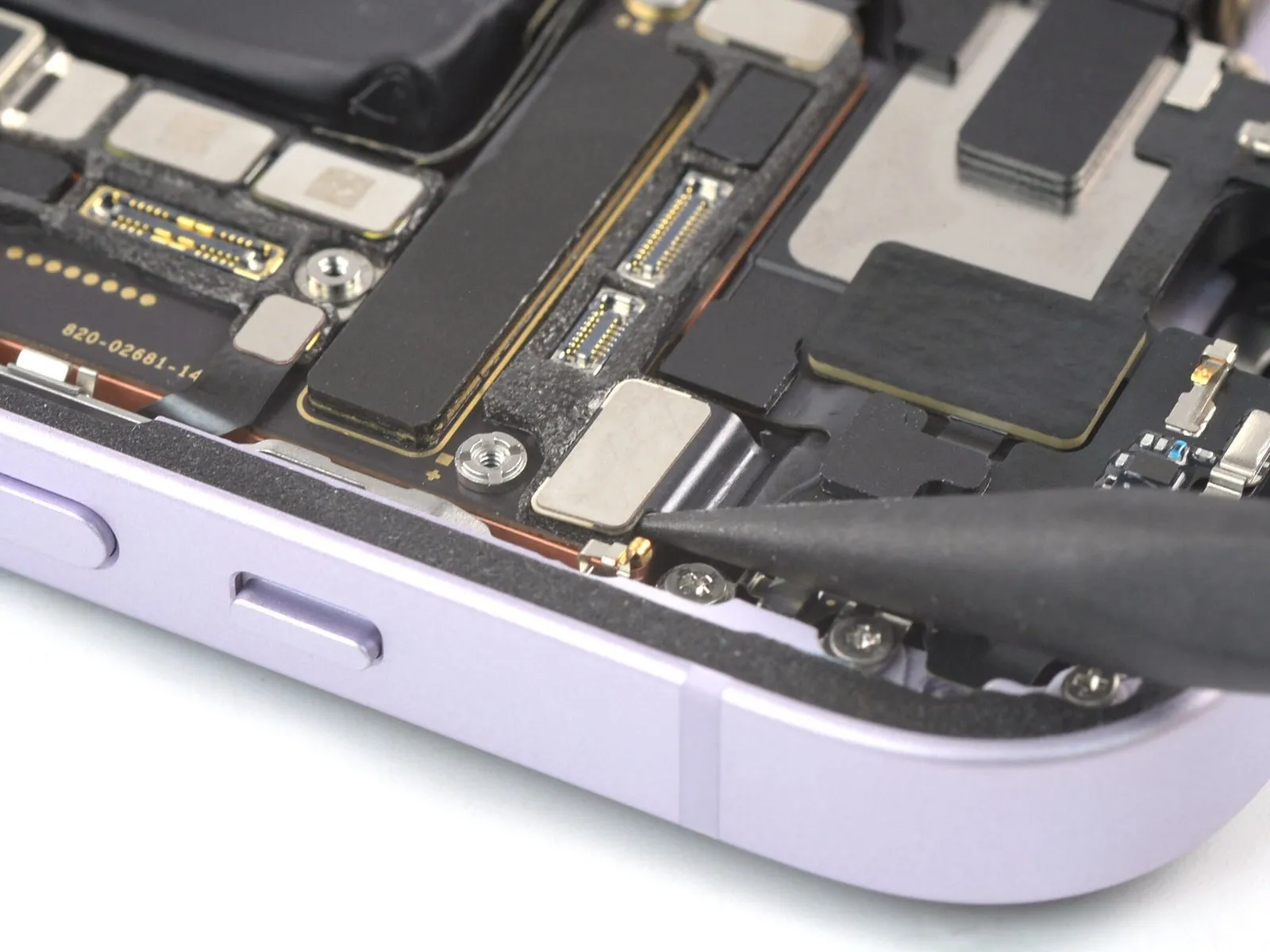

• Employ the tapered end of a spudger to release the battery connector, lifting it vertically from its receptacle.Exercise caution to avoid harming the black silicone seals situated around this and other board interfaces, as they safeguard against water and dust ingress.To inhibit unintended power delivery to the device during the repair process, slightly deflect the connector away from the main circuit board.
• The battery cable's connector must be separated using a precise upward motion to ensure a clean disconnection.
• These silicone seals are critical for maintaining the device's environmental protection, so their integrity should be preserved throughout the repair.

• Employ a Y000 screwdriver to detach the charging coil connector cover.The cover is held in place by a single screw measuring 1.0 mm in length.Carefully unscrew the fastener using the appropriate screwdriver.Ensure the Y000 screwdriver is properly seated to prevent damage during removal.The 1.0 mm screw secures the cover, and its removal allows access to the charging coil connector.

• Employing tweezers, detach the protective cover that secures the charging coil connector.

• Employ the tapered tip of a spudger to release the charging coil cable's connector, lifting it vertically away from its receptacle.A spudger's pointed end facilitates separation of the charging coil cable connector from its socket through a straight upward motion.To detach the charging coil cable, utilize the pointed end of a spudger, applying upward force to disengage the connector from its socket.

• Detach the rear glass component.
• Following a thorough cleaning of the surfaces with isopropyl alcohol possessing a concentration exceeding 90%, apply fresh adhesive as needed.
• If a replacement of the rear glass adhesives is desired, halt the reassembly process at this stage.

Employ a Y000 screwdriver for the task of detaching the bracket.The bracket is fastened with two screws, each measuring 1.2 millimeters in length.Removal of these screws will release the front-facing camera assembly cable bracket.A Y000 screwdriver is the appropriate tool for this disassembly step.The screws holding the bracket in place must be removed using the specified screwdriver.

To detach the securing bracket for the front-facing camera cable, employ tweezers or your fingertips.

Employ a spudger to release the camera and sensor cable connectors, lifting them vertically away from their respective receptacles.

Employing tweezers or manual dexterity, carefully detach the front-facing camera module.The front-facing camera assembly can be dislodged using tweezers or by applying finger pressure.To extract the front-facing camera component, utilize tweezers or your fingertips for manipulation.

• The subsequent procedures detail the antenna removal process applicable to certain device configurations; if your device lacks this component, proceed past these instructions.
• Employ a specialized tool, a spudger,to detach the antenna cable; achieve this by applying upward force directly to the connector, separating it from its receptacle.This separation requires careful manipulation to avoid damage to the connector or the socket.

• A minimal amount of adhesive secures the antenna to the earpiece speaker assembly.
• Employ the pointed end of a spudger tool to begin the separation process.Carefully lift the spudger to release the adhesive bond securing the antenna.Applying gentle upward pressure with the spudger will detach the adhesive.
• The antenna can now be completely detached from the earpiece.
• Complete the removal of the antenna component.

Employ a spudger to release the earpiece cable's connection, lifting the connector vertically away from its receptacle.The earpiece cable connector must be disengaged using a spudger, ensuring a straight upward motion to avoid damage.To detach the earpiece cable, a spudger should be utilized to carefully elevate the connector directly out of its socket.

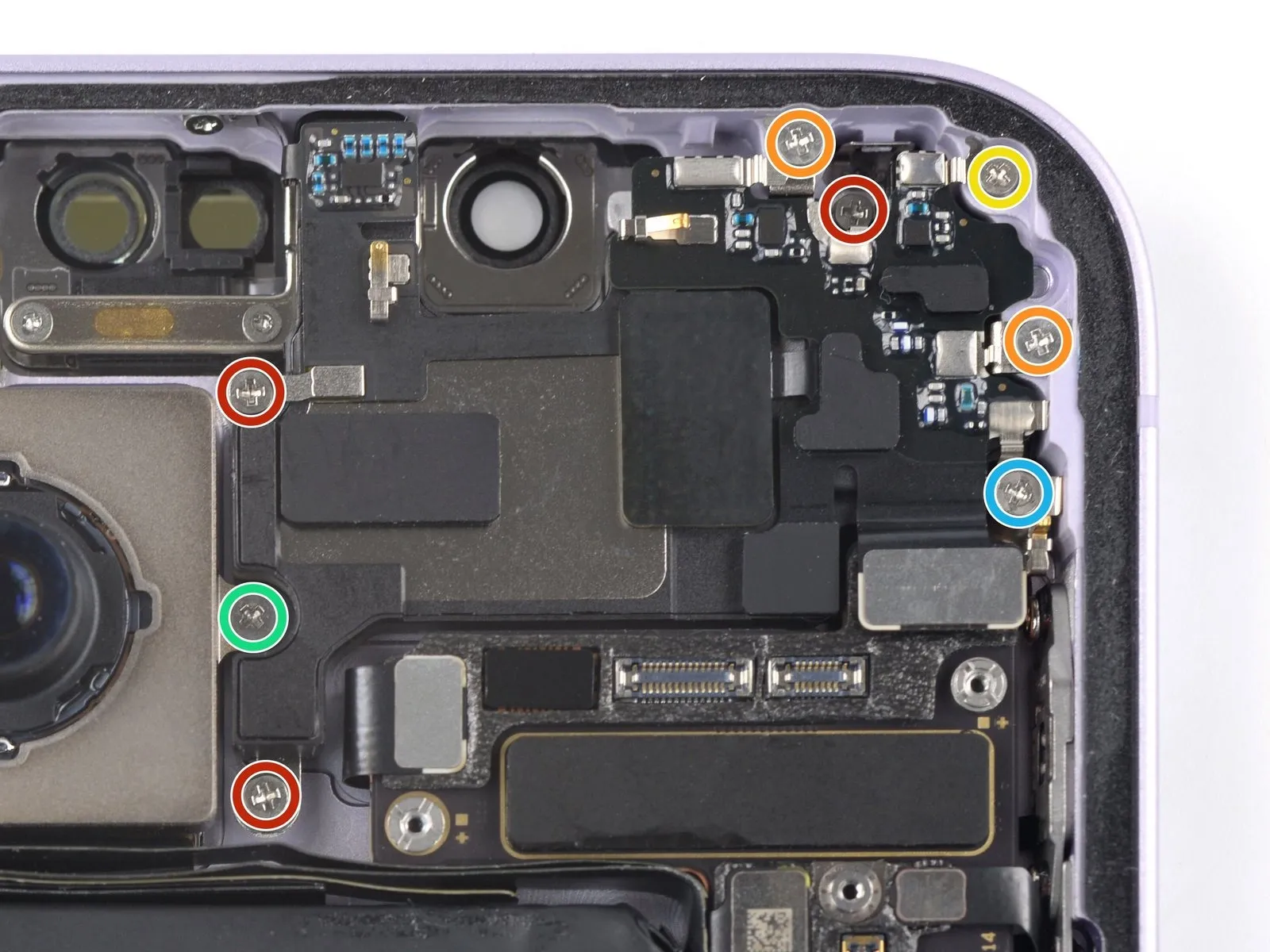

• Employ a Phillips screwdriver to detach the eight screws that hold the earpiece speaker in place.Eight screws, each measuring 1.6 millimeters in length, require removal.Two screws, each with a length of 1.7 millimeters, must be unscrewed.
  A single screw, measuring 1.1 millimeters in length, is also part of the assembly.
  One screw, extending 2.1 millimeters, needs to be taken out.
  Additionally, a screw with a length of 1.5 millimeters must be removed.
  The earpiece speaker is fastened with a combination of differently sized screws.
  Carefully unscrew each screw using the appropriate Phillips screwdriver, noting their individual lengths.

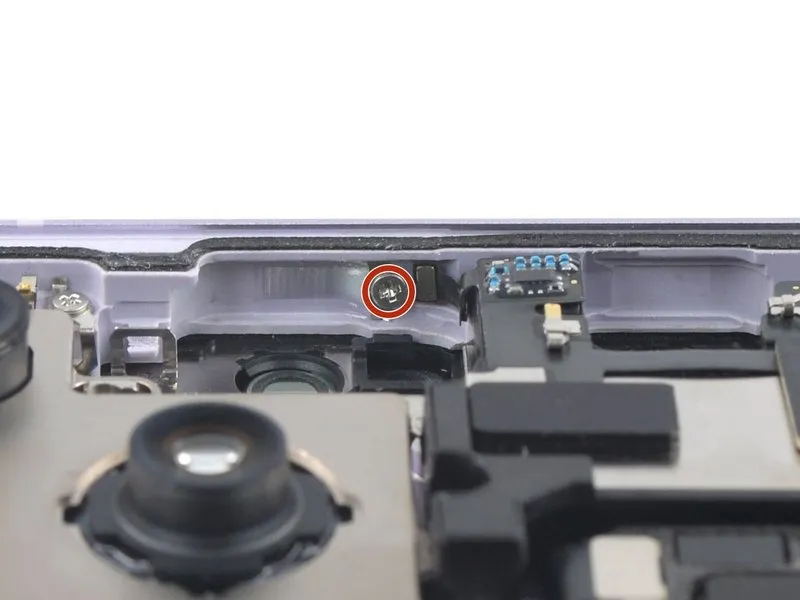

• Employ a Phillips screwdriver for the task of detaching the earpiece speaker.A Phillips-head screwdriver is necessary to loosen the fastener.The earpiece speaker is affixed to the frame with a small screw.The screw's dimensions are precisely 1.1 millimeters.This screw holds the earpiece speaker in place on the device's frame.

1. Employ tweezers or manual dexterity to detach the earpiece speaker component.
   A rubber gasket is integrated into the upper left perimeter of the earpiece speaker; ensure proper alignment with its designated cavity within the frame during reassembly.
