iPhone 14 Loudspeaker Replacement

• Prior to commencing the iPhone's disassembly process, ensure the device is completely powered down.
• The two screws, each measuring 6.8 millimeters in length and utilizing a P2 pentalobe head, must be detached.These screws are located specifically along the lower perimeter of the iPhone's casing.Careful removal of these fasteners is essential for proceeding with the repair.

• To avoid potential harm to your device, ensure the opening pick does not penetrate excessively; this procedure details how to label the pick to safeguard against such damage.
  Using a measuring tool, determine a distance of3 mmfrom the pick's leading edge and apply a permanent marker to create a visible indicator.
• For enhanced precision, consider marking the pick's other corners with varying measurement values.
• As an alternative method, affix a coin to the pick's shaft, positioning it3 mmaway from the tip.

• To minimize additional damage and potential injury while repairing a rear glass that is fractured on your iPhone, secure the glass with adhesive tape.
  Completely cover the iPhone's rear glass surface by applying successive layers of transparent packing tape, ensuring they overlap.
• Protect your vision by utilizing safety eyewear, as shards of glass may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle from a robust tape (like duct tape) and employ it to elevate the rear glass.
• As a last resort, if other methods prove unsuccessful, secure the suction cup to the rear glass using superglue.

• Apply warmth to the lower perimeter of the iPhone’s casing utilizing a hair dryer or heat gun, ensuring the rear glass panel reaches a temperature just beyond comfortable touch.
  Avoid prolonged, localized heat application with the heat gun to prevent damage.

• Secure a suction handle to the lower border of the back glass, ensuring it's positioned away from the perimeter's edge.
• Maintain steady, consistent upward force on the suction cup to generate a small separation between the rear glass and the device's housing.
• Introduce an opening tool into the newly formed space.
• Due to the robust nature of the adhesive securing the rear glass, substantial force is required to initially separate it; if separation proves difficult, apply additional heat and gently oscillate the rear glass to reduce adhesive strength until a sufficient gap is achieved for opening tool insertion.

To facilitate separation, apply heat to the left side of the iPhone's enclosure, raising the temperature of the rear glass to a point just beyond comfortable touch.

• Utilize the opening pick to move along the lower-left perimeter of the iPhone's rear glass, then continue upward along the left side, severing the adhesive securing the glass.
• Ensure the pick's insertion depth remains limited to a maximum of 3 millimeters to prevent potential harm to the device's internal components.The adhesive bond securing the rear glass requires careful separation using the specialized opening tool.Exceeding the 3-millimeter depth limit during pick insertion carries a risk of damaging delicate internal components within the iPhone.

A fragile wiring harness is situated on the device's right side, proximate to the volume increase button.Insertion of any tool into this area carries a risk of inflicting harm to the aforementioned cable.Exercise caution to prevent any physical stress or breakage of this component.

Apply warmth to the right-hand side of the iPhone, specifically the perimeter containing the volume controls, until the temperature of the rear glass reaches a point where it is uncomfortably warm to the touch.The targeted area for heating is the right edge of the iPhone's chassis, which is identifiable by the presence of the volume buttons.Elevating the rear glass temperature to a level just beyond comfortable touch is the intended outcome of this heating process.

• To proceed with separating the adhesive, re-position your opening tool at the lower edge of the iPhone and advance it upwards along the right side.
• Ensure the opening tool does not penetrate deeper than 3 mmto prevent potential damage to the charging coil cable.

Apply warmth to the upper portion of the iPhone's casing, ensuring the back glass reaches a temperature just beyond comfortable touch.The rear glass should become noticeably warm, indicating sufficient heat application to the top edge of the device.Target a temperature for the rear glass that is slightly uncomfortable to the touch by carefully heating the top edge of the iPhone.

Position a prying tool beneath the uppermost right corner of the device's casing.Carefully move the tool along the top-right contour, extending it approximately halfway along the upper edge.This action initiates separation of the enclosure.

• Position a specialized opening tool beneath the uppermost left corner of the device's casing.
• Maneuver the tool along the top-left contour and across the upper portion of the phone's body.Limit insertion depth to a maximum of 3 millimeters to prevent potential harm or distortion of the camera module.Refrain from completely disjoining the rear glass panel at this stage, because a delicate flexible connector remains linked to the iPhone's main circuit board.
• This ribbon cable requires careful handling to avoid damage during the separation process.

• Detach the suction handle from the rear glass assembly.
• Carefully separate the iPhone's rear glass by pivoting it upwards from the left edge, mimicking the action of opening a book's cover.
• Exercise caution to prevent damage to the brief charging coil flex cable.
• Secure the rear glass in a propped position during the repair process; alternatively, the suction handle can serve this purpose if a dedicated support is unavailable.

• Employ a Y000 screwdriver to detach the two screws, each measuring 1.3 mm in length, which fasten the battery connector cover.Meticulously document the location of each screw during disassembly to ensure proper reinstallation and prevent potential damage to the iPhone.To prevent component damage, it is crucial to return each fastener to its original position within the device.
• Prior to permanently reattaching the display, it is advisable to activate the iPhone and verify all operational features.
• Completely de-energize the iPhone by powering it off before proceeding with the subsequent repair steps.

• Utilizing tweezers, secure the battery connector cover and advance it vertically, in the direction of the 'A15' marking, to release the upper retaining latch.
• Detach the battery connector cover from the device.

• Employ the tapered end of a spudger to detach the battery connector, lifting it vertically from its receptacle.Exercise caution to avoid harming the black silicone sealant located around this and other board interfaces, as it safeguards against water and dust penetration.To inhibit unintended electrical contact and power delivery to the device during the repair process, slightly angle the connector away from the main circuit board.
• The battery cable's connector must be separated using a focused upward force to ensure a clean disconnection.
• Maintaining the integrity of the silicone seals is critical for preserving the device's environmental protection capabilities.

• Employ a Y000 screwdriver for the removal process.The specified screw, measuring 1.0 mm in length, requires a Y000 screwdriver for its extraction.A single screw, with a length of 1.0 mm, is fastened using a Y000 screwdriver.To detach the charging coil connector cover, utilize a Y000 screwdriver to unscrew the securing fastener.The charging coil connector cover is held in place by a 1.0 mm screw, necessitating a Y000 screwdriver for removal.

• Employing tweezers, detach the protective cover that secures the charging coil connector.

• Employ the tapered tip of a spudger to release the charging coil cable's connector, lifting it vertically away from its receptacle.Carefully separate the charging coil cable connector from its socket utilizing the pointed end of a spudger, ensuring a straight upward motion.To detach the charging coil cable, apply the pointed spudger tip and elevate the connector directly out of its socket.

• Detach the rear glass component.
• Following a thorough cleaning of the affected surfaces utilizing isopropyl alcohol with a concentration exceeding 90%, apply fresh adhesive as required.
• Should you elect to substitute the rear glass adhesives during the reassembly process, briefly halt at this stage.

• Employ a Phillips screwdriver for the disassembly process.Three fasteners, each measuring 2.1 millimeters in length, are utilized.These screws are responsible for maintaining the Taptic Engine's attachment.Removal of these fasteners is necessary to proceed with the Taptic Engine's separation.Ensure the Phillips screwdriver is properly engaged with the screw heads to prevent damage.

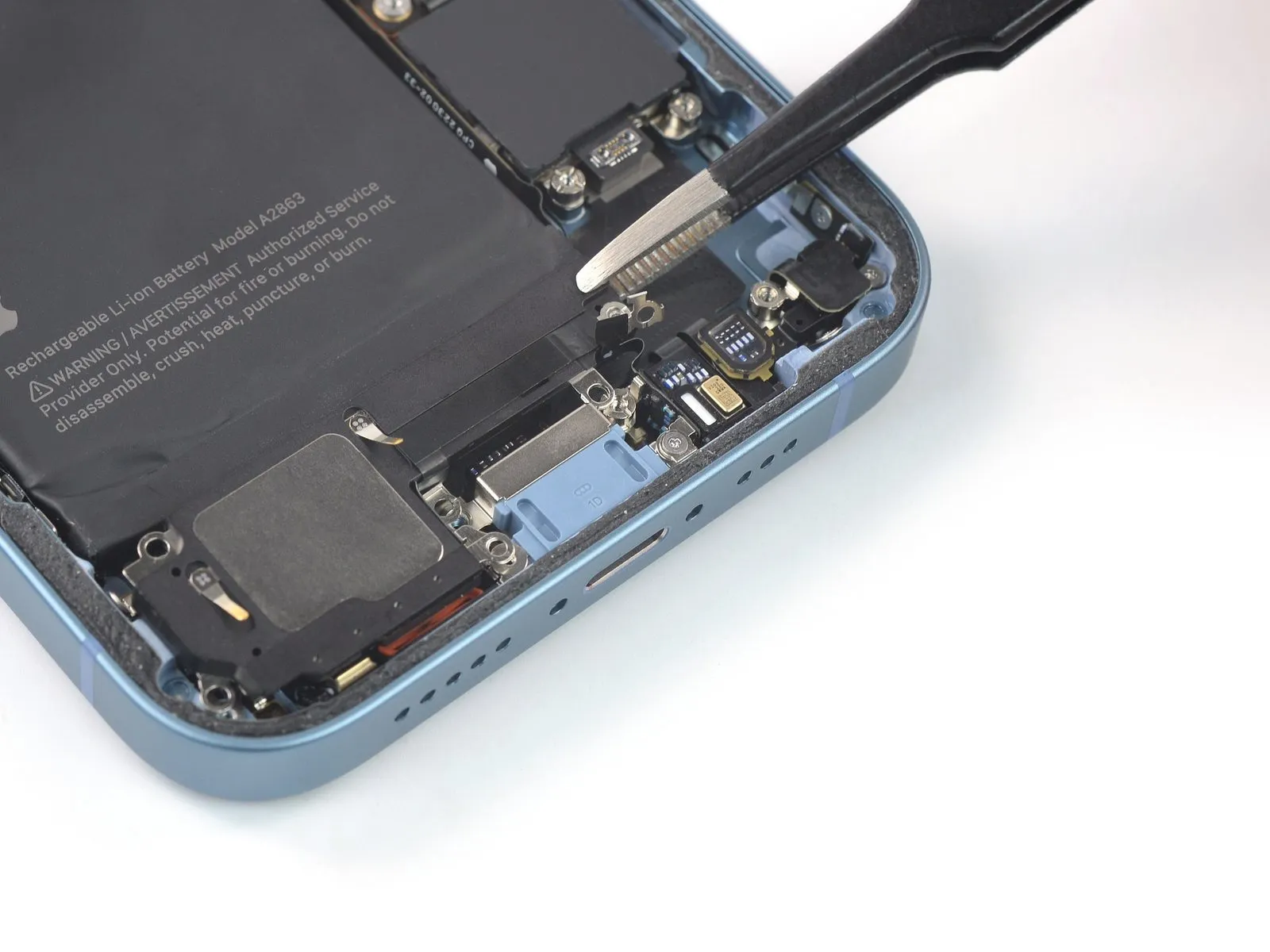

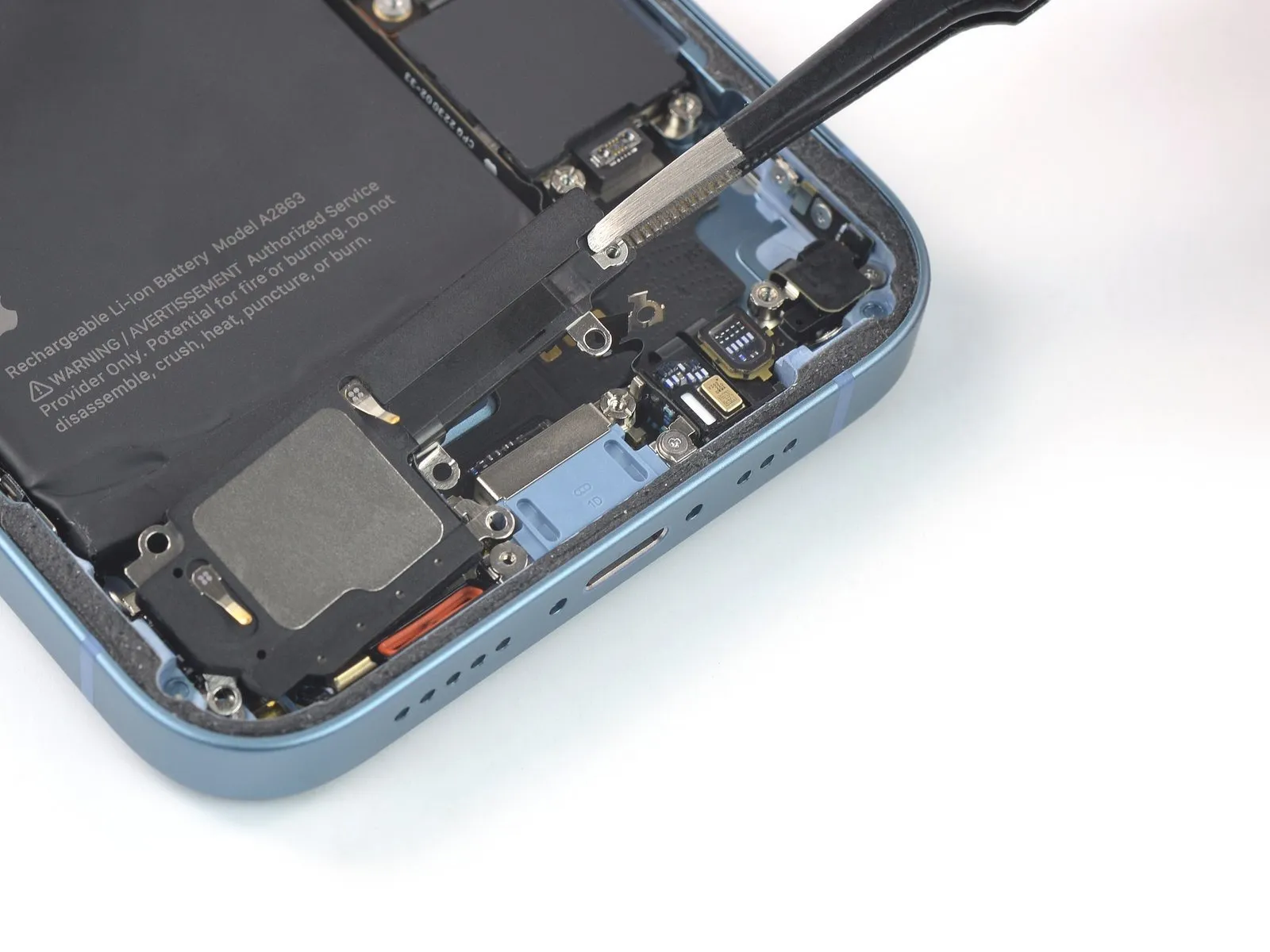

• Employing tweezers, detach the bracket securing the Taptic Engine connector.

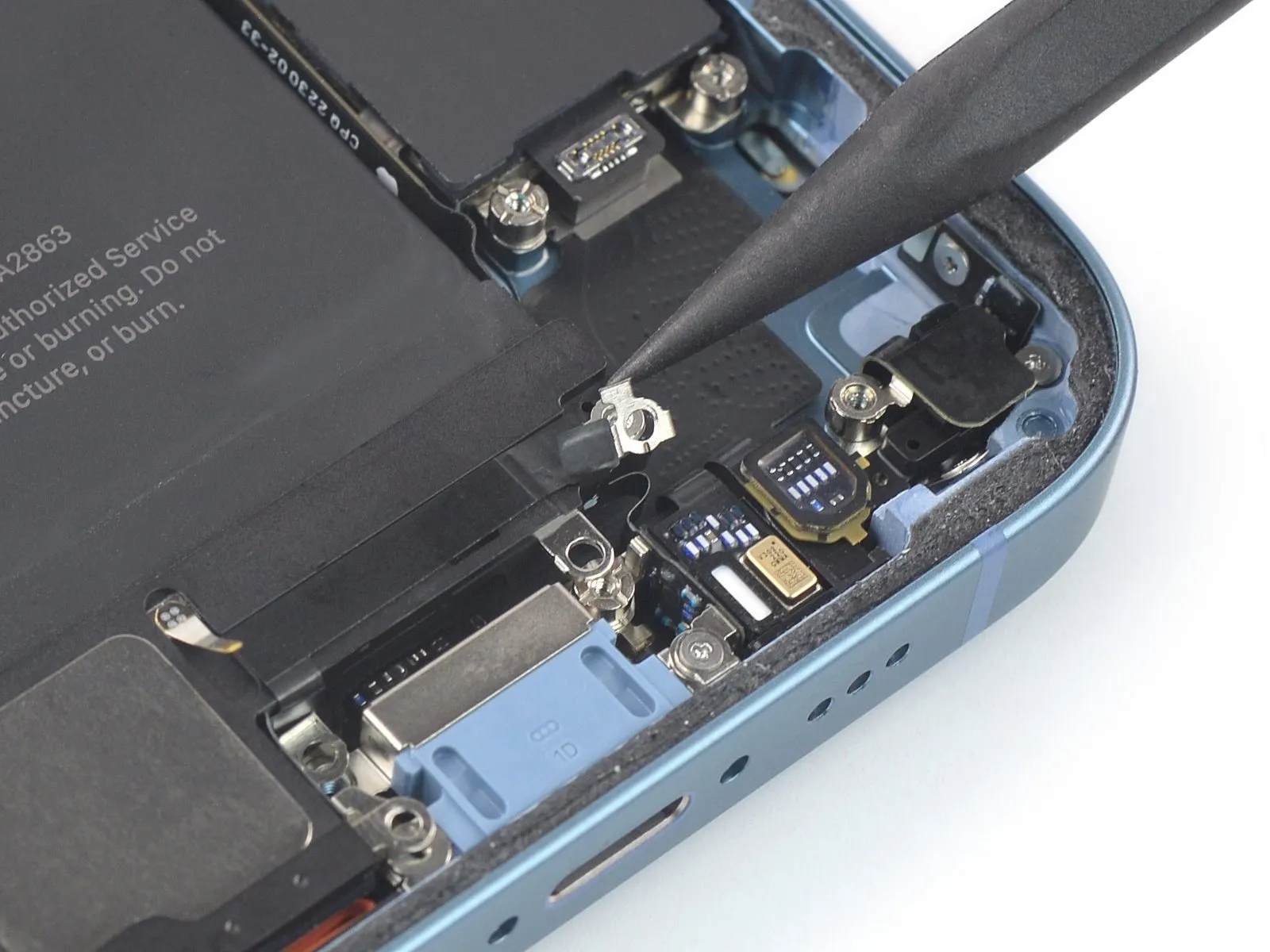

• To detach the Taptic Engine, employ the tapered end of a spudger and lift the connector vertically away from its receptacle.

Employing tweezers or fingertips, carefully extract the Taptic Engine.The Taptic Engine can be dislodged using either a precision tool or manual dexterity.To facilitate removal, utilize tweezers or your fingers with caution.Gentle manipulation with tweezers or fingertips is required for Taptic Engine extraction.

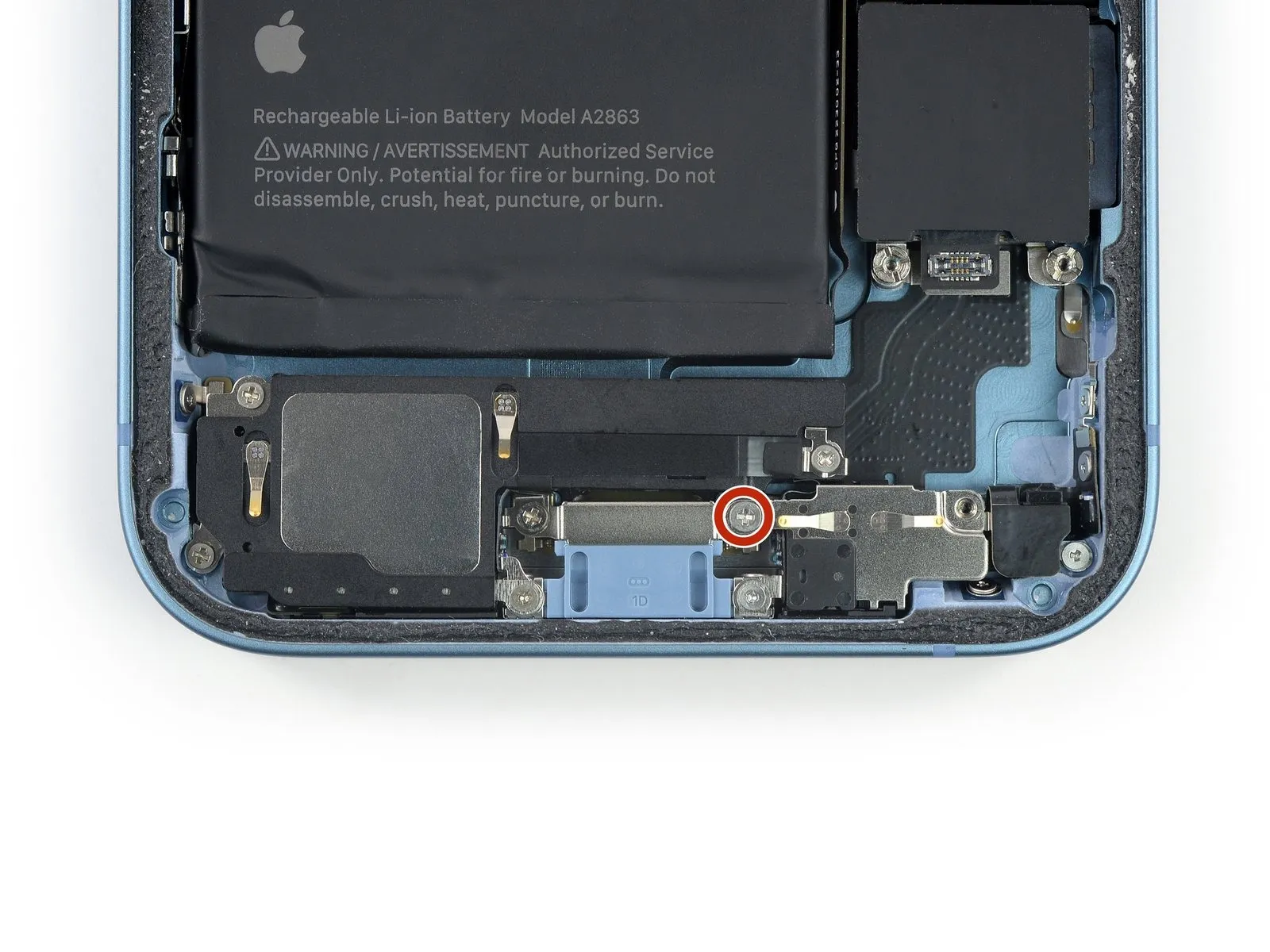

Utilize a Phillips screwdriver for disassembly.A 1.5 mm screw is used for retention.The metal bracket affixed to the charging port's right side requires this fastener.Removal of the screw will release the bracket's hold.

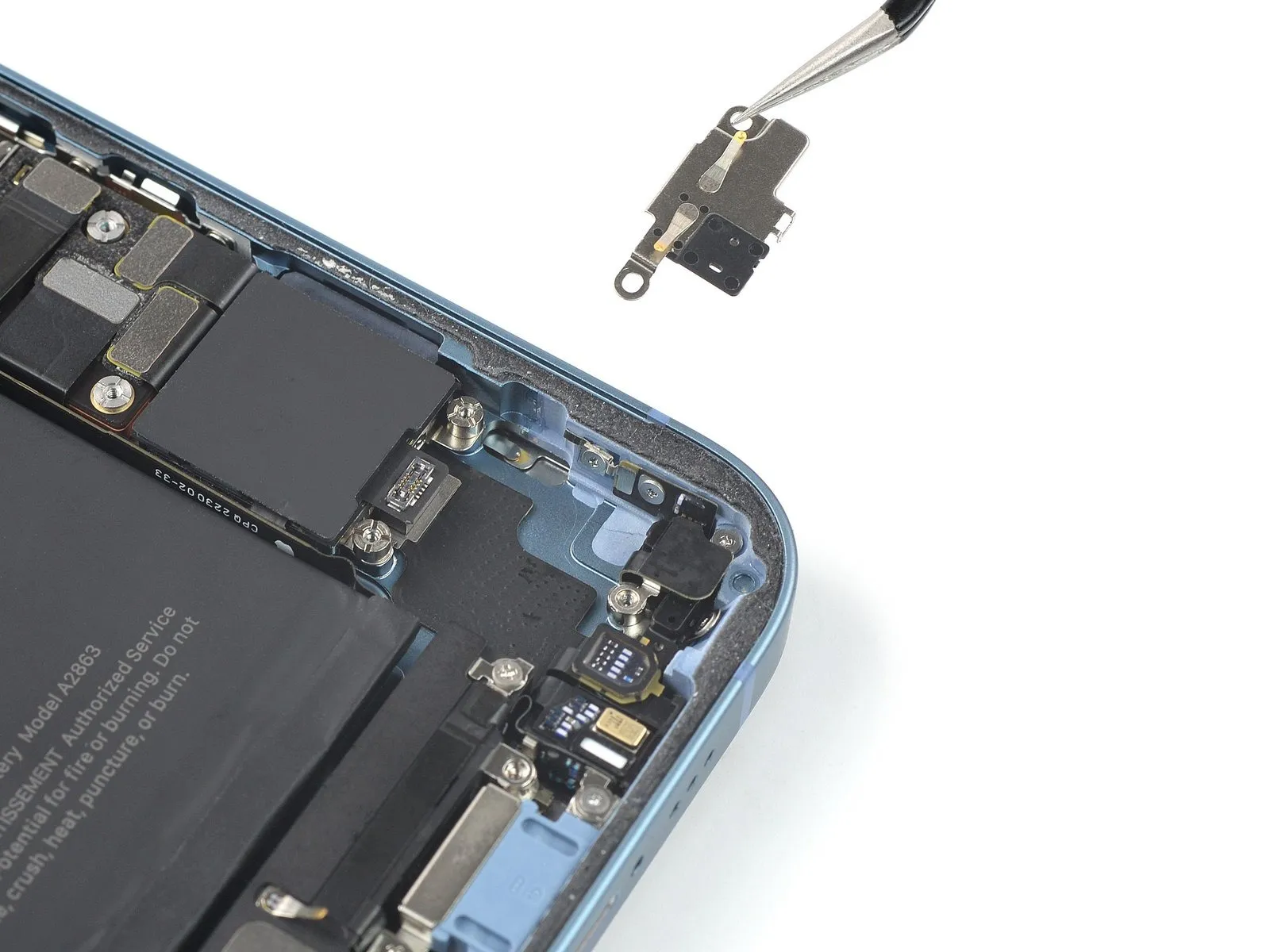

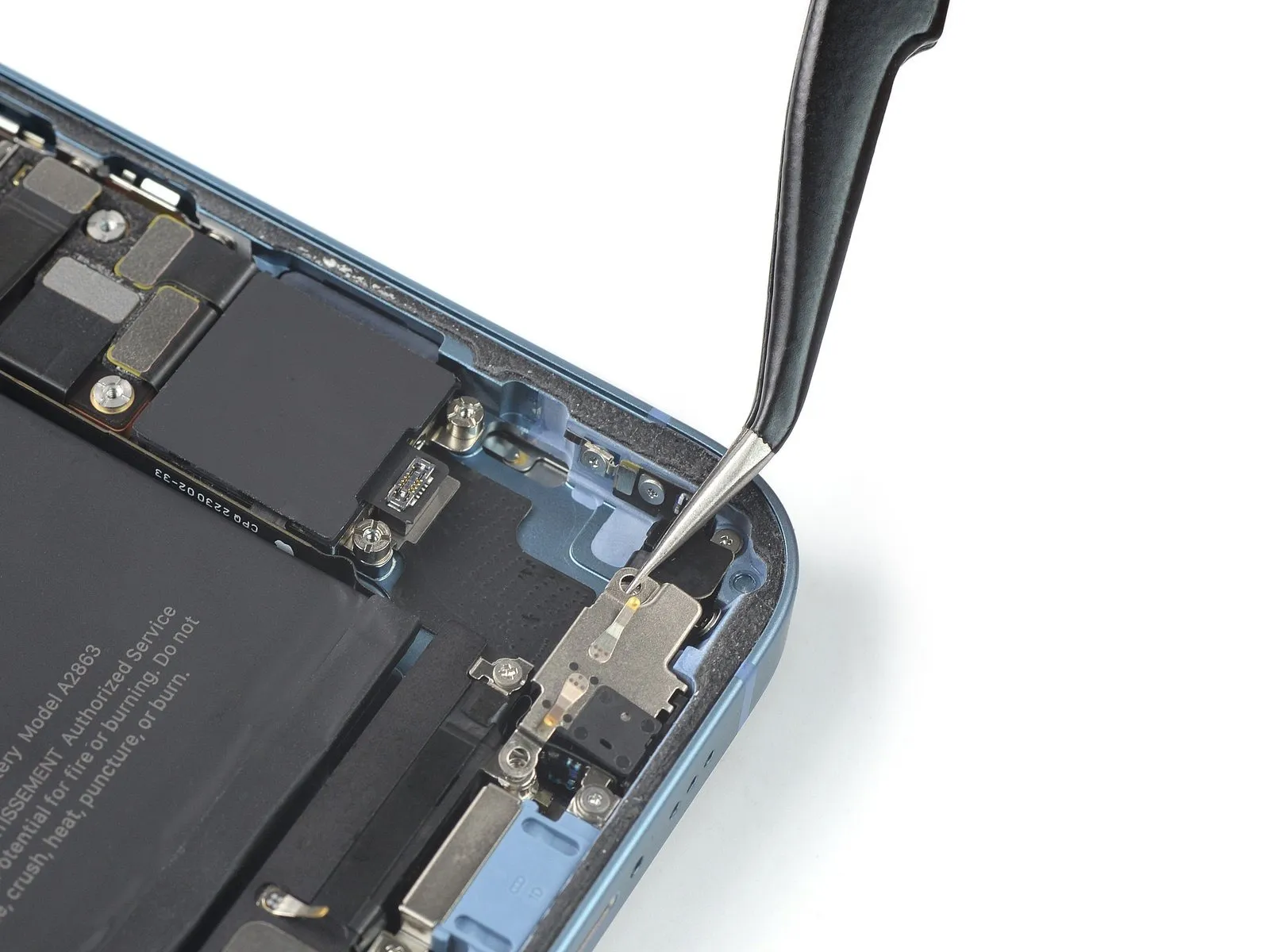

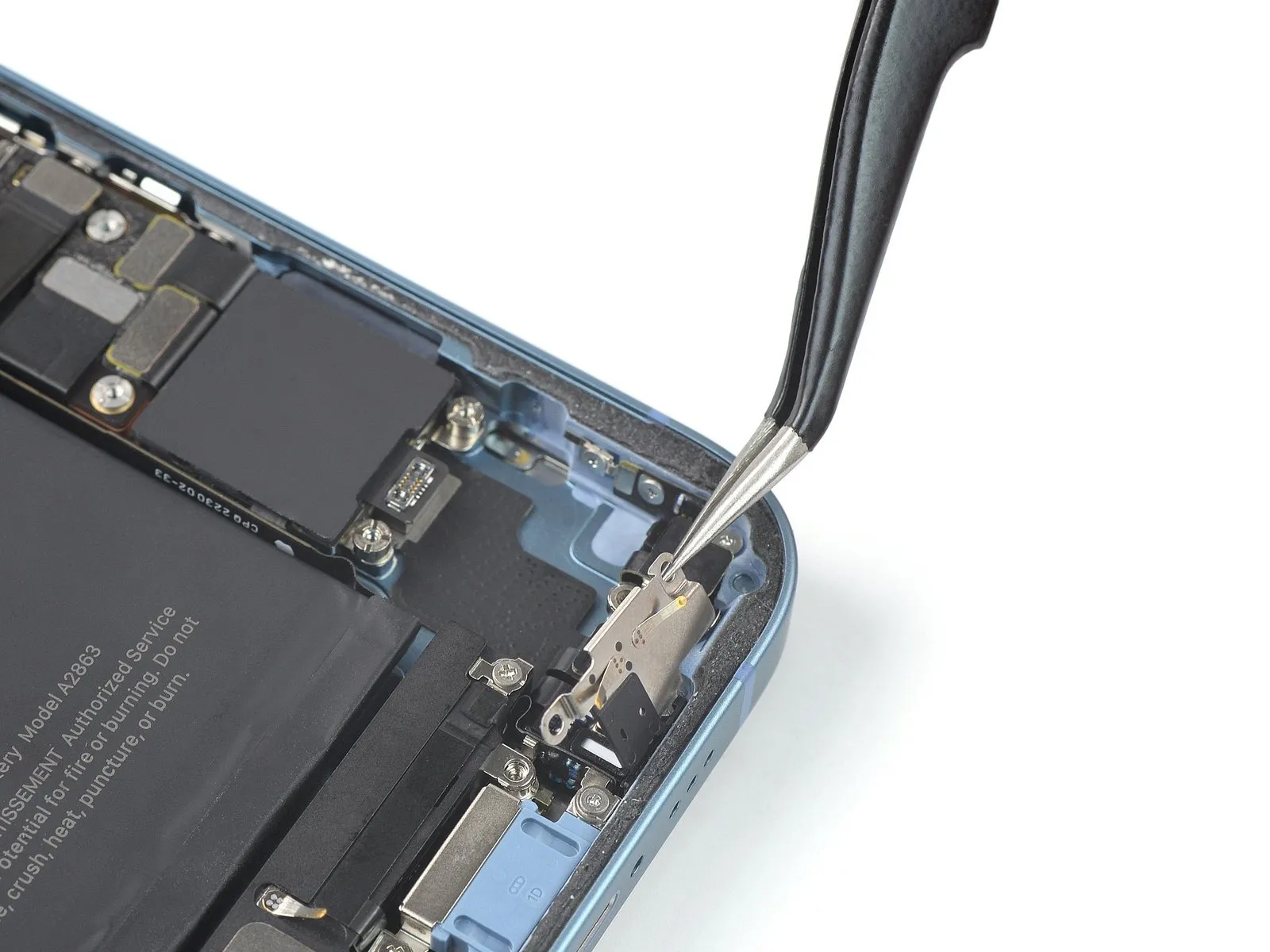

• Employing tweezers, manipulate the metal bracket to achieve an upright fold, thereby disengaging it from the plastic hook.Ensure proper alignment of the bracket with the plastic hook during the reassembly process.
• The metal bracket should be detached.
• Careful manipulation using tweezers is required to fold the metal bracket vertically, releasing it from the plastic hook's securing feature.

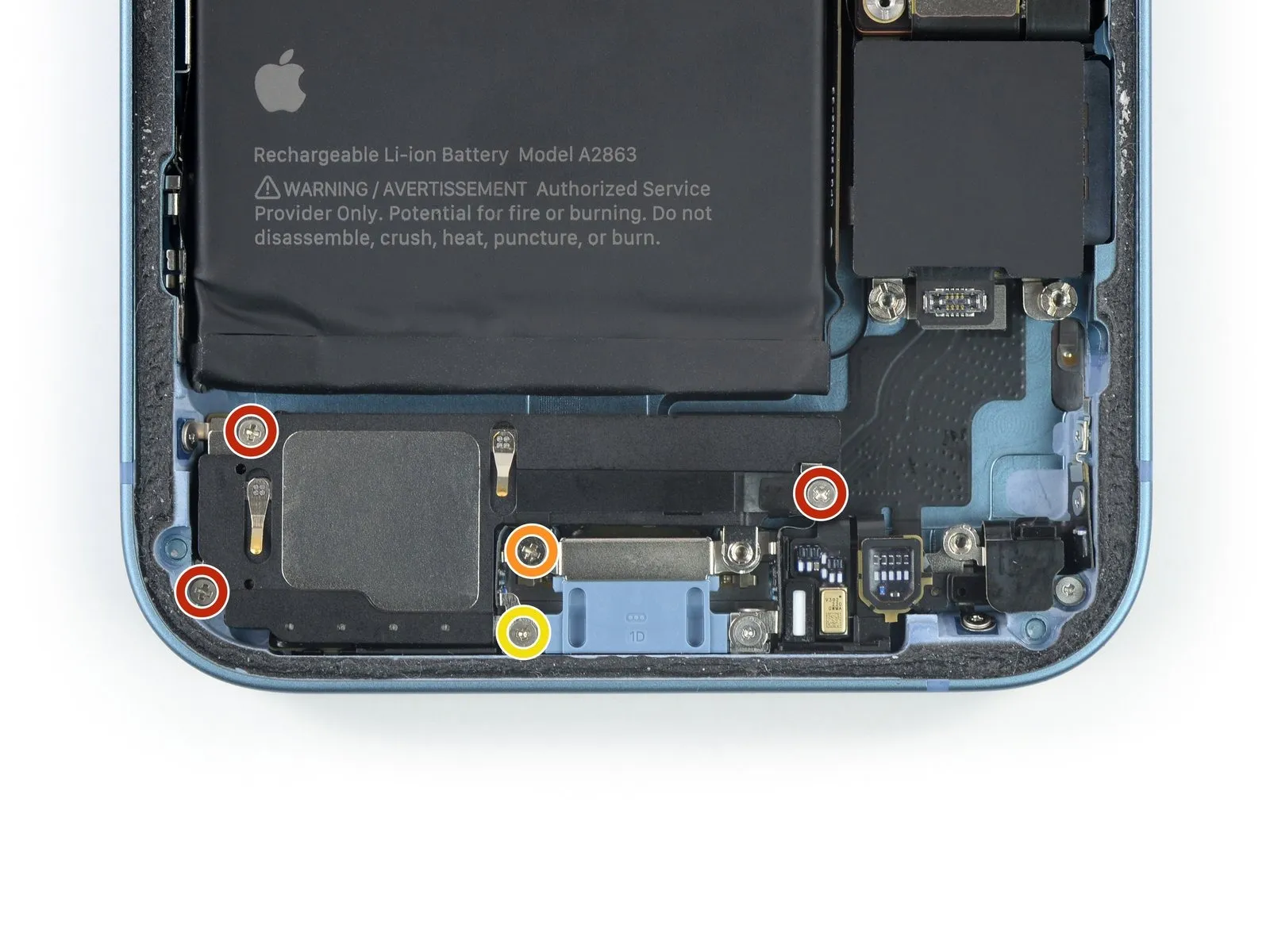

A screwdriver is necessary for detaching the five screws that hold the loudspeaker in place.Five screws, specifically three measuring 1.4 millimeters in length and utilizing a Phillips head, must be removed.

• Additionally, a single Phillips screw with a length of 1.6 millimeters is present and requires removal.A final screw, 1.2 millimeters long and employing a Y000 head, also needs to be detached.
• The loudspeaker is fastened by a combination of Phillips and Y000 head screws.Carefully unscrew the fasteners to avoid damaging the surrounding components.
• Ensure the correct screwdriver type is selected to prevent stripping the screw heads.The screw lengths are critical for proper identification and removal; note the 1.4 mm, 1.6 mm, and 1.2 mm dimensions.

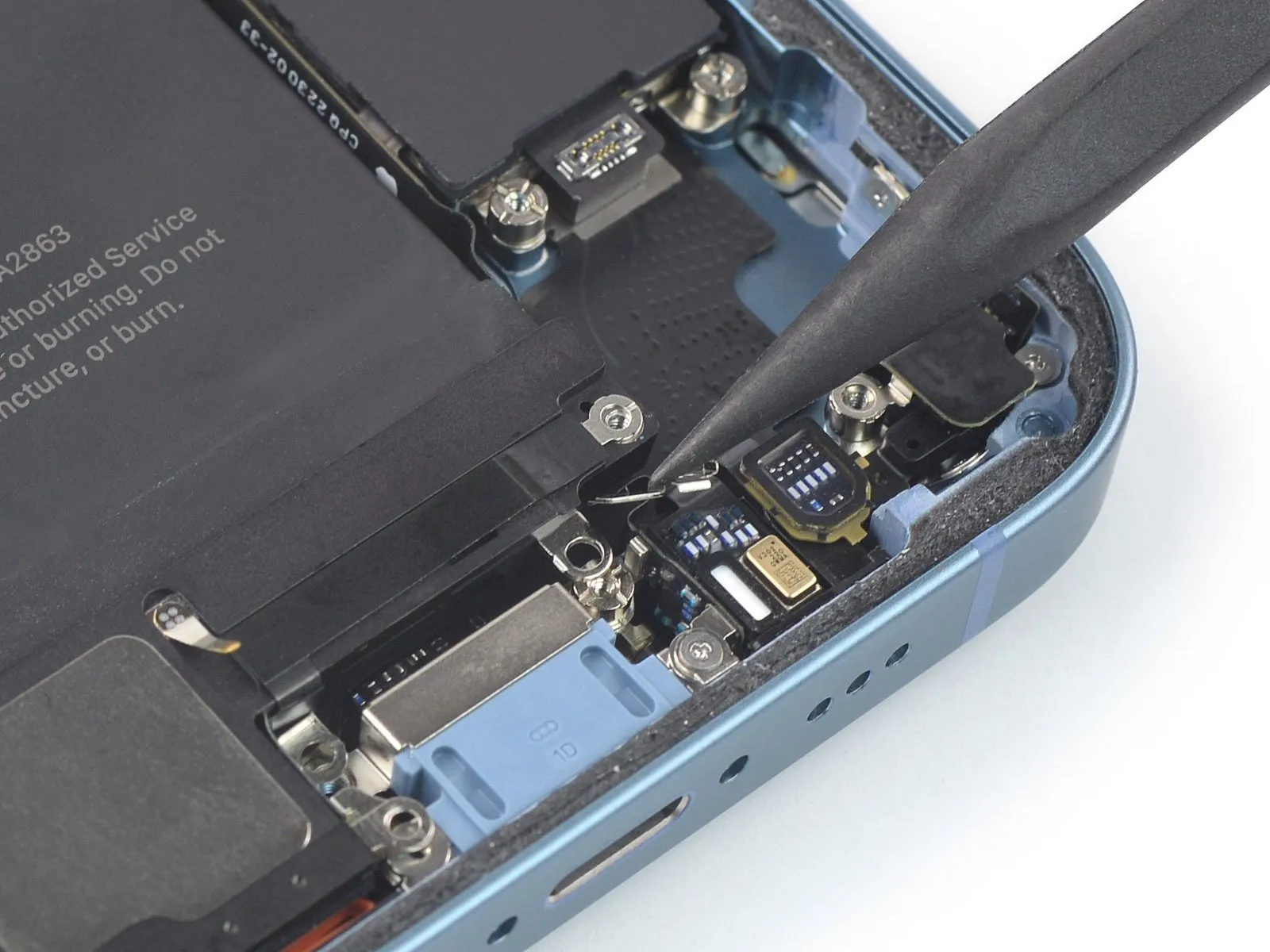

Employ the tapered tip of a spudger to gently lift and redirect the grounding wire situated on the loudspeaker's right side.Carefully maneuver the grounding cable away from its original position using the pointed spudger tip, ensuring a controlled fold.To avoid damage, precisely fold the grounding cable towards the side with the spudger's pointed end.

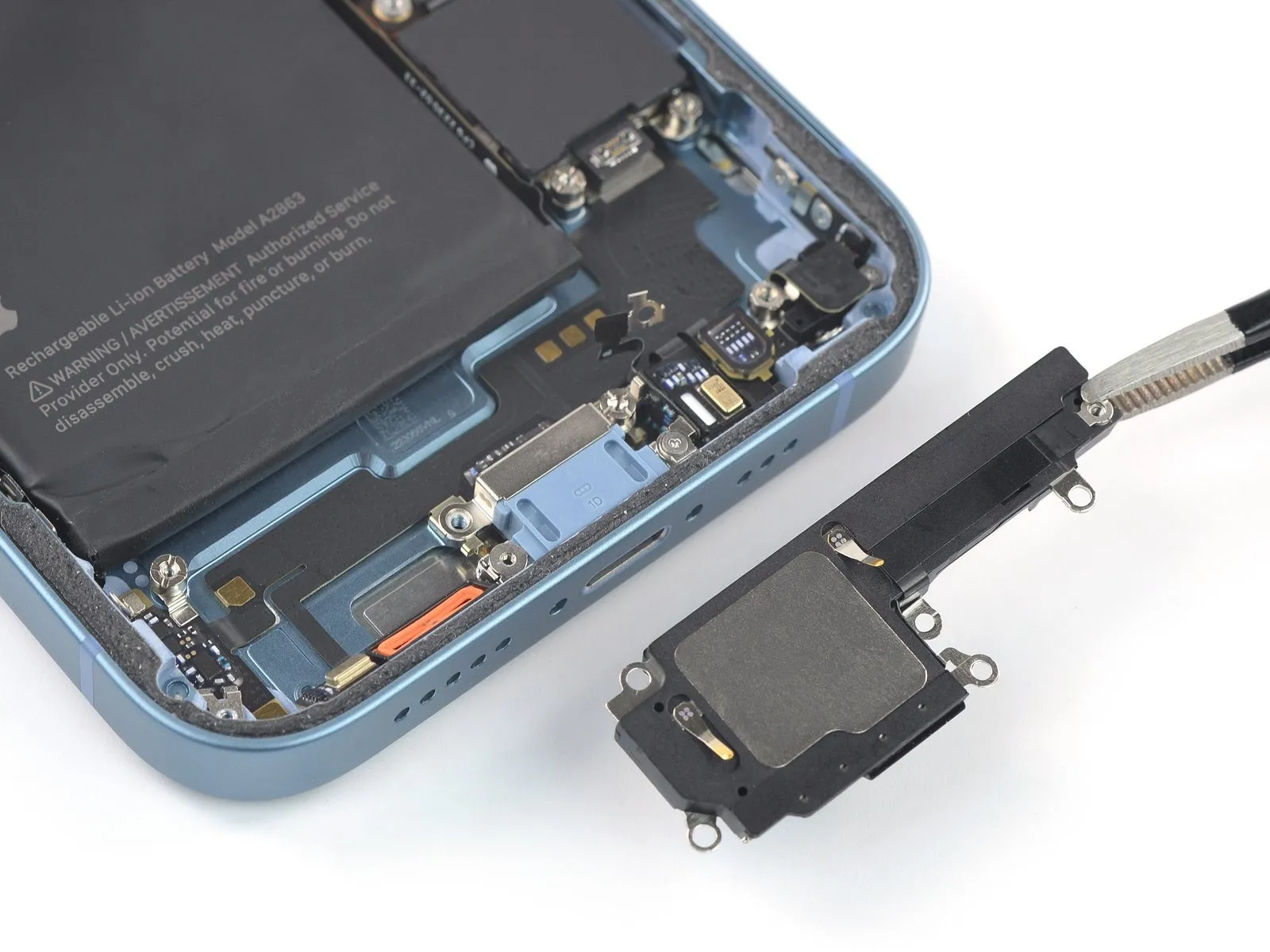

Detach the loudspeaker component.Disconnection of the loudspeaker is required.
