iPhone 11 Pro Max Audio Control Cable Replacement

Malfunctions in the volume buttons or silent switch can often be resolved by substituting the Audio Control Cable. Because this cable also facilitates the connection between the wireless charging coil and the Lightning port assembly, a compromised cable can similarly lead to problems with wireless charging functionality.

The following instructions detail the procedure for replacing this cable. Be aware that it is available for purchase either with or without the charging coil already integrated. This guide is intended for individuals possessing basic soldering skills. If you lack this ability, it is recommended to acquire a unit pre-soldered to the charging coil and the repair process will be simplified.

The primary distinction lies in the additional step of removing the charging coil, a process that requires detaching the motherboard.

Step 1 | Remove the pentalobe screws

Step 1 image
Thumbnail 1
Thumbnail 2
  • As a preliminary precaution, ensure your iPhone's battery has been depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire hazard and/or risk of explosion if it sustains accidental physical damage, such as a puncture.
  • Deactivate your iPhone by powering it down completely before starting the disassembly procedure.

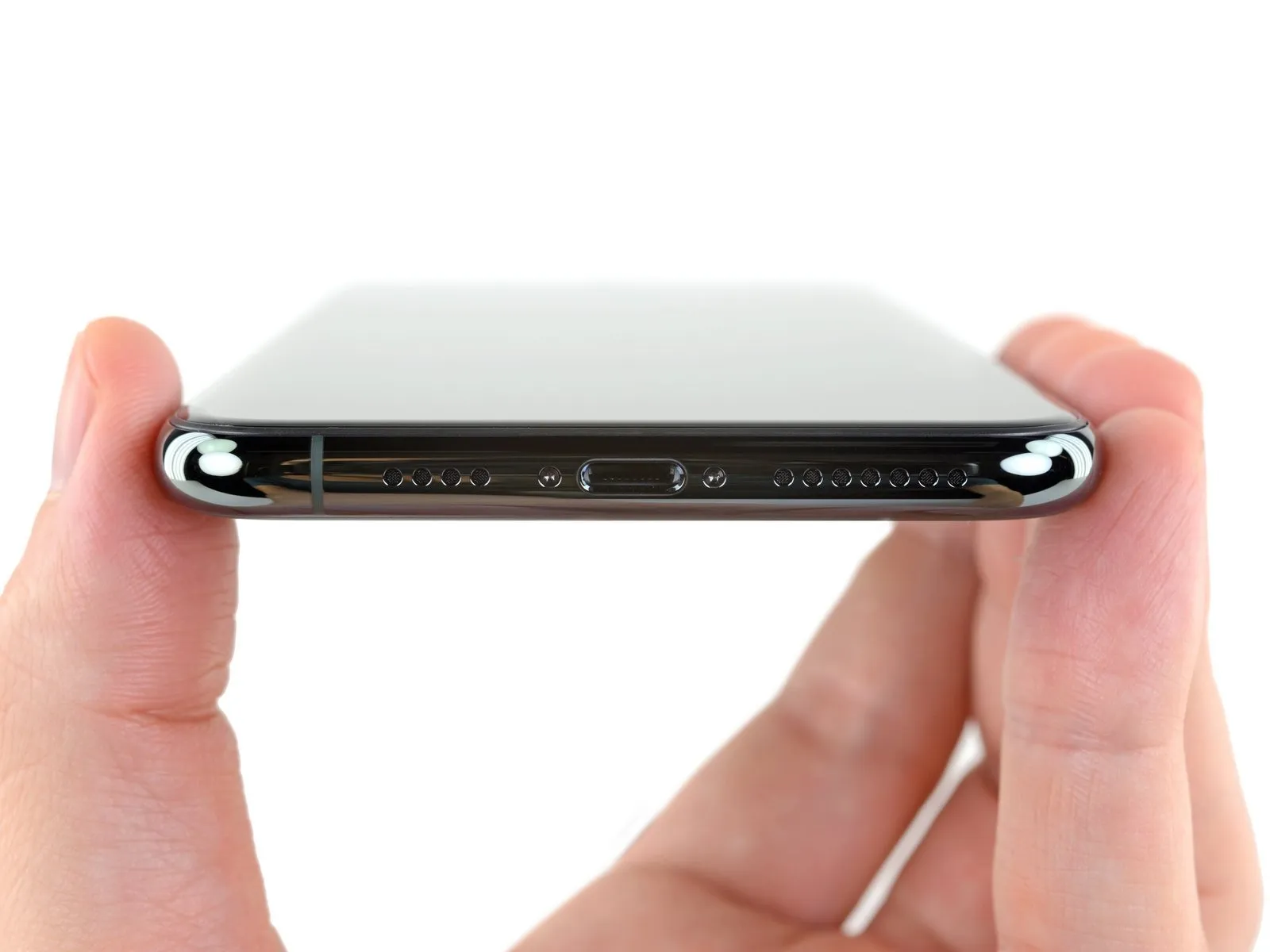

  • Utilize a screwdriver to extract the pair of pentalobe screws, each measuring 6.7 mm in length, located along the iPhone's lower edge.
  • Separating the iPhone's display assembly will irreversibly damage the integrated waterproof seals; therefore, obtain replacement seals beforehand to continue beyond this point, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the iPhone without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick does not extend beyond its intended insertion depth; this procedure details how to identify the safe insertion point by marking the pick.
  • Determine the distance of3 mmfrom the pick's leading edge and use a permanent marker to create a visible indicator on the opening pick.
  • For enhanced precision, consider applying distinct markings at various points along the pick's edges, each representing a different measurement.
  • As an alternative method, affix a coin to the pick's shaft,3 mmaway from its tip.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
  • Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
  • Always utilize eye protection, specifically safety glasses, to guard against glass fragments that may become dislodged during the repair process.
  • Should the suction cup fail to maintain adhesion during subsequent steps, construct a handle from a robust tape, like duct tape, and employ it to carefully separate the screen.
  • As a last resort, secure the suction cup to the screen's surface using superglue.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the opening process; if this tool is not available, proceed to the alternative method located three steps further down.
  • Detailed instructions regarding the Anti-Clamp's operation are available in a separate, dedicated guide.
  • Grasp theblue handleand move it in a rearward direction to disengage the Anti-Clamp's arms.
  • Carefully position the arms across either the left or right side of your iPhone.
  • Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
  • Apply pressure by compressing the cups together to establish a secure suction on the intended area.
  • Should the iPhone's surface prove excessively slick, preventing the Anti-Clamp from maintaining a firm hold, applying adhesive tape can provide a more textured surface for improved grip.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To engage the locking mechanism, draw theblue-colored leverin a forward direction. This secures the arm assemblies.
  • Rotate thecontrol knobthrough a complete rotation of 360 degrees, or until the vacuum cups exhibit signs of deformation.
  • Confirm that the vacuum cups maintain their parallel positioning relative to one another; should they deviate from this alignment, a minor adjustment of the suction cups is necessary to restore proper arm positioning.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Proceed to step 6.
  • Apply heat to aniOpenerand guide it through the arms of the Anti-Clamp; alternatively, a hair dryer, heat gun, or hot plate can be utilized, however, exercise caution as excessive heat poses a risk of damaging the display and/or internal battery.
  • Position theiOpenerto rest along the lower edge of the iPhone’s frame.
  • Allow a period of sixty seconds to pass, enabling the adhesive to soften and create a separation.
  • Carefully slide an opening pick into the created space beneath the screen and the plastic bezel, ensuring it does not contact the display surface directly.
  • Should the Anti-Clamp not generate a large enough separation, increase the heat applied to the area and rotate the handle by ninety degrees.
  • Avoid rotating the handle more than ninety degrees at once, and allow sixty seconds between rotations; rely on the Anti-Clamp and time to facilitate the separation.
  • Omit the subsequent three steps.

Step 7 | Heat the lower edge of the phone

Step 7 image
Procedure 7:
  • Applying warmth to the iPhone's bottom edge facilitates separation by reducing the adhesive's hold on the display assembly.
  • Employing a hairdryer, heat gun, or utilizing aniOpeneris recommended; apply heat to the lower edge for approximately one minute to reduce the adhesive's viscosity.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2
Proceed to step 8:

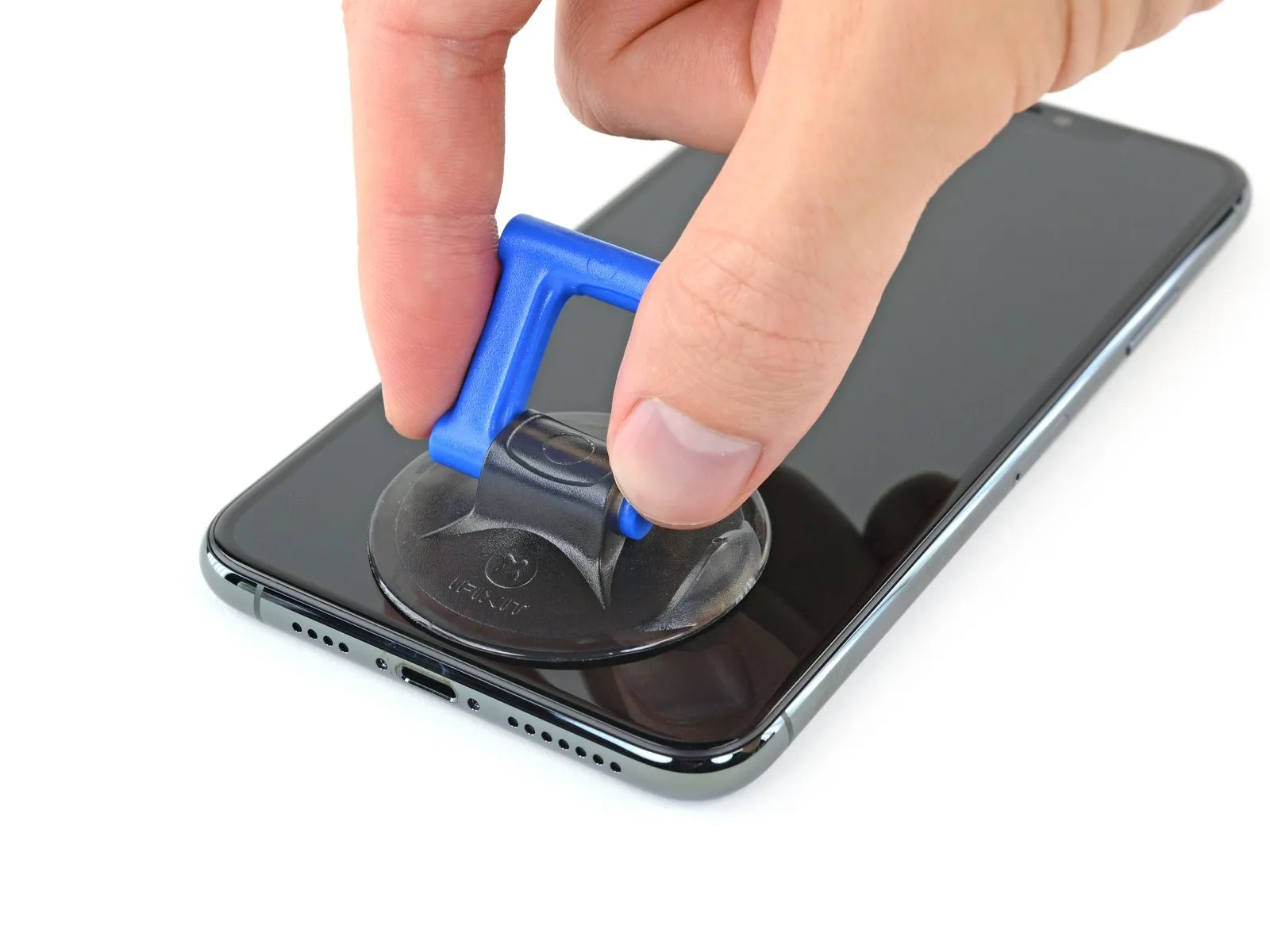

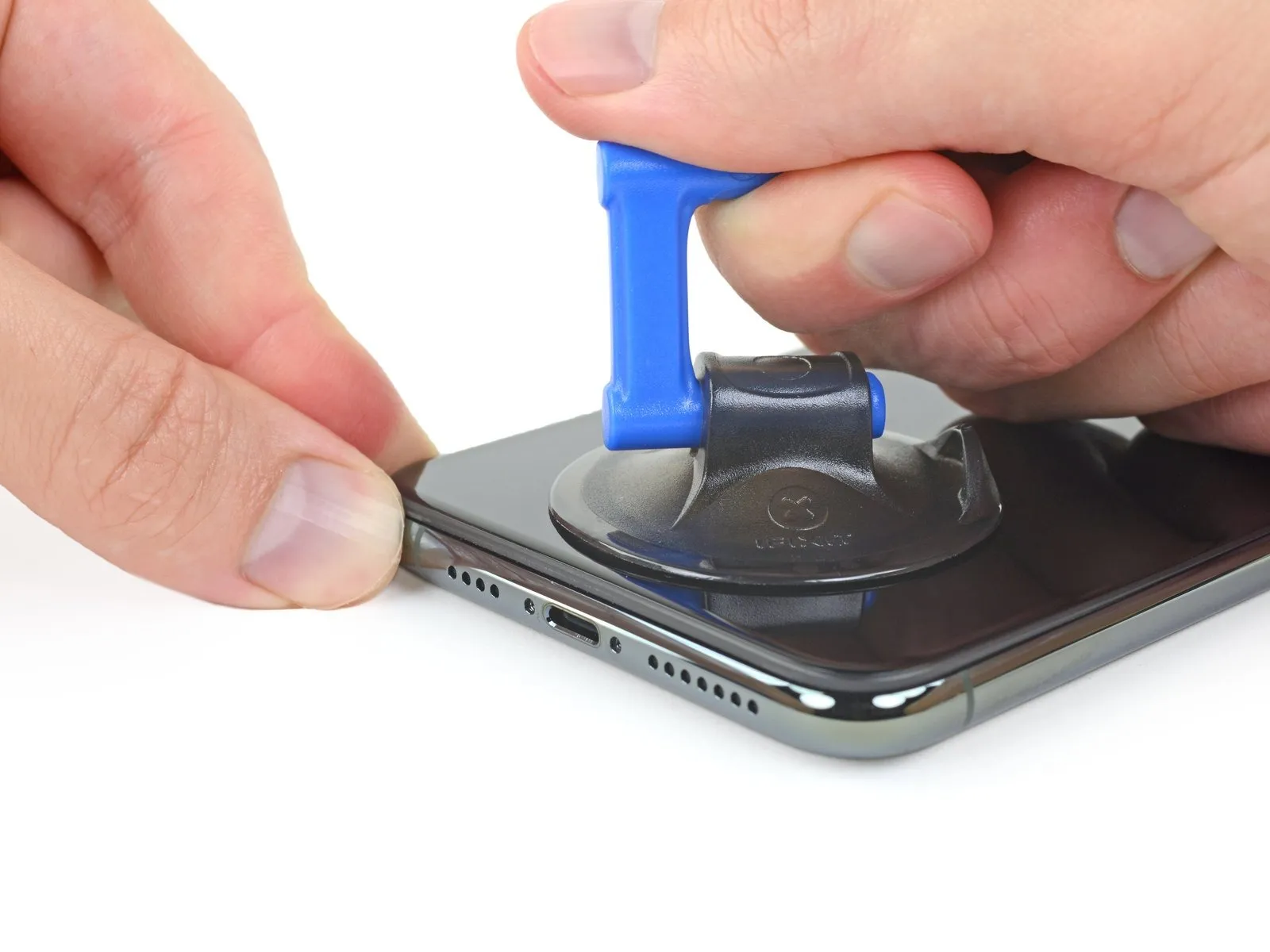

  • When employing a solitary suction handle, position it against the lower boundary of the device, ensuring you circumvent the rounded section of the glass surface.

Step 9 | Lift the display slightly

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure Step 9:

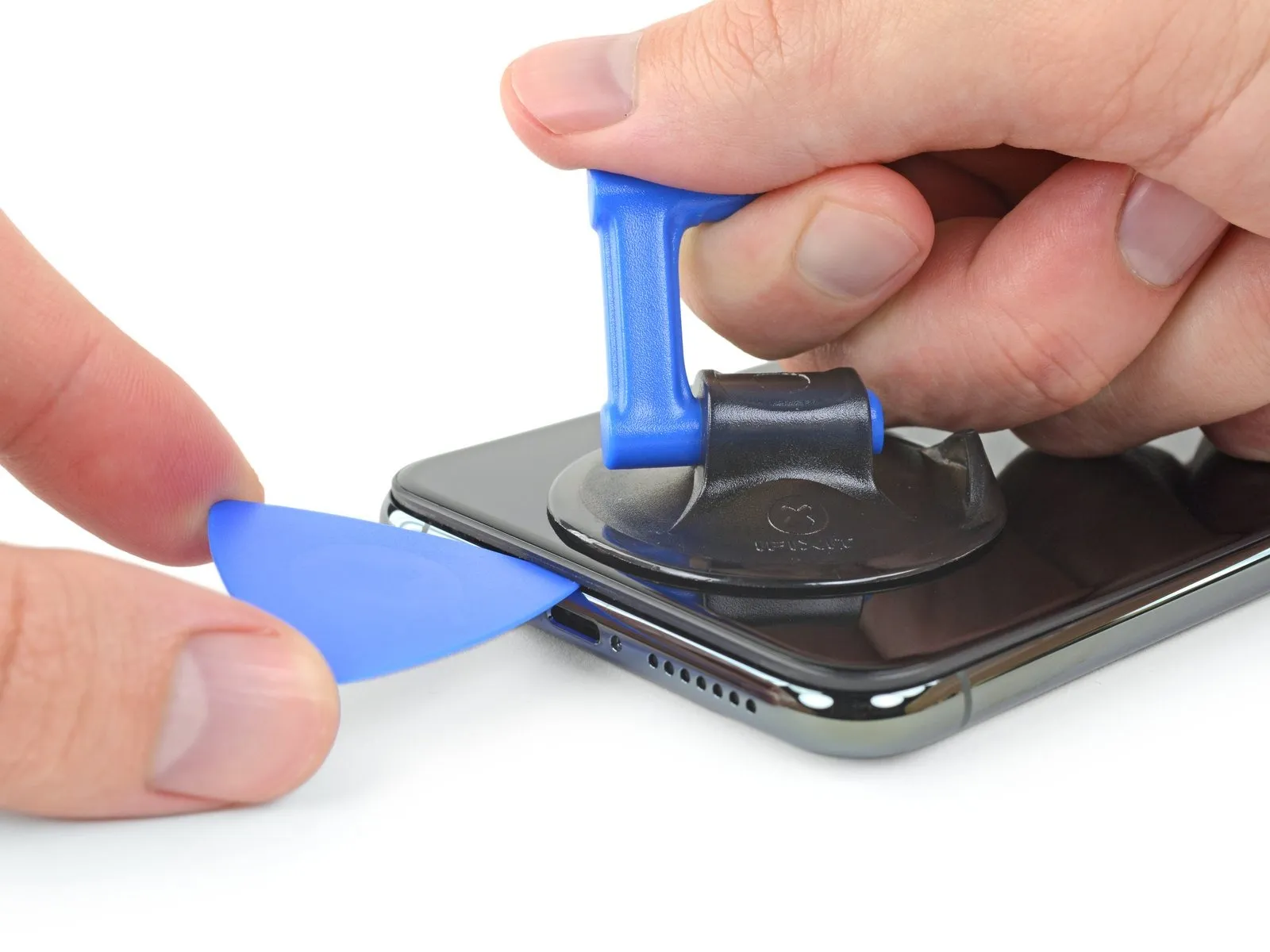

  • Maintain steady, consistent upward force on the suction cup to generate a small separation between the front panel assembly and the rear casing.
  • Introduce an opening tool into the newly formed separation.
  • The display is secured with a robust, waterproof adhesive; establishing this initial separation requires considerable force. Should you encounter difficulty in creating this gap, apply additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient separation is achieved for tool insertion.

Step 10 | Separate the screen adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 10:
  • Employ the opening pick, maneuvering it along the lower-left periphery of the device and upward along the left side, to sever the adhesive securing the display assembly.
  • Exercise caution to prevent the pick from penetrating beyond a depth of 3 millimeters, to mitigate the risk of harm to delicate internal components.

Step 11 | Screen information

Step 11 image
Phase 11:

A fragile wire runs along the right side of your iPhone; avoid inserting your tool in this area to prevent potential cable damage.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 12:
  • Position your opening tool at the lower boundary of the iPhone's display and advance it upwards along the right-hand side to further release the adhesive bond.
  • Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the delicate display cable connections.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

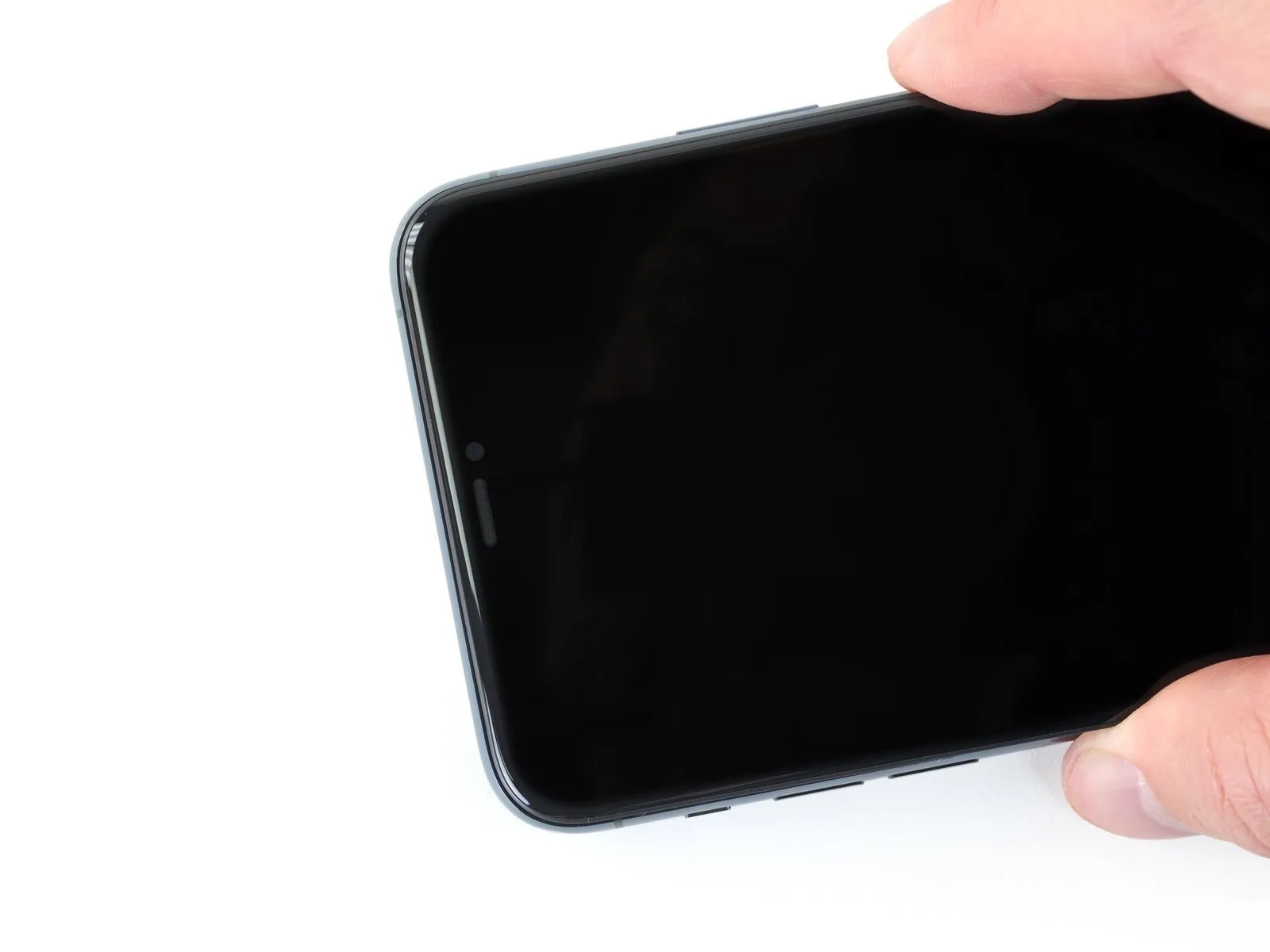

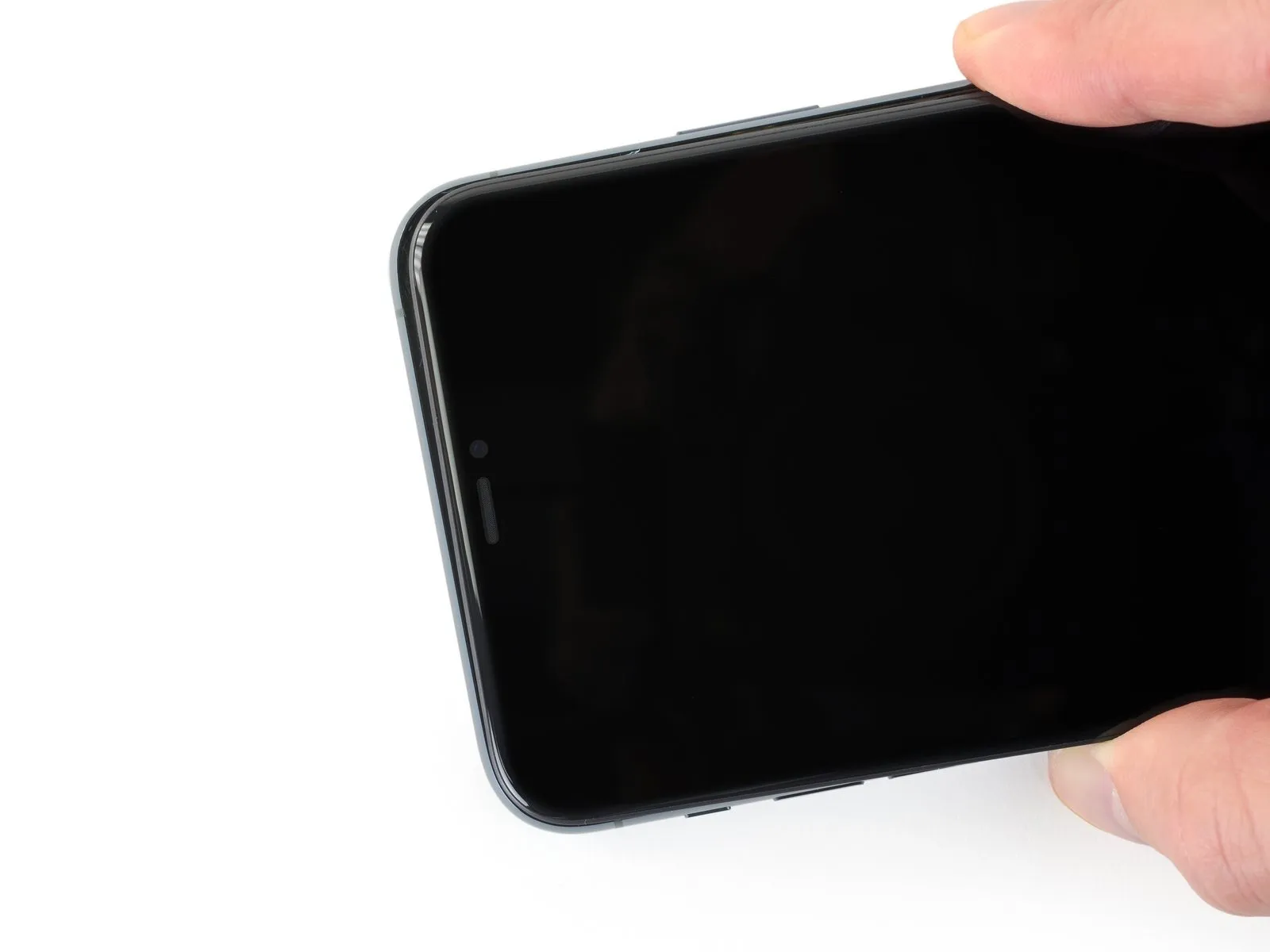

  • Adhesive and retaining clips both hold the display's upper boundary in place.
    Carefully exert a slight downward force on the display's right side, moving it toward the Lightning connector.

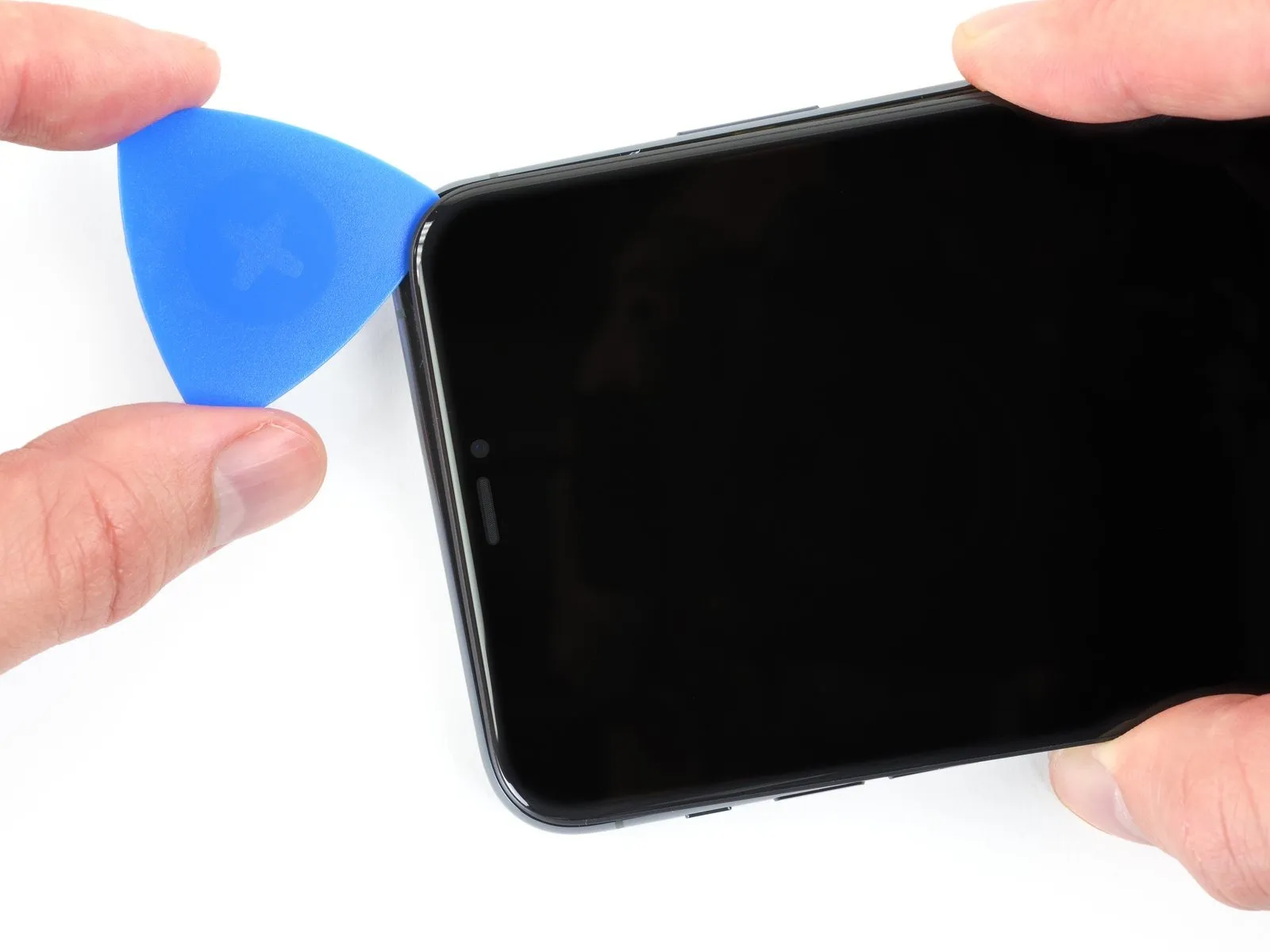

  • Position a specialized opening tool into the upper-rightmost section of the device's casing.

Step 14

Step 14 image
Thumbnail 1
Thumbnail 2
  • As necessary, maintain downward traction on the display assembly, directing it towards the Lightning connector, to create a sufficient separation for tool insertion.
    Employ the pick to move along the upper left edge, severing any residual adhesive that is holding the display in place.
    Exercise caution to prevent the pick from penetrating beyond a depth of 3 millimeters, as doing so carries a risk of impairing the functionality of the front panel sensor array.

Step 15 | Remove the suction cup

Step 15 image
  • To detach the suction cup from the front panel, grasp and exert force on the small protrusion located on its surface.

Step 16 | Open the iPhone

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards from the left side, mimicking the action of opening a book's cover.
    Refrain from completely detaching the display at this stage, because several delicate ribbon cables remain connected to the iPhone's main circuit board.
    Secure the display in an upright position using a support to prevent it from obstructing your work on the device.
    When reassembling the iPhone, position the display, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge to secure it before engaging the remaining clips around the perimeter; if resistance is encountered, inspect the clips for any deformation that might impede proper closure.

Step 17 | Unscrew the battery connector cover

Step 17 image
Thumbnail 1
Thumbnail 2
  1. Detach the two Y000 screws, each measuring 1.3 mm in length, which hold the battery cover bracket in position.To prevent potential damage to your iPhone, meticulously organize and document the location of each screw during this repair, ensuring they are reinstalled in their original positions.As part of the reassembly process, it is advisable to activate your iPhone at this stage to verify the proper operation of all features; however, ensure a complete power-down before proceeding further.
    Prior to permanently securing the display, confirm full functionality by powering on the device.
    Before continuing with the repair, completely deactivate your iPhone.

Step 18 | Remove the battery connector cover

Step 18 image
  • Detach the bracket from its affixed location.

Step 19 | Disconnect the battery

Step 19 image
Thumbnail 1
Thumbnail 2

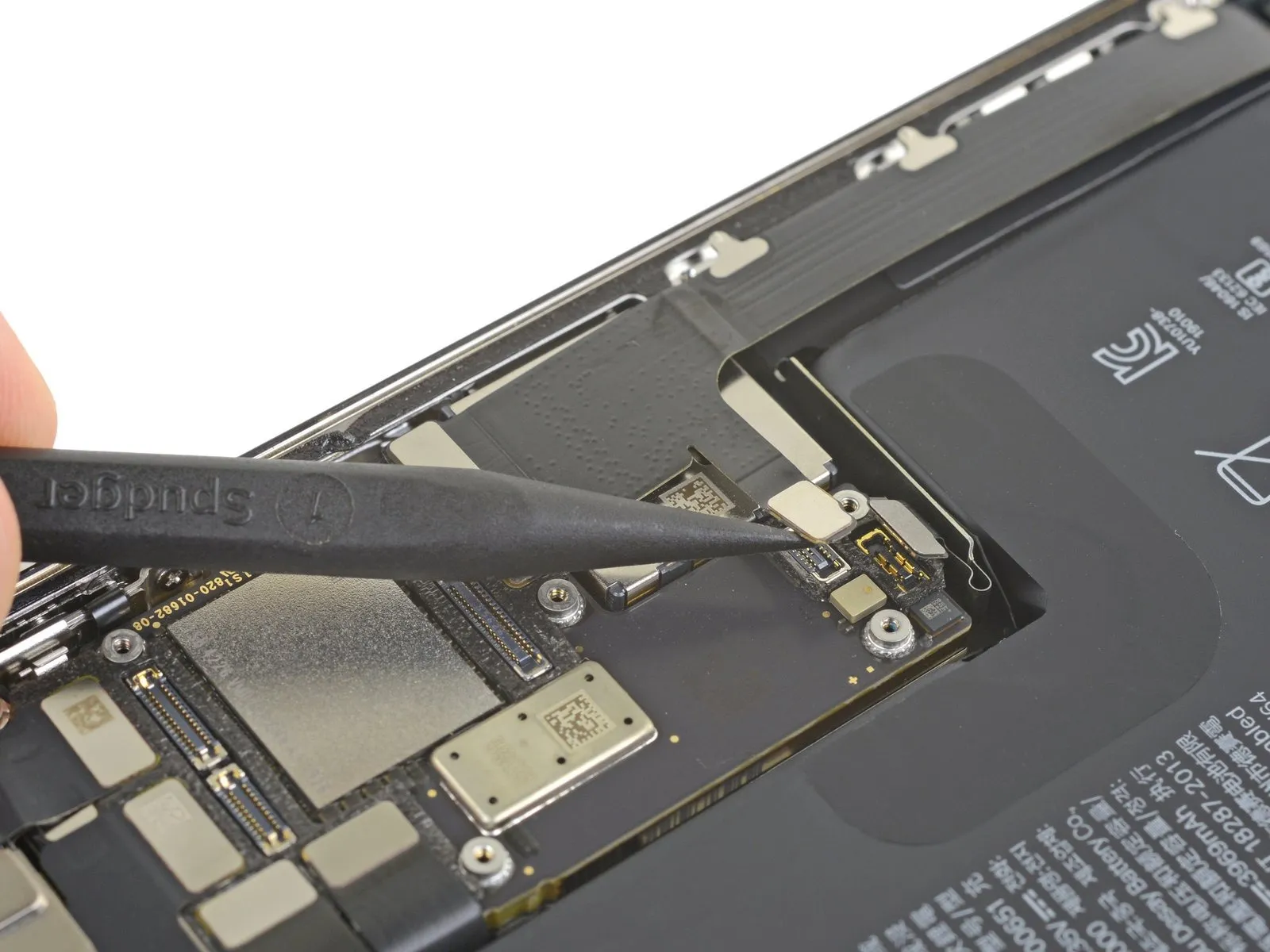

  1. Employ a spudger tool or a meticulously clean fingernail to lift the battery connector away from its corresponding socket located on the logic board.
    Exercise caution to avoid harming the black silicone seals that encircle this connector and others on the board, as they offer supplemental defense against water and dust penetration.
    Gently deflect the connector slightly outward from the logic board to ensure it remains disconnected from the socket, thereby preventing unintended power delivery to the device during the repair process.

Step 20 | Unscrew the logic board cover screws

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ a Y000 driver to detach the six screws that hold the logic board cover bracket in place.The screws measure 1.3 mm in length.These fasteners secure the bracket to the logic board cover.

Step 21 | Remove the logic board cover bracket

Step 21 image
Detach the bracket from its affixed location.

Step 22 | Disconnect the OLED display cable

Step 22 image
Thumbnail 1
Thumbnail 2

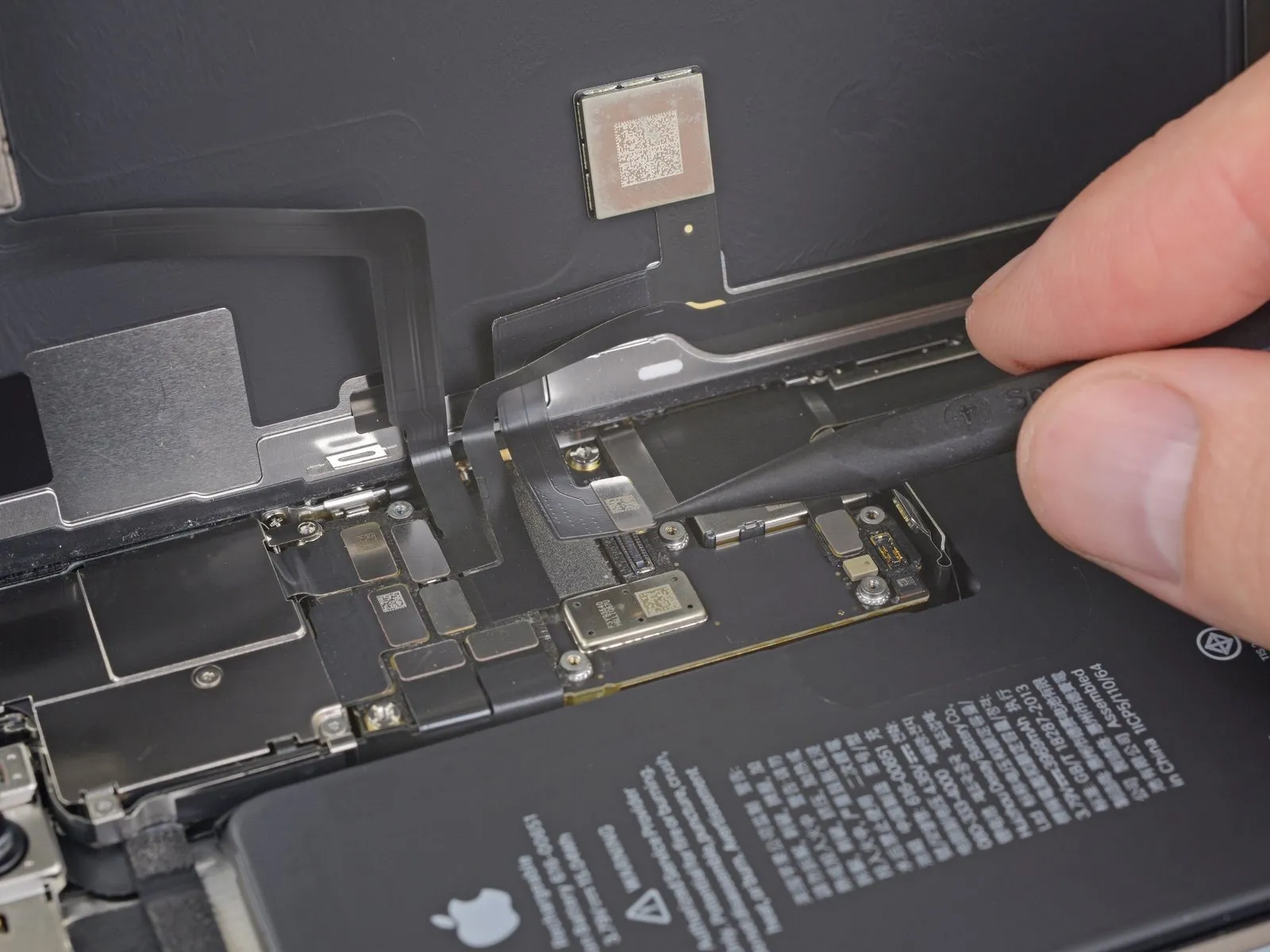

  • Employ aspudgeror afingernailto release the OLED panel cable connector's clasp.
  • For reattachment, position the connectors precisely, then apply pressure to one edge until a secure click is heard; subsequently, repeat this process on the opposing edge. Avoid applying pressure to the central portion of the connector, as misalignment can result in pin deformation and irreversible damage.

Step 23 | Disconnect the front sensors + digitizer

Step 23 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ aspudgeror afingernailto release the front sensor assembly cable connector from its socket.
  • Utilize aspudgeror afingernailto separate the digitizer cable connector.
  • Should any portion of the display fail to register touch input following the repair procedure, first remove the battery, then reattach the connector, confirming a secure, audible click and ensuring the socket is free from debris or contaminants.

Step 24 | Remove the display assembly

Step 24 image
  • Detach the display assembly from the device.
  • When putting the device back together, halt at this stage should you desire to substitute the waterproof adhesive that seals the display's perimeter.

Step 25 | Unscrew the lower battery connector cover

Step 25 image
Thumbnail 1
Thumbnail 2
  • Employ a Y000 driver to detach the quartet of 1.2 mm screws that hold the lower battery connector cover in place.

Step 26 | Remove the cover

Step 26 image
  • To access the lower battery connector, detach the protective cover.

Step 27 | Disconnect the lower battery connector

Step 27 image
Thumbnail 1
Thumbnail 2
  • Employ a spudgerto release the lower battery flex cable, achieving this by applying upward force directly to it as it detaches from its connector.

Step 28 | Disconnect the Taptic Engine

Step 28 image
Thumbnail 1
Thumbnail 2

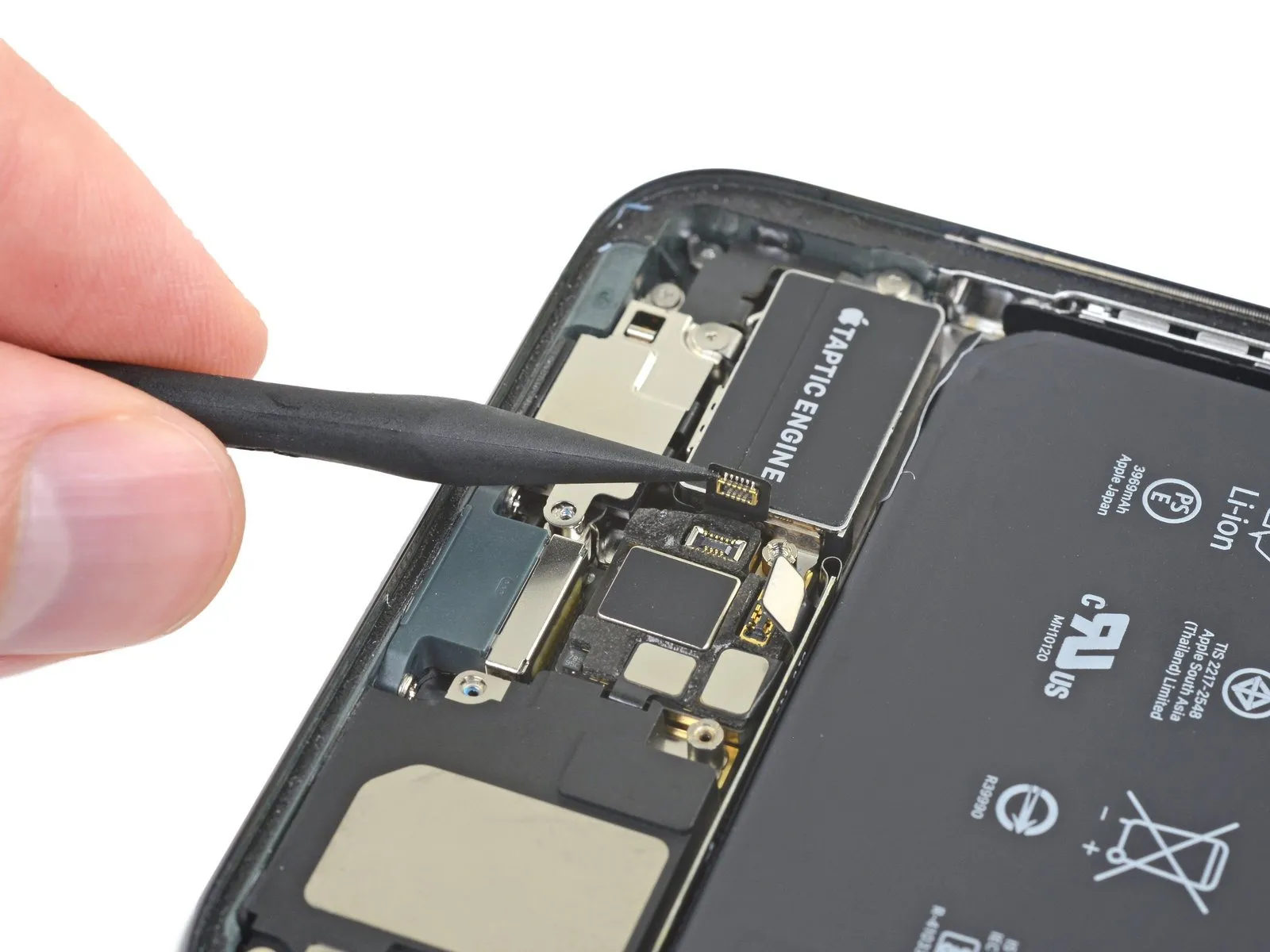

  • Employ a spudgerto release the Taptic Engine flex cable, achieving separation by applying upward pressure directly on the connector.

Step 29 | Unscrew the Taptic Engine

Step 29 image
Thumbnail 1
Thumbnail 2

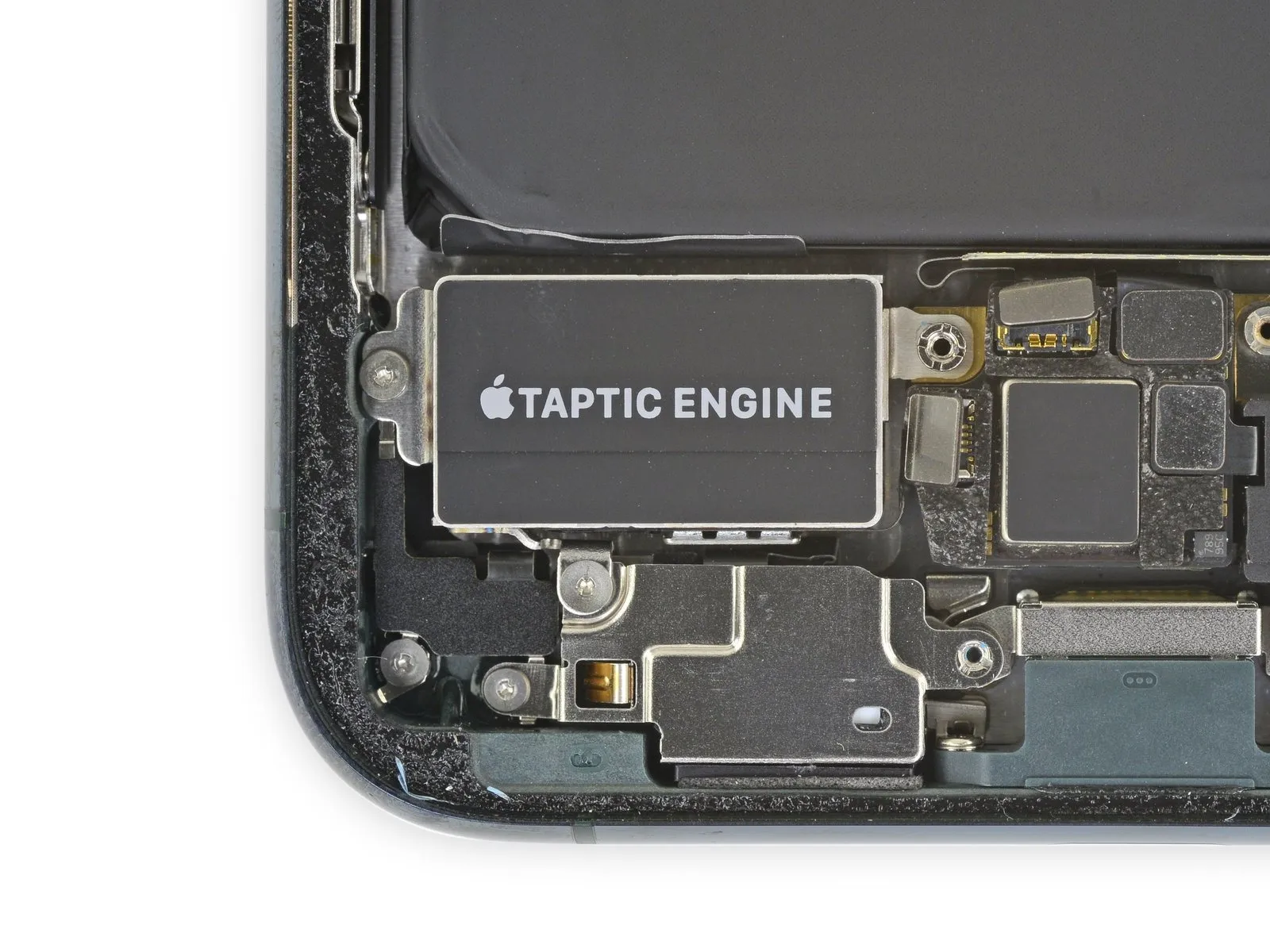

  • To detach the Taptic Engine, begin by eliminating the three screws that hold it in place.Taptic Engine:
    A 2.0 mm Y000 screw is required.
    Also needed is a 1.6 mm Y000 screw.
    A 4.0 mm standoff screw is also present.
  • For the removal of standoff screws, a standoff screwdriver or bit is the preferred tool.standoff screwdriver or bit.
    If a standoff screwdriver is unavailable, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.

Step 30 | Remove the Taptic Engine

Step 30 image
Detach the Taptic Engine component..

Step 31 | Unscrew the flex cable bracket

Step 31 image
Thumbnail 1
Thumbnail 2
Employ a Y000 driver for the purpose of detaching the three 1.3 mm screws which hold the Lightning flex cable bracket in place.

Step 32 | Remove the flex cable bracket

Step 32 image
Detach the securing bracket that holds the flexible cable in place..

Step 33 | Disconnect the Lightning flex cable

Step 33 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Carefully lever the connectors free to detach the two Lightning flex cable connections from the main circuit board.

Step 34 | Push the flex cable aside

Step 34 image
Thumbnail 1
Thumbnail 2
To facilitate access to the battery located beneath, carefully raise the Lightning flex cable and introduce a slight downward curve, directing it towards the iPhone's lower border.

Step 35 | Locate the adhesive pull-tabs

Step 35 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

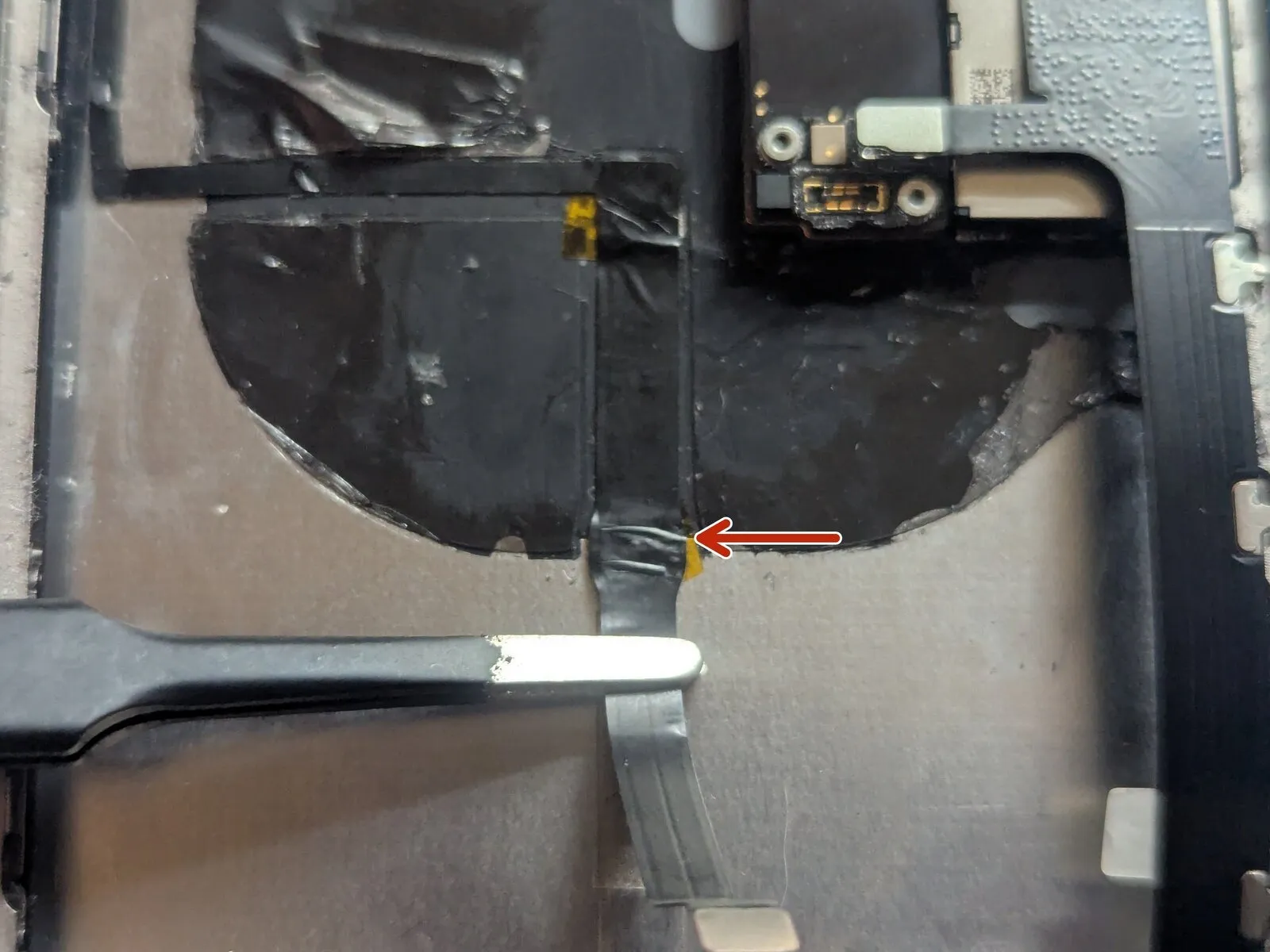

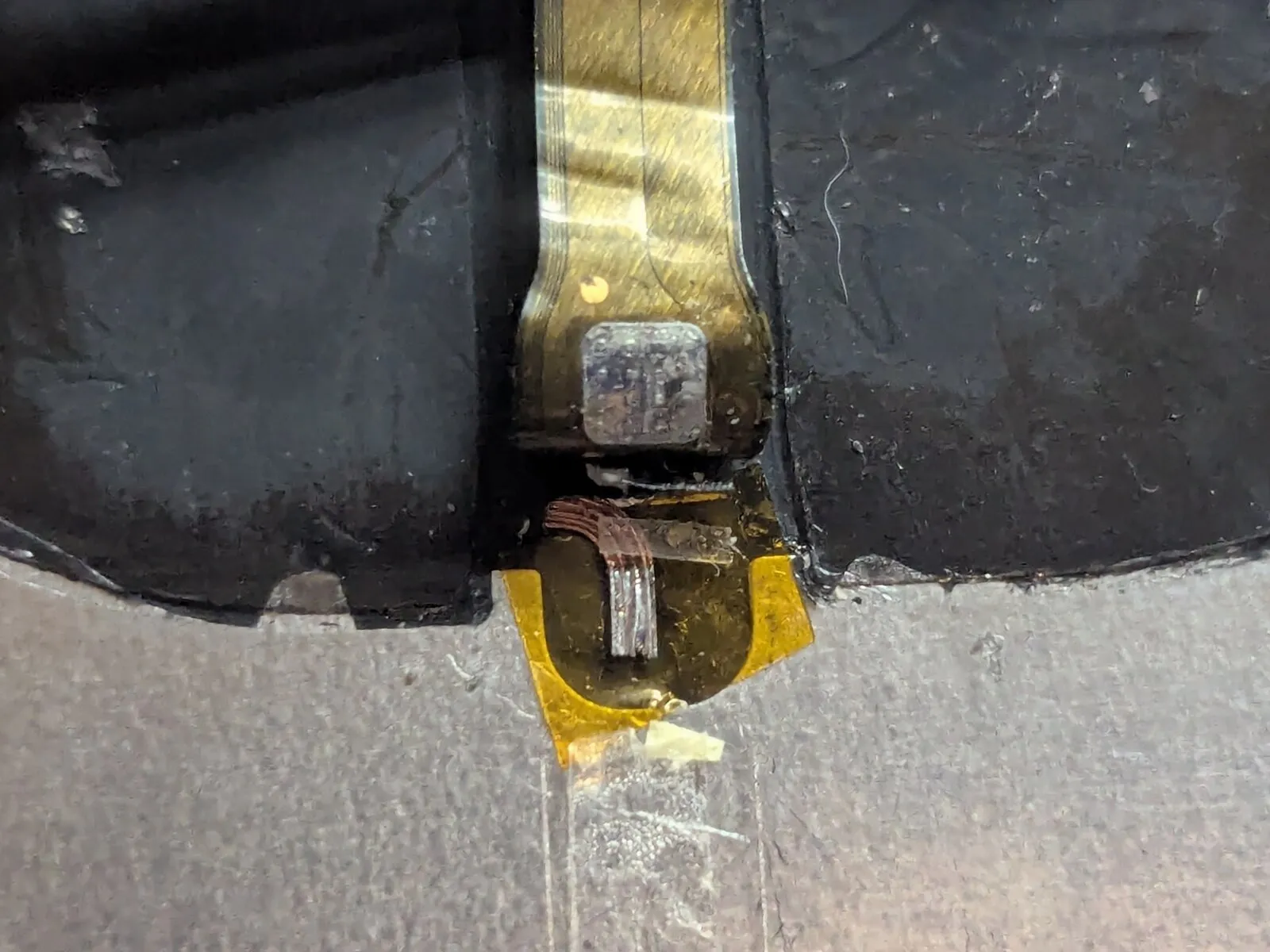

  • Three strips of stretch-release adhesive fasten the battery to the back cover; one is positioned close to the battery's lower edge, another near the upper edge, and a third on the right side.
  • Each adhesive strip features one or two black pull-tabs at its terminal end, which are gently attached to the battery's lateral sides.
The subsequent instructions detail pulling each tab to gradually extend the adhesive layer beneath the battery; these adhesives, functioning similarly to command strips, diminish their holding power when stretched, facilitating battery removal.
Should the adhesive strips tear during the process, remain calm, as they do not consistently perform as expected; continue reading for guidance on dealing with detached strips.

Step 36

Step 36 image
Thumbnail 1
Thumbnail 2

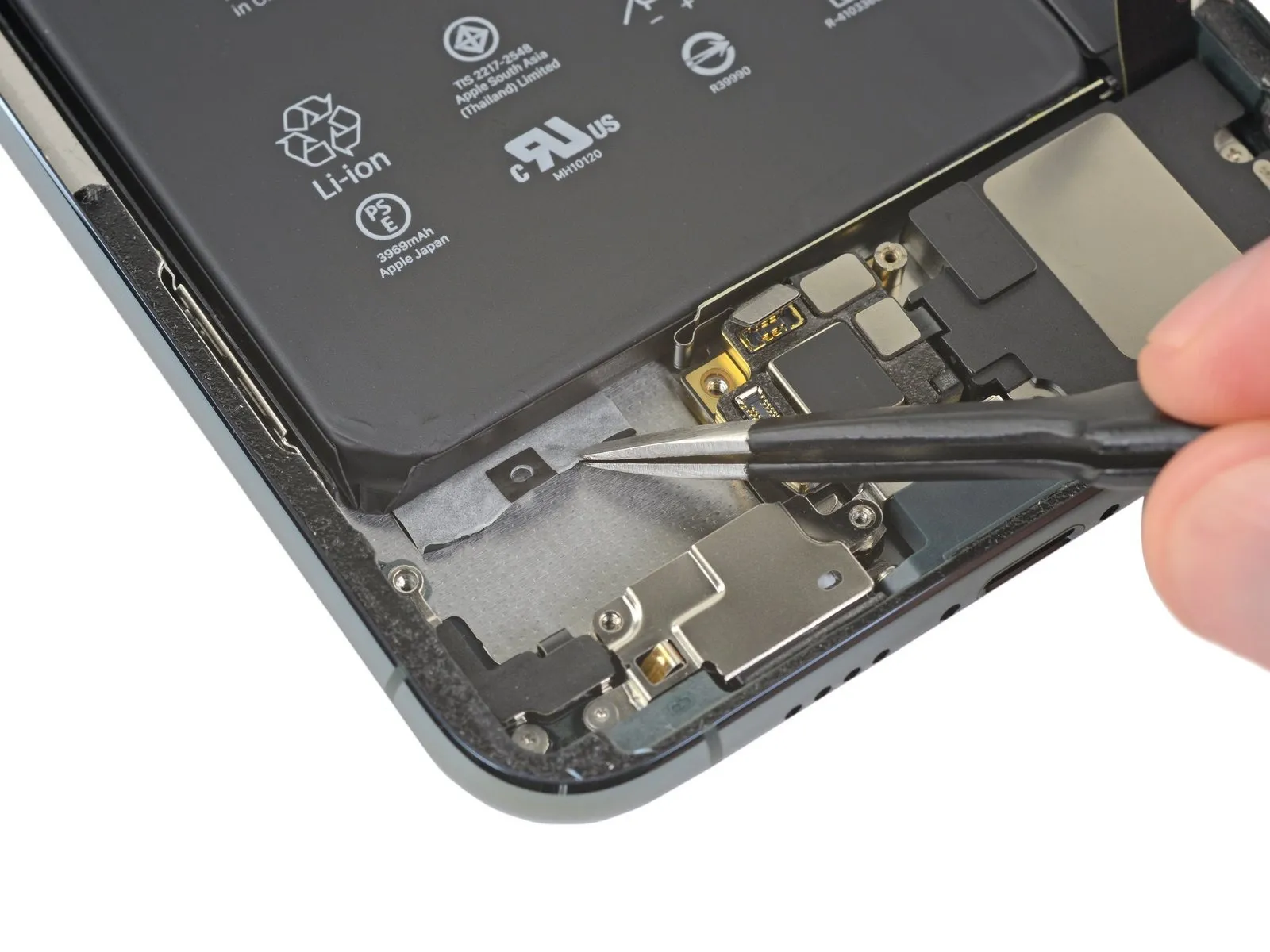

  • To release the battery from its securing position at the base, carefully lift the initial battery adhesive pull-tab.
  • Avoid using pointed implements on the battery's surface, as penetration could result in the leakage of hazardous substances or ignition.

Step 37 | Remove the bottom adhesive strip

Step 37 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

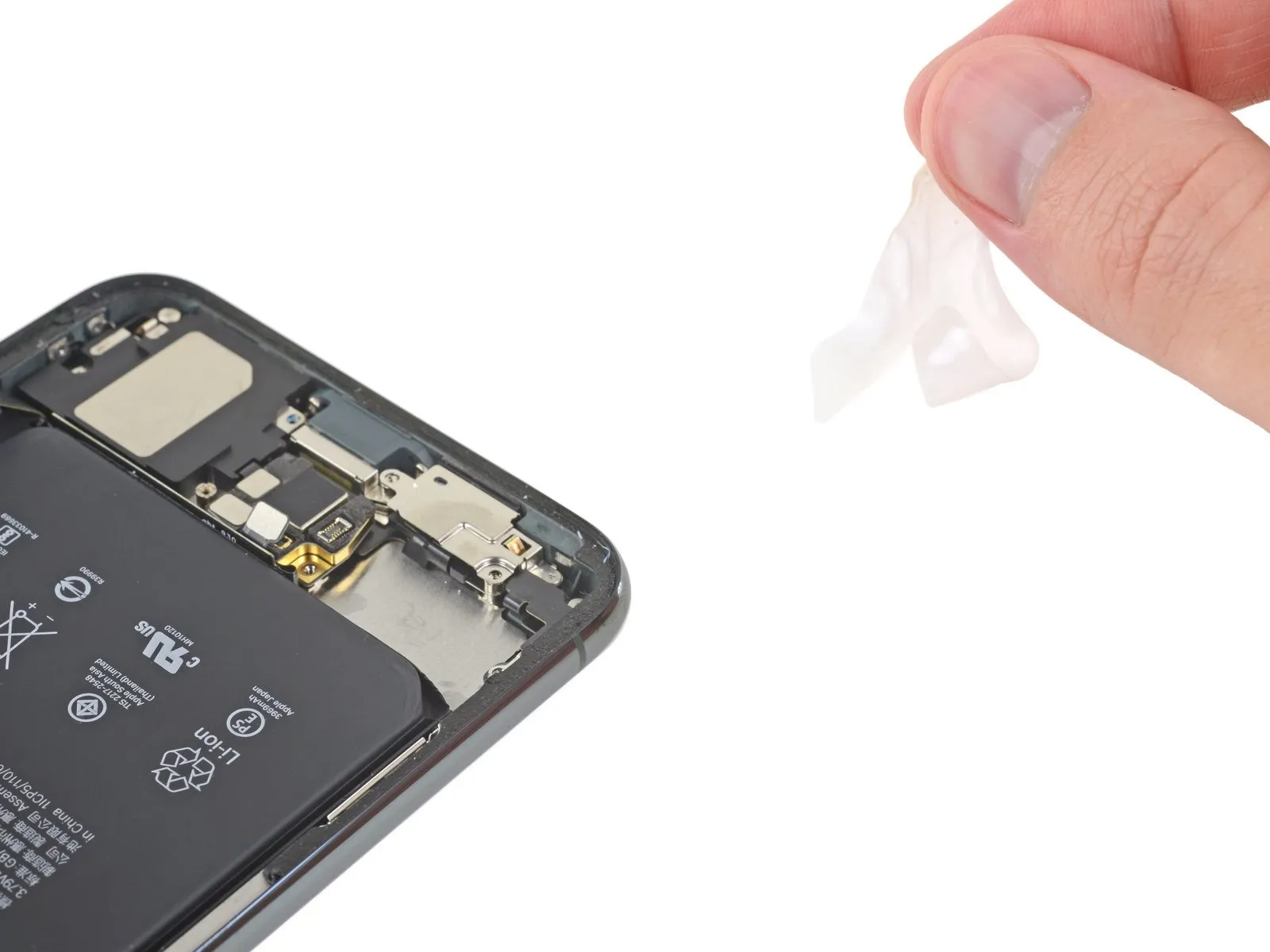

  • Using your fingers, secure the pull tab and gradually detach it from the battery, directing it downwards towards the iPhone's base.
  • Apply sufficient force to sustain tension on the adhesive strip, but avoid excessive pressure; allow ample time for it to extend and release from beneath the battery.
  • Refrain from applying downward pressure to the battery; instead, maintain a secure grip on the iPhone's lateral surfaces.
  • Ensure the adhesive strip remains smooth and free of creases; strive for uniform pulling across the entire strip's length, preventing concentrated force on the center or a single edge.
  • Maintain a shallow pulling angle to prevent the strip from catching on the battery's perimeter.
  • Should the adhesive strip fracture during removal, attempt to recover the fragments using your fingers or blunt tweezers, and resume pulling, but do not insert tools beneath the battery.
  • In the event that adhesive strip fragments become lodged beneath the battery and are inaccessible, proceed with removing the remaining strips, then follow the subsequent instructions.

Step 38

Step 38 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

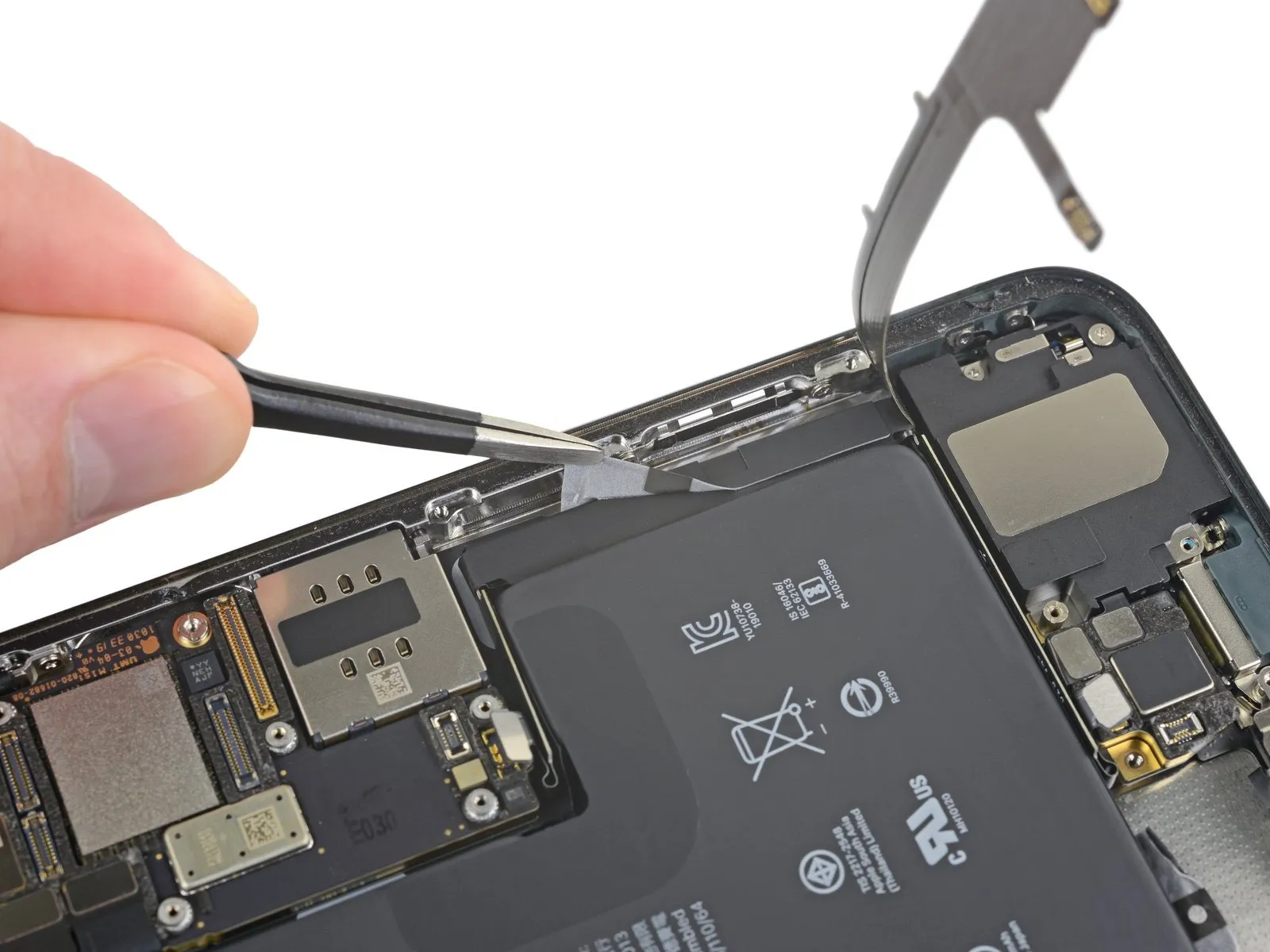

Because the upper pull tabs are situated in immediate proximity to the Face ID sensors, any damage to them necessitates Apple's specialized repair services; therefore, proceed with utmost caution.Malfunction of the Face ID systemTo prevent contamination and potential damage, avoid direct contact with the lenses using your fingers.

  • To release the adhesive securing the battery, carefully lift the battery adhesive pull tabs away from the upper edge of the battery.

Step 39 | Remove the top adhesive strip

Step 39 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

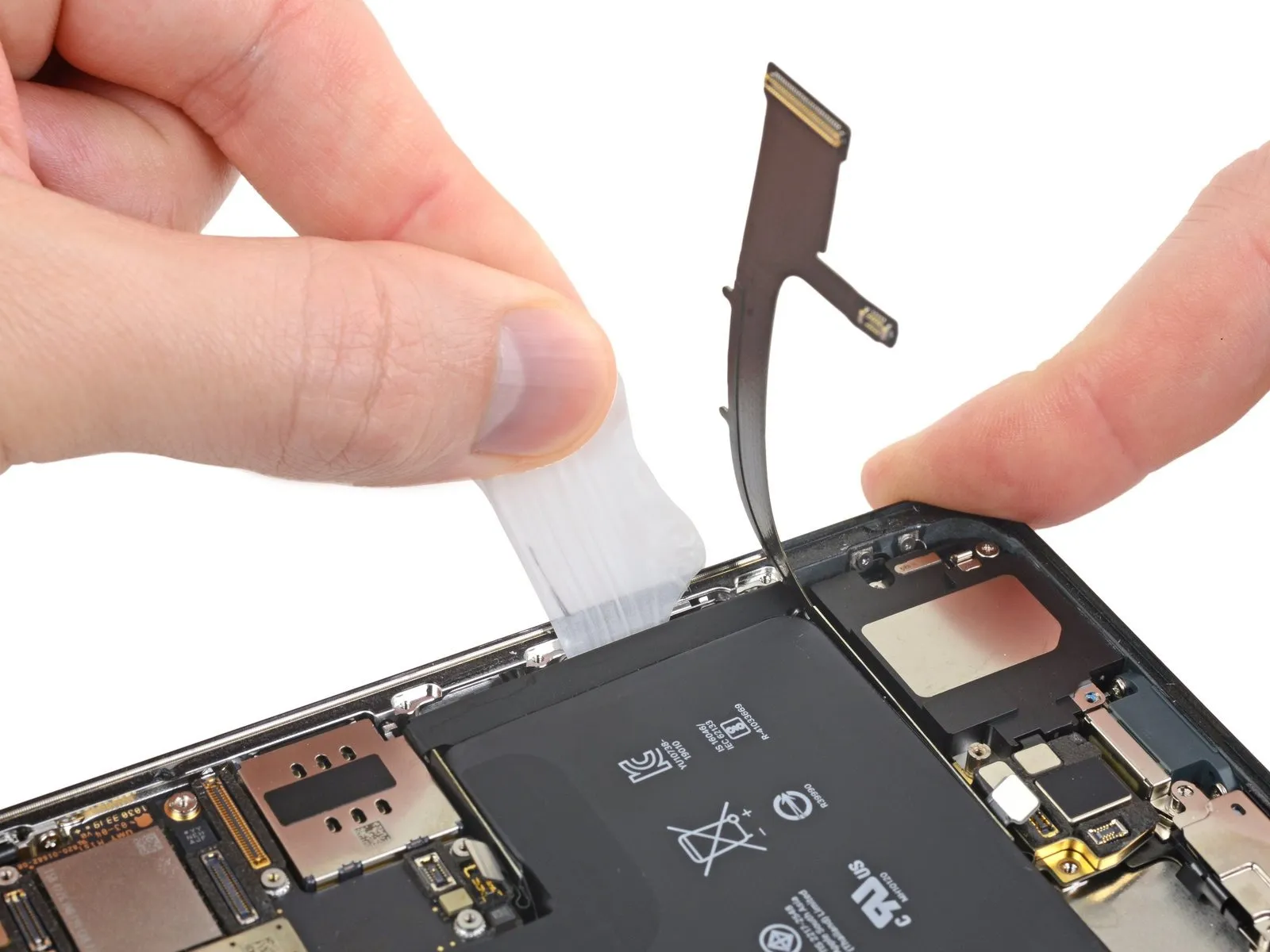

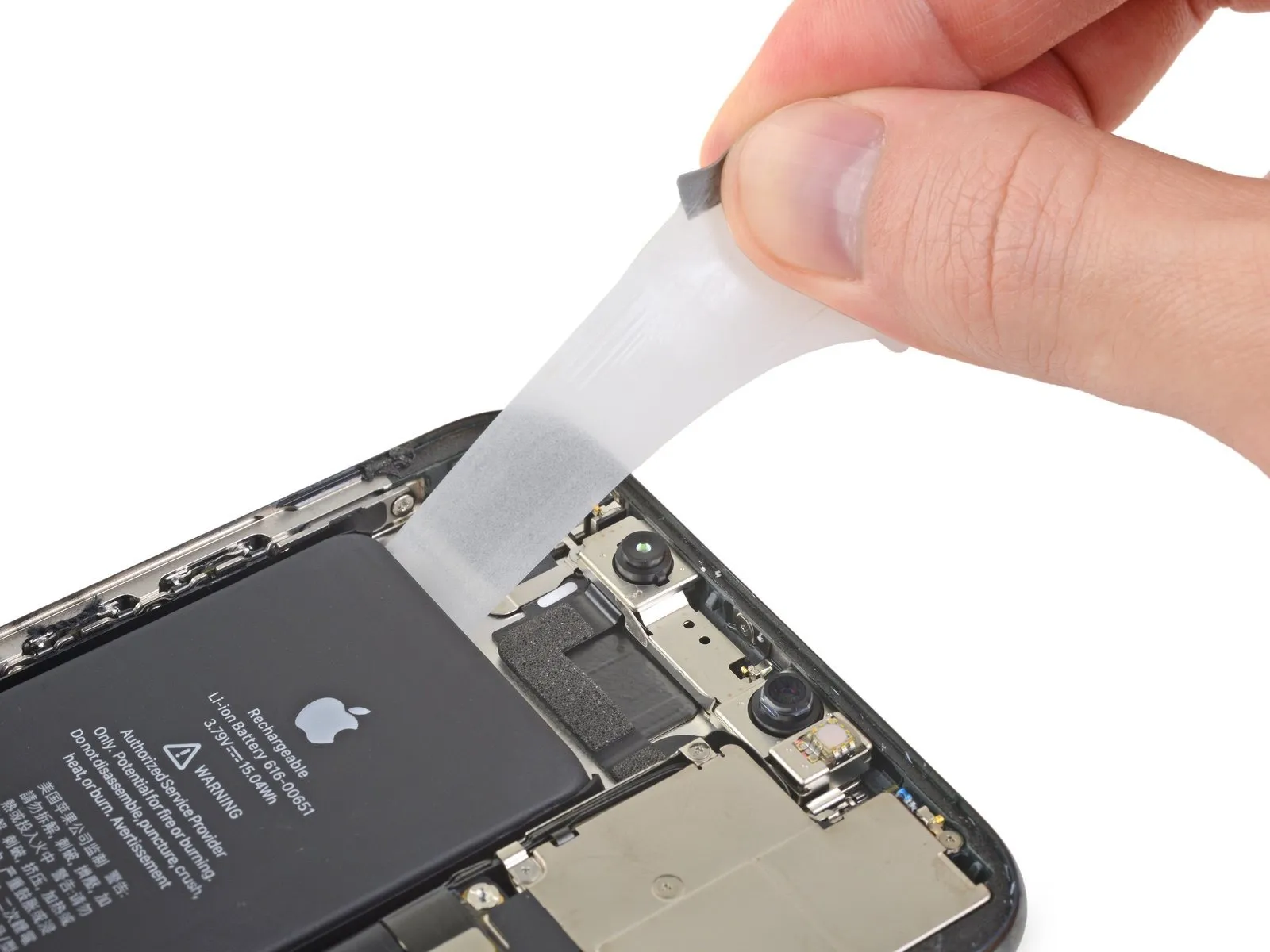

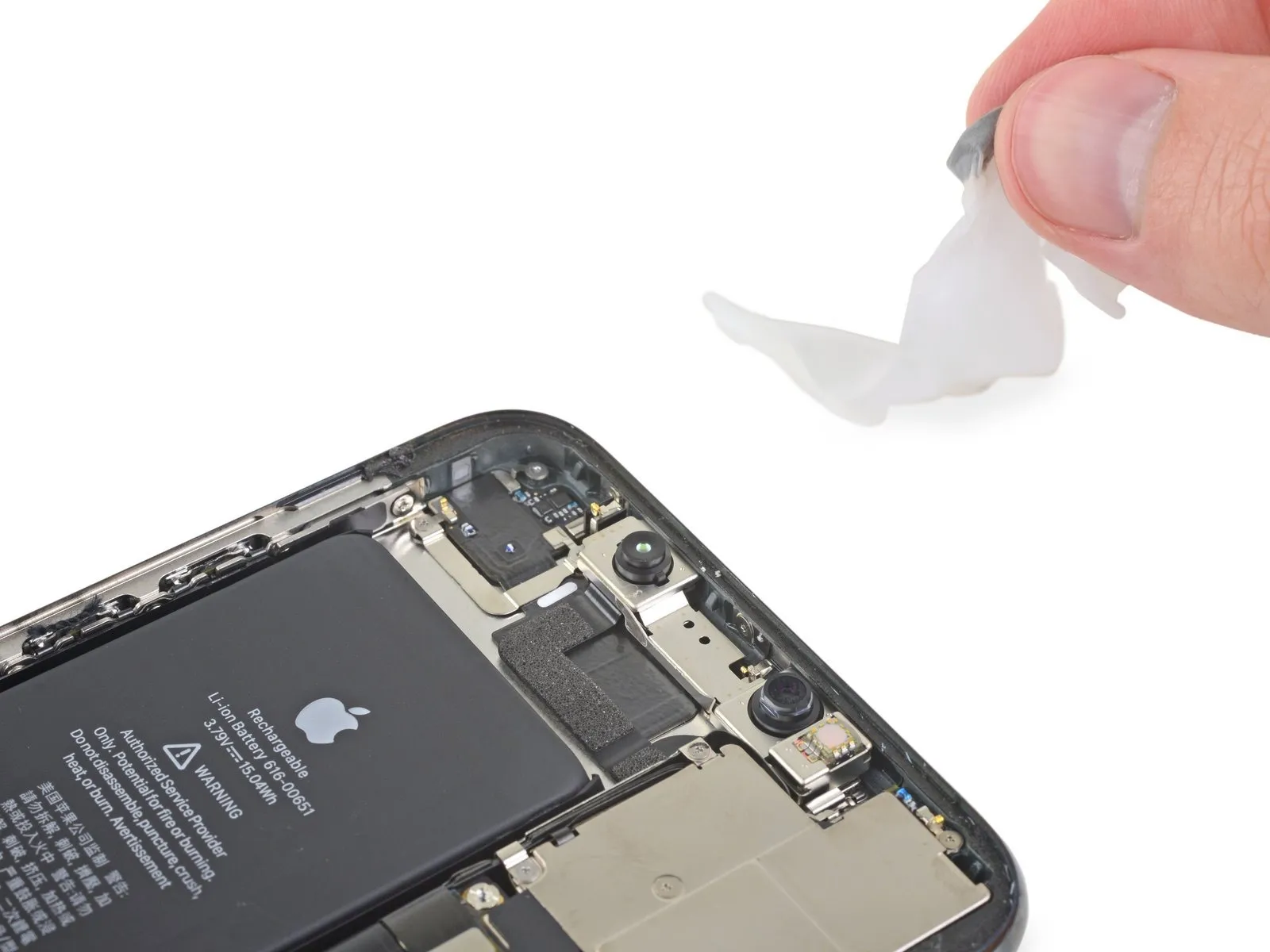

  • Simultaneously grasp the two pull tabs, then gently draw to separate the adhesive from the battery surface, directing the motion towards the iPhone's upper edge.
  • Replicate the method utilized for the prior strip, ensuring the battery remains undisturbed by avoiding pressure, maintaining the strip's flatness to prevent creases, and applying force at a shallow inclination.
  • Should the adhesive strip fracture during removal, attempt to recover the fragments with your fingers or blunt tweezers, and proceed with pulling; however, refrain from inserting tools beneath the battery.
  • Proceed to the subsequent step if the adhesive becomes detached from beneath the battery and is unrecoverable.

Step 40

Step 40 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

To release the battery from its position, detach the two adhesive pull-tabs that are still affixed to the battery's right-hand side.

Step 41 | Remove the side adhesive strip

Step 41 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

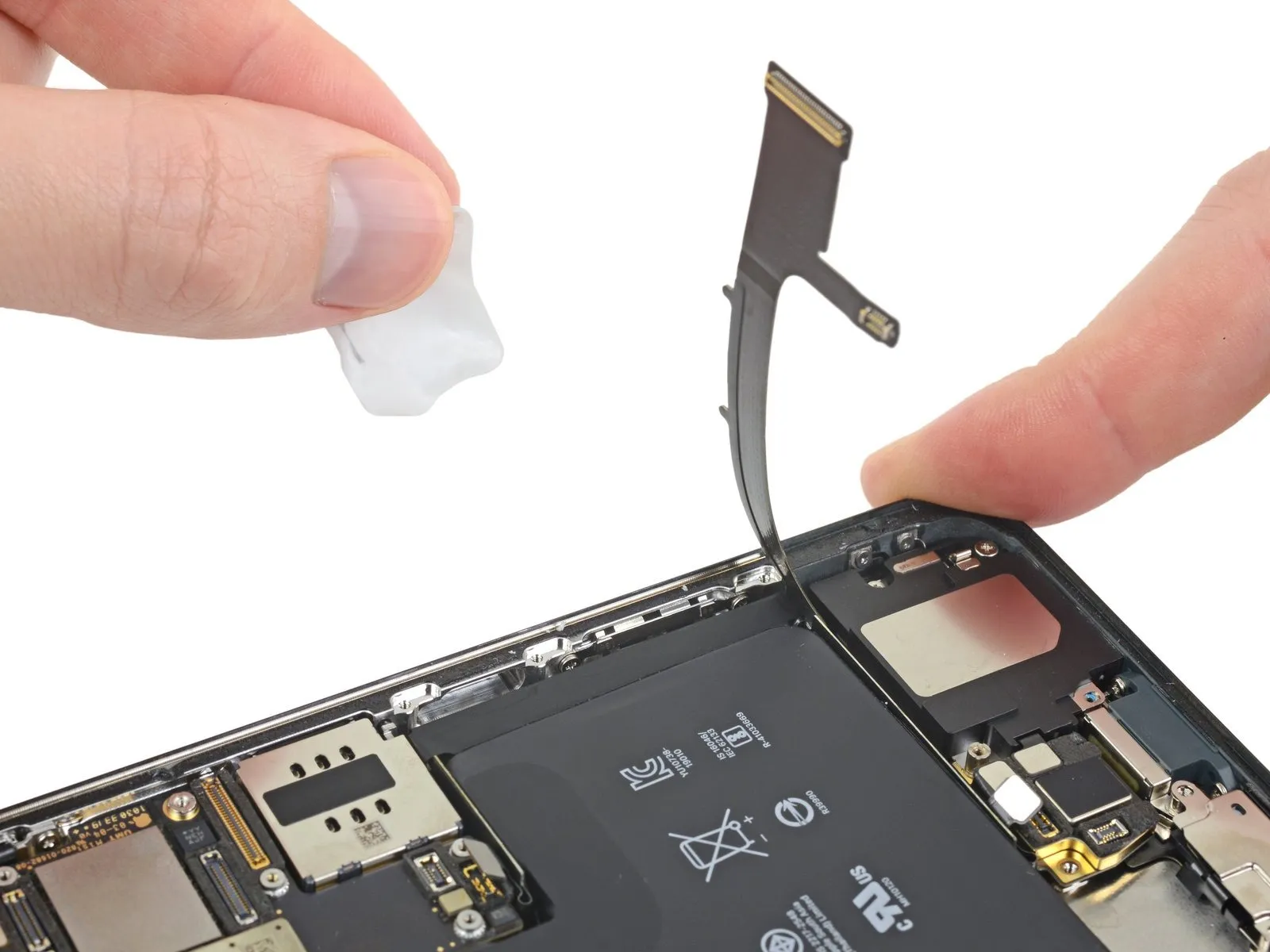

  • Employing the identical method previously utilized, simultaneously draw both tabs to extend and detach the final adhesive segment securing the battery within the iPhone's casing, exercising caution to prevent the adhesive from catching on the device's perimeter.
  • Exercise vigilance to avoid propelling the battery away from the iPhone during the release of the last adhesive strip.
  • Should all adhesive strips have been successfully removed, proceed past the subsequent instruction.
  • Conversely, if adhesive remains, proceed with the following steps.

Step 42 | How to remove a stuck battery

Step 42 image
Thumbnail 1
Thumbnail 2
  • Should difficulties persist in detaching the battery, introduce a small quantity of isopropyl alcohol possessing a concentration exceeding 90% beneath the battery's edge, specifically targeting the region of the damaged adhesive strip(s).
  • Allow approximately sixty seconds for the alcohol to diminish the adhesive's bonding strength.
  • Employ the planar end of a spudger to delicately raise the battery; avoid applying excessive force to pry it free. Should further assistance be required, add additional drops of alcohol to reduce the adhesive's hold. Under no circumstances should the battery be bent or pierced with the prying instrument.

Step 43 | Remove the battery

Step 43 image
  • Disconnect the power source by removing the battery.
  • Should any traces of alcohol solution persist within the phone's interior, meticulously clean them away or permit complete evaporation before proceeding with the new battery's installation.
  • To guarantee correct positioning within its designated space, briefly reconnect the battery's connector to the motherboard's socket prior to securing the replacement battery in place.
  • Secure the battery with adhesive, then detach it, and proceed with the remaining steps to reassemble your device.
  • Should your replacement battery lack pre-applied adhesive, consult this guide for instructions on substituting the adhesive strips.
  • Following the reassembly process, execute a forced restart to proactively avoid potential problems and streamline any necessary troubleshooting.

Step 44 | Disconnect the audio control cable

Step 44 image
Thumbnail 1
Thumbnail 2

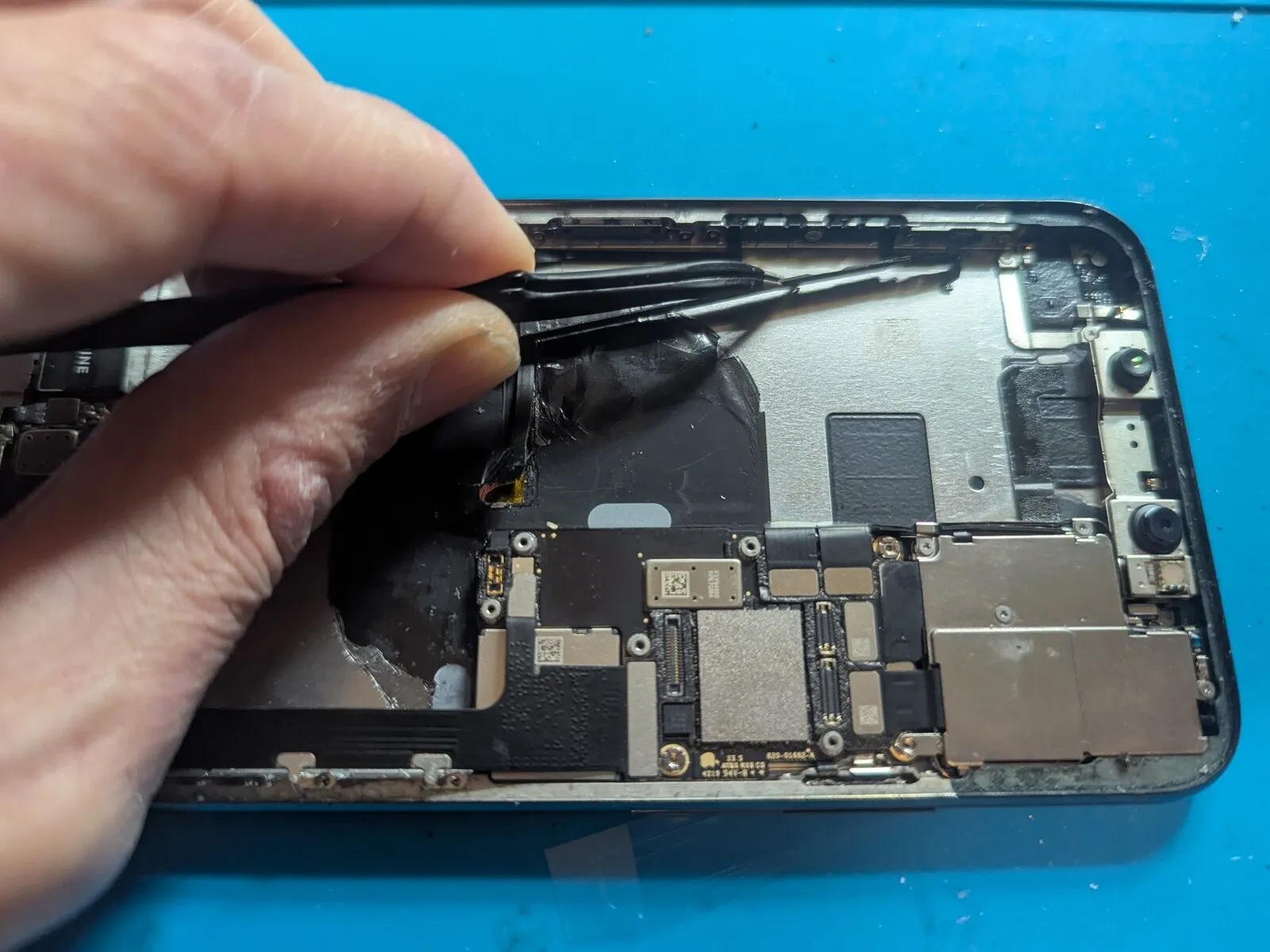

Carefully disconnect the audio control and wireless charging coil cable by utilizing a small, non-marring spudger.

Step 45 | Peel the cable from the case

Step 45 image
Thumbnail 1
Thumbnail 2
  • A slight adhesive secures the flex cable to the device housing; applying warmth can assist in separation, although it is not strictly required.
  • Avoid lifting the flex cable beyond the perimeter of the wireless charging coil, as this area contains the cable's soldered connections, and forceful separation could result in coil damage.

Step 46 | Unsolder the wireless charging coil

Step 46 image
Thumbnail 1
Thumbnail 2
  • The cable's broadened area indicates where the solder connection is situated.
  • Apply heat from your soldering iron to this area, gently raising the cable as the solder liquefies.
  • Positioning Kapton tape beneath the coil's wires will aid in safeguarding the carbon sheet located underneath from potential harm during the reassembly process.

Step 47

Step 47 image
Thumbnail 1
Thumbnail 2

Replicate this procedure for the remaining soldered connection located at the right-angle portion.

Step 48 | Remove the plastic strip

Step 48 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Carefully remove the adhesive plastic covering from the interior perimeter of the device casing, as it is attached with minimal adhesive.

Step 49 | Heat the flex cable

Step 49 image

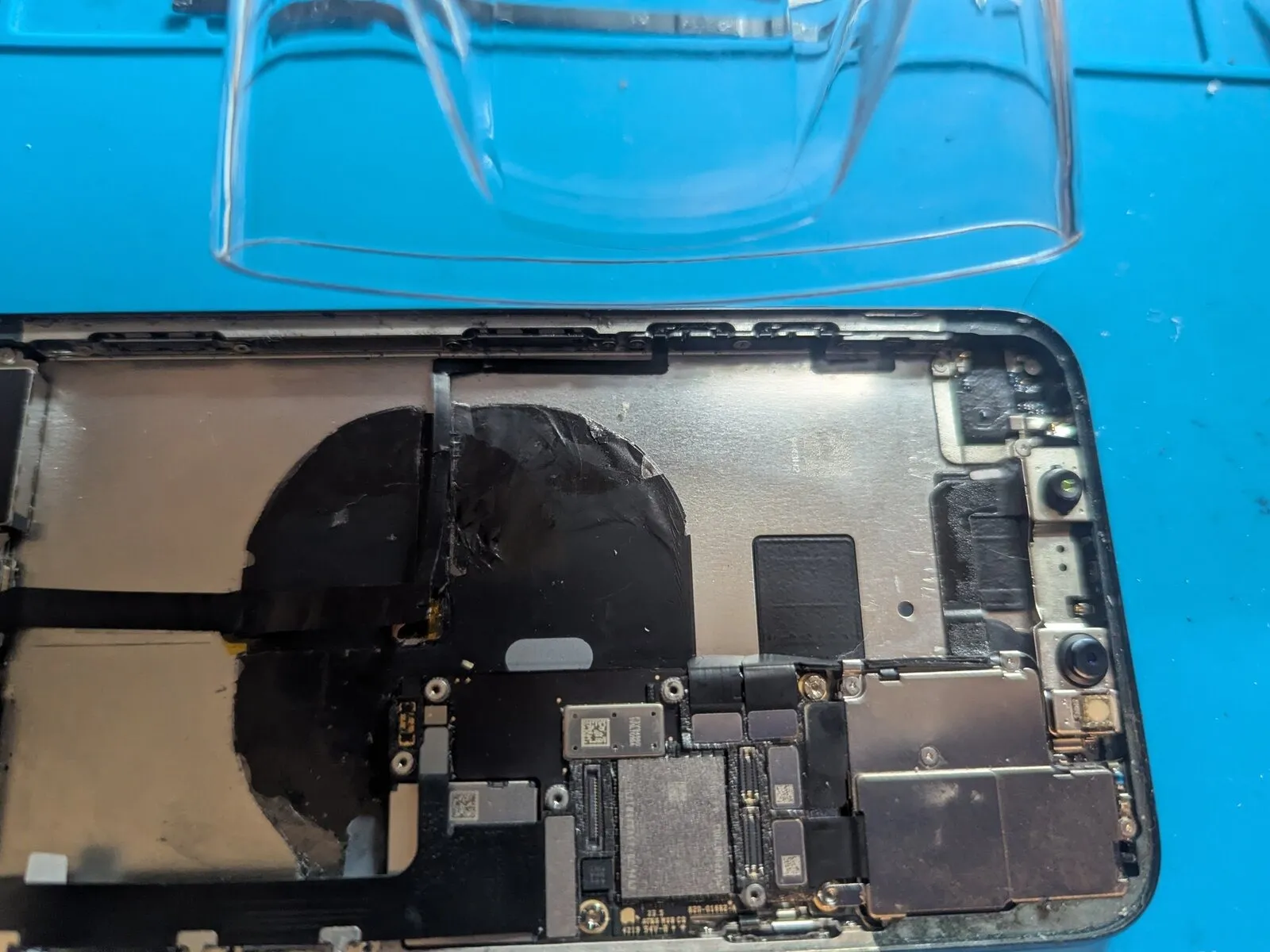

  • Employ a heating technique of your preference (such as a hair dryer) to render pliable the adhesive securing the sensitive cable positioned on the case's backside.

Step 50 | Peel the cable from the case

Step 50 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

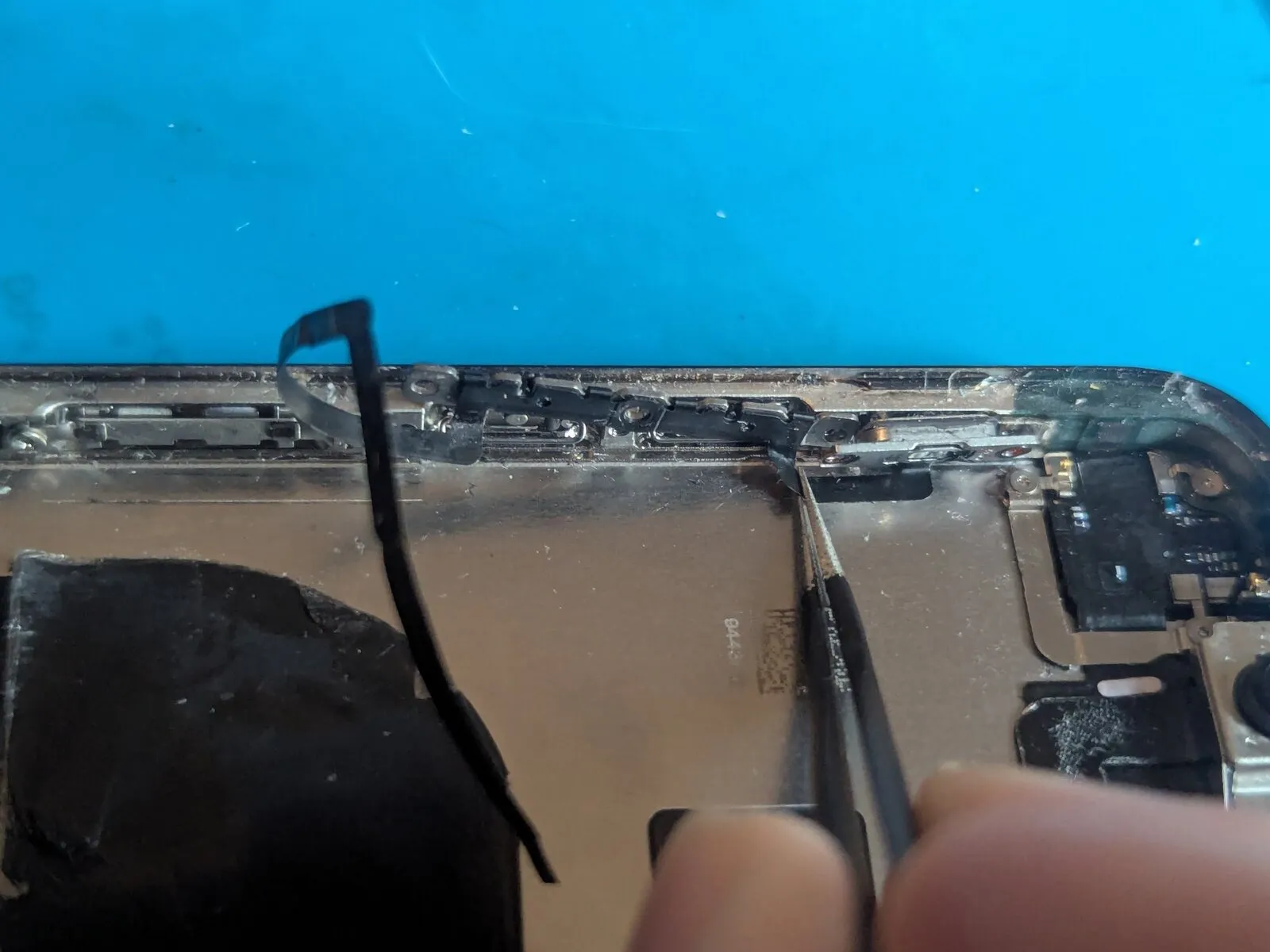

  • Gently detach the flexible cable assembly from the enclosure, exercising caution to avoid damage.

Step 51

Step 51 image
Thumbnail 1
Thumbnail 2
  • Detach the four 2.4-millimeter Phillips 000 screwsthat hold the silent switch and volume buttons in place.

Step 52 | Loosen the silent switch

Step 52 image
  • Carefully relax the silent/ring switch's fasteners, refraining from complete removal, because its connecting cable remains affixed to the chassis.

Step 53 | Peel the cable from the case

Step 53 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Reiterating the previous step, utilize heat as necessary to facilitate the cautious separation of the cable linking the silent switch to the volume buttons from the device's housing.

Step 54

Step 54 image
Removal of the audio control cable has occurred.

Step 55 | Prepare the replacement cable

Step 55 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

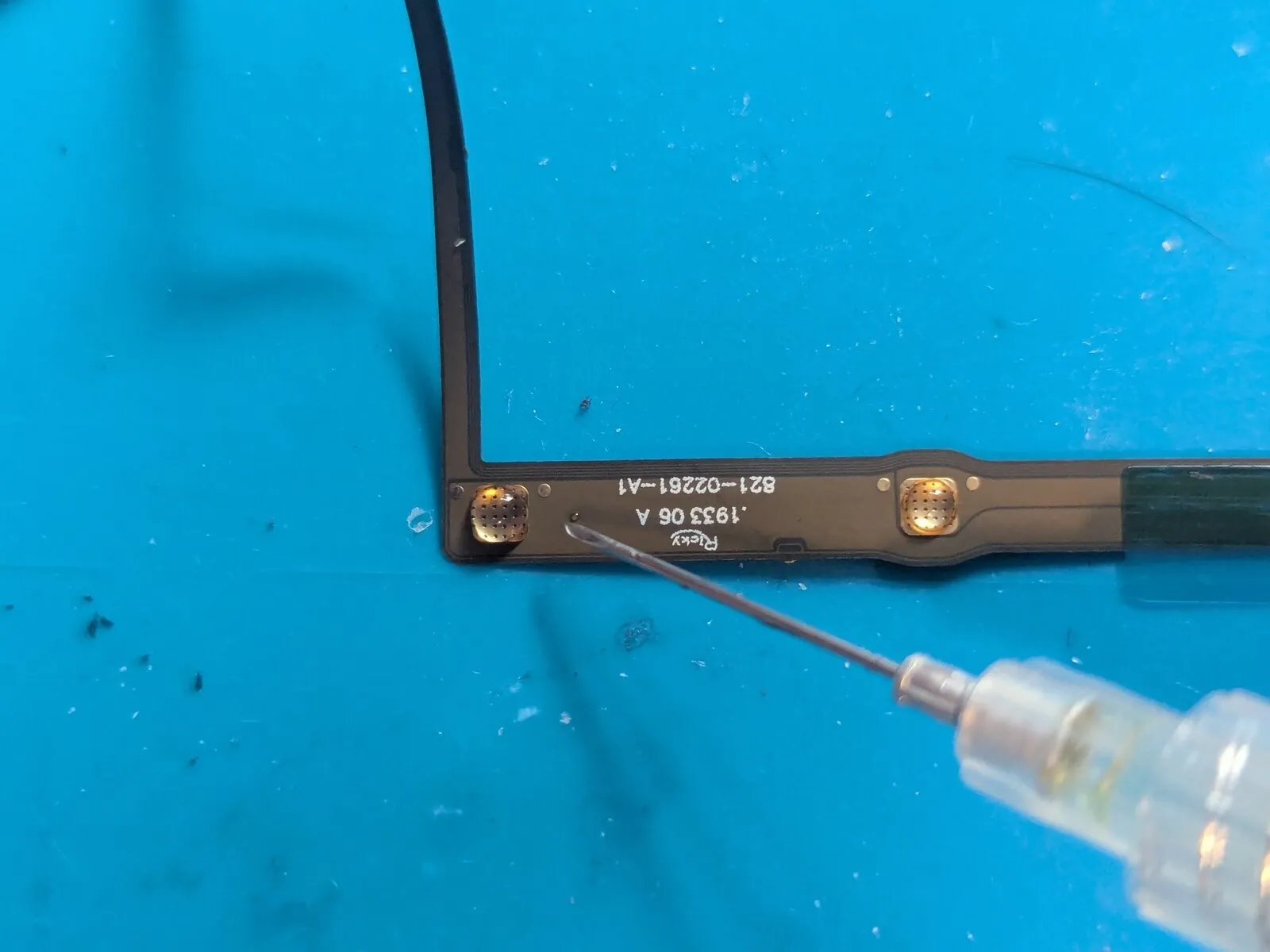

  • Prior to connecting the new cable, ensure both coil terminals are treated with a solder flux application.
  • Secure a thin layer of solder over each connection point to facilitate a strong bond.

Step 56 | Remove the slide switch

Step 56 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. To expose the hinge pins, position the slide switch downwards.
    Subsequently, elevate the switch vertically.

Step 57 | Install the slide switch

Step 57 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Position the slide switch so that it aligns with the designated area on the silent switch's side, close to the flex cable.
    Turn the slide switch to its operational setting.
Check COD Availability

Enter your pincode to see if Cash on Delivery is available in your area.

Please enter a valid 6-digit pincode
