Home Guides iPhone 11 Pro iPhone 11 Pro Taptic Engine Replacement

iPhone 11 Pro Taptic Engine Replacement

This component, Taptic Engine is responsible for generating both the vibrational alerts and the nuanced tactile responses experienced when using your iPhone. Adhere to the instructions detailed in this document to detach and/or substitute the Taptic Engine located within an iPhone 11 Pro.

Step 1 | Remove the pentalobe screws

Step 1 image
Thumbnail 1
Thumbnail 2
  • As a preliminary safety measure, ensure your iPhone's battery is depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire and/or explosion hazard if it sustains accidental physical damage, such as a puncture.
  • To prevent electrical shorts and potential damage, completely de-energize the iPhone by powering it down before starting the disassembly.
  • Utilizing an appropriate tool, unscrew and remove the pair of pentalobe screws, each measuring 6.7 mm in length, located along the iPhone's lower edge.
  • Separating the iPhone's display assembly will inevitably damage the integrated waterproof seals; therefore, it is strongly advised to have replacement seals on hand before proceeding beyond this point, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the iPhone without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure will help you identify a safe insertion point.
  • Determine the distance of3 mmfrom the pick's leading edge and use a permanent marker to create a visible indicator on the opening pick.
  • For additional reference, consider marking the other corners of the pick with varying measurements.
  • As another option, affix a coin to the pick's shaft,3 mmaway from its tip.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To minimize additional damage and potential injury while repairing an iPhone with a cracked display, secure the fractured glass by applying tape across its surface.
  • Completely cover the iPhone's screen with multiple layers of transparent packing tape, ensuring each strip overlaps the previous one.
  • Always utilize safety glasses to shield your eyes from any loosened glass fragments that may become dislodged during the repair process.
  • Should the suction cup fail to adhere properly during subsequent steps, create a handle by folding a robust tape, like duct tape, and use this to carefully elevate the screen.
  • As a last resort, you may secure the suction cup to the screen using superglue.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • The following three actions showcase the Anti-Clamp, a specialized tool developed to simplify the initial opening process; if you choose not to utilize this tool, proceed past three steps to find an alternative approach.
  • Detailed guidance regarding the Anti-Clamp's operation can be found in a separate instructional document.
  • Grasp theblue handleand move it in a rearward direction to release the Anti-Clamp's securing arms.
  • Carefully position the arms across either the left or right side of your iPhone.
  • Place the suction cups close to the lower boundary of the iPhone, ensuring one is on the front surface and the other on the rear.
  • Apply pressure by compressing the cups together to establish a secure hold on the intended region.
  • Should the iPhone's surface prove excessively slick, preventing the Anti-Clamp from maintaining a firm grip, applying adhesive tape can provide a more textured interface.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To disengage, draw the blue handle in a forward direction to secure the arms.
  • Rotate the handle a full rotation of 360 degrees, or until you observe the cups beginning to expand.
  • Confirm that the suction cups maintain their parallel positioning. Should they exhibit signs of displacement, gently release the suction cups and reposition the arms.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Proceed to step 6.
  • Apply heat to aniOpenerand guide it between the iPhone’s side supports of the Anti-Clamp; alternatively, a hair dryer, heat gun, or hot plate can be utilized, however, exercise caution as excessive temperatures may compromise the display and/or internal battery.
  • Position theiOpenerin a folded position, resting against the lower edge of the iPhone’s frame.
  • Allow a sixty-second interval to permit the adhesive to soften and create a separation.
  • Carefully slide an opening tool into the newly formed space beneath the display and the surrounding plastic frame, ensuring it does not contact the screen’s surface.
  • Should the Anti-Clamp not generate a large enough separation, increase the heat applied to the area and rotate the handle by ninety degrees.
  • Avoid incremental rotations exceeding ninety degrees, and pause for sixty seconds between adjustments, allowing the Anti-Clamp and time to facilitate the separation.
  • Omit the subsequent three steps.

Step 7 | Heat the lower edge of the phone

Step 7 image
Procedure 7:

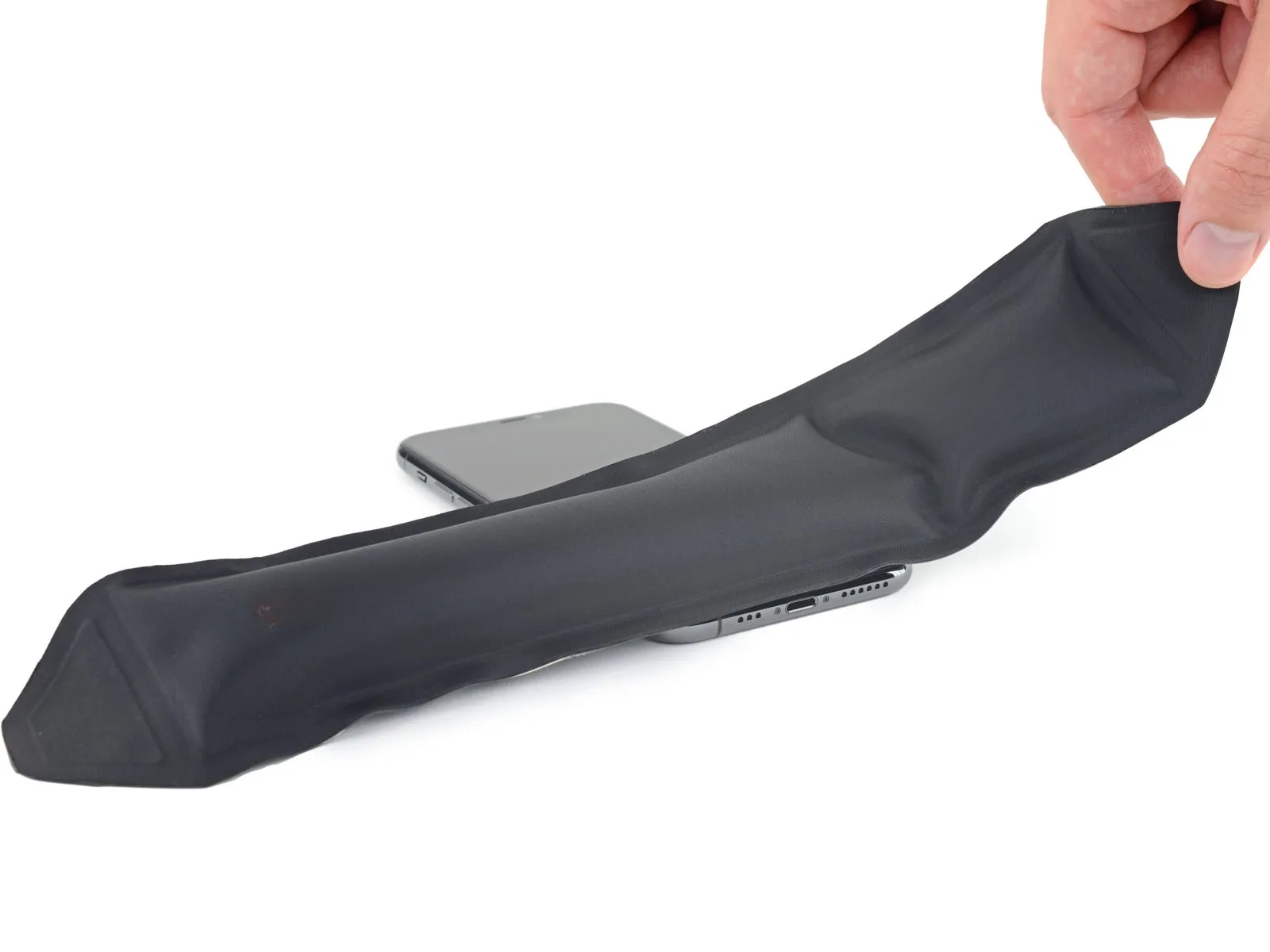

  • Applying warmth to the iPhone's bottom edge facilitates separation by reducing the adhesive's hold on the display assembly.
  • Employing a hairdryer, heat gun, or utilizing an iOpeneris recommended; direct heat to the lower edge for approximately one minute to reduce the adhesive's bonding strength.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2
Proceed to step 8:

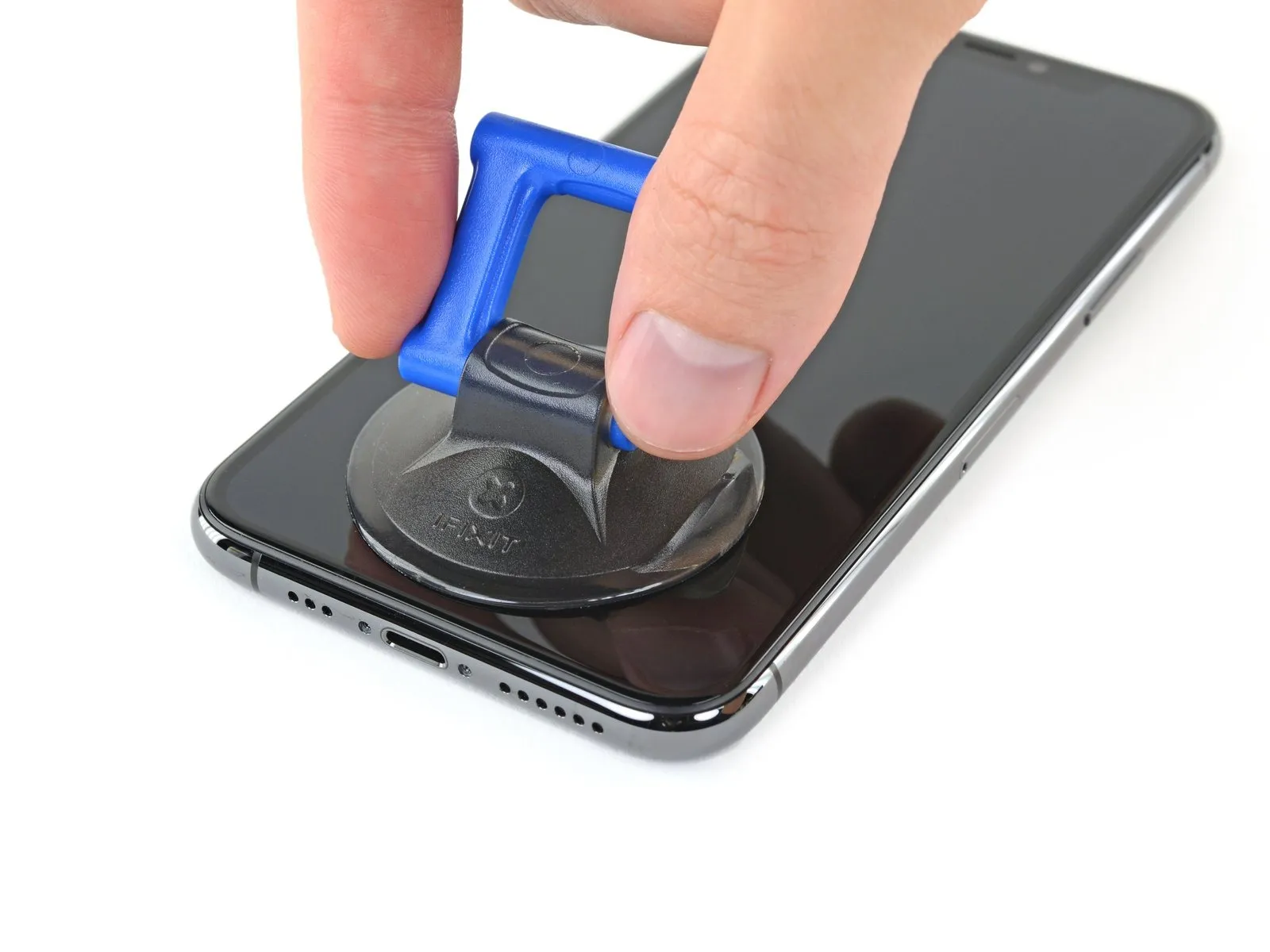

  • When employing a solitary suction handle, position it against the lower perimeter of the device's display, ensuring you do not contact the rounded glass section.

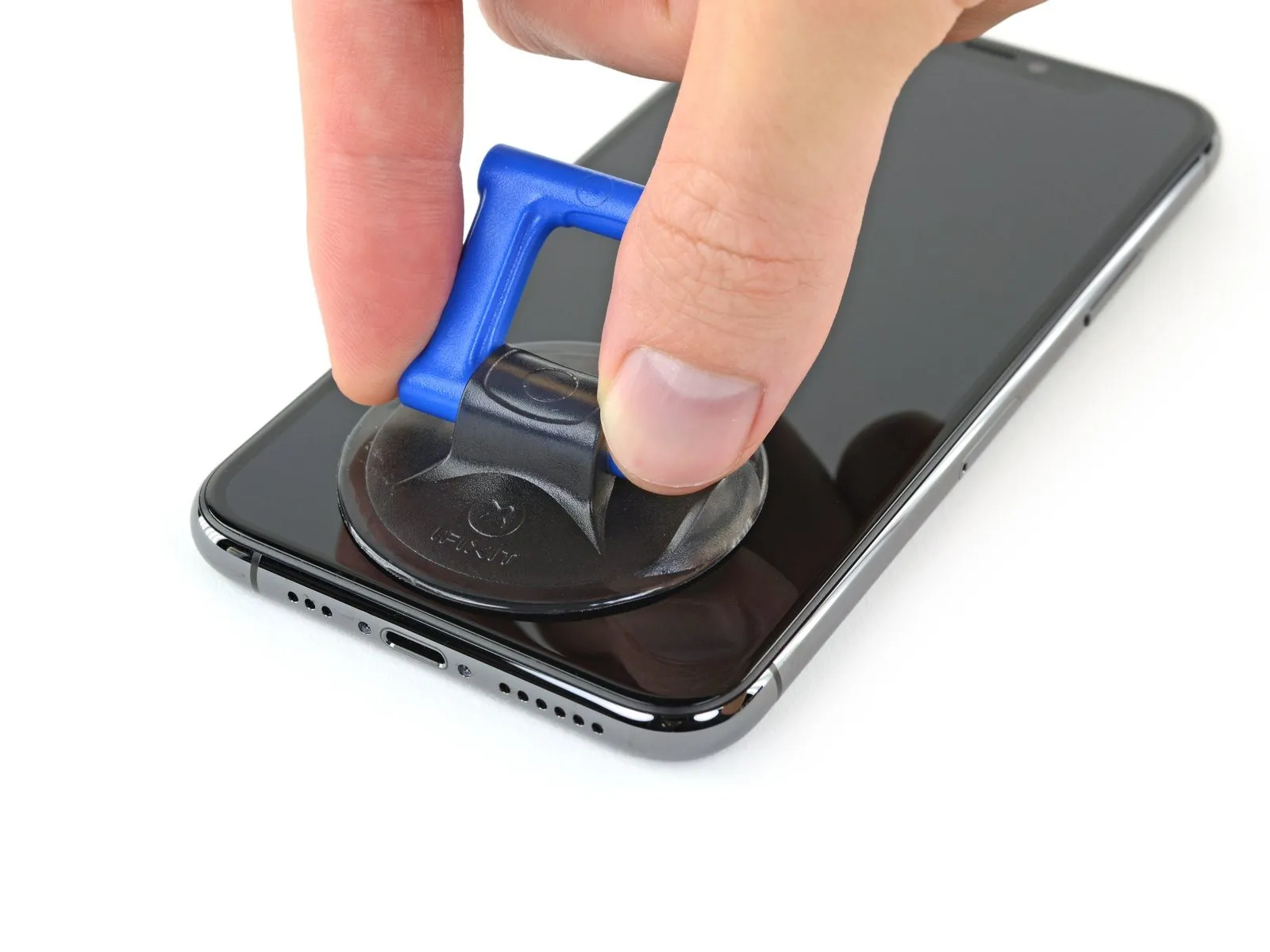

Step 9 | Lift the display slightly

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 9:

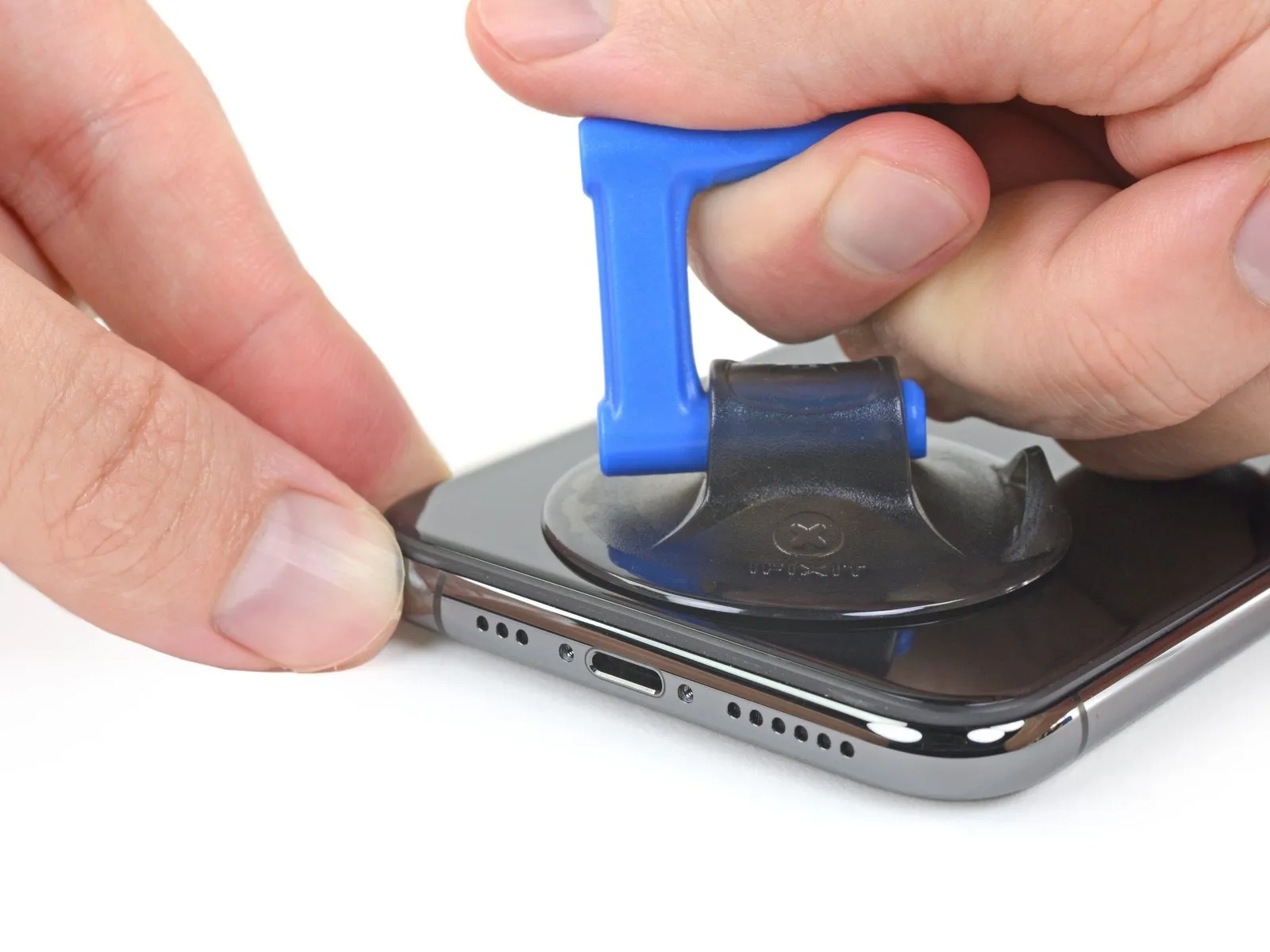

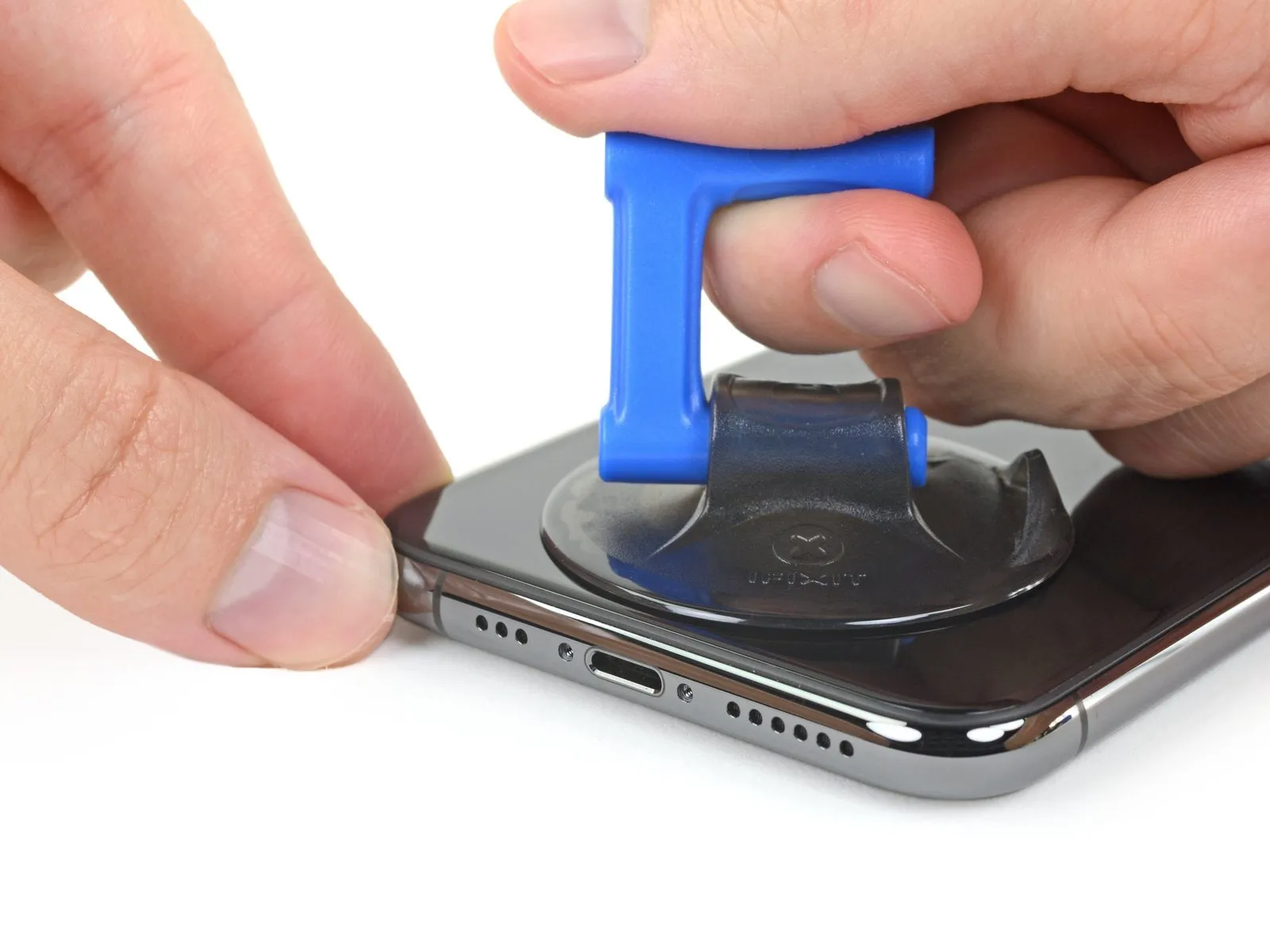

  • Apply steady, consistent upward force to the suction cup to generate a small separation between the front panel assembly and the rear casing.

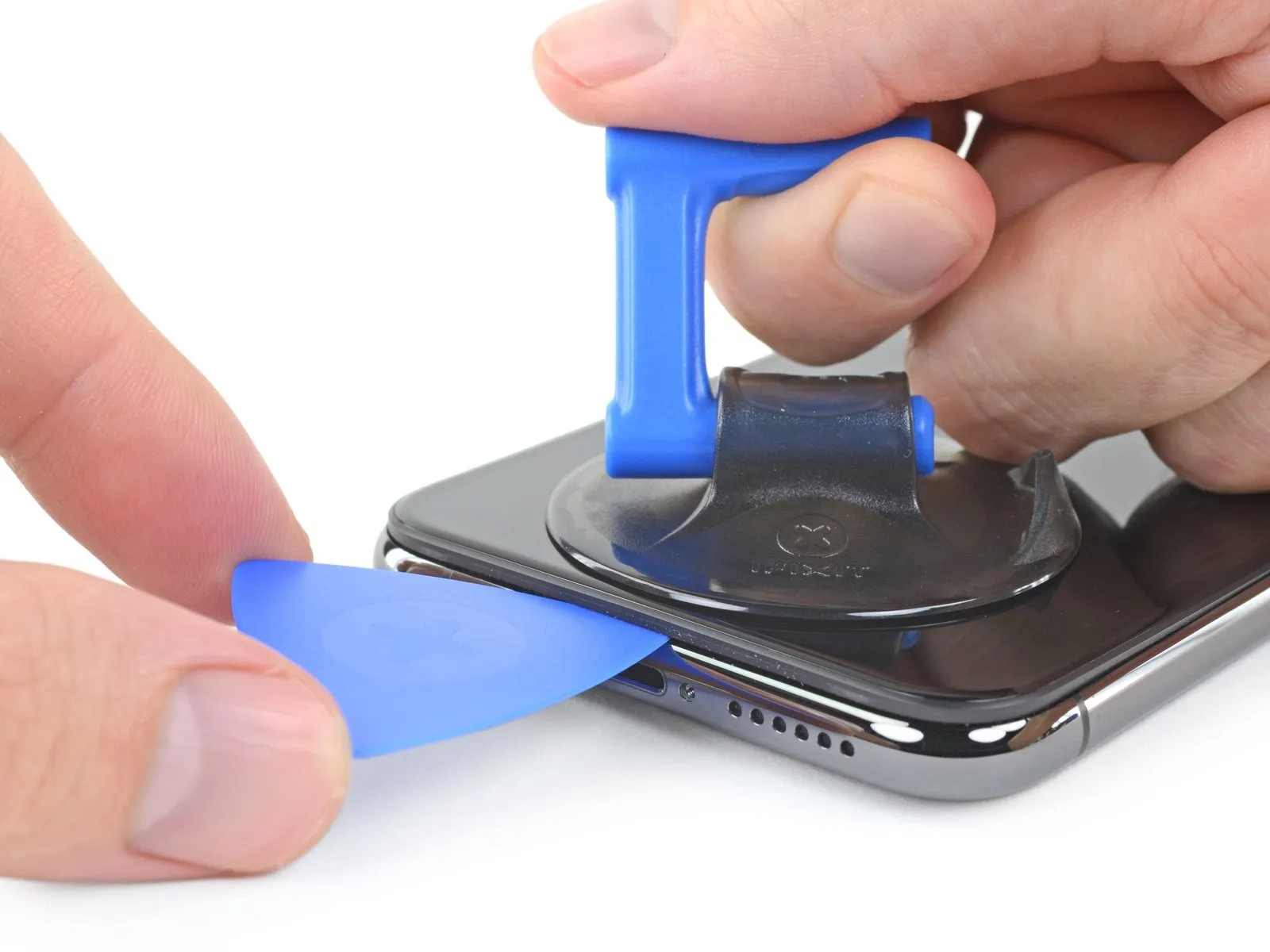

  • Carefully slide an opening tool into the space formed beneath the display screen and the surrounding plastic trim, ensuring it does not contact the screen's surface.
  • The display is secured by a robust, waterproof adhesive; overcoming this seal requires considerable effort. Should you encounter difficulty in establishing this initial separation, apply additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

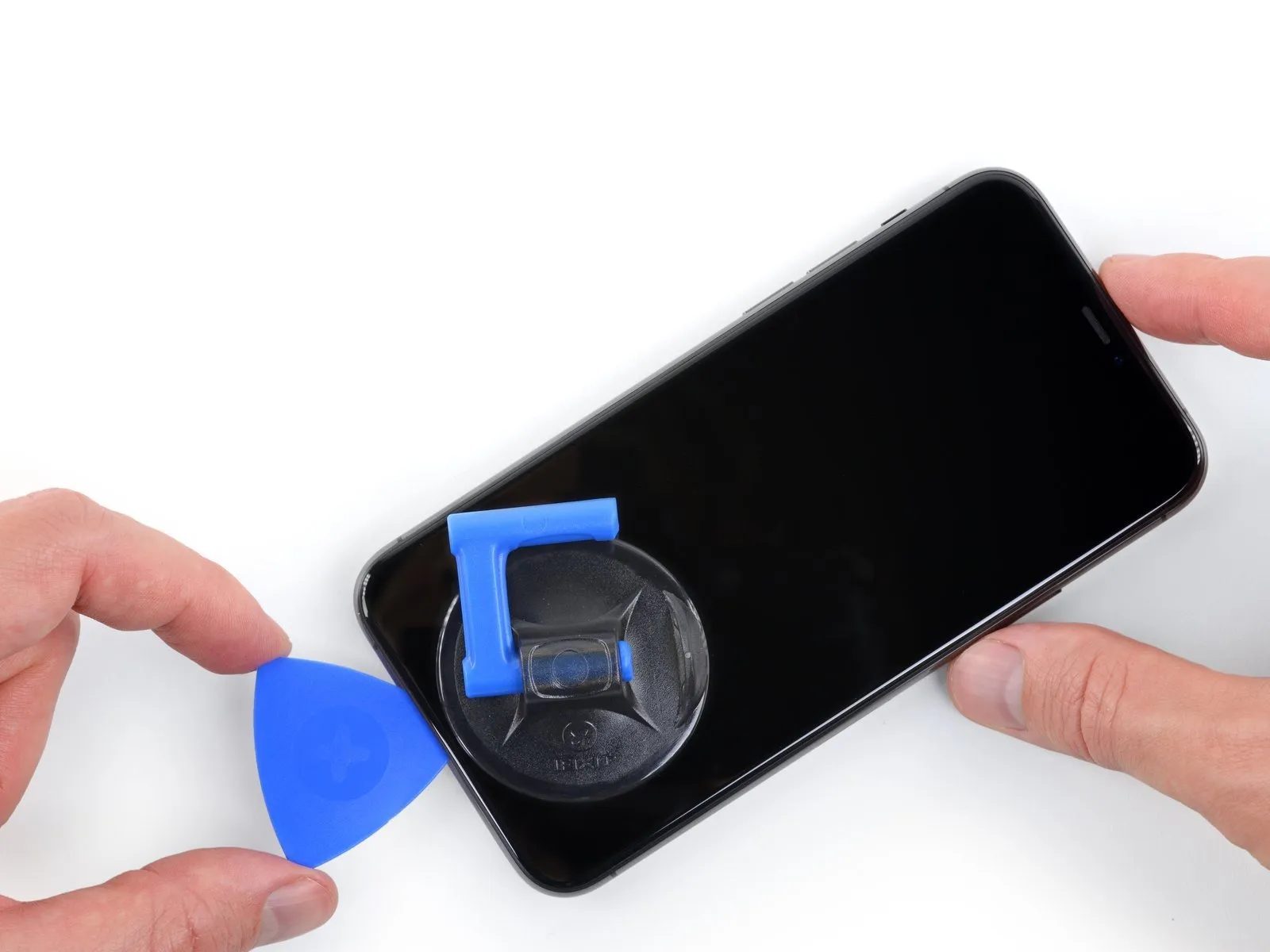

Step 10 | Separate the screen adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 10:

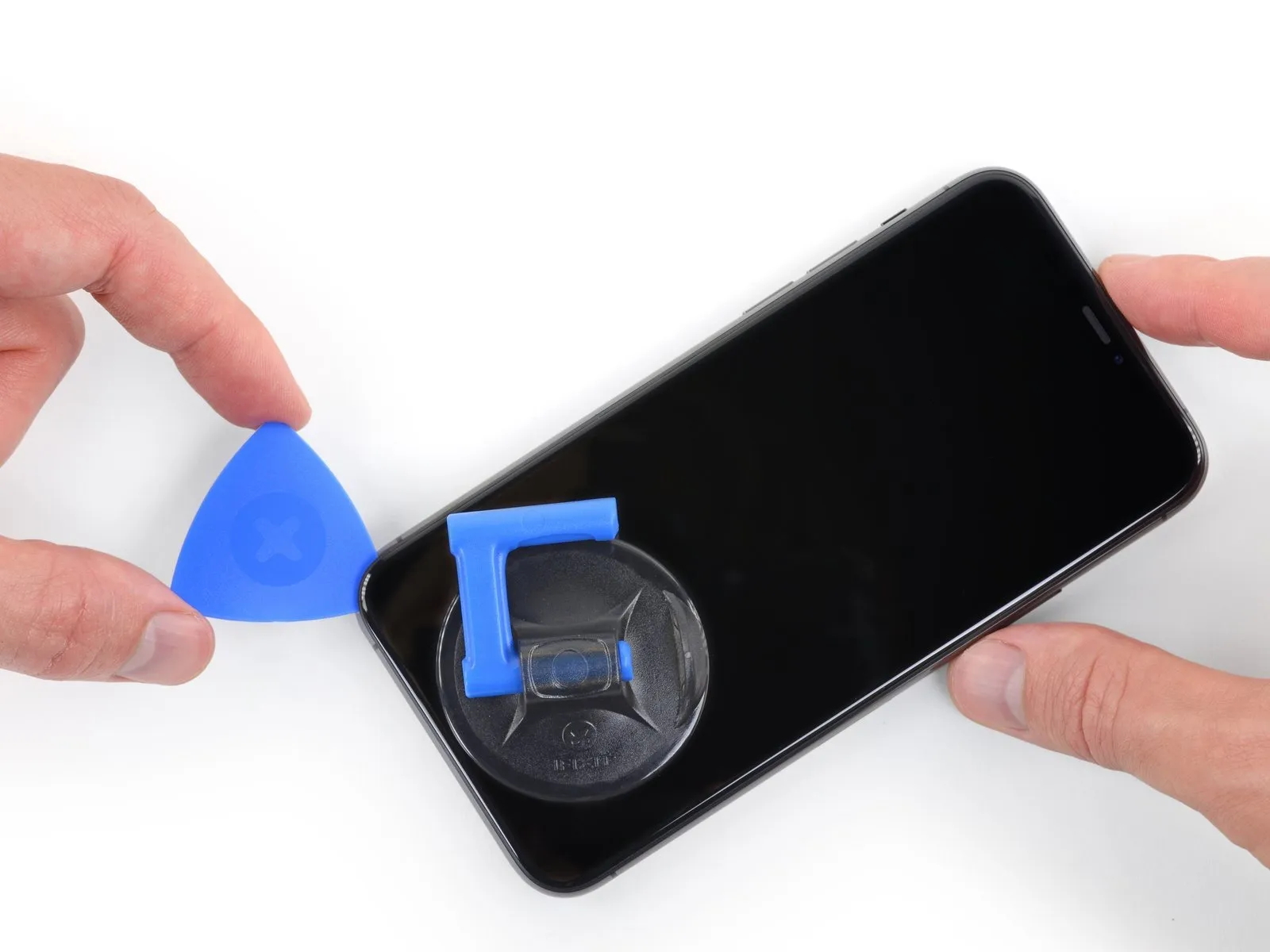

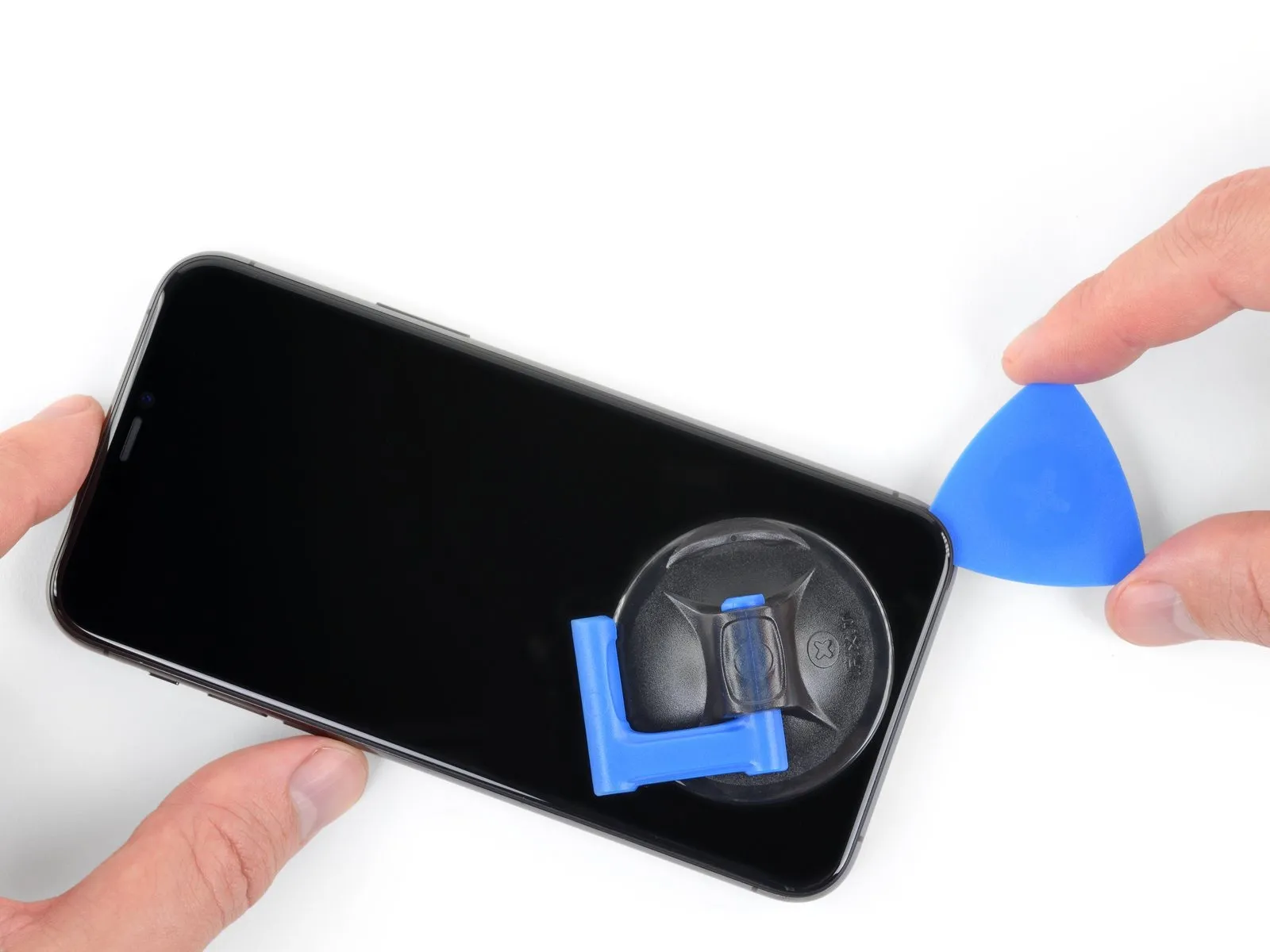

  • Employ the opening pick to maneuver along the lower-left periphery of the iPhone, progressing upwards along the left side, effectively separating the adhesive securing the display assembly.
  • Exercise caution and limit pick insertion depth to a maximum of 3 millimeters to prevent potential harm to delicate internal components.

Step 11 | Screen information

Step 11 image
Phase 11:

A fragile wire runs along the device's right side; avoid inserting your tool in this area to prevent potential cable harm.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Procedure 12:
  • To proceed with separating the adhesive, re-position your opening tool at the lower boundary of the iPhone's display and advance it upwards along the right-hand side.
  • Exercise caution to avoid inserting the tool beyond a depth of 3 millimeters, as doing so carries a risk of harm to the delicate display cable connections.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

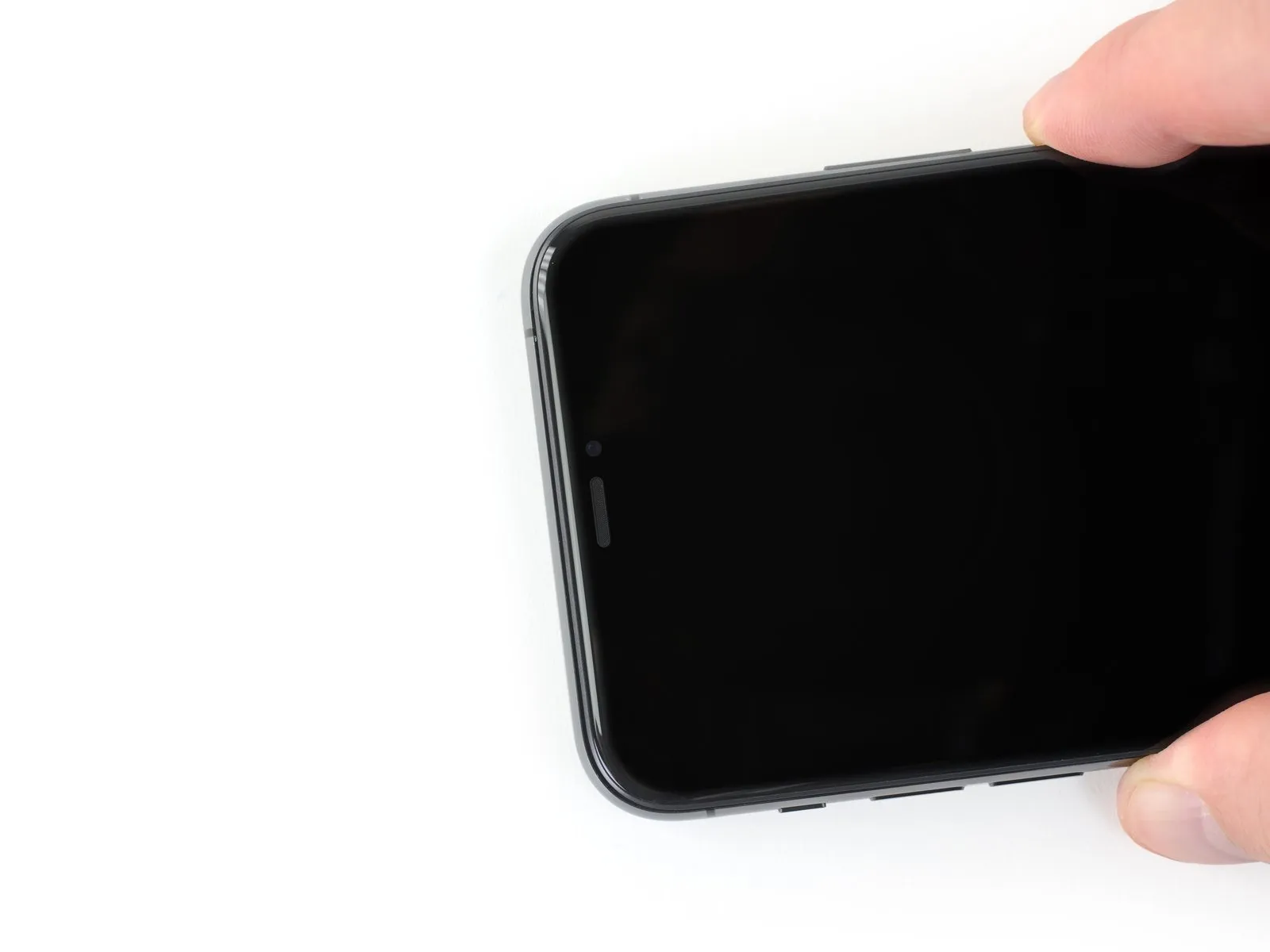

  • Adhesive and retaining clips together fasten the display's uppermost boundary.
    Carefully exert a slight downward force on the display's right side, moving it toward the Lightning connector.

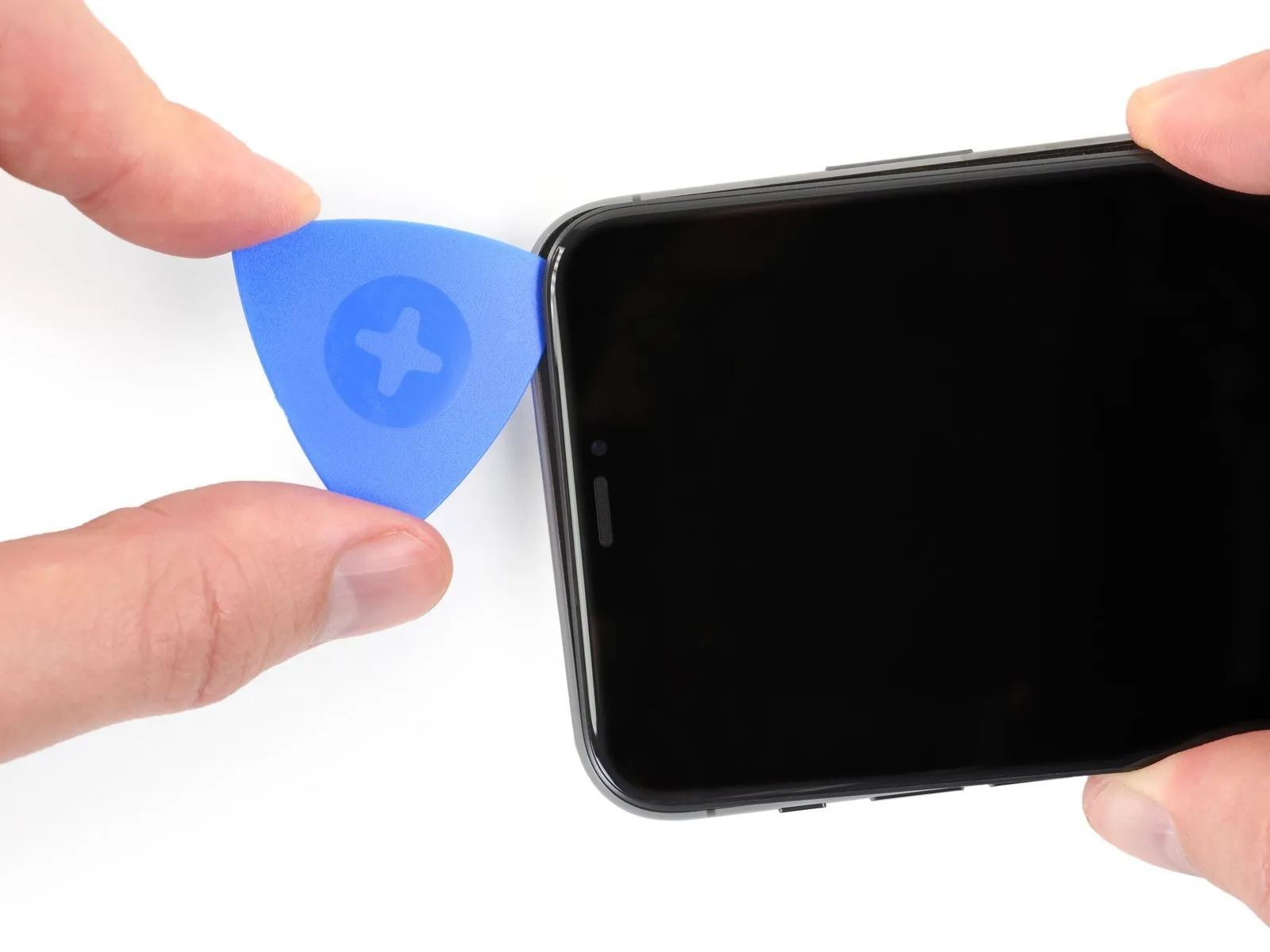

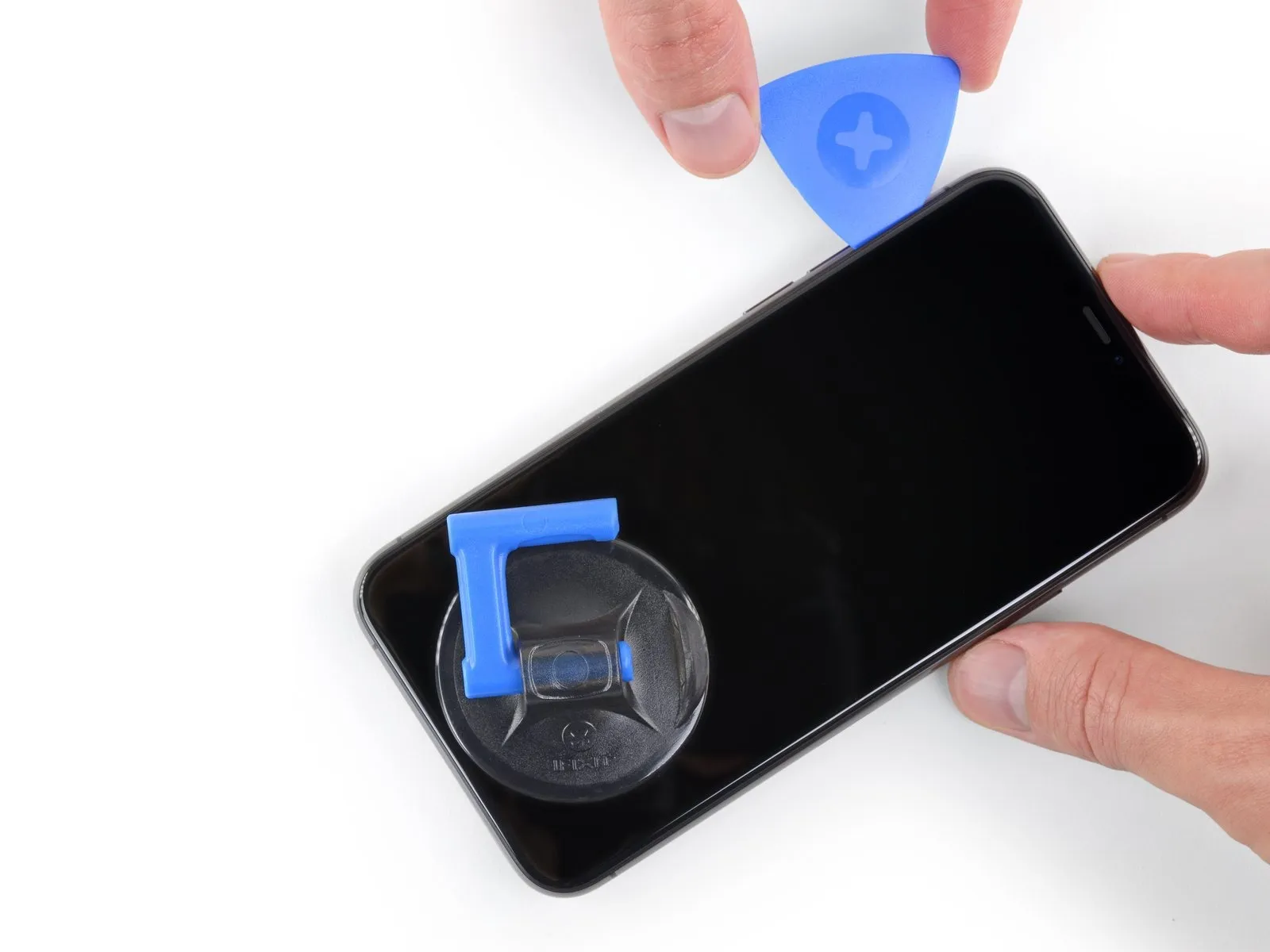

  • Position a specialized opening tool within the upper-rightmost section of the device's casing.

Step 14

Step 14 image
Thumbnail 1
Thumbnail 2

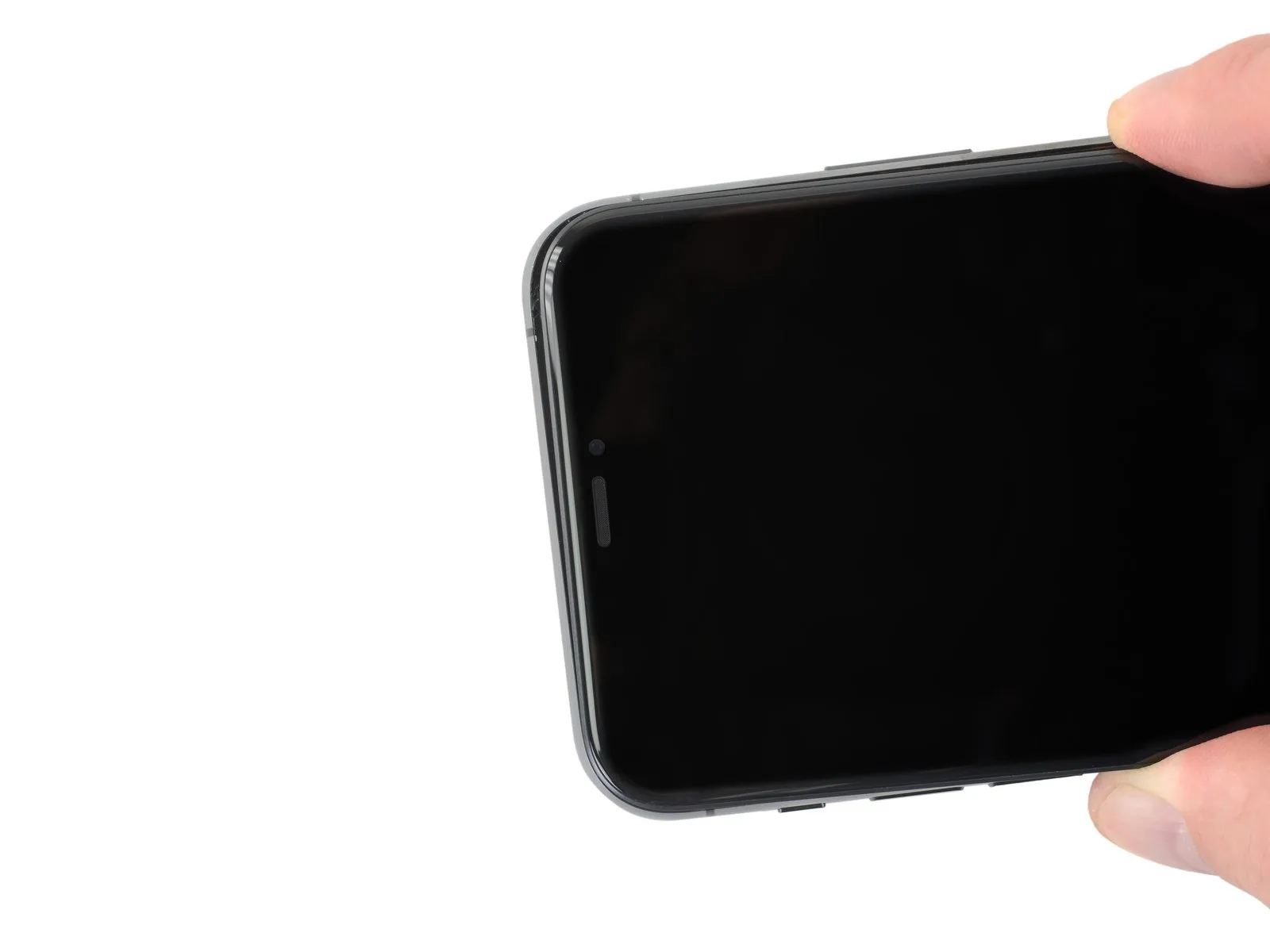

  • As necessary, maintain downward pressure on the display, directing it towards the Lightning port, to create a sufficient separation for tool insertion.

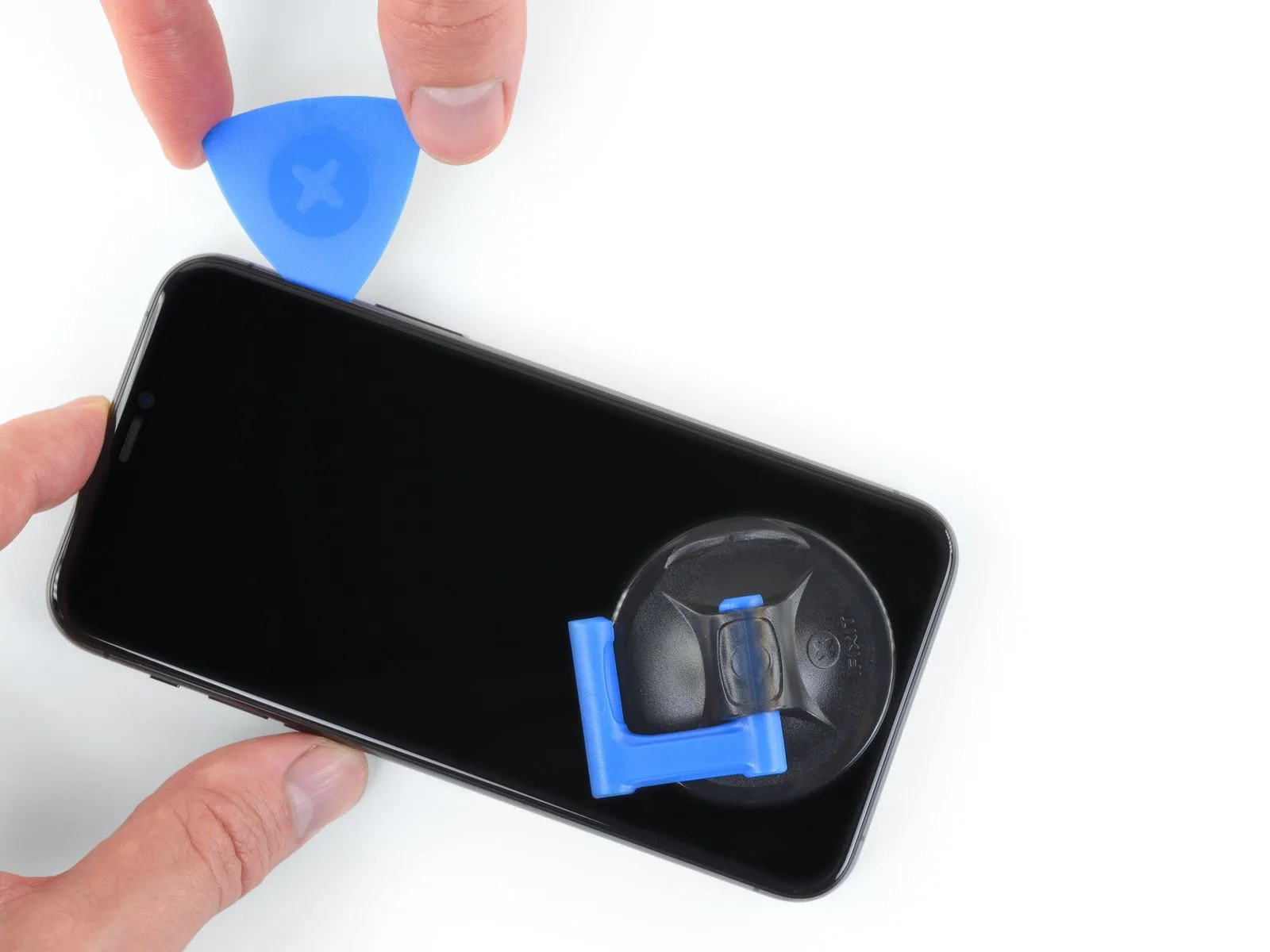

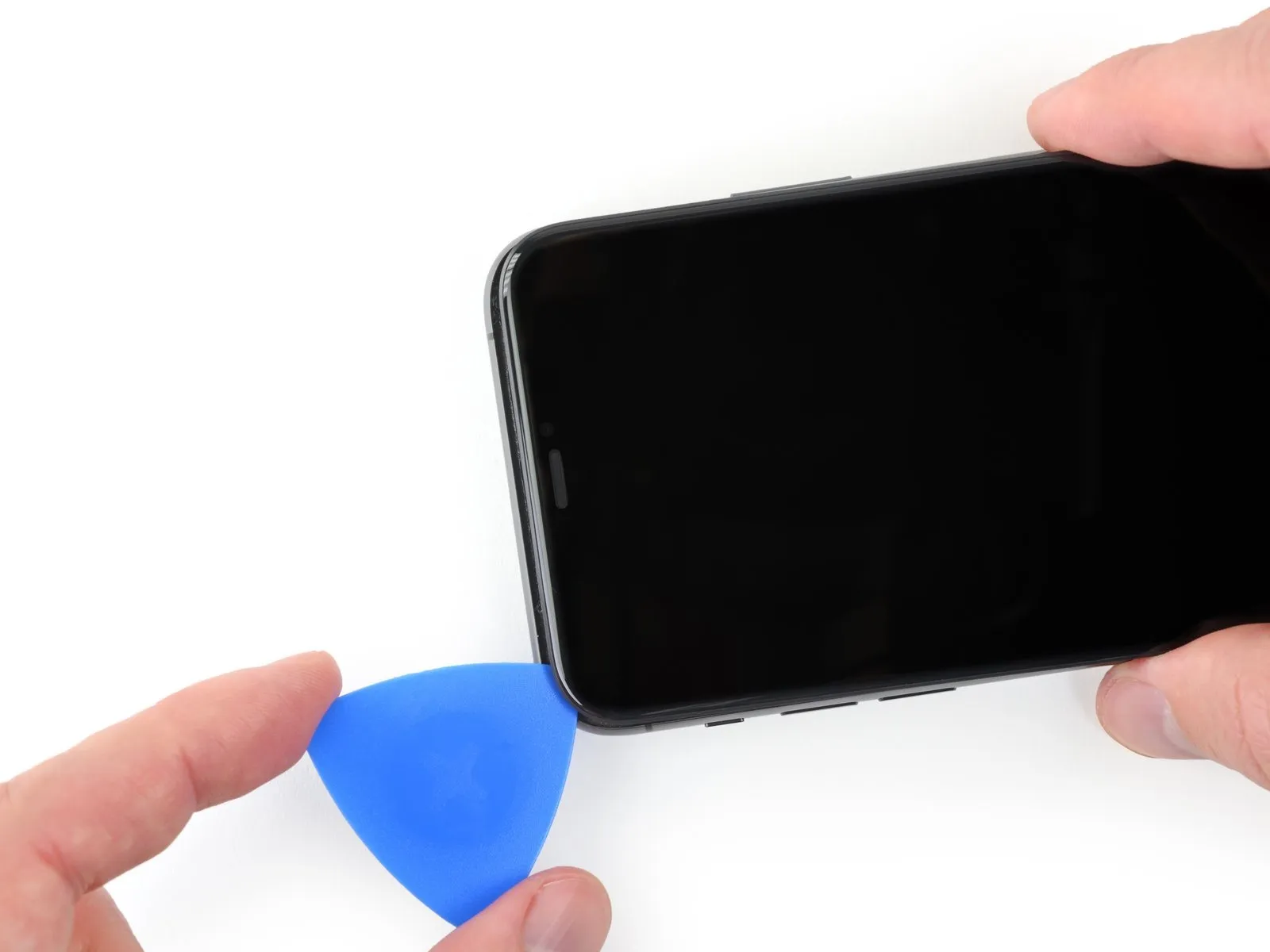

    Employ the pick to move along the upper left edge, severing any residual adhesive that is holding the display in place.
    Exercise caution to prevent the pick from penetrating beyond a depth of 3 millimeters, to avoid potential harm to the front panel sensor array.

Step 15 | Remove the suction cup

Step 15 image
  • To detach the suction cup from the front panel, grasp and exert force on the small protrusion located on its surface.

Step 16 | Open the iPhone

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

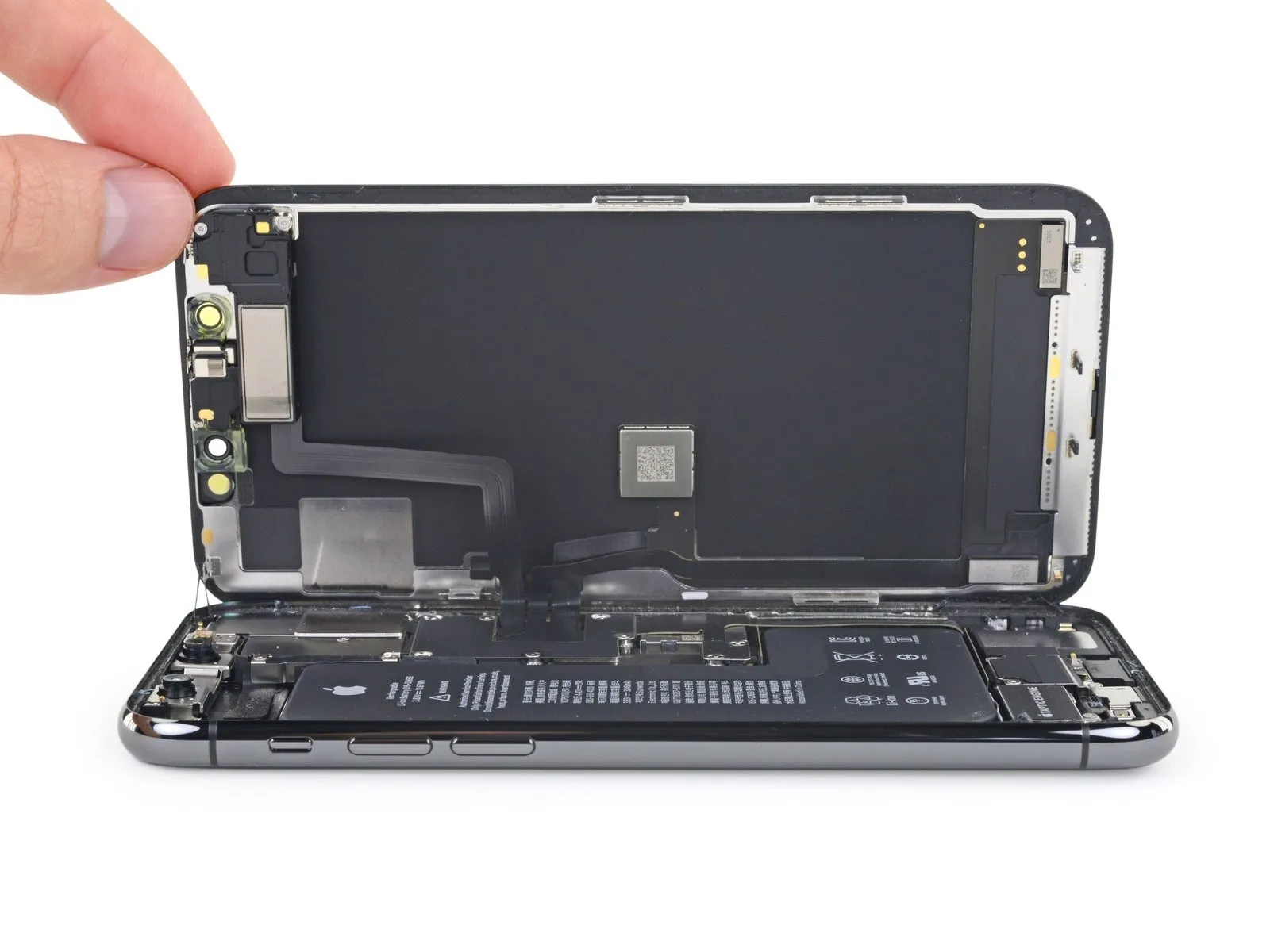

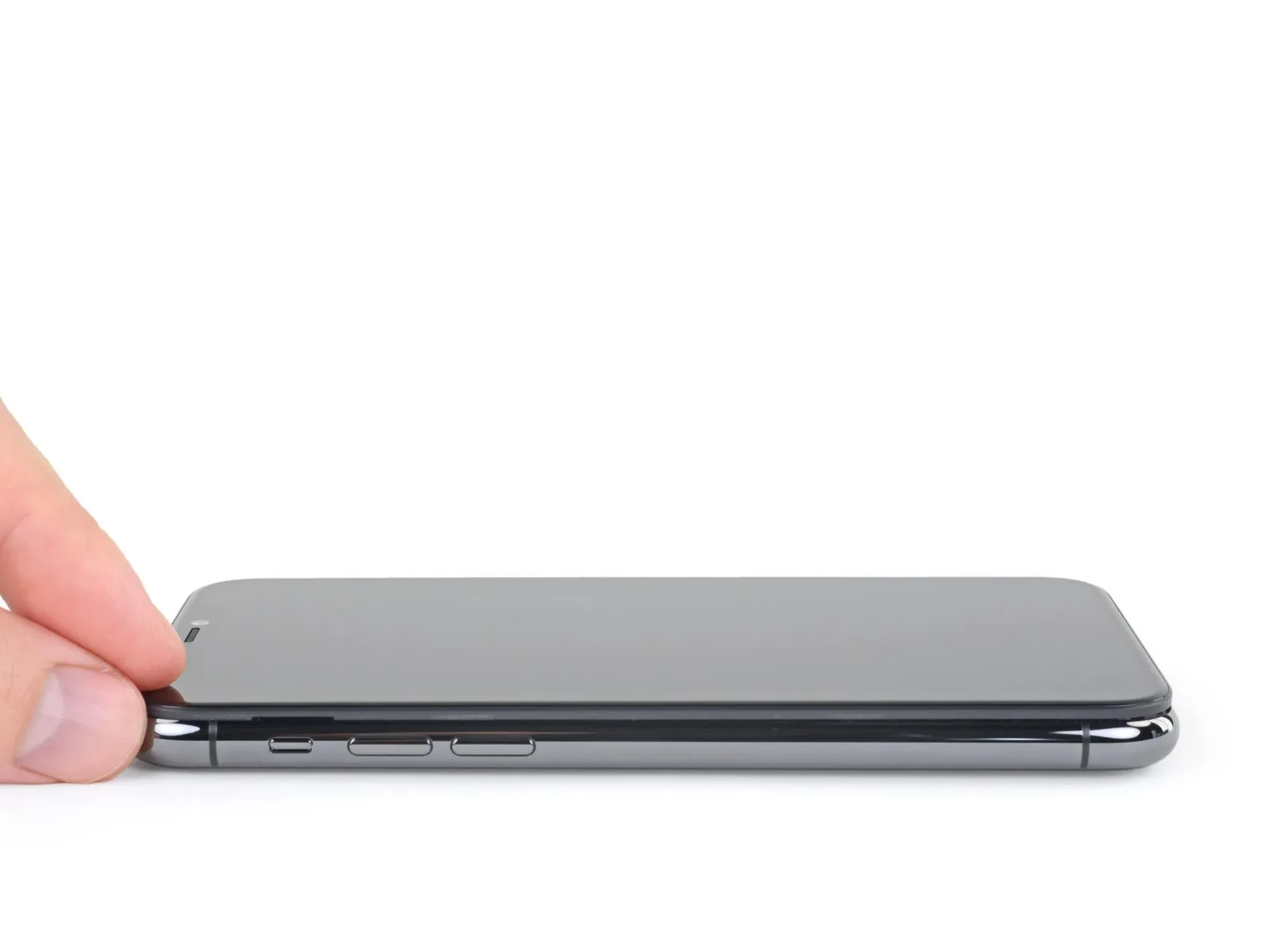

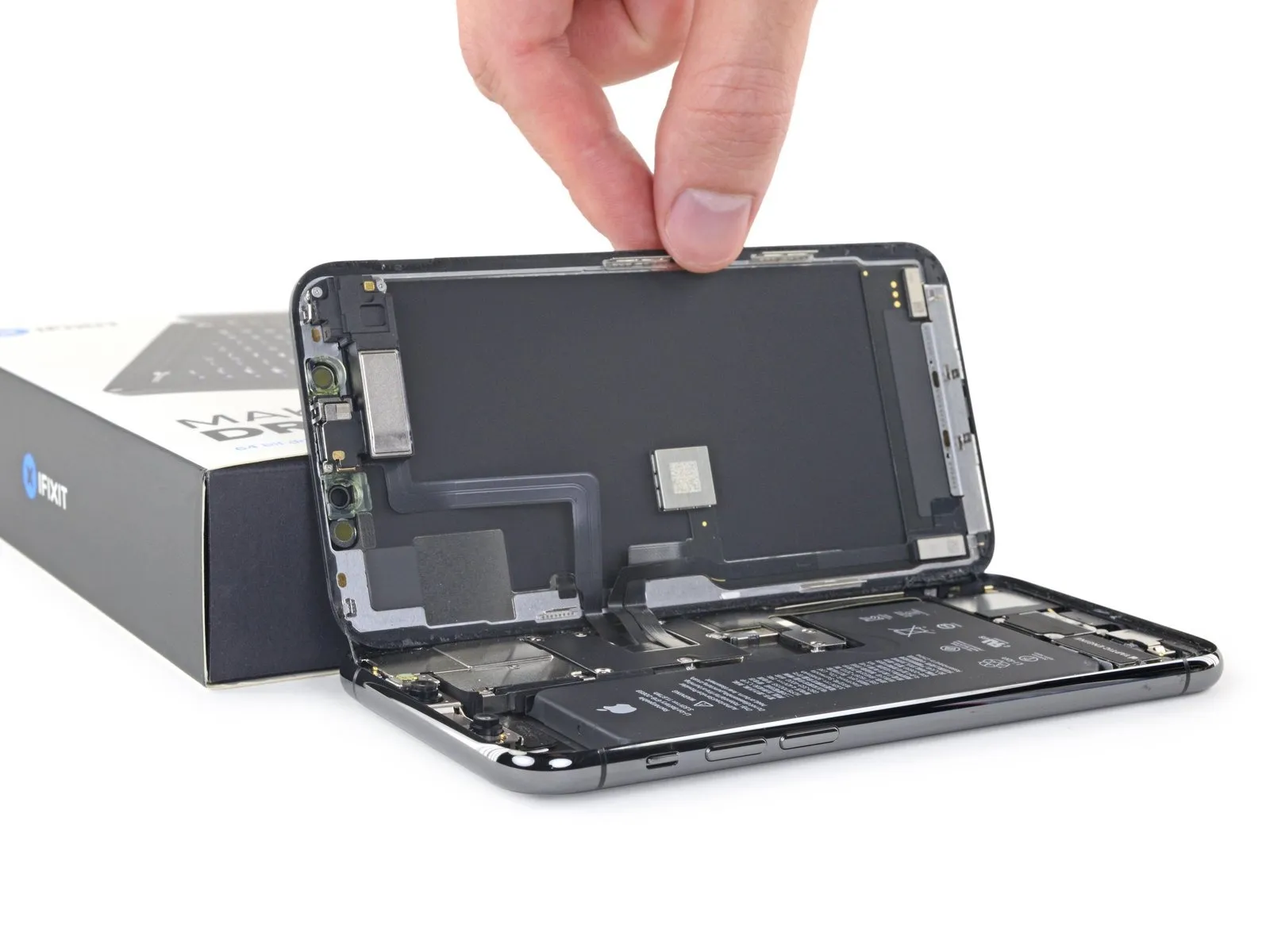

  1. To access the internal components, initiate the display opening process by pivoting the screen upwards from the left edge, mimicking the action of opening a book's cover.
    Refrain from completely disconnecting the display at this stage, because multiple delicate ribbon cables remain attached to the iPhone's main circuit board.
    Secure the lifted display in an upright position using a support to prevent it from obstructing your work.
    When reassembling the device, position the display, ensuring the retaining clips along the upper edge are properly aligned, and then gently apply pressure to the top edge to secure it before fully engaging the remainder of the display. Should the display not easily lock into place, inspect the clips around the display's border for any signs of deformation and correct them if necessary.

Step 17 | Unscrew the battery connector cover

Step 17 image
Thumbnail 1
Thumbnail 2

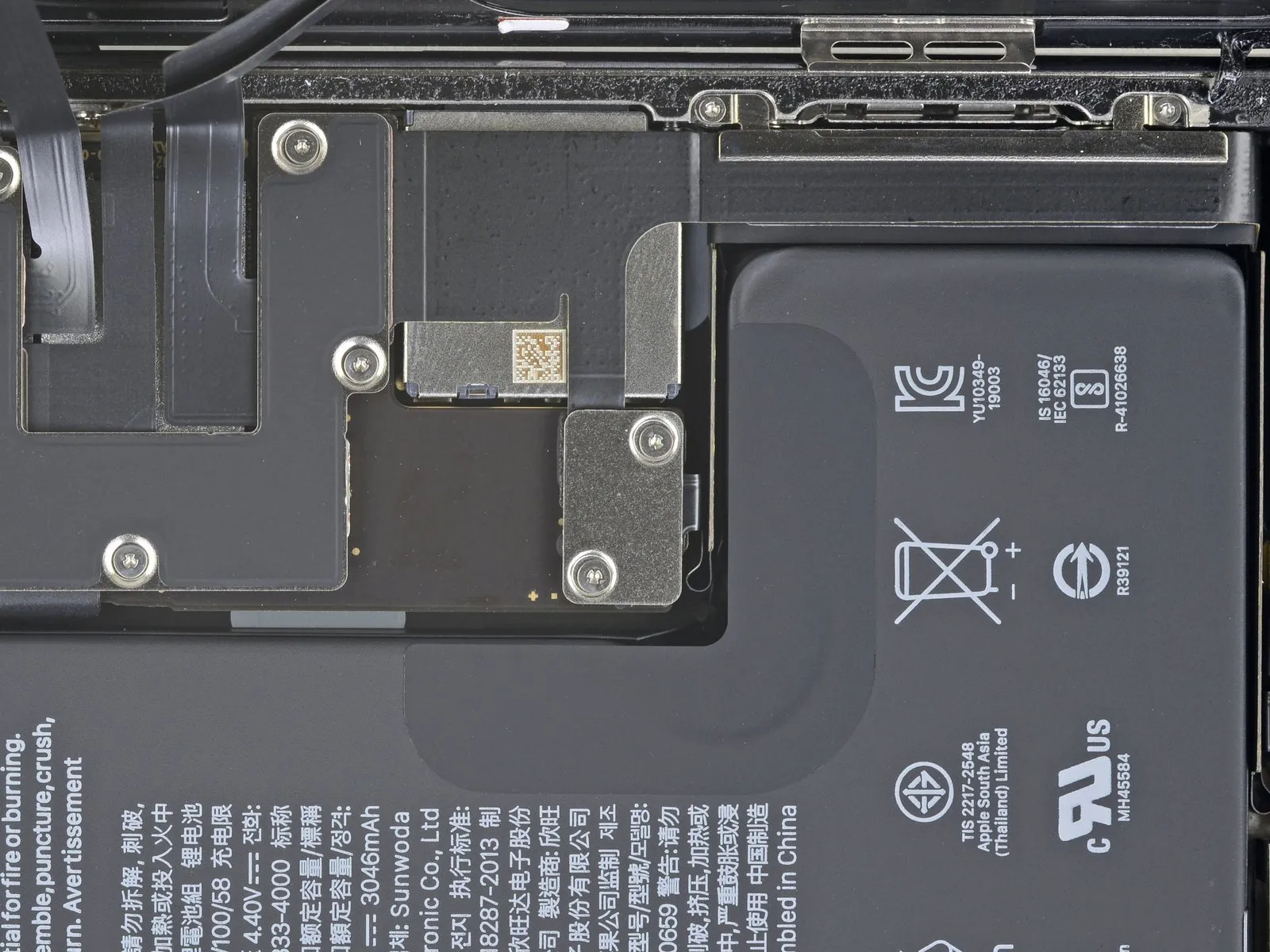

  1. Detach the battery cover bracket using two Y000 screws, each measuring 1.3 mm in length.1.3 mmLong Y000 screws
    Carefully organize and document the location of each screw during disassembly, ensuring correct placement during reassembly to prevent potential damage to your iPhone.
    As part of the reassembly process, it is advisable to briefly activate your iPhone and verify all its features before permanently securing the display; subsequently, ensure the device is fully powered off to proceed with the repair.

Step 18 | Remove the battery connector cover

Step 18 image
  • Detach the bracket from its existing location.

Step 19 | Disconnect the battery

Step 19 image
Thumbnail 1
Thumbnail 2

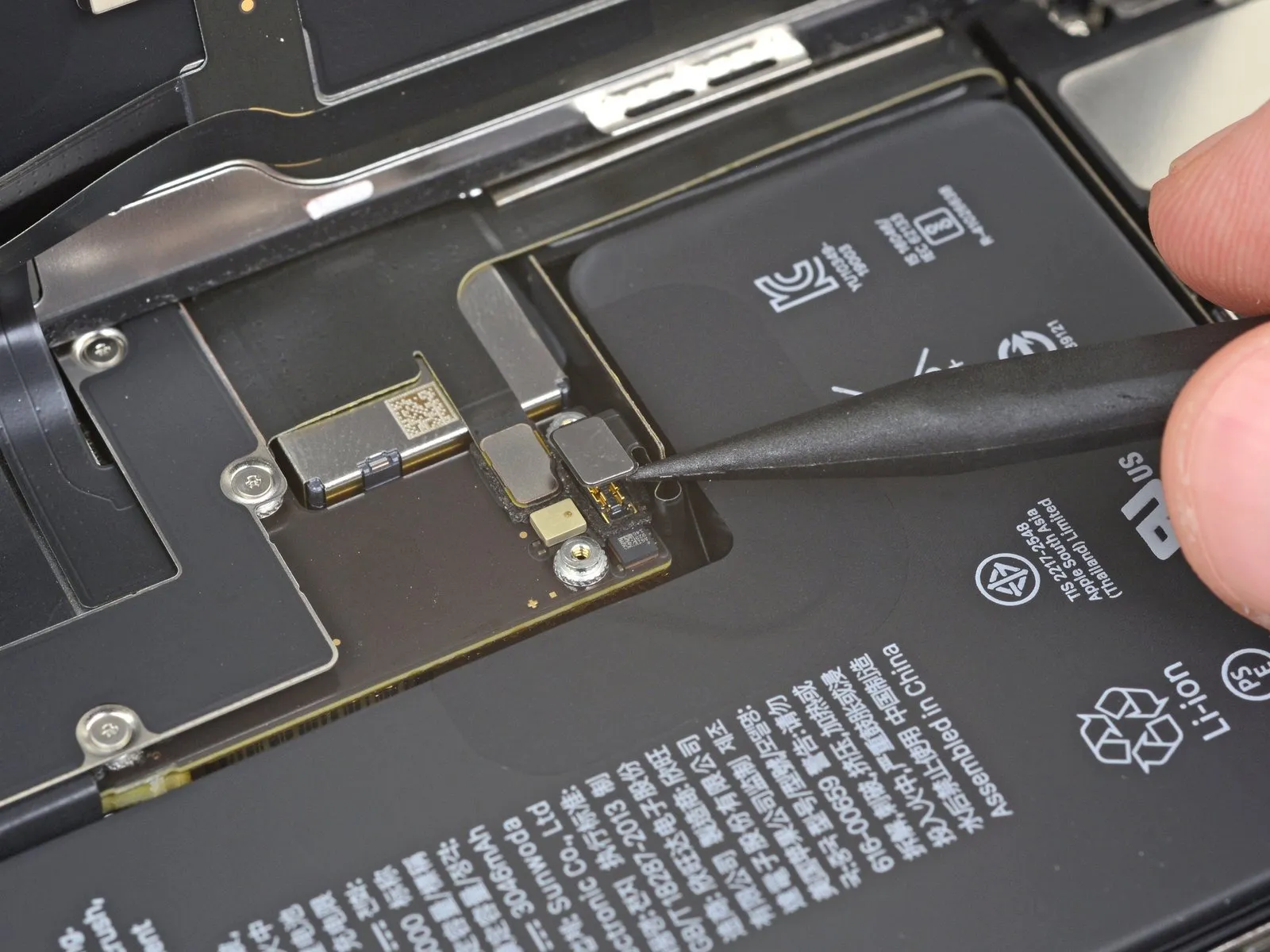

  1. Employ a spudger tool or a meticulously clean fingernail to lift the battery connector away from its corresponding socket located on the logic board.
    Exercise caution to avoid any harm to the black silicone seals that encircle this connector and others on the board, as they offer supplemental defense against water and dust penetration.
    Slightly deflect the connector outward from the logic board to ensure it remains disconnected from the socket, thus preventing unintended power delivery to the device during the repair process.

Step 20 | Unscrew the logic board cover screws

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ a Y000 driver to detach the six screws that hold the logic board cover bracket in place.The screws measure 1.3 mm in length.These fasteners secure the bracket to the logic board.

Step 21 | Remove the logic board cover bracket

Step 21 image
Detach the bracket from its affixed location.

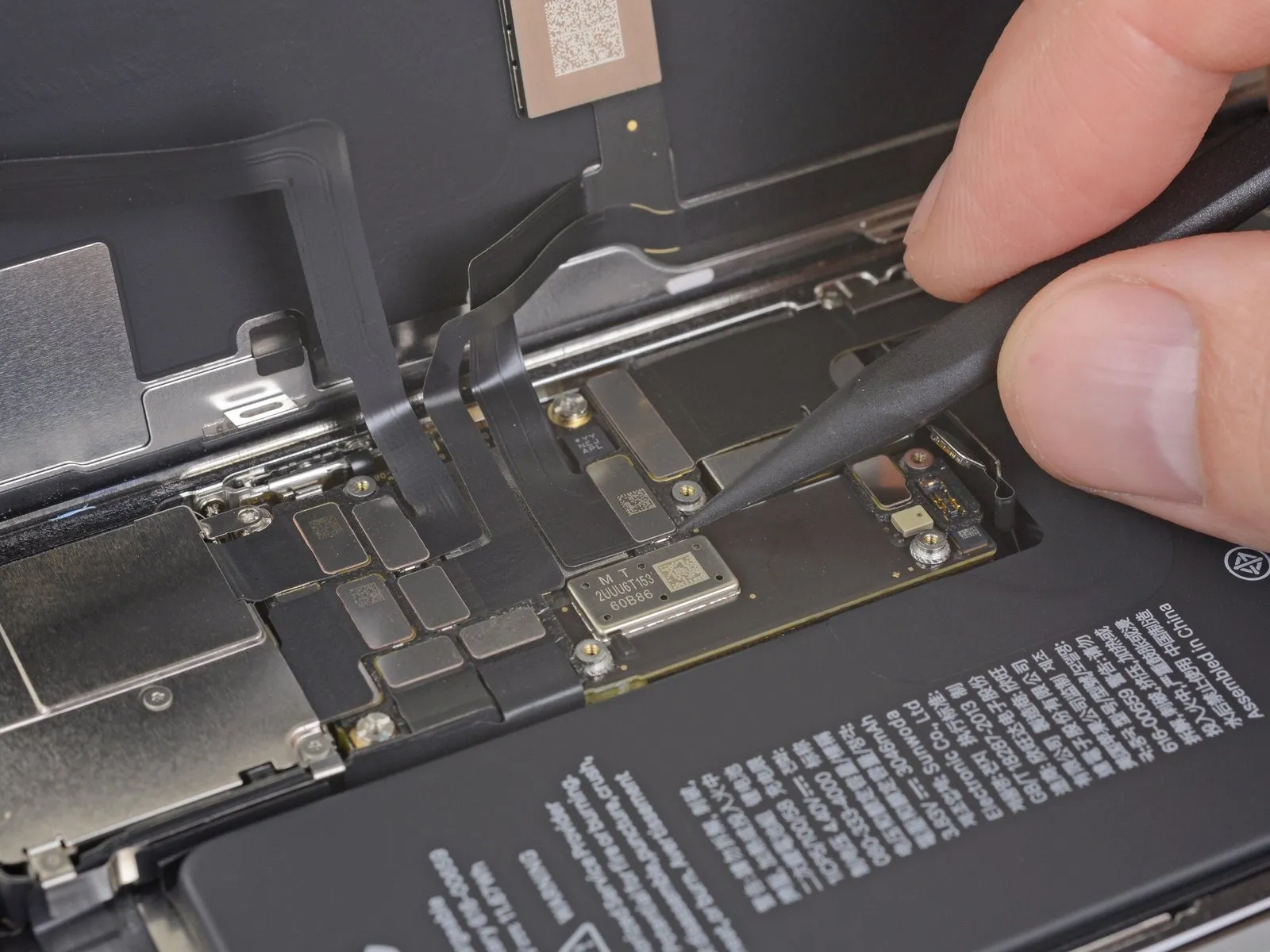

Step 22 | Disconnect the OLED display cable

Step 22 image
Thumbnail 1
Thumbnail 2

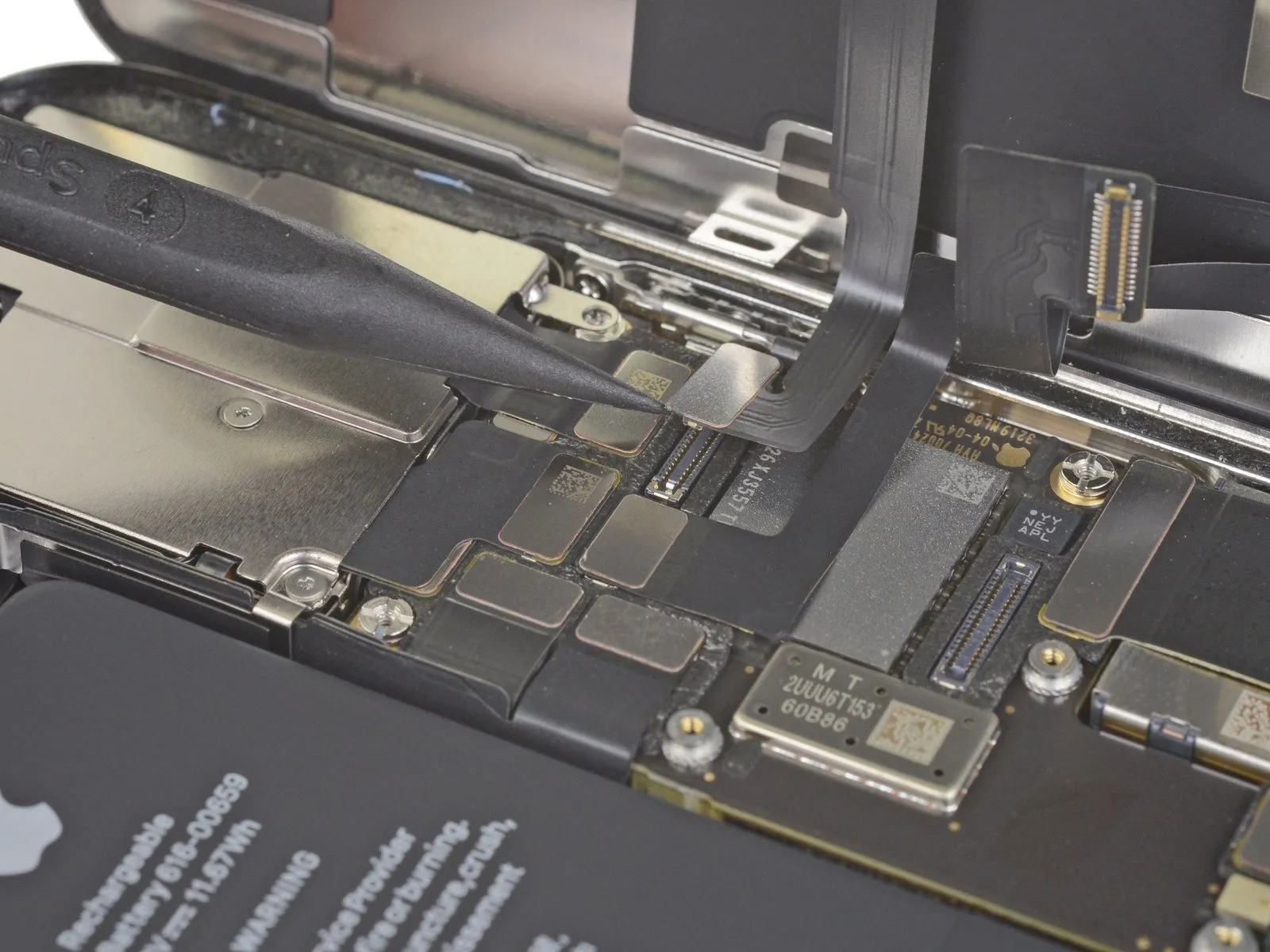

  • Employ aspudgeror afingernailfor detaching the OLED panel cable connector.
  • To secure the connector again, position it precisely and apply pressure to each side sequentially until a distinct click is heard; avoid applying pressure to the central portion. Incorrect alignment risks bending the internal pins, which could result in irreversible damage.

Step 23 | Disconnect the front sensors + digitizer

Step 23 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

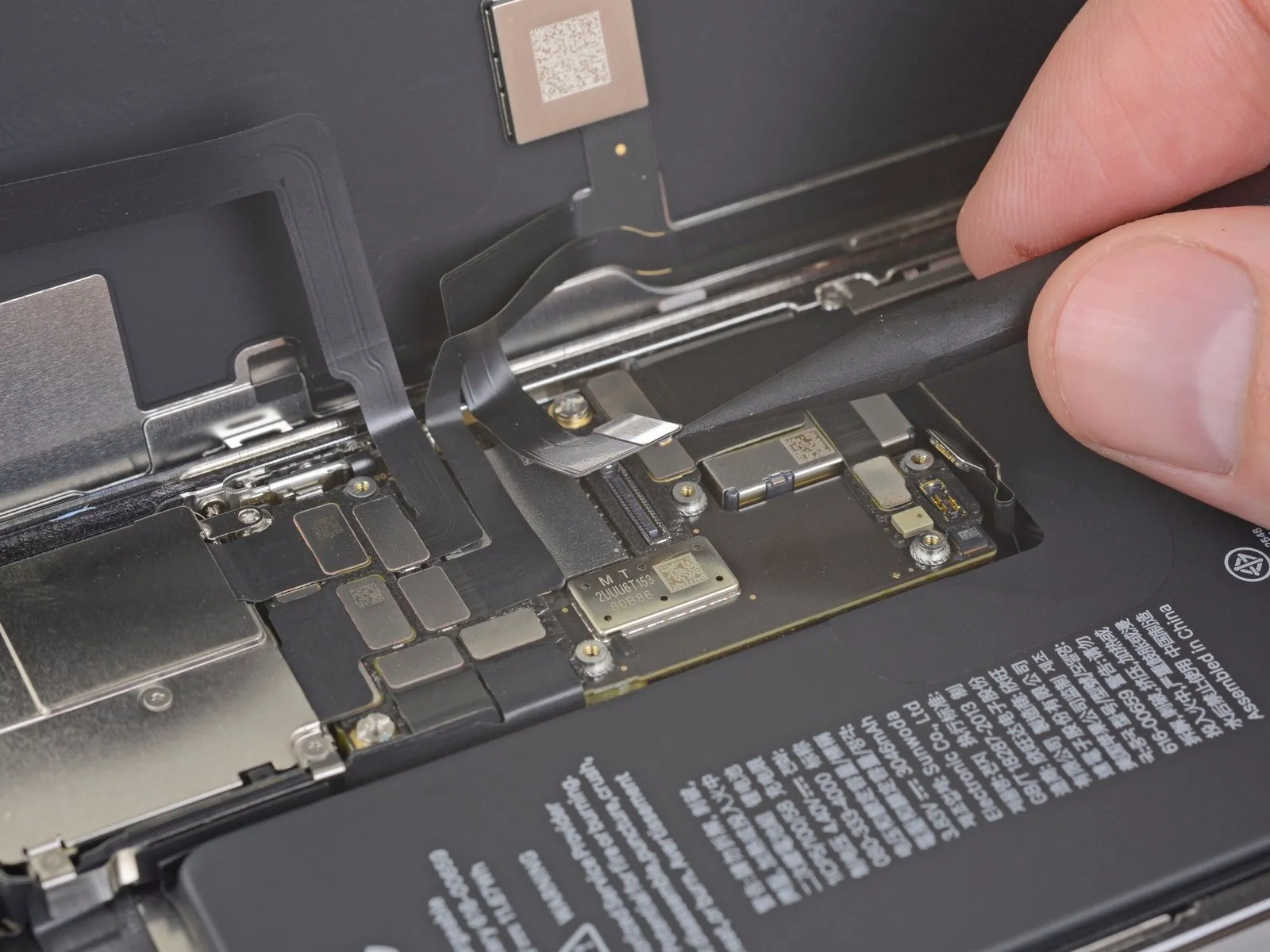

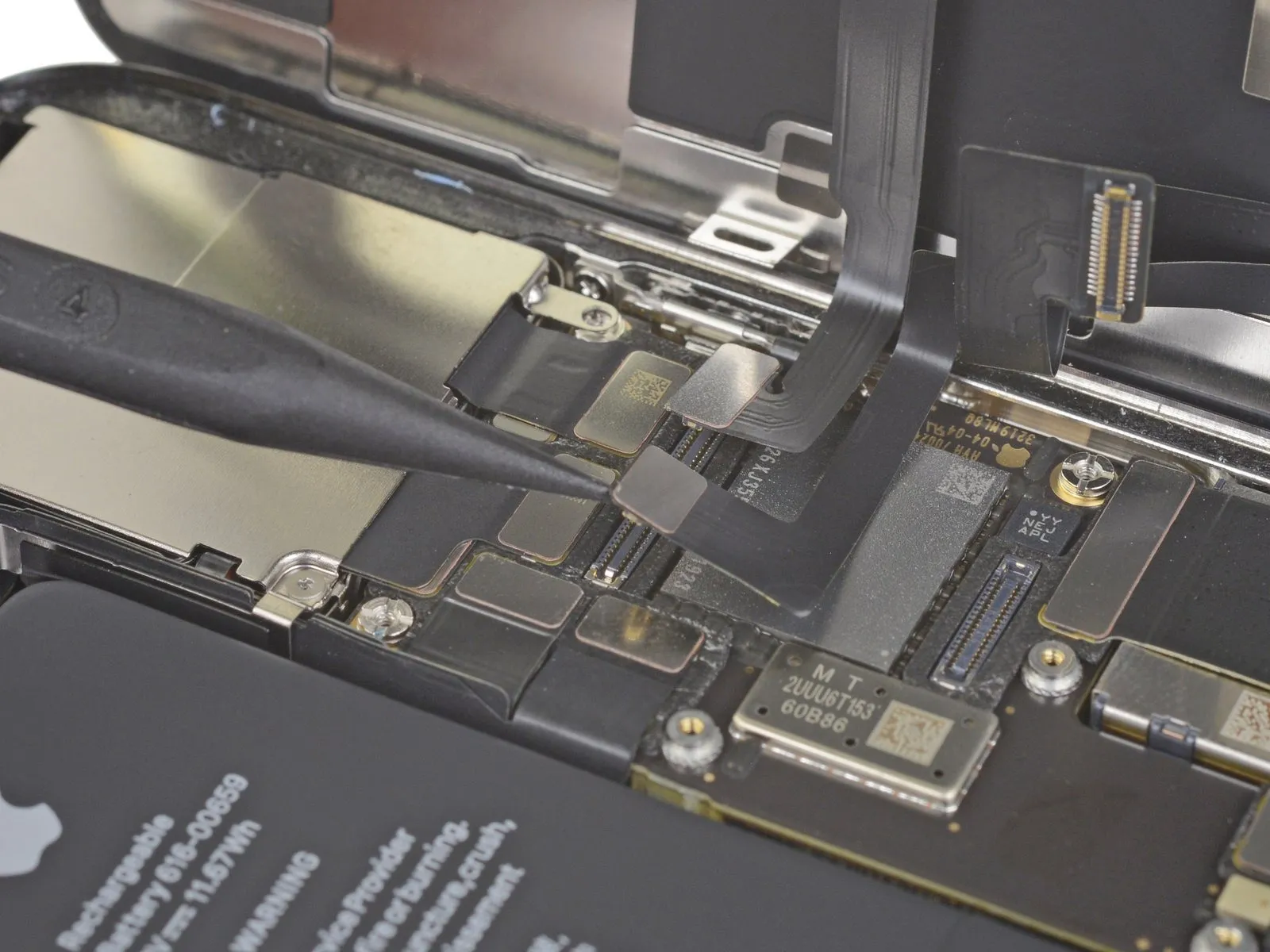

  • Employ aspudgerora fingernailfor separating the front sensor assembly cable connector.
  • Utilize aspudgerora fingernailto release the digitizer cable connector.
  • Should any area of the screen exhibit a lack of touch responsiveness following the repair procedure, it is advised to remove the battery and then firmly reconnect this connector, ensuring a complete and audible click, and verifying the absence of dust or debris within the socket.

Step 24 | Remove the display assembly

Step 24 image
  • Detach the display unit from the device.
  • If you intend to substitute the water-resistant adhesive that seals the display's perimeter, temporarily halt the reassembly process at this stage.

Step 25 | Unscrew the lower battery connector cover

Step 25 image
  • Employ a Y000 driver for the purpose of detaching the quartet of 1.5 mm screws which hold the lower battery connector cover in place.

Step 26 | Remove the cover

Step 26 image
  • To access the lower battery connector, first detach the protective cover.

Step 27 | Disconnect the lower battery connector

Step 27 image
Thumbnail 1
Thumbnail 2
  • Employ a spudgerto release the lower battery flex cable, achieving disconnection by applying upward pressure directly on the connector.

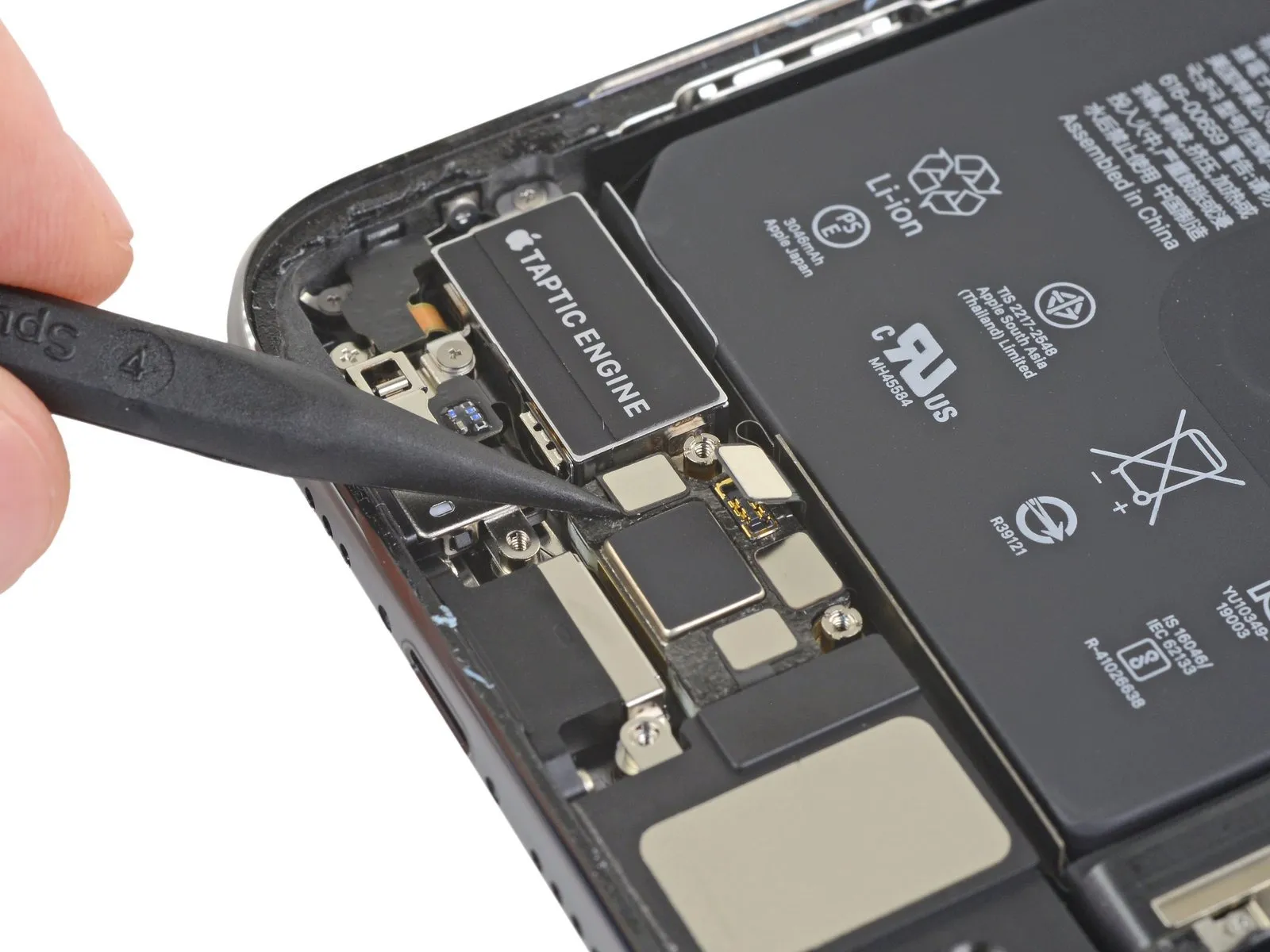

Step 28 | Disconnect the Taptic Engine

Step 28 image
Thumbnail 1
Thumbnail 2

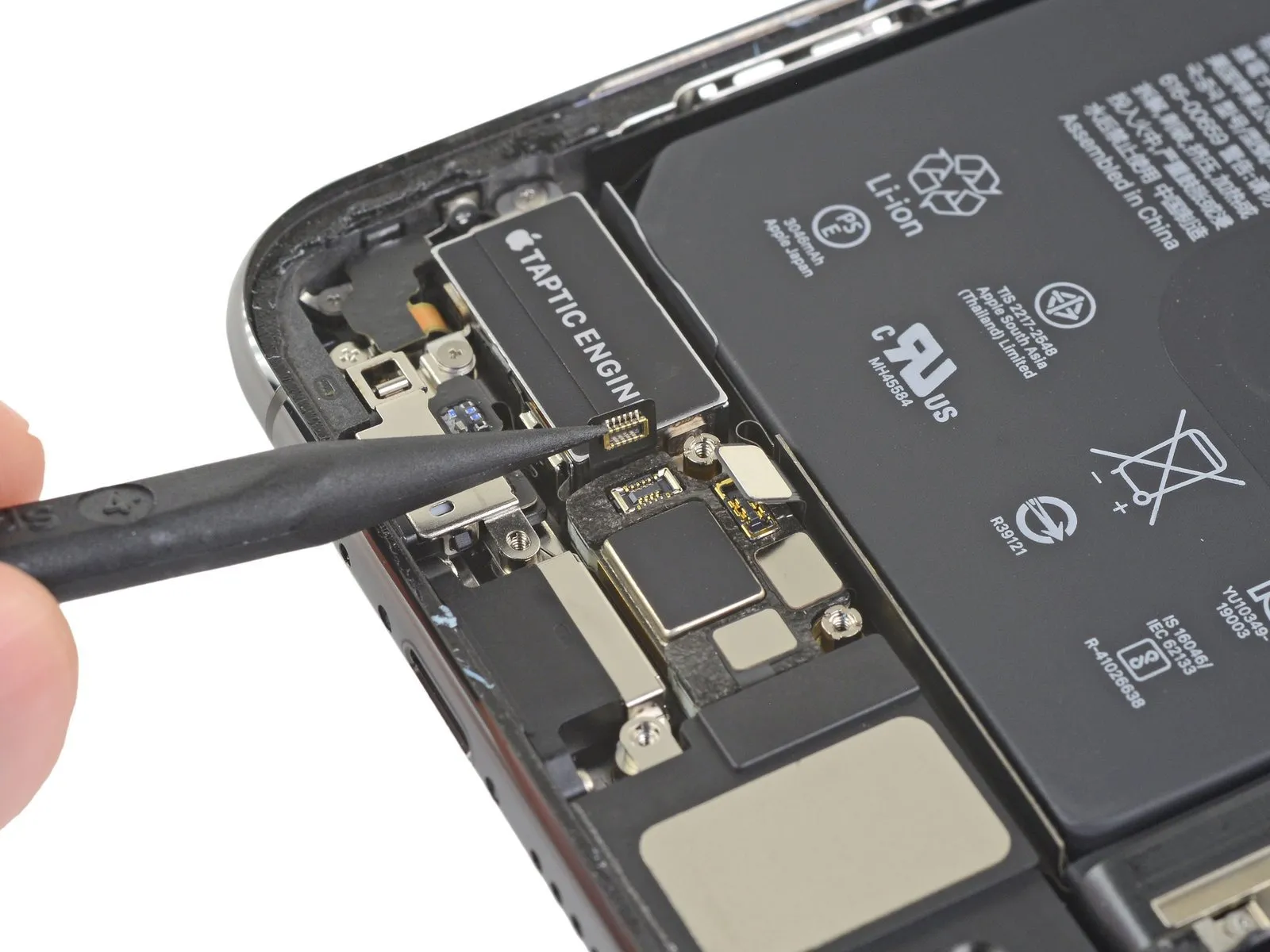

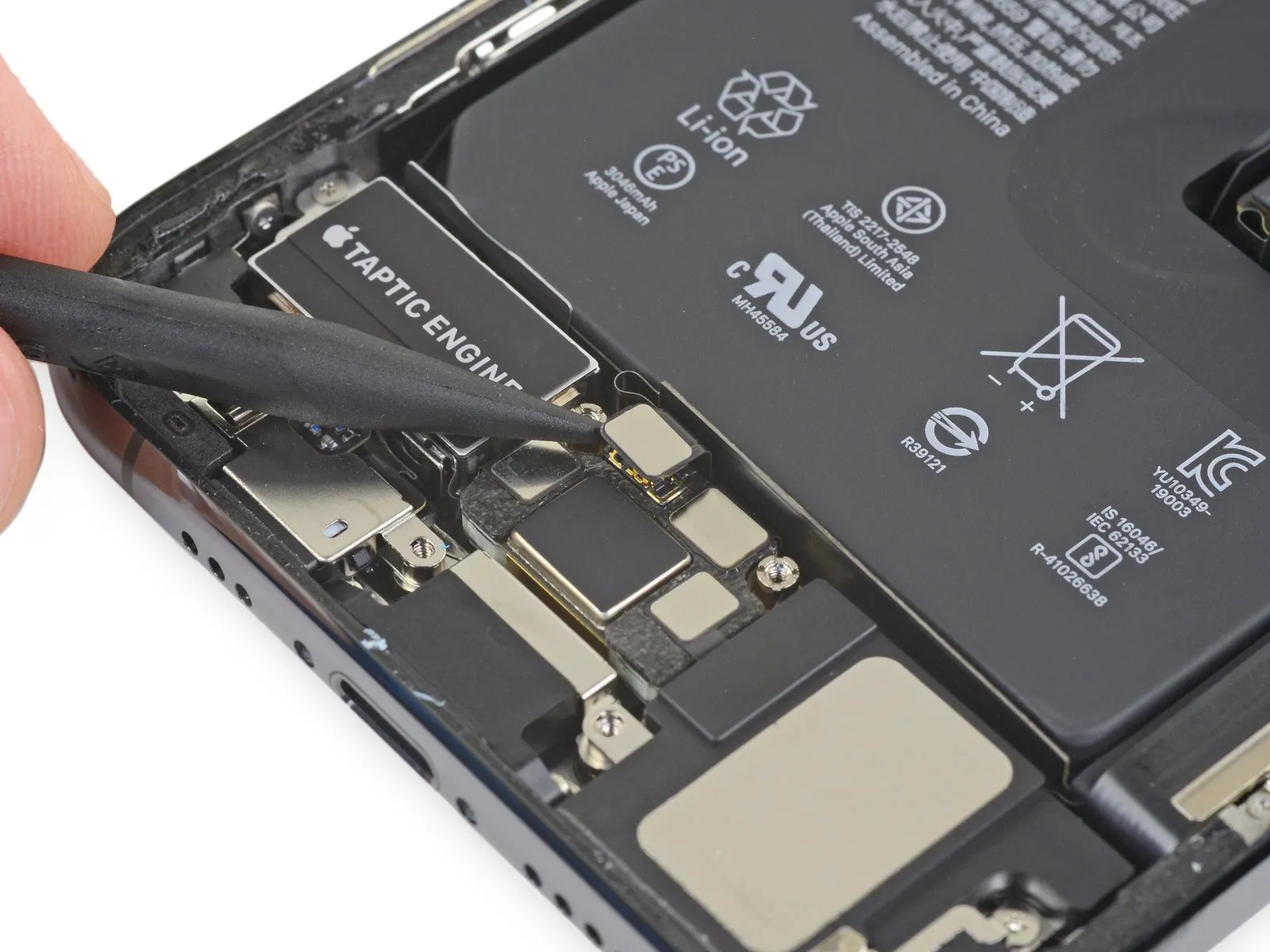

  • Employ a spudgerto release the Taptic Engine flex cable, lifting it vertically away from its connector.

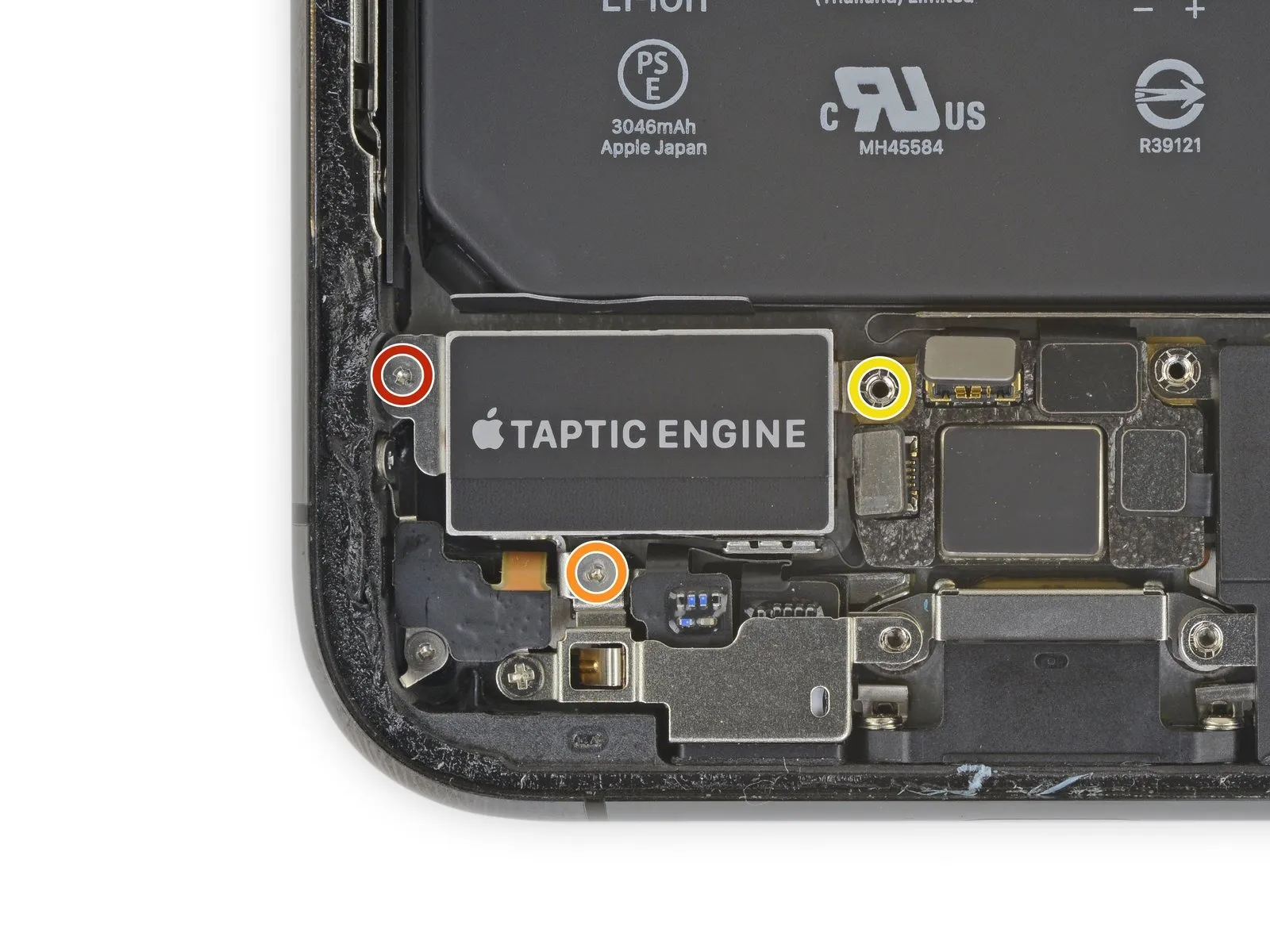

Step 29 | Unscrew the Taptic Engine

Step 29 image
Thumbnail 1
Thumbnail 2
  • To detach the Taptic Engine, begin by eliminating the three screws that hold it in place.Taptic Engine:
    • You will encounter one screw measuring 1.9 millimeters in length and requiring a Y000 bit.One 1.9 mm-long Y000 screw
    • Additionally, there is one screw with a 1.4-millimeter length, also needing a Y000 bit.One 1.4 mm-long Y000 screw
    • Finally, a standoff screw, measuring 4.1 millimeters in length, must be removed.One 4.1 mm-long standoff screw
  • For optimal results when removing standoff screws, a specialized standoff screwdriver or bit is recommended.
    If a standoff screwdriver is unavailable, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.

Step 30 | Remove the Taptic Engine

Step 30 image

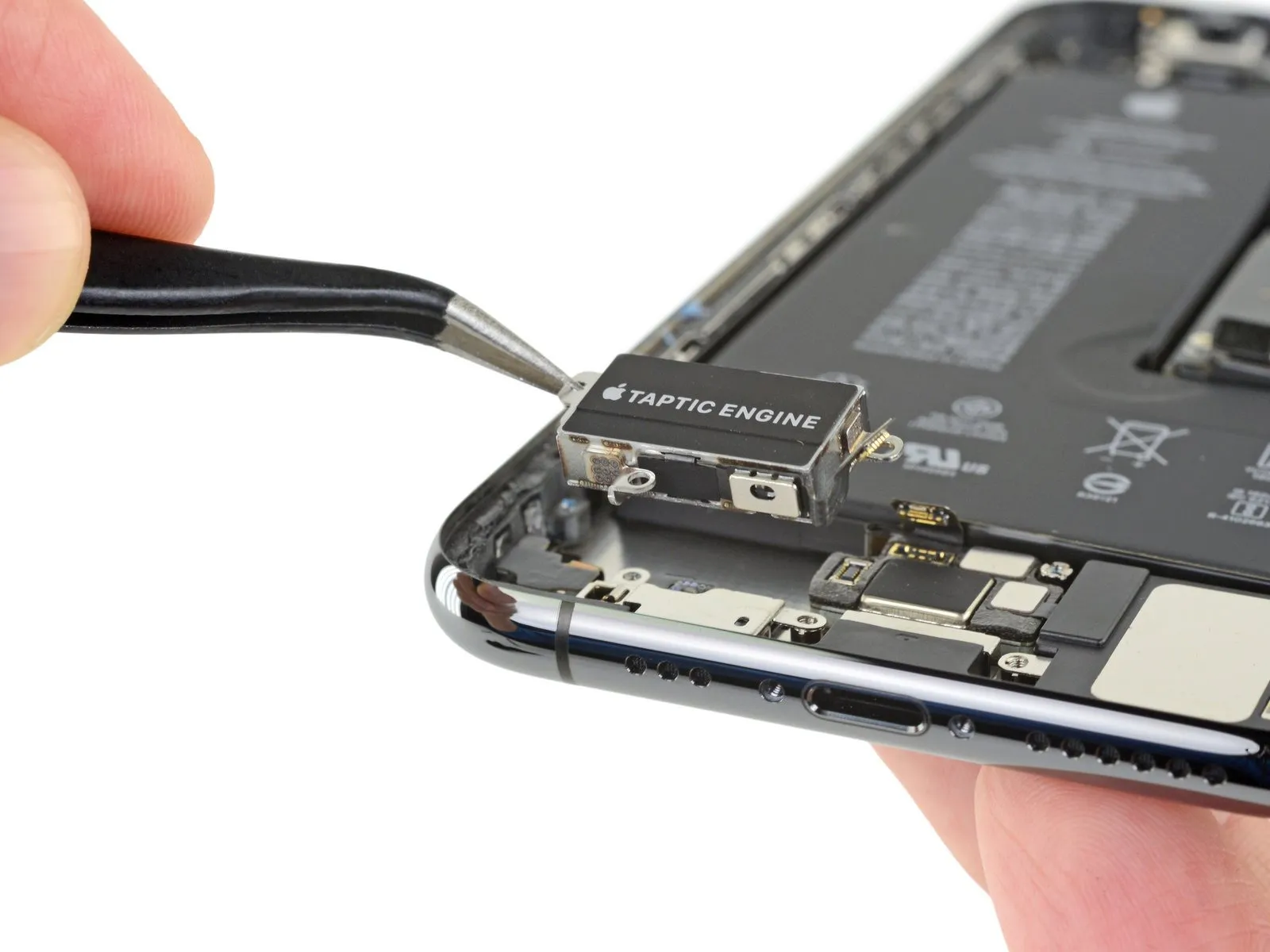

Detach the Taptic Engine component..
