iPhone 11 Teardown

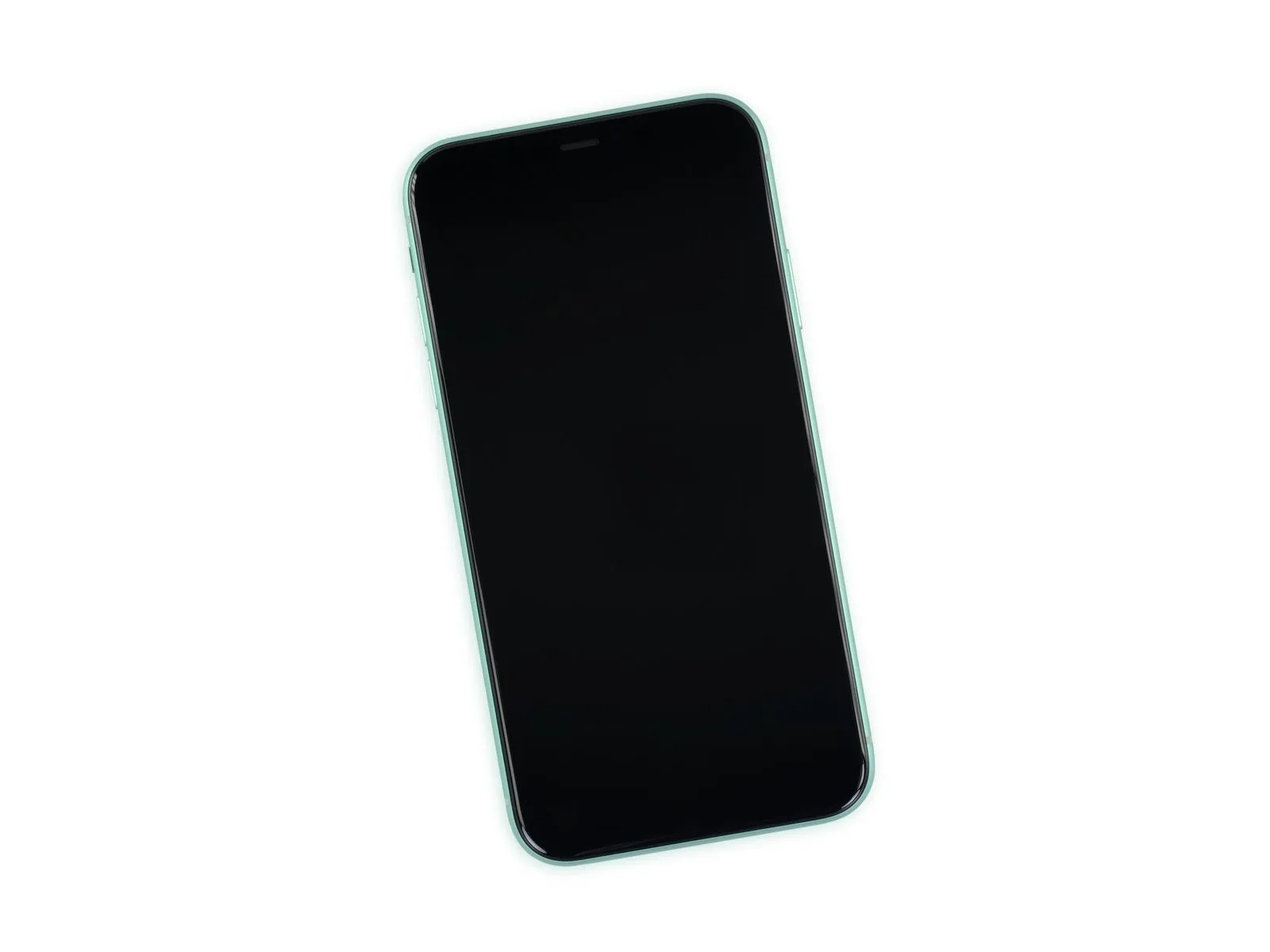

Despite being positioned as the mid-range option within the iPhone series for this year, the vibrant mint green model remains a valuable subject for repair.

• The device incorporates an A13 Bionic system-on-a-chip, featuring aenhanced third-generation Neural Engine for improved machine learning tasks.
• Its display measures 6.1 inches diagonally, presenting aresolution of 1792 by 828 pixels, resulting in a pixel density of326 pixels per inch (ppi) on a Liquid Retina LCD panel.This display offers True Tone technology and P3 wide color gamut capabilities for enhanced visuals.The rear camera system includes a dual configuration of
• two 12-megapixel sensors, encompassing a wide-angle and an ultra-wide lens.A 12-megapixel front-facing camera is integrated alongside TrueDepth Face ID hardware for secure authentication.The internal storage capacity is 64 gigabytes, with the option to upgrade to either 128 gigabytes or 256 gigabytes.Connectivity features include Gigabit-class LTE cellular data, Wi-Fi 6 wireless networking, Bluetooth 5.0, and Near Field Communication (NFC).
• The device achieves an IP68 rating, signifying a high degree of dust and water resistance.
• The system-on-a-chip's Neural Engine contributes to advancements in artificial intelligence processing.
• The Liquid Retina LCD provides accurate color reproduction and wide viewing angles.

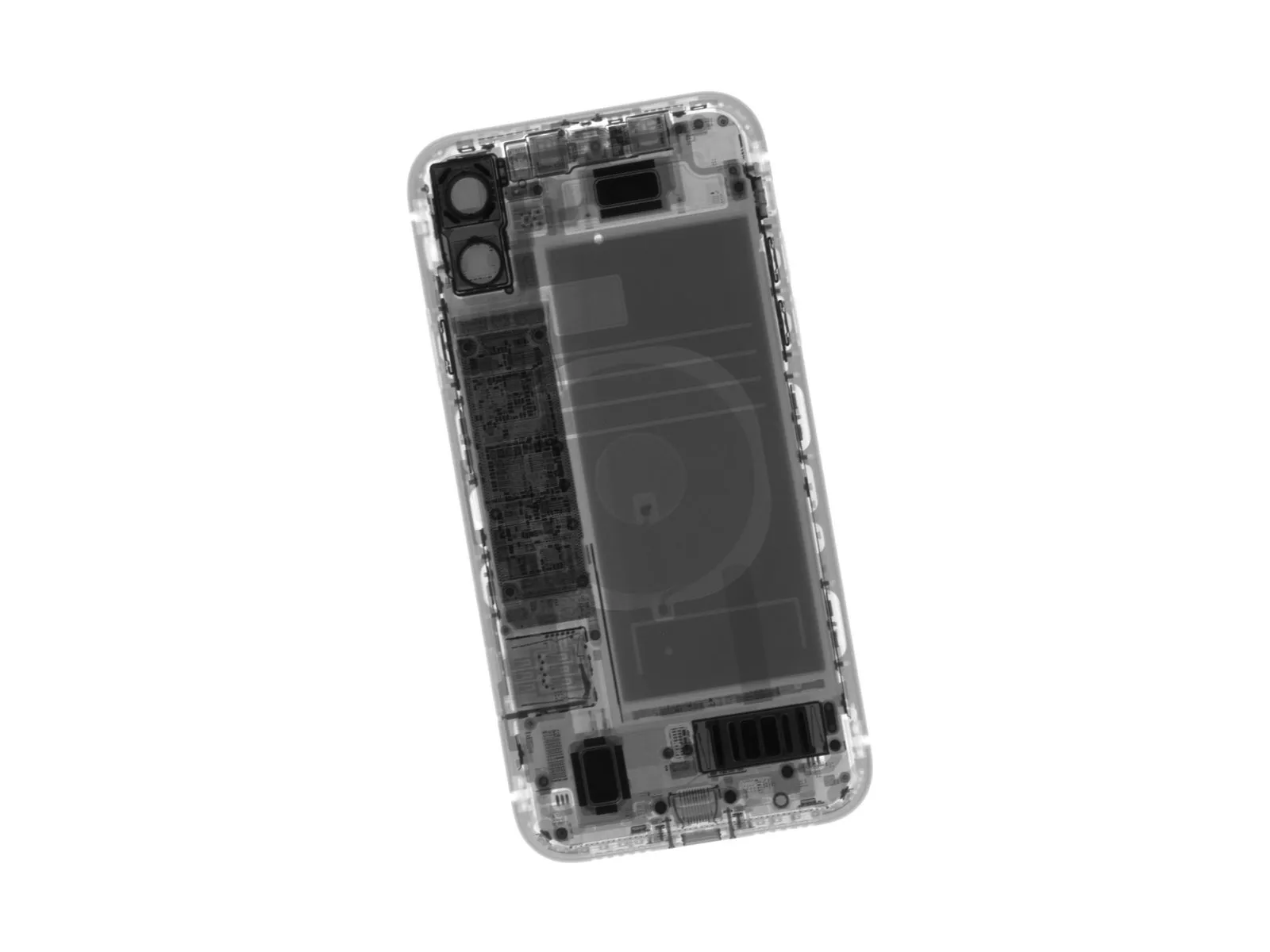

Despite the potential discontinuation of the "X" designation in future iPhone models, X-ray imaging continues to provide clear internal visibility, allowing for detailed pre-disassembly analysis.

We extend our gratitude to Creative Electron for their consistent support, which ensures accurate device identification and facilitates efficient teardown procedures.

Beyond their diagnostic utility, X-ray images also offer aesthetic appeal and can be utilized as custom desktop backgrounds.

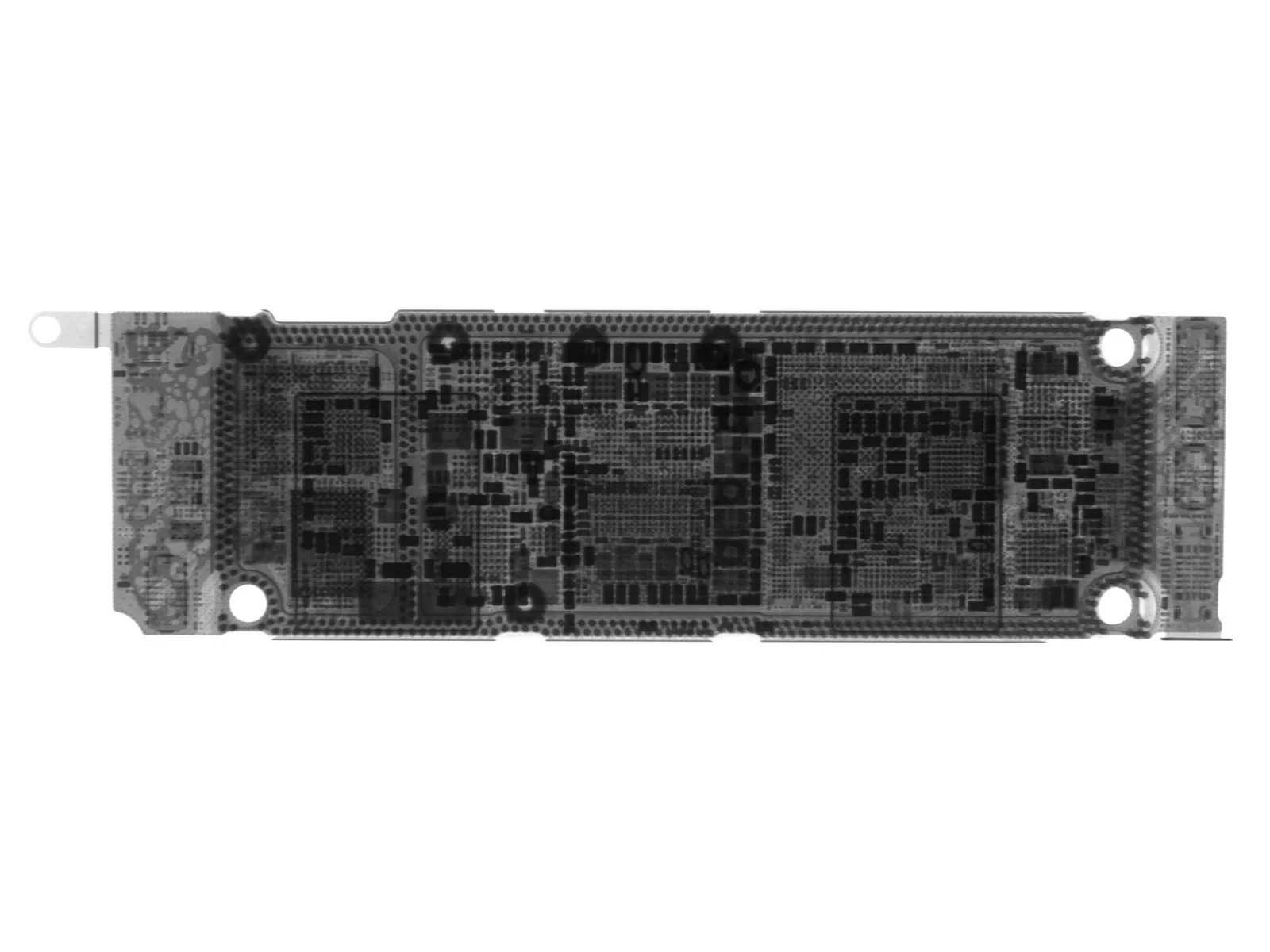

Examination of the internal components reveals a rectangular battery, a lengthy, layered logic board distinguished by numerous vias, and the notable lack of a secondary battery connector and associated circuit board, suggesting a design reminiscent of the iPhone XR incorporating elements from the iPhone XS.

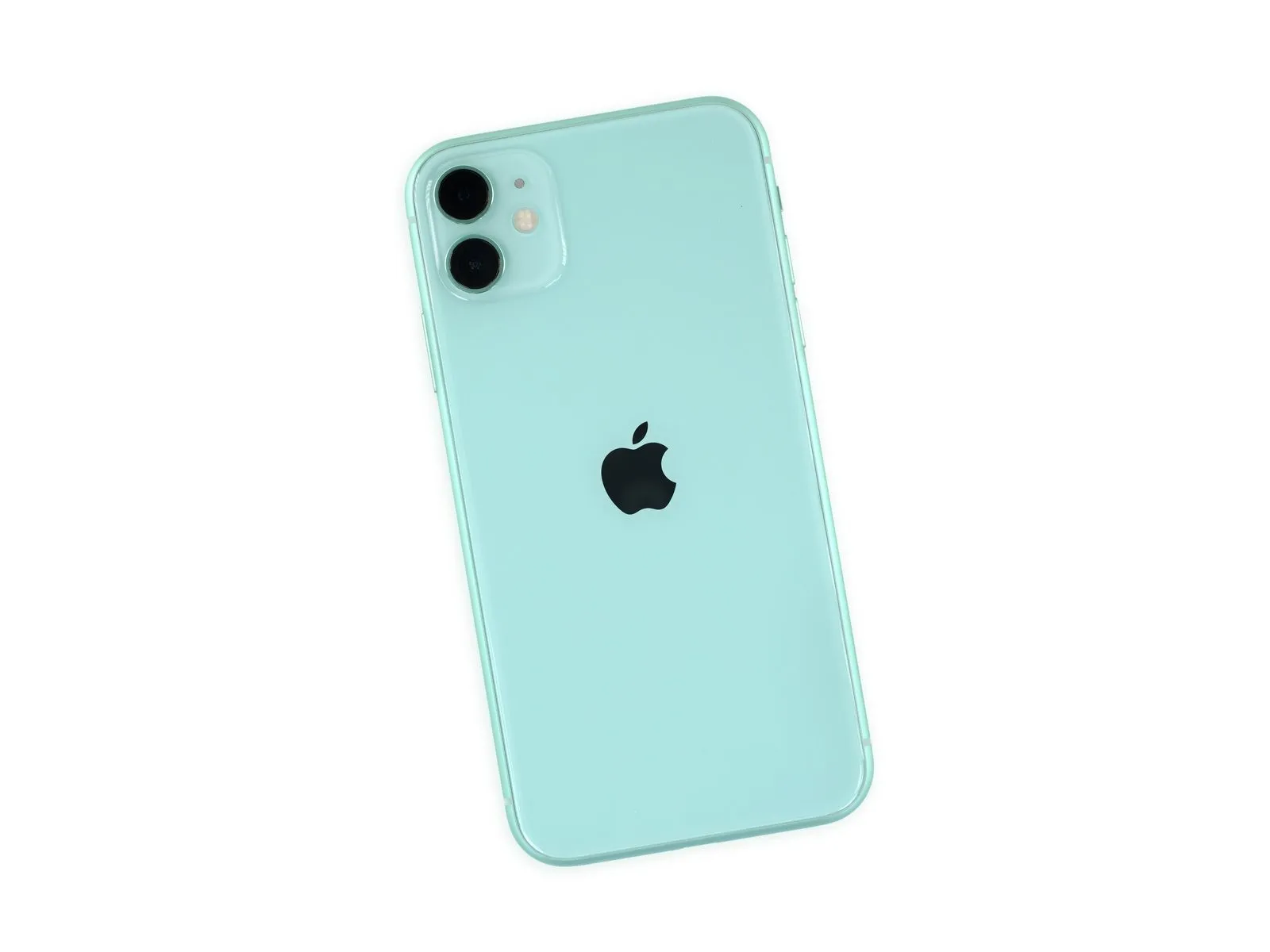

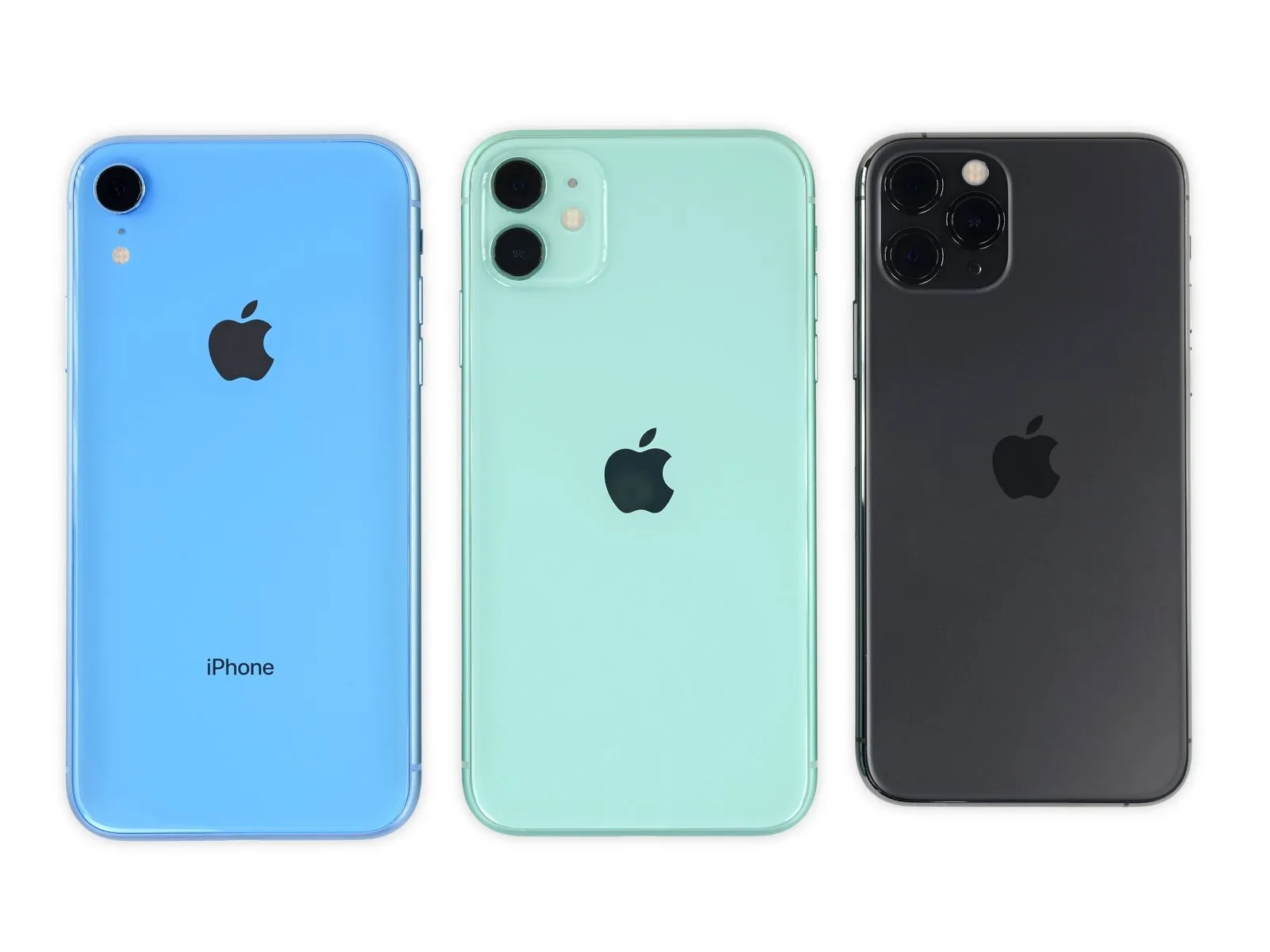

The exterior design eliminates the "iPhone" designation previously found on earlier models like the iPhone XR, now featuring solely a centrally positioned Apple logo.This singular Apple emblem, initially speculated to signify a reverse wireless charging capability, now disappoints users attempting to charge depleted AirPods.The camera housing has experienced a significant redesign, appearing larger than the previous generation.
The iPhone 11 incorporates a dual camera system, housed within a prominent, raised, squarish enclosure.
This distinctive camera enclosure's appearance has inspired numerous online visual creations and humorous depictions.The camera module's altered form factor is noticeably different from the iPhone XR's design.The iPhone 11's dual camera array is situated within a raised, rounded-square shaped structure.

The criteria defining a "Pro" smartphone remains undefined, however, anyone can now successfully disassemble an iPhone.

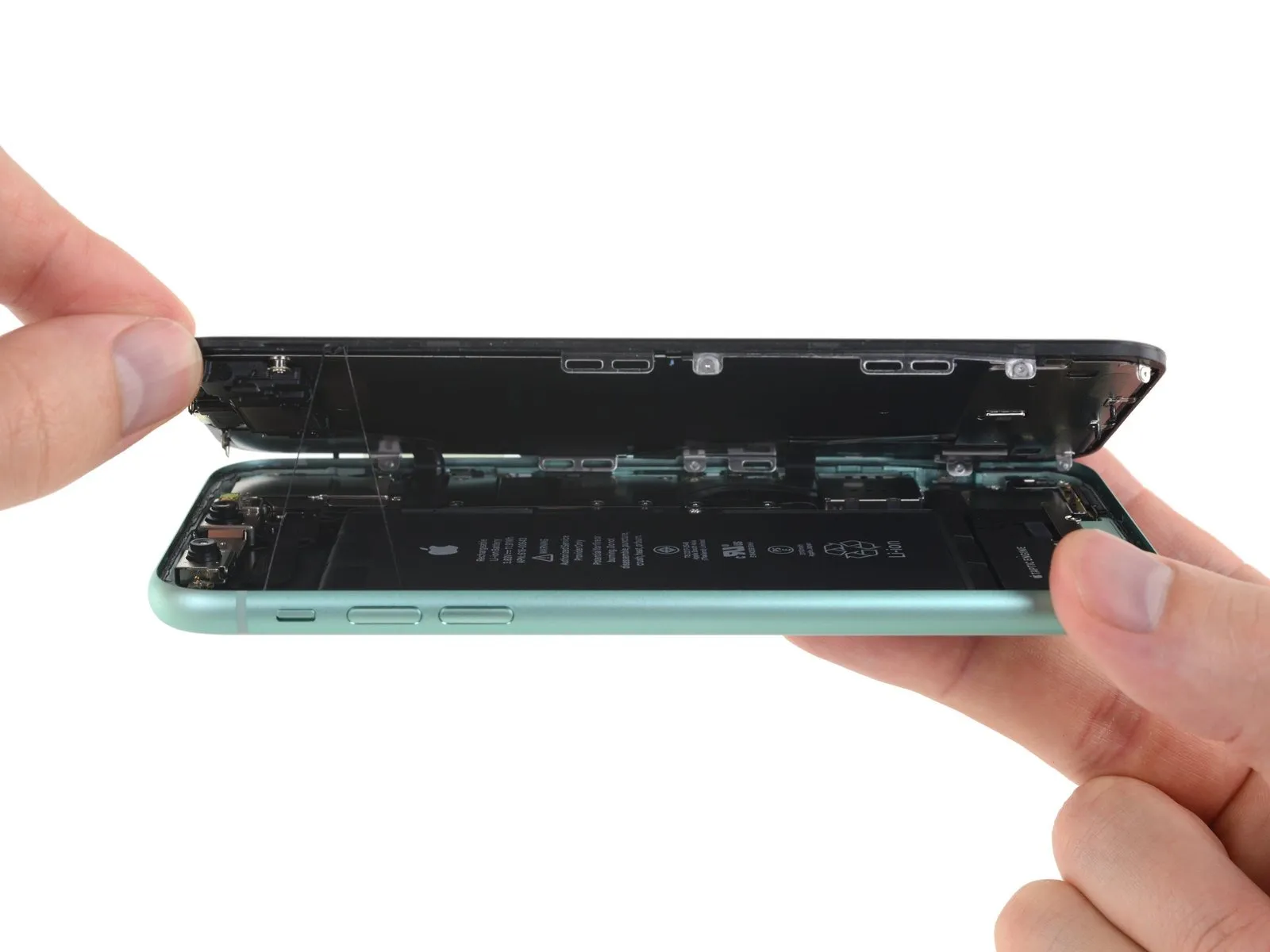

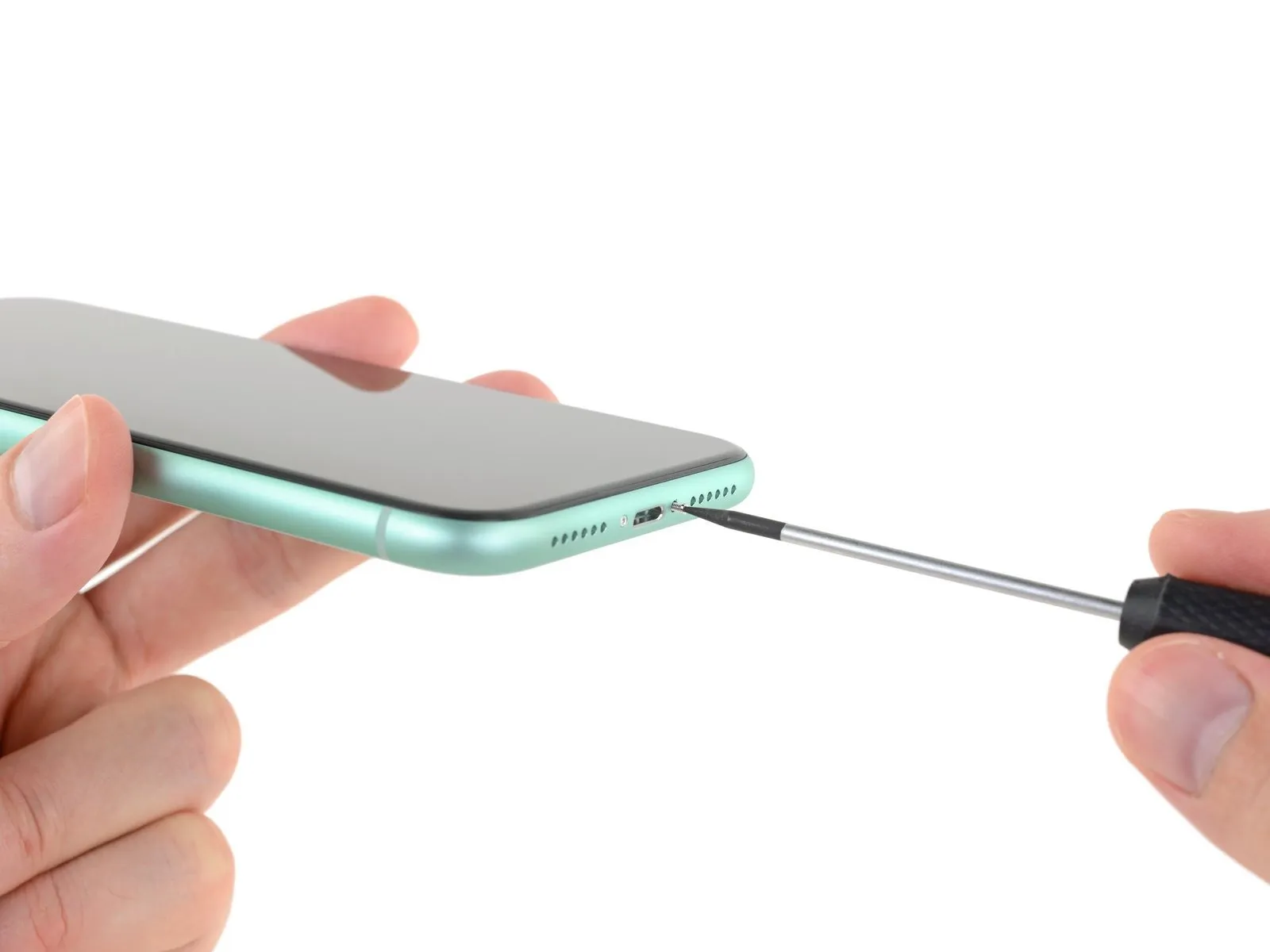

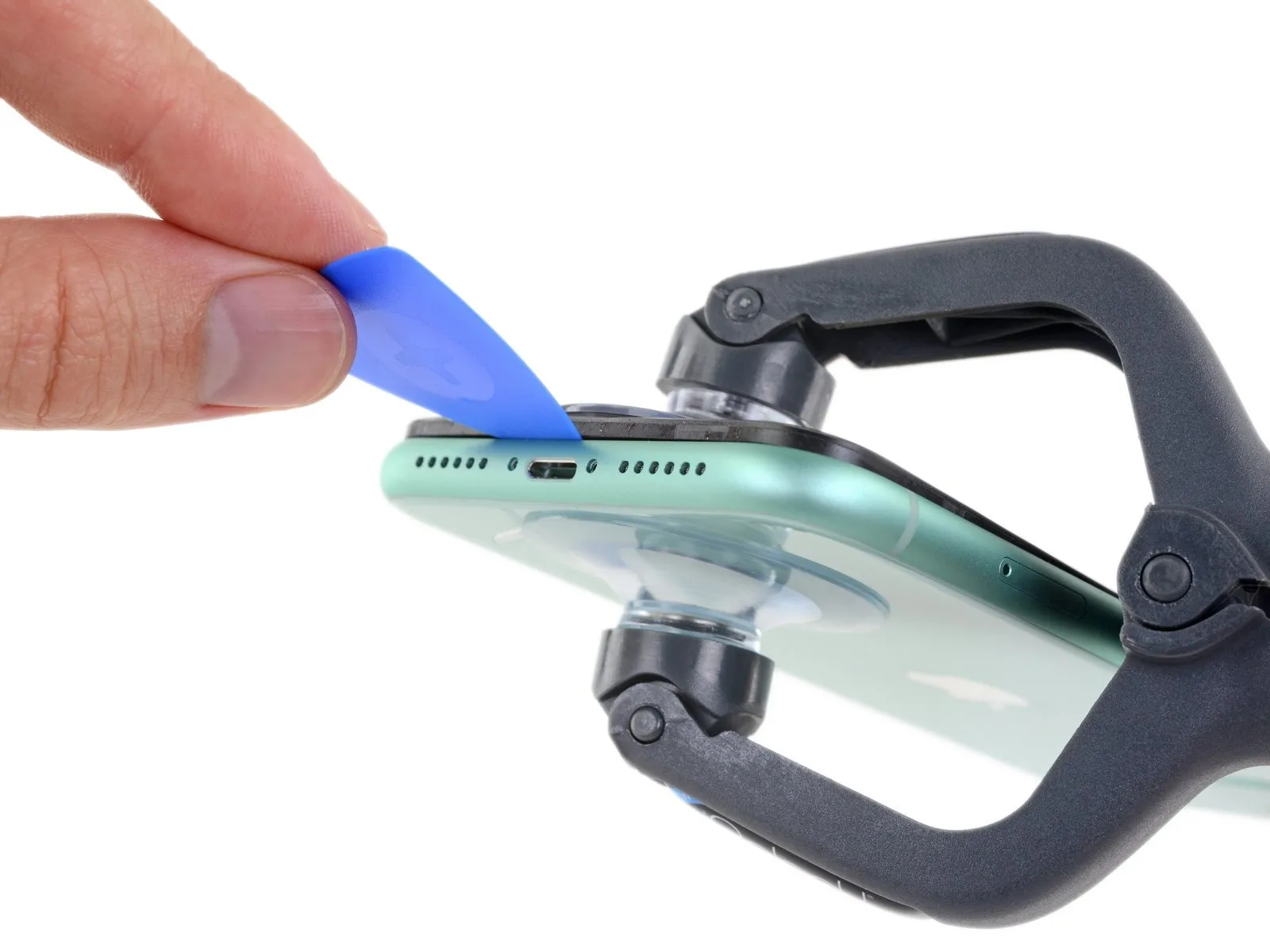

Since the iPhone 6S model, the method for separating the screen from the device consistently involves applying heat, making incisions, and repeating the process; exercise caution to avoid cable damage.
Similar to the newer Pro models, the iPhone screen assembly's internal cables are arranged on a single side, but with less secure and organized routing.
This simplified access exists despite enhancements to the device's environmental protection.The iPhone now boasts an IP68 rating for water and dust ingress protection, an upgrade from the iPhone XR's IP67 rating.This represents a significant improvement in durability and resilience against environmental factors.While this is a positive advancement, alternative devices offer even simpler disassembly procedures, although they lack the same level of water resistance.The ease of access to internal components is a notable characteristic of modern iPhone designs.

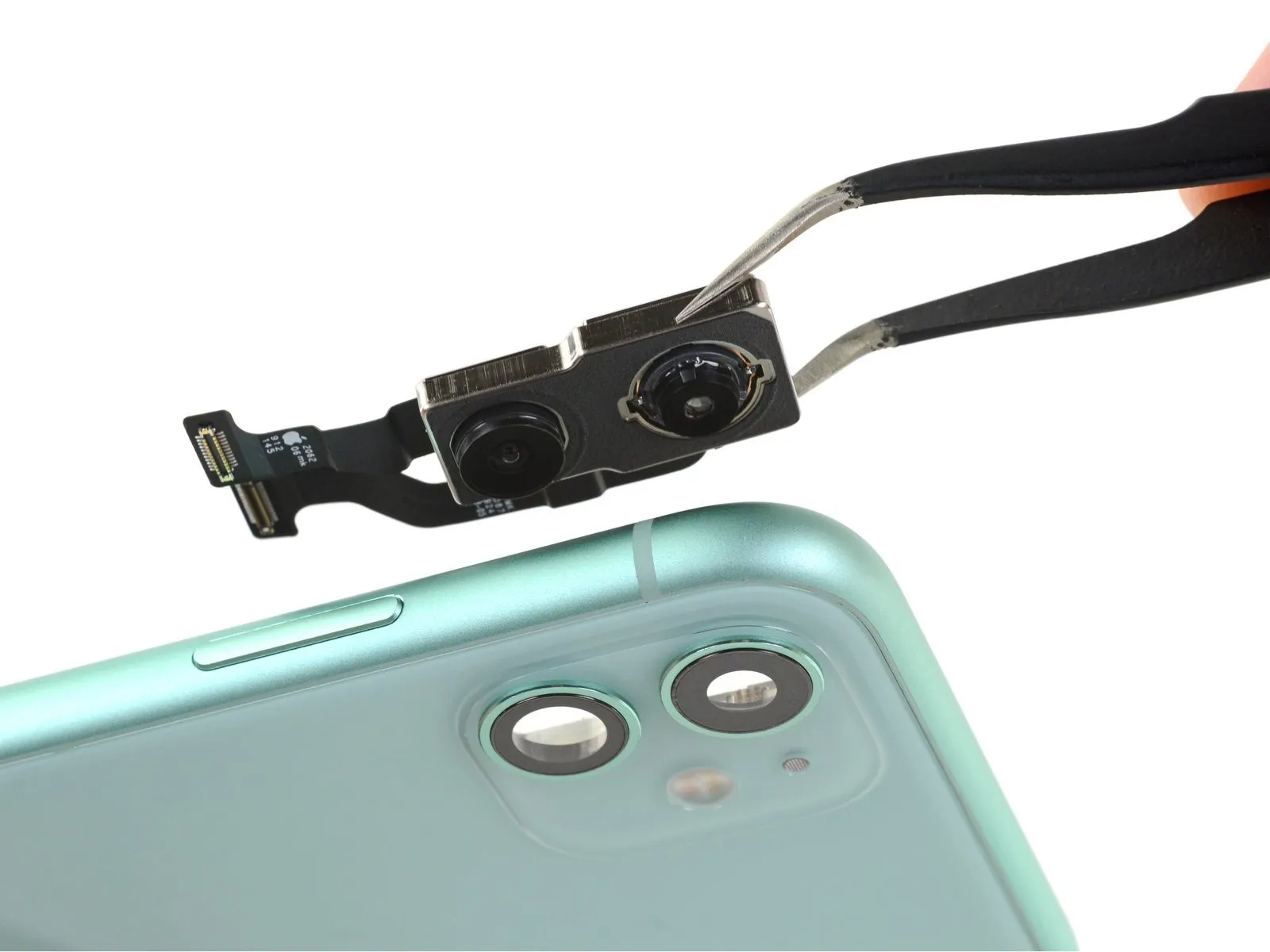

Despite the absence of a telephoto camera, this device incorporates the enhanced wide and ultrawide sensors and lenses found in the Pro variants, resulting in quicker shutter speeds, a broader ISO spectrum, and Night Mode functionality.

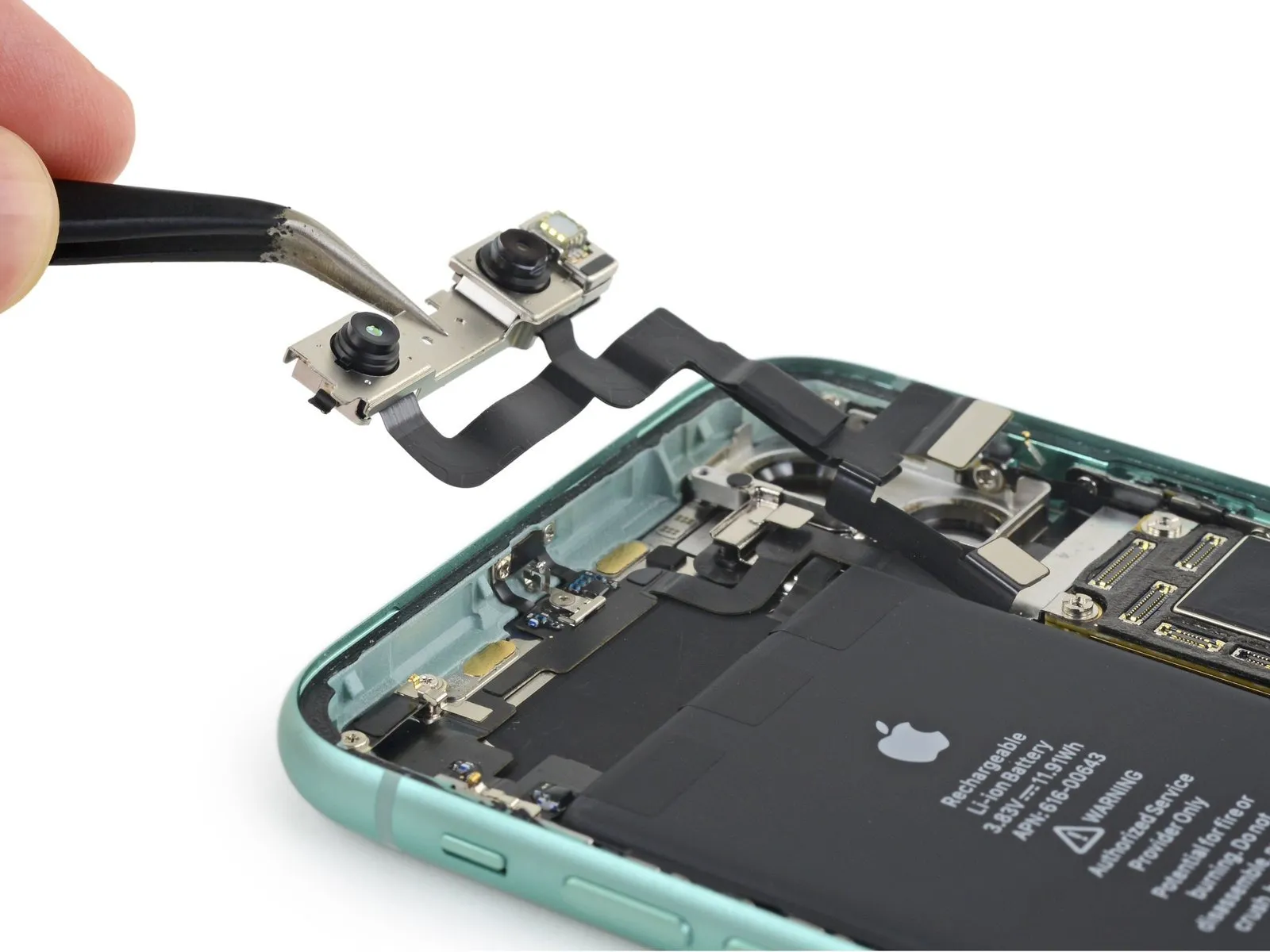

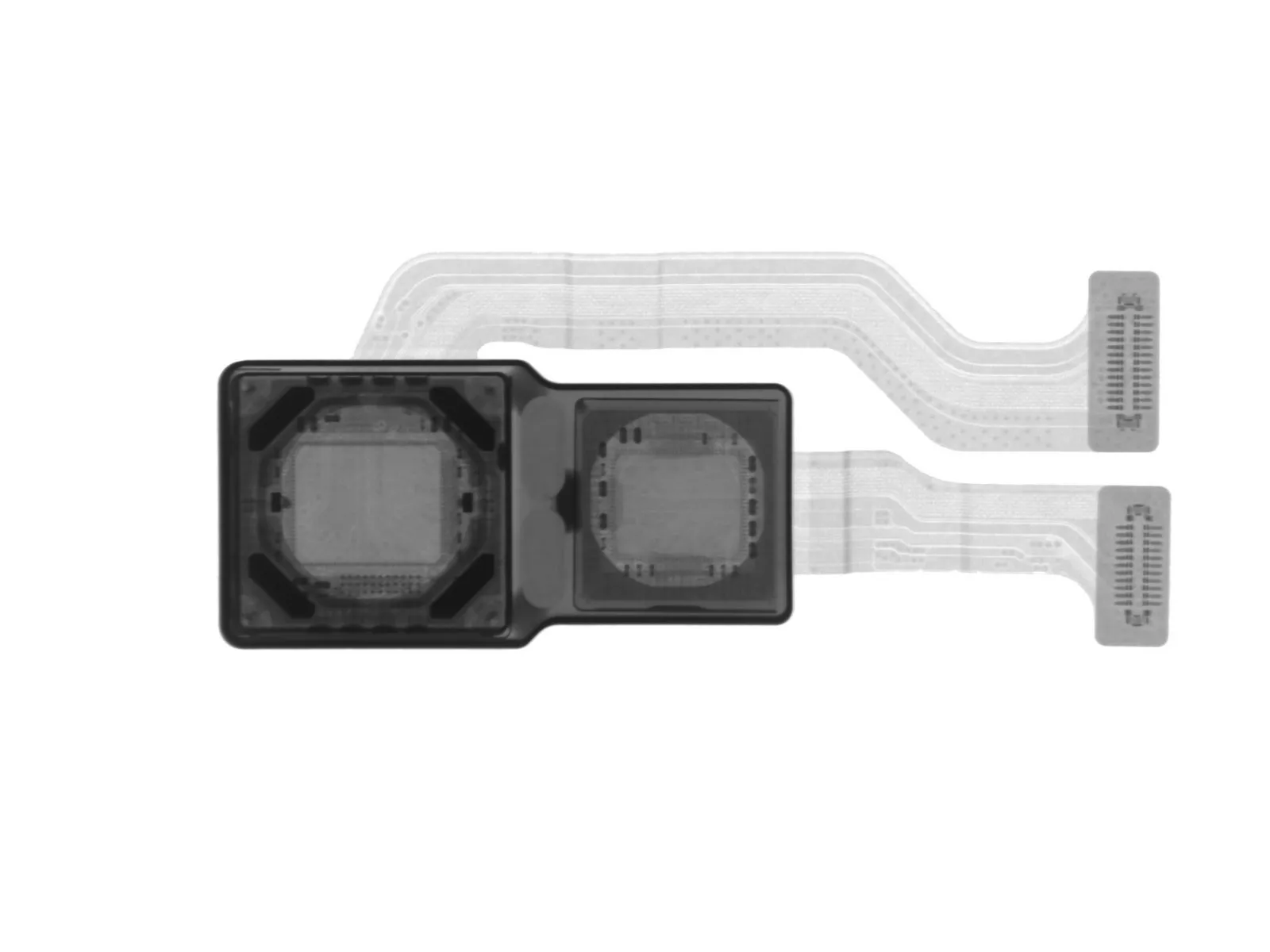

Radiographic analysis confirms the presence of optical image stabilization within the wide-angle camera module (identified by the electromagnets visible in the image), while the TrueDepth module's flexible cables have been repositioned, eliminating their previous constraint beneath the battery to facilitate quicker and simpler camera repairs.

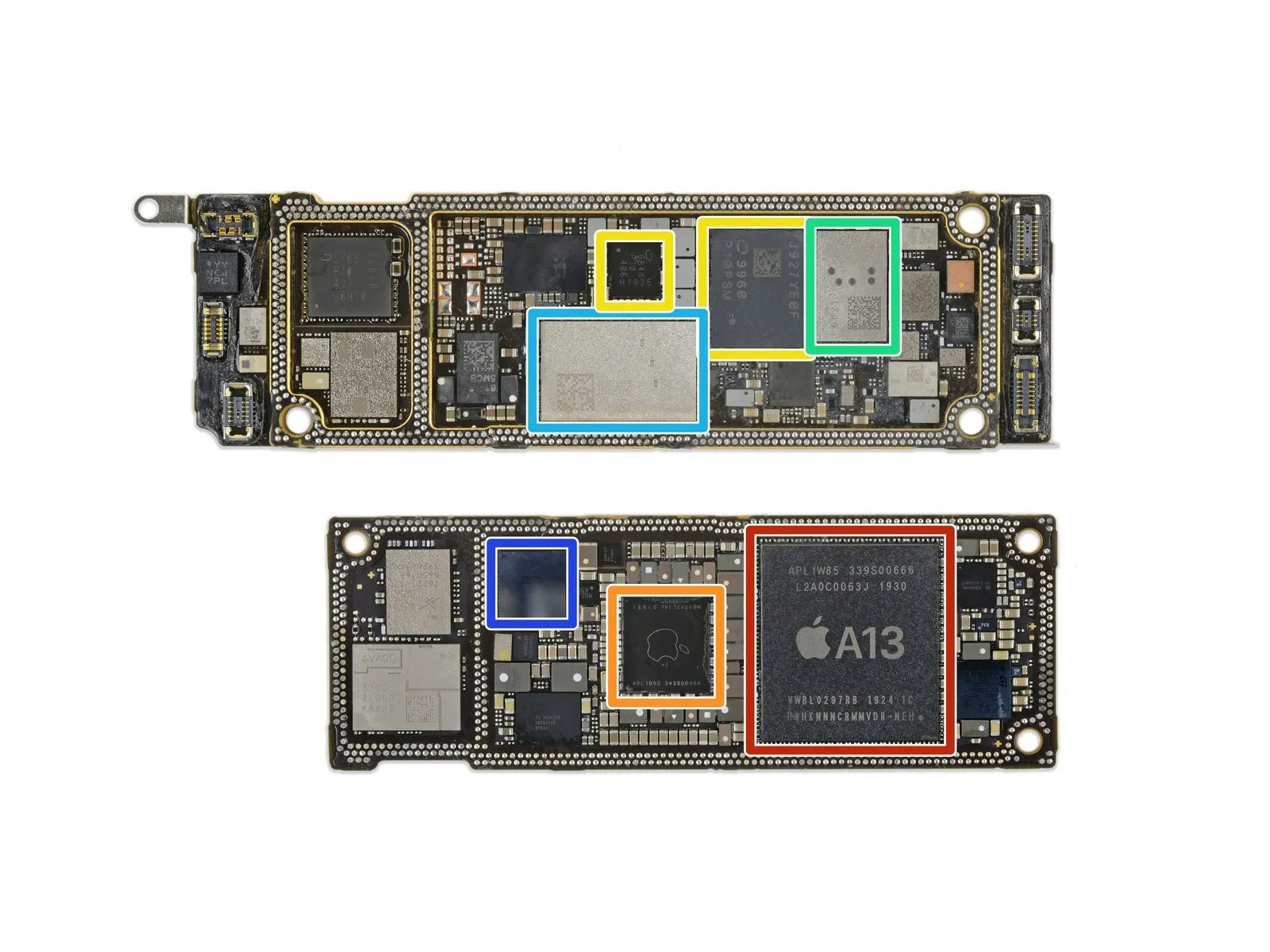

• Specifically, the APL1W85 chip is present.
  • This component represents Apple's A13 Bionic system-on-chip, built upon SK hynix LPDDR4X random-access memory.Although SK hynix's technical specifications lack a decoder for this precise model number, it appears to contain 4 gigabytes of memory.Also affixed to the board is the Apple APL1092 343S00354 power management integrated circuit (PMIC).An Intel 9960 P10PSM modem and a P10 406 transceiver are also present.
  • The metallic I7J9 component has been verified as Apple's updated U1 wireless positioning chip.
  • The Apple/Murata 339S00647 serves as the combined WiFi and Bluetooth system-on-chip.For a more comprehensive listing of these components, consult the Chip ID section from our repair guide for the iPhone 11 Pro Max.
  • Removal of the logic board will also result in the displacement of several integrated circuits.The APL1W85 chip is a notable component that will be extracted.This chip integrates Apple's A13 Bionic processor with SK hynix LPDDR4X RAM.
  • While detailed specifications from SK hynix are unavailable for this particular model, it is estimated to hold 4GB of RAM.


• The Apple APL1092 343S00354 PMIC and the Intel 9960 P10PSM modem/P10 406 transceiver are also attached.

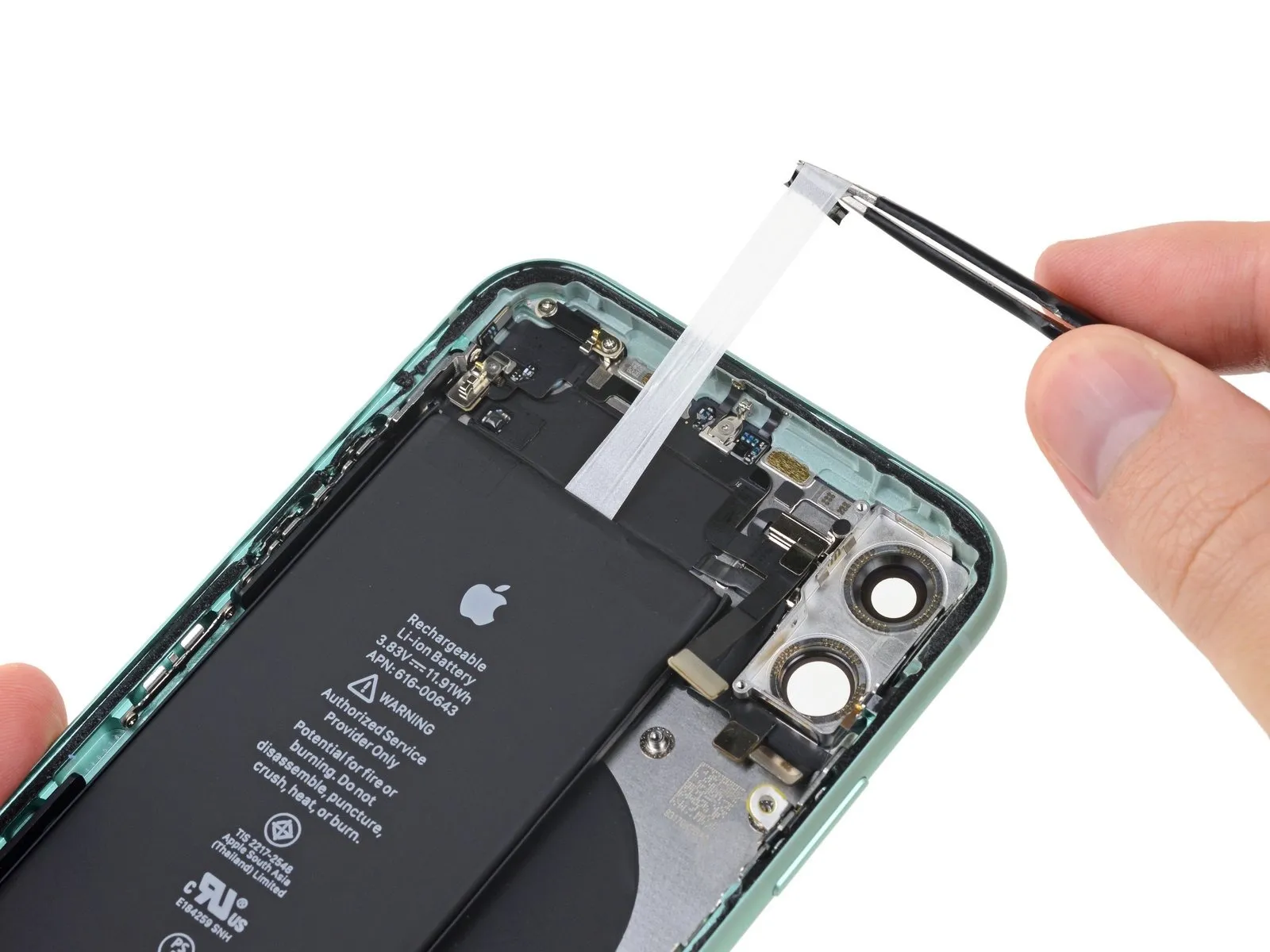

• "The rectangular battery is secured by six Gooey Battery strips (GBs) of RAM, necessitating loudspeaker and Taptic Engine removal for complete adhesive strip detachment, unlike the simplified process found in Pro models."


• "While appreciating the stretch release adhesive, its presence introduces complexity to the battery replacement procedure when contrasted with the Pro versions."

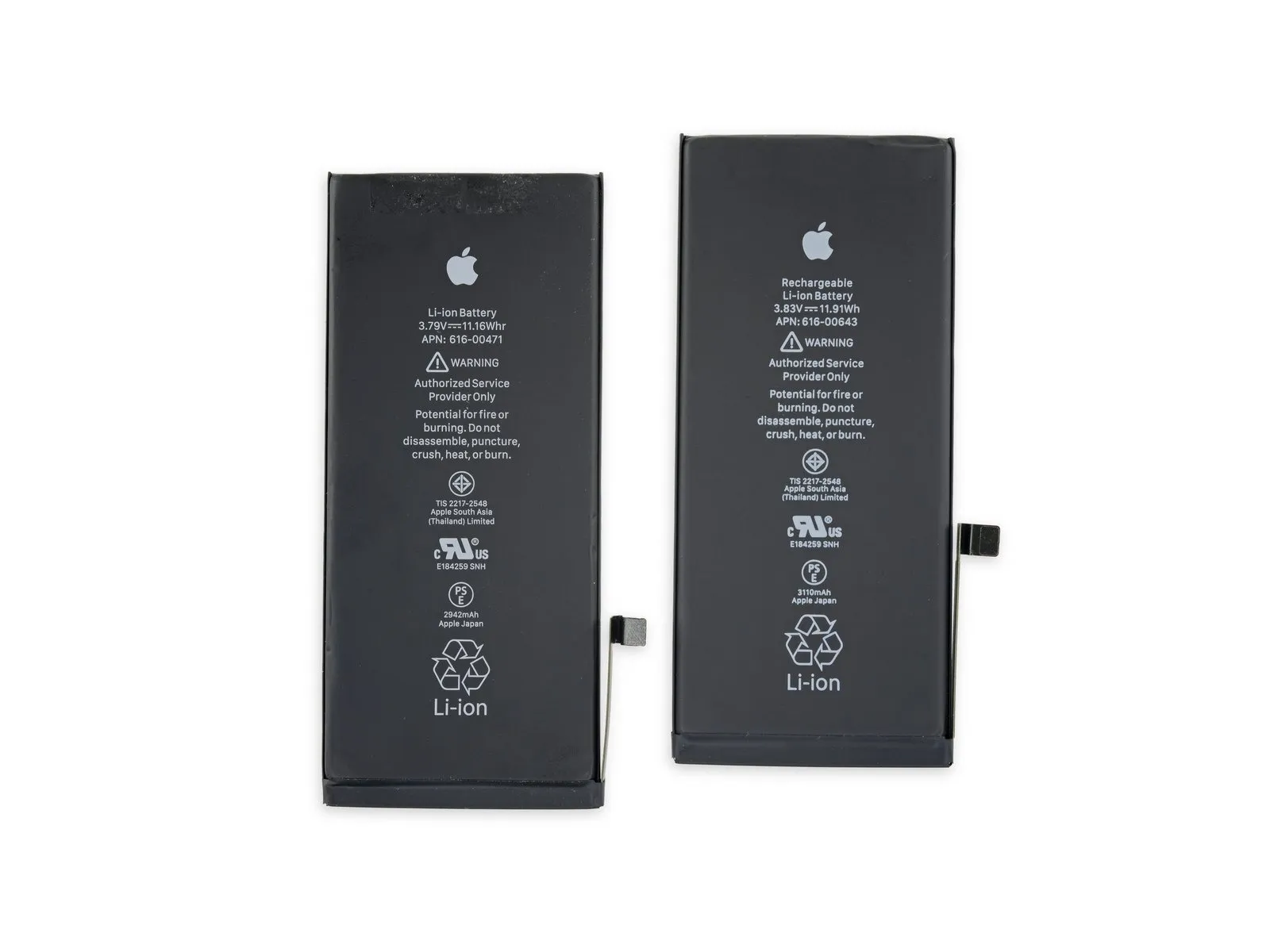

• "This year's battery exhibits dimensions of 40.81 x 96.93 x 3.97 mm and a mass of 44.1 g."


• "Despite a greater capacity, the iPhone 11's battery is marginally smaller than that of the XR.""The battery's capacity is now 3110 mAh.""This represents approximately a 7% increase in capacity, likely contributing to the reported additional hour of battery life in the iPhone 11."


• "For those who prefer battery specifications in Watt-hours, the increase is from""11.16 Wh""to""11.91 Wh".""Although the battery has a single connector, it is documented within Apple's guidelines concerning hardware that enhances battery health."


• "This documentation raises the possibility that the dual cables in the 11 Pro facilitated bilateral charging or signify a distinct hardware difference contributing to battery health within the iPhone 11 series."

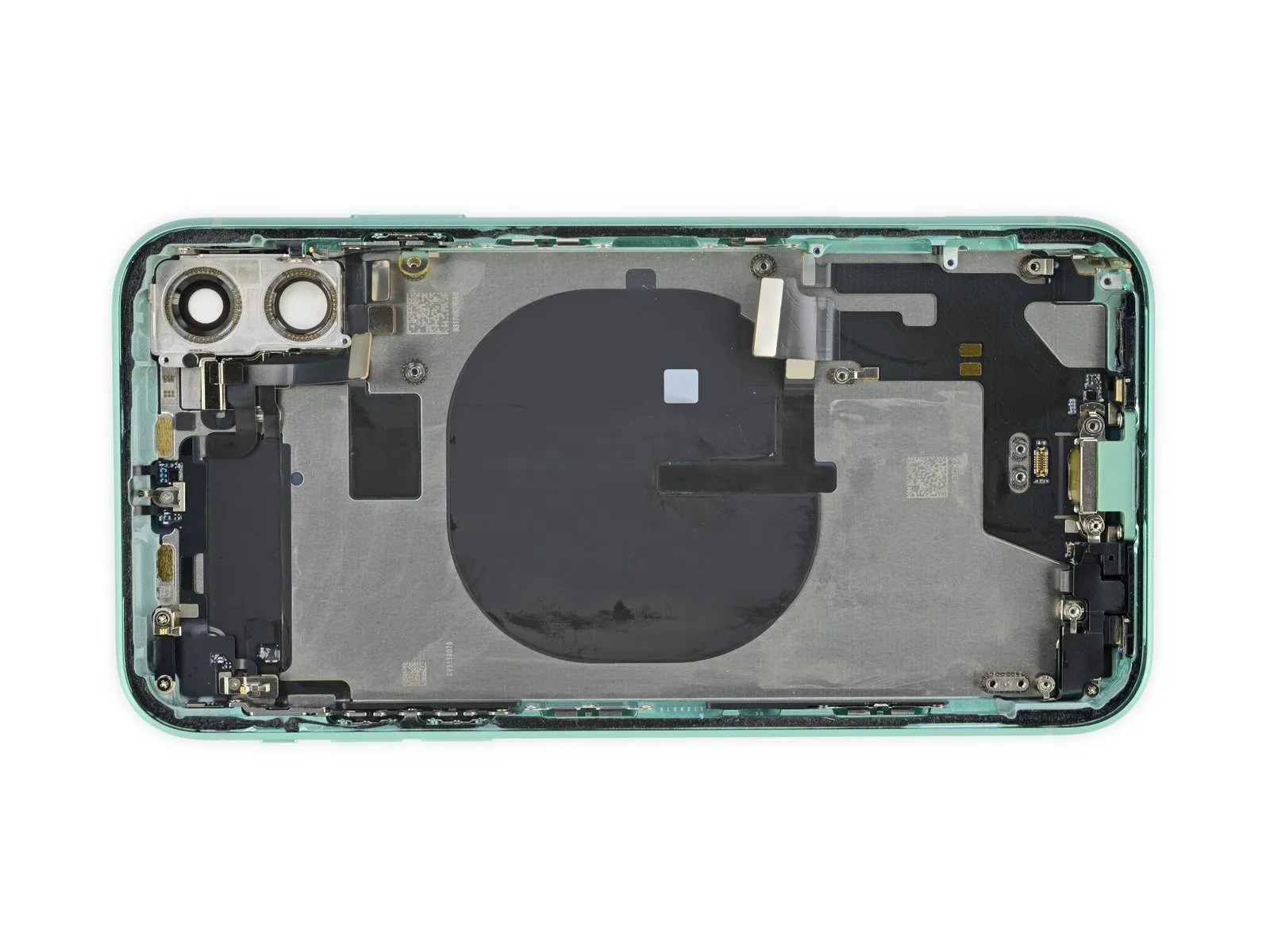

• Although a second battery connector is absent, the charging coil's presence prompts speculation regarding potential design choices.


• Were reverse wireless charging implemented, a larger battery capacity and enhanced thermal dissipation systems would likely be necessary to manage the increased power demands and heat generation associated with this technology.


• However, neither a larger battery nor improved thermal management is apparent within this iPhone 11 unit.


• The absence of the new battery charging board, previously identified in the Pro Max model, may correlate with the missing second battery connector.

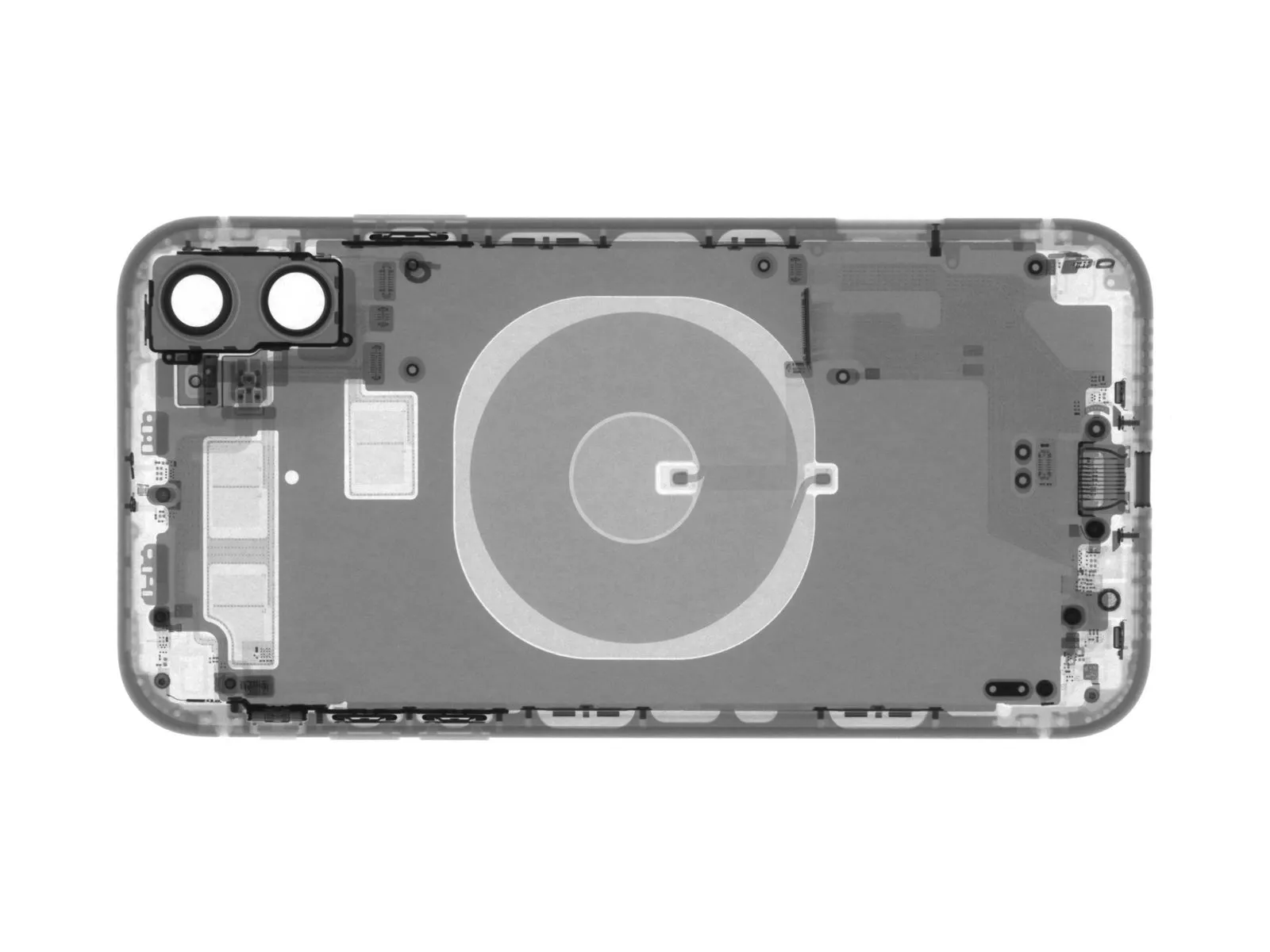

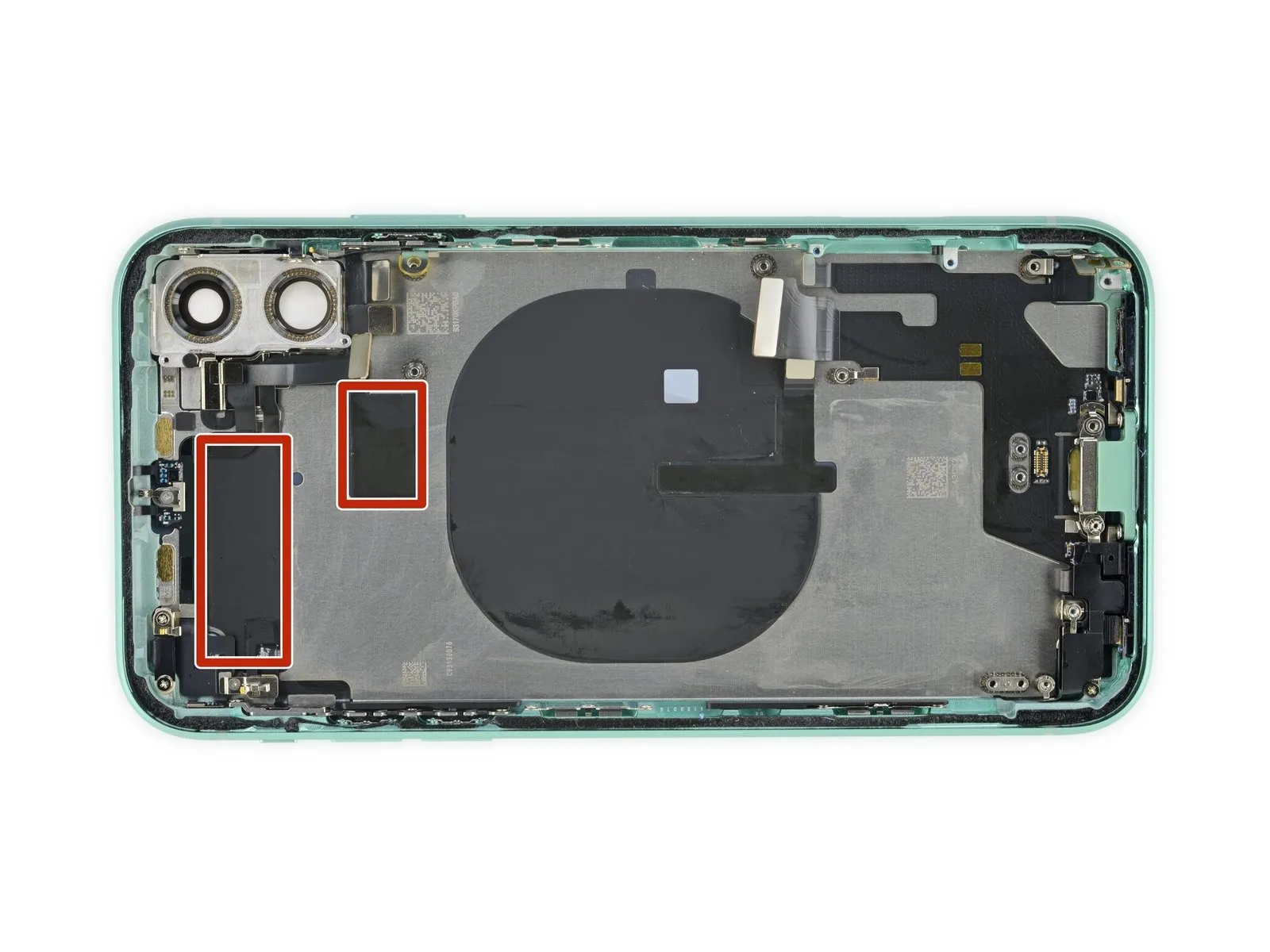

• Consistent with the Pro and Pro Max models, X-ray imaging confirms the presence of ultra-wideband (UWB) antennas integrated within the rear case's construction.

• New iPhone models will not be available until the subsequent year, barring unforeseen circumstances.

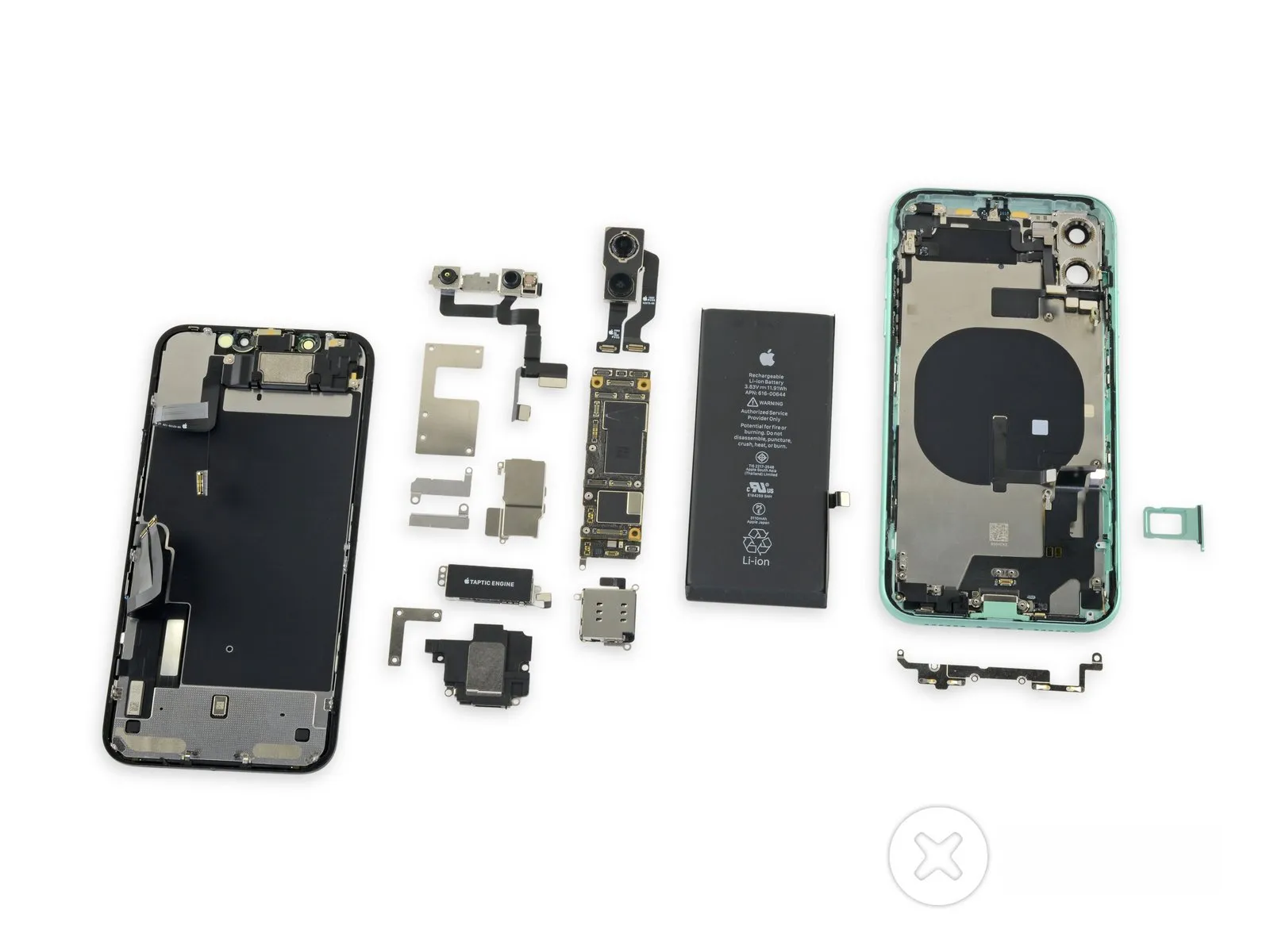

• A concise overview of the procedures and components is presented below.
  • Regardless of the model designation (Pro or standard), all 2019 iPhones incorporate densely packed, multilayered circuit boards.These stacked-PCB logic boards are designed to optimize component placement and minimize internal volume.The standard iPhone 11 receives a relatively small improvement, specifically a 7% increase in battery capacity, compared to the Pro versions.
  • Consistent with the Pro models, the iPhone 11 also includes an ultra-wide-angle camera, UWB functionality, and uncertainty regarding the intended implementation of reverse wireless charging.The functionality of reverse wireless charging remains unclear, suggesting potential design choices or limitations.Further information regarding the ease of repair is provided in the following sections.
  • Continued scrolling will reveal details concerning the repairability aspects of these devices.
• The compact design necessitates careful handling and specialized tools during repair procedures.
