iPhone 11 Screen Replacement

• As a preliminary precaution, ensure your iPhone's battery is depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a risk of ignition and/or detonation if it sustains accidental physical damage, such as a puncture.
• Deactivate the iPhone by powering it down completely before starting the disassembly procedure.
• Utilize a screwdriver to extract the pair of pentalobe P2 screws, each measuring 6.7 mm in length, located along the iPhone's lower edge.
• Separating the iPhone's display assembly will irreversibly damage the integrated waterproof barriers; therefore, obtain replacement seals beforehand to continue beyond this stage, or exercise extreme caution to prevent moisture ingress if you intend to reassemble the iPhone without new seals.

• To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure details how to mark the pick to safeguard against such damage.
• Determine the measurement of3 mmfrom the pick's leading edge, then use a permanent marker to indicate this point on the opening pick.
• For additional reference, consider marking the other corners of the pick with varying measurements.
• As an alternative method, affix a coin to the pick's shaft,3 mmaway from its tip.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
• Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
• Always utilize eye protection, specifically safety glasses, to guard against glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent steps, create a handle by folding a robust tape, like duct tape, and employ it to gently raise the screen.
• As a last resort, secure the suction cup to the screen using superglue to facilitate lifting.

• The following three actions illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the initial opening process; should you choose not to utilize this tool, proceed past these three steps to an alternative approach.
• Detailed guidance regarding the Anti-Clamp's operation can be found in a separate instructional document.
• Grasp theblue handleand move it in a rearward direction to disengage the Anti-Clamp's securing arms.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups in close proximity to the lower edge of the iPhone, with one positioned at the top and the other at the bottom.
• Apply pressure by compressing the cups together to establish a secure suction on the intended surface.
• Should the iPhone's surface prove excessively smooth, hindering the Anti-Clamp's ability to maintain grip, applying adhesive tape can provide a more textured interface.

• Grasp the blue handle and advance it to secure the arm assembly.
• Rotate the handle through a full rotation of 360 degrees, or until the cups exhibit signs of deformation.
• Confirm that the suction cups maintain their parallel orientation. Should they become misaligned, gently release the suction cups to a lesser degree and reposition the arms.

Employ an iOpener by warming it up.Subsequently, guide it through the arms of the Anti-Clamp.
Alternatively, a hair dryer, heat gun, or hot plate can be utilized; however, excessive heat poses a risk of display and/or internal battery degradation, necessitating cautious operation.
Position the iOpenerin a manner that it rests along the lower edge of the iPhone’s frame.
Allow a sixty-second interval to permit the adhesive to soften and create a separation.
Carefully introduce an opening pick into the resulting space located beneath the display and the plastic bezel, ensuring it doesn't contact the screen directly.
Should the Anti-Clamp fail to establish an adequate separation, increase the heat applied to the region and rotate the handleby ninety degrees.
Avoid exceeding a ninety-degree rotation at any point, and observe a sixty-second pause between adjustments; rely on the Anti-Clamp and time to facilitate the process.
Omit the following three procedures.

Applying warmth to the iPhone's bottom perimeter assists in loosening the adhesive that holds the display in place, which simplifies the opening process.
Employ ahairdryeror heat gun, alternatively, ready an iOpener and direct its heat towards the iPhone's lower edge for approximately one minute.

When employing a solitary suction handle, position it against the lower border of the device's frame, ensuring you circumvent the rounded glass section.

• Apply steady, consistent upward force to the suction cup to generate a small separation between the front panel assembly and the device's rear casing.
• Carefully slide an opening tool into the space formed beneath the display screen and the surrounding plastic trim, ensuring it does not contact the screen's surface directly.
• The display is secured by a robust, waterproof adhesive; establishing this initial separation requires considerable force. Should you encounter difficulty in creating a gap, apply additional heat and gently move the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

• Using a specialized opening tool, carefully maneuver it along the bottom-left perimeter of the iPhone and upward along the left side, severing the adhesive that secures the display assembly.
• Exercise caution to prevent the tool's insertion depth exceeding3 mm, to avoid potential harm to delicate internal parts.

Fragile wiring is situated along the right-hand side of your iPhone; avoid inserting any tools in this area to prevent potential cable damage.

• To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's casing, then slide it upwards along the right-hand side.
• Ensure the pick's insertion depth remains limited to3 mmto prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips together fasten the display's uppermost border.
  With care, ease the right display edge downward a small amount, moving it toward the Lightning port's location.
• Position a repair pick within the upper-right corner of the device's casing.

• As necessary, maintain downward pressure on the display, directing it towards the Lightning port, to create a sufficient separation for tool insertion.
  Employ the pick to sever any residual adhesive holding the display in place, positioning it initially at the upper left corner.
  Exercise caution to prevent the pick from penetrating beyond a depth of 3 millimeters, to avoid potential harm to the Face ID sensor array.

• To release the suction cup from the front panel, grasp and draw the small protruding extension.

1. To access the internal components, initiate the display opening process by pivoting the screen upwards from the left edge, mimicking the action of opening a book's cover.
   Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone's main circuit board.
   Secure the lifted display in an upright position using a stable support.
   When reattaching the display, position it correctly, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge to secure it before fully engaging the remaining portion of the display. Should the display not easily latch into position, examine the clips around the display's perimeter to confirm they are free from any deformation.

For the subsequent procedure, gain access to the screws by carefully inclining the display, achieved by gently raising its bottom portion.
Exercise caution to prevent damage or separation of thedisplay cables.

1. Employ a Y000 driver to detach the three screws.The screws fastening the battery connector bracket measure 1.1 mm in length.Maintain careful organization of each screw during the repair process, ensuring their correct placement upon reinstallation.
   As part of the reassembly steps, it's advisable to activate your iPhone and verify the operational status of all features prior to permanently affixing the display. Ensure a complete power-down of your iPhone before proceeding further.
   This stage presents a suitable opportunity to verify iPhone functionality through a power-on test, followed by a complete shutdown before continuing the repair.

Detach the bracket from its affixed location.

1. Employ a spudger or a pristine fingernail to elevate the battery connector from its corresponding socket on the logic board.
   Exercise caution to avoid harming the black silicone seals that encircle this connector and others on the board, as they offer supplemental defense against water and dust penetration.
   Slightly deflect the connector away from the logic board to inhibit unintended contact with the socket.

Employ a Y000 driver to detach the five 1.1 mm screws which fasten the logic board cover bracket in place.

Detach the bracket from its existing location.

• Employ a spudger or a fingernail to carefully release the LCD panel cable's connection.
• Subsequently, detach the digitizer connector situated in close proximity.

Employ the tip of a spudgeror a fingernailto release the front panel sensor assembly connector from its attachment.

• Detach the display assembly from the device.
• If you intend to substitute the waterproof adhesive that seals the display's perimeter during reassembly, briefly halt the process at this stage.

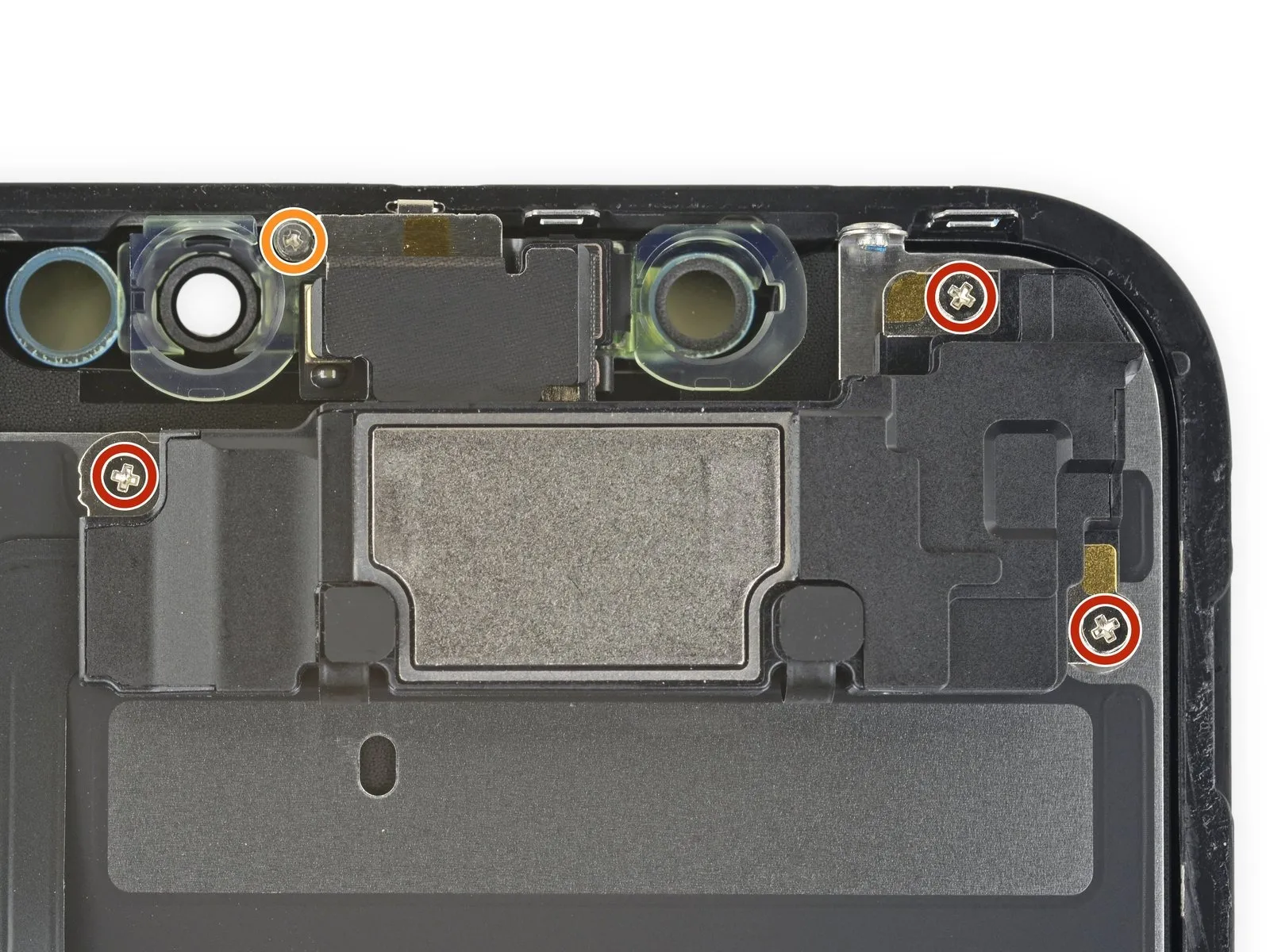

• To detach the speaker/sensor assembly, first eliminate the four screws that hold it in place.
  • The required fasteners include three Phillips screws, each measuring 1.6 millimeters in width.
  • Additionally, a single screw with a Y000 driver profile, measuring 1.3 millimeters, is also necessary.

• Employing the tip of a spudger, carefully lift the upper boundary of the speaker using a prying motion.
• Invert the speaker component, directing it downwards and away from the display's top edge.
• The speaker is secured with exceptionally delicate ribbon cables; exercise caution to prevent any stress or harm to these connections.

To loosen the adhesive that holds the sensors in place, employ a hairdryer or heat gun, or alternatively, utilize an iOpener, directing heat to the upper frontal surface of the display for a duration of1 to 2 minutes, ensuring the adhesive becomes pliable.

• Employing caution, insert the tip of your opening tool beneath the flexible cable situated near the microphone.
• Apply a slight rotational force to disengage the microphone, ensuring you avoid undue stress or harm to theflexible cable.
• Should separation prove difficult, utilize the pointed end of the spudger to complete the detachment of the microphone from its recess within the front panel.

• Employing tweezers, carefully maneuver the diminutive bracket in a vertical direction to disengage it from the ambient light sensor.

• Employ tweezers to gently move the ambient light sensor, dislodging it from its designated slot within the display panel.
• Should the sensor resist separation after a brief attempt, increase the applied heat and repeat the process.
• The sensor is connected to the broader sensor assembly through an extremely delicateflex cable . Exercise caution to prevent undue stress or harm to this cable.

• Commencing with the left side and progressing to the right, insert a separating tool beneath the flexible cable and also beneath the proximity sensor and flood illuminator module assembly.
• Employing a subtle oscillating motion, elevate the module to disengage it from its corresponding recess within the front panel.
• To facilitate access, supporting the speaker by lifting and holding it is advantageous; however, exercise caution to avoid applying tension to the delicate flexible cable during the repair process.

• Detach the earpiece speaker and front sensor assembly from the device.
• When putting the device back together, verify the alignment of the black plastic module which houses these parts:
  • A sensor that detects closeness.
  • A light source used for illuminating close-up areas.
  Ensure the module's placement allows unobstructed operation of these components, free from any adhesive interference.
