How to Replace Your iPhone Rear Glass Adhesive

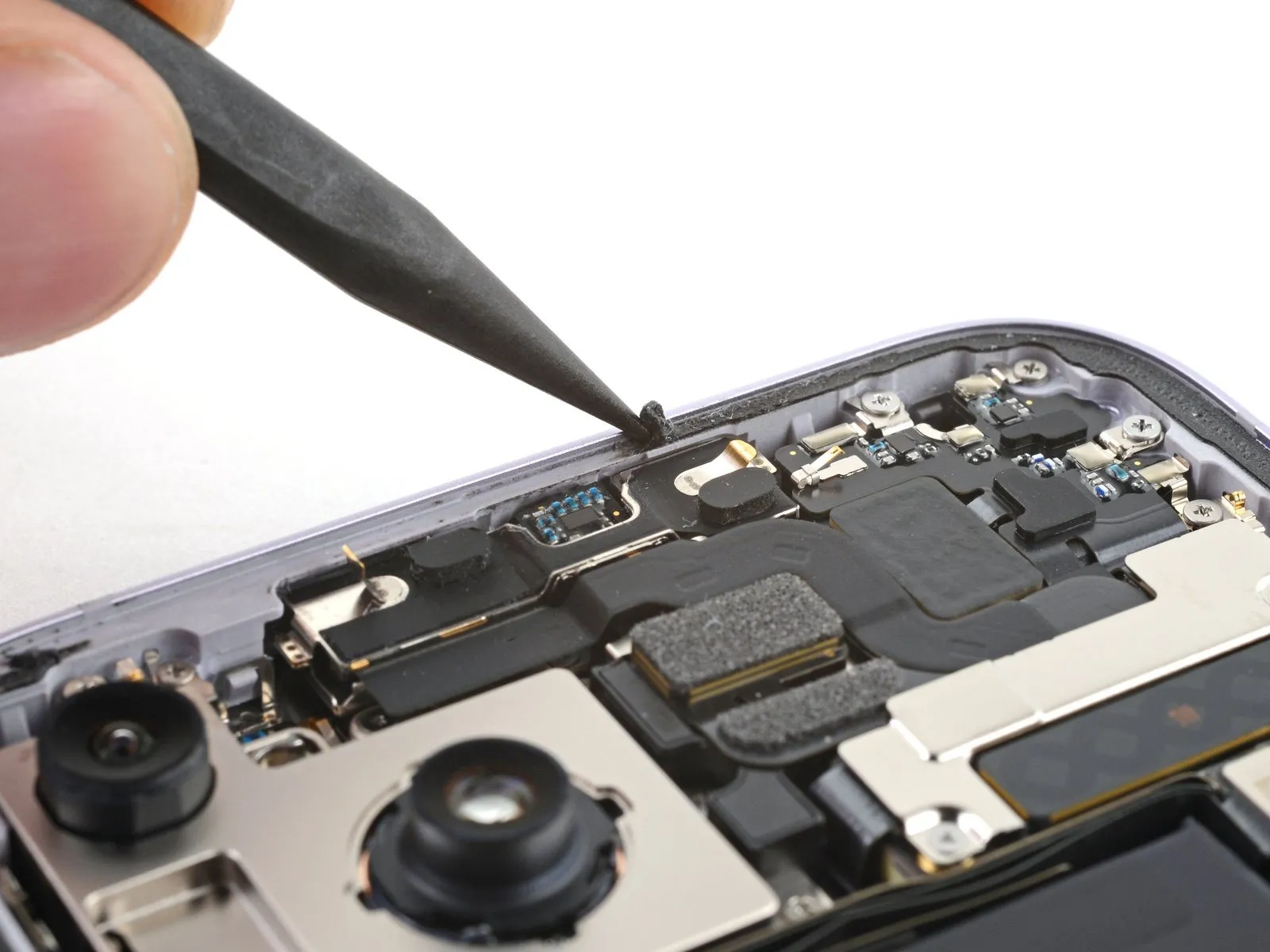

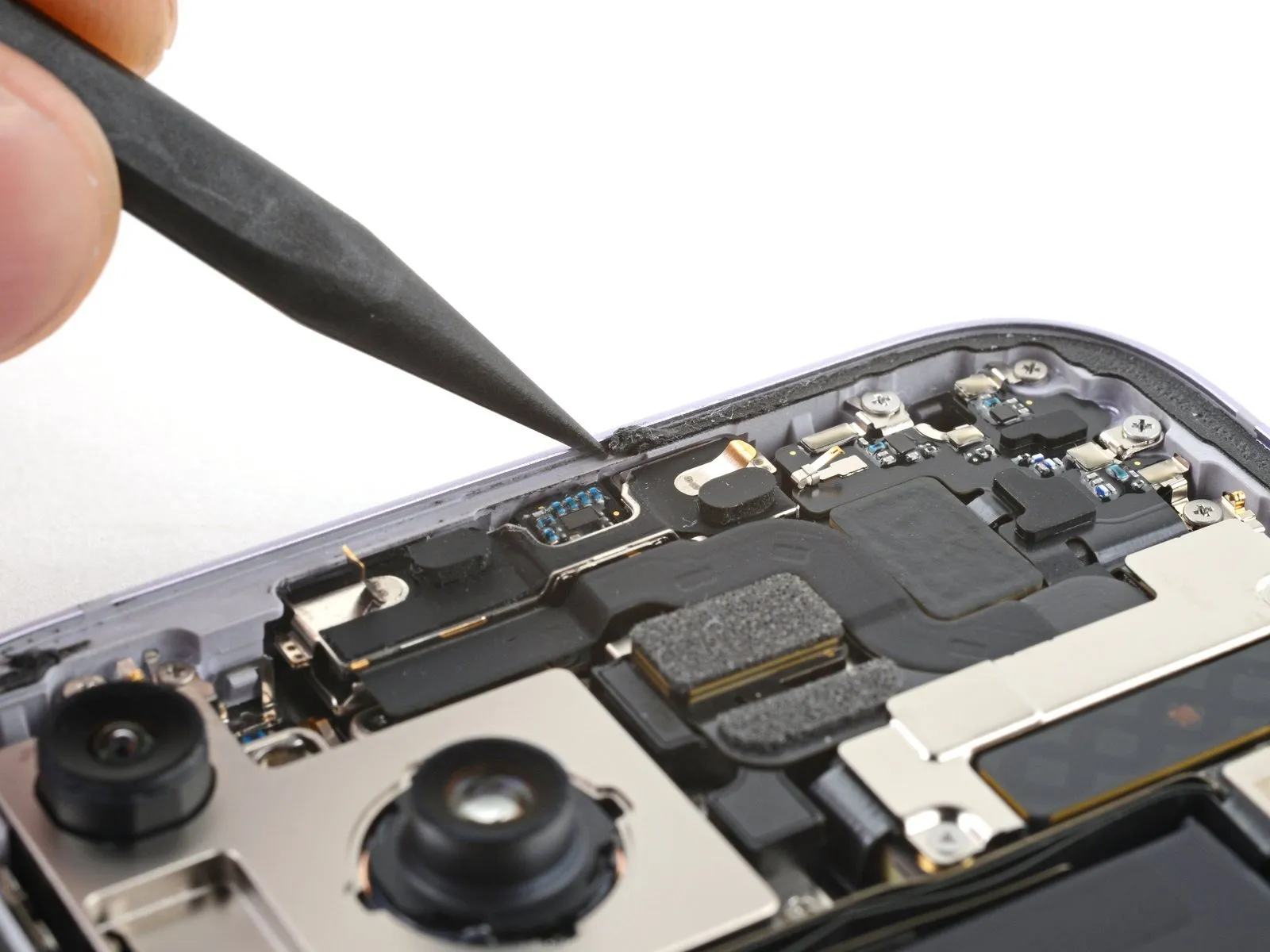

• Remaining adhesive residue on the frame's surface can prove difficult to eliminate. Should the adhesive demonstrate resistance to removal, a limited quantity of heat can be applied.A hair dryer or heat gun can be utilized to provide this necessary warmth.Employing either end of a spudger, apply pressure and a rolling motion to detach the adhesive from the frame.Blunt-nose tweezers or fingertips are suitable tools for extracting any detached adhesive fragments.The persistence of adhesive can complicate the cleaning process.Localized heat application can assist in softening the adhesive bond.
• Carefully direct the heat source to avoid damaging the frame's material.A spudger’s edge facilitates the separation of adhesive layers through pressure and movement.Small, incremental movements are recommended when using the spudger.

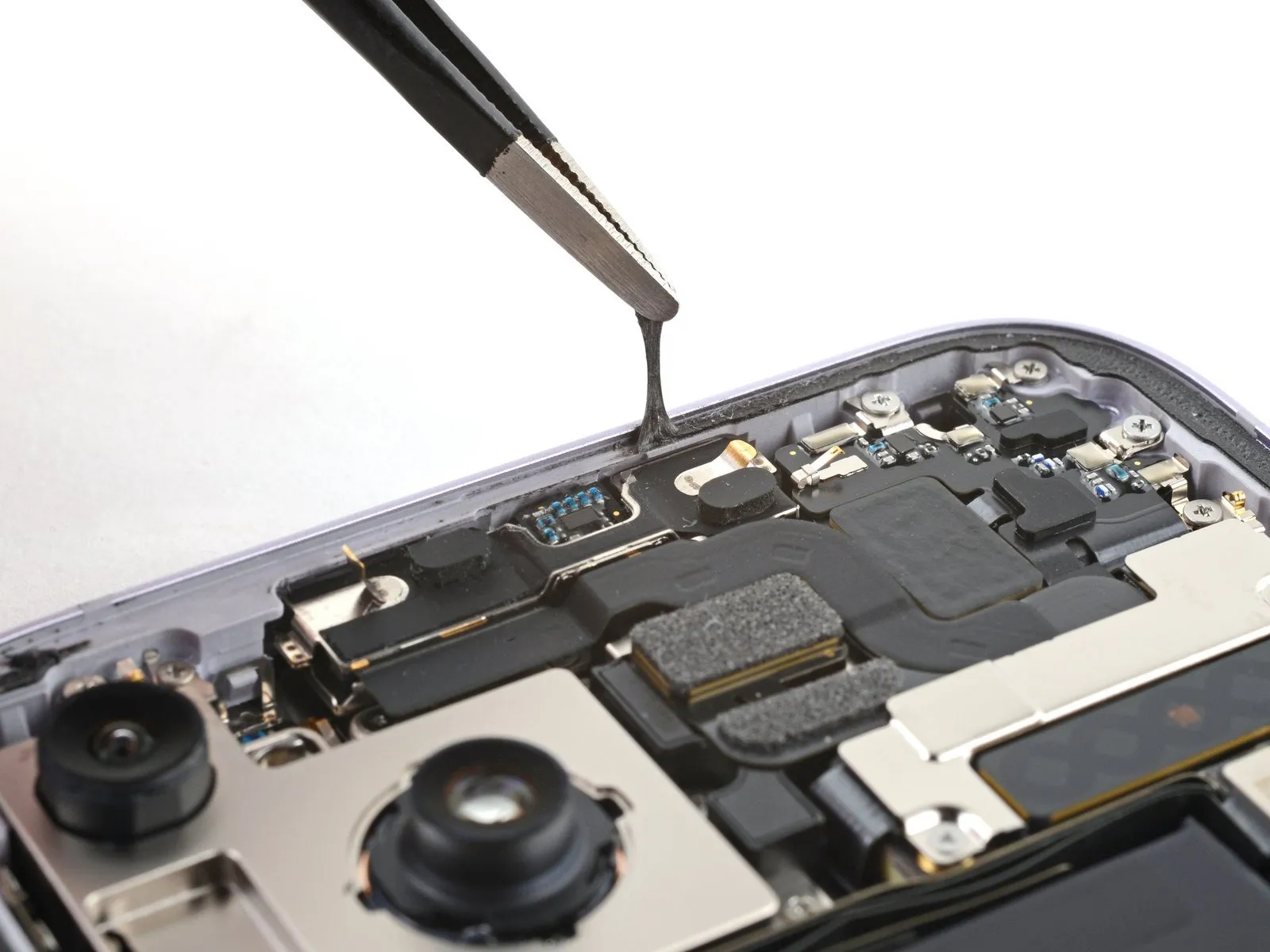

• Fine-tipped tweezers offer precision for removing small adhesive remnants.Finger manipulation can also be effective for dislodging loose adhesive.Complete removal of adhesive is crucial for proper reassembly and adhesion of new components.

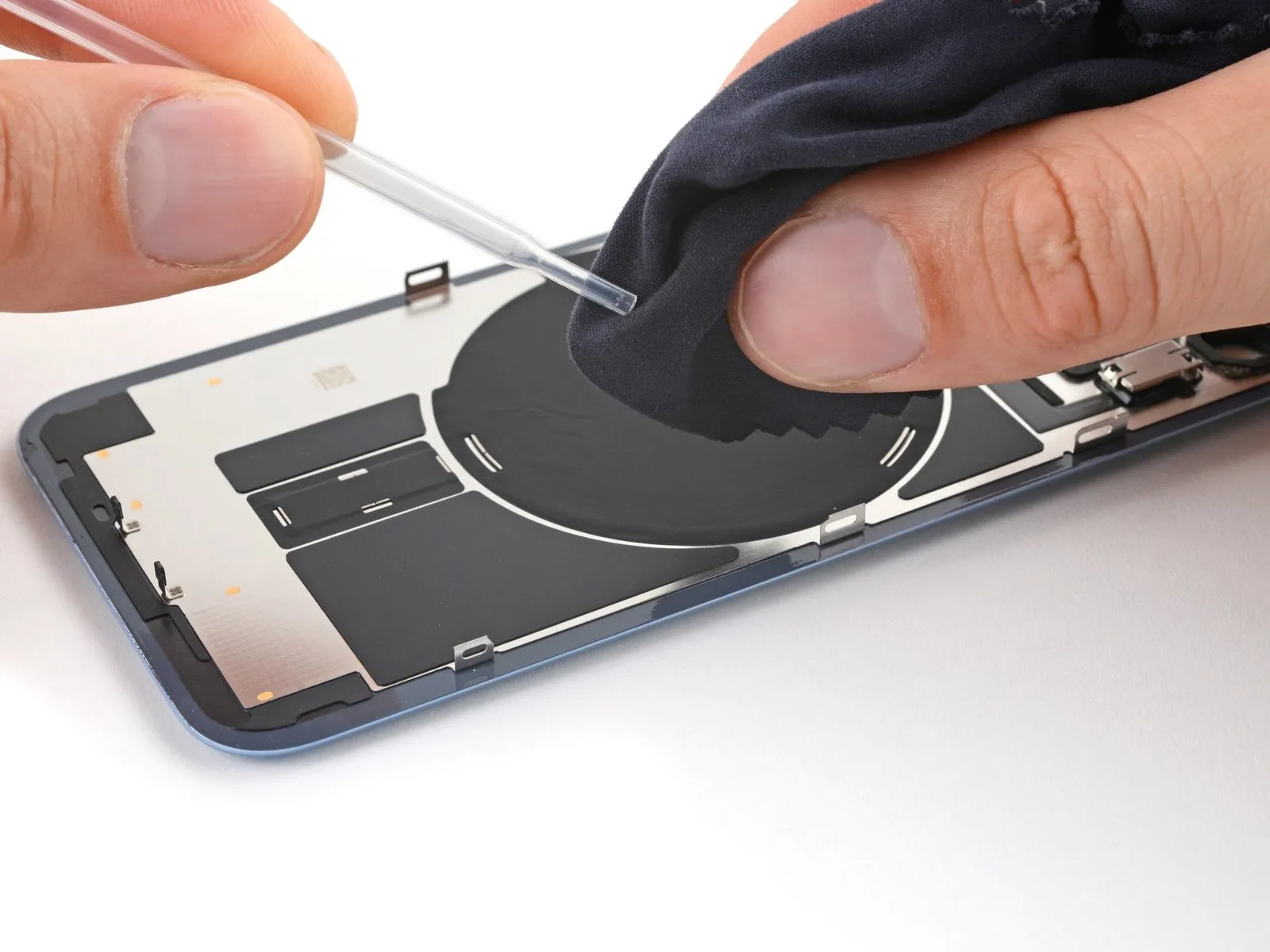

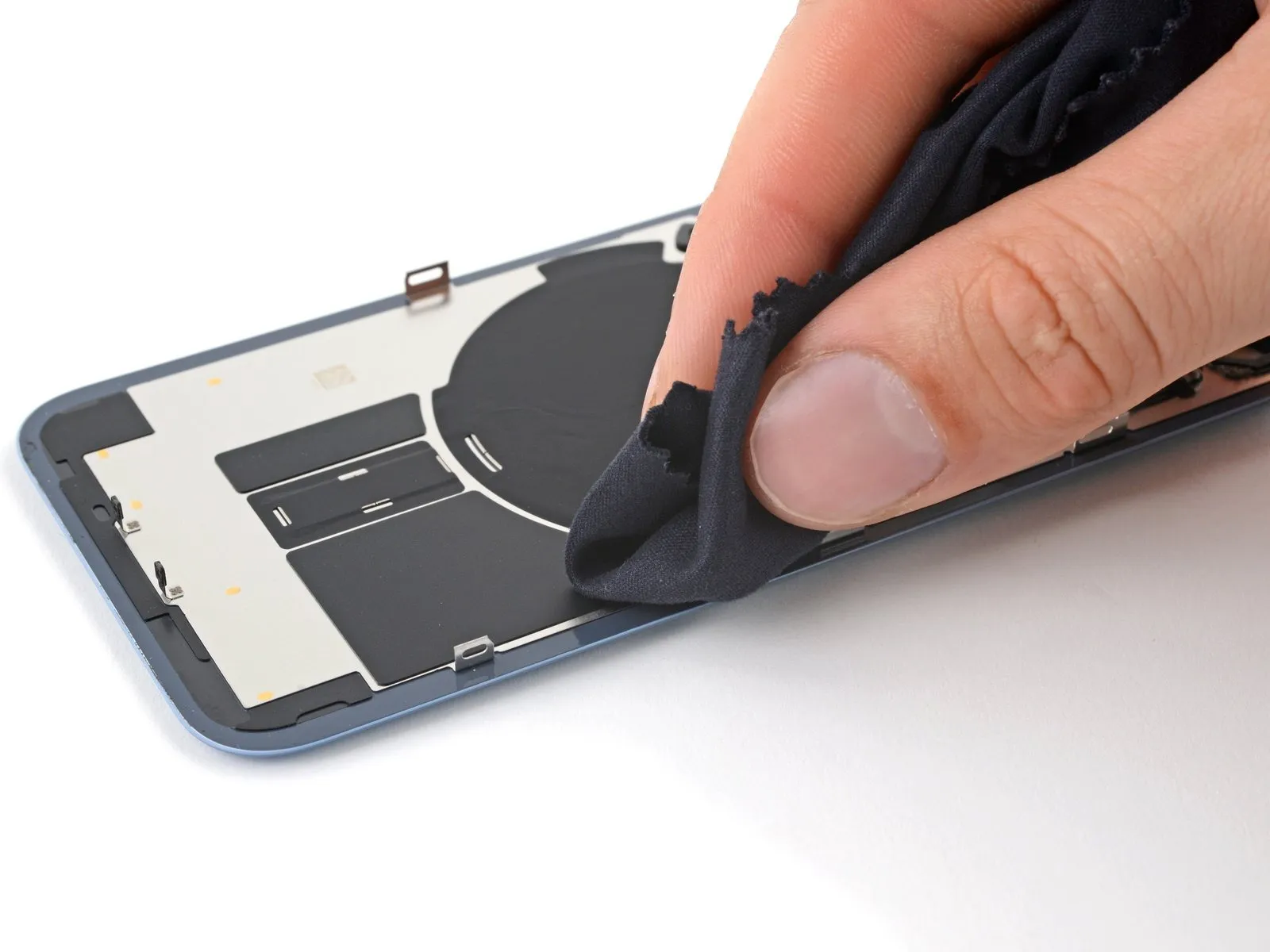

To facilitate adhesion when reinstalling a previously used rear cover, utilize a small quantity of isopropyl alcohol possessing a concentration exceeding 90%.Employ a microfiber cloth or a lint-free alternative to gently clean the edges of the back cover.Surface preparation involves wiping the perimeter with the alcohol-moistened cloth to ensure optimal adhesive bonding.

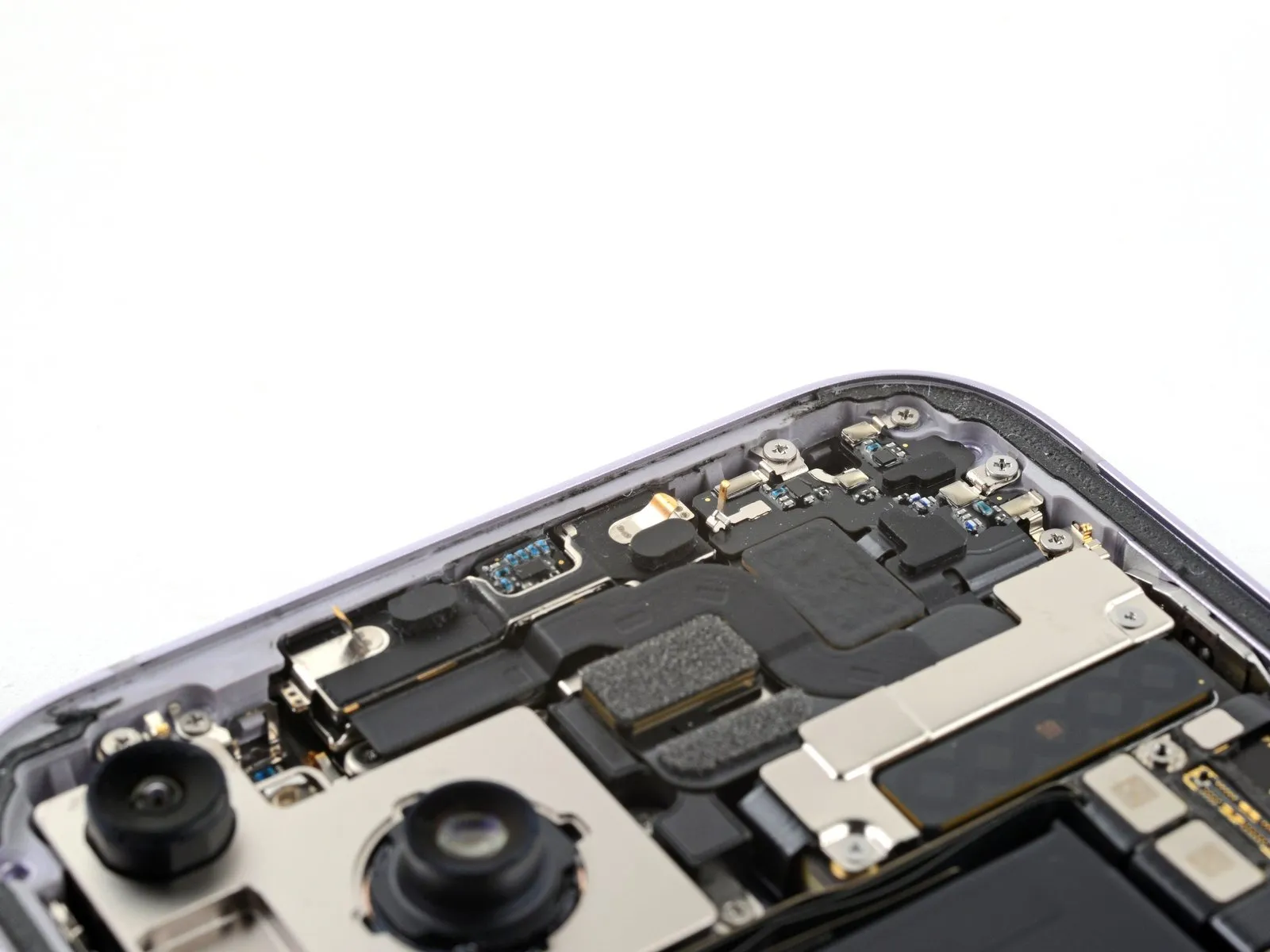

• Remaining adhesive traces may compromise the iPhone's protective seal, necessitating comprehensive cleaning of the frame.

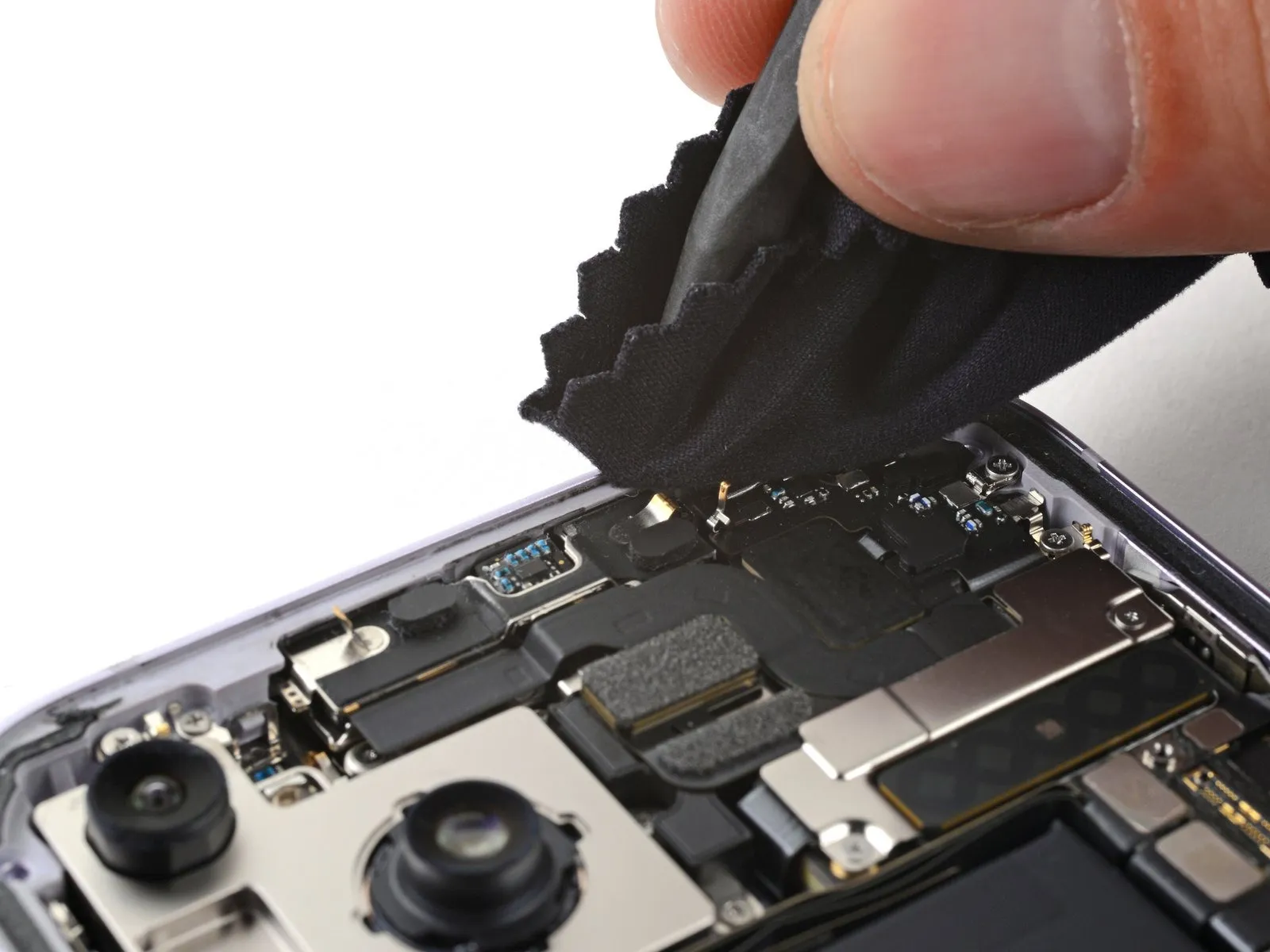

• Cover the tip of your spudger with a cloth made of microfiber or free from lint.Dispense a small quantity of isopropyl alcohol, with a concentration exceeding 90%, onto the cloth.The cleaning process involves applying the alcohol-moistened cloth to the frame's edge.To ensure complete residue removal, wipe the frame's perimeter consistently in a single direction.Adhesive residue on the frame should be addressed to maintain the iPhone's integrity.
• Utilize a spudger and a suitable cloth saturated with isopropyl alcohol (greater than 90%) for effective cleaning.

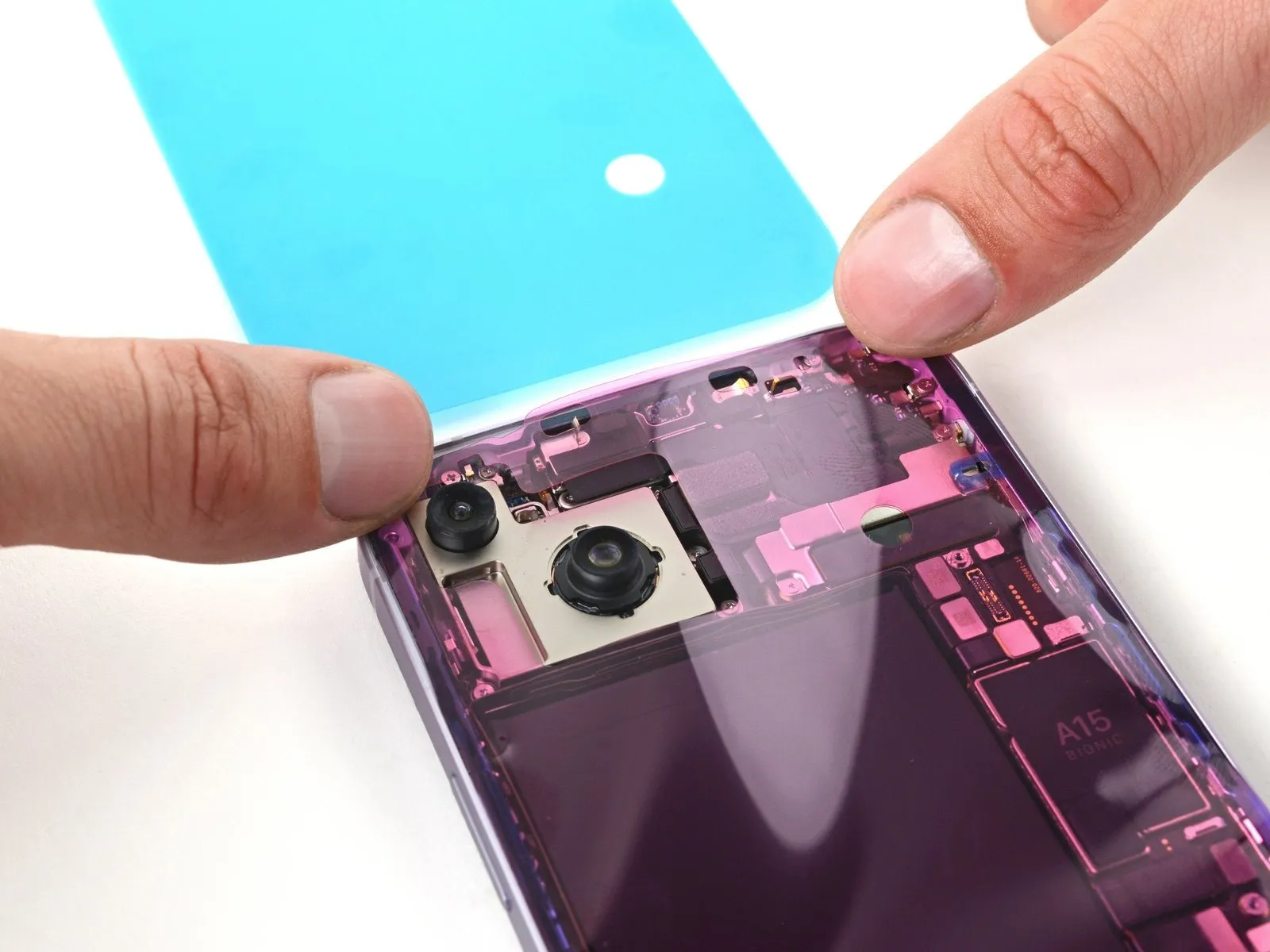

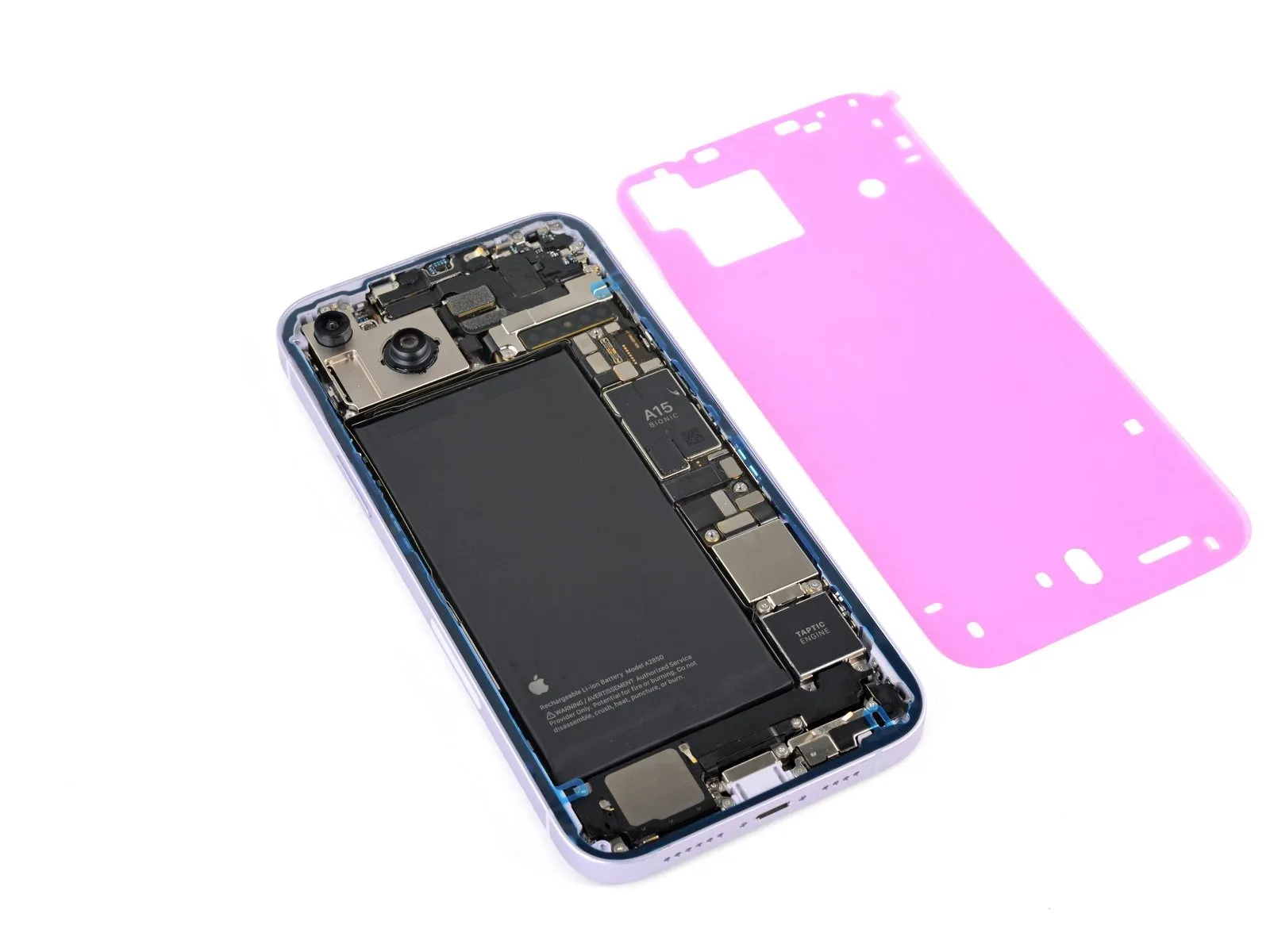

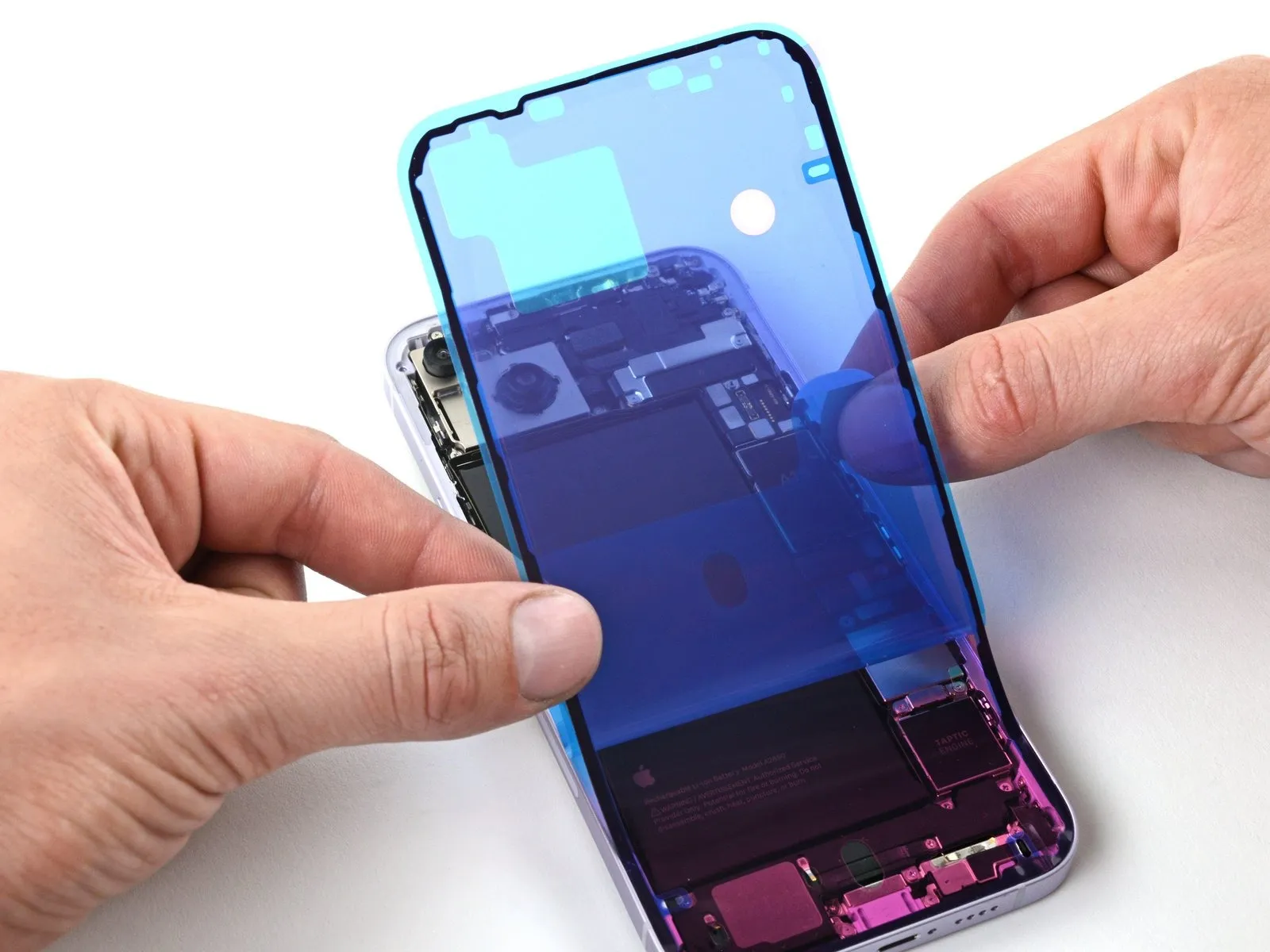

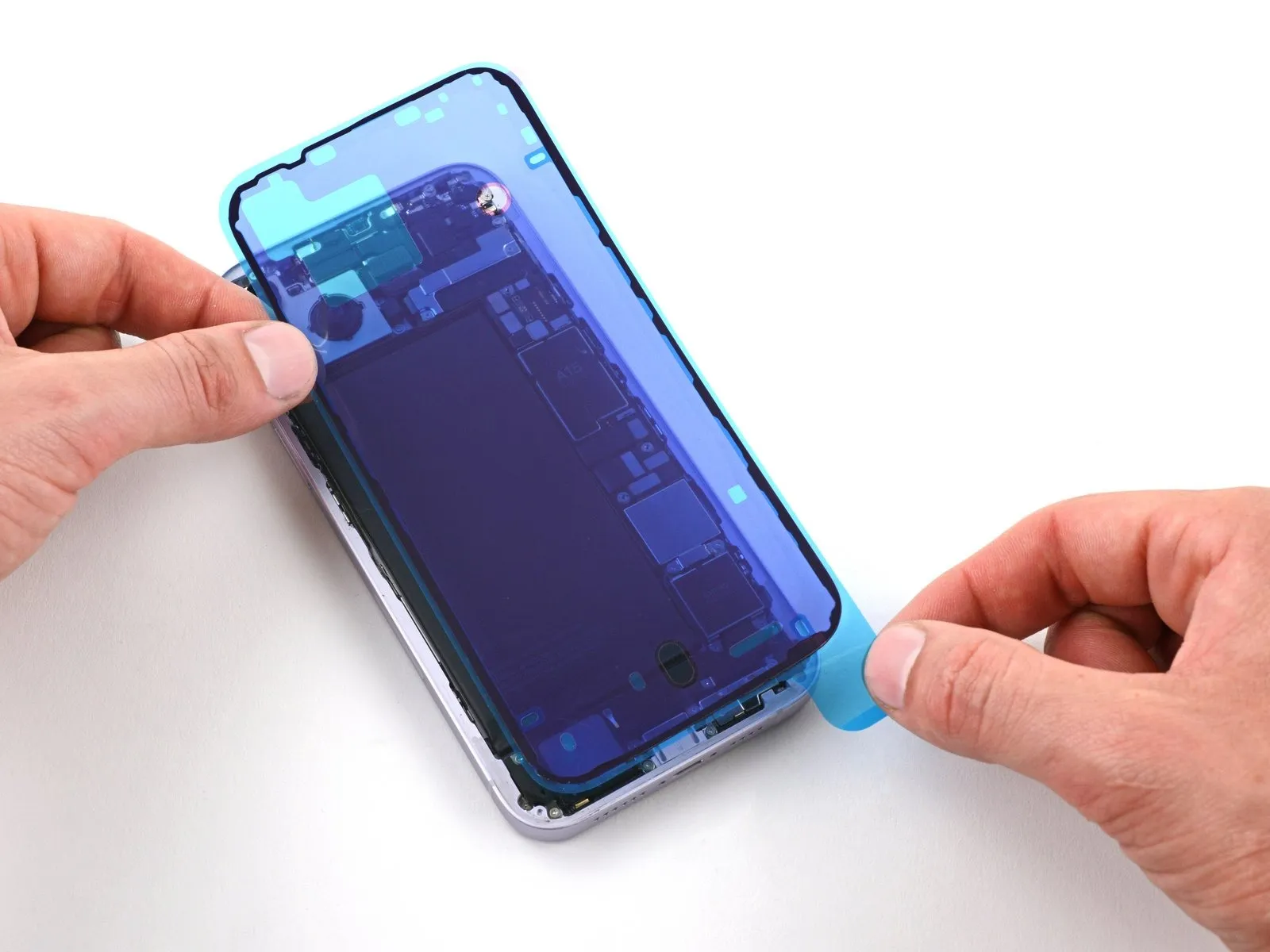

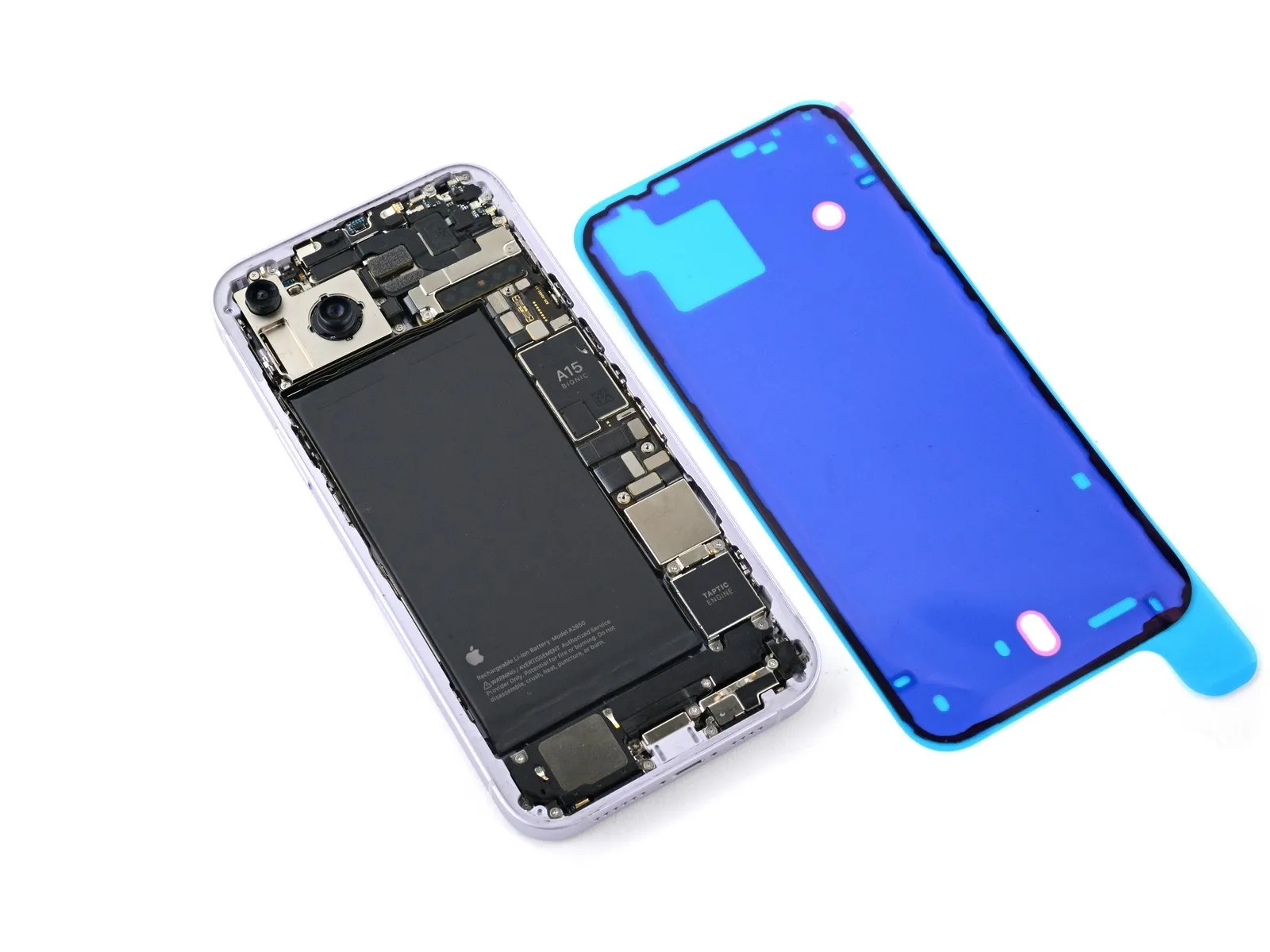

Position the new adhesive strip atop the frame, ensuring the extensive blue liner faces inward and its release tab is situated in the lower-right area; utilize the camera aperture and the indentations along the upper and lower borders to confirm proper adhesive placement within the frame.

• The newly installed adhesive possesses a high level of tackiness; therefore, direct skin contact should be prevented until the moment of application to the frame's surface.

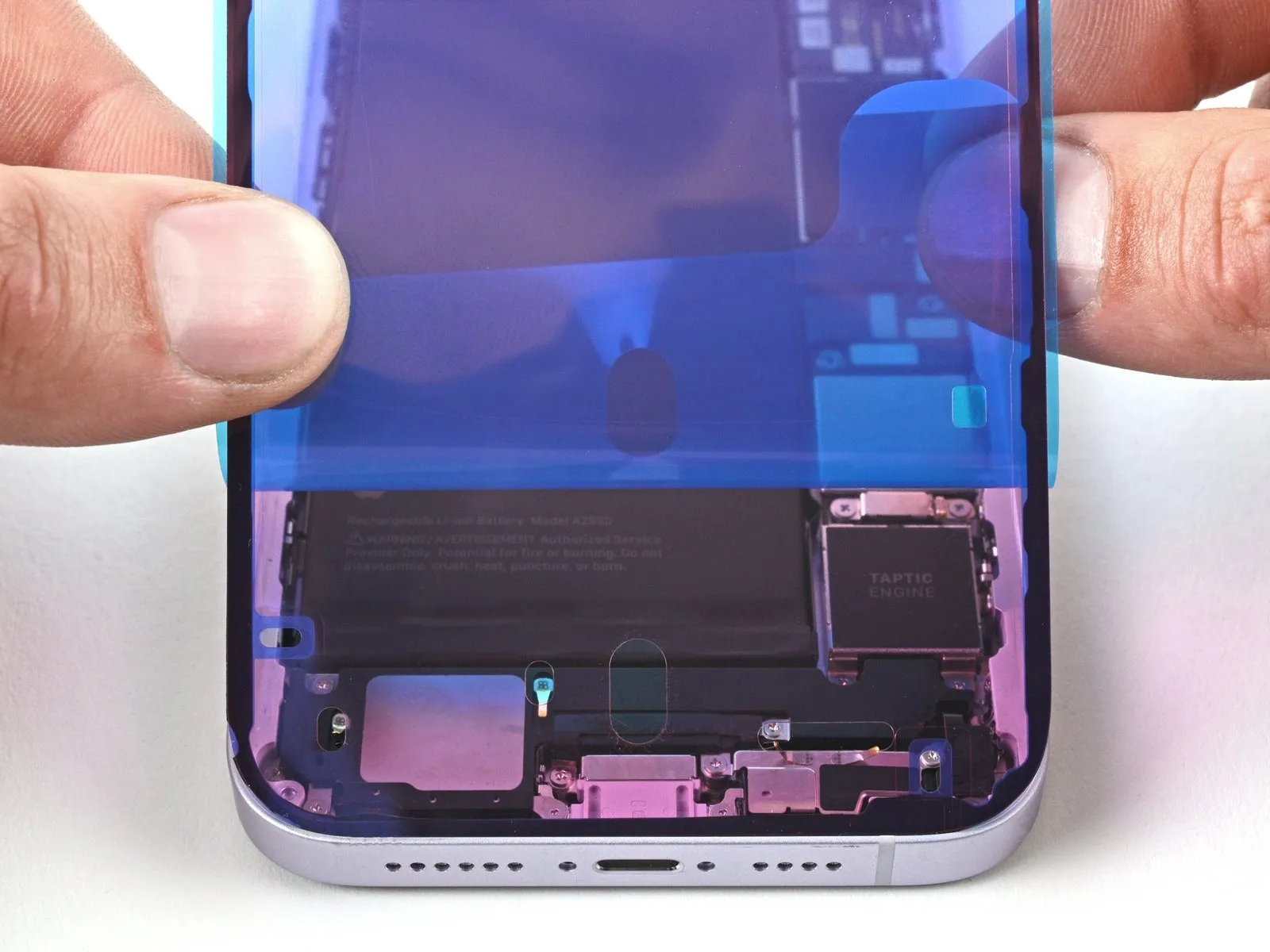

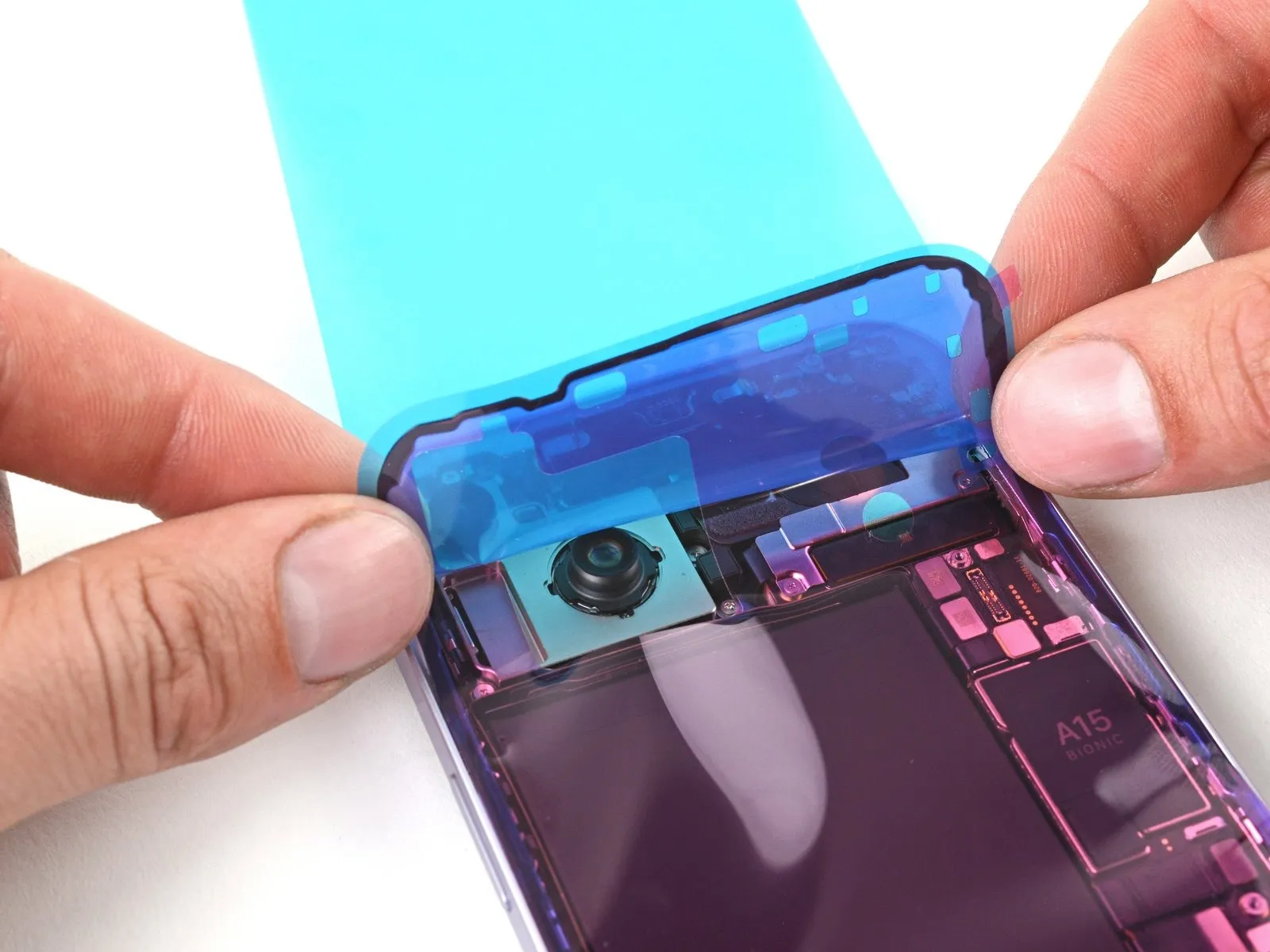

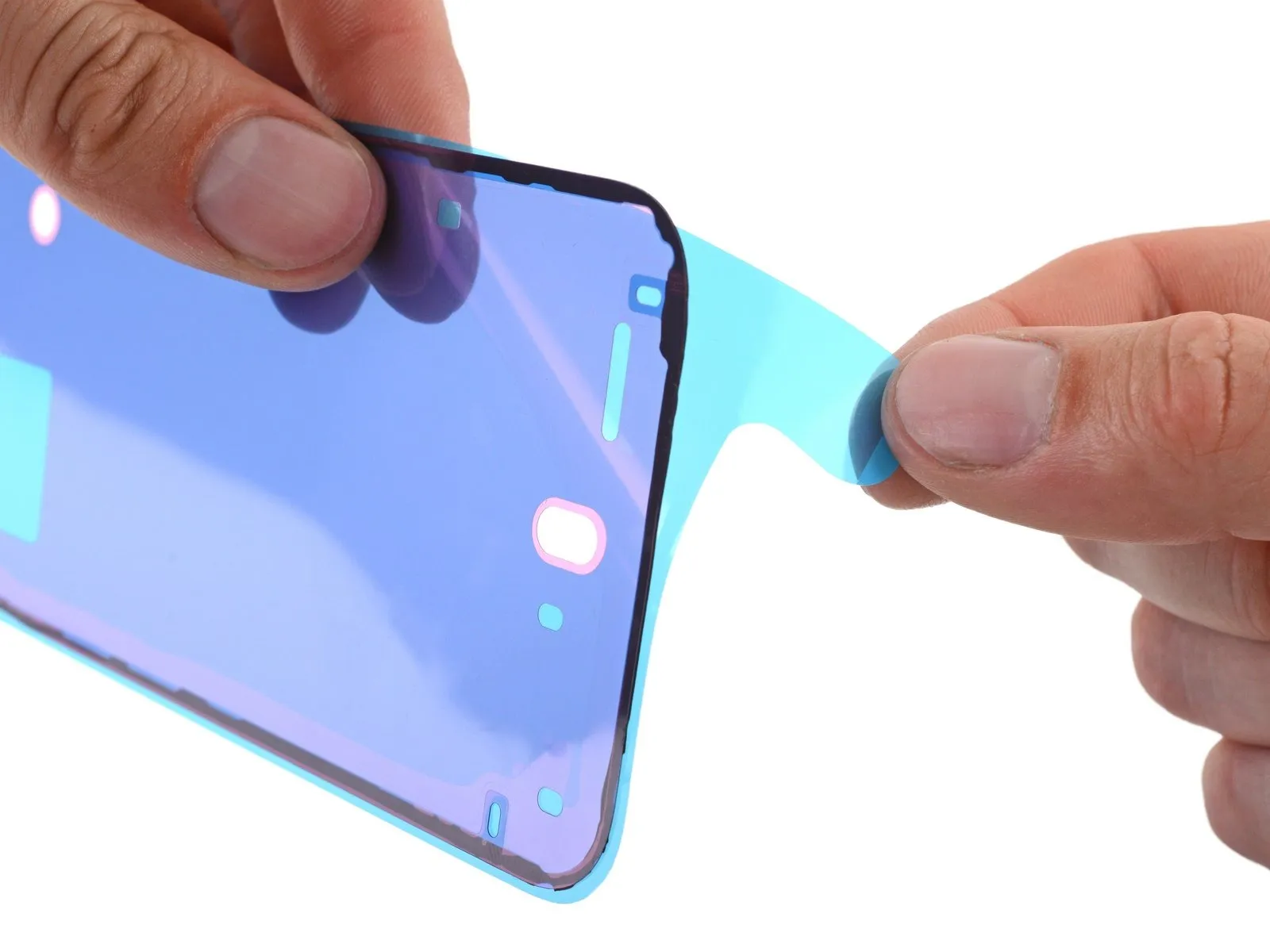

• To reveal just the lower portion of the adhesive, utilize the provided blue liner pull tab for peeling back the protective layer.

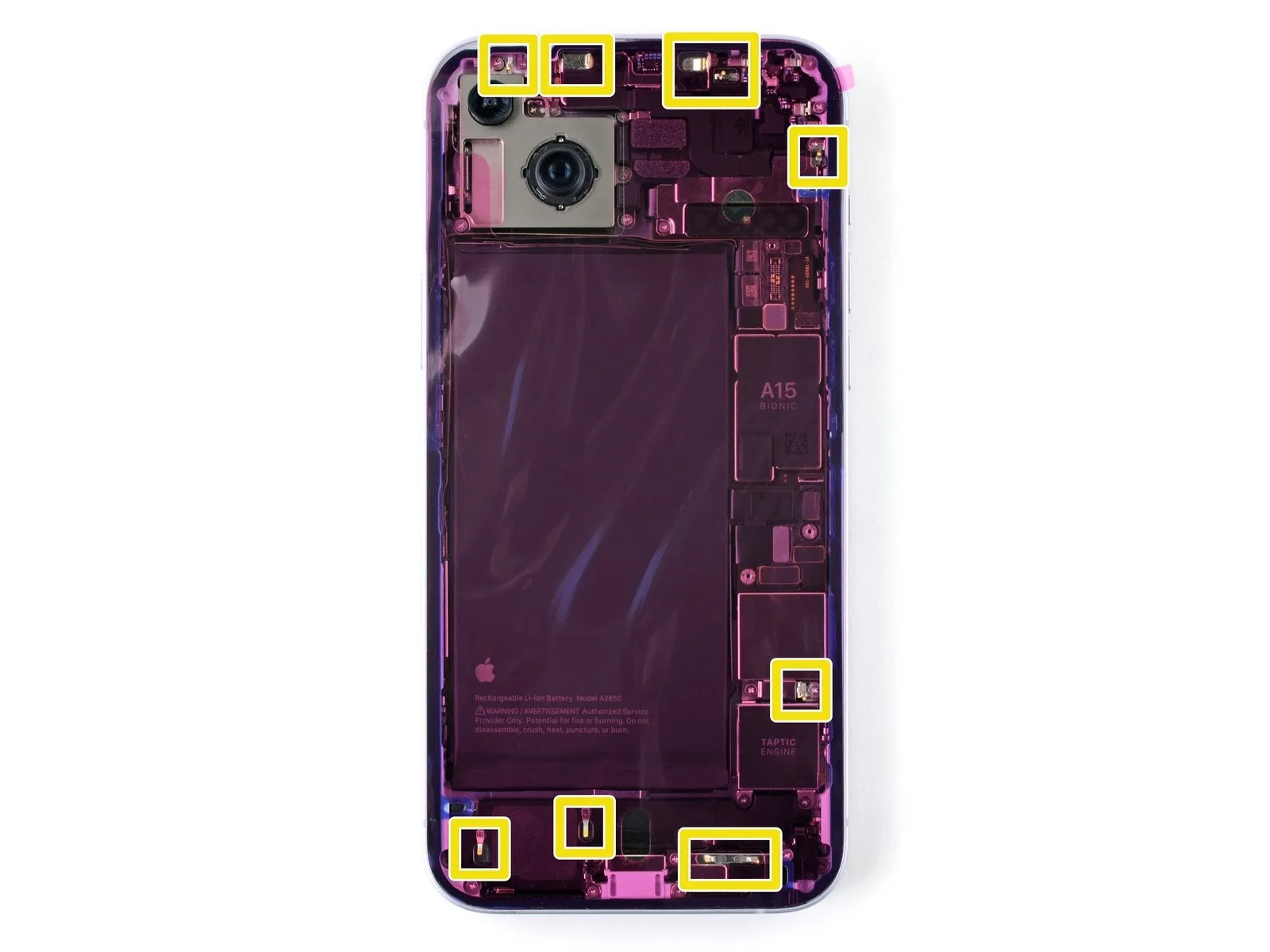

1. Set the blue liner to the side, preparing it for later use.Position the adhesive strip so that it aligns precisely with the lower boundary of the iPhone's chassis.Insert the lower edge of the adhesive into its designated recess within the frame structure.Ensure the iPhone's internal spring contacts are correctly aligned with the corresponding openings in the liner.The liner's cutouts must accurately correspond to the spring contact locations to guarantee proper function.
2. Careful placement of the adhesive is critical to secure the iPhone's lower edge.Proper alignment prevents potential damage to the spring contacts during reassembly.The adhesive's slot within the frame provides a secure anchoring point.Maintaining this alignment is essential for the device's operational integrity.The blue liner serves as a template and protective layer for the adhesive during installation.

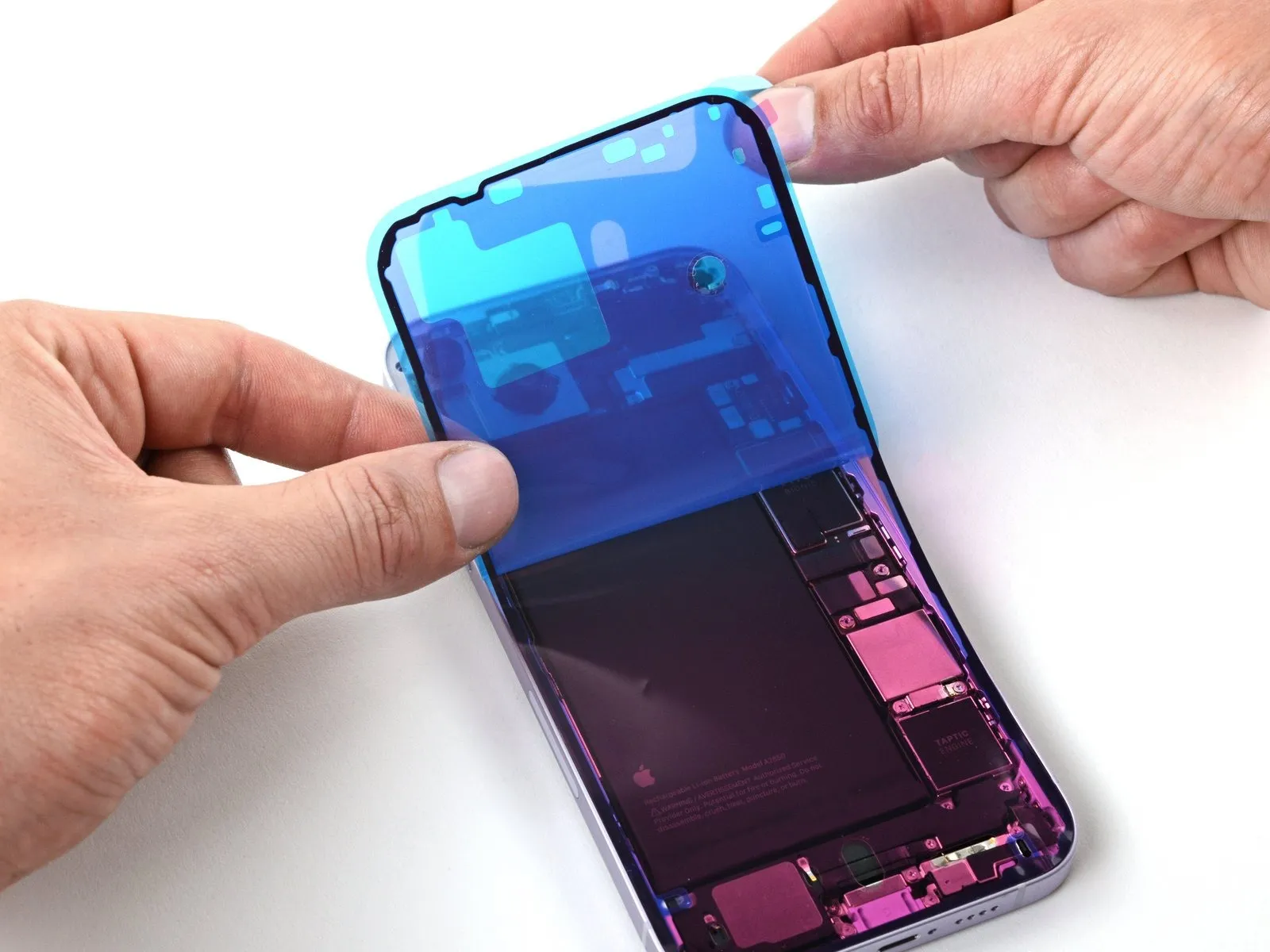

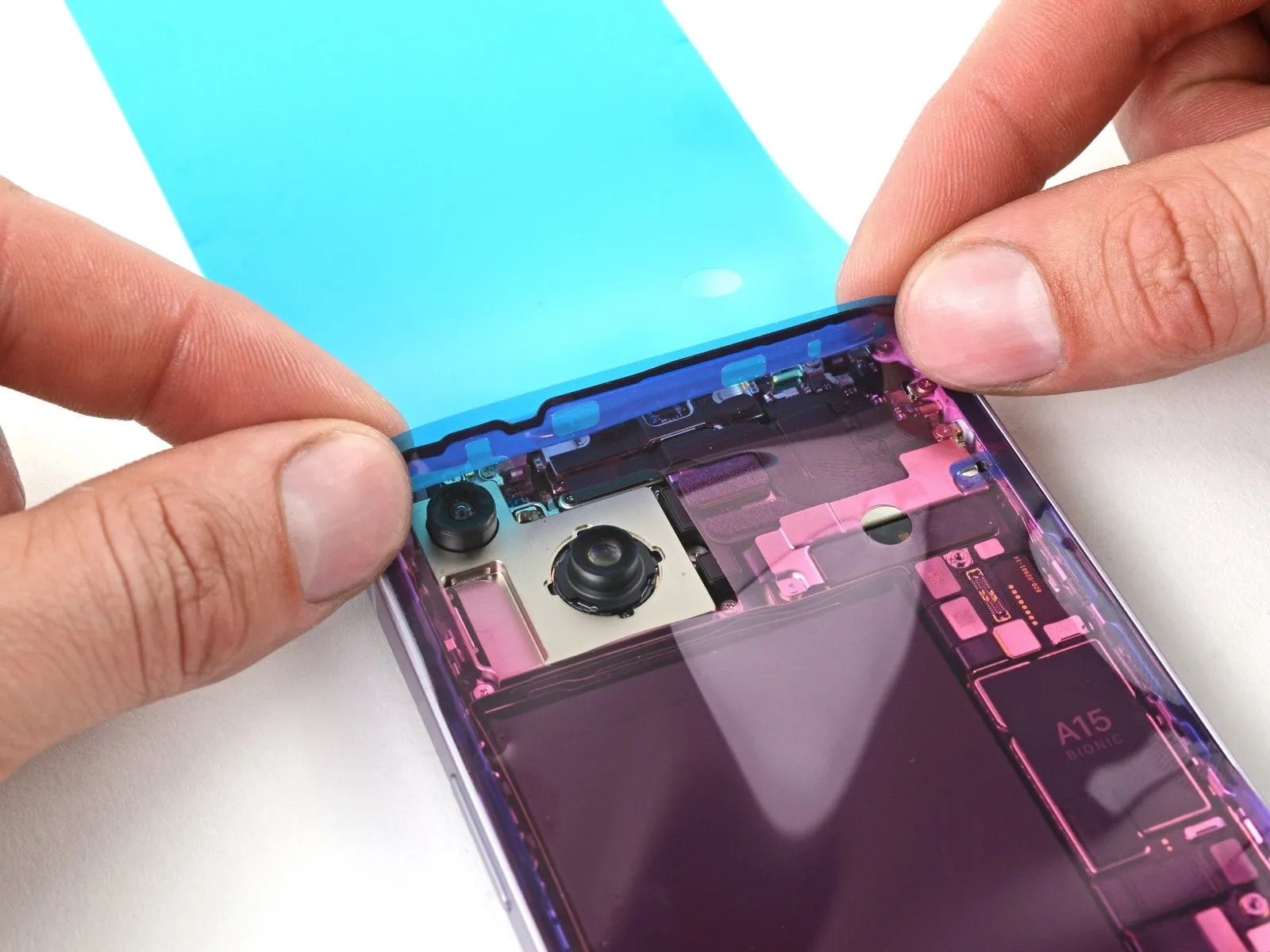

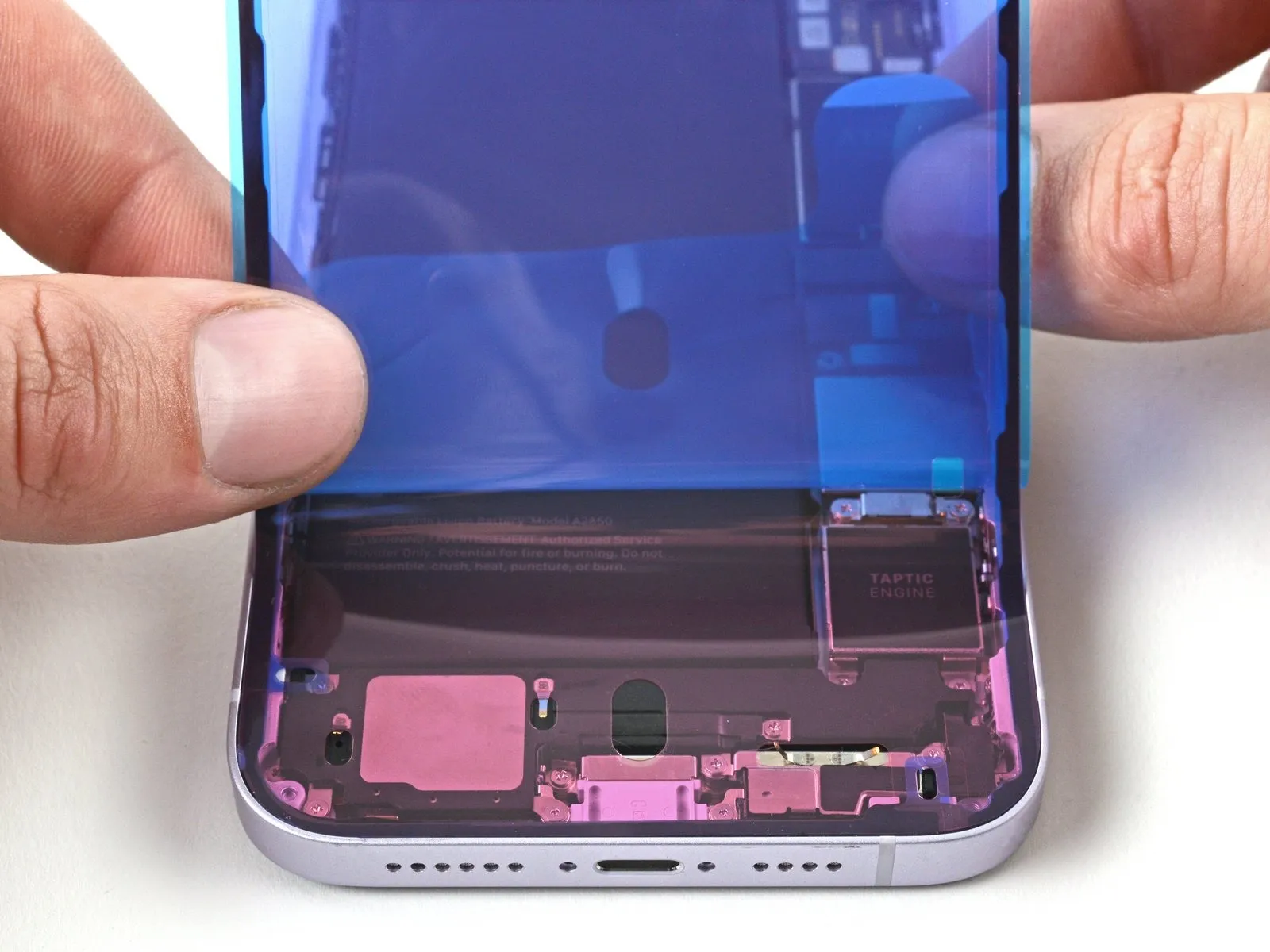

• Securely position the adhesive strip along the iPhone's vertical edges, removing the protective blue liner incrementally.As the adhesive is applied, carefully peel back the blue liner to expose the bonding surface.Should the adhesive placement deviate from a straight line, reposition the longer edges to ensure proper alignment with the device's frame.Maintaining a precise alignment of the adhesive is crucial for a secure bond.The adhesive strip facilitates proper reattachment of the display assembly.
• Incremental removal of the blue liner allows for precise positioning of the adhesive.Misalignment of the adhesive can compromise the seal and structural integrity of the device.Correcting any deviations in the adhesive's straightness is essential for a successful repair.

1. Confirm alignment of the upper edge notches with the frame's corresponding features.
2. Position the superior margin of the adhesive strip onto the frame's surface with precision.The supplied adhesive facilitates secure bonding between components.Remove the protective blue liner from the adhesive backing in a continuous motion.Complete removal of the blue liner ensures proper adhesive contact.Ensure the adhesive is fully adhered to the frame after liner removal.

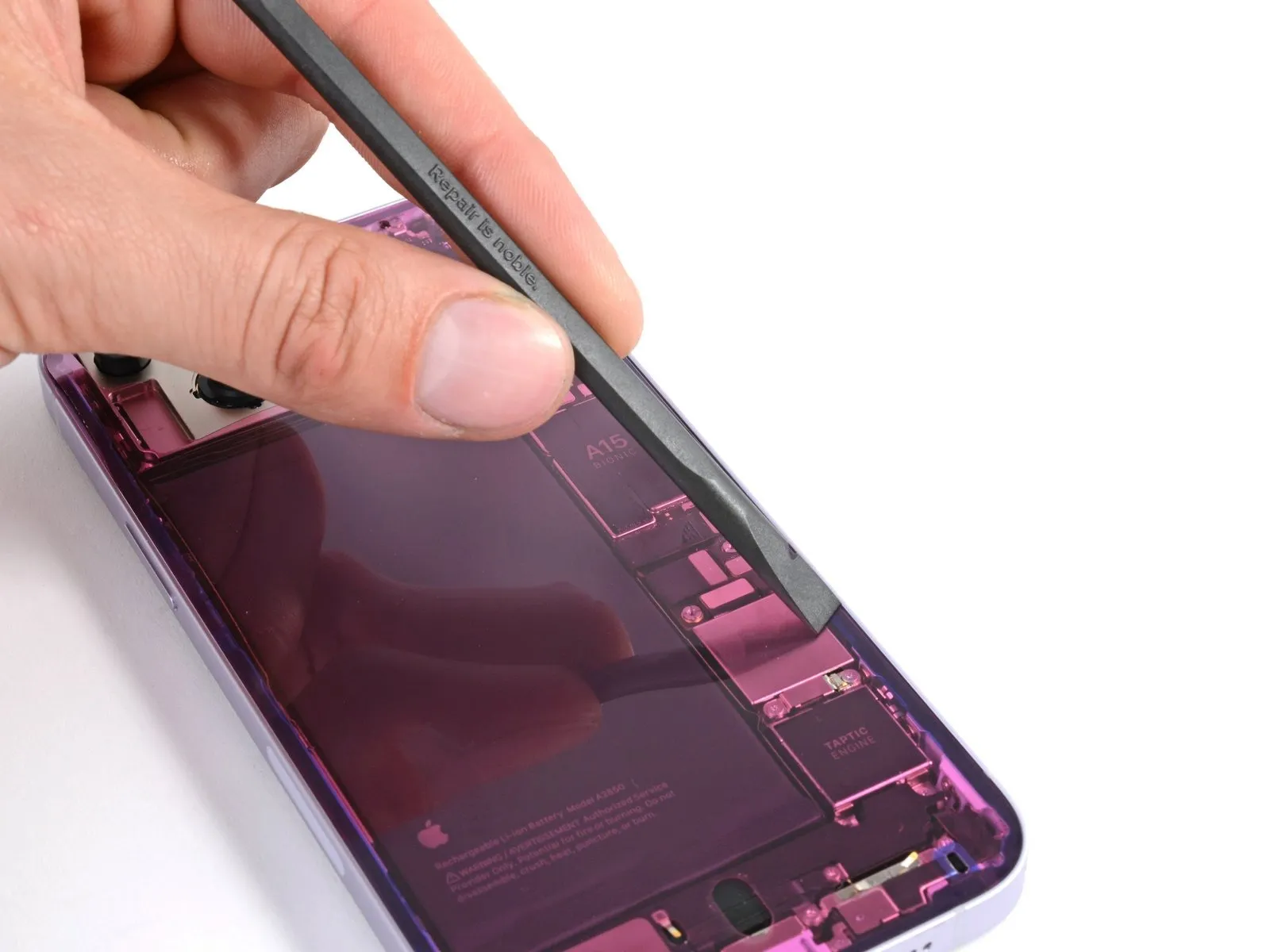

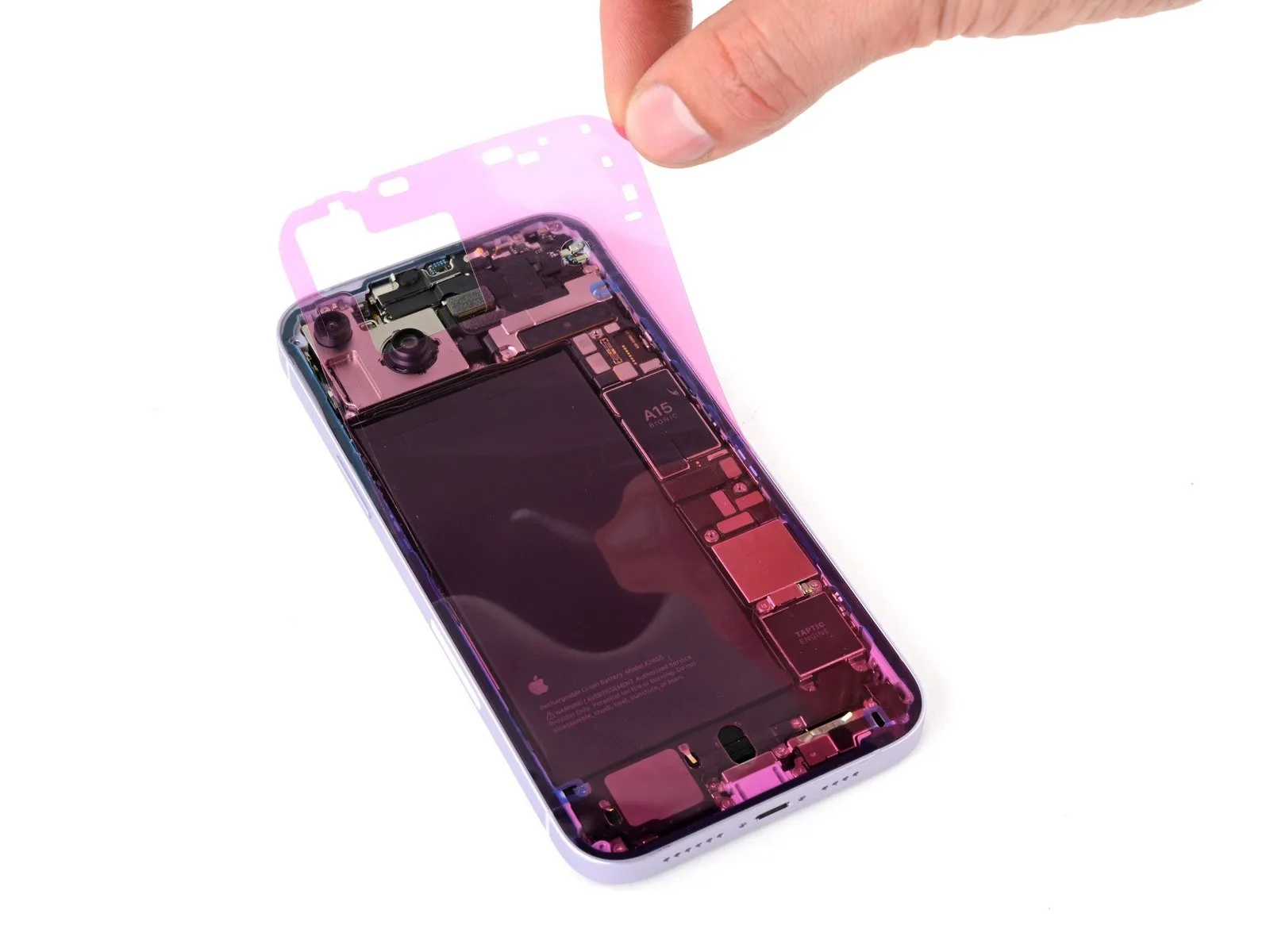

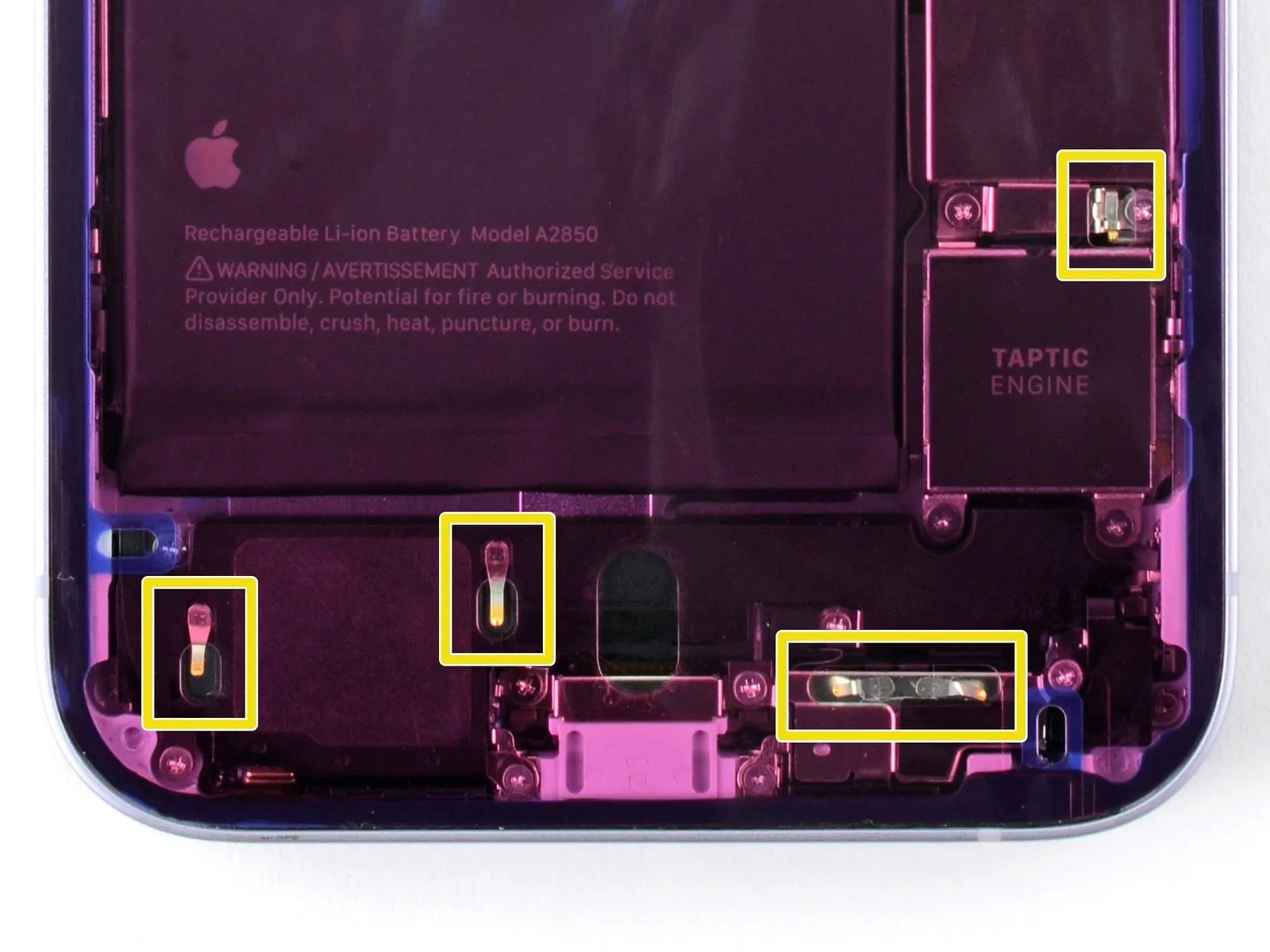

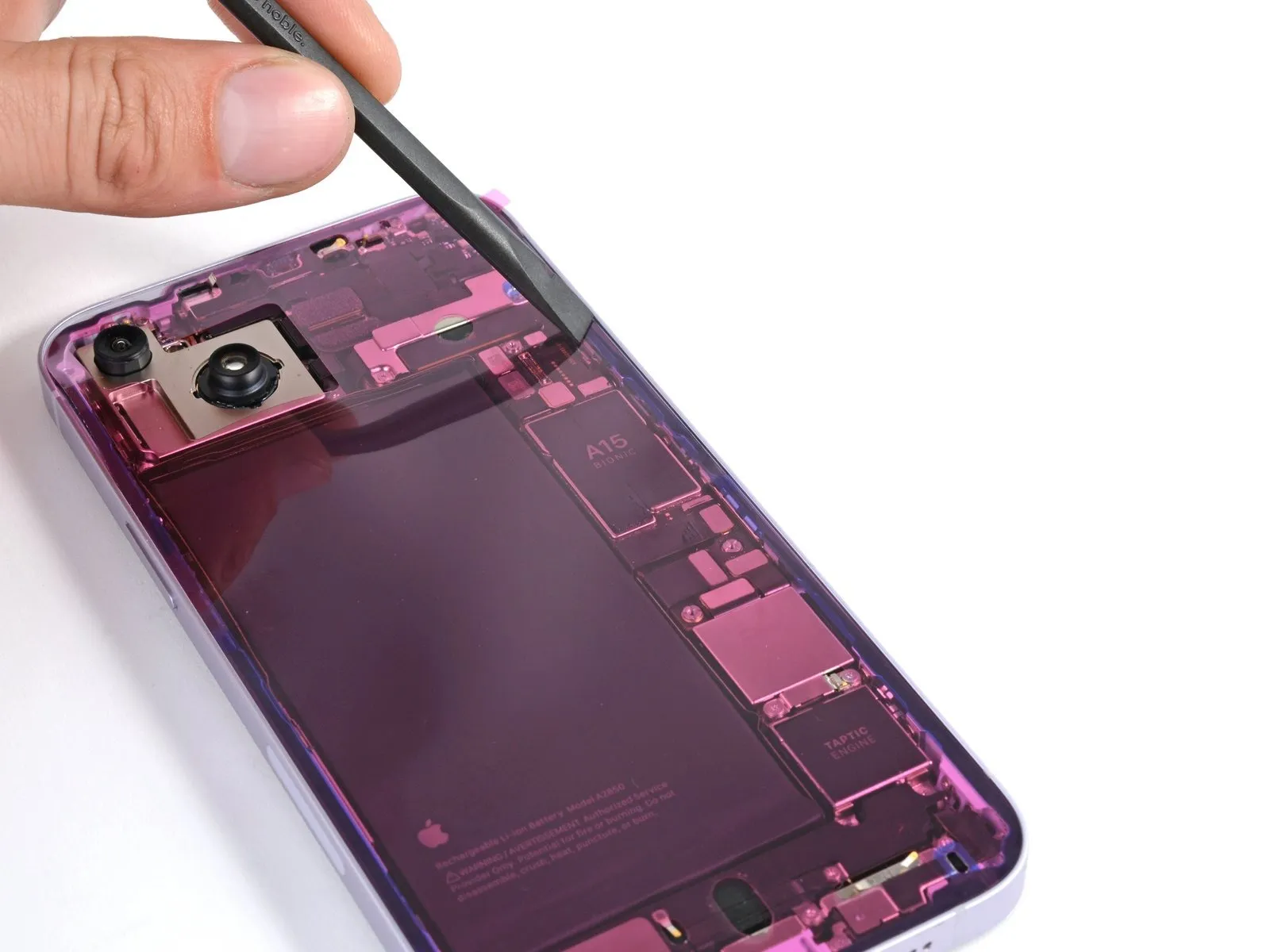

• Employ the planar edge of the spudger to apply pressure to the adhesive securing the frame.The spudger's flat surface facilitates controlled adhesive displacement without risking component damage.Exercise care to prevent contact between the spudger and the spring contacts.The pink liner provides a protective barrier over the spring contacts during this procedure.Avoid applying excessive force to prevent damage to the frame or underlying components.
• Careful manipulation of the spudger is essential for successful adhesive separation.The adhesive's bond must be carefully broken to avoid structural compromise.Maintaining awareness of the pink liner's position is vital to protect sensitive electrical connections.

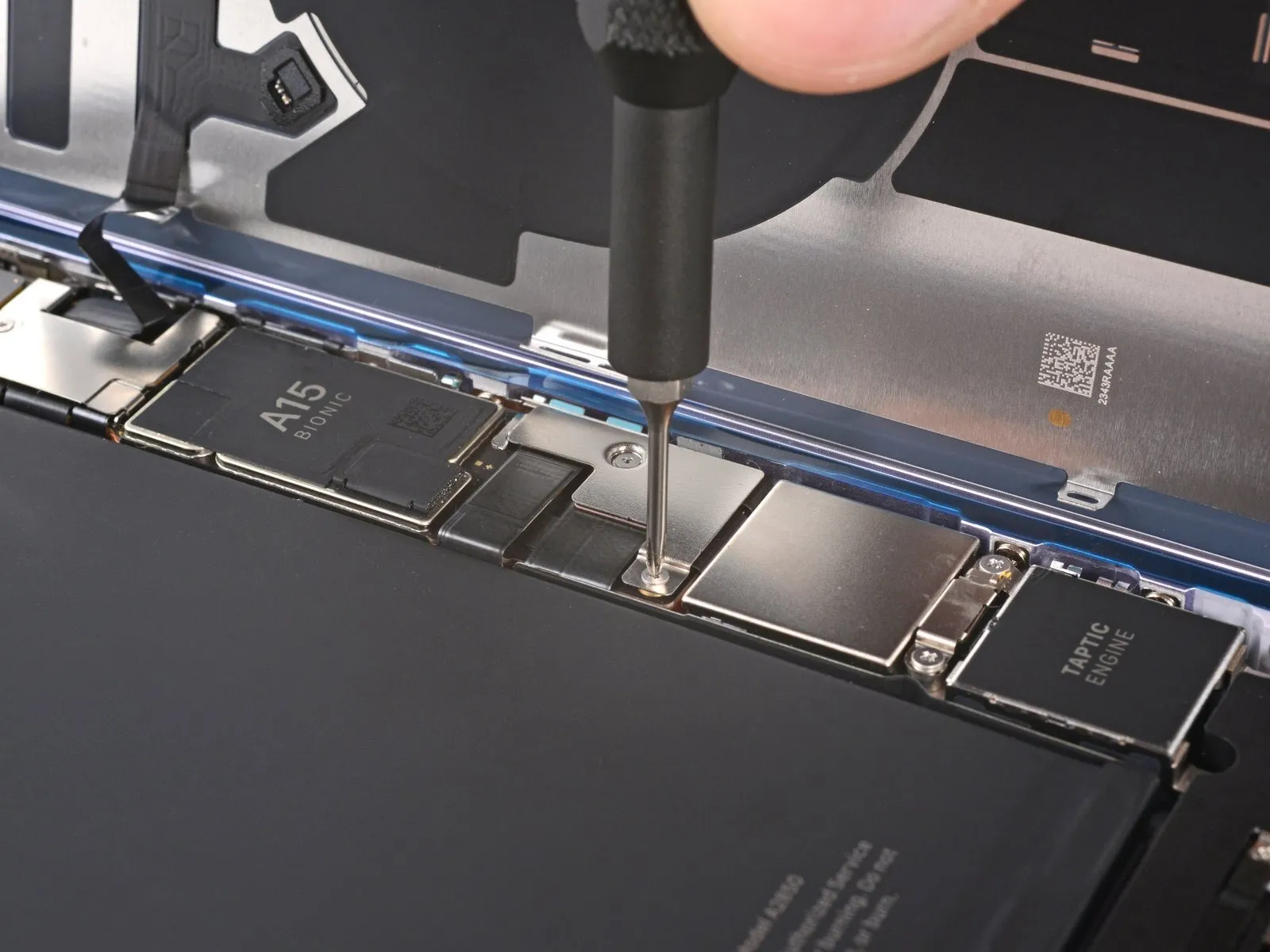

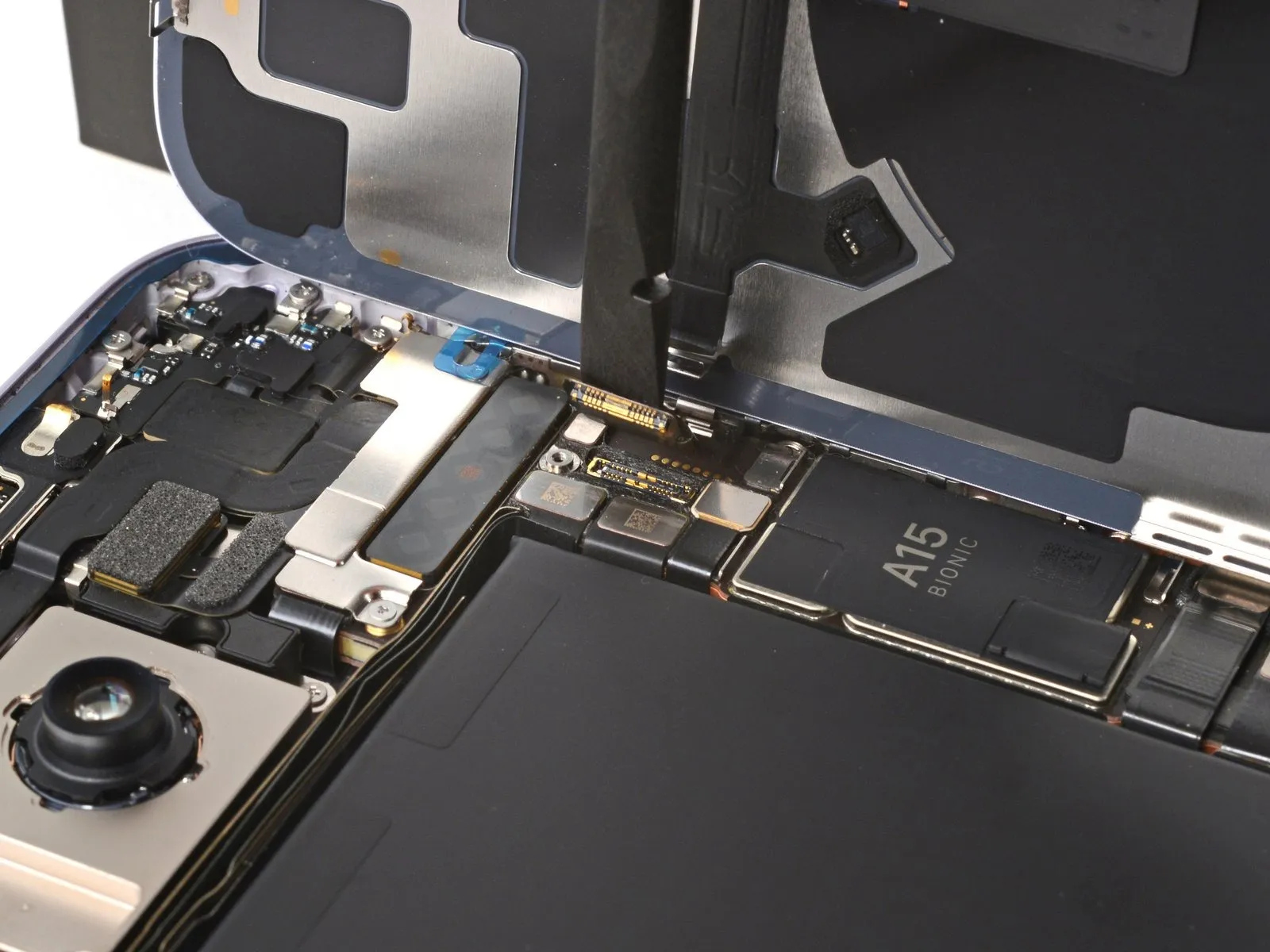

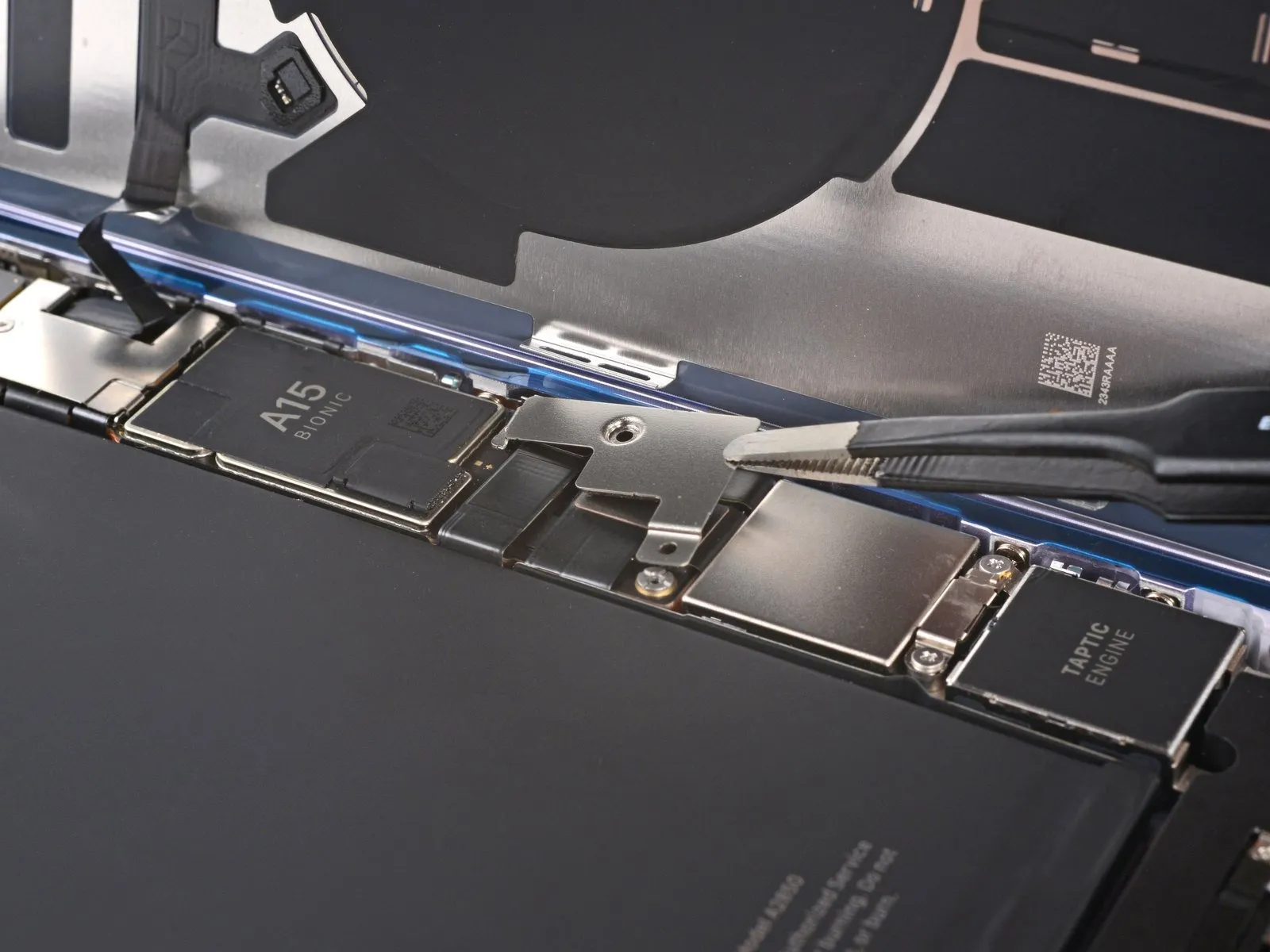

1. Ensure the charging coil connector cover is properly affixed by matching its features to the corresponding opening or fastener on the main circuit board.Refer to the repair manual tailored to your particular phone model for comprehensive, step-by-step guidance regarding this procedure.
2. Employ your tri-point Y000 screwdriver
3. to fasten the screw and maintain the cover's attachment.The cover's proper placement is vital for maintaining the device's integrity and functionality.Carefully observe the provided documentation to avoid damaging delicate components during cover installation.

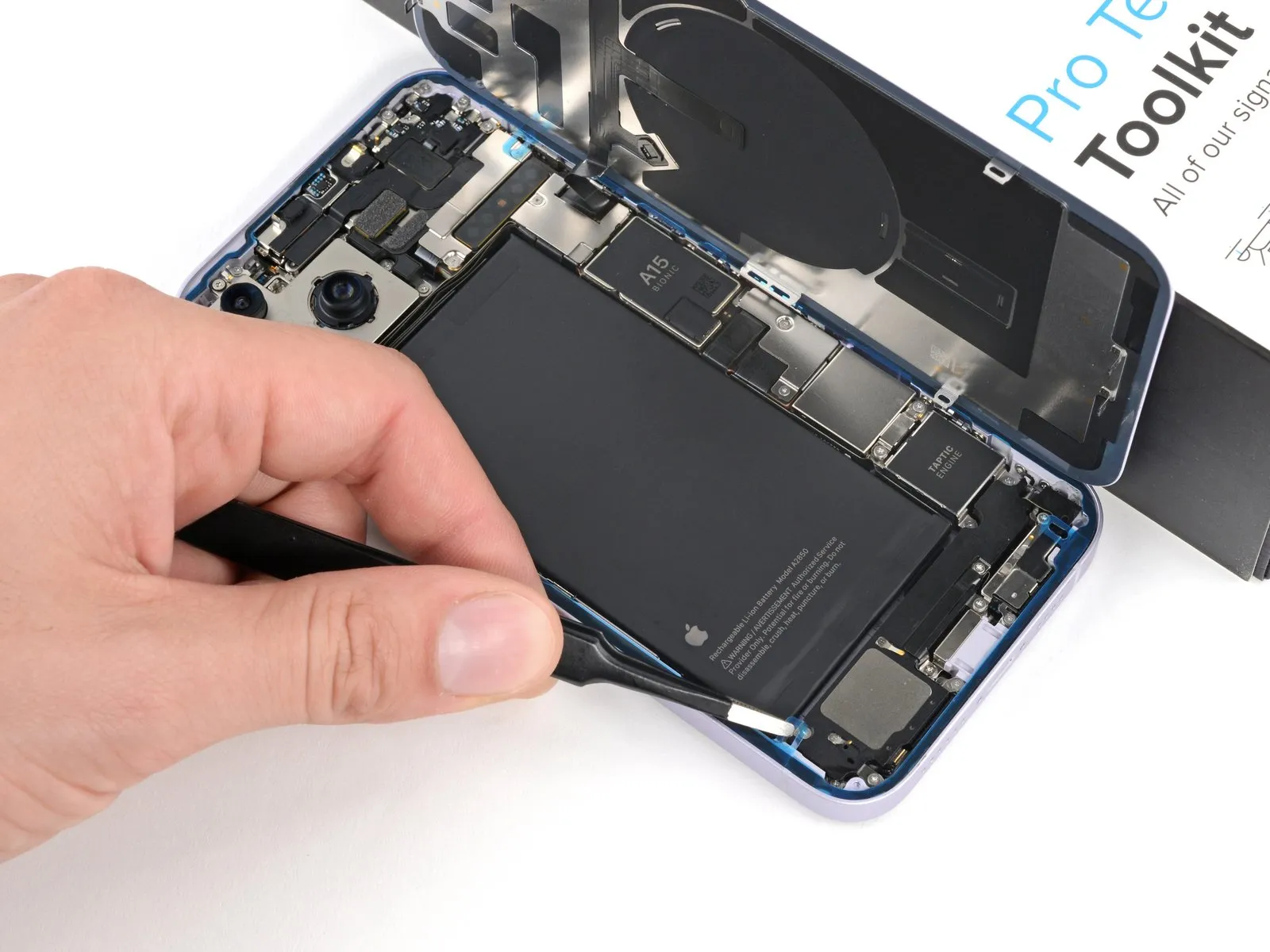

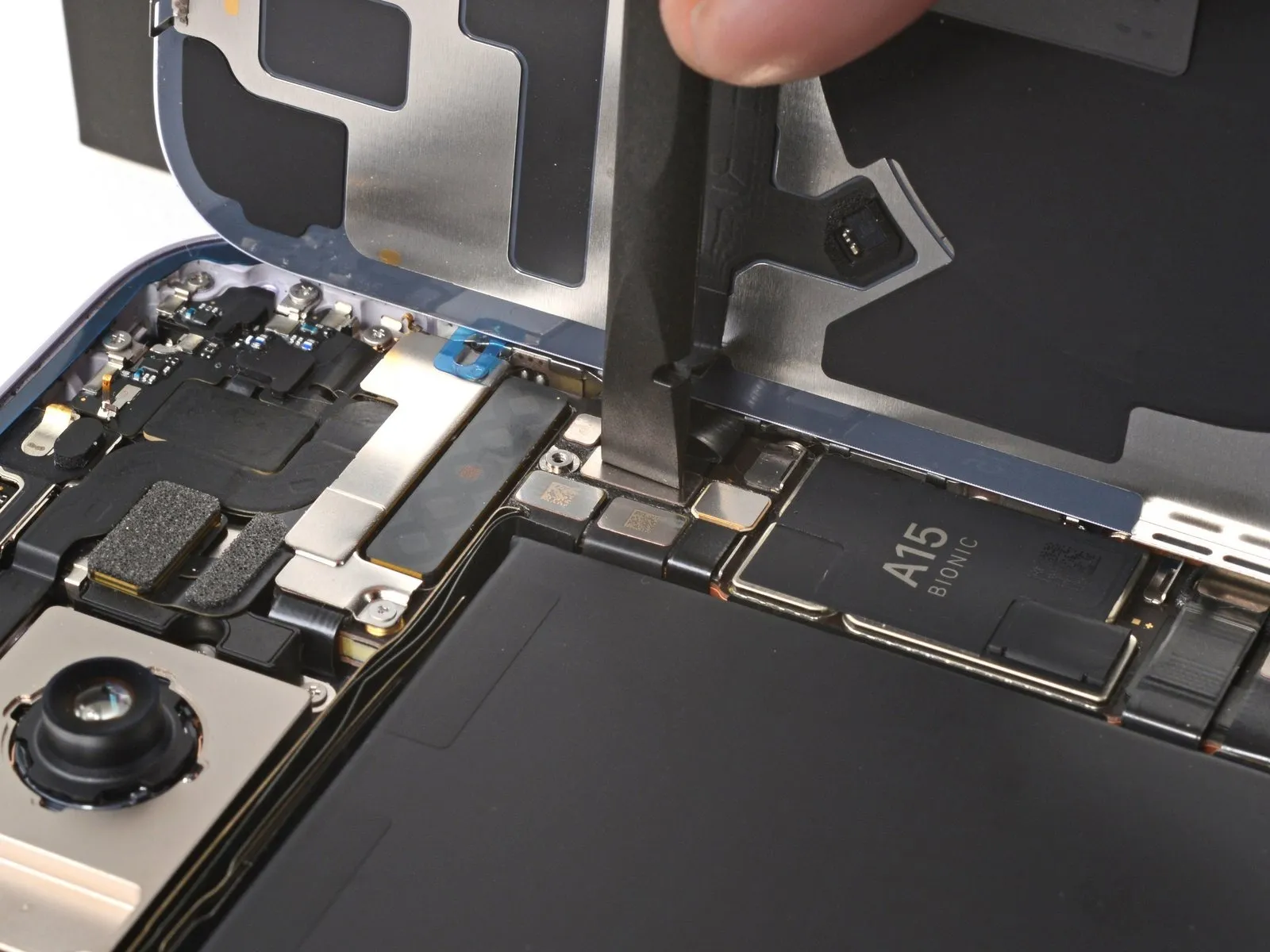

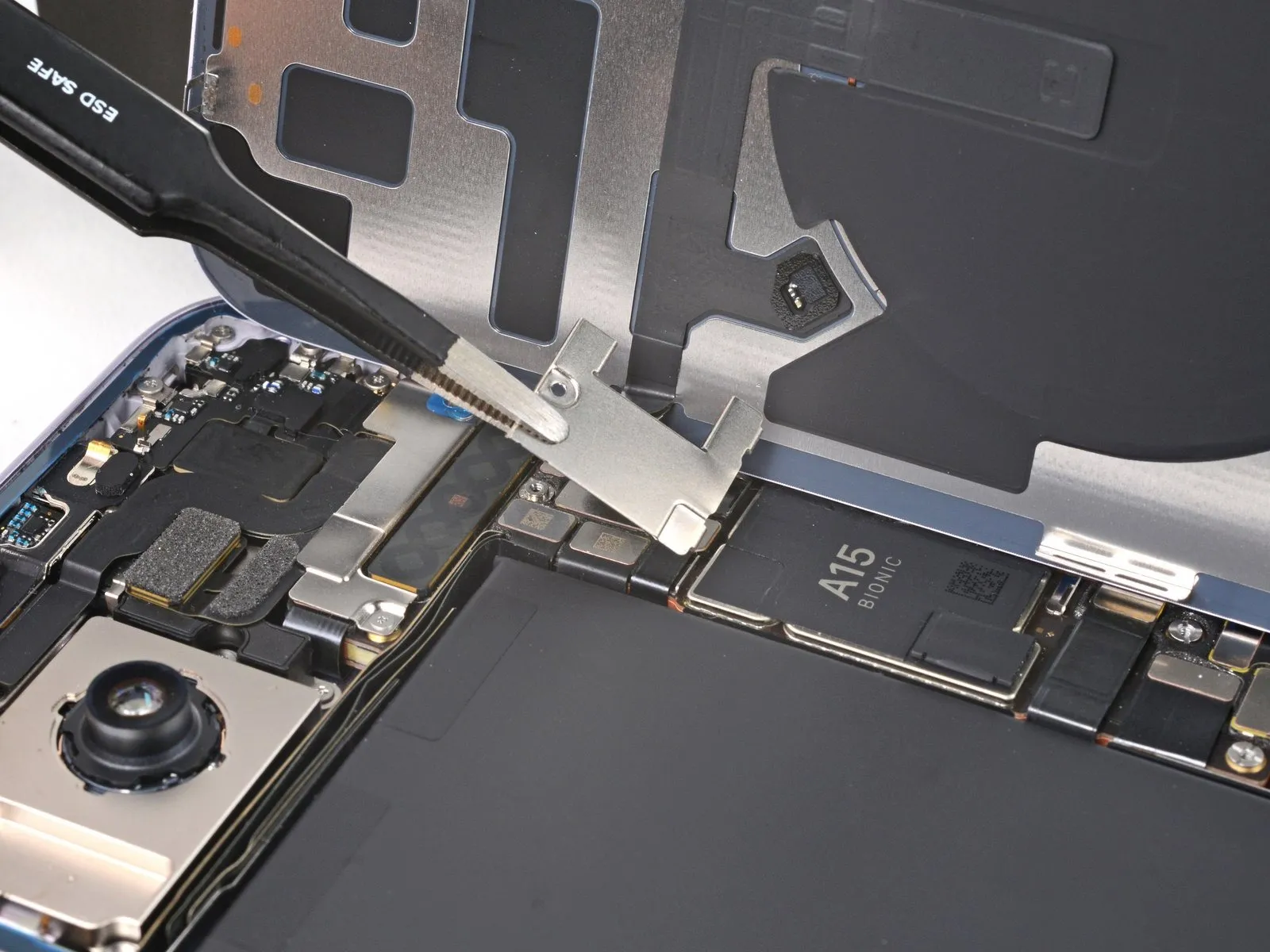

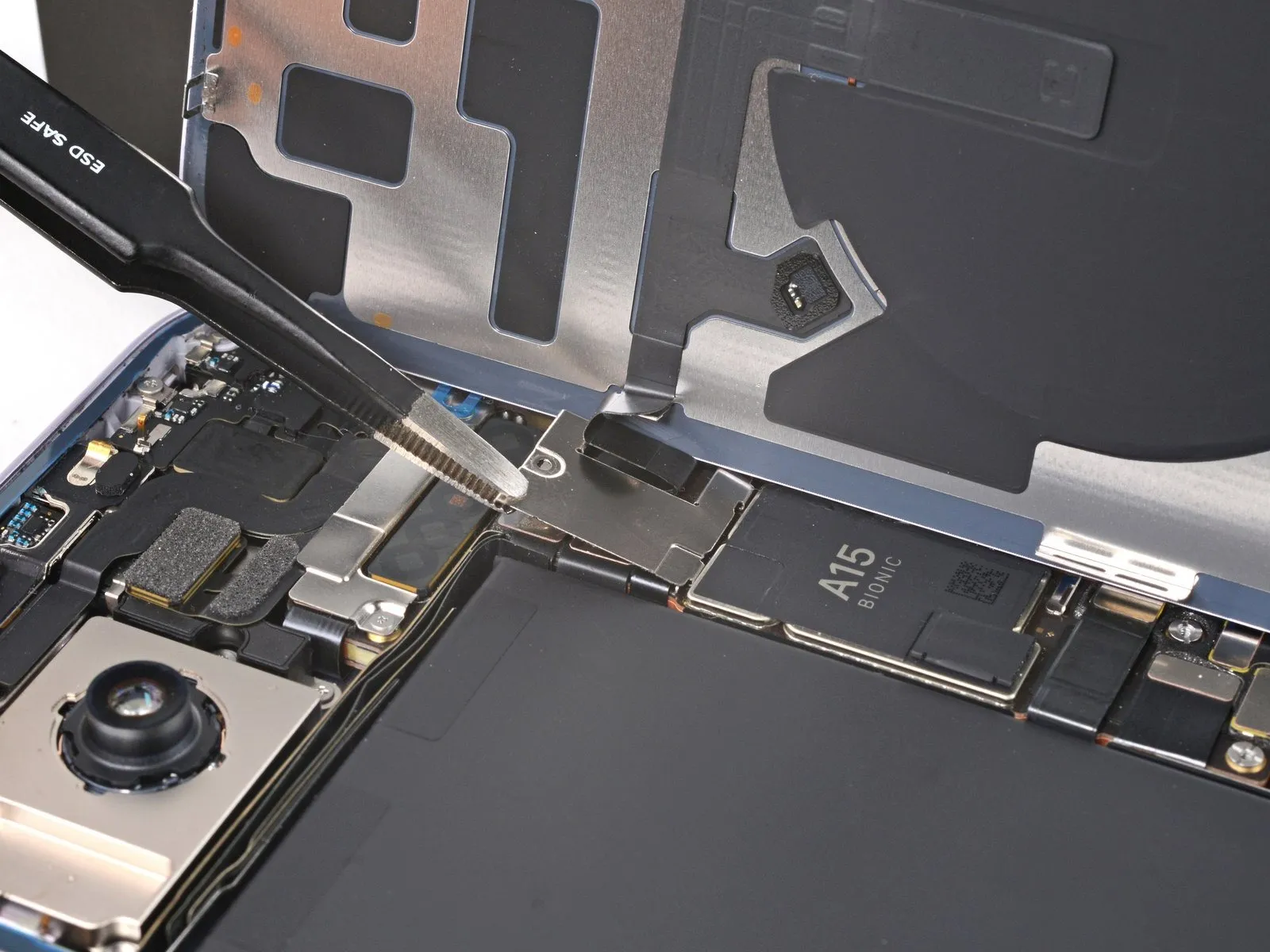

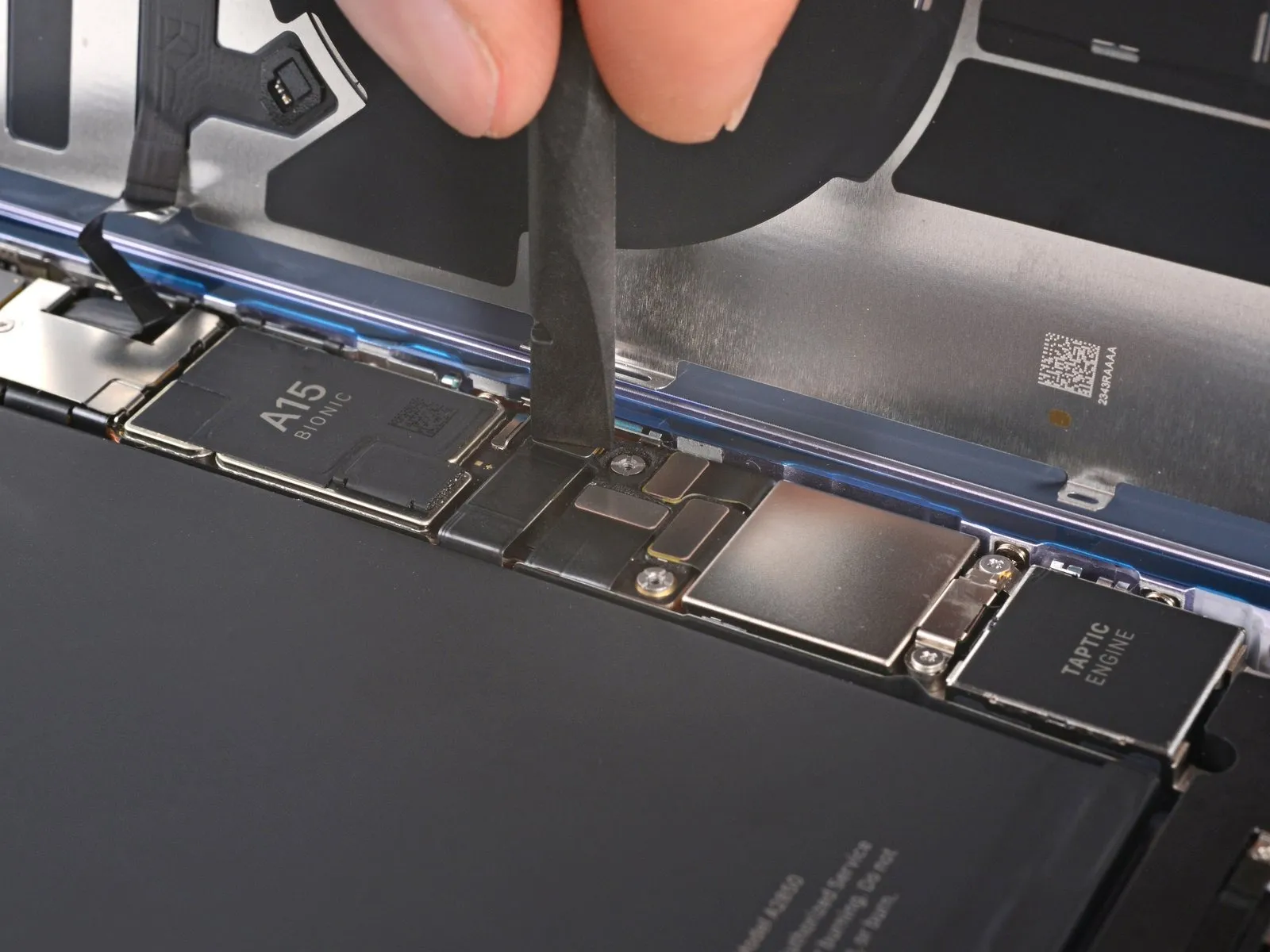

• Establish electrical contact between the battery and the device utilizing the broad, blunt edge of a non-conductive plastic tool or a fingertip.Position the battery connector cover precisely into its designated receptacle on the main circuit board.

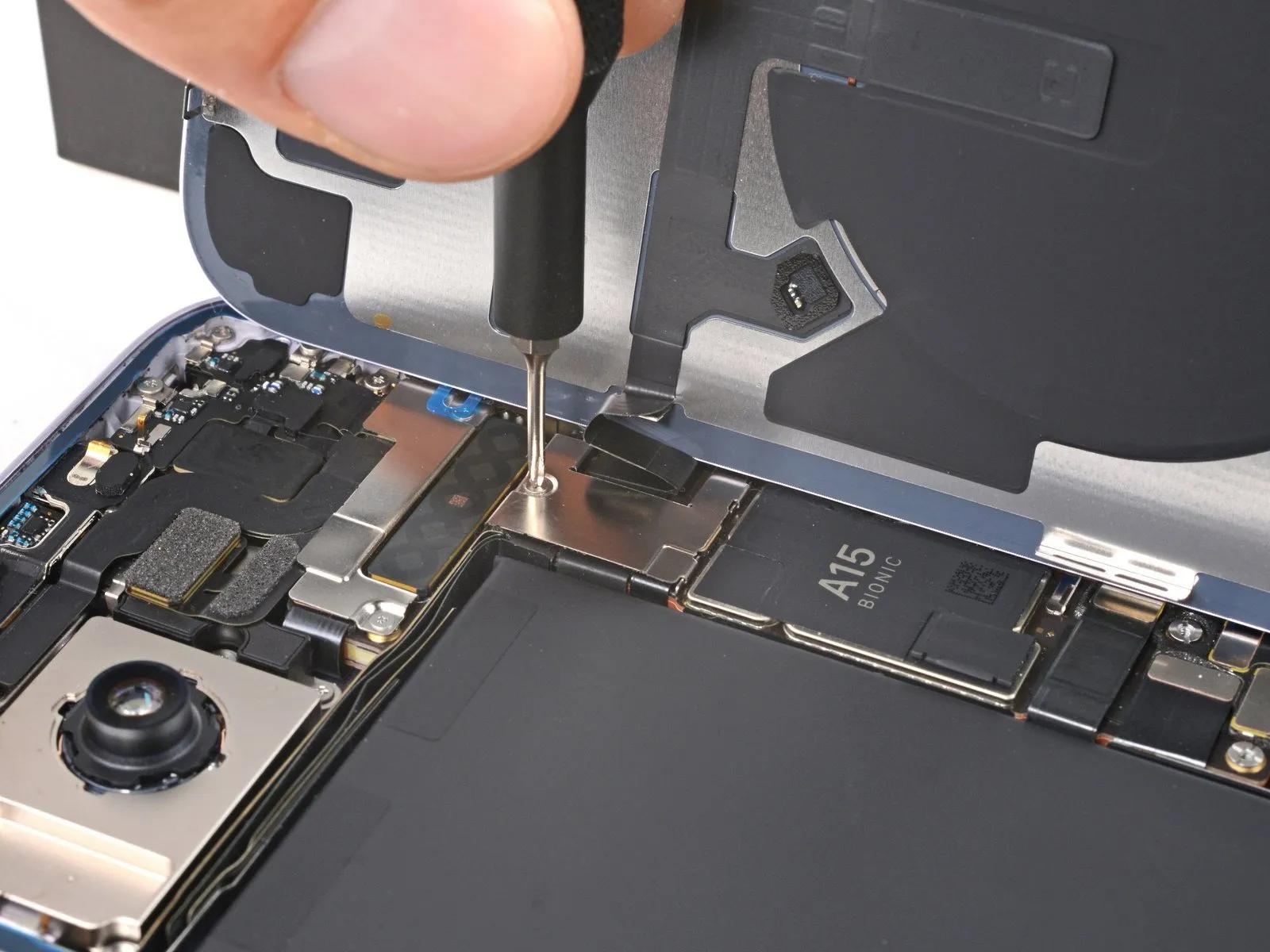

• Employ a specialized tri-point screwdriver, specifically a Y000 type, for screw installation.
• Fasten the cover securely by tightening the screws with the aforementioned Y000 tri-point driver.Initiate the iPhone's power sequence to verify functionality.Perform a comprehensive operational check of all features while the device is powered on.
• Deactivate the iPhone's power state before proceeding with the final steps of the repair process.Complete the repair by ensuring all components are properly aligned and secured, then shut down the device.

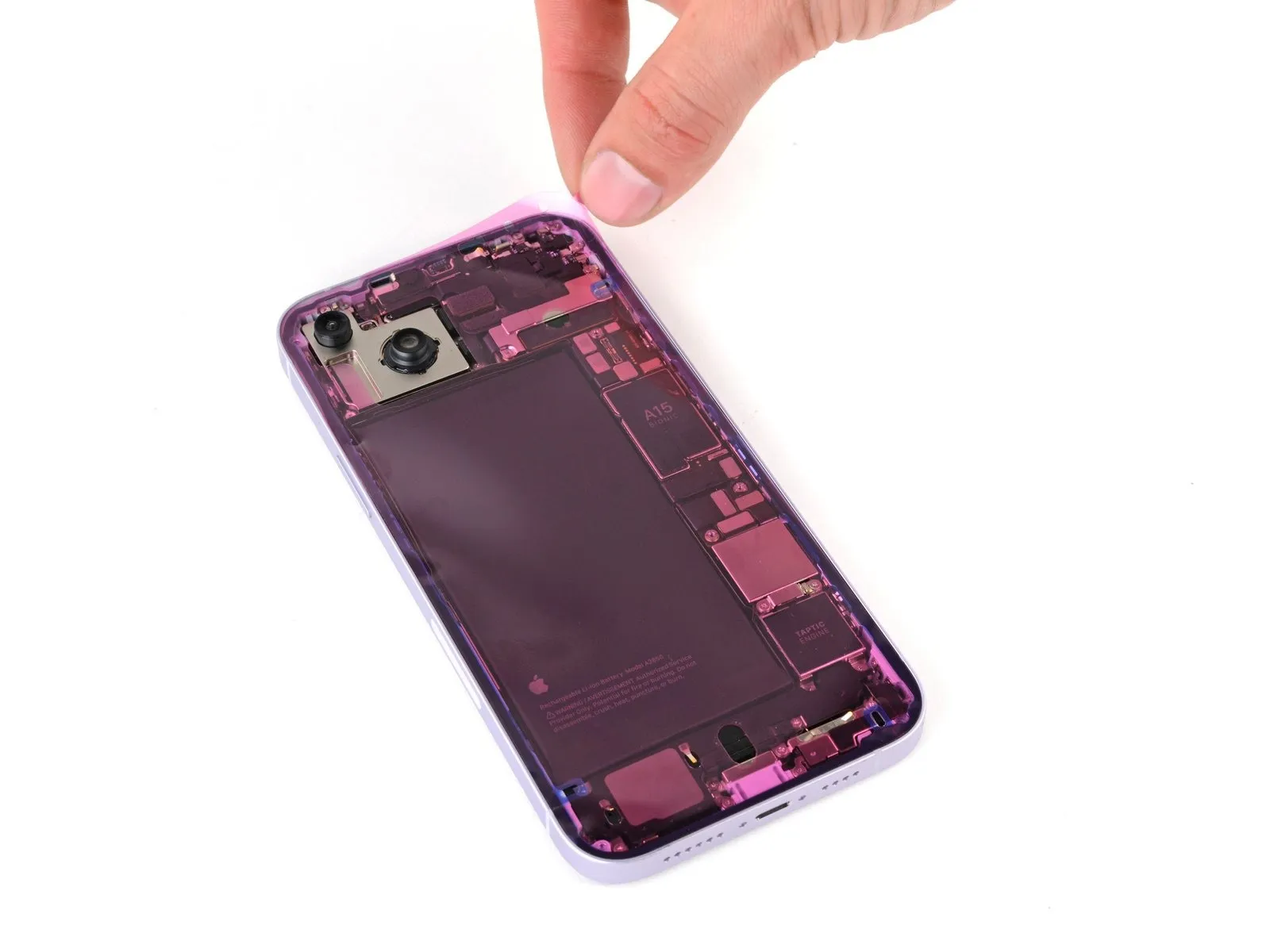

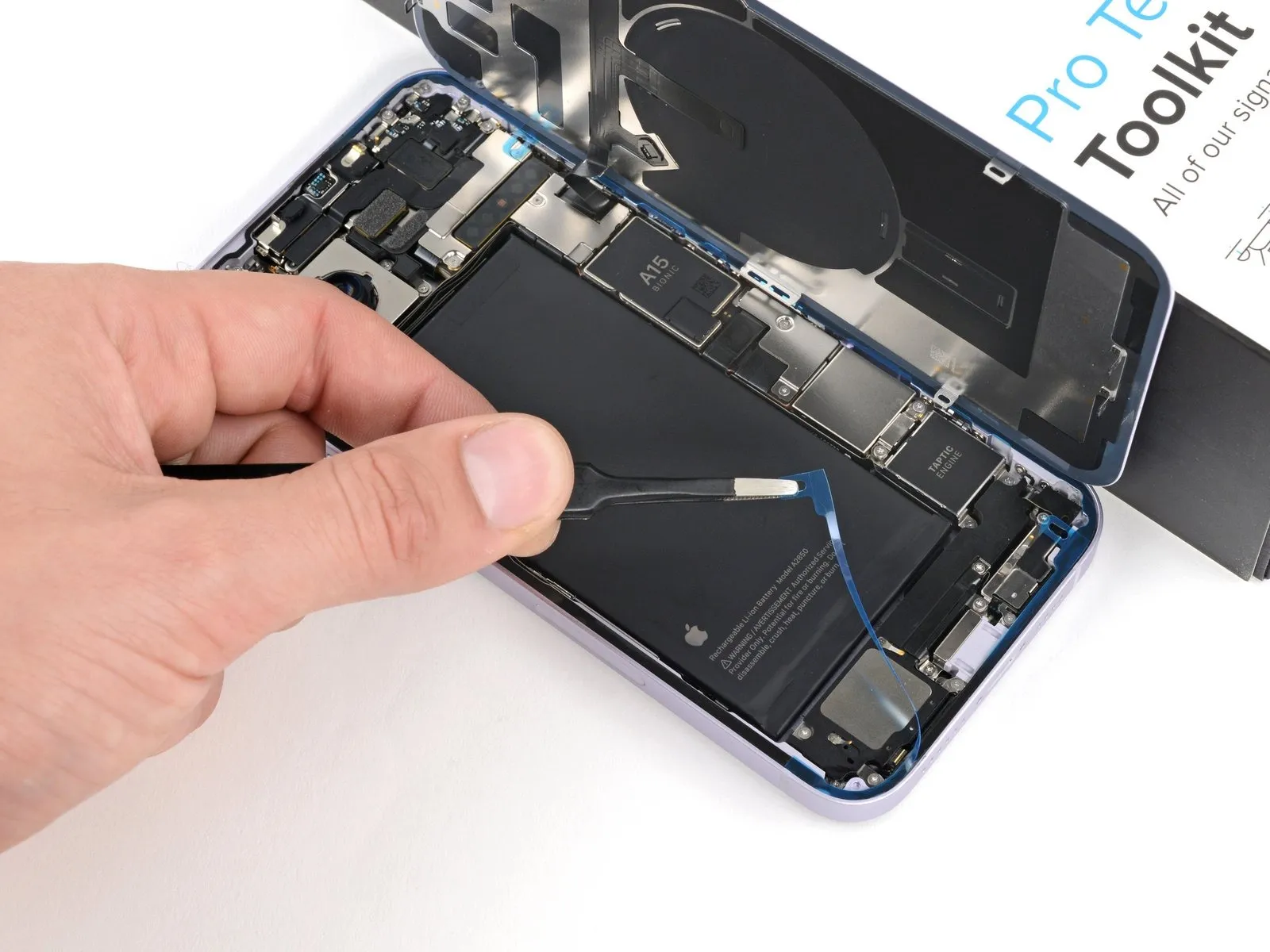

Carefully detach the protective liners from the iPhone's upper, left, and lower borders; postpone liner removal from the right side until a subsequent step.During liner extraction, ensure that no objects come into contact with the newly revealed adhesive layer.
To prevent adhesive contamination, exercise caution and avoid any contact with the exposed adhesive surfaces while peeling away the protective liners.

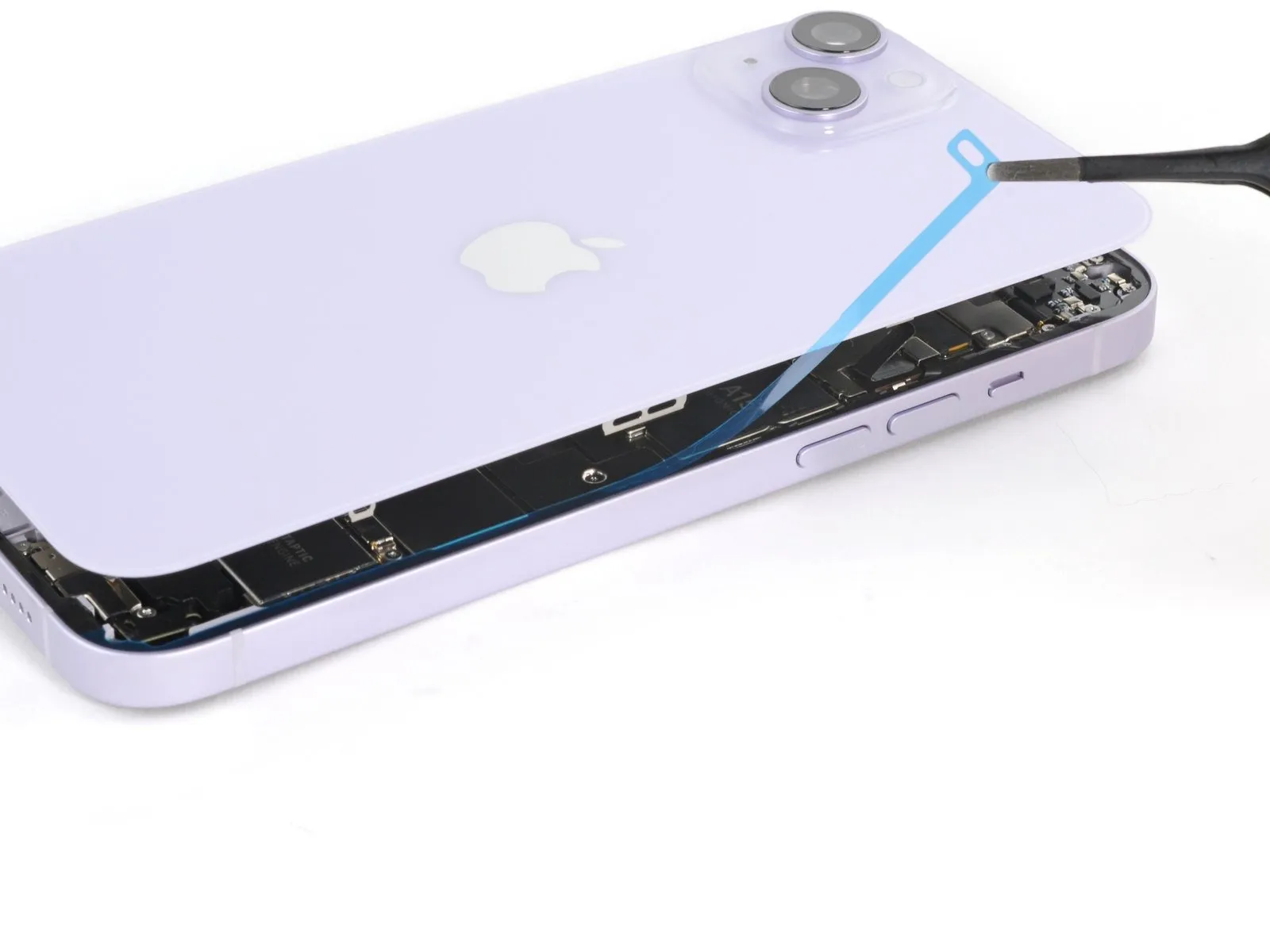

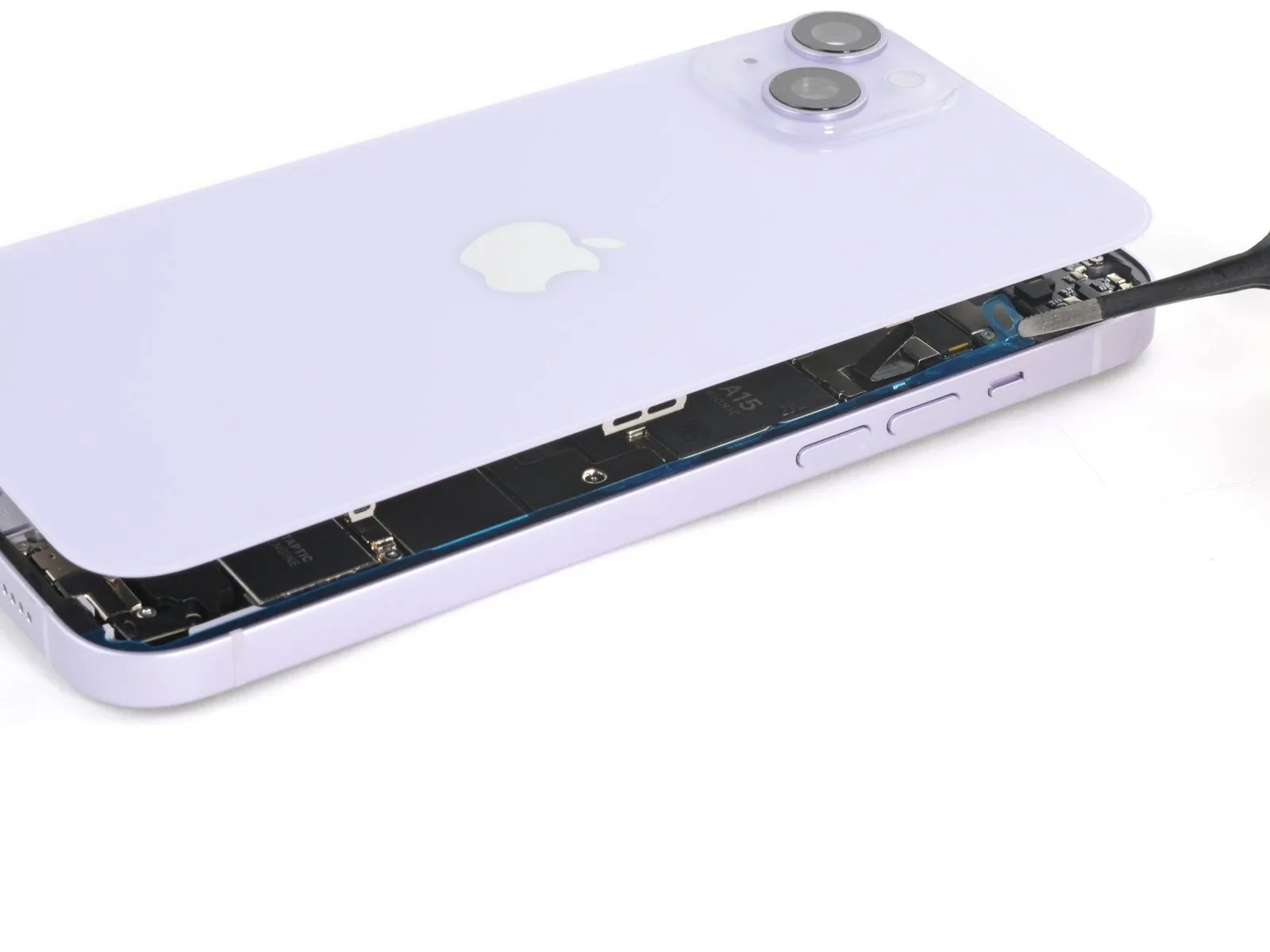

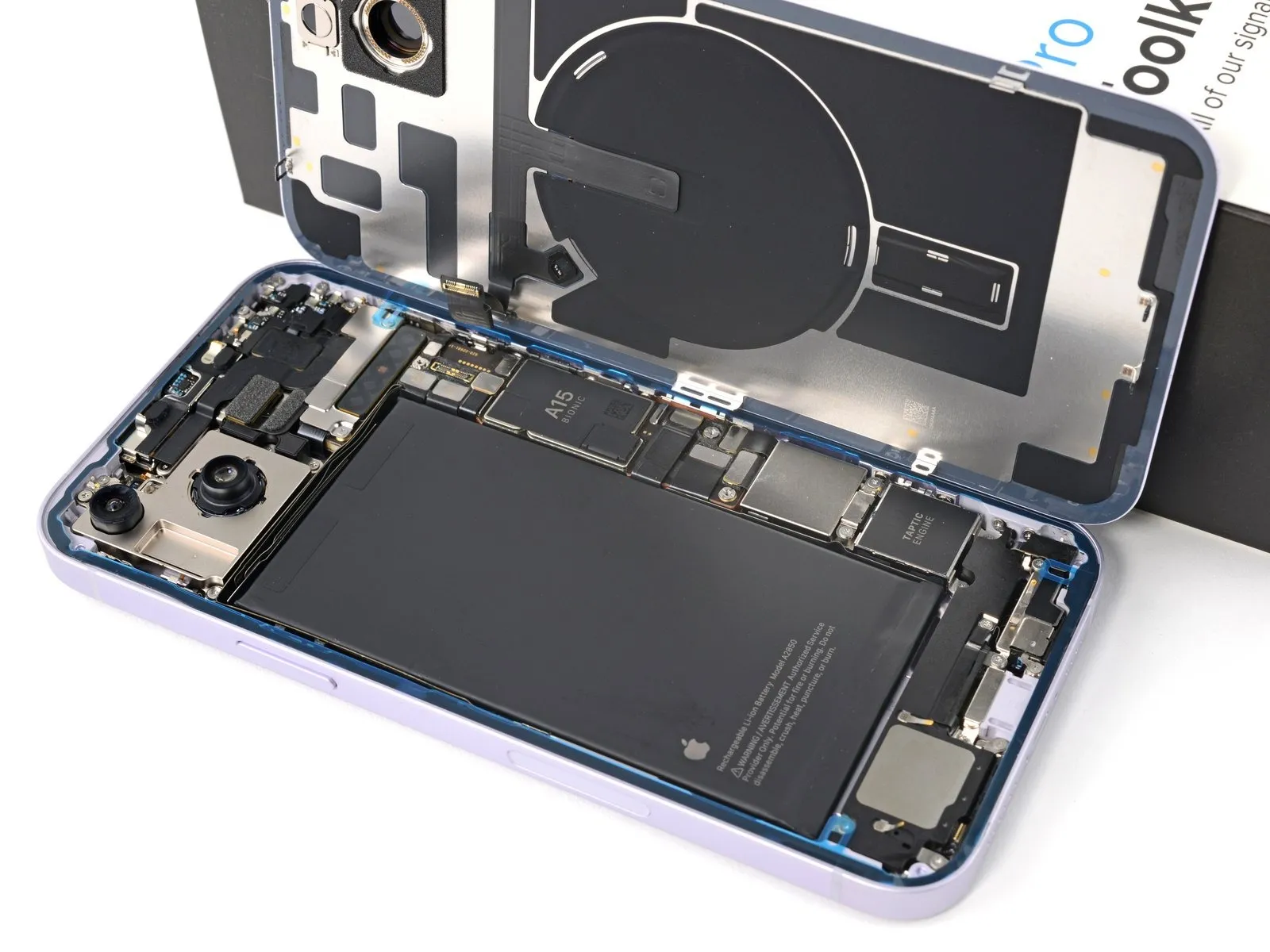

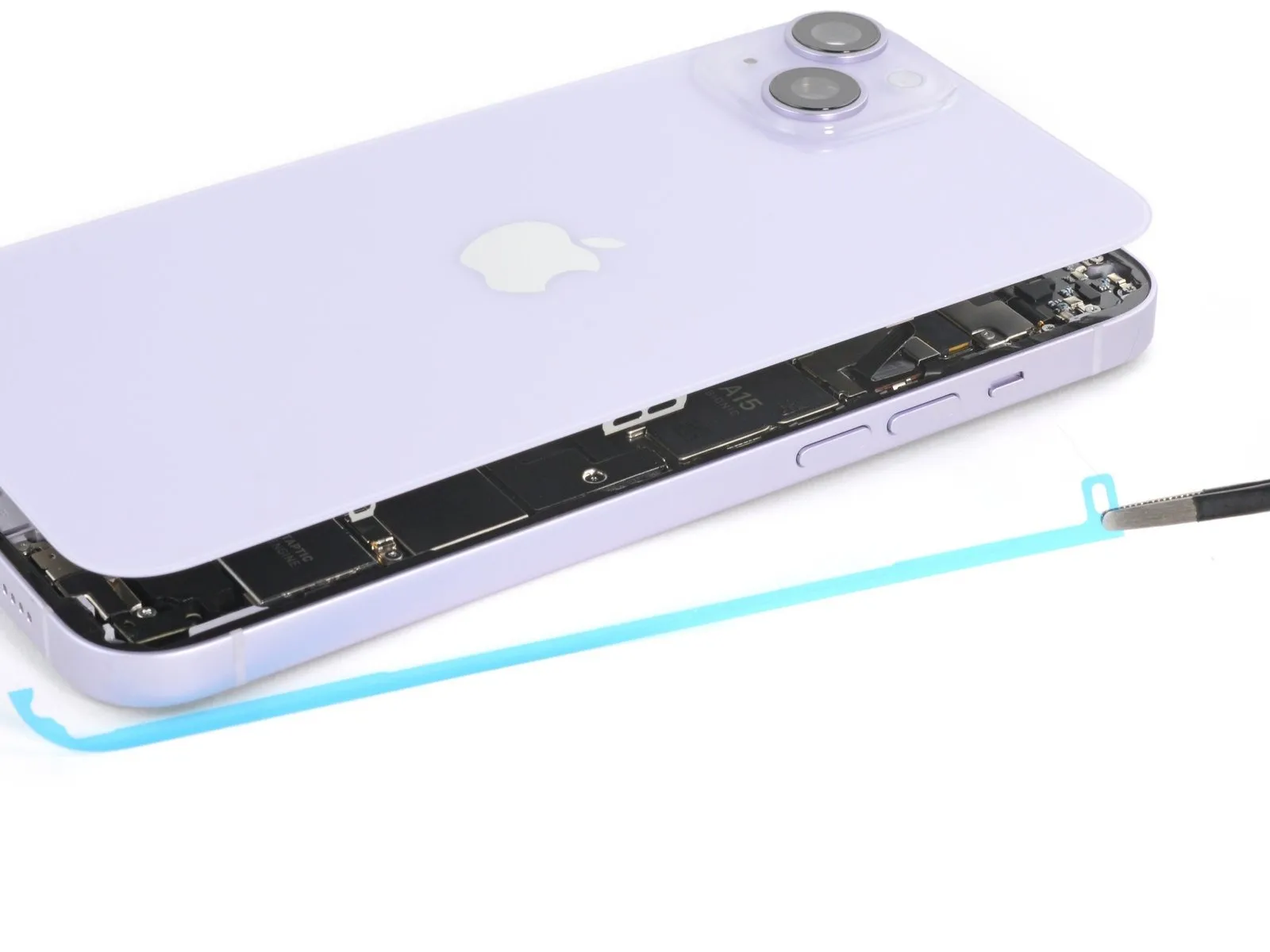

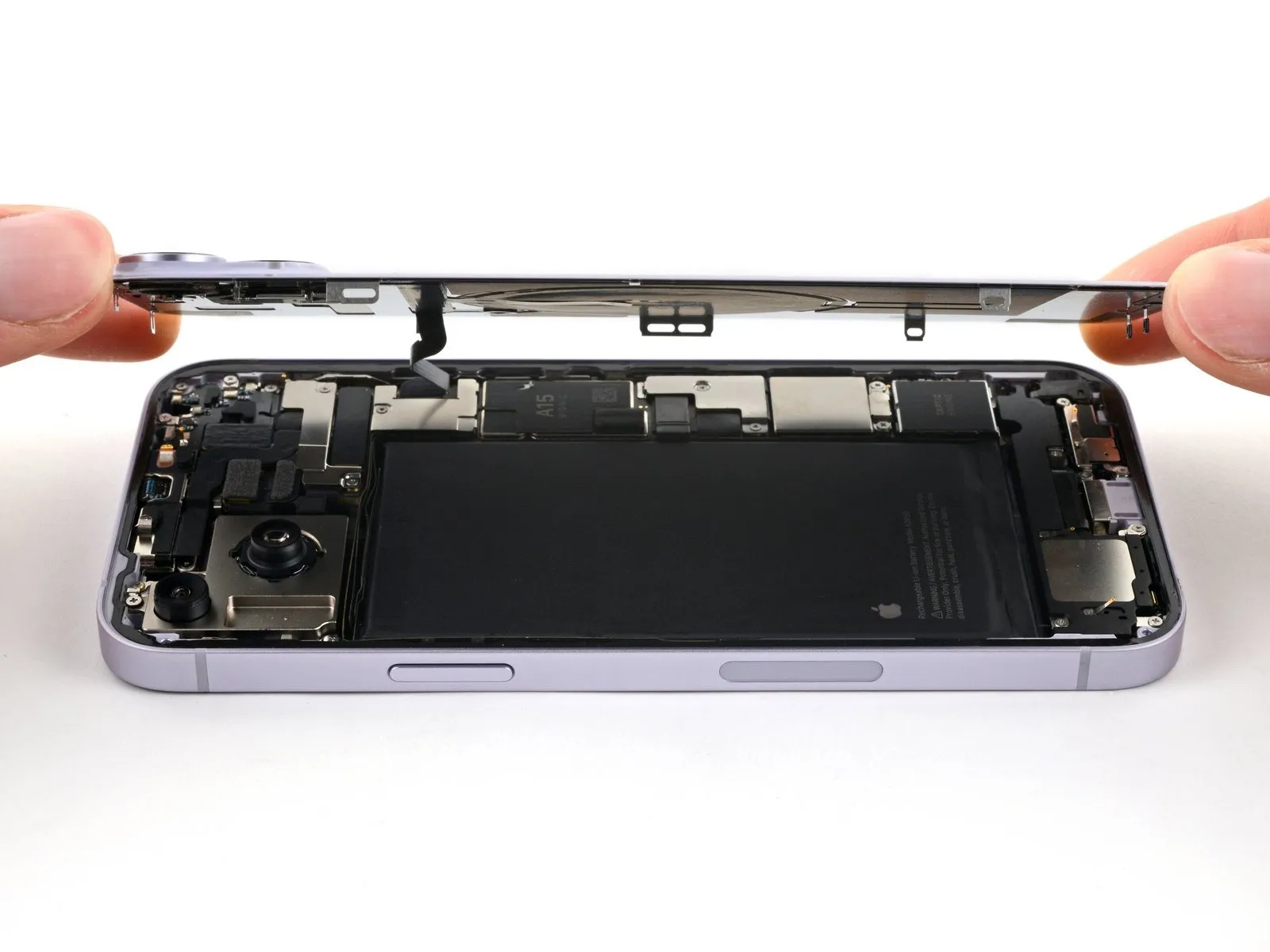

1. To access the last adhesive strip positioned on the right edge of the iPhone, raise the rear glass assembly.

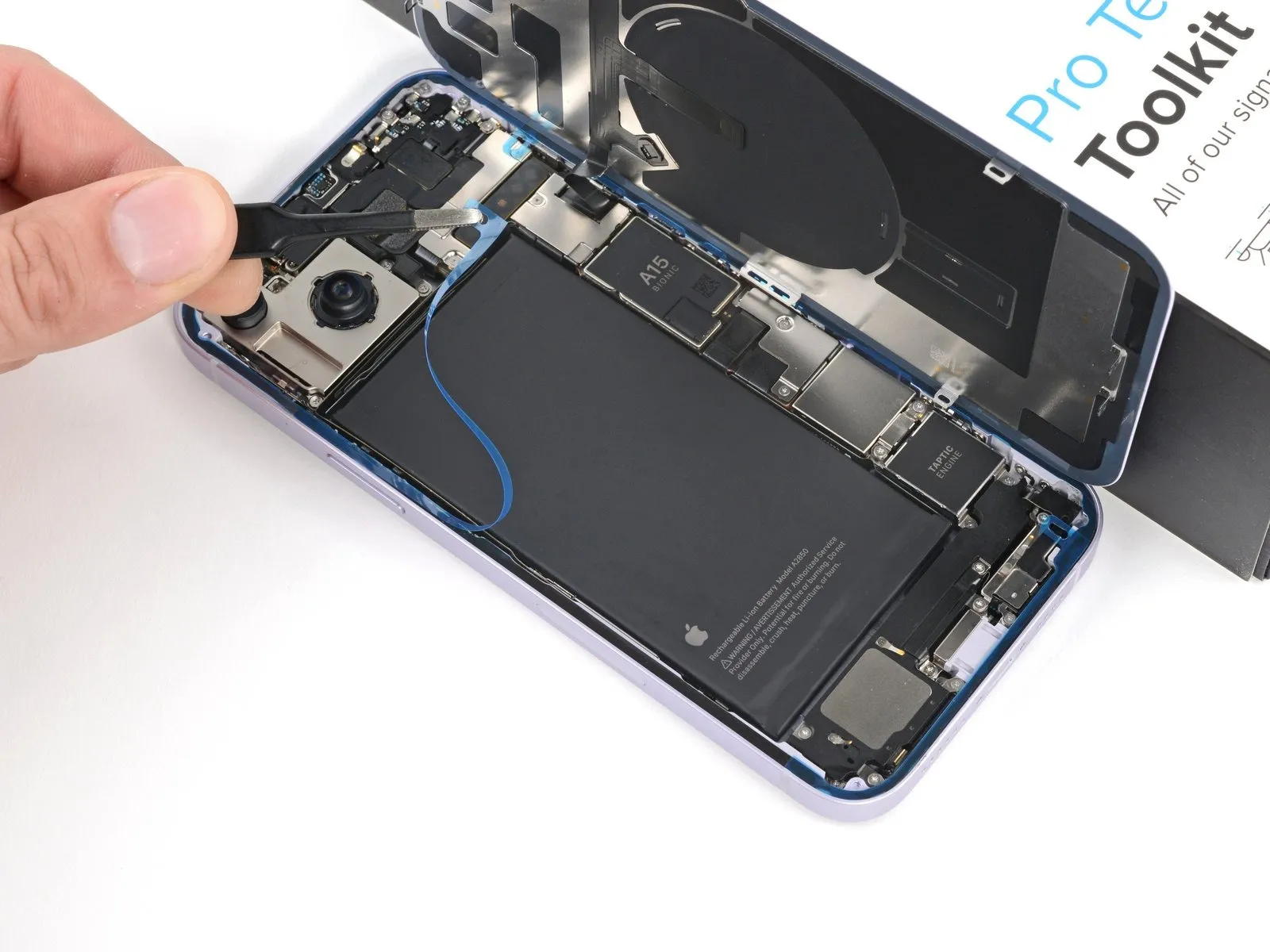

   Detach the liner with caution, ensuring no damage occurs to the internal cables or securing clips located beneath the rear glass.

1. To restore proper functionality, carefully manipulate any deformed retaining clips on the rear glass using manual pressure.
   Position the rear glass precisely in relation to the device frame.

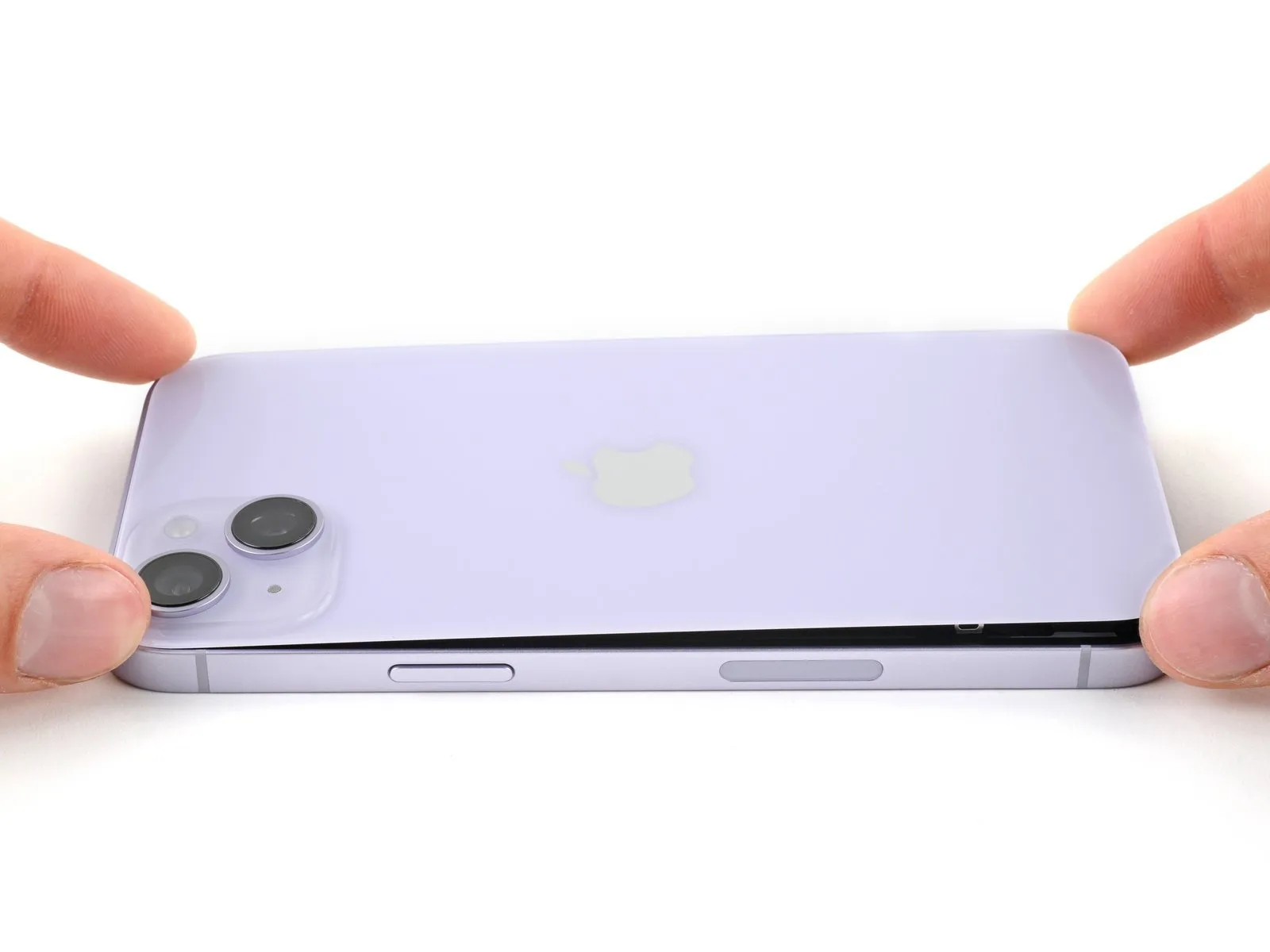

   Begin the installation by aligning the superior edge of the rear glass with the frame, verifying that the upper retaining clips securely interlock.

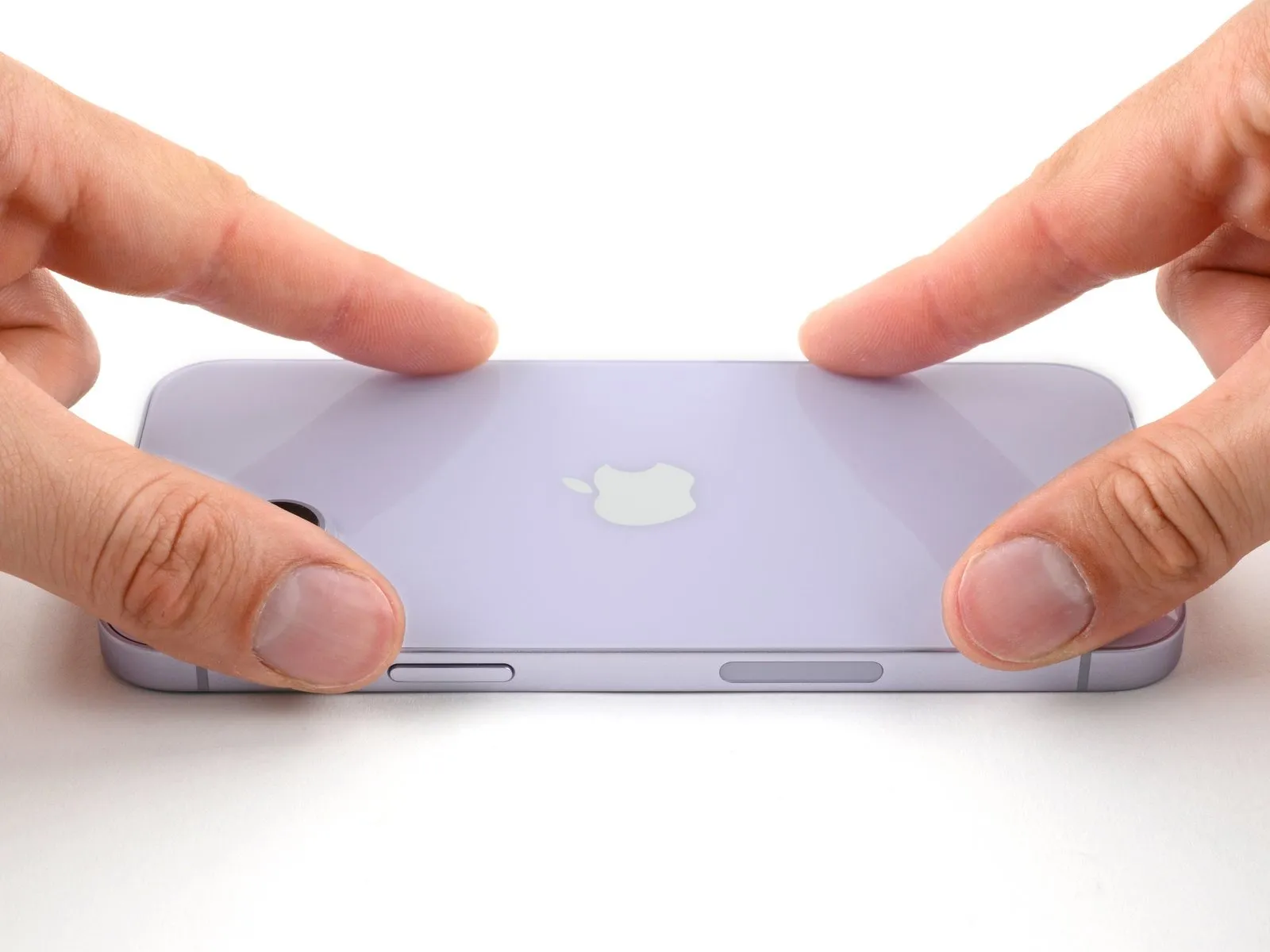

   Apply even pressure across the entire circumference to activate the remaining retaining clips and establish a firm connection.

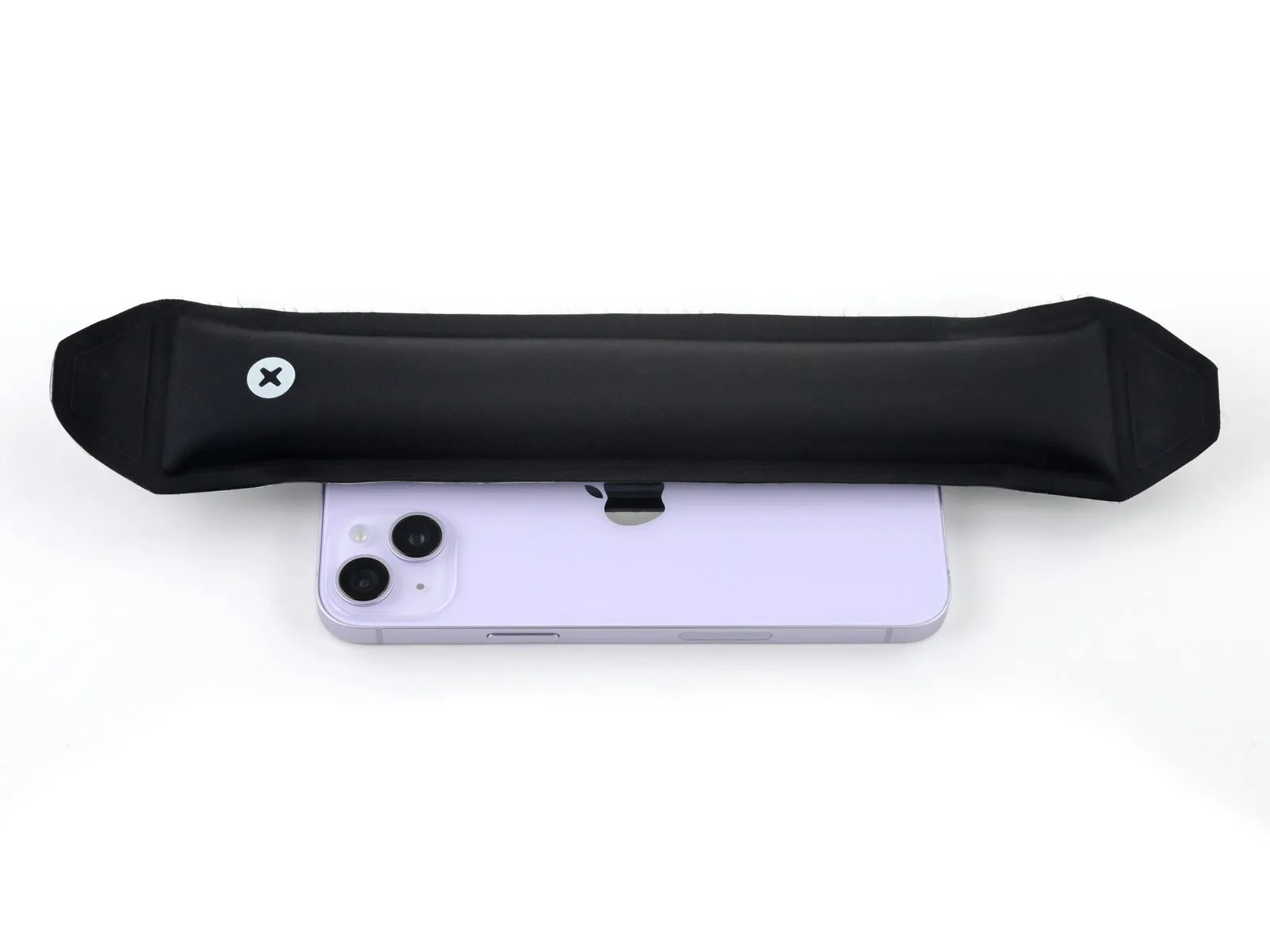

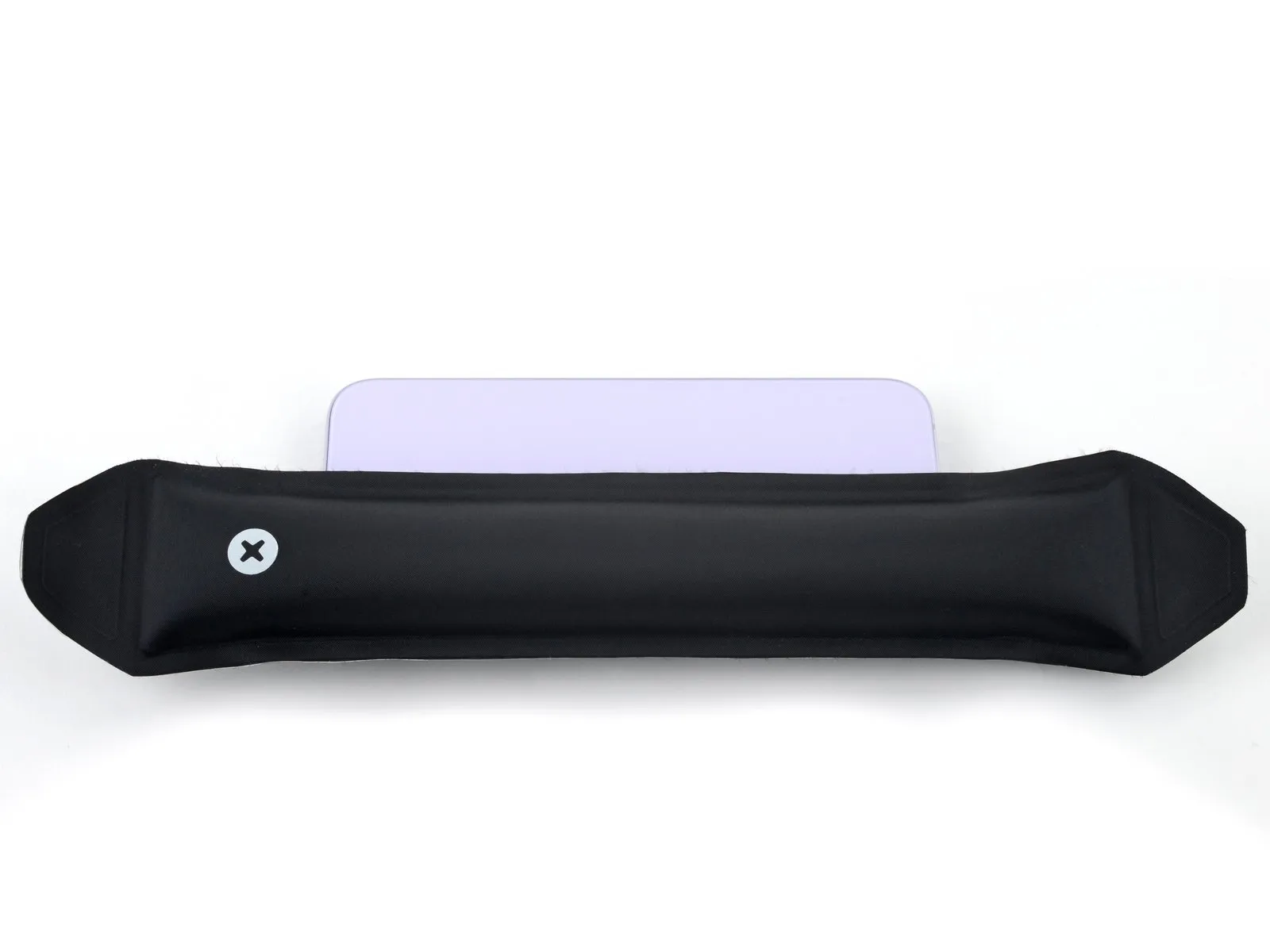

1. Improving the adhesion between surfaces necessitates warming the rear glass edges with a specialized iOpener tool, a hairdryer, or a heat gun, ensuring they reach a comfortably warm temperature.Apply consistent pressure encompassing the entire circumference of the rear glass to establish a strong seal.Employing screen vise clamps will strengthen the adhesive connection; in the absence of these clamps, utilize substitute techniques to maintain the rear glass in a secure position.
   The application of heat facilitates the flow and bonding of adhesives, promoting a more robust connection along the rear glass edges.
   Securely fastening the rear glass is crucial for maintaining structural integrity and preventing separation from the device's frame.

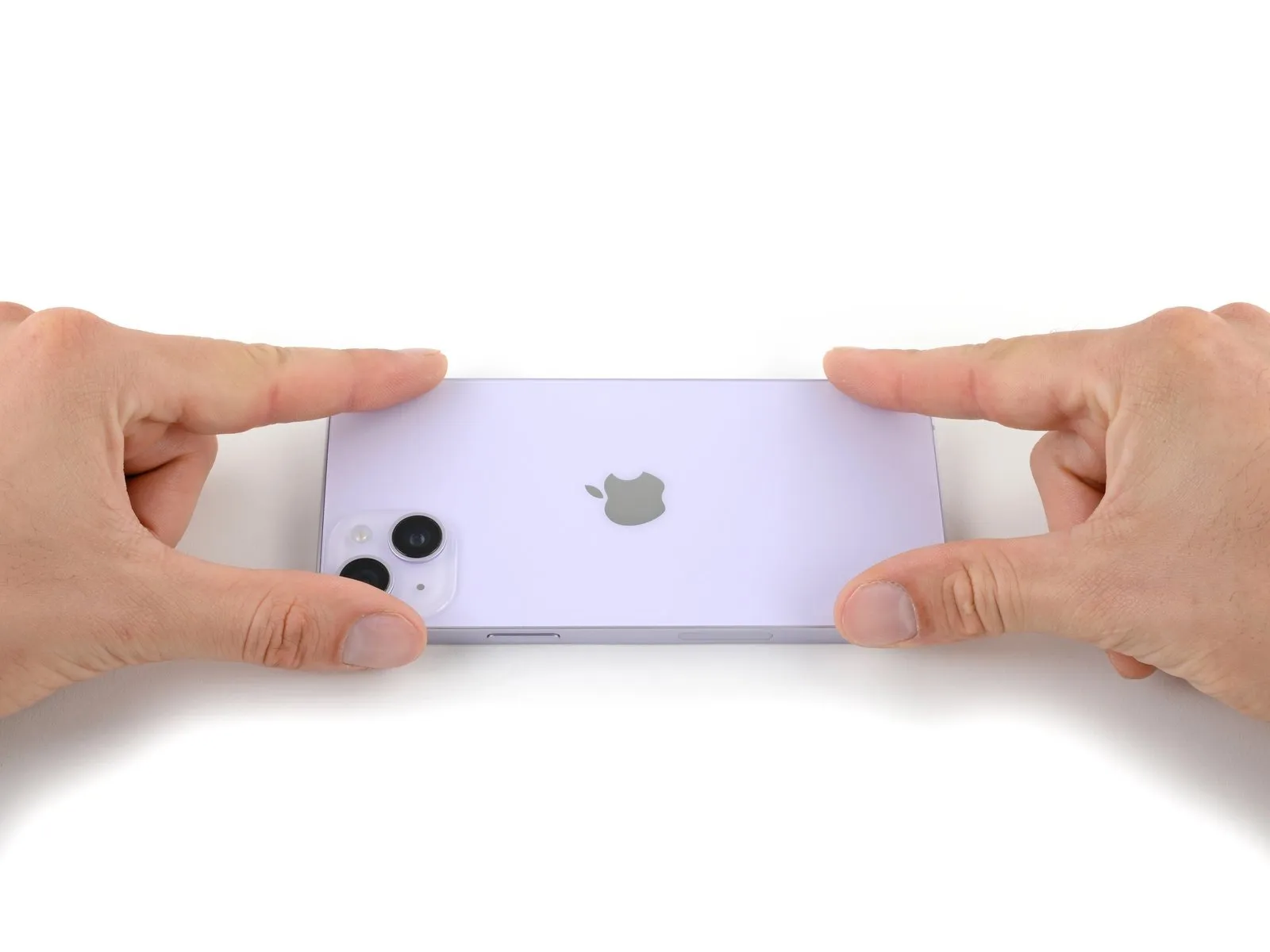

1. Ensure uniform pressure is applied across the iPhone's body to improve adhesion between the rear glass and the frame, paying particular attention to the camera module's protrusion.
   Should the original packaging be available, position the box's cover on a level surface.
   Otherwise, proceed to the subsequent instruction.

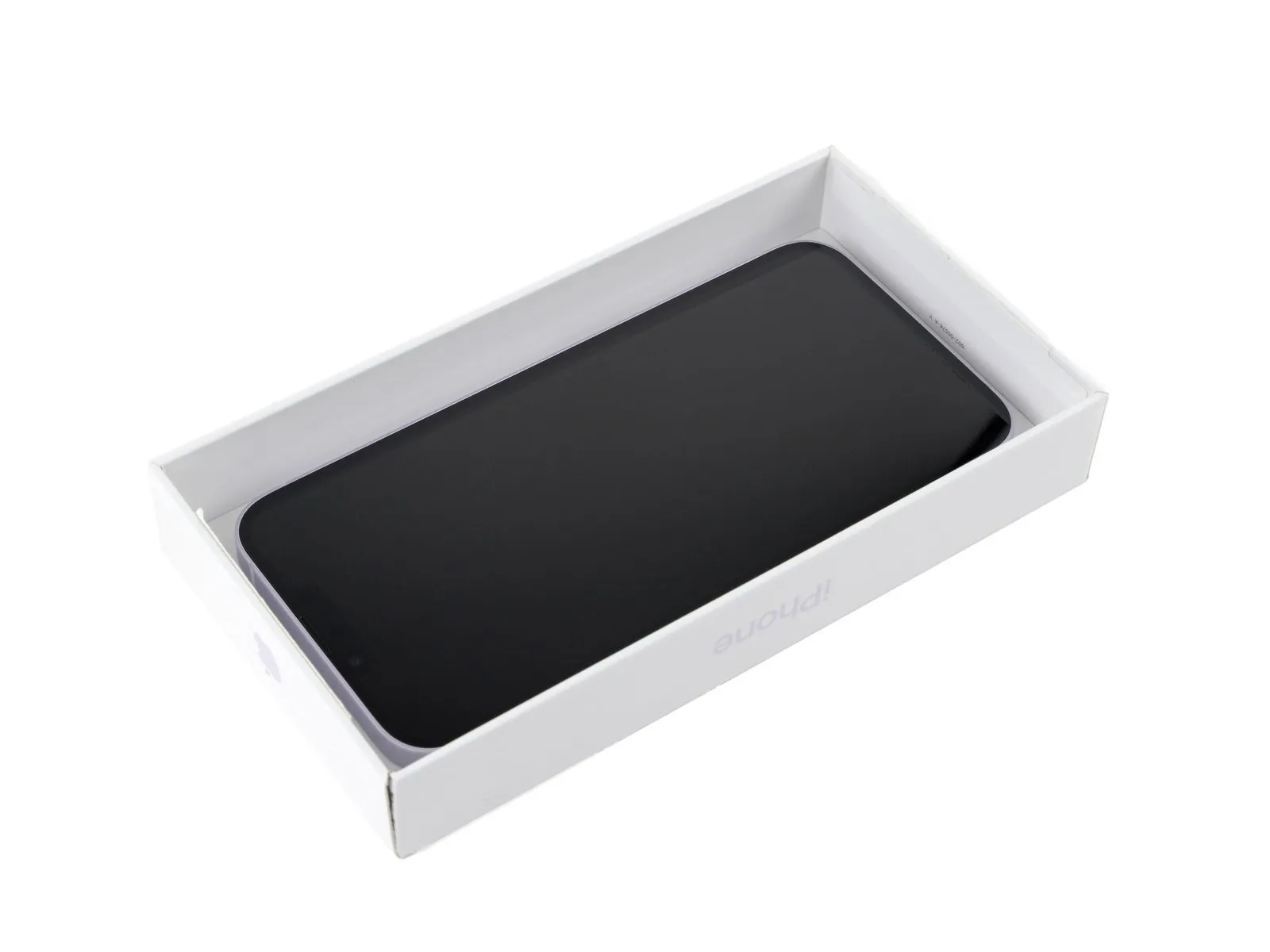

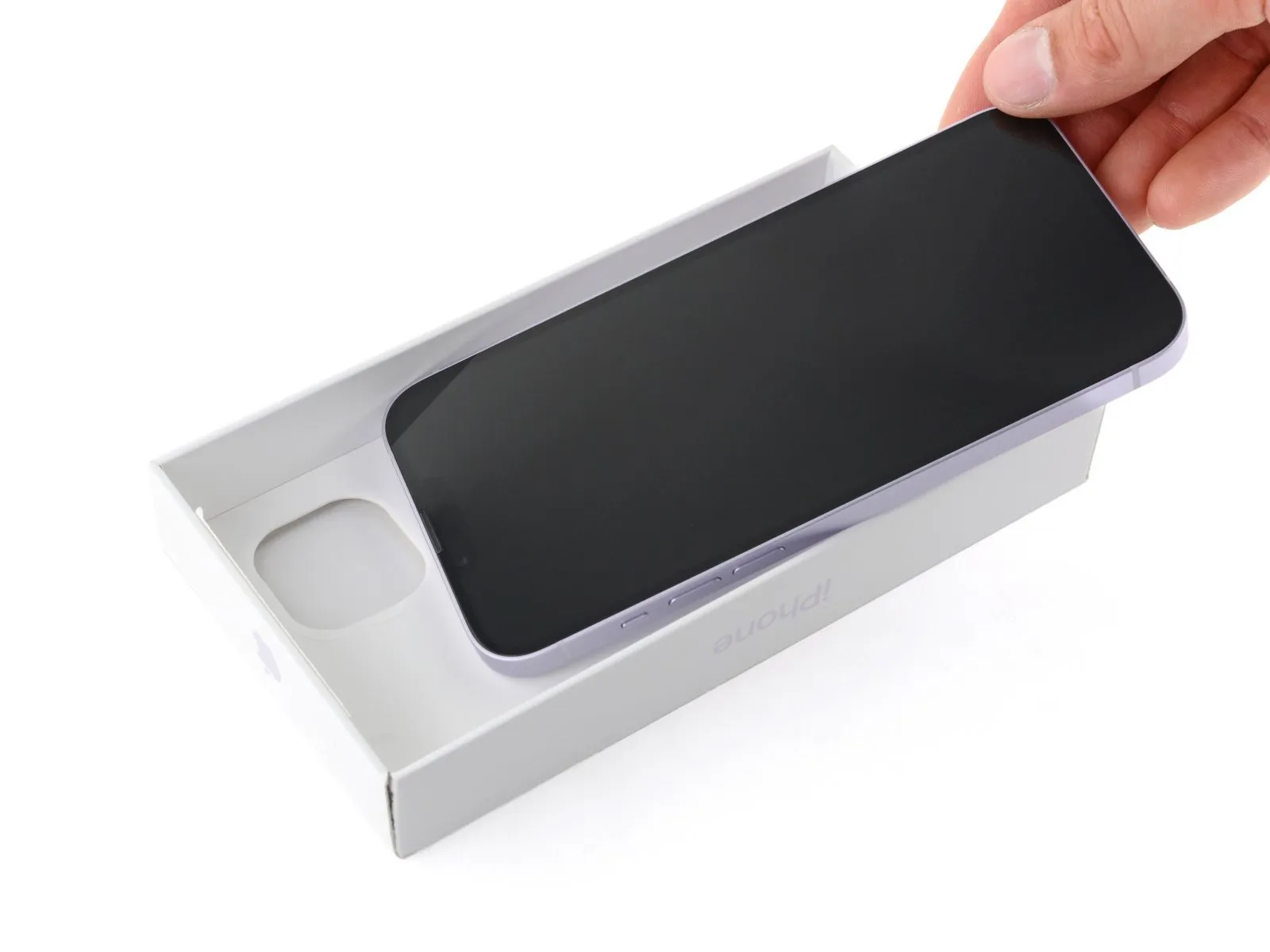

   Orient the iPhone with its display facing upwards within the box's cover, aligning the camera module with its designated indentation.

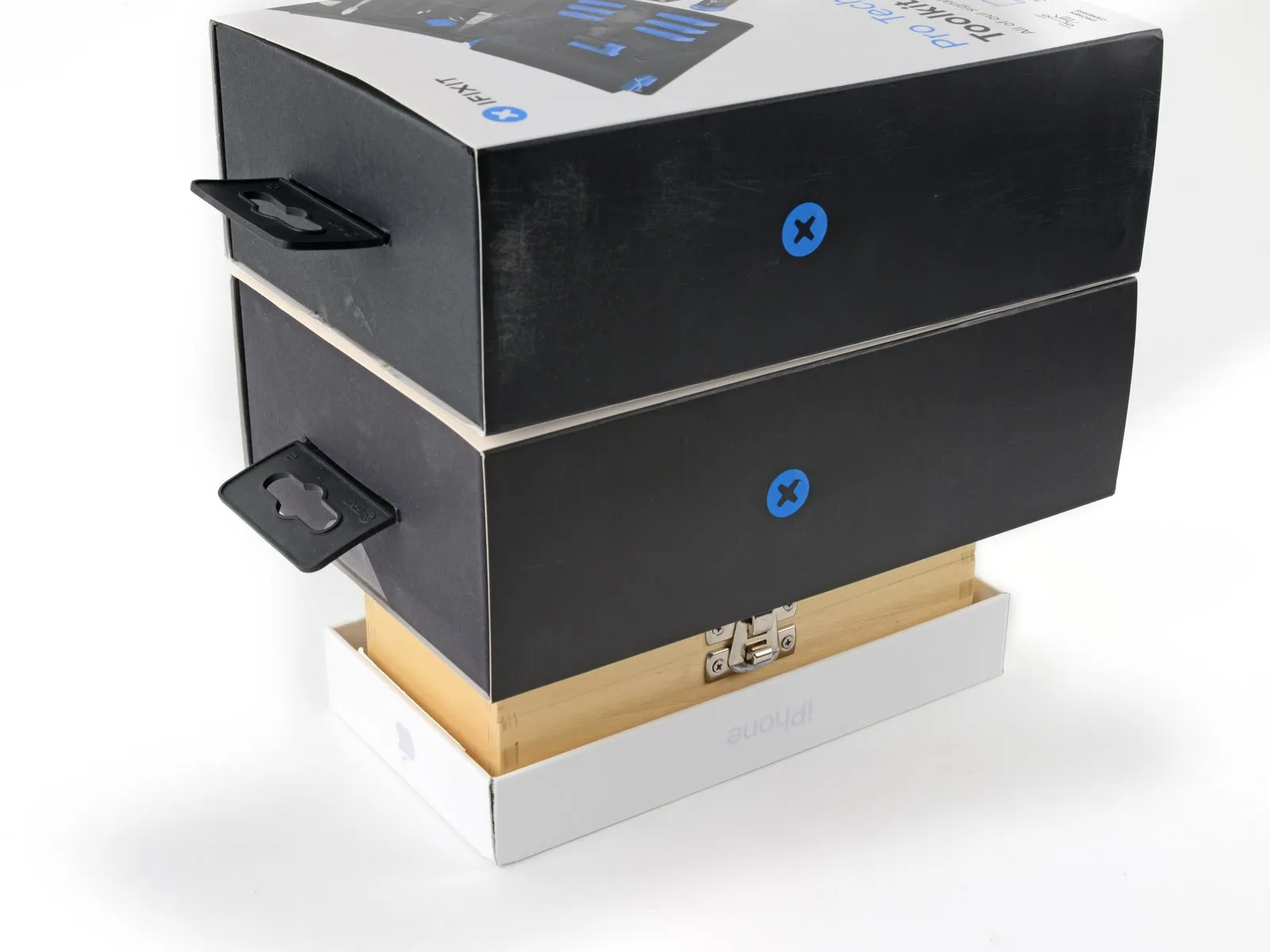

   Employ a vertical object exceeding the iPhone's dimensions and position it atop the device, subsequently adding several substantial weights.
   Maintain this pressure for a minimum of thirty minutes to achieve optimal bonding.Lighter weights necessitate a prolonged duration, with an overnight period being preferable for maximum effectiveness.

In the absence of the initial packaging, proceed with the subsequent procedure to achieve compression of the back glass assembly.

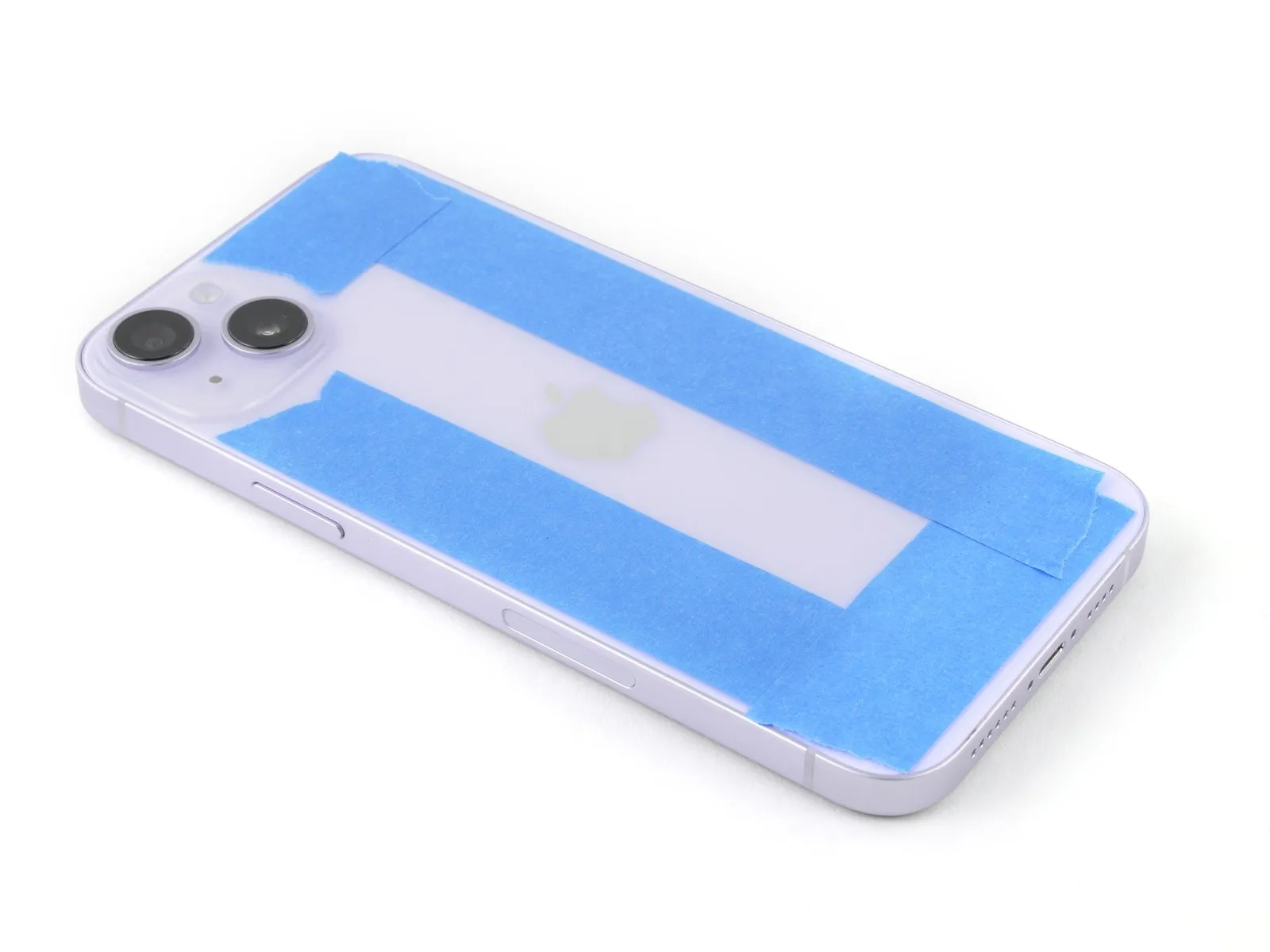

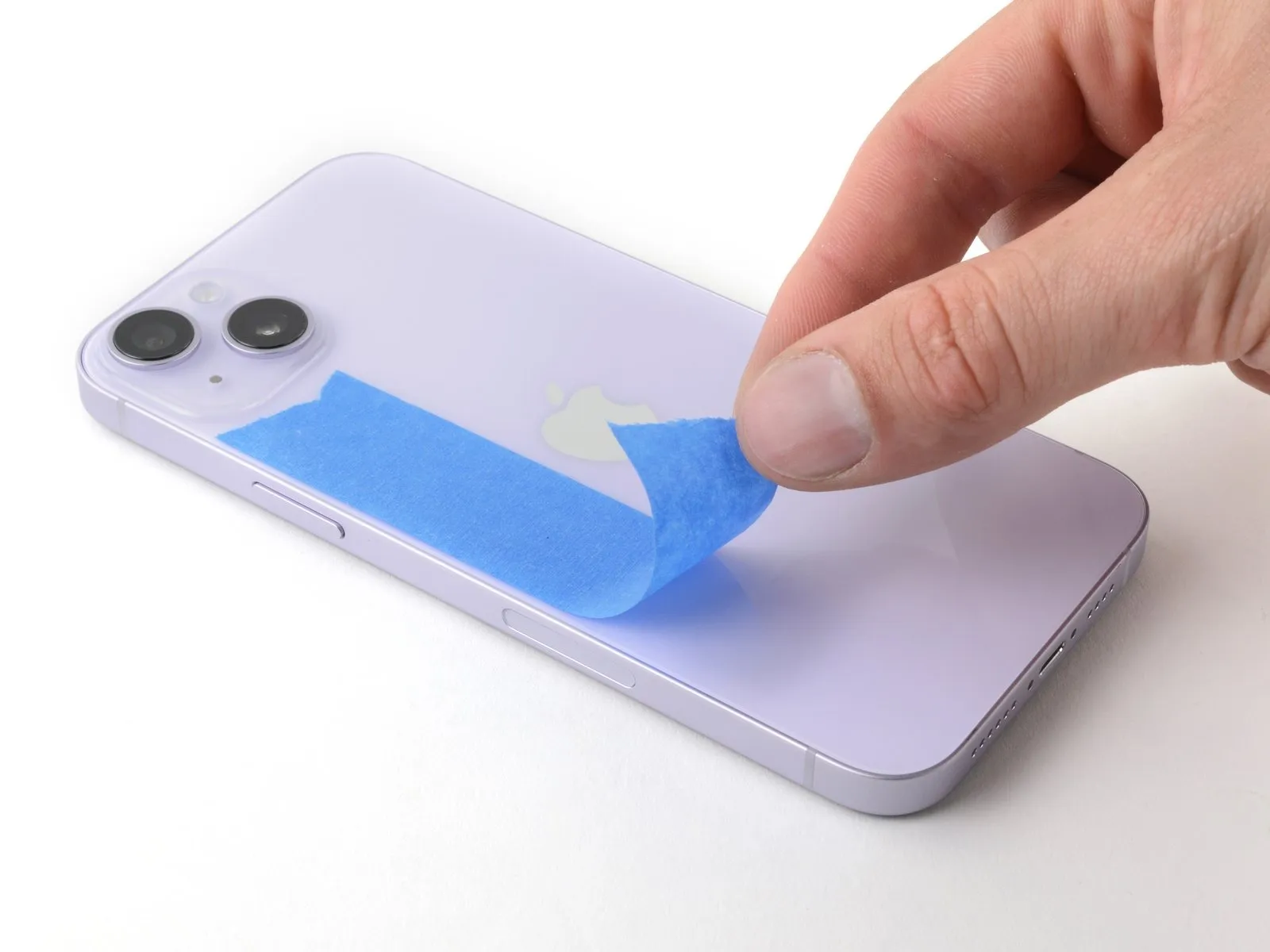

• To safeguard the surface coating of the rear glass, affix adhesive tape along its entire boundary.

• Position two stacked layers of coins, or comparable items of similar thickness, directly atop the adhesive tape situated along the perimeter of the rear glass.Ensure the coins are uniformly spaced to apply even pressure.

• The thickness of these objects must match or exceed the height of the camera module's protrusion.Maintaining even distribution is crucial for successful separation.Use objects with a thickness equivalent to, or greater than, the camera bump's height.The purpose of these objects is to apply consistent pressure during the separation process.Carefully arrange the coins to avoid uneven stress on the glass.Employing objects of sufficient thickness guarantees effective separation of the rear glass.

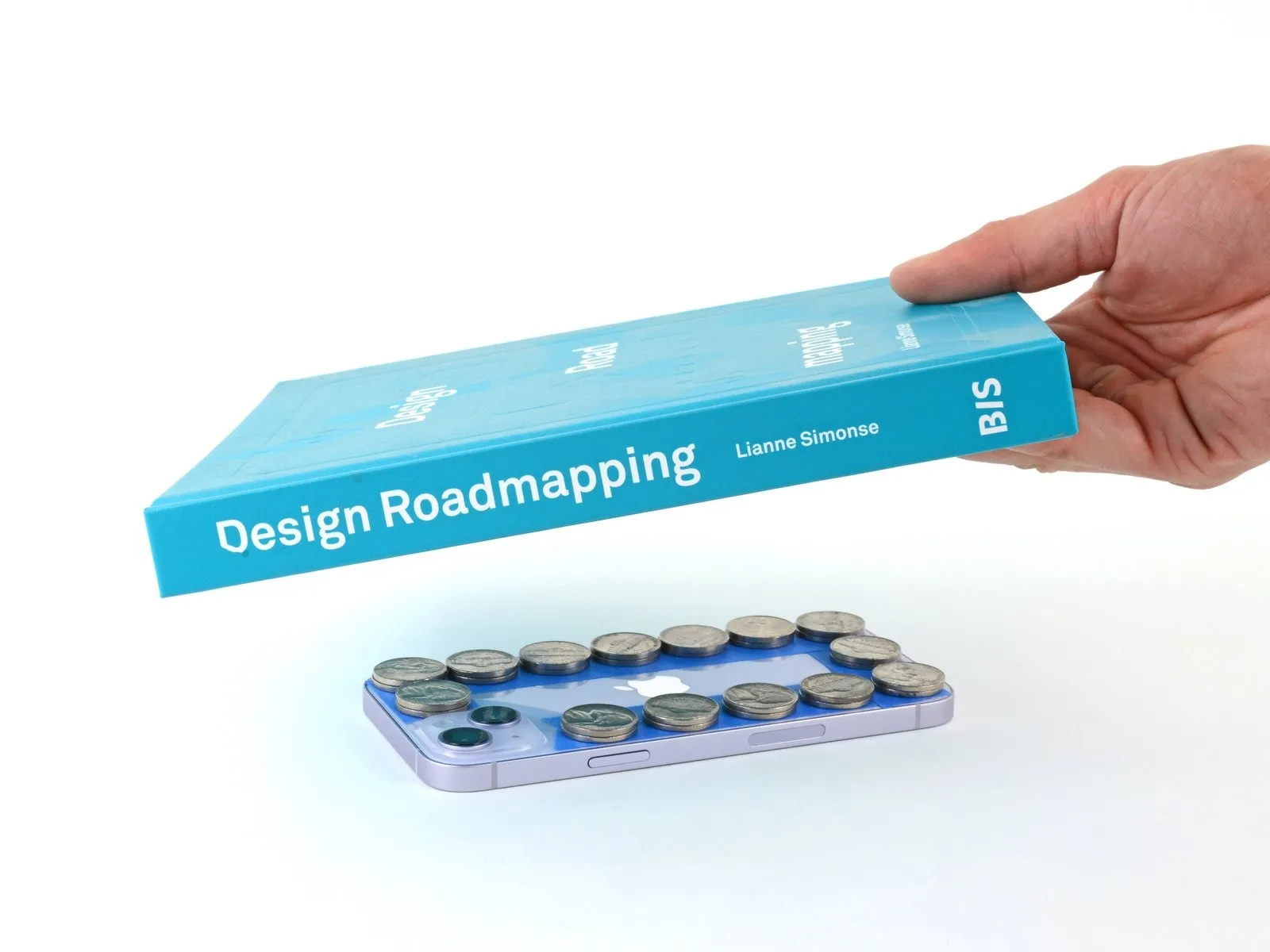

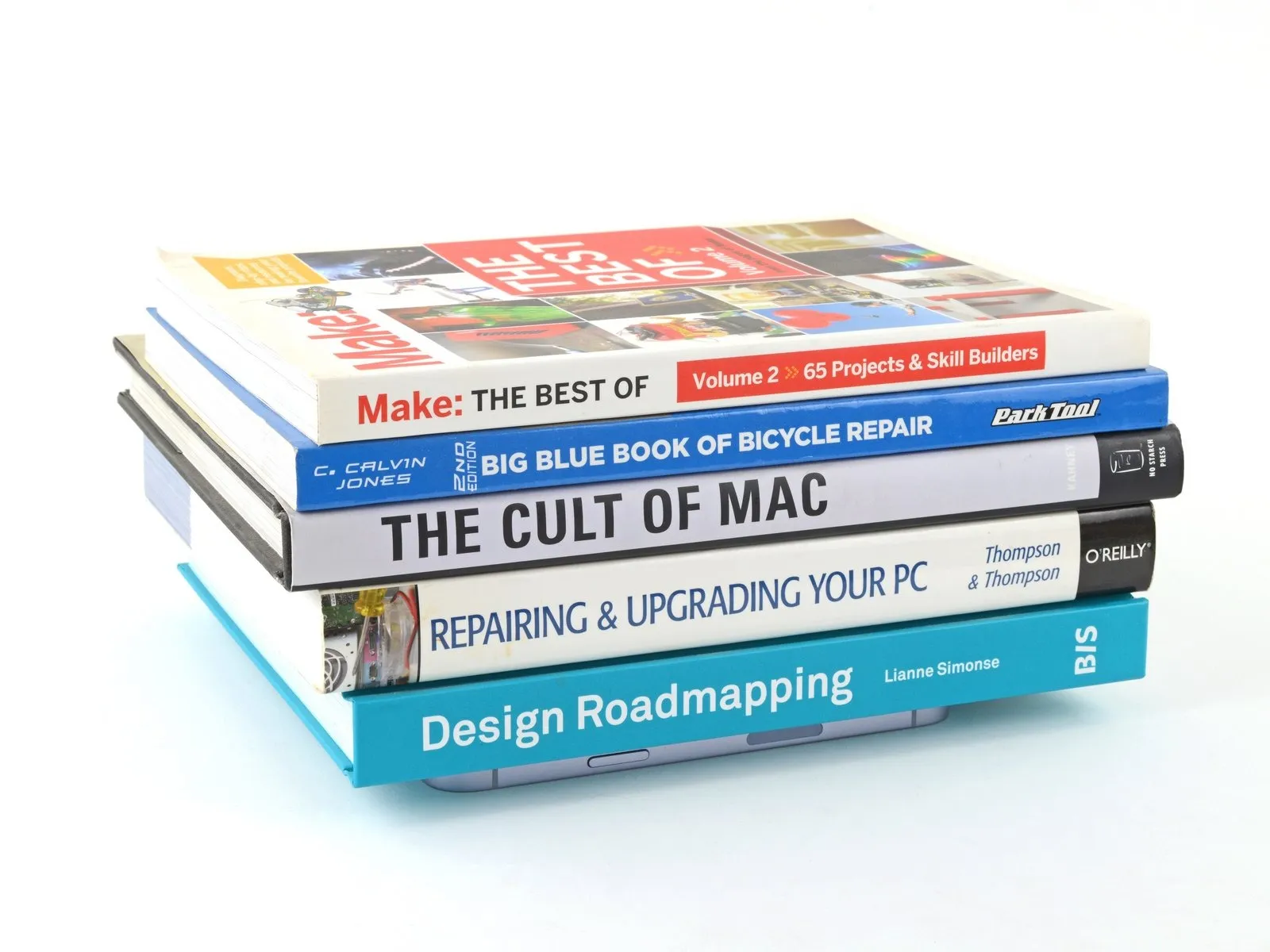

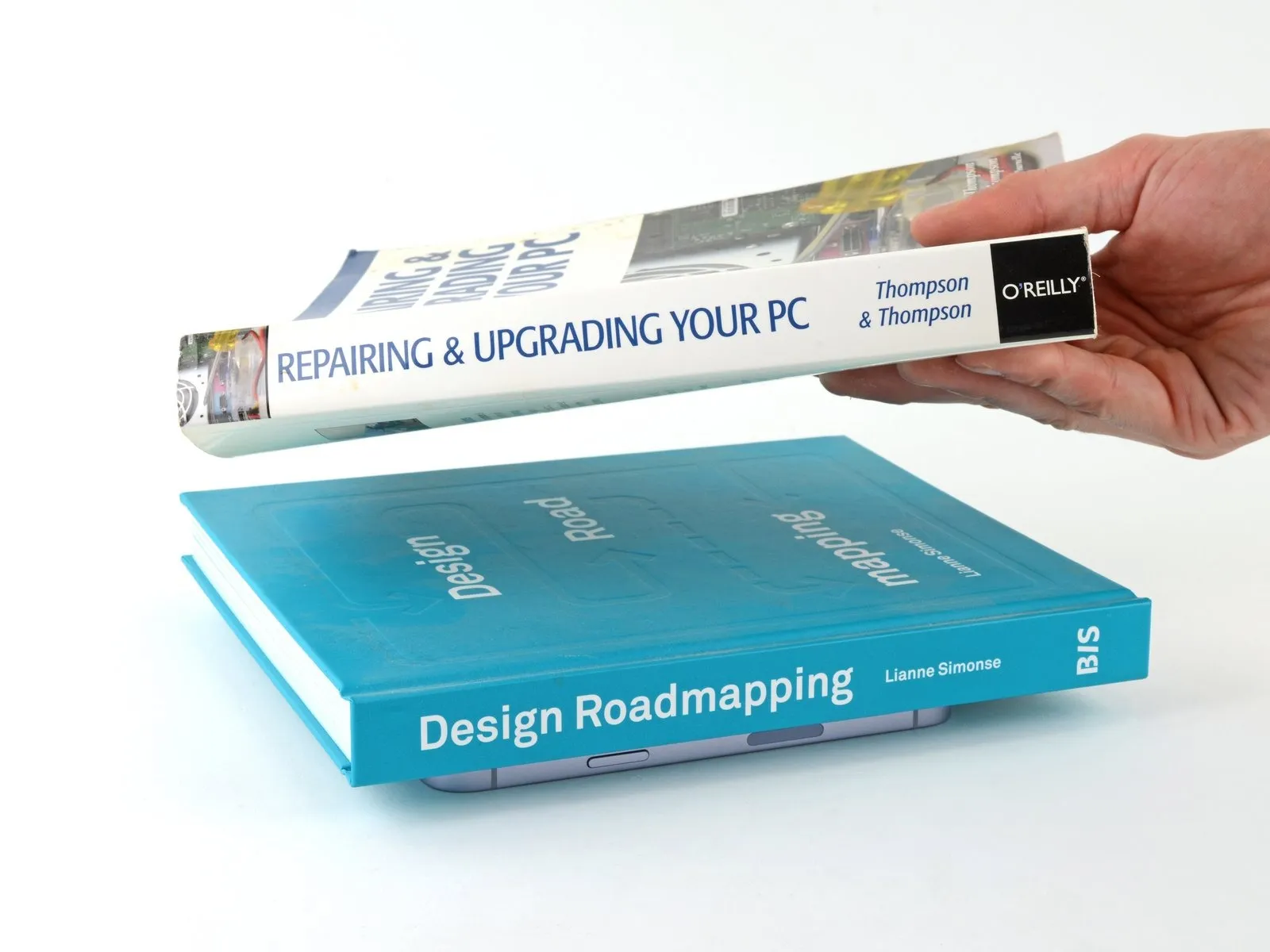

• To apply downward pressure, position several books or similarly weighty items on top of your iPhone.A cautionary remark: the metallic coins could potentially create a mark on the lower book's surface, therefore refrain from utilizing precious or irreplaceable materials.
  Maintain the stacked books' position for a minimum of thirty minutes to ensure adequate compression.For thinner volumes, extending the duration to overnight is recommended to achieve optimal results.

• The applied weight facilitates the realignment of internal components within the device.Ensure the stability of the stack to prevent the iPhone from shifting during the compression period.

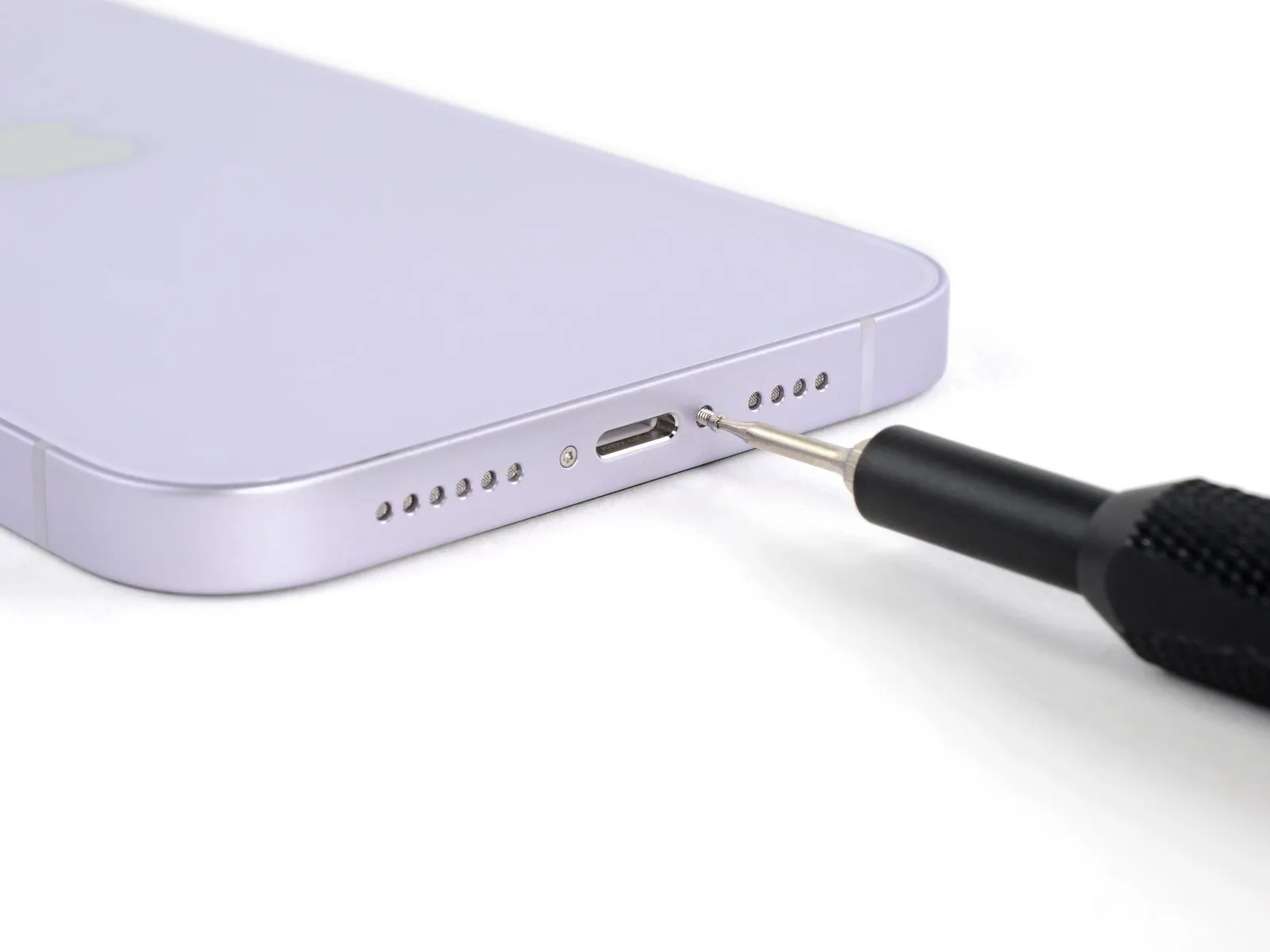

Employ the P2 pentalobe driver tool for screw installation.Secure the two screws within the lower border of the iPhone using the aforementioned driver.
